Product Type	Double-Wall Range Hood
Brand	Best
Model	CPDI602SB
Width	149.5 cm (58 7/8 in)
Depth	57.2 cm (22 1/2 in)
Height	14.9 cm (5 7/8 in)
Weight	46 kg (102 lb)
Power Supply	120 V, 60 Hz, GFCI protected circuit
Lighting Power	4 halogen bulbs 120 V, 50 W (GU10)
Duct Type	Round 25 cm (10 in), metal
Minimum Distance Above Cooking Surface	91 cm (36 in)
Fan Controls	4 positions: off, low, medium, high
Heat Sentry Thermostat	Yes – automatically turns on fan when excessive heat is detected
Filters	3 dishwasher-safe baffle filters
Grease Trough	Removable, clean regularly
Hood Material	Stainless steel
Installation	Custom, recessed into a wooden hood
Integrated Fans	Yes – internal, not replaceable with other models
Overload Protection	Motor thermal protection device

Frequently Asked Questions - CPDI602SB BEST

What is the minimum installation height above the cooktop?

The minimum height is 91 cm (36 in) between the bottom of the hood and the cooking surface.

How to clean the hood filters?

Baffle filters are removed by pushing them forward and then pivoting downward. They are dishwasher-safe or can be hand washed with mild detergent.

Can I use this hood with a charcoal grill?

No, this unit is not designed for use with a charcoal grill.

What type of bulbs to use and how to replace them?

Use 120 V, 50 W halogen bulbs with GU10 base (MR16 or PAR16). To remove, push up and turn left. The BEST® suction cup (part no. 99526707) makes this easier.

What to do if the fan motor stops and restarts?

The motor is equipped with an overload protection that automatically shuts off in case of overheating. It restarts after cooling. If the problem persists, have the hood serviced.

How does the Heat Sentry thermostat work?

The Heat Sentry thermostat detects excessive heat and turns the fan on to high speed, even if the hood is off. It returns to the normal setting after cooling.

Can I use a solid-state speed control?

No, do not use a solid-state speed control with this unit.

What type of ductwork to use for exhaust?

Use round metal duct 25 cm (10 in). Seal all joints with duct tape.

How to clean the stainless steel surface?

Clean with a soft cloth dampened with warm water and mild soap, always in the direction of the polish. Rinse and dry. Avoid steel wool, abrasive cleaners, or bleach-containing products.

Where to find replacement parts like filters?

Replacement filters are available from your retailer. Refer to the label inside the hood for size and part number.

USER MANUAL CPDI602SB BEST

Suitable for use in damp locations when installed in a GFCI protected branch circuit. Intended for outdoor covered patio or lanai area.

READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 12 to 13.

BEST;Hartford, Wisconsin www.BestRangeHoods.com 800-637-1453

BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770

XP022299(2)

REGISTER YOUR PRODUCT ON LINE AT: www.BestRangeHoods.com/register

For additional information - visit www.BestRangeHoods.com

WARNING WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit is not designed for use with a charcoal grille.
10. This unit must be grounded and protected by a GFCI (Ground Fault Circuit Interruptions).
11. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expenses.
12. Suitable for use in damp locations only when installed in a GFCI protected branch circuit.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn power pack ON when cooking at high heat or when flambeing food (i.e.: Crépes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.

• Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. Your insert motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the power pack serviced.
4. The minimum power pack distance above cooktop must not be less than 36".
5. Two installers are recommended because of the large size and weight of this unit.
6. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
7. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch poweroff at service panel and lock or tag service panel.
8. Because of the high exhausting capacity of this unit, you should make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.
9. To reduce the risk of fire and electrical shock, the Best models CPD Series should only be installed with built-in blowers. Other blowers cannot be substituted.
10. Please read specification label on product for further information and requirements.

- CPD HOOD LINER SYSTEM -

1. INSTALL DUCTWORK AND ELECTRICAL WIRING

INSTALLATION

Install proper-sized ductwork, elbows and roof or wall cap for the type of blower you are installing. Use 10" round ductwork. Use metal foil duct tape to seal duct joints.

The minimum hood liner distance above cooktop must not be less than 36".

Distances over 36" are at the installer and users discretion.

Run 3-wire power supply cable to installation location. Its length should extend at least 4 feet below the bottom of the custom hood.

CPD (DUAL INTERNAL BLOWER)
TYPICAL DUCTWORK

2. PREPARE THE INSTALLATION

WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer.
Make sure that the following items are included:

• Hood Liner

-Accessories:

• Baffle filters (2 for 36" width, 3 for 48" and 60" widths)
• Shielded halogen lamps (120 V, 50 W, MR16 with GU10 base or PAR16 with GU10 base) (2 for CPDI362, 4 for all other models)
• 10" round adapter
• Bag of parts including: 12 - #8 x 12 flat head screws (16 - for CPDI602), 4 - M4 x 6 pan head screws, 1 - suction cup tool, 3 - wire nuts

Parts sold separately:

• Ducts, elbows, wall and roof caps. Refer to pages 3 and 4 for a complete list of venting options and model numbers.

NOTE: During installation, protect countertop and/or cooktop.

3. CUSTOM HOOD PREPARATION

WARNING

When building a custom hood, always follow all applicable construction codes and standards.

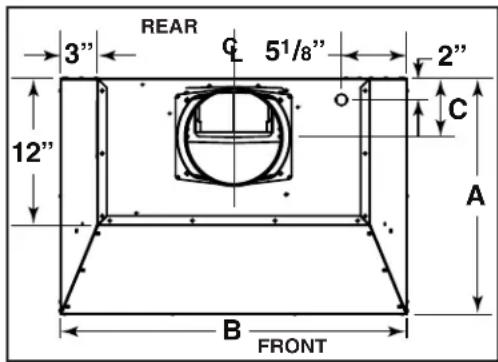

The custom hood must be constructed to fit the size and shape of the CPD hood liner. See chart and illustration for details.

HOOD LINER TOTAL		WEIGHT	RANGE HOOD DIMENSIONS
SERIES MODEL *A *B
CPD	CPDI362	73 LB	22½” 34	¾” 5	½”
	CPDI482	88 LB	22½” 46	¾” 5	½”
	CPDI602	102 LB	22½” 58	¾” 5	½”

• Dimensions A and B include rivets head.

To minimize the gap around the hood liner, take actual width and depth measurements of hood liner and add 1 / 16 to get D and E measurements. Cut the hole in the bottom of the cabinet according to dimensions. See chart and illustration for details.

HOOD LINER		CUTOUT DIMENSIONS
SERIES	MODEL	D	E
CPD	CPDI362	22%	34%
	CPDI482	22%	46%
	CPDI602	22%	58%

4. MOUNT CUSTOM HOOD INTERNAL FRAMEWORK

WARNING

The wood hood must be positively secured to wall studs or other wooden framework behind the drywall. Make sure it is capable of supporting its own weight and the weight of the CPD. Failure to do so may cause personal injury or damage to countertop or cooktop.

The CPD hood liner is supported by the custom hood internal framework with (12) #8 x ½" flat-head screws (16 screws for CPDI602) provided in parts bag.

Since the CPD hood liner mounting holes are located in front and rear sides (see illustration at right), plan to install wood frame at front and sides for support.

5. REMOVE BAFFLE FILTERS

Remove tape on filters. Remove filters from power pack and set aside. It is recommended to start with the center filters.

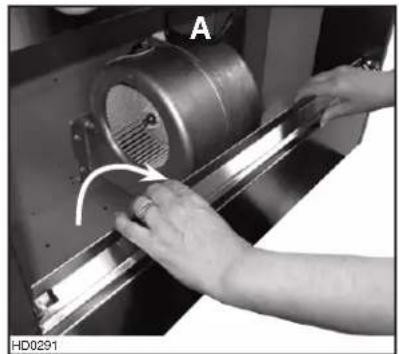

6. REMOVE GREASE DRIP RAIL

A. Lift grease drip rail to disengage it from the bottom panel.

(Blower shown is for reference only and does not represent actual blower in this product.)

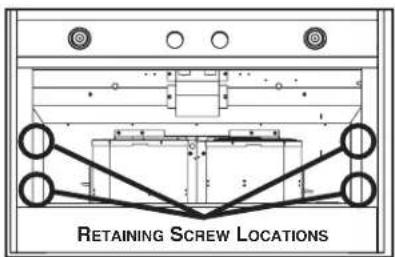

7. REMOVE THE BOTTOM PANEL

Using a Phillips screwdriver, remove both bottom filter filler panels.

BOTTOM VIEW

Disassemble bottom panel, lift up and out, and set aside.

BOTTOM VIEW

8. REMOVE THE KNOCK-OUT OPENING

From inside the hood liner, remove the wiring cover and set aside. Punch out the electrical knockout hole on top of the hood. Install the wire clamp (included in parts bag).

9. INSTALL THE 10" ADAPTER

Using (4) no. M4 x 6 screws from parts bag, assemble the adapter on the top of the hood liner. Seal all joints with metal foil duct tape to eliminate air leaks.

10. CONNECT THE WIRING

WARNING

Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally.

Position the hood liner below the installed custom hood.

INTERNAL BLOWERS: Insert the house wiring cable through the wire clamp previously installed in step 8. Tighten the wire clamp to secure the cable. Connect cable into wiring box using wire connectors. Connect BLACK to BLACK, WHITE to WHITE and GREEN or bare wire under GREEN ground screw. DO NOT FORGET TO CONNECT THE GROUND. Reinstall wiring cover.

11. INSTALL THE POWER PACK

CAUTION

Take care not to kink ducting when installing the power pack.

Using provided screws, install the hood liner inside the custom hood. Start with 2 screws on front corners, then use 4 screws for sides and use the remaining screws to finalize securing the front hood liner. (See figure at right for mounting screw specific locations.)

Make sure the adapter/damper (or the adapter) enters the ducting. When there is access to the top of the hood liner, seal connections with metal foil duct tape.

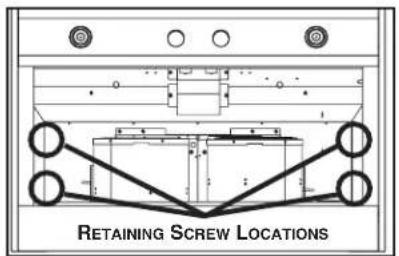

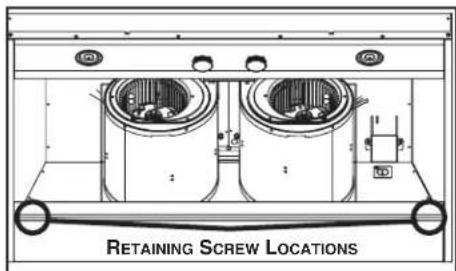

12. REINSTALL BOTTOM PANEL

Lift the bottom panel and engage the hood liner metal tabs in bottom panel slots.

Secure the bottom panel to the hood liner using its screws.

BOTTOM VIEW

Re-install filter filler panels as shown.

BOTTOM VIEW

13. REINSTALL GREASE DRIP RAIL

A. Center the grease drip rail over the bottom panel edge and drop it in place.

(Blower shown is for reference only and does not represent actual blower in this product.)

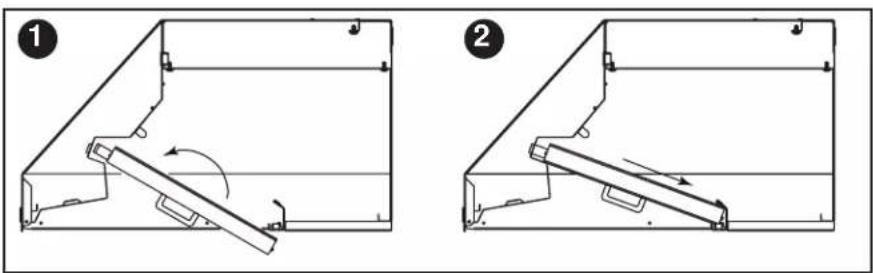

14. REINSTALL BAFFLE FILTERS

CAUTION

Remove protective plastic film covering baffle filters before installing them.

NOTE: It is recommended to install side filters first and finish with center filter(s).

1. Insert one end of baffle filter into the front channel of the hood.

2. Raise the other end toward the inside of hood liner and insert in the grease drip rail of the hood liner.

Replacement filters are available from your dealer. See label inside hood liner for size and part number.

15. LIGHT BULBS

This power pack must use shielded halogen lamps (120 V, 50 W PAR16 with GU10 base, 2 for CPDI362 and 4 for the CPDI482 & CPDI602), included.

NOTE: Before using lamps, remove shipping tape on them (if present).

WARNING

In order to prevent the risk of personal injury, do not install a lamp not suitable for use in enclosed fixtures.

1. Install the lamps by placing the bulb leads into their grooves in the socket.
2. Gently push upwards and turn clockwise until secure.

WARNING

In order to prevent the risk of personal injury, do not install a lamp not suitable for use in enclosed fixtures.

To remove lamps, gently push upwards and turn counterclockwise to disengage bulb leads from their grooves.

NOTE: If need be, use a rubber dishwashing glove to add grip when removing the bulb; or use suction cup tool available from BEST® to ease removal of the bulbs. Contact BEST® Technical Support at 1-800-637-1453 to order suction cup tool, part number 99526707.

16. USE AND CARE

Baffle Filters

The baffle filters should be cleaned frequently. Use a warm detergent solution. Wash more often if your cooking style generates greater grease - like frying foods or wok cooking.

Remove baffle filters by pushing them towards the front of hood liner and rotating filters downward. Baffle filters are dishwasher safe. Allow filters to dry completely before reinstalling them.

Clean all-metal filters in the dishwasher using a non-phosphate detergent. Discoloration of the filter may occur if using phosphate detergent or as a result of local water conditions — but this will not affect filter performance. This discoloration is not covered by the warranty.

Grease Drip Rail

The grease drip rail should be cleaned frequently. Remove it from the hood liner (see step 6 on page 6) and use a warm detergent solution. As with the baffle filters, wash more often if your cooking style generates greater grease — like frying foods or wok cooking. Allow grease drip rail to dry completely before reinstalling it.

Interior Blowers Cleaning

Remove the filters in order to access the blowers. Vacuum blowers to clean. Do not immerse in water.

Hood Liner Cleaning

Stainless steel cleaning:

Do:

• Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.
  Always clean in the direction of original polish lines.
  Always rinse well with clear water (2 or 3 times) after cleaning. Wipe dry completely.
• You may also use a specialized household stainless steel cleaner

Don't:

• Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.
• Use any harsh or abrasive cleansers.
• Allow dirt to accumulate.
• Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the power pack to make sure no dust sticks to stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
  Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

17. OPERATION

Always turn your hood liner on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.

COOKTOP LIGHTING (HALOGEN)

The halogen lighting is controlled by the dial.

• POSITION 1: OFF
• POSITION 2: Low
• POSITION 3: HIGH
• POSITION 4: OFF
• Use 120V , 50W , MR16 with GU10 base or PAR16 with GU10 base, shielded halogen lamps (included).

BLOWER

The blower is controlled by the dial.

• POSITION 1: OFF
• POSITION 2: LOW
• POSITION 3: MEDIUM
• POSITION 4: HIGH
• HEAT SENTRYTM

This hood liner is equipped with a Heat Sentry™ thermostat. This thermostat is a device that will start or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting – it turns the blower up to HIGH speed.

When the temperature level drops to normal, the blower will return to its original setting.

WARNING

The HEAT SENTRY can start the blower during a range top fire or other excessive heat situations even if the hood is turned off. In this case, it is impossible to turn the blower OFF with blower switch. If you must stop the blower, do it from the main electrical panel.

18. WIRING DIAGRAM

MODEL CPDI362SB MODELS CPDI482SB & CPDI602SB

19. WARRANTY

WARRANTY

ONE-YEAR LIMITED WARRANTY

Broan-NuTone LLC ("Broan-NuTone") warrants to the original consumer purchaser of its products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTYES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

During this one-year period, Broan-NuTone will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.

THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES AND BULBS, FUSES, FILTERS, DUCTS, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This warranty does not cover (a) normal maintenance and service or (b) any products or parts which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone), faulty installation or installation contrary to recommended installation instructions.

The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states or provinces do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

BROAN-NUTONE'S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE'S OPTION, SHALL BE THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state or province to another. Any modification performed on this product without the authorization of Broan-NuTone will void this warranty. This warranty supersedes all prior warranties.

To qualify for warranty service, you must (a) notify Broan-NuTone at the address or telephone number stated below, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the time of requesting warranty service, you must present evidence of the original purchase date.

BEST, 926 W. State Street, Hartford, WI 53027 (1-800-637-1453)

BEST, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770)

www.BestRangeHoods.com

Best CPD Series

KEY NO.	PART NO. DESCRIPTION		QTY. (POWER PACK WIDTH)
			36" 48" 60"
1 970	18874 A	DAPTER 10" ROUND 1 1 1
2 980	10930 98010931	GREASE RAIL 36" GREASE RAIL 48" & 60"	1	-	-
			-	1	1
3 970	18875 I	NTERNAL BLOWER (2 REQUIRED)	2	2	2
4 992	271454 C	APACITOR 2 2 2
5 992	271455 C	ONTROL BOARD W/ HEAT SENTRY	1	1	1
6	V05921	SHIELDED HALOGEN LAMPS (120 V, 50 W, GU-10)	2	4	4
7 980	10933 F	ILTER FILLER (PAIR) (FOR 36")	1	-	-
8 980	10936 F	ILTER FILLER (PAIR) (FOR 60")	-	-	1
9 970	18876 B	AFFLE FILTER	2 3 3
10	98010934 F	ILTER SPRING (SET OF 6)	1	1	1
11	97018879 L	AMP SHELL ASSEMBLY	2	4	4
12	99271456 R	OTARY SWITCH	2 2 2
*	97018878 P	ARTS BAG	1 1 1
* 995	26707 S	UCTION CUP BULB REMOVAL TOOL	1	1	1

*NOT SHOWN.

beot

SÉRIE CPD

BEST;Hartford, Wisconsin www.BestRangeHoods.com 800-637-1453

BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770

ENREGISTREZ VOTRE PRODUIT EN LIGNE À: www.BestRangeHoods.com/register XP022299(2) Pour de plus amples informations - visitez www.BestRangeHoods.com

AVERTISSEMENT AVERTISSEMENT

AFIN DE RÉDUIRE LES RISQUES D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES CORPORELLES, VEUILLEZ OBSERVEZ LES DIRECTIVES SUIVANTES :

BEST, 926 W. State Street, Hartford, WI 53027 (1-800-637-1453)
BEST, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770)
www.BestRangeHoods.com

Serie Best CPD

REPÈRE	N° DE PIECE DESCRIPTION		QTE (LARGEUR DE LA HOTTE)
			91 CM(36 PO)	122 CM(48 PO)	152 CM(60 PO)
1	97018874	ADAPTATEUR ROND DE 25 CM (10 PO)	1	1	1
2 980	10930	GOUTTIÈRE À GRAISSES DE 91 CM (36 PO)	1	-	-
	98010931	GOUTTIÈRE À GRAISSES DE 122 CM (48 PO) ET 152 CM (60 PO)	-	1	1
3 970	18875 V	ENTILATEUR INTERNE (2 REQUIS)	2	2	2
4 992	71454 C	ONDENSATEUR 2 2 2
5 992	71455 T	ABLEAU DE COMMANDE AVEC HEAT SENTRY	1	1	1
6	V05921	AMPOULES HALOGENES À ÉCRAN (120 V, 50 W, GU-10)	2	4	4
7 980	10933 P	ANNEAU DE FILTRE (PAIRE) (POUR 91 CM / 36 PO)	1	-	-
8 980	10936 P	ANNEAU DE FILTRE (PAIRE) (POUR 152 CM / 60 PO)	-	-	1
9 970	18876 F	ILTRE DE DÉFLECTEUR	2	3	3
10	98010934 R	ESSORT DE FILTRE (JEU DE 6)	1	1	1
11	97018879 E	NSEMBLE DE DOUILLE D'AMPOULE	2	4	4
12	99271456	COMMUTATEUR ROTATIF	2 2 2
* 970	18878 C	OMMUTATEUR ROTATIF	1 1 1
* 995	26707 V	ENTOUSE POUR AMPOULE	1	1	1

*NONILLUSTRE.

99044954C

beot

SERIE CPD

BEST;Hartford, Wisconsin www.BestRangeHoods.com 800-637-1453

BEST; Drummondville, QC, Canada www.BestRangeHoods.com 866-737-7770

XP022299(2)

REGISTRE SU PRODUCTO EN LINEA EN: www.BestRangeHoods.com/register

Si desea informacion adicular, visite www.BestRangeHoods.com

BEST, 926 W. State Street, Hartford, WI 53027 (1-800-637-1453)
BEST, 550 Lemire Blvd., Drummondville, QC, Canada (1-866-737-7770)
www.BestRangeHoods.com

Best Serie CPD

CLAVE N.°	N.° DE PIEZA	DESCRIPICón	CANT. (ANCHO DEL PAQUETE DE POTENCIA)
			36 pulg. (91 cm)	48 pulg. (122 cm)	60 pulg. (152 cm)
1	97018874	ADAPTADOR REDONDO DE 10 PULG. (25 CM)	1	1	1
2	98010930	RIEL PARA GRASA DE 36 PULG. (91 CM)	1	-	-
	98010931	RIEL PARA GRASA DE 48 PULG. (122 CM) Y 60 PULG. (152 CM)	-	1	1
3	97018875 V	ENTILADOR INTERNO (SE REQUIEREN 2)	2	2	2
4	99271454 C	APACITOR	2 2 2
5	99271455 T	ARJETA DE CONTROL CON HEAT SENTRY	1	1	1
6	V05921	LÁMPARAS DE HALÓGENO PROTEGIDAS (120 V, 50 W, GU-10)	2	4	4
7	98010933 R	ELLENO DE FILTRO (PAR) (PARA 36")	1	-	-
8	98010936 R	ELLENO DE FILTRO (PAR) (PARA 60")	-	-	1
9	97018876 F	ILTRO DEFLECTOR	2 3 3
10	98010934 R	ESORTE PARA FILTRO (JUEGO DE 6)	1	1	1
11	97018879 C	ONJUNTO DE CUBIERTA DE LÁMPARA	2	4	4
12	99271456 I	NTERRUPTOR GIRATORIO	2 2 2
*	97018878 B	OLS ACON PIEZAS	1	1	1
*	99526707 H	ERRAMIENTA PARA QUITAR BOMBILLAS CON TAZA DE SUCCION	1	1	1

NOSE MUESTRA.

99044954C
