USER MANUAL GDK 1100 SOMFY

Installation and operating guide

Metallic mechanical component with a circular recess and diagonal bracing, shown without any text or symbols.

Sommaire

Technical diagram of a mechanical assembly with labeled components and an inset view showing a screw and housing assembly.

Diagram of a garage or lift system with labeled components A, B, C, and D showing structural connections and safety elements.

Two 3D diagrams showing a yellow panel mounted on a vertical structure, with arrows indicating rotation and upward movement (no text or symbols)

i

Technical diagram showing a mechanical component with dimension labels D and a rotation arrow indicating rotational motion.

Simple line drawing of a right-angle bracket with no text or symbols

i

Diagram of a mechanical or electrical component with internal structure and directional arrows (no text or symbols)

Diagram of a mechanical or structural assembly with a vertical panel and horizontal supports, showing directional arrows (no text or symbols)

200 mm max. Ø8 x 50 = = C

i

Technical diagram showing labeled components A and B with annotations C and D pointing to structural elements.

1

C Ø8 x 50

Technical diagram illustrating a mechanical assembly with labeled components and a magnified detail showing measurement setup.

Technical illustration of a mechanical assembly with magnified detail (no text or symbols)

Technical diagram showing assembly of a mechanical component with magnified views highlighting internal components and assembly steps.

Technical diagram illustrating assembly steps of a mechanical component with magnified views and dimension annotations

Diagram of a mechanical lever system with an inset showing a moving cart and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram showing two mechanical assembly setups with vertical bars and a bracket, no text or symbols present

Technical line drawing of a mechanical assembly with mounting holes and a beam (no text or symbols)

1 h < 255 mm E L F N h

Technical illustration of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols present)

Technical diagram showing three stages of a mechanical assembly with labeled parts and dimension annotations

Technical line drawing of a mechanical linkage assembly (no text or symbols)

1

Diagram showing a bent metal bracket being rotated, with no text or symbols present.

2

Technical line drawing of a mechanical linkage assembly with an inset showing a close-up view of the joint (no text or symbols present)

Diagram of a car suspension system with a lever and valve (no text or labels)

Technical diagram showing mechanical assembly with labeled parts and directional arrows, including a magnified inset of the component.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a medical device with ports and a close-up view showing internal components (no text or symbols)

Line drawing of a mechanical device with directional arrows indicating motion (no text or symbols)

Line drawing of a medical device with a central hub and control panel (no text or symbols)

Diagram illustrating a hand interacting with a device labeled A and B, followed by a plus sign and a directional arrow indicating rotation or change.

Diagram illustrating a collision between a car and a stop sign, with arrows indicating collision and stop condition.

Technical line drawing of a mechanical component or assembly (no text or symbols visible)

Mechanical assembly diagram showing a suspended cylindrical component with a downward arrow indicating motion (no text or symbols present)

Illustration of a person using a tool to lift a wall, with no text or symbols present.

Mechanical assembly diagram showing a lever and chain with motion arrow (no text or symbols)

CLAC !

White electronic device with two labeled components: Ni-Cd and Cd, connected by a black cable (no visible text or symbols beyond labels)

Diagram showing a battery connected to a circuit board with an inset photo of a battery labeled 'Batt. Flash'.

Diagram showing a key inserted into a lock and connected to an electrical panel with labeled pins and a plus button.

Diagram showing a solar panel connected to a power supply unit with an inset photo of a battery flash switch labeled 'Batt. Flash'.

Diagram of a mechanical device with a rotating arrow and handle, no text or symbols present

Diagram showing a device with a top view and a close-up of its internal structure, no text or symbols present.

The image is too blurry to recognize any text content.

CP240 L 3V +

• Remplacer la pile (3 V CR 2430).

●

3D mechanical assembly diagram showing a device with mounting holes and internal components (no text or symbols)

• Kit contents 2
• Space requirements 3
• General view of the installation 3

Field of application 4

• Types of doors which can be motorised 4
• Maximum dimension of doors 4

Prerequisites for installation 5

• Tools and screws necessary for installation (not supplied) 5
• Recommendations for fastening (screws not included in the kit) 5

1 Installation 6

1.1 Implementation of fastenings 6 - Fastening the lintel and door brackets 7
1.2 Assembly 8 - Assembling the rail in 3 sections 8 - Assembling the rail to the motor head 10 - Fastening the unit to the ceiling 11
1.3 Mounting 11 - Fastening the unit to the lintel bracket 11 - Fastening the unit to the ceiling 11 - Fastening the link arm to the door and the carriage 12
1.4 Settings 13 - Adjusting and fastening the opening stop 13 - Checking the tension of the belt 13

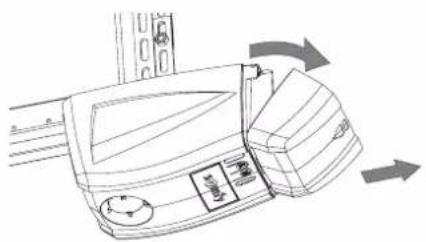

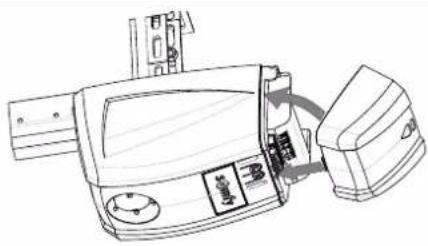

1.5 Assembling/disassembling the cover 14
1.6 Electrical connection to the power supply 14

2 Programming 15

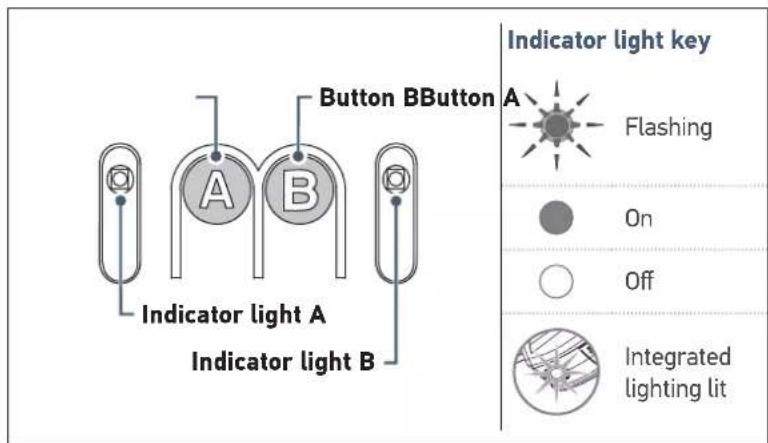

2.1 Parameter setting 15 - Description of the programming buttons 15 - Performing auto-programming 15 - Checking the mechanical setting of the door 17
2.2 Advanced settings 17

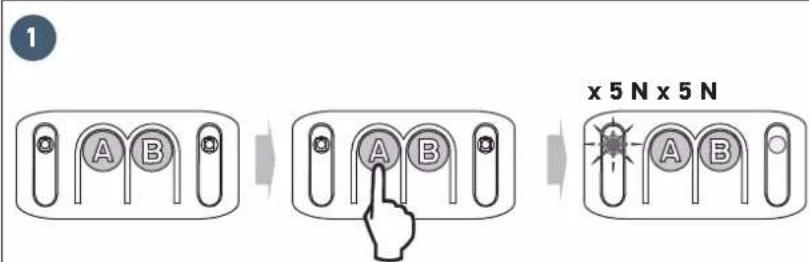

2.3 Locking/unlocking the parameters menu 19

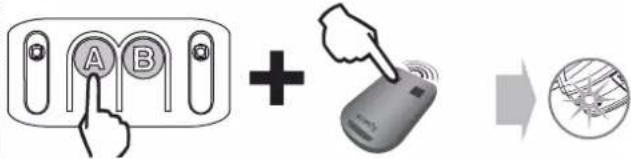

2.4 Memorising the remote controls 20
2.5 Clearing the remote controls 21
2.6 Reinitialising the settings 21
2.3 Locking/unlocking the parameters menu 19
2.3 Locking/unlocking the parameters menu 19
2.4 Memorising the remote controls 20
2.5 Clearing the remote controls 21
2.6 Reinitialising the settings 21

3 Operation 22

3.1 User training 22
3.2 Using the remote controls 22 - Using the remote control with door closed 22 - Using the remote control with door open 23 - Using a 3-button remote control 23

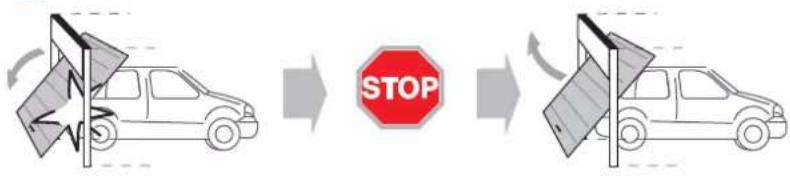

3.3 Obstacle detection mode 24
3.4 Integrated lighting operation 24
3.5 Manual back release mode 25
3.6 Operation after a power outage 25

4 Accessories 26

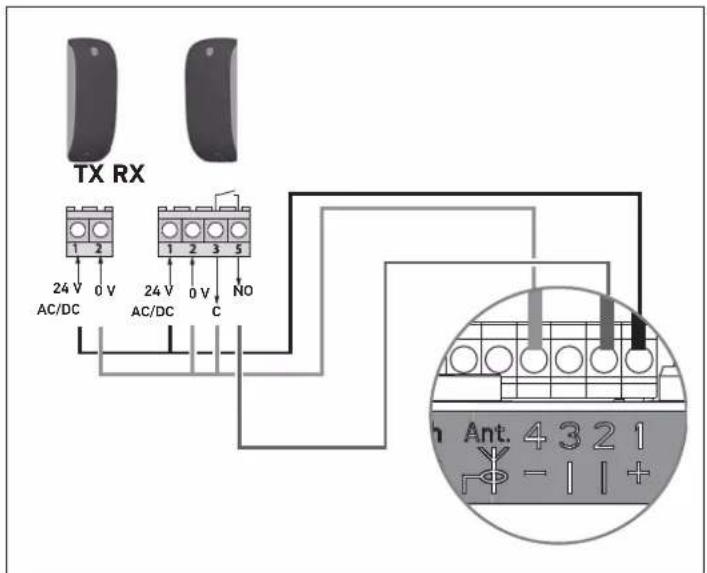

4.1 Connecting the photoelectric cells 26

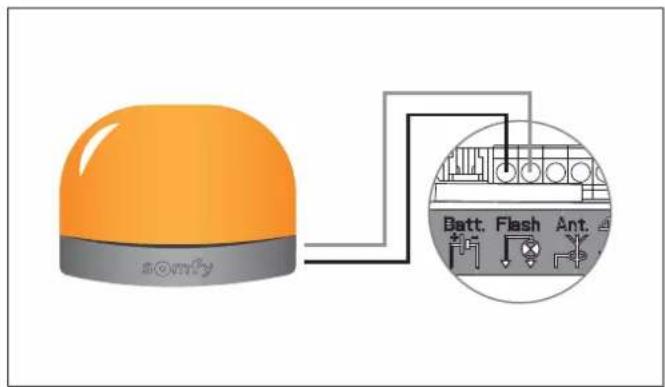

4.2 Connecting the flashing light 26

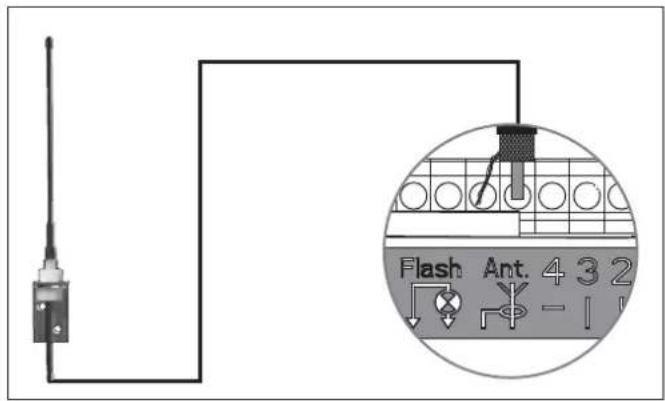

4.3 Connecting the remote antenna 27

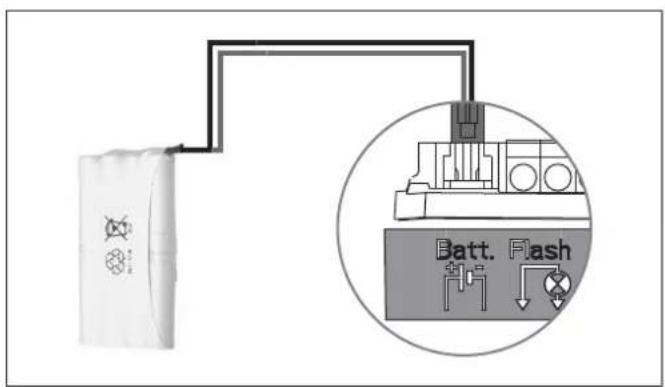

4.4 Connecting the back-up battery 27

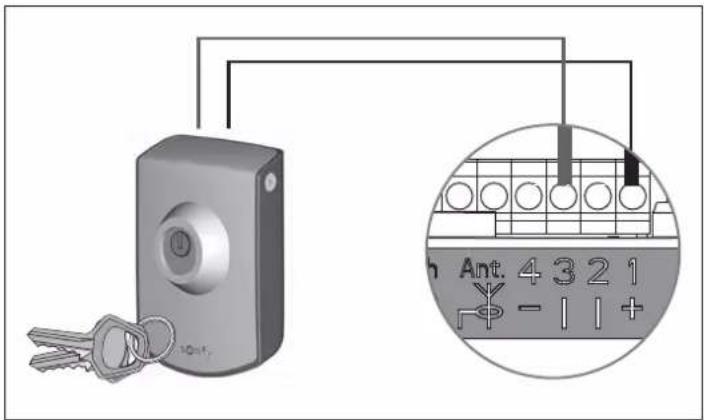

4.5 Connecting the key contact 28

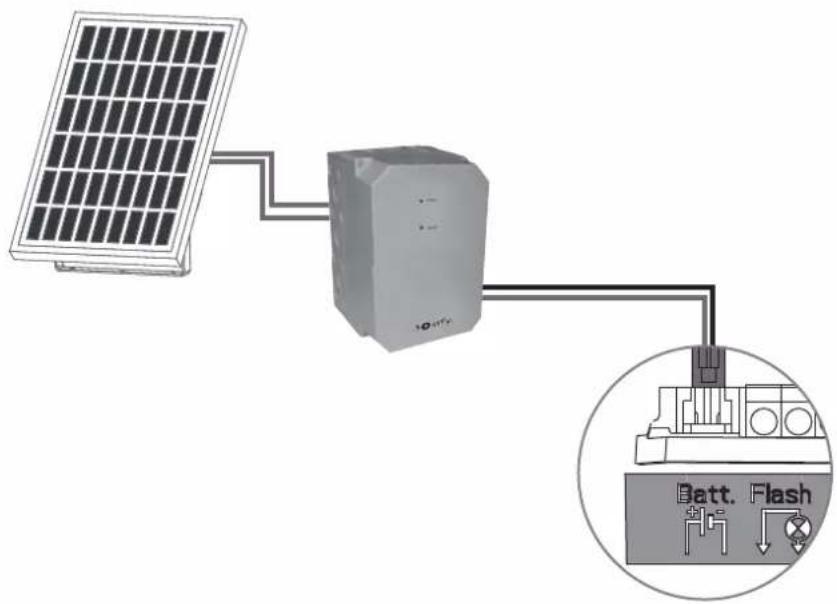

4.6 Connecting the solar kit 28

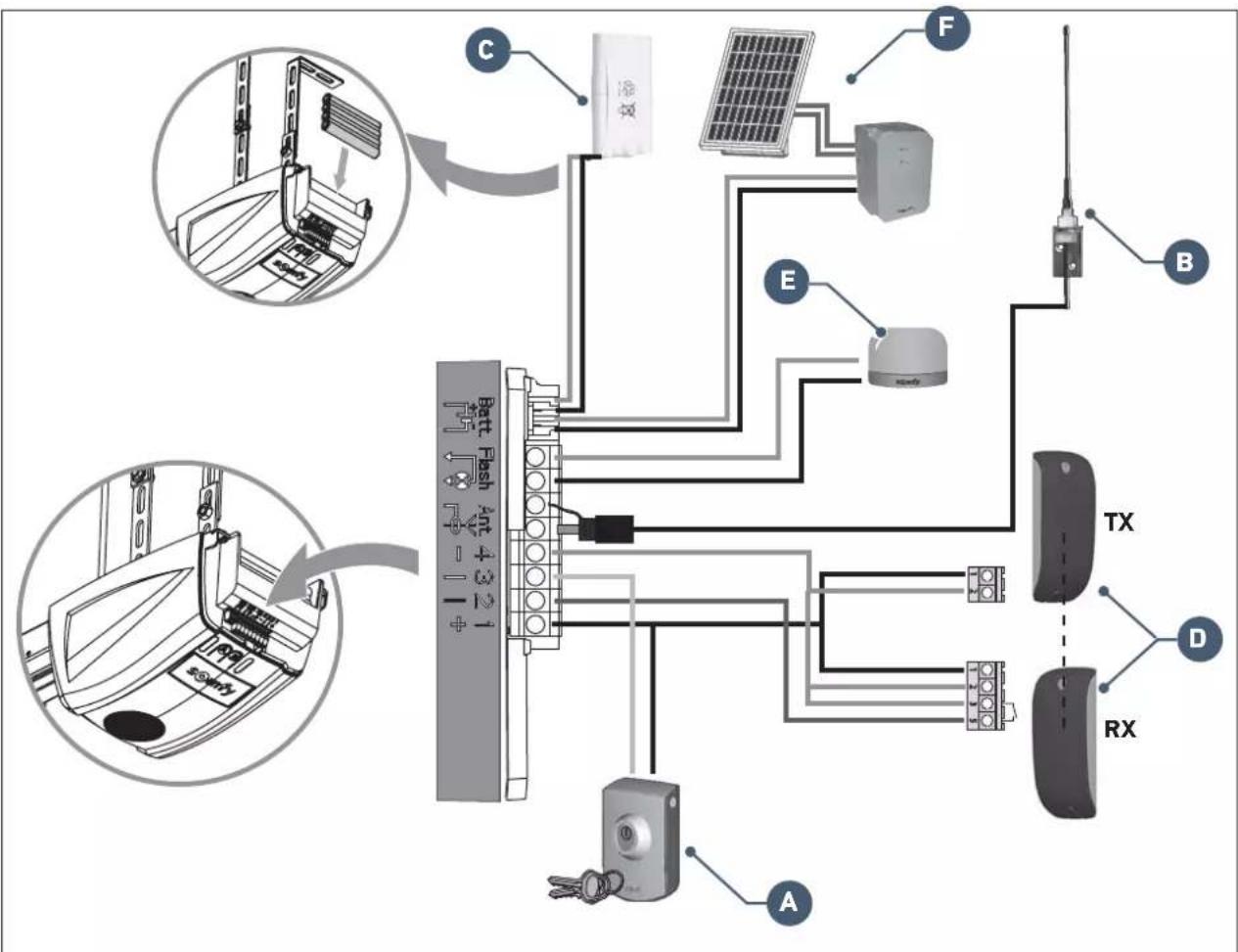

4.7 Accessories general wiring diagram 29

5 Maintenance and repairs 30

5.1 Periodic checks 30
5.2 Diagnostics 30
5.3 Assistance 30
5.4 Changing the remote control battery 31

6 Technical data 32

We recommend you have at least two people to install this product.

Product presentation

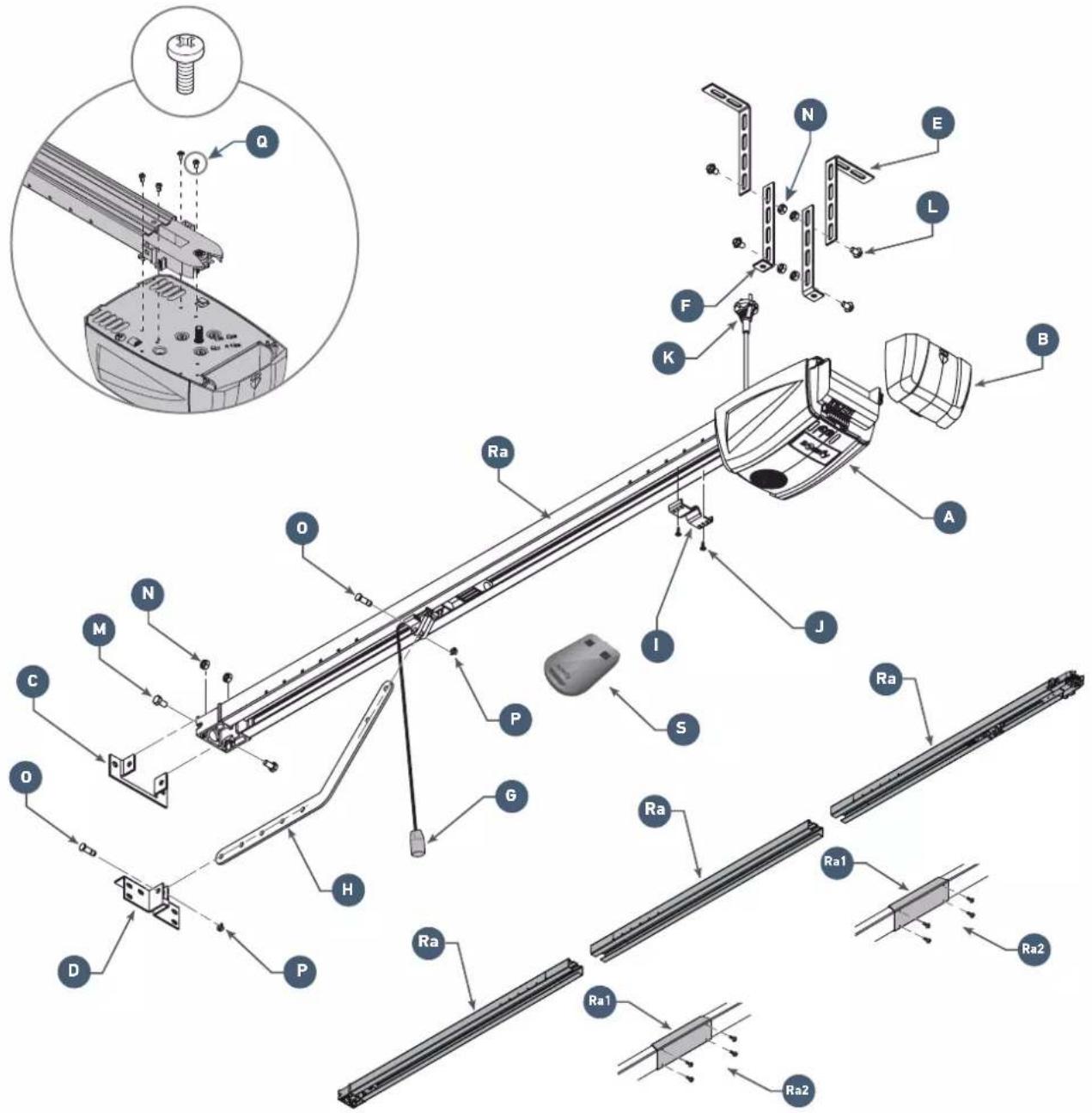

▶ Kit contents

Technical diagram of a mechanical assembly with labeled components and an inset view showing a screw and housing assembly.

Mark	Designation
A	Motor head x 1
B Flap x 1
C Lintel bracket x 1
D Door bracket x 1
E Ceiling mounting bracket x 2
F Motor head mounting bracket x 2
G Manual back release device x 1
H Connecting arm x 1
I End limit stop x 1
J TCB-H 4.2x13 zn self-tapping screws x 2
K Power supply cord	x 1

Mark	Qty	Designation
L	TH10 M8x12 zn washer screws		x 4
M	TH M8x16 zn screws		x2
N	HU8 nut		x 6
O Shaft		x 2
L Circlips		x 2
Q Thread-forming screws ∅ 4x8 (motor head)			x 4
Ra	3-part rail		x 1
Ra1	Sleeve		x 2
Ra2	Thread-forming screws ∅ 4x8 (sleeves)		2 x 4
S Remote control		x 2

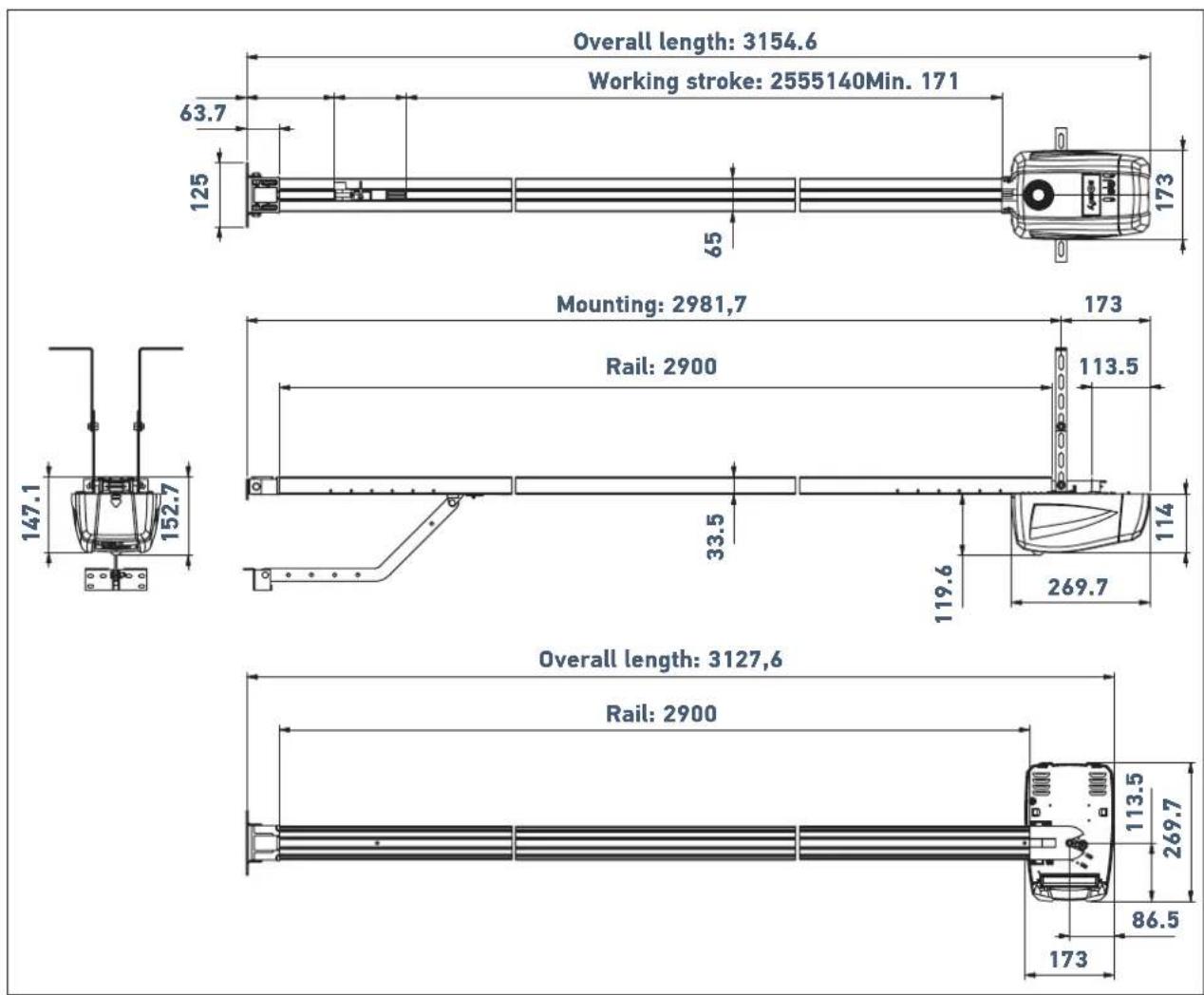

▶ Space requirements

Overall length: 3154.6 Working stroke: 2555140Min. 171 63.7 125 65 173 Mounting: 2981,7 173 Rail: 2900 113.5 147.1 152.7 33.5 119.6 269.7 Overall length: 3127,6 Rail: 2900 113.5 269.7 86.5 173

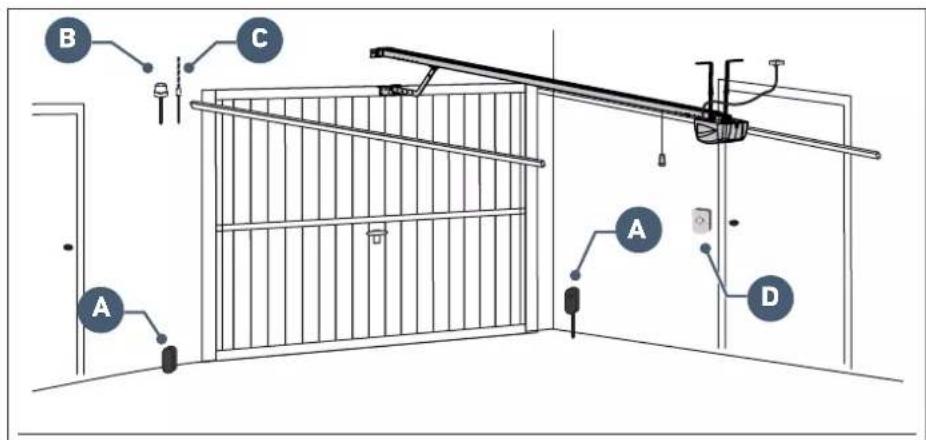

▶ General view of the installation

Diagram of a garage or lift system with labeled components A, B, C, and D showing structural connections and safety elements.

if the garage door is the sole means of access to the garage, install an external back release device (ref. 2400658 or ref. 9012962).

Mark Designation Type of cable
A	Photoelectric cells 4 x 0.5 mm	^2 (RX receptor cell) 2 × 0.5 mm^2 (TX emitter cell)
B	Flashing light 2 x 0.5 mm	^2
C	Aerial -
D	Key lock 2 x 0.5 mm^2

Area of application

This drive is exclusively intended to equip a garage door designed for residential use.

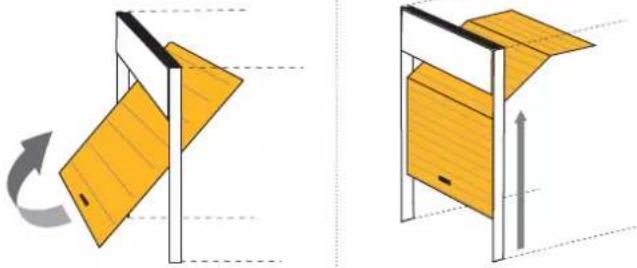

▶ Types of doors which can be motorised

Up-and-over door Sectional door

Two diagrams showing a yellow panel mounted on a vertical structure, with arrows indicating rotation and movement (no text or symbols)

i

If the upper profile

A of the panel is specific, use the mounting bracket

for sectional door, ref.:9009390.

▶ Maximum dimension of doors

Up-and-over door and sectional door

H (m) 2,35 2,90 m 3,00 L (m)

Max. surface area = 7 m ^2

Max. weight = 70 kg

Prerequisites for installation

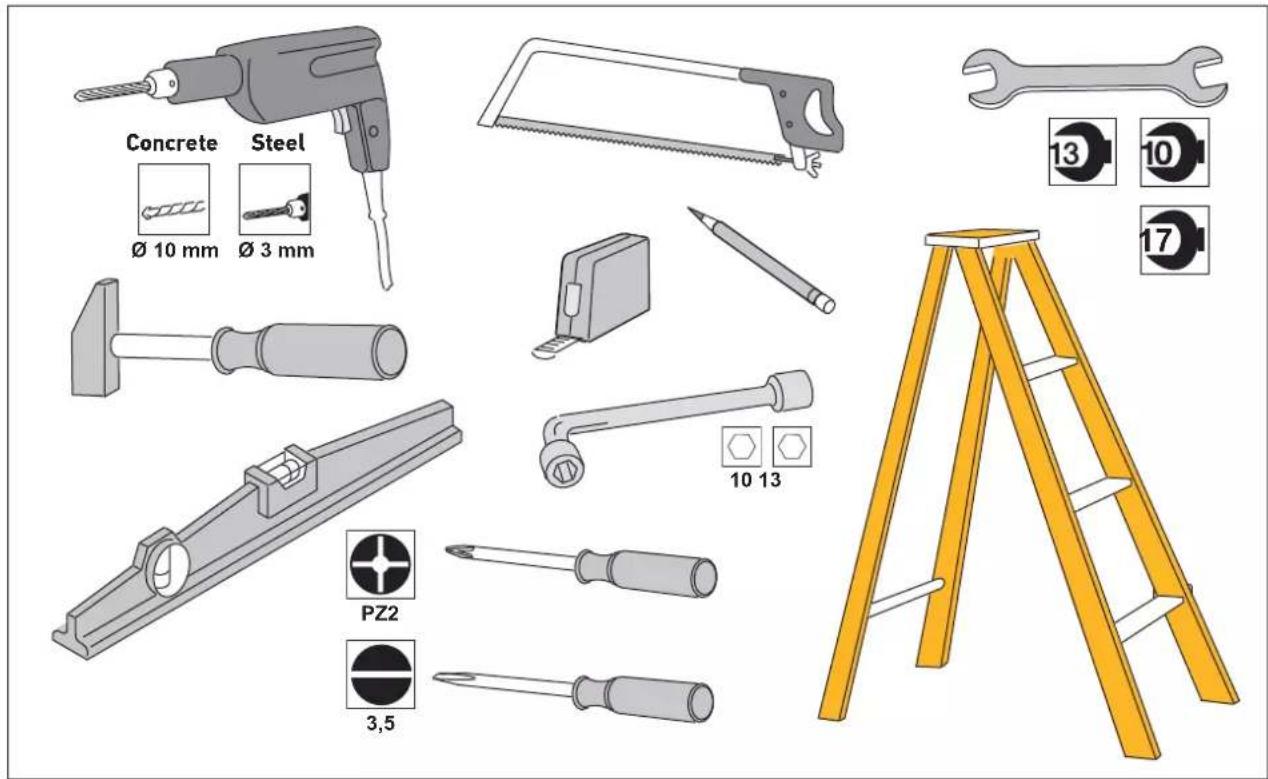

▶ Tools and screws necessary for installation (not supplied)

Concrete Steel Ø 10 mm Ø 3 mm PZ2 3,5 10 13 13 10 17

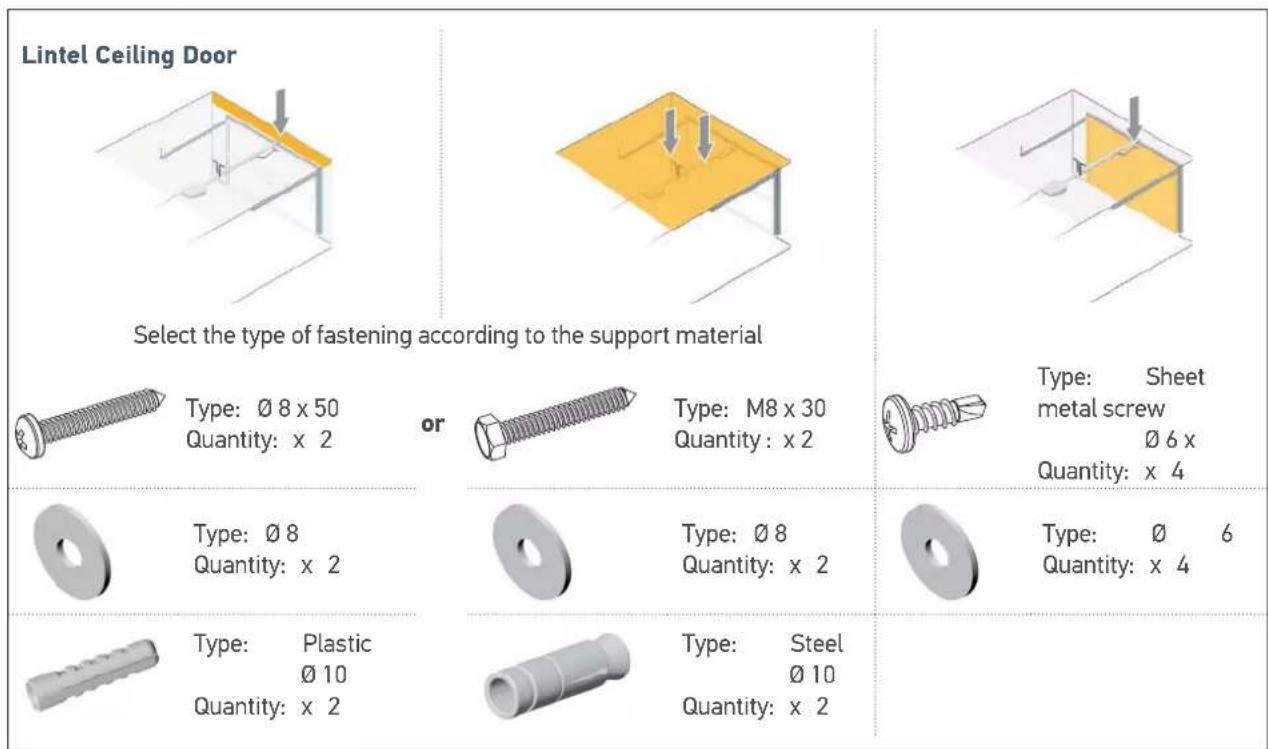

▶ Recommendations for fastening (screws not included in the kit)

Lintel Ceiling Door Select the type of fastening according to the support material Type: Ø 8 x 50 Quantity: x 2 or Type: M8 x 30 Quantity: x 2 Type: Sheet metal screw Ø 6 x Quantity: x 4 Type: Ø 8 Quantity: x 2 Type: Ø 8 Quantity: x 2 Type: Ø 6 Quantity: x 4 Type: Plastic Ø 10 Quantity: x 2 Type: Steel Ø 10 Quantity: x 2

1.1 Implementation of fastenings

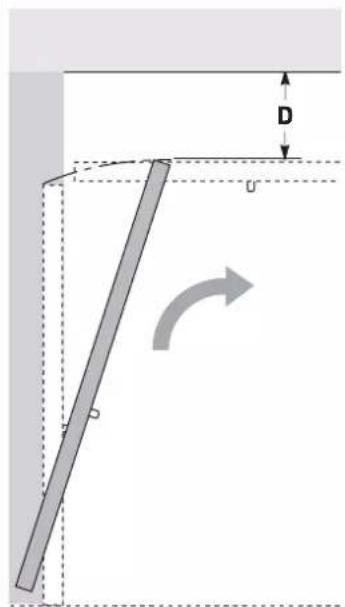

Measure the distance "D" between the highest point of the door and the ceiling.

Technical diagram showing a mechanical component with dimension D and rotation arrow, likely illustrating a structural or mechanical assembly.

Case 1: Drive against ceiling

If "D" is between 35 and 200mm , secure the assembly directly to the ceiling.

35 < D < 200

Pure architectural line drawing of a corner beam with no text or symbols

i

Diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

When installing, centre the assembly in relation to the garage door.

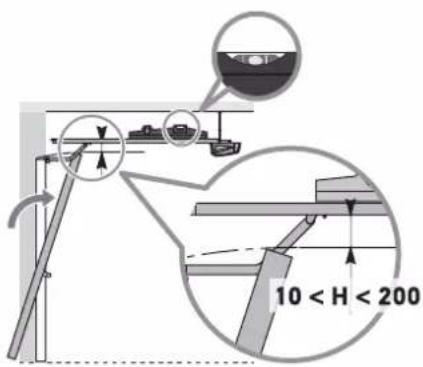

Case 2: Drive not against ceiling

If "D" is greater than 200 mm, secure the assembly so that the height "H"* is between 10 and 200 mm.

* H = distance between the bottom of the rail and the highest point of the door.

D > 200

10 < H < 200

i

Diagram of a mechanical or electrical component with a vertical panel and horizontal beam, showing motion direction (no text or symbols)

When installing, centre the assembly in relation to the garage door.

i

To facilitate taking dimensions on the lintel: once “D” has been measured, determine “H” by subtracting 10 from 200 mm from “D”. Then mark this value on the lintel from the ceiling. The mark indicates the lower position of the lintel bracket.

▶ Fastening the lintel and door brackets

▶ Case 1: Drive against ceiling

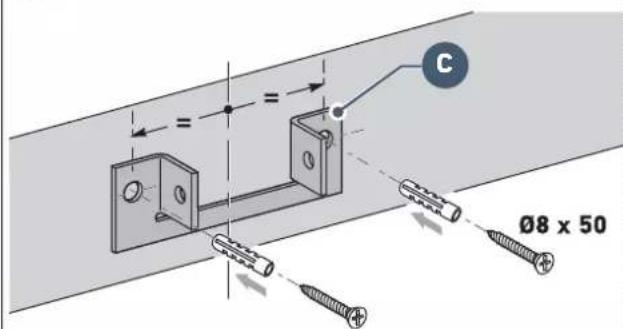

Bracket fixed to the lintel

Ø8 x 50 P4-LS

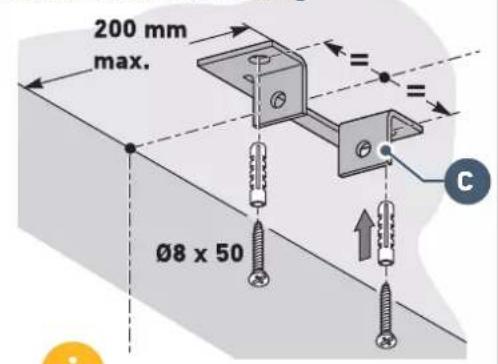

Bracket fixed to the ceiling

200 mm max. Ø8 x 50 C

i

To optimise the motor travel, offset the bracket by max. 200 mm in relation to the lintel.

Ø6 x 30 D Ø6 x 30

1

• Centre the lintel bracket in relation to the garage door.
• The bracket can be fastened either to the lintel or directly to the ceiling.

2

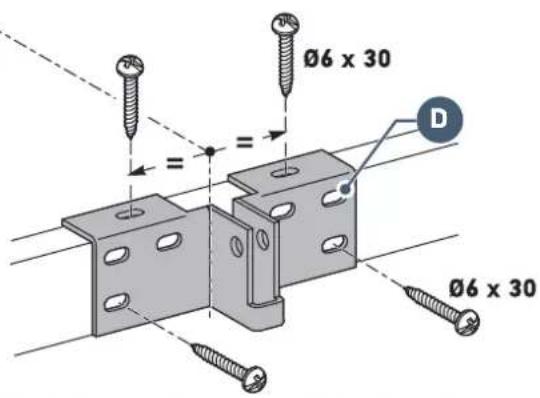

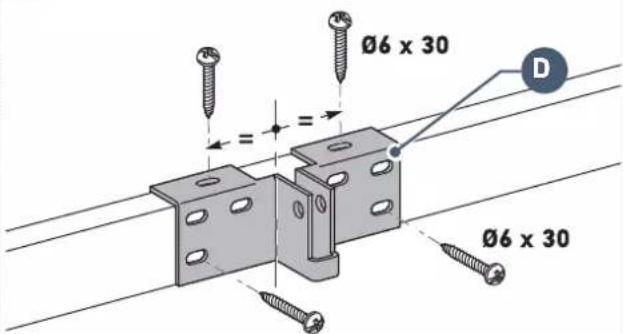

• Centre the door bracket in relation to the top of the door.
• Attach the bracket.

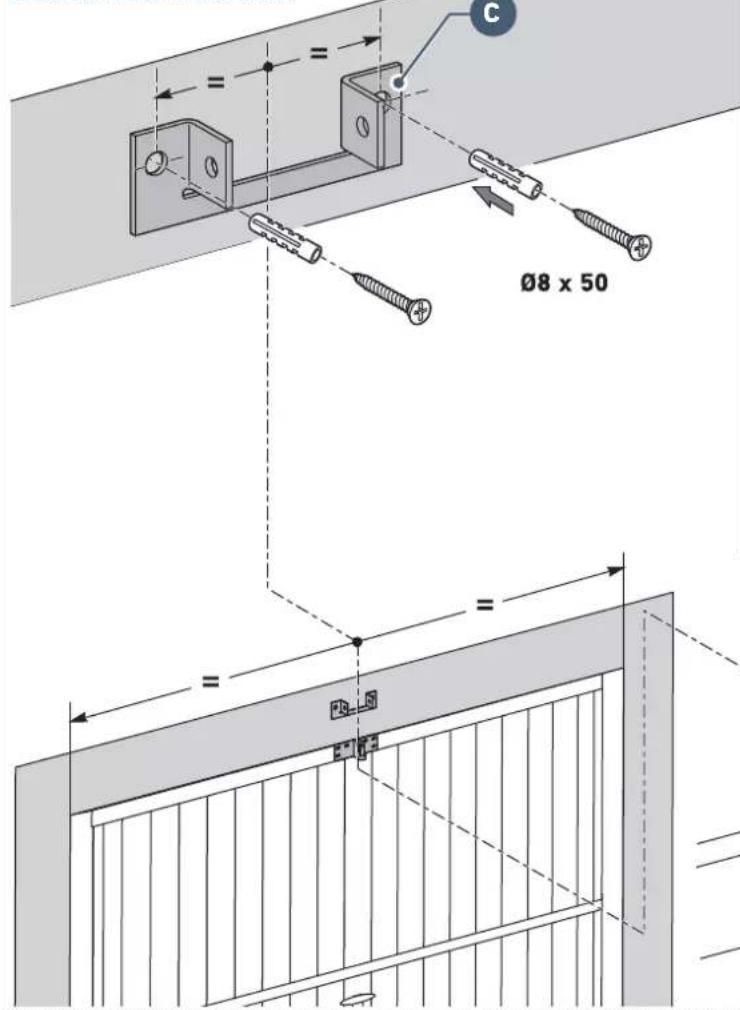

▶ Case 2: Drive not against ceiling

Technical diagram showing labeled components A and B with annotations C and D pointing to structural elements.

1

C Ø8 x 50

• Centre the lintel bracket in relation to the garage door.
• Attach the bracket.

2

Ø6 x 30 Ø6 x 30

• Centre the door bracket in relation to the top of the door.
• Attach the bracket.

1.2 Assembly

▶ Assembling the rail in 3 sections

1

Technical diagram illustrating a mechanical assembly with labeled components and a magnified detail showing measurement setup.

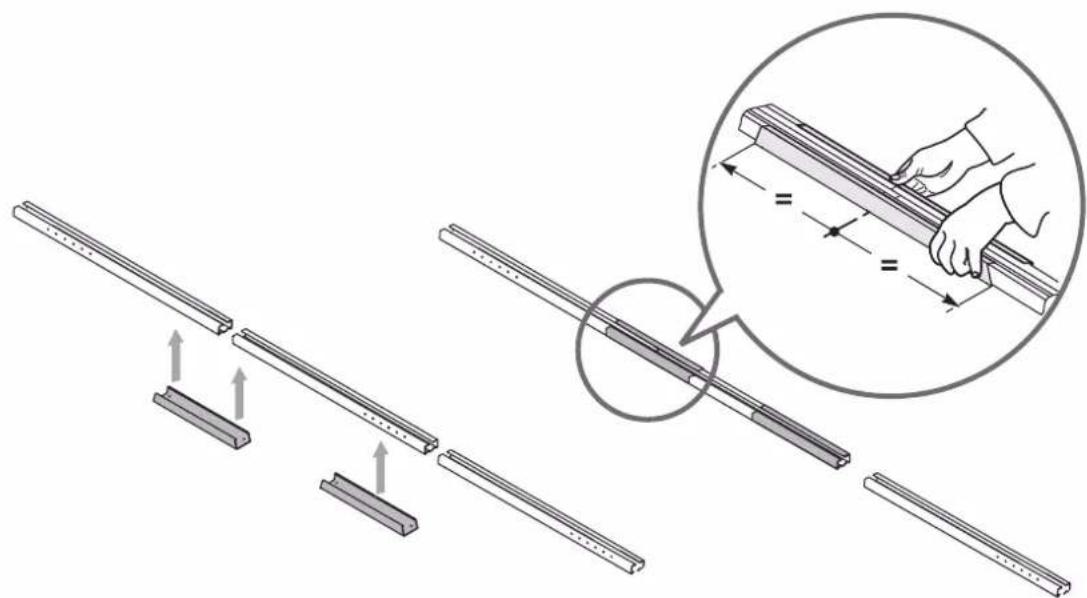

• Align the 3 sections of the rail.
• Assemble two rail sections with a sleeve and leave the third section aligned with the first two.
• Align the sleeve on the section joins.

Technical illustration of a mechanical assembly with magnified detail (no text or symbols)

Check that the belt inside of the rail is not twisted.

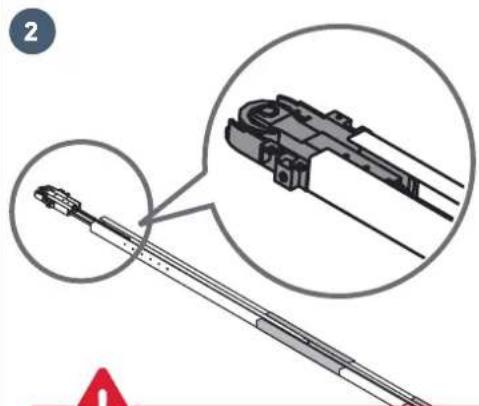

• Fit the belt into the rail.
- Assemble the motor head mounting end piece to the rail.

Technical diagram showing assembly of a mechanical component with magnified views highlighting internal components and assembly steps.

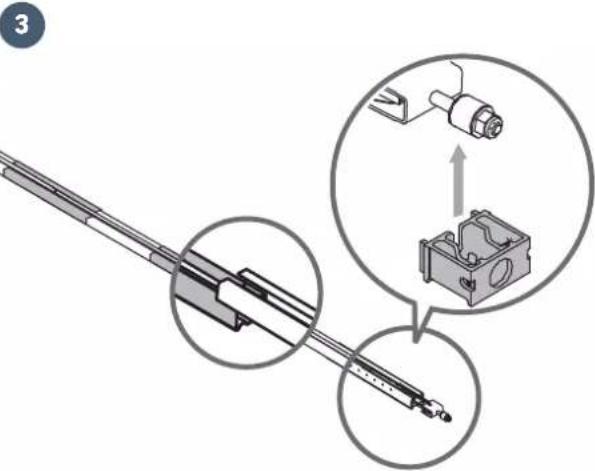

• Fit the third section end piece to the second section.
- Assemble the lintel bracket end piece on the rail.

Technical diagram illustrating assembly steps of a mechanical component with magnified views and dimension annotations

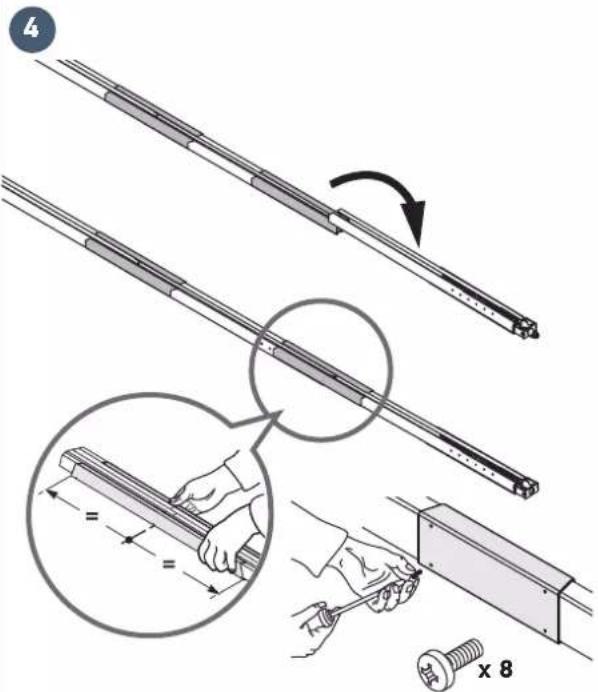

• Align the third section with the two other sections, then assemble using a sleeve.
• Align the sleeve to the join of the sections.
• Tighten the sleeves to the rail using screws WITHOUT DRILLING THE RAIL.

The mounting screws must not drill the rail. The body of the screw must remain visible.

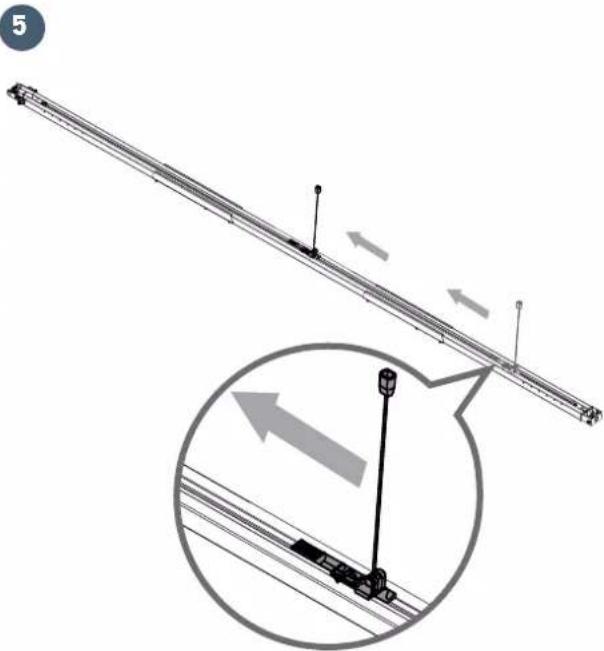

Diagram of a mechanical lever system with an inset showing a moving cart and directional arrows (no text or symbols)

- Move the carriage in the middle of the rail.

▶ Assembling the rail to the motor head

1

Technical diagram of a mechanical assembly with labeled components (no text or symbols present)

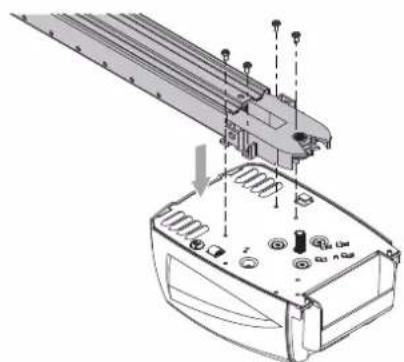

- Insert the motor shaft into the rail pinion, then mount the assembly using engine head screws

2

18-20 mm

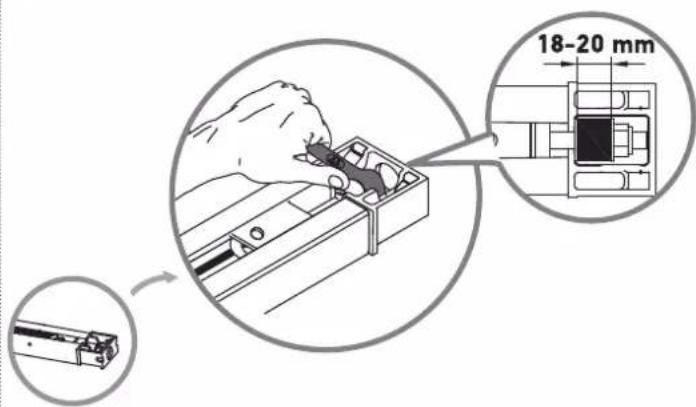

• Tighten the nut to tauten the belt.
  • The rubber squashes when tightened.

To obtain the correct tension, the rubber should measure between 18 and 20 mm.

1.3 Mounting

▶ Fastening the unit to the lintel bracket

1

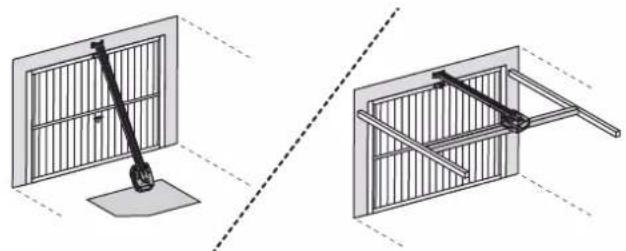

Diagram showing two mechanical assembly setups with vertical bars and a bracket, no text or symbols present

• Position the assembly in the lintel bracket by placing the motor head on the ground or the on cross member.

2

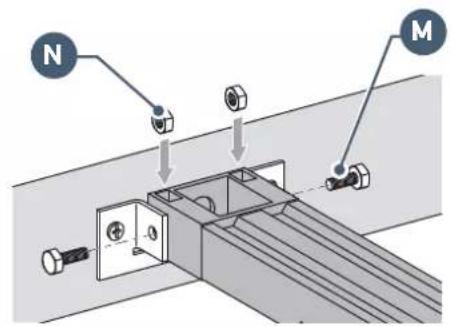

N M

• Fasten the assembly to the lintel bracket.

▶ Fastening the unit to the ceiling

▶ Case 1: Drive against ceiling

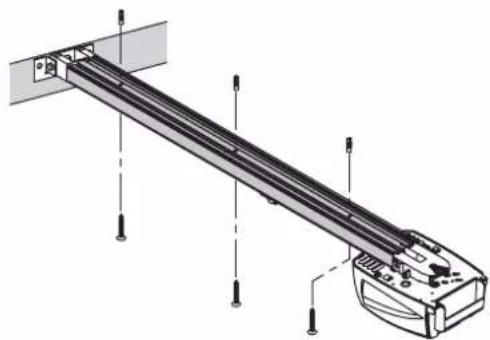

Technical line drawing of a mechanical assembly with mounting holes and a curved component (no text or symbols)

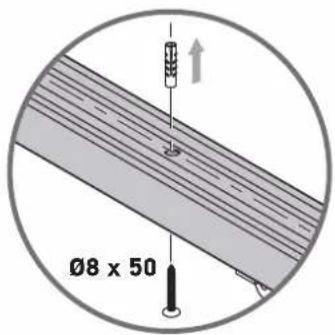

• Fasten the rail to the ceiling.

Ø8 x 50

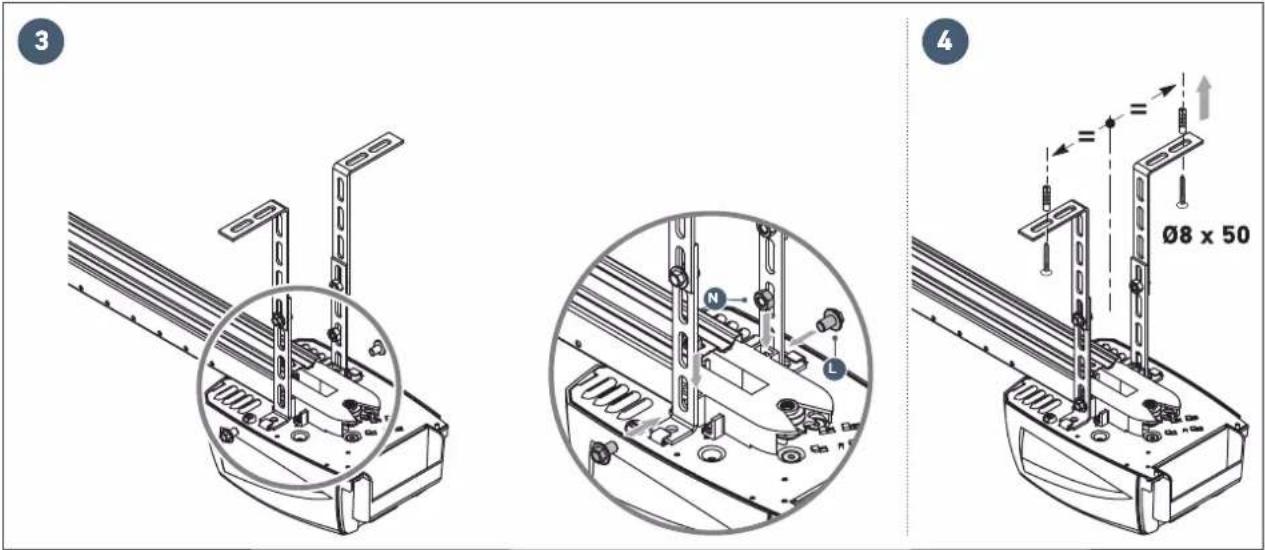

▶ Case 2: Drive not against ceiling

1

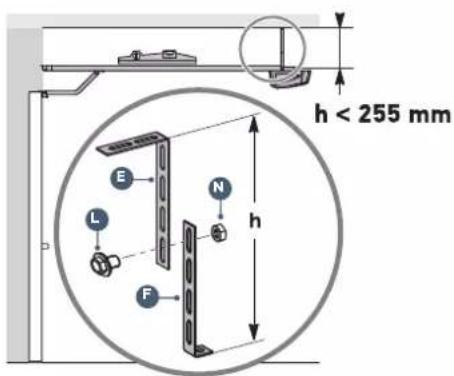

h < 255 mm E L F N h

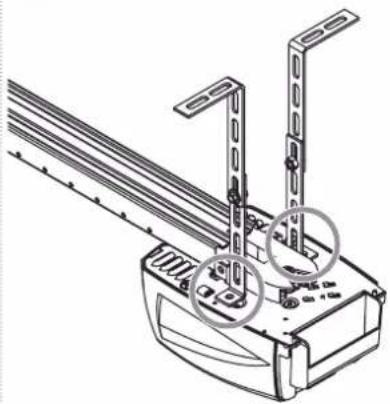

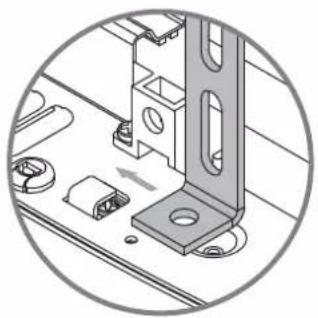

• Fasten the unit at the motor head.

2

Technical line drawing of a mechanical assembly with two metal components and a base (no text or symbols)

Technical illustration of a mechanical bracket assembly with mounting holes and components (no text or symbols)

▶ Case 2: Drive not against ceiling (continued)

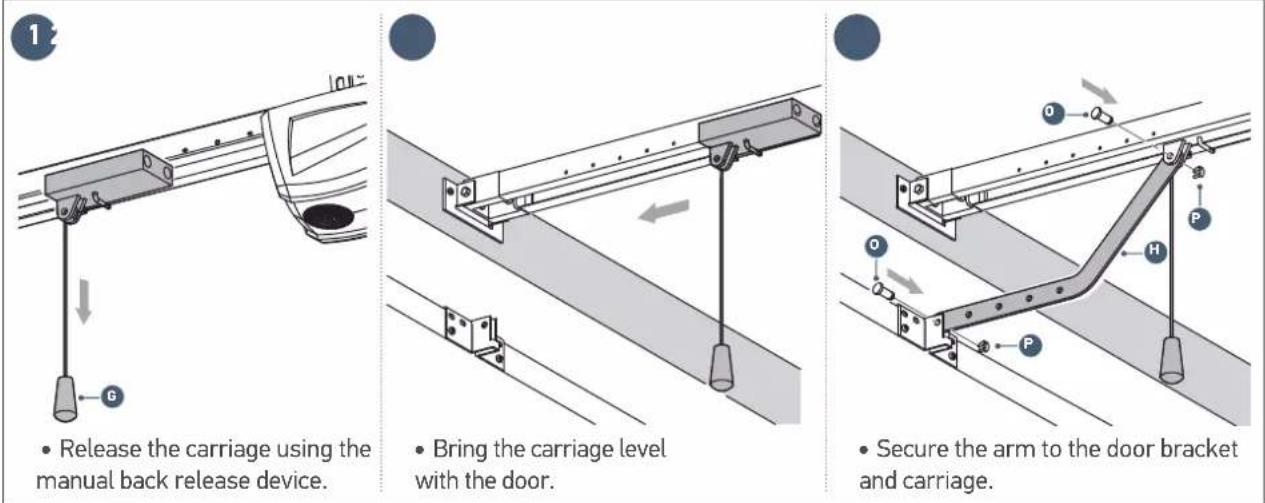

Technical diagram showing three stages of a mechanical assembly with labeled parts and dimension annotations

For an adjustable intermediate mounting along the rail, or mounting at a distance "h" of between 250 mm and 550 mm, use the ceiling mounting kit (ref.: 9014462).

▶ Fastening the link arm to the door and the carriage

If the back release handle is higher than 1.80 m, it will be necessary to extend the cable to make it accessible to all users.

1 • Release the carriage using the manual back release device. • Bring the carriage level with the door. • Secure the arm to the door bracket and carriage.

▶ Fastening the link arm to the door and the carriage (continued)

i

Depending on the configuration, it may be necessary to cut the link arm.

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present.

1

Diagram showing a bent metal bracket being rotated, with no text or symbols present.

2

Mechanical assembly diagram showing a lever mechanism with a magnified inset (no text or labels)

The section of the link arm fixed to the door bracket must be as horizontal as possible.

1.4 Settings

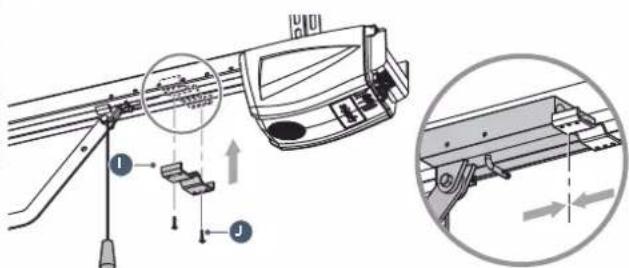

▶ Adjusting and fastening the opening stop

!

During this operation, check that there is no risk that the back release device cable will subsequently become snagged on an element protruding from the car (for example a roof rack).

1

Diagram of a car's side panel showing a lever and adjustment lever (no text or symbols)

- Release the carriage using the manual back release device and move the door to the open position.

Do not open the door fully, but position it so that it does not reach its stops.

2

Technical diagram showing mechanical assembly with labeled parts and directional arrows, including a magnified detail view.

- Position the stop against the carriage.

• Mark the mounting holes.

- Drill the holes with Ⓞ 3 mm drill bit.

• Fix the stop using the self-tapping screw

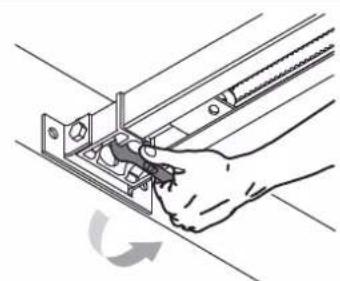

▶ Checking the tension of the belt

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

- If necessary, adjust the belt tension.

!

The tension rubber must never be fully compressed: to obtain the correct tension, the rubber should measure between 18 and 20 mm (see page 10).

1.5 Assembly/Disassembly of the motor cover

Line drawing of a medical device with attached device and ports (no text or symbols)

- Reassemble the cover as shown in the diagram above: first, position the lower section of the cover in the groove then clip the upper section into place.

Line drawing of a mechanical device with directional arrows indicating rotation or movement (no text or symbols)

- Remove the cover as shown in the diagram above: first, unclip the upper section of the cover then remove the lower section (without forcing it).

1.6 Electrical connection to the power supply

DANGER

Connect the power supply cable to a socket which complies with electrical requirements (see safety instructions, chapter 4).

Technical diagram of a medical device with labeled ports and a central control panel

A B x2

- Connect the motor to the power supply.

The integrated lighting flashes 3 times: the motor is switched on. Indicator light "B" flashes twice continuously: the drive is waiting for auto-programming.

2.1 Parameter setting

▶ Description of the programming buttons

Button BButton Indicator light A Indicator light B Indicator light key A Flashing On Off Integrated lighting lit

Functions of buttons and indicator lights
Button A	• Using forced operating mode• Enters and exits the settings menu• Selecting a setting
Button B • Triggers auto-programming• Memorising/clearingthe remote controls• Modifying the value of a setting
Indicator light A	• Parameter indicator light selected
Indicator light B	• Parameter value indicator light• Fault indicator light

▶ Performing auto-programming

2 specific cases:

▶ Case 1: No indicator light flashes => auto-programming mode must be selected.

1

x 3 A B x 3

- Press button "A" 3 times to access the auto-programming parameter. Indicator light "A" flashes three times.

2

A B x 1 x 2

- Press button "B" to enter auto-programming mode. Indicator light "B" flashes twice continuously: the drive is waiting for auto-programming.

▶ Case 2: Indicator light "B" flashes twice continuously => the drive is waiting for auto-programming (case during installation).

3

A B x 2

- Control the motor using button "A" (continuous pressure) so that the transmission shuttle is engaged on the carriage.

- Maintain button "A" depressed to bring the door to closed position.

NB: If button "A" is released, the shuttle stops. If button "A" is kept depressed again, the shuttle moves in the opposite direction to the previous movement.

Release button "A" before the motor exerts too much pressure on the door.

4

x 2 x 2 A B

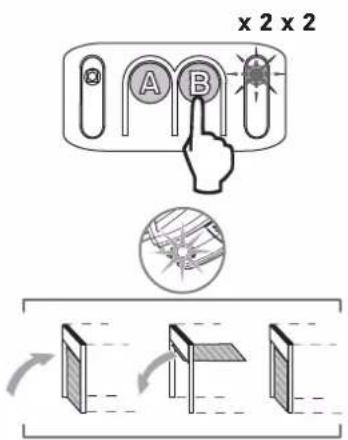

- Press button "B" to launch the auto-programming cycle. The door performs a complete Opening-Closing cycle.


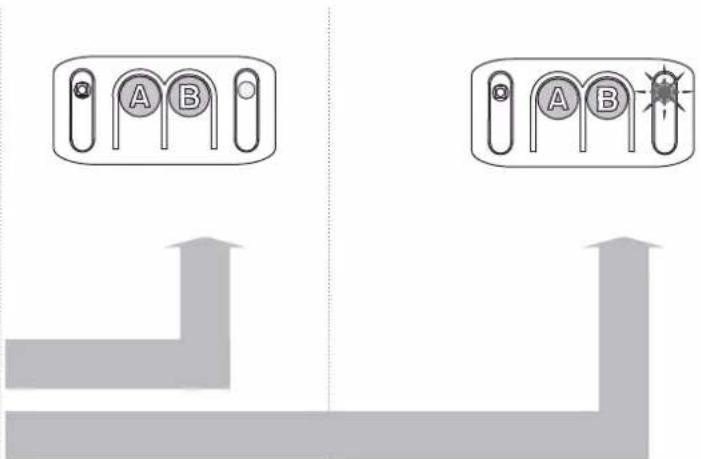

If the auto-programming is correct, indicator light "B" goes out.

If the auto-programming cycle was not successful, indicator light "B" flashes twice. In this case, start a new auto-programming cycle using button "B".

i

During the auto-programming cycle: If the door is moving, the movement is stopped and auto-programming is interrupted if any of the buttons are pressed.

Note: The motor is again awaiting auto-programming (see case no.2 - figure 3).

▶ Checking the mechanical setting of the door

After auto-programming, perform manual back release of the drive to check that the door has not been closed too strongly.

• Back release occurs normally, without any resistance or sudden movement: the door has been closed correctly.
• Back release is impossible or abnormal resistance is observed: re-run auto-programming while closing the door more "gently" (see page 15 - case no.1).

WARNING

• At the end of installation, it is essential to check that the obstacle detection complies with appendix A of standard EN 12 453.
• Failure to follow this instruction may result in serious injury, e.g. due to crushing by the gate.

2.2 Advanced settings

The programming procedures below must only be followed if you want to change the default value of the parameters.

To save the parameters selected, press button A successively until the LEDs go out. By default, the parameters are automatically saved after a 2-minute time-out after which the electronics switch to standby.

▶ Choice of obstacle detection sensitivity

x1Nx1N

• Press button "A" repeatedly until indicator light "A" flashes once. "Obstacle detection sensitivity" mode is activated.
• The number of times "N" that indicator light "B" flashes indicates the value of the parameter, see table below).

- Press button "B" to change the value of the parameter.

Press the button "A" five times to exit the settings menu.

Indicator light A Obstacle detection sensitivity

Indicator light B

very low sensitivity

low sensitivity

Standard (default value)

high sensitivity

WARNING

If this parameter is changed, it is essential to check that the obstacle detection complies with appendix A of standard EN 12 453. Failure to follow this instruction may result in serious injury, e.g. due to crushing by the gate.

▶ Choice of docking zone when closing


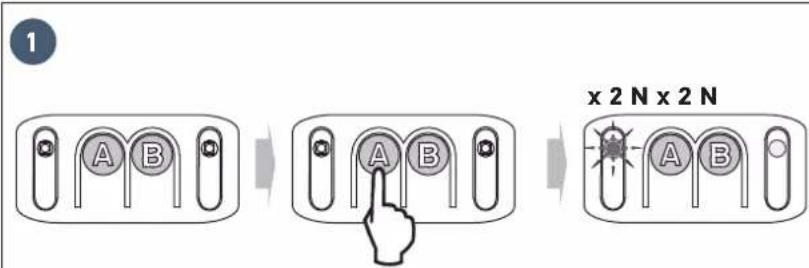

• Press button "A" repeatedly until indicator light "A" flashes twice. "Docking zone when closing" mode is activated.
• The number of times "N" that indicator light "B" flashes indicates the value of the parameter, see table below).

2 A B

- Press button "B" to change the value of the parameter.

3 Press the button "A" four times to exit the settings menu.

Indicator light A	Docking zone when closing
Indicator light B	No slowing No reduction in speed at the end of closing.
	Short slowing (default value)	The speed is reduced during the last 20 centimetres.
	Long slowing The speed is reduced during the last 50 centimetres.

WARNING

If this parameter is changed, it is essential to check that the obstacle detection complies with appendix A of standard EN 12 453. Failure to follow this instruction may result in serious injury, e.g. due to crushing by the gate.

▶ Choice of type of power supply

• Press button "A" repeatedly until indicator light "A" flashes five times. "Type of power supply" mode is activated.
• The number of times "N" that indicator light "B" flashes indicates the value of the parameter, see table below).

2 A B

- Press button "B" to change the value of the parameter.

3 Press the button "A" once to exit the settings menu.

Indicator light A Power supply type
Indicator light B		Mains power supply (default type of power supply)
		Solar power

WARNING

• Parameter programming is now complete; the parameters menu must always be locked to ensure the safety of users.
• Failure to follow this instruction may result in serious injury, e.g. due to crushing by the gate.

2.3 Locking/unlocking the parameters menu

- Locking the parameters menu

1

- Press button "A" repeatedly until indicator light "A" flashes four times. "Parameter menu locking" mode is activated.

2

- Press button "B" once. Indicator light "A" goes out. The parameters menu is locked.

Indicator light A Locking the parameters menu

Indicator light B

the parameters menu is locked

If button B is pressed accidentally, move on to the "Unlocking the parameters menu" step

At this stage in the installation, the drive is operational. The remote controls supplied in the kit have already been memorised.

▶ Unlocking the parameters menu

WARNING

The keypad for setting the parameters is locked to ensure the safety of the users. The parameters must only be unlocked and adjusted by a professional drive and home automation installer. Making any changes which do not comply with these instructions could risk personal injury or damage to property. Somfy cannot be held responsible for any damages resulting from non-compliance with these instructions.

If the parameters menu is locked and no memorised remote control is available, it will be necessary to memorise a remote control first (see page 20).

12

- Press and hold button "A".

●

Diagram illustrating a hand interacting with a device labeled A and B, followed by a plus sign and a magnified view of a device.

• Without releasing button "A", press a button on a remote control which is already memorised. The integrated lighting comes on briefly to indicate that unlocking has taken place.

●

- Release button "A".

2.4 Memorising the remote controls

▶ Memorising the remote controls for operation in "Total opening" mode

Button 1 Button 2

i

• Button 1 on the remote controls supplied in the kit has already been memorised.
• If this procedure is carried out using a button which has already been memorised, the button will be cleared.

1

- Press button "B" for 2 seconds. The integrated lighting comes on.

2

• Press the button on the remote control
  • The integrated lighting flashes for 5 seconds.
  The remote control button has been memorised.

▶ Memorising a Telis type remote control or similar (not supplied in the kit)

1

- Press button "B" for 2 seconds. The integrated lighting comes on.

2

5 s

- Using a thin implement, press the "prog" button" on the back of the remote control. - The integrated lighting flashes for 5 seconds. The remote control has been memorised.

2.5 Clearing the remote controls

!

This procedure causes all memorised remote controls to be cleared.

7 s 7 s 5 s

- Press button "B" for 7 seconds. The integrated lighting comes on then begins to flash (5 seconds).

All the remote controls and all the settings are now cleared.

2.6 Reinitialising the settings

To reinitialise all settings, simply run a new auto-programming process (see page 15).

3.1 User training

WARNING

• Any potential user must be trained by the installer in using the drive, applying all the recommendations in this manual. It is essential to ensure that no untrained persons are able to put the door into motion.
• The user must monitor the door as it moves and keep people away from it until the door is completely open or closed.
• Do not allow children to play with the door control devices. Keep remote controls out of the reach of children.
• Do not deliberately prevent the door from moving.
• This drive may be used by children aged 8 and over and by persons whose physical, sensory or mental capacity is impaired, or by persons with little experience or knowledge, as long as they are under supervision or have received instructions on safe use of the drive and fully understand the associated risks. Children must not be allowed to play with the drive. Children must not be allowed to clean or maintain the unit.

All users must be trained on how to safely use this door (standard use and locking principle) and on the mandatory periodic checks.

3.2 Using the remote controls

i

The indicator light on the remote control confirms that it functions correctly.

▶ Using the remote control with door closed

1


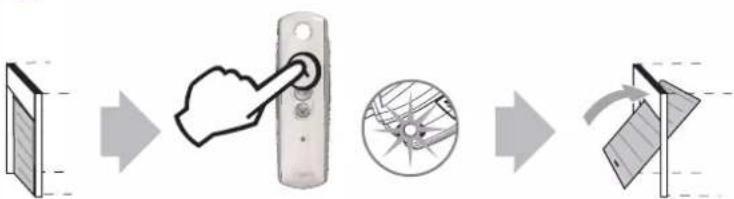

- Pressing the remote control button causes the door to open.

2

- Pressing the remote control button again when the door is opening causes the door to stop.

3

- Pressing the remote control button again causes the door to close.

▶ Using the remote control with door open

1	• Pressing the remote control button again causes the door to close.
2	• Pressing the remote control button again when the door is closing causes the door to stop.
3	• Pressing the remote control button causes the door to open.

▶ Using a 3-button remote control

1	• Pressing the arrow up button causes the doorto open.
2	• Pressing the central remote control button when the door is opening or closing causes thedoor to stop.
3	• Pressing the arrow down button causes thedoor to close.

3.3 Obstacle detection mode

i

The obstacle detection function operates up to 5 cm from the ground. It is intrinsic to the drive and operates without any accessories (photoelectric cells).

1

Diagram illustrating a collision between a car and a stop sign, with arrows indicating collision and stop direction.

- When an obstacle is detected during opening, the door will stop.

2

- When an obstacle is detected during closing, the door will stop then open again.

3.4 Integrated lighting operation

Technical line drawing of a car airfoil with exhaust plume and starburst graphic (no text or symbols)

- The integrated lighting comes on each time the drive is switched on. When the door stops moving, it goes off automatically after 30 seconds.

!

Repetitive use will cause the integrated lighting to be lit constantly which may result in the light being switched off automatically due to thermal protection.

3.5 Manual back release mode

The drive is equipped with a manual back release device which makes it possible to manipulate the door manually, for example in the event of an electrical fault. This device must be able to be accessed easily (at a maximum of 1.80 m from the ground).

WARNING

• When releasing the drive, an incorrect balance may result in sudden movements which may be dangerous.
• Only use the cord to release the drive. Never use the cord to manipulate the door manually.
• It is essential that the drive is re-engaged before any new commands.

12

Mechanical assembly diagram showing a suspended weight with a downward arrow (no text or symbols)

• Release the drive by pulling the cord until the door drive system is released.

●

Illustration of a person using a tool to lift a wall, with no text or symbols present.

• Move the door manually (possible as long as the drive system is disengaged).

●

Mechanical assembly diagram showing a lever and shaft assembly with an arrow indicating motion (no text or symbols)

CLAC !

• Re-engage the drive by moving the door manually until the drive mechanism re-locks on the transmission rail.

WARNING

The yellow warning sticker concerning the risk of crushing and the description of how to move the door manually must be displayed inside the garage.

3.6 Operation after a power outage

Following a power outage, the drive must recognise its "fully open" position again.

• Open the door fully using a memorised remote control.
  • The door will open at a reduced speed.

Allow the door to open to its "fully open" position.

DANGER

Switch the electrical power supply to the drive off before installing any peripheral.

4.1 Connecting the photoelectric cells

The photoelectric cells allow the presence of an obstacle to be detected when opening/closing the door. An obstacle placed between the cells will prevent the door from closing. if an obstacle is detected when the door is closing, the door stops then reopens.

The integrated lighting is activated intermittently for 30 seconds.

TX RX 1 2 24 V 0 V AC/DC 24 V AC/DC 0 V C NO Ant. 4 3 2 1

i

When positioning the cells, remove the bridge created between terminals "1" and "2" of the motor electronics.

If the cells are disconnected, it is essential to recreate the bridge between terminals "1" and "2".

4.2 Connecting the flashing light

The flashing light is activated whenever the door moves, with a 2-second pre-warning before movement starts.

SOMY Batt. Flash Ant.

4.3 Connecting the remote antenna

The remote antenna allows the radio range between the remote control and the drive to be increased.

Flash Ant. 4 3 2

4.4 Connecting the back-up battery

▶ Operation

White electronic device with two labeled connectors (Ni-Cd and Cd) and a black cable, no visible text or symbols on the body.

If a backup battery is installed, the drive will work even during a general power outage.

Operation is then activated under the following conditions:

• Reduced speed.
  • The lighting does not work.
  • the safety devices are inactive.

Battery specifications:

- Battery life: 24 hours; 5 to 10 operating cycles depending on the weight of the door.

• Recharging time: 72 hours.
• Service life before replacement: Approximately 3 years.

For optimum battery life it is recommended that the main power supply be switched off and the drive operated using the battery for several cycles, three times a year.

▶ Connection

Batt. Flash

4.5 Connecting the key contact

The key contact serves to control the moving and lighting of the motorised garage door.

Ant. 4 3 2 1 - | | +

4.6 Connecting the solar kit

Refer to the solar panel guide.

Diagram showing solar panel connection to a power unit with an inset photo of a battery labeled 'Batt. Flash'

4.7 Accessories general wiring diagram

DANGER

Switch the electrical power supply to the drive off before installing any peripheral.

Mark Designation
A	Key lock
B Offset aerial
C	Backup battery
D	Photoelectric cells
E	Flashing light
F	Solar kit

5.1 Periodic checks

WARNING

Refer to the Safety instructions booklet, chapter 9 - "Safety instructions relating to maintenance".

5.2 Diagnostics

▶ Indicator light A

Indicator "A" does not light up when button "A" is pressed.

The keypad is locked. To unlock the keypad, see "2.3 Locking/Unlocking the settings menu".

▶ Indicator light B

Indicator light B Meaning Solution?
2		Motor waiting for auto-programming.	Start auto-programming
3		Cell fault.	Check that no obstacles prevent the cells from detecting.Check the wiring of the cells or create a bridge between terminals 1 and 2 if no cells are installed.Check the correct alignment of the cells.
5		Motor thermal protection device	Leave the motor to cool until the fault disappears.
6		Motor current measuring circuit fault or sensor fault.	Switch off the power supply (mains and backup battery), wait a few minutes then reconnect the power supply.Perform an auto-programming cycle. If the fault persists, contact Somfy technical support.
7		Maximum power delivered by the motor reached during the auto-programming phase.	Product has reached operating limit.

5.3 Assistance

If the fault remains or for any other problem or enquiry relating to your drive, visit www.somfy.com

5.4 Changing the remote control battery

The service life of the battery is generally 2 years.

12

Diagram of a mechanical device with a rotating shaft and curved arrow indicating rotation (no text or symbols)

• Unscrew the rear of the remote control.

The image is too blurry to recognize any text content.

- Remove the screws.

C

Two views of a device showing top and side views with an arrow indicating transformation (no text or symbols present)

• Remove the rear of the remote control.

C

CR250 L-2V +

• Replace the battery (3 V CR 2430).

The image is too blurry to recognize any text content.

3D diagram of a device with labeled parts, showing internal components and mounting features (no text or symbols)

• Refit and screw on the rear of the remote control.

General specifications
Power supply 230 V - 50 Hz
Max. power consumption	Standby 4 W
	Operation 120 W
Max. tensile force 700 N
Operation: Number of opening-closing cycles per day		Max. 20 cycles per day tested for 10,000 cycles
Maximum speed 14 cm/s
Programming interface 2 buttons - 2 indicator lights
Climatic operating conditions - 20 °C / + 60 °C - dry interior IP 20
End limits		• Opening mechanical stop• Electronic when closing: stored closing position
Electrical insulation		Class 2: double-insulated □
Integrated lighting LED
Radio frequency 433.42 MHz - < 10 mW
Number of storable channels 32

Connections
Safety input	Type Dry contact: NF
	Compatibility TX/RX	photoelectric cells
Wired control input		Dry contact: NO
Flashing light output		24 V - 15 W
Accessories power supply output		24 V - 500 mA max.
Offset aerial input		Yes: RTS antenna compatible
Backup battery input		Yes: battery pack compatible
		Battery life
		Recharging time

Operation
Forced operating mode		By pressing and holding button “A”
Timed lighting (after movement)		Fixed: 30 s
Flashing light pre-warning		2 secs automatic if light connected
Security entry operation	When closing	Total reopening
	Before opening (ADMAP)	With
Integrated obstacle detection		Adjustable sensitivity: 4 levels
Operation in the event of obstacle detection		Total reopening
Gradual starting Yes
Opening speed		Fixed: 14 cm/s (max.)
Closing speed		Fixed: 12 cm/s (max.)
Docking speed when closing		Programmable: no reduction in speed, short slow zone (20 cm), long slow zone (50 cm)

Somfy France

0 820 055 055 (0,15€ la minute)
