USER MANUAL AB791RVS ETNA
Scan the QR code or visit the website etna.nl/connected to find out how to establish a connection with your appliance.
Gebruikte pictogrammen - Pictogrammes utilisés - Benutzte Piktogramme
Pictograms used
Belangrijk om te weten - Important à savoir - Wissenswertes - Important information
Tip - Conseil - Tipp
INHOUD
Uw afzuigkap
Bediening
2
3
B
ONDERHOUD
Verlichting
max. 140 cm
Verpakking en apparaat afdanken
Éclairage
$$
\text { MARRON } = \text { Phase (L) }
$$
$$
\mathrm{BLEU} = \text { N e u t r e } (\mathrm{N})
$$
$$
\text { V E R T / J A U N E } = \text { T e r r e }
$$
max. 140 cm
Beleuchtung
max. 140 cm
Cleaning the filters 6
Maintenance
Cleaning 8
Grease filters 9
Odour/fine particle filter HF3001 9
Lighting 10
Installation
General 11
Connection 12
Environmental aspects
Disposal of packaging and appliance 13
Introduction
Read through this user manual for quick information about all the options available to you with this appliance. It gives safety information and instructions for maintaining the appliance.
Keep the user manual and the installation instructions.
They will be useful to any subsequent user of this appliance.
Read the separate safety instructions before using the appliance.
You can find the most recent version of the instructions for use on our website.

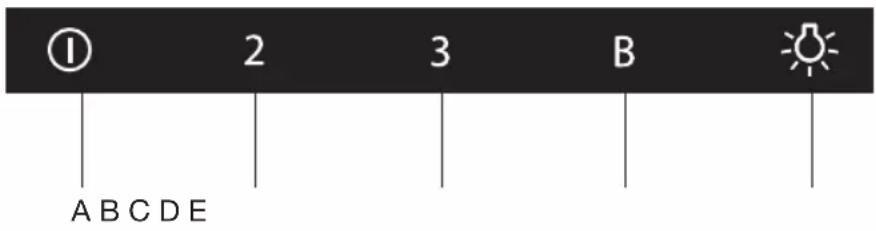

Description
A Button On/Off and button first speed
B Button second speed
C Button third speed
D Intensive speed button
E Lighting button
Exhaust systems
The cooker hood can, depending on the model, be connected in one of two ways:
- As a cooker hood connected to an exhaust duct.
The cooking fumes are drawn into the cooking hood, filtered, and exhausted outdoors. This is the best way!
- As a recirculation cooker hood.
The cooking fumes are drawn into the cooking hood and the grease droplets and odours are filtered out.
The filtered air is not exhausted outdoors, but is returned to the kitchen. You then need to fit a carbon filter.
Note! The carbon filter must be ordered separately.
Operation
2
3
B
Switching the fan on and off
- Switch the fan on by pressing the On/Off button.
- Select the required extractor speed by pressing button 2, 3 or B.
- Switch off the fan by pressing the on/off button for a long time: the on/off button will then continue to flash slowly for 1 minute.
Timer function
- Switch the fan on and select the required extractor speed.
- Press the lighting button for three seconds.
This activates the timer function.
The selected speed flashes on the display.
The speed can be changed during this function.
The cooker hood switches off automatically after 5 minutes.
Switching the lighting on and off
- Press the lighting button.
The lighting comes on at 50% of the light intensity.
- Press the lighting button again.
The lighting comes on at 100%.
- Press the lighting button again.
The lighting goes off.
Cleaning the filters
Saturated grease filters
The filter indicator flashes after 90 operating hours. The filter indicator flashes to indicate that the grease filters need to be cleaned:
- Grease filter indicator:
The lighting button flashes after 90 hours of use.
- Clean the grease filters.
- Reset the memory by pressing button B and the lighting button simultaneously until the filter indicator stops flashing.
USE
Do not reset the memory until the maintenance work on the filters has been completed.
Cleaning
Attention! Before carrying out maintenance work, always disconnect the cooker hood from the power supply by pulling out the plug or switching off the power at the fuse box. The hood must be cleaned regularly, both inside as well as outside (with at least the same regularity as used for cleaning the grease filters). Do not use any products that contain abrasive materials. Do not clean with alcohol!
Attention! If you do not follow these instructions with regards to the cleaning of the appliance and the cleaning or replacement of the filters, this can lead to fire. It is essential to follow these instructions!
The manufacturer is not liable for damage to the motor or damage as a result of fire that is due to improper servicing or not following the above safety requirements.
Cooker hood
Clean the cooker hood with soapy water and a soft cloth. Then treat with clean water. Do not use any aggressive cleaning agents such as soda. The lacquer of the cooker hood will remain in good condition if you rub the lacquer with wax once in a while.
Stainless steel hoods
Do not use scouring sponges or other abrasives on stainless steel hoods. Finish with a non-abrasive, non-polishing agent and scrub in the direction of the brushing of the stainless steel.
Metal grease filters should be cleaned once a month (or when indicated by the filter saturation indication system, if present on your model), using a neutral cleaning agent, preferably by hand or in the dishwasher on a short, low-temperature program. Place the grease filters with the openings facing downwards in the dishwasher so the water can drain out of the filter. Aluminum-colored and black grease filters become dull as a result of dishwasher cleaning agents. This is normal and does not effect the working.
Grease filters

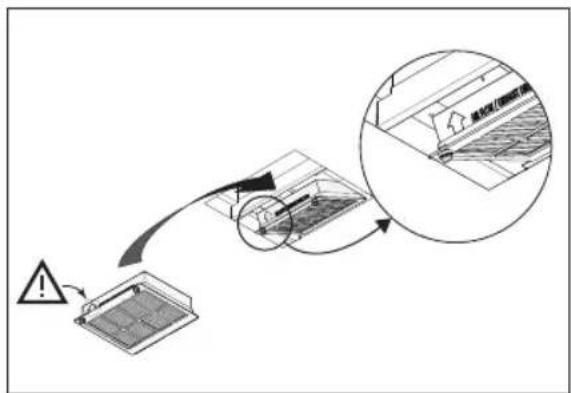

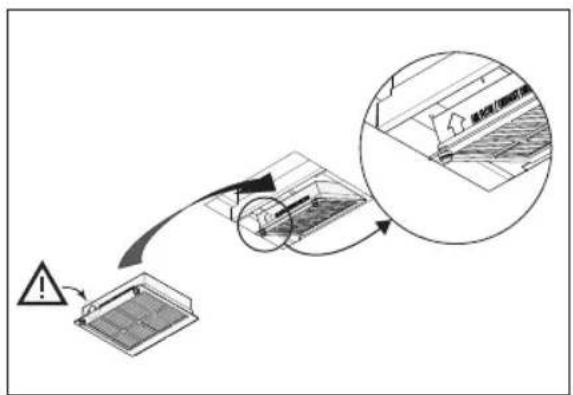

Removing the grease filters
- Remove the filters one by one by pulling on their release handles.
Odour/fine particle filter HF3001
- More noise is produced when odour/fine particle filters are used than when the cooker hood is used with an exhaust vent.
- Odour/fine particle filters function optimally at a lower motor speed. Consequently, you should avoid the intensive setting as much as possible.

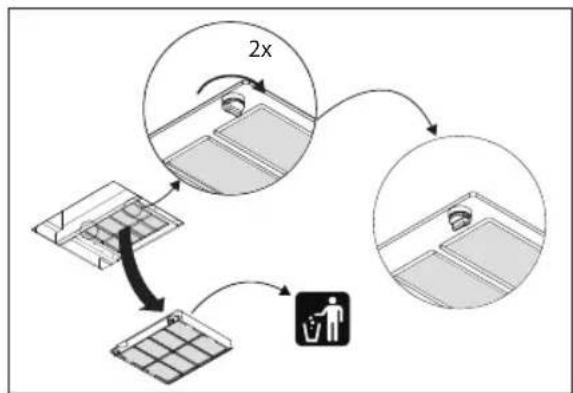

Replacing the odour/fine particle filter HF3001
The odour/fine particle filter must be replaced annually. To replace the filter, follow the instructions supplied with the new filter. The recirculation set HR0013 must be ordered for the first installation.
Important:
- The saturation of the filter depends on the intensity of use, the manner of cooking and the regularity with which the grease filters are cleaned.
Lighting
This hood is fitted with a light system. This light system has to be replaced by an authorized technician. Do not attempt to replace it by yourself.
The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination.
General
This appliance must be connected to the power supply by a recognized installer who is familiar with and works in accordance with the applicable safety regulations. This appliance conforms to the European directives.
- The lowest part of the cooker hood must be at least 65 cm above a gas hob. The lowest part of the cooker hood must be at least 55 cm above an electric, ceramic or induction hob.
- The cooker hood may only be connected to an existing exhaust duct to which no other appliances are connected (such as a geyser or heater).
- Gas appliances must be vented in accordance with the local regulations.
- The cooker hood works best when connected to an exhaust duct that is as short and as straight as possible.
- Before drilling any holes, always check to make sure that there are no wires in the area.
- The hood's connection pipe has a diameter of 120 or 150 mm. The exhaust duct should preferably be of the same diameter.
- The installation materials supplied with this cooker hood are suitable for reinforced concrete and masonry walls. You will need special plugs and screws to fasten the appliance to some other types of wall.
Connection
Electrical connections
This appliance is a Class I appliance and must be earthed.
Check to make sure that the voltage specified on the type plate matches the mains voltage. The appliance must be connected to the mains as follows:
$$
B R O W N = L (\text { live })
$$
$$
B L U E = N (\text { neutral })
$$
$$
\text { GREEN / YELLOW } = \text { Earth }
$$

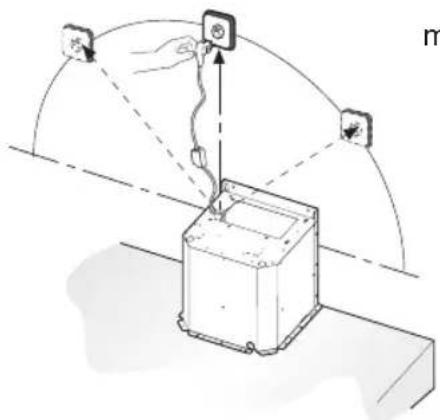

This cooker hood is fitted with a plug. Install the cooker hood so that the plug is accessible. It is preferable to fit the wall socket out of sight, behind the chimney cover.
Note: When you make a fixed connection to the mains you must make sure that the live wire is connected to an omnipolar switch with a break contact distance of at least 3 mm.
max. 140 cm
Disposal of packaging and appliance
Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance must be disposed of in a responsible manner. You can obtain more information from the authorities.
The packaging of the appliance is recyclable. The following materials may have been used:
- cardboard;
• polyethylene foil (PE);
• CFC-free polystyrene (PS hard foam).
Dispose of these materials in a responsible manner and in accordance with governmental provisions.
To designate the requirement of sorted processing of electrical household equipment, the symbol of a crossed-out waste container is displayed on the product. This means that at the end of its life span, the appliance may not be added to the regular household waste. The appliance must be brought to a special municipal centre for sorted waste collection or to a dealer that provides this service.
The separate processing of a household appliance prevents possible negative consequences for the environment and health which exist due to inappropriate processing. Separate processing ensures that the materials of which the appliance is made can be recovered to obtain a considerable savings of energy and raw materials.
CE
We declare that our products comply with the applicable European Directives, Resolutions and Regulations, as well as all requirements specified in the standards to which reference is made.
