AC4700 - Air purifier Guardian - Free user manual and instructions

Brand	Guardian
Model	AC4700
Product Type	Air Purifier
Dimensions (approx.)	Height: 76 cm, Width: 38 cm, Depth: 22 cm
Weight (approx.)	7.3 kg
Power Supply	120 V AC, 60 Hz
Power (approx.)	60 W
Recommended Room Size	Up to 50 m² (for optimal efficiency)
Filtration	Pre-filter, HEPA + Activated Carbon Filter, UV-C Lamp
Fan Speeds	3 speeds: Low (I), Medium (II), High (III)
UV-C Lamp	Yes, with separate switch, 10-12 month lifespan
Noise Level (approx.)	From 35 to 55 dB depending on speed
Energy Consumption	ENERGY STAR Certified
Clean Air Delivery Rate (CADR)	Not specified in manual, consult website
HEPA/Carbon Filter	Ref. FLT4700, replace every 6 months approximately
Additional Carbon Filter (4-pack)	Ref. FLT42CB4
Replacement UV-C Lamp	Ref. LB1000
Warranty	3-year limited
Maintenance	Clean pre-filter monthly, replace HEPA filter every 6 months, replace UV-C lamp every 10-12 months
Safety	Automatic shut-off if filter or cover is not properly installed, polarized plug, do not immerse

Frequently Asked Questions - AC4700 Guardian

What is the maximum room size the AC4700 air purifier can cover?

The Guardian AC4700 air purifier is designed for rooms up to approximately 50 m². For optimal efficiency, place it at least 30 cm away from walls and furniture.

How do I replace the HEPA/carbon filter?

Turn off and unplug the unit. Turn it over and turn the filter cover to the left to open. Remove the old filter, insert the new filter (ref. FLT4700), close the cover by turning to the right. Reset the indicator by holding the UV button for 5 seconds.

How often should I replace the filter?

The filter should be replaced every 6 months approximately, or when the power indicator flashes. The color of the filter pleats changes from white to gray when dirty.

How do I replace the UV-C lamp?

Unplug the unit and remove the filter. Use a Phillips screwdriver to remove the 3 screws of the UV-C cover. Turn the bulb counterclockwise to unscrew it. Screw in the new bulb (ref. LB1000), reassemble the cover, then reset the indicator by holding the UV button for 5 seconds.

How often should I replace the UV-C lamp?

The UV-C lamp should be replaced every 10 to 12 months. The blue light flashes to indicate it is time to change it.

How do I clean the pre-filter?

The pre-filter is cleaned monthly with the provided brush or a vacuum cleaner. Remove the main filter to access the pre-filter and clean it gently.

What should I do if the unit does not turn on?

Check that the filter and bottom cover are properly installed. Ensure the unit is plugged into a working outlet. If the problem persists, contact customer service.

The noise from the unit has increased, what should I do?

Check the condition of the filter. A very dirty filter can increase noise. Replace it if necessary. Also ensure that the air inlets are not blocked.

Can I wash the HEPA filter?

No, the HEPA filter should not be washed or reused. It must be replaced with a new one (ref. FLT4700). Washing would damage the filter.

The smell of the outgoing air is unpleasant, what should I do?

Check the condition of the filter. A saturated filter can emit odors. Replace it if necessary. Used activated carbon may also cause odors, consider replacing the additional carbon filter (ref. FLT42CB4).

USER MANUAL AC4700 Guardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

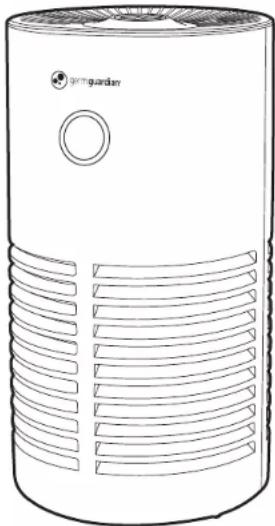

Line drawing of a portable air purifier with ventilation slots and a circular vent (no text or symbols)

Air Purifier

Model No. AC4700 Series

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0720

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Read all instructions before using appliance.
• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• WARNING: To reduce the risk of fire or electric shock do not use with an extension cord.
  • To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.
• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.
• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.
• NEVER drop or insert any object into any openings.
  • DO NOT run cord under carpeting.
• DO NOT cover cord with throw rugs, runners, or similar coverings.
• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.
• Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
  • DO NOT use outdoors.
  • DO NOT place anything on top of unit.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this purifier with any solid-state speed control device.

• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Model No. LB1000, Manufactured by Guardian Technologies.
  • Always unplug the unit before before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.
  CAUTION: THIS EQUIPMENT SHOULD BE INSPECTED AND CLEANED IN ACCORDANCE WITH THE MANUFACTURER'S INSTRUCTIONS ON A REGULAR BASIS TO PREVENT EXCESSIVE ACCUMULATION OF DUST PARTICLES THAT CAN RESULT IN FLASHOVER OR A RISK OF FIRE.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product. The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model's CADR for Dust and the electrical energy it consumes, or CADR/Watt.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

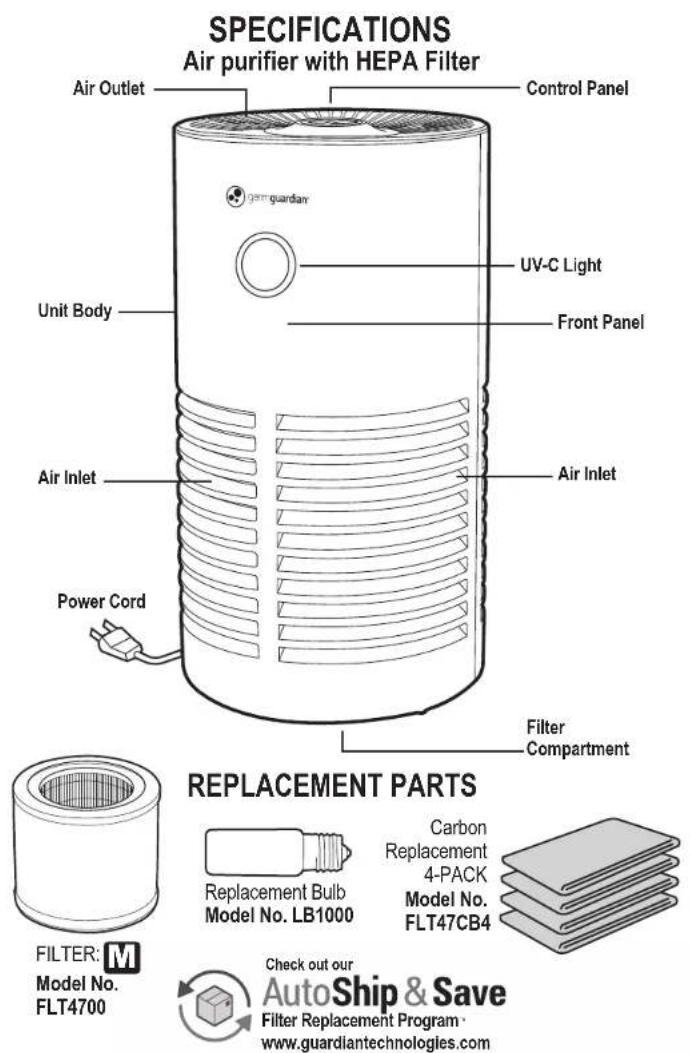

SPECIFICATIONS Air purifier with HEPA Filter Air Outlet Control Panel UV-C Light Front Panel Unit Body Air Inlet Air Inlet Power Cord Filter Compartment FILTER: M Model No. FLT4700 REPLACEMENT PARTS Replacement Bulb Model No. LB1000 Carbon Replacement 4-PACK Model No. FLT47CB4 Check out our AutoShip & Save Filter Replacement Program www.guardiantechologies.com

IMPORTANT: To maintain performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only. To Purchase Contact Customer Service

AIR CLEANING SYSTEM

Improve your indoor air quality with your new Germguardian Air Purifier. The HEPA filter captures allergens and includes a charcoal filter layer to help reduce household odors. The UV-C light helps to kill airborne germs.

AIR CLEANING LAYERS

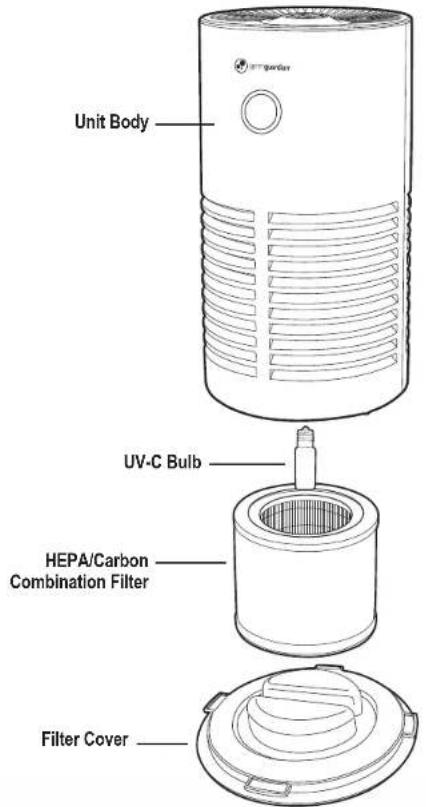

Unit Body UV-C Bulb HEPA/Carbon Combination Filter Filter Cover

IMPORTANT!

The air purifier is shipped with the filter stored in the filter compartment. The filter is shipped in a bag to prevent degradation. Before using, remove and discard bag.

OPERATING INSTRUCTIONS

IMPORTANT: Proper filter and bottom filter cover installation is necessary for the unit to turn on and run.

1. Select a firm, level and flat location for the air purifier.

- For proper air flow, locate the unit at least 1 foot from any wall or furniture.

• Make sure none of the grills are blocked.

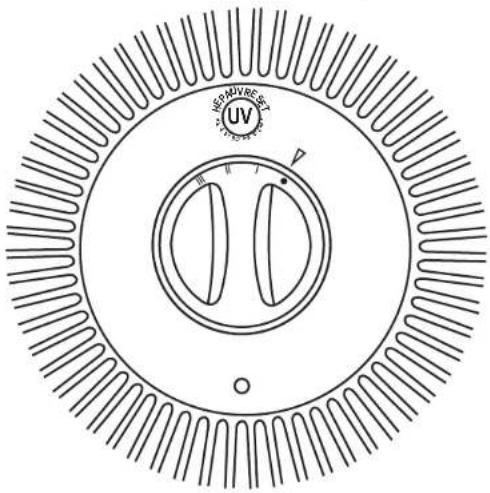

1. Turn the air purifier ON by rotating POWER KNOB clockwise to line up with the arrow.
2. Upon turning the air purifier ON, the power indicator will be lit (green) and the unit will be in LOW mode (I).
3. Rotate the POWER KNOB clockwise to set the air purifier to MEDIUM (II) or High mode (III).
4. To activate the UV-C Bulb, press the UV button. Press the button again to turn OFF the UV-C. The light on the front of the unit will turn on when the UV-C is on.
5. To turn the unit OFF, rotate the POWER KNOB counter-clockwise to OFF mode (•).

Filter reset

• The power indicator will flash when it's time to change the filter.
- Replace the filter according to instructions (page 7).
- Press and hold the UV button for 5 seconds to reset the filter light.

HV-PAUVRE UV

FILTER REPLACEMENT

Power light will flash when it is time to replace your filter. Depending on usage and environmental conditions the filter will last approximately 6 months. The inside pleats of the filter will turn from white to grey when it is dirty and needs replacing. It is important to maintain and change the filter to continue to optimize the performance of the air purifier.

IMPORTANT: Do NOT wash and re-use the filter. Please contact Customer Service to purchase a replacement filter or visit www.guardiantechnologies.com.

REMOVE AND REPLACE FILTER

1. Turn off and unplug the unit
2. Flip the unit upside down to access the filter cover.

Technical line drawing of a cylindrical mechanical component with internal circular features (no text or symbols)

1. Using the grip, turn the lid LEFT to unlock and open.

Cross-sectional diagram of a mechanical component with an upward arrow indicating direction (no text or symbols)

1. Lift bottom plate (filter cover) off of unit.

Diagram of a mechanical component with an upward arrow indicating force or direction (no text or symbols present)

1. Remove and dispose of filter.

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

1. Replace new filter.

Technical diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols present)

1. Replace the lid, align the arrow (↑) with the unlock (■) symbol on the purifier, turn RIGHT to close (●).

Diagram of a cylindrical device with internal circular components and curved arrows indicating rotation (no text or symbols)

( )

8. Reset the filter indicator by holding the UV-C button for 5 seconds.
IMPORTANT: If the filter is not placed in properly or the filter cover is not secure, the unit will not turn on.

INSTALLING & REMOVING UV-C BULB

CHANGE BULB INDICATOR

The blue light on the front of air cleaner will begin to flash continuously when it is time to replace the UV-C bulb. Replace the bulb according to the directions then press the UV control button and hold for 5 seconds to restart the system. The light should remain a constant blue.

Turn off and unplug unit.

Technical line drawing of a circular mechanical component with internal channels and mounting holes (no text or symbols)

1. The UV-C bulb is located in a compartment in the center of the purifier. To access, first follow the instructions to remove the filter.

Hand placing a circular mechanical component into a circular housing (no text or symbols visible)

1. Hold the unit in place with one hand. Locate the bulb and reach into the cylinder.

Cross-sectional diagram of a mechanical or electrical component with concentric rings and internal spiral structure (no text or symbols)

1. Take new bulb and screw into unit using a clockwise motion. Wipe off fingerprints with a dry cloth.

Hand holding a mechanical component with internal gear-like structure (no text or symbols visible)

1. After removing the Filter use a Philips head screw driver to remove three (3) screws and detach the UV-C Cover.

Cross-sectional diagram of a mechanical or electrical component with concentric circular layers and internal channels (no text or symbols)

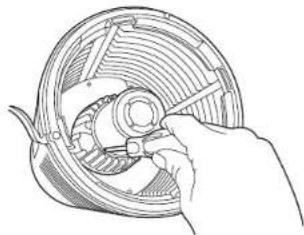

1. With your opposite hand, turn the bulb in a counter-clockwise direction (left) to loosen from the socket.

1. Reassemble by reversing steps 1 & 2. Push and hold UV Control Button for 5 seconds to reset UV Bulb Change Indicator.

IMPORTANT: The UV-C bulb should be replaced every 10-12 months depending on use.

CLEANING & MAINTENANCE

CLEANING

• Always unplug the appliance before you clean it.
- Never immerse the appliance in water or any other liquid.
- Never use aggressive or flammable cleaning agents such as bleach or alcohol to clean any part of the appliance.

BODY OF THE APPLIANCE

Regularly clean the inside and outside of the body to prevent dust from collecting.

1. Wipe away dust with a soft dry cloth from the body of the appliance.
2. Clean the air inlet and the air outlet with a soft dry cloth.

PRE-FILTER SCREEN

The pre-filter/charcoal layer collects larger dust and debris and should be cleaned monthly or more frequently depending on use. Remove and clean regularly with the brush attachment of your vacuum cleaner. This will remove the lint and dirt and help maintain the life of the filter. (See filter replacement to locate and clean or remove the filter).

Note: Do NOT stick any foreign objects or your fingers inside the unit.

Caution: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the products.

NEVER use alcohol or other solvents.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit shuts off unexpectedly or does not operate.	Check that the unit is plugged into a working electrical outlet.Check that the filter and bottom filter cover are installed correctly.Unplug/replug into the outlet.Call customer service.
No air circulating from the unit.	Unplug unit. Check filter. Clean or replace filter if necessary.
Odors not removed.	Make sure the filter is clean. Replace if necessary.
Discharged air has an odor. Check to see if the filter is heavily soiled. Replace if necessary.
Increase in noise level.	Make sure the filter is clean. Replace if necessary.
Power light is flashing. Replace filter and reset light.
Blue UV-C light is flashing. Replace bulb and reset light.

What is CADR?

CADR stands for "Clean Air Delivery Rate," which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room.

Clean Air Delivery Rate

From air cleaner to air cleaner, compare the CADR numbers. First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

Refer to website for individual model CADR numbers.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1 866 603-5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET

INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable air conditioner unit with ventilation slots and a circular vent (no text or symbols)

Cross-sectional diagram of a cylindrical mechanical component with internal curved arrows indicating rotation (no text or symbols)

Technical diagram of a mechanical component with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating assembly or force (no text or symbols present)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal circular features (no text or symbols)

Technical line drawing of a circular mechanical component with internal gear-like structure (no text or symbols)

Illustration of a hand adjusting a mechanical component inside a circular housing (no text or symbols visible)

Circular mechanical component with internal spiral structure and directional arrows (no text or symbols)

Hand holding a mechanical component, possibly a fan or impeller, with no visible text or symbols.

Cross-sectional diagram of a mechanical or electrical component with concentric circular patterns (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET

INSTRUCTIONS D'ENTRETIEN

Line drawing of a portable air conditioner unit with ventilation slots and a circular vent (no text or symbols)

Technical line drawing of a cylindrical mechanical component with circular arrows indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating force or direction (no text or symbols)

3D diagram of a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols)

Cross-sectional diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal circular features and curved arrows indicating rotation (no text or symbols)

Technical line drawing of a circular mechanical component with internal gear-like structure (no text or symbols)

Line drawing of a hand holding a mechanical component, no text or symbols present

Illustration of a hand fastening a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component with concentric circular layers and radial slots (no text or symbols)

Diagram of a spiral mechanical component with internal gear-like structure (no text or symbols)
