Product Type	4-in-1 Air Purifier
Brand	Guardian
Model	AC4150
Filtration System	Pre-filter + Charcoal, 99.97% HEPA filter, UVC lamp
UVC Technology	Yes, destroys bacteria and viruses (rhinovirus, E. coli, streptococcus)
Light Projector	3 interchangeable lenses (Sleeping Safari, Under the Sea, Moon and Stars) with automatic color rotation
Light Control	Push button on lens: one press for auto rotation, repeated presses for fixed color
Fan Speed	3 speeds (MODE 1 slowest to MODE 3 fastest)
Power Supply	120 V AC, polarized plug
Recommended Area	Up to 30 m² (tested in 30 m³ room)
Replacement Parts	E Filter (FLT4100), UVC tube (LB4100)
Filter Life	6 to 8 months depending on use
UVC Tube Life	10 to 12 months
Filter Replacement Reminder	Rotary dial on back adjustable to 6 months
Cleaning and Maintenance	Clean filter with vacuum once a month; do not wash filter combination
Safety	Do not use outdoors, do not immerse, do not block grilles, unplug before maintenance
Ozone Emission	0.001 ppmv 8h average (meets standards)
Warranty	1 year limited (materials and workmanship)
Included Accessories	4 felt pads for base, 3 projector lenses

Frequently Asked Questions - AC4150 Guardian

How do I replace the filter on my Guardian AC4150?

To replace the filter, unplug the unit, lift the back cover, remove the old filter combination (pre-filter + charcoal and HEPA filter). Use only the replacement filter E Filter (FLT4100). Replace the cover and set the reminder dial to 6 months.

How do I clean the Guardian AC4150 air purifier?

Always unplug the unit before cleaning. Wipe the exterior with a dry cloth. Clean the pre-filter and charcoal filter once a month with your vacuum cleaner brush. Never wash the filters. Replace the HEPA filter every 6 to 8 months.

What should I do if my Guardian AC4150 doesn't turn on?

Check that the unit is plugged into a working 120 V outlet. Make sure the HEPA filter is properly in place and the back cover is securely locked. If the problem persists, contact customer service at 1.866.603.5900.

How do I use the light projector on the AC4150?

The unit comes with 3 interchangeable lenses (Sleeping Safari, Under the Sea, Moon and Stars). To change, turn the lens cap counterclockwise to unlock, replace it, then lock by turning clockwise. Press the lens button to turn on the light: one press activates automatic color rotation, repeated presses allow you to select a fixed color.

What is the UVC tube used for on the Guardian AC4150?

The UVC tube emits ultraviolet rays that destroy bacteria and viruses, such as rhinovirus, E. coli, and streptococcus. It is activated via the UVC Tube On/Off button. Replace the tube every 10 to 12 months (ref. LB4100).

When should I replace the filter and UVC tube?

The filter should be replaced every 6 to 8 months depending on use. The UVC tube should be replaced every 10 to 12 months. Use genuine Guardian Technologies replacement parts: E Filter (FLT4100) and UVC tube (LB4100).

Does the Guardian AC4150 air purifier produce ozone?

Yes, but in very small amounts. The average ozone concentration over 8 hours is 0.001 ppmv, well below the recommended limit of 0.020 ppmv. The unit complies with Health Canada guidelines.

Can I use the AC4150 outdoors?

No, this unit is designed for indoor use only. Do not use outdoors or in a humid environment. Plug it directly into a 120 V outlet, without an extension cord.

How do I set the filter replacement reminder dial?

The dial is located on the back of the unit, near the air intake. Turn it to align the current month or the desired replacement month. It is preset for a 6-month reminder, but you can set it to any month.

What replacement parts are available for the Guardian AC4150?

The official replacement parts are: the E Filter (FLT4100) (pre-filter+charcoal and HEPA combination) and the UVC tube (LB4100). Purchase them at www.guardiantechnologies.com or contact customer service at 1.866.603.5900.

USER MANUAL AC4150 Guardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to GuardianTechnologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

©2016 Guardian Technologies LLC

guardian

technologies™

USE & CARE INSTRUCTIONS

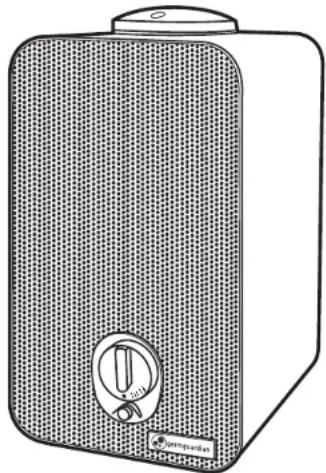

Illustration of a portable electronic device with a mesh grille and control knob (no text or symbols)

Night, Night,

4-in-1 Air Purifier

Model No. AC4150

1-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E-1 French F-1 Spanish S-1

Use GENUINE Guardian Technologies replacement parts only.

REV0218

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: - Read all instructions before using appliance.

• IMPORTANT - This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• To avoid fire or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers, radiator, stoves or heaters.

- To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

- Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the unit.

- Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air purifier is not in use. Be sure to pull by the plug and not the cord.

- NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

- DO NOT cover cord with throw rugs, runners, or similar coverings.

- DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

- DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance malfunctions, or if it has been dropped or damaged in any manner. Call Customer Service at 1.866.603.5900 for assistance.

- Use appliance only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

- DO NOT use outdoors.

• DO NOT place anything on top of unit.

- NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air intake or outtake opening.

- DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• WARNING: Skin or eye damage may result from directly viewing the light produced by the lamp in this apparatus. Always disconnect power before replacing lamp or servicing. Replace Lamp With Lamp Manufactured by Guardian Technologies.
  • Always unplug the unit before before cleaning or servicing in any way.
• CAUTION: Do NOT use gasoline, benzene, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

The 8 hour TWA Ozone for this product is 0.001 ppmv when tested in a 30 m ^3 chamber. The product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period. The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^3 .

WARNING: This product can expose you to chemicals including lead or lead compounds, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

LAMP CONTAINS MERCURY

Manage in accordance with Spills, Disposal and Site Cleanup Requirements. In case of breakage, follow clean-up procedures provided by contacts below.

www.epa.gov/cflcleanup 1-866-284-4010

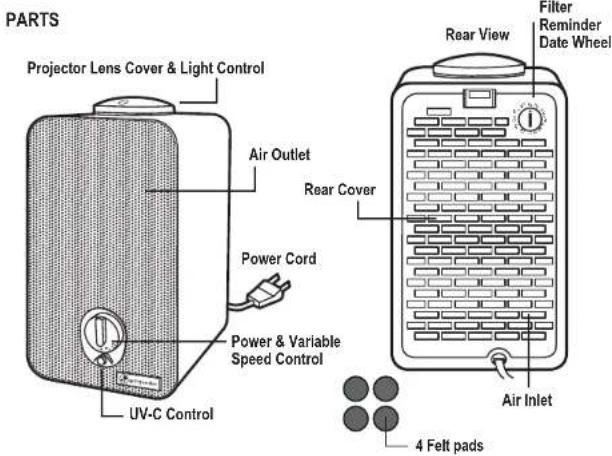

PRODUCT SPECIFICATIONS AND PARTS

PARTS Projector Lens Cover & Light Control Air Outlet Rear Cover Power Cord Power & Variable Speed Control UV-C Control Fitter Reminder Date Wheel Rear View Air Inlet 4 Felt pads

Projector Lenses Sleepy Safari Under the Sea Twinkle Moon & Stars

REPLACEMENT PARTS

FILTER: Filter E
Model No. FLT4100

UV-C BULB (2W): Model No. LB4100

Check out our AutoShip & Save Filter Replacement Program® www.guardiantechnologies.com
IMPORTANT: To maintain the performance of the air cleaner, use Guardian Technologies GENUINE Replacement Parts only. To Purchase Contact Customer Service

DIGITAL AIR CLEANING SYSTEM

Improve your indoor air quality with your new 3-in-1 Air Cleaning System. Multiple levels of cleaning work together to capture allergens, kill germs and remove odors.

COMBINATION FITER

Pre-Filter/Charcoal -This layer serves as a pre-filter for capturing large dust particles; lint and pet hair which helps extend the life of your filter. The activated carbon absorbs household and pet odors.

HEPA Filter- Captures 99.97% of dust and allergens.

UV-C LIGHT

The power of UV-C light kills bacteria and viruses, including: rhinovirus, E. coli and streptococcus.

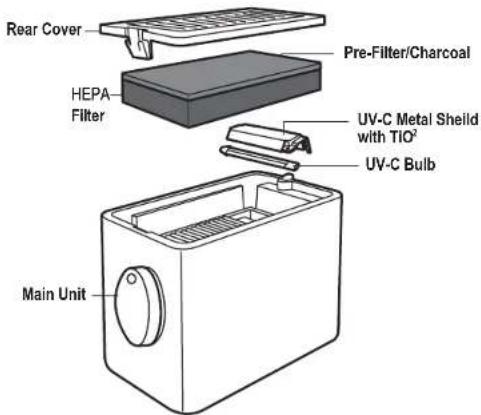

AIR CLEANING LAYERS

Rear Cover HEPA Filter Pre-Filter/Charcoal UV-C Metal Shield with TiO² UV-C Bulb Main Unit

COMBINATION FILTER:

1 Pre-Filter/Charcoal 1 HEPA Filter

Filters last approximately 6-8 months depending on use.

Pre-Filter/Charcoal 99.97% HEPA Filter

DIRECTIONS FOR USE

SET UP

1. Select a firm, level and flat location for the air purifier. For proper air flow, locate the unit at least 1 foot from any wall or furniture. Make sure none of the grills are blocked.
2. Carefully remove your air purifier from box and bag.
3. Adhere 4 felt pads to unit base to protect table top surface. Remove adhesive backing and apply one pad to each corner of unit base.

4 Felt Pads

1. Plug the power cord into a 120V AC outlet.
2. Select 1 of the 3 project lenses. Rotate lens cap counter clockwise to unlock position and lift off. Replace with new lens cap and rotate clockwise to lock position.
3. Turn unit power ON.

- Select fan speed MODE 1-3

I = lowest speed setting II = highest speed setting

1. Select UV-C ON or OFF using UV-C button.
2. Push button on projector lens to control lights. One push - 3 colors auto-rotate Continue to push for specific color

Figure 1

Power & Variable Speed Control UV-C Control

Projector Lens Button

FILTER REPLACEMENT

To maintain the performance of the air cleaner, it is recommended that the filter be replaced about every 6 months. The replacement requirements will vary depending on usage and environmental conditions.

1. It's time to replace the filter when the white HEPA cartridge portion has changed from white to grey or black.

OR

1. A filter date wheel is also built into the rear of the unit to track your filter changes. Simply set the wheel 6 months ahead from when it is replaced as a reminder. The wheel is marked with the months of the year (Figure 3).

Figure 3

UV-C BULB REPLACEMENT

Diagram showing two smartphone screens with one displaying a brick-patterned surface and the other showing a screen with a black-and-white interface (no text or symbols)

1. Lift and remove the Rear Cover from the unit.

Diagram of a device interior with a panel and ventilation grilles, showing no text or symbols.

1. After removing the Rear Cover from the unit, remove the Combination Filter.

3. After removing the Combination Filter, use a Philips head screwdriver to remove screw and detach the UV-C Shield.

1. The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and pulling the bulb straight out of the unit (Figure 4).

IMPORTANT: The UV months depending on 1.866.603.5900 or vis purchase a replacement Replacement UV-C B Pull UV-C Bulb straight out of unit.

Figure 4

IMPORTANT: The UV-C Bulb should be replaced every 10-12 months depending on use. Please contact Customer Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement bulb. Replacement UV-C Bulb: LB4100.

1. The UV-C Bulb is reinstalled by sliding it, horizontally, back into the slots.

CLEANING & MAINTENANCE

GENERAL CLEANING

Always unplug the unit before cleaning or servicing in any way.

Caution: Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the product. NEVER use alcohol or other solvents.

Note: Do NOT stick any foreign objects or your fingers inside the unit.

1. Wipe the surface of the unit with a clean, dry soft cloth as needed.
2. Clean the Filter monthly with the brush of your vacuum cleaner.
3. Remove and Clean (or Replace) Filter.

Line drawing of a rectangular device with a lid and top panel, showing an upward arrow (no text or symbols)

a. Lift and remove the Rear Cover from the unit.

Line drawing of a microwave oven with a lid and vent, showing airflow direction (no text or symbols)

b. Remove Combination Filter from unit.
Note: Pre-Filter/Charcoal is affixed to HEPA Filter with Velcro.

Illustration of a hand using a brush to apply material on a flat surface (no text or symbols visible)

c. Separate and clean both filter layers with the brush attachment of your vacuum cleaner to remove lint and dust. IMPORTANT: Do NOT try to wash and re-use the Combination Filter.

Diagram of a microwave oven with a lid and ventilation slots, showing a downward arrow (no text or symbols)

d. Insert Combination Filter into the unit with the HEPA portion facing into the unit. Consult the arrow on the filter for correct installation direction.
e. Reattach the Rear Cover of the unit and securely latch into place.

IMPORTANT: Do NOT try to wash and re-use the Combination Filter. Please contact Customer Service at 1.866.603.5900 or visit us at www.guardiantechnologies.com to purchase a replacement filter. Replacement Combination Filter: E (FLT4100)

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Unit does not operate.	Check that the unit is plugged in.
Unit shuts off unexpectedly.	Check that the unit is plugged into a working electrical outlet.Check that the HEPA Filter is firmly in place.Check that the Front Cover is latched firmly in place.Call Customer Service.
No air circulating from unit.	Unplug unit. Check Pre-Filter/Charcoal and HEPA Filters.Clean Pre-Filter/Charcoal if necessary.Replace HEPA Filter if necessary.
Increase in noise level.	Make sure the filters are clean. Replace if necessary.
An unpleasant odor is emitted from the unit.	Make sure the filters are clean. Replace if necessary.

GARANTIE LIMITÉE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

866 603-5900

www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian

technologies™

UTILISATION ET

INSTRUCTIONS D'ENTRETIEN

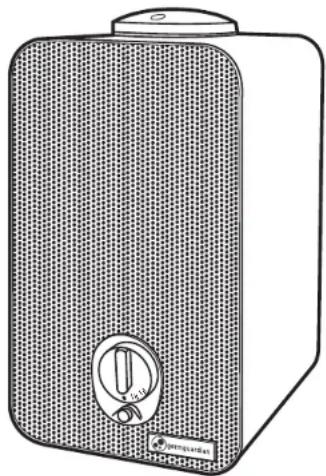

Line drawing of a portable electronic device with a mesh back panel and control knob (no text or symbols)
