USER MANUAL TWK1M127 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

MyBosch

Cordless electric kettle

TWK1M... TWK2M... TWK3M... TWK4M...

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.
[sk]	Naskenujte QR kód alebo navštívte webovú stránku, aby ste sa dozvedeli rozšírené informácie o používaní. Tam nájdete d'alšie informácie o vašom spotrebiči alebo príslušenstve.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001280189

Illustration of a hand holding a device with an arrow indicating rotation or change, no text or symbols present.

2

max max

3

Illustration of a hand pouring liquid into a container with a curved arrow indicating rotation (no text or symbols)

CLICK

4

Illustration of a mechanical device with a base and central component, showing a downward arrow (no text or symbols)

5

Diagram showing a hand holding a blue clip with an arrow indicating a step, labeled with a circled number 1 and a black downward arrow.

6

Line drawing of a white kettle with handle and side panel, shown in line style (no text or symbols)

7

Line drawing of a white kettle with a blue 'CLICK' button label (no other text or symbols)

8

Illustration of a kettle pouring liquid into a cup (no text or symbols)

9

① 0.5L ② ON ③ OFF CLICK

10

The image is too blurry to recognize any text content.

Diagram of a faucet pouring liquid into a container (no text or symbols)

Illustration of a faucet with water flowing from a pipe (no text or symbols)

12

13

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ for applications described in these instructions.
■ under supervision.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ for normal processing quantities and for normal processing times for domestic use.
■ up to an altitude of max. 2000 m above sea level.
■ for bringing water to the boil.
■ with the base supplied.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never operate a damaged appliance.
  ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

en

Preventing material damage

▶ Repairs to the appliance should only be carried out by trained specialist staff.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never immerse the appliance, the base or the power cord in water or clean them in the dishwasher.
- Liquids must not be spilled on the appliance plug connection.

▶ Never use the appliance near water contained in a bath, sink or other vessels.

▶ Ventilate the appliance adequately.

▶ Never operate the appliance in a cupboard.

▶ Never place the appliance on or near hot surfaces.

▶ Never touch hot appliance parts.

- Allow hot appliance parts to cool down before touching.

▶ Only hold the jug by the handle.

If the appliance is filled above the "max" marking, there could be a risk from splashes of boiling water.

▶ Only use the appliance with the lid closed and the limescale filter in place.

▶ Never exceed the maximum quantities specified.

▶ To avoid injuries, only use the appliance for its intended purpose.

▶ Follow the cleaning instructions.

- Clean surfaces which come in contact with food before each use.

Preventing material damage

▶ Only use the appliance with fresh, cold, non-carbonated water. Never add milk, ready-made drinks or instant products.
▶ Never operate the appliance when empty or overfilled. Observe the water level indicator.

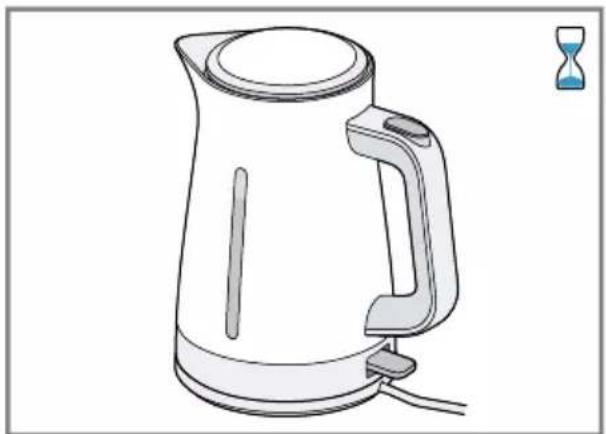

Leave the appliance to cool down for at least 5 minutes after each use.
▶ Never remove limescale residues using hard or metal objects.

Overview

Note: This user manual applies to different models. The model shown may differ from the model delivered in terms of shape and features.

→ Fig. 1

A

TWK1M...

B

TWK2M...

C

TWK3M..., TWK4M...

1	Kettle
2	Lid
3	Lid-opening button
4	Handle
5	Water level indicator (illuminated ^1 )
6	On/off switch, illuminated
7	Base
8	Cord store
9	Limescale filter, removable

^1 Depending on the model

Preparing the appliance for first use

1. Remove any packaging material.
2. Remove any stickers or film.
3. Unwind the power cord to the required length.
4. Insert mains plug.
5. Fill the kettle with fresh, cold water, add a tablespoon of vinegar and bring to the boil.
   → "Boiling water", Page 13
   Repeat the process without adding vinegar.
6. Rinse the kettle thoroughly.

Boiling water

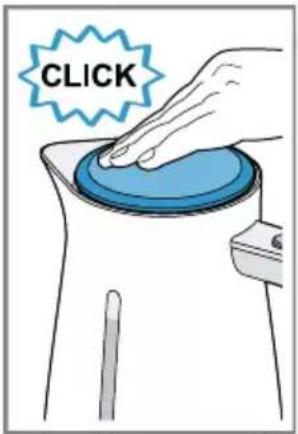

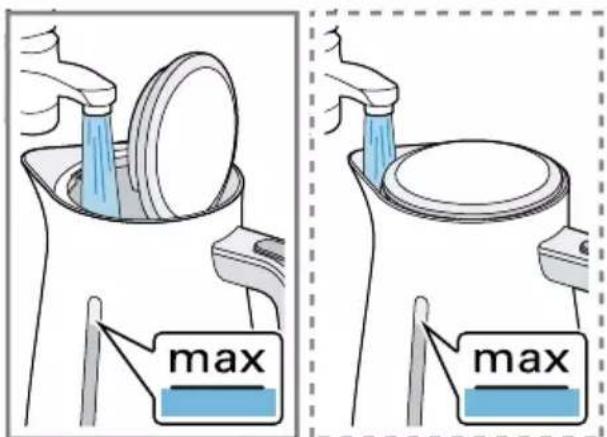

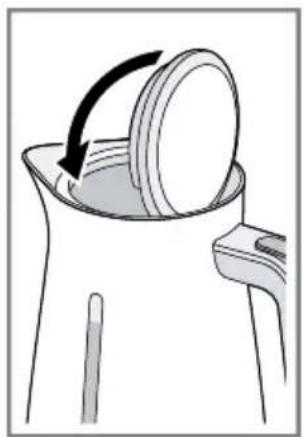

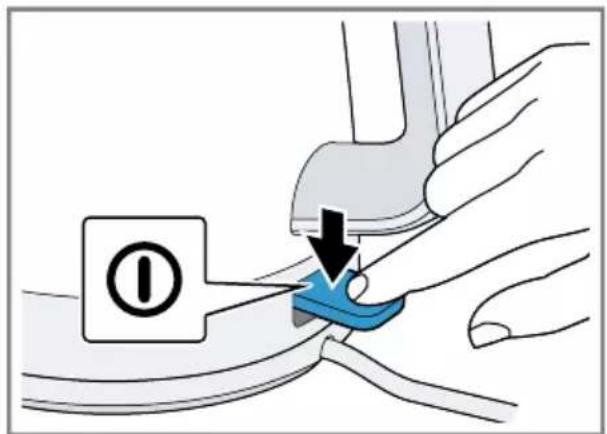

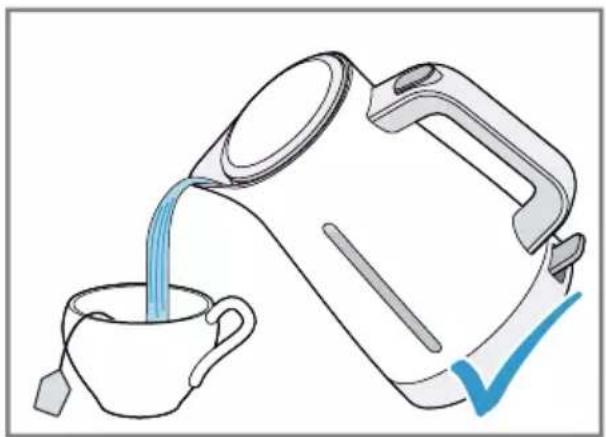

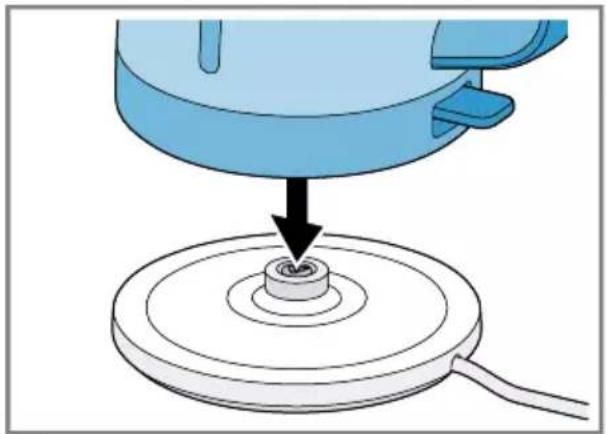

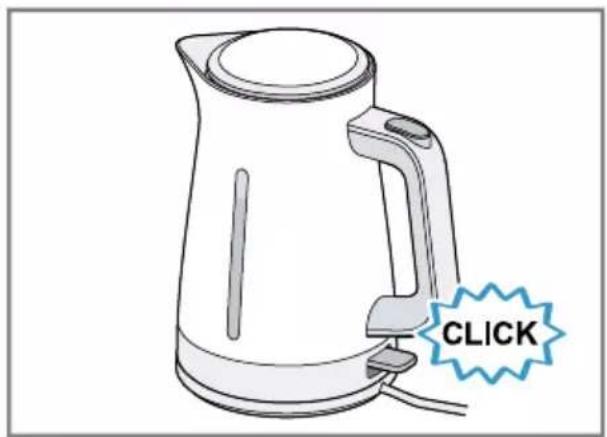

→Fig. 2 - 9

Notes

■ To end the heating process early, move the on/off switch up.
■ If you lift the kettle from the base and put it down again, the boiling process will not continue.

Descaling the appliance

Notes

■ Regular descaling:
– prolongs the life of the appliance
– ensures proper functioning
- saves energy

Preparing the appliance for first use

en

■ If you are descaling the appliance with a commercially available descaler, follow the manufacturer's instructions for use and safety.

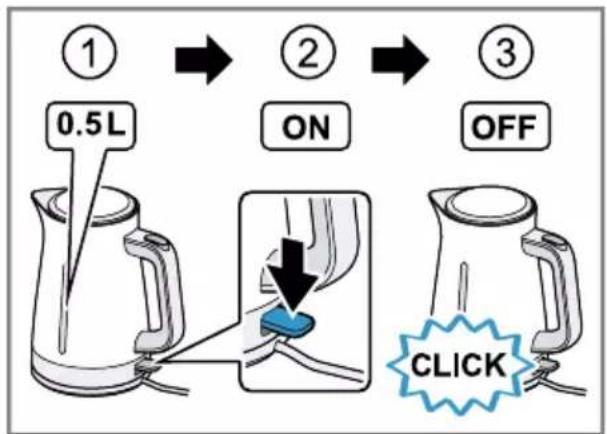

■ If you descale the appliance with vinegar, insert 2 tablespoons of vinegar into the water that has been boiled instead of the descaling tablet.
■ If you use the kettle every day, descale it in shorter intervals.

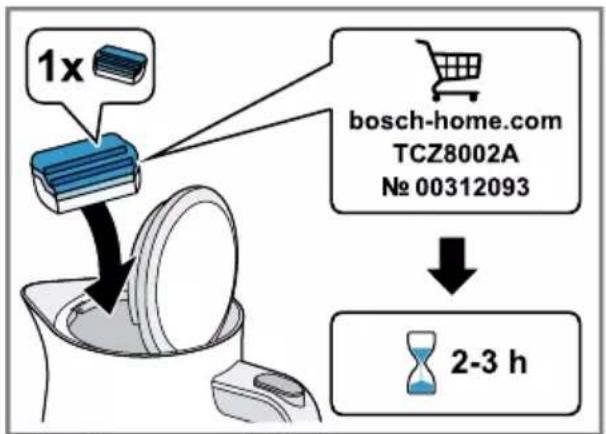

■ After descaling, remove the limescale filter and place in a little vinegar.

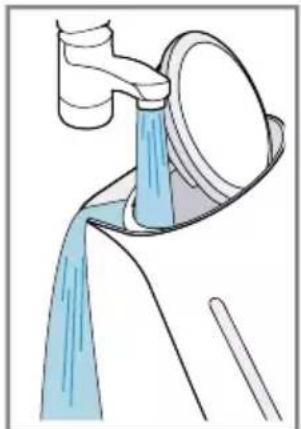

→ Fig. 10 - 12

Overview of cleaning

• Do not use cleaning agents containing alcohol or spirits.
• Do not use sharp, pointed or metal objects.
• Do not use abrasive cloths or cleaning agents.
  → Fig. 13

Troubleshooting

The appliance does not heat up and the on/off switch does not light up.

Overheating protection is active.

Leave the appliance to cool down for a long time before switching it on again.

The appliance switches off before the water has boiled.

Build-up of limescale in the appliance.

▶ Descale the appliance.

Water collects at the base.

Condensation may form for reasons of physics.

▶ Note: The formation of condensation is normal and harmless.
Pull out the mains plug and dry the base with a cloth.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner.

en Customer Service

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.
