VIGI C440I - Surveillance Camera TP-LINK - Free user manual and instructions

Product type	Outdoor network surveillance camera
Brand	TP-Link
Model	VIGI C440I
Maximum resolution	4MP (2560 x 1440) estimated
Night vision	Yes, infrared up to 30 m estimated
Field of view	Horizontal: ~90°, Vertical: ~50° estimated
Dimensions	Approximately 110 x 100 x 90 mm (without bracket)
Weight	Approximately 350 g
Power supply	PoE (802.3af/at) or 12 V DC (depending on model)
Power consumption	Max. 8 W estimated
Protection rating	IP67 (waterproof) estimated
Main features	Motion detection, night vision, NVR compatibility, access via VIGI app and browser
Storage	On NVR or microSD card (up to 256 GB) estimated
Network connection	Ethernet RJ45 10/100 Mbps
Supported protocols	IPv4, HTTP, HTTPS, TCP/IP, DHCP, ONVIF
Maintenance and cleaning	Clean the lens with a soft, dry cloth. Avoid solvents.
Safety	Do not disassemble, use a compliant power supply, keep dry.
Spare parts and repairability	Contact TP-Link for any repairs. No consumer spare parts.
General information	TP-Link limited warranty. CE, RoHS. Manual available online.

Frequently Asked Questions - VIGI C440I TP-LINK

How to install the VIGI C440I camera?

Mount the camera according to the quick start guide. Connect it to the network via PoE or 12V power supply. Use a NVR or the VIGI app to configure it.

What types of power supply are compatible?

The camera supports PoE power (802.3af/at) and an external 12 V DC power supply. Check your model's specifications on the TP-Link website.

Can I use this camera with a different brand NVR?

Yes, you can use it with other NVR brands. First activate the camera via the VIGI Security Manager software or app, then follow the NVR's instructions to add the camera.

How to access the camera remotely?

Download the VIGI app on your smartphone, log in with your TP-Link ID and add the camera following the instructions. You can also use a web browser by entering the camera's IP address.

Does the camera work without NVR?

Yes, you can use it with the VIGI app or VIGI Security Manager software on PC. However, for continuous recording, an NVR or SD card is recommended.

What is the camera resolution?

The VIGI C440I offers 4MP (2560 x 1440) resolution for clear images.

How to reset the camera?

Press and hold the reset button (often located under the lens cover) for about 10 seconds until the LED blinks.

Is the camera suitable for outdoor use?

Yes, it has an IP67 protection rating, making it resistant to water and dust.

What detection modes are available?

The camera supports motion detection. You can configure detection zones and receive alerts via the app.

Where to find the full manual?

The manual is available for free download on notice-facile.com or on the TP-Link website (www.tp-link.com).

USER MANUAL VIGI C440I TP-LINK

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106509961 REV1.4.0@2022 TP Link

Images may differ from your actual products.

CONTENTS

01 / English

05 / Deutsch

09 / Español

13 / Ελληνικά

17 / Français

21 / Italiano

25 / Português

29 / Nederlands

33 / 日本語

37 / 한국어

41 / 繁體中文

45 / ไทย

49 / Tiếng Việt

53 /

Mount Your Camera

Mount your camera according to the diagrams in the Quick Start Guide included in the package.

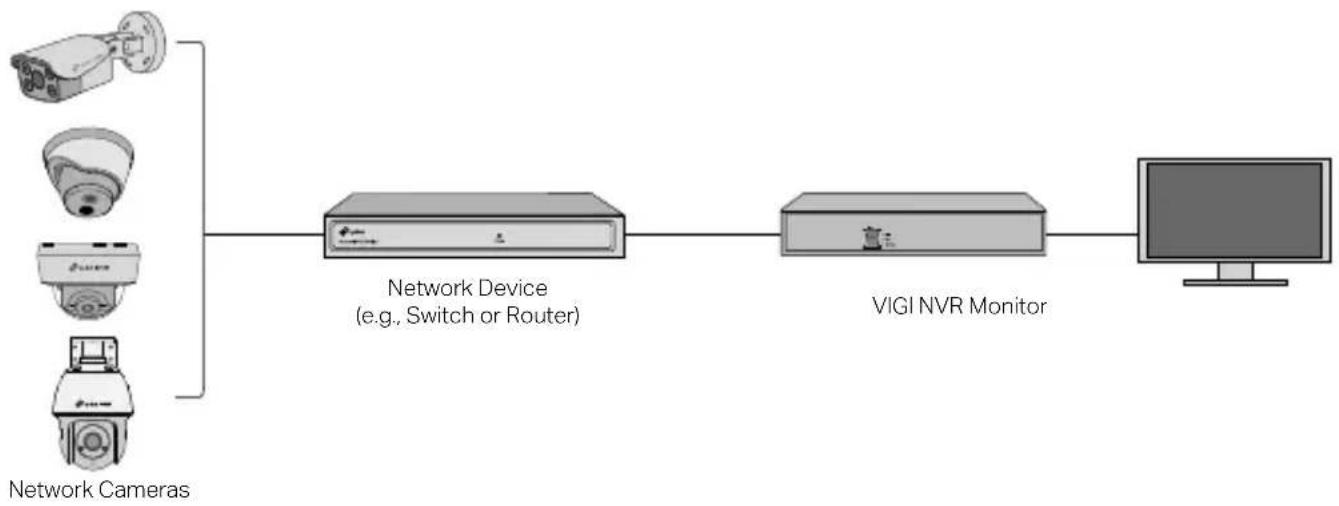

Use Your Camera with an NVR

The camera works with an NVR for easier batch access and management. Here we use a VIGI NVR as an example.

1 Connect your cameras to the same network as your NVR (as shown above).

English

2 Power on your cameras with the PoE power supply or an external power supply.

Note: The camera's standard power supply is 12V DC or PoE (802.3af/at). The power source should comply with Power Source Class 2 (PS2) or Limited Power Source(LPS) of IEC 62368-1. Some models do not support DC power supply. You can check the detailed specifications on the product page at https://www.tp-link.com/.

3 Add your cameras with the NVR.

Before you start, make sure the NVR is working properly. Then add your camera with the NVR.

1) Go to the NVR management page, right click on the screen, and click Add Camera.

2) Select your camera and click + to add your camera directly. If you have disabled Plug & Play on your NVR, create a password or use a preset password for your camera.

Done! You can now view live video and manage cameras.

Using your cameras with other NVR brands

1 Power on your cameras and connect them to the network.
2 Activate the camera using the VIGI Security Manager or VIGI app (refer to the next section).
3 Refer to the NVR's User Manual to add cameras.

More Management Methods

You can also access and manage your cameras via any of the methods below.

Method 1: Via the VIGI App

Remotely view live video, manage cameras, and get instant alerts.

1 Download and install the VIGI app.

2 Open the VIGI app and log in with your TP-Link ID. If you don't have an account, sign up first.
3 Tap the + button on the top right and follow the app instructions to activate and add your cameras.

Method 2: Via a Web Browser

Note: Some models do not support web management. You can check the detailed specifications on the product page at https://www.tp-link.com/.

View live video and modify camera settings via a web browser.

1. Find the camera's IP address on your router's client page.
2. On your local computer, open a web browser and enter https://camera's IP address

English

(https://192.168.0.60 by default).

1. Select your Country/Region and Time Zone.
2. Set a password to activate the camera.

Done. You can view the live video on the Preview page, and go to the Settings page to change camera settings.

Method 3: Via the VIGI Security Manager (Windows only)

View live video and modify camera settings on your computer.

1 Download the VIGI Security Manager on your computer at https://www.tp-link.com/download-center/
2 Install the VIGI Security Manager and open it.
3 Cameras on the same network as your computer can be automatically discovered. Go to Settings > Discovered Devices, click + Add to activate your discovered cameras by setting passwords, and follow the instructions to add your cameras.

For frequently asked questions, please refer to https://www.tp-link.com/support/faq/2850/

./https://www.tp-link.com

.הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,

./https://www.tp-link.com

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

https://www.tp-link.com/download-center/

English: Safety Information

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.

For indoor camera

• Keep the device away from water, fire, humidity or hot environments.
• Adapter shall be installed near the equipment and shall be easily accessible.

For outdoor camera

• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Adapter shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	銅Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenylethers (PBDE)
PCB ○○	○○○○
外殼 ○○	○○○○
電源供應器	-○○○○○
其他及其配件	-○○○○○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

English:

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the

Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.

The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/

Deutsch:

For TP-Link Branded Products Only. For more information about warranty, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the

date of original retail purchase by the end-user purchaser.
