Product type	Wood fireplace
Brand	Edilkamin
Model	FLAT (FLAT 100 / FLAT 120)
Useful power output	FLAT 100: 10.5 kW; FLAT 120: 13 kW
Wood consumption	FLAT 100: 3 kg/h; FLAT 120: 3.8 kg/h
Efficiency	75%
Flue outlet diameter	FLAT 100: 25 cm; FLAT 120: 30 cm
Air intake diameter	12.5 cm (minimum 120 cm² section)
Weight (including packaging)	FLAT 100: 350 kg; FLAT 120: 367 kg
Indicative heated volume	FLAT 100: 275 m³; FLAT 120: 340 m³
Fuel	Dry natural wood (humidity < 20%) or wood briquettes
Main materials	Body in welded steel plate, firebox in ECOKERAM® (mullite fired at 1200°C), ceramic glass resistant to thermal shocks up to 800°C
Combustion system	Adjustable primary air (mobile deflector), preheated secondary air for glass cleaning
Hot air circulation	By natural convection (N version) or forced ventilation with optional kit (800 m³/h)
Door	Sliding with adjustable counterweights, removable handle
Adjustable feet	Yes
Compliance standards	EN 13240:2001 + A2:2004 + AC:2006 + AC:2007, EU Regulation 305/2011 (CPR)
Safety	Do not block ventilation, do not use liquid fuels, maintain safety distances (80 cm in radiation field, 5 cm outside field), protect combustible floor and walls
Routine maintenance	Clean glass when cold with special product (GlassKamin), empty ashes into non-combustible container, annual flue inspection
Spare parts	Use only original Edilkamin spare parts
Warranty	Void in case of improper use or unauthorized modification

Frequently Asked Questions - FLAT EDILKAMIN

What types of wood can I use in the FLAT firebox?

Use only dry natural wood (humidity below 20%) or wood briquettes. Wet or freshly cut wood burns poorly, produces more smoke and less heat. Never use liquid fuels (gasoline, alcohol) or waste.

How do I adjust the combustion air?

Primary air is adjusted via a mobile deflector located at the front of the firebox. For lighting and maximum power, open it fully (lever pulled out). For maintaining embers, close it completely (lever pushed in). Secondary air is pre-calibrated to clean the glass.

What safety distances must be maintained around the fireplace?

In the radiation field (front, above, and sides), maintain a distance of at least 80 cm from combustible materials (furniture, structural elements). If protected by a ventilated radiation shield, the distance can be reduced to 40 cm. Outside the radiation field, a distance of 5 cm is sufficient, with free air circulation.

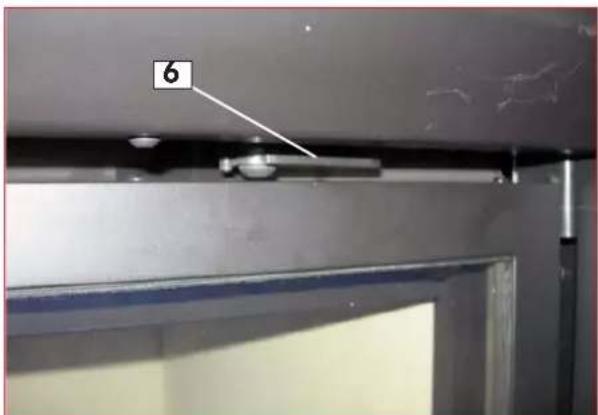

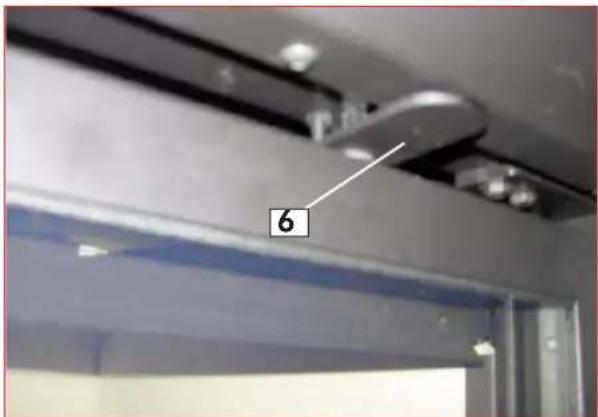

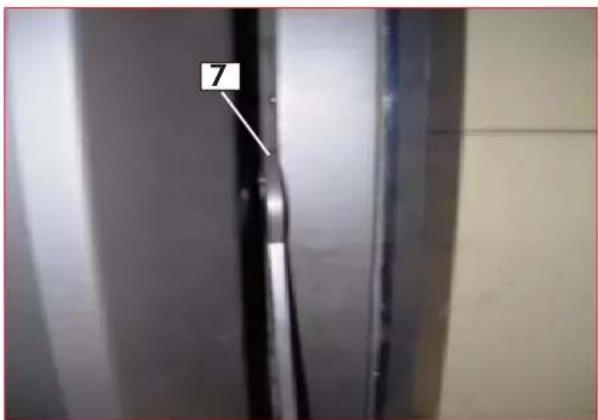

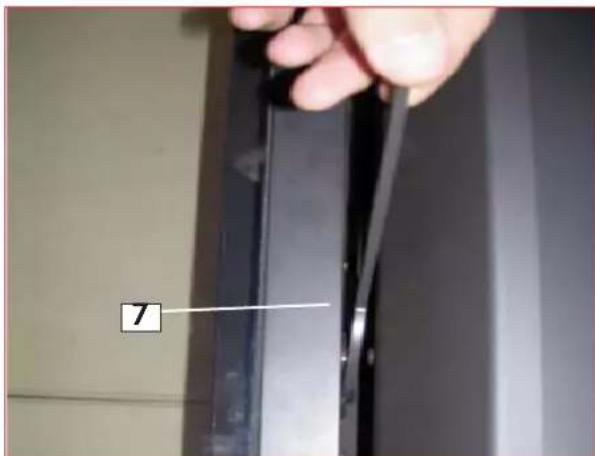

How do I clean the fireplace glass?

Cleaning must be done when cold. To access the glass, lock the door in closed position (locking lever toward center), then unlock the latch plates on the sides by turning them 90°. Use a special product like GlassKamin and a cloth. Never use abrasive or harsh products, and never clean when hot.

What should I do if there are odors during the first firings?

The fireplace's varnish cures during the first temperature rise, which may cause unpleasant odors. Ventilate the room well. This phenomenon disappears after the first firings.

How do I add wood while the fireplace is operating?

Use a protective glove as the handle may be hot. Open the door slowly to avoid smoke swirls. Add wood when the fuel is almost consumed (embers). Place logs at the back of the firebox to prevent them from falling on the door.

What periodic maintenance is required?

Once per season, inspect and clean the flue and all exhaust ducts. You can remove ashes with a shovel or ash vacuum. Consult your dealer for specific operations.

Can I install the fireplace in an airtight room?

The fireplace requires sufficient combustion air supply. If the room is very airtight, it is essential to install an additional air intake of at least 120 cm² (ø 12.5 cm) connected to the outside. Never block ventilation openings.

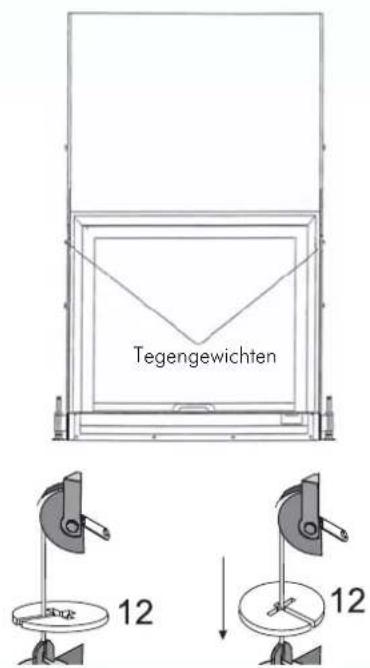

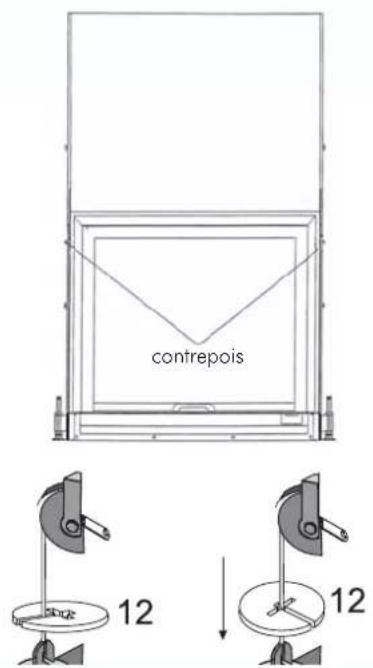

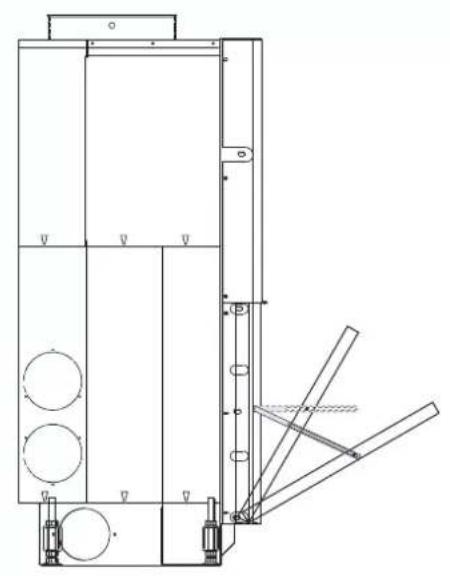

How do I adjust the counterweights of the sliding door?

Open the door fully upward, remove the support plates and Ecokeram walls, then remove the covers of the counterweight niches (6 screws). Add compensation washers provided in the hook housings. The same number of washers must be installed on both sides.

Where can I find the fireplace's rating plate?

The model identification rating plate is attached under the fireplace door. It is visible as long as the fireplace is not clad. Note the serial number and Declaration of Performance (DoP) for any parts requests or claims.

USER MANUAL FLAT EDILKAMIN

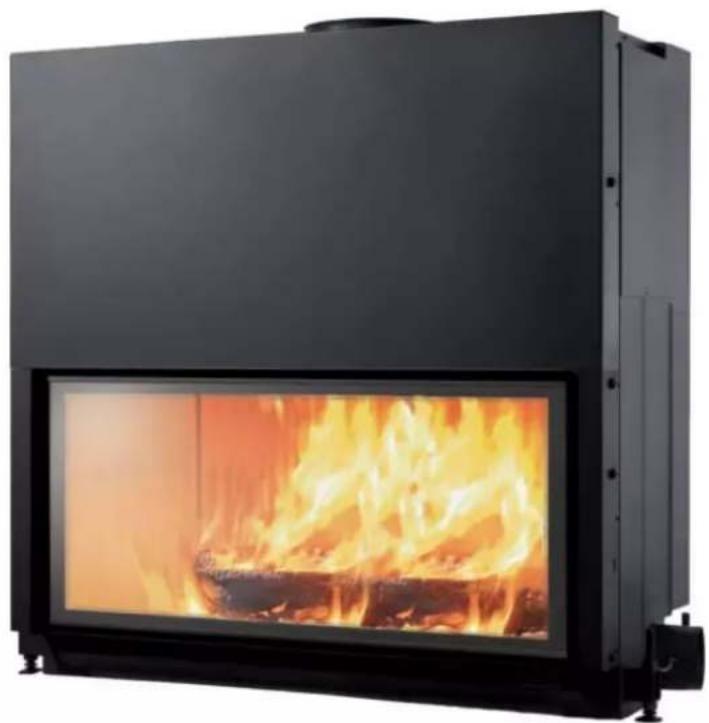

Exterior view of a black industrial stove with visible flames and wood inside (no text or symbols)

Exterior view of a black industrial stove burner with visible flames and firewood (no text or symbols)

UK Installation, use and maintenance p. 12

F Installation, usage et maintenance p. 22

Technical diagram of a furnace or reactor with numbered components and airflow indicators

fig.1

Interior view of a room with a wall-mounted shower structure and a numbered label (6) on the left side (no text or symbols on the structure itself)

fig.2

Close-up of a metal shelf with two circular cutouts and a numbered label '14' on the side (no readable text or symbols beyond the number)

fig.3

Close-up of a black industrial machine component with labeled parts (10 and 11), no visible text or symbols beyond labels.

fig.4

Metal bracket component with two notches and a labeled point (8) on the side (no text or symbols beyond label)

fig.5

Mechanical device labeled 'A' with no visible text or symbols on the body itself

Mechanical component with black shaft and bolted joint, labeled 'fig.7' (no text or symbols on the object itself)

Valvola a farfalla

Mechanical component with black shaft, bolts, and flange (no visible text or symbols)

Technical drawings of industrial equipment with numbered components and dimensional annotations

Technical line drawing of a mechanical assembly with two labeled components A (no text or symbols beyond labels)

Daviliner Product 12000 Product Description: Daviliner Product Name: Daviliner Product Size: 50 gm (100 gm) Product Quality: High quality Product Quality Indicator: Low quality Product Quality Rating: 9.87% (3.65%) Product Quality Accuracy: 99.99% (3.65%) Product Quality Protection: 99.99% (3.65%) Product Quality Protection Performance: 99.99% (3.65%) Product Quality Protection Quality Control: 99.99% (3.65%) Product Quality Protection Quality Control Quality Control: 99.99% (3.65%) Product Quality Protection Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality Control Quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quality control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control quantity control volume Daviliner Product 12000 Product Description: Daviliner Product Name: Daviliner Product Size: 50 gm (100 gm) Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality Product Quality Indicator: High quality Product Quality Indicator: Low quality ProductQuality Indicator: High quality Product Quality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Daviliner Product Name: Daviliner Product Description: Daviliner Product Size: 50 gm (100 gm) Product Quality Indicator: High quality Product Quality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: Daviliner Product Name: Daviliner Product Description: Daviliner Product Size: 50 gm (100 gm) Product Quality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: High quality ProductQuality Indicator: Low quality ProductQuality Indicator: Daviliner Product Name: Daviliner Product Description: Daviliner Product Size: 50 gm (100 gm) Product Quality Indicator: High quality 产品规格型号：Daviliner

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 6 and 7

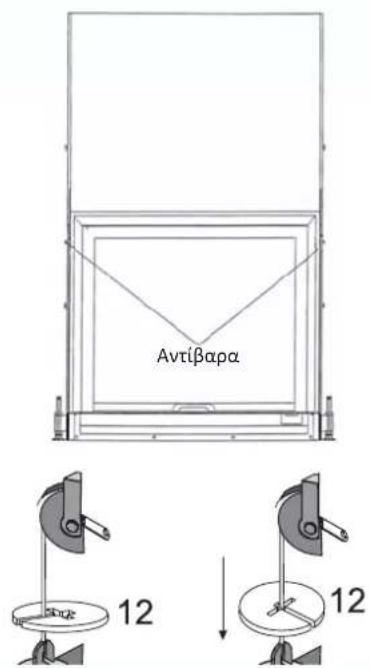

contrappesi 12 12

fig.11

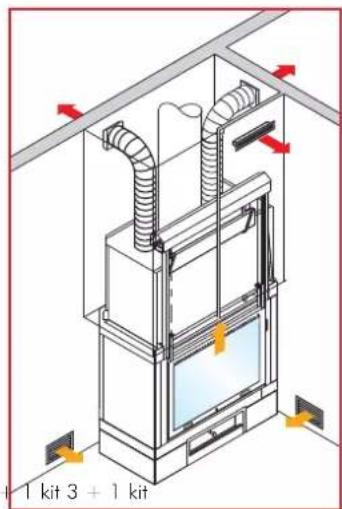

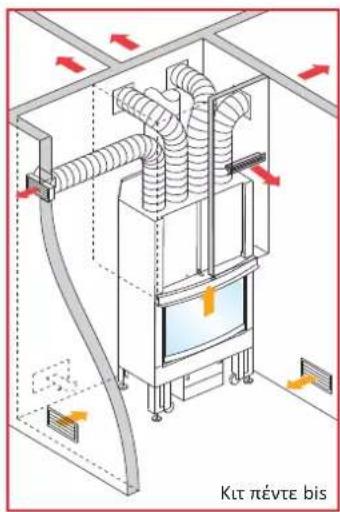

Isometric diagram of an air conditioning unit with airflow arrows and control panel (no text or symbols)

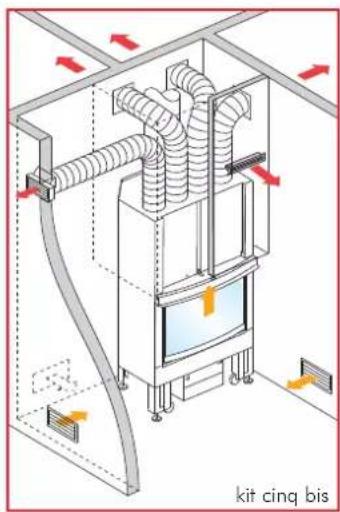

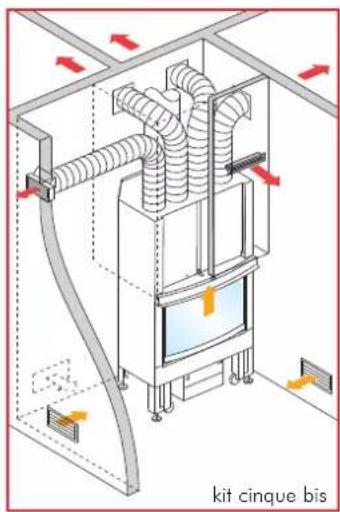

kit cinque bis

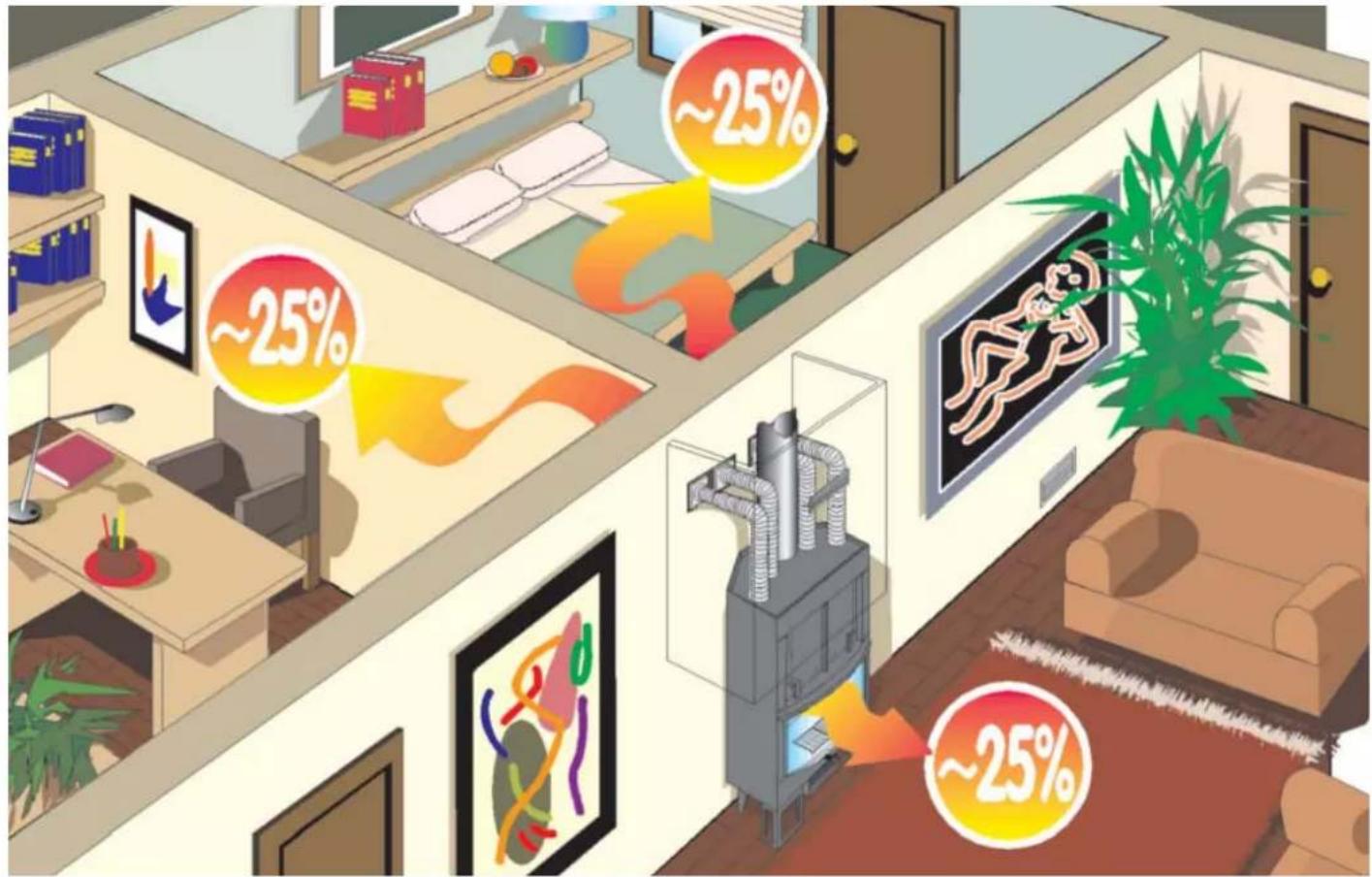

~25% ~25%

Simple black line drawing of a mechanical lever or handle (no text or symbols)

mano fredda

7

Thank you for having chosen FLAT.

You are kindly asked to read through this information before using the fireplace in order for you to make use of all its features in total safety.

In the event of any doubt, a request for spare parts or complaints, you should contact the Dealerwhom you bought it from, quoting the details on the manufacturer's sticker and the type of appliance.

The number on the manufacturer's sticker is necessary for identification of the fireplace and this is found in the documentation enclosed with it and also on the plate fixed on its front.

The documentation in question must be kept for identification.

• You must keep these instructions as you will need them for any information requests.
• The details are shown indicatively, both graphically and geometrically.

Safety information

The FLAT fireplace is designed to warm up the room/premises where it is placed by means of radiation and movement of warm air. The only hazards that can derive from using the fireplace pertain to non-compliance with the installation instructions or if contact is made with the fire or hot parts (glass, pipes, hot air outlet) or if foreign substances are put in the fireplace.

The only combustible material to be used is firewood.

No flammable products are to be used to clean the smoke flue.

The glass is to be cleaned when COLD and with suitable products (e.g. GlassKamin) and a cloth.

Do not clean when hot.

The exhaust pipes and the door reach hot temperatures when the fireplace is used.

Do not place anything which is not heat resistant near the fireplace.

NEVER use combustible liquids to light the fireplace or to rekindle the embers.

Do not obstruct the air ventilation openings in the room where the fireplace is installed, nor the air inlets of the fireplace.

Do not wet the fireplace.

Do not use reducers on the smoke exhaust pipes.

The fireplace must be installed in a place which is suitable against fire hazards and equipped with all that is required for the fireplace to function properly and safely.

Important note

If the FLAT hearth malfunctions you are to contact the Dealer whom you bought it from or the Edilkamin dealer in your area.

Use only the manufacturer's original spare parts as this is the only way to be certain that the fireplace operates safely. Improper use of the appliance will result in forfeiture of the warranty.

Proper use of the appliance means adhering to these operation instructions, the UNI 10683 standard, correct installation and operation standards.

If installation is carried out in Italy, refer to the standard issued by the Italian Organisation for Standardisation: UNI 10683 or subsequent amendments. In all other countries, please verify the laws and regulations in this regard.

The undersigned EDILKAMIN S.p.a. with head office headquarters at Via Vincenzo Monti 47 - 20123 Milan - Italy - tax code and VAT no. 00192220192

Declares under its own responsibility as follows:

The wood-combustion fireplace listed below complies with Regulation EU 305/2011 (CPR) and the harmonised European Standard EN 13240:2001 + A2:2004 + AC:2006 + AC:2007

WOOD BURNING FIREPLACES, trademark EDILKAMIN, called FLAT 100-120

Year of manufacture: Ref. Data nameplate

Declaration of performance (DoP - EK 27): Ref. data tag plate

EDILKAMIN S.p.a. will decline all responsibility of malfunctioning or damage to the equipment in case of unauthorized substitution, assembly or modifications of any sort on the said equipment on the part of non-EDILKAMIN personnel.

THE FEATURES

Technical diagram of a furnace or reactor with numbered components and airflow indicators

fig.1

Interior view of a room with a door, vertical panel, and decorative wall art (no visible text or symbols)

fig.2

Close-up of a metal shelf with a numbered label (14) and mounting holes, placed on a wooden surface (no text or symbols visible)

fig.3

Technical diagram of a heating element with numbered parts labeled 10 and 11

fig.4

Metal bracket component with a numbered label (8) pointing to its top edge (no other text or symbols)

The structure consists of a high-quality, steel plate frame which is hermetically welded, equipped with adjustable feet and complete with an ECOKERAM bowl-shaped hearth, for the ashes to pile-up properly.

The structure's finishing consists of a mantel cover that creates a space for the circulation of warm air.

Heating air circulates via natural convection (N version) or else via an optional forced air kit (V version), see page 15.

Particular attention has been given to the intake of air for combustion in the hearth in order to guarantee optimum combustion, a stable flame and a very clean glass.

The primary combustion air Asters at the base of the hearth on the surface of the embers.

The amount of primary air that enters can be regulated according to the draught that passes through the chimney flue by means of a movable deflector (14) installed on the front part of the fireplace (fig. 3).

If a weak draught passes through the chimney flue you can increase the primary air inlet section by means of the movable deflector. On the other hand you can decrease this if the draught is too strong.

The secondary combustion air B and that which cleans the glass enters from the top of the glass once it is warmed during its path.

The amount of secondary air and that which cleans the glass is pre-set and warmed up as it passes through the side supports placed at the opening of the hearth.

Removable handle for opening the door

The door handle (fig. 5) is not fixed to the door – it is only attached when necessary.

The handle is fitted into the lower part of the frame around the opening of the hearth, mounting it onto the appropriate pins.

The handle is only used to lift or lower the door.

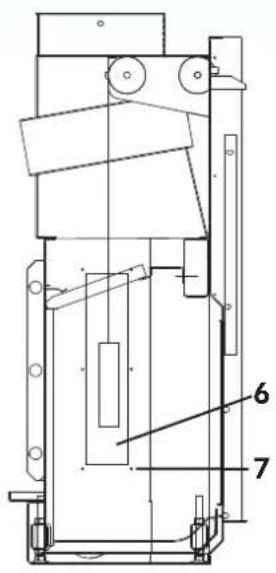

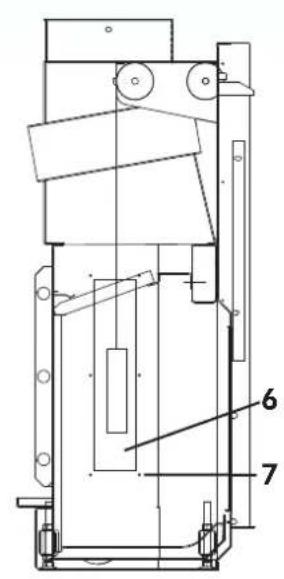

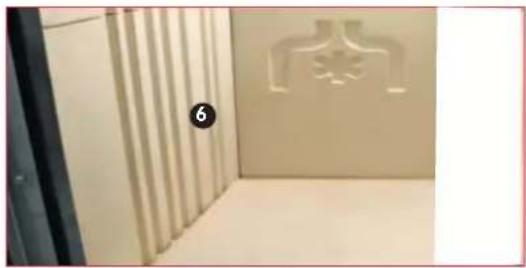

Internal covering of the hearth (fig. 2)

The internal covering is made of ECOKERAM®: a new refractory material containing mullite fired at 1200°C.

ECOKERAM® has a particular characteristic of accumulating heat during combustion and emitting it gradually even when the fireplace is turned off.

ECOKERAM® allows the internal part of the hearth to reach a very high temperature and in doing so optimises combustion and reduces emissions.

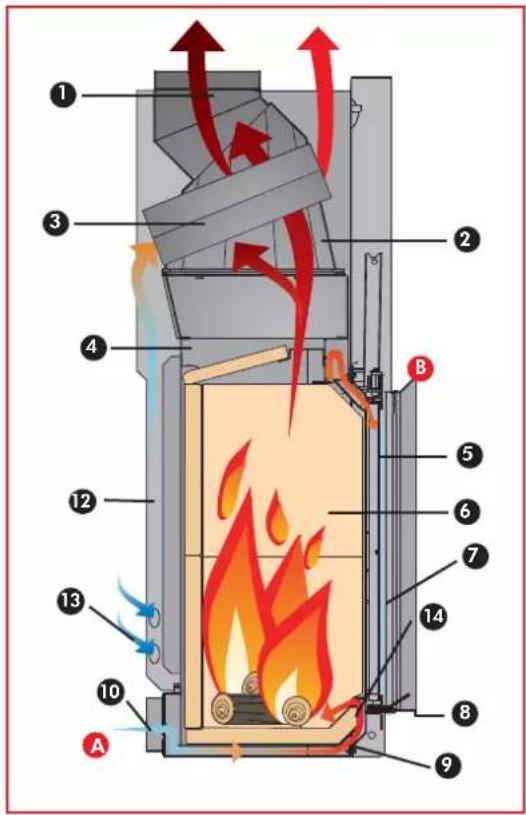

LEGEND: (figs. 1-2-3-4-5)

1. smoke outlet fitting to be connected to the chimney flue

2. finning to improve heat transfer

3. smoke deviating channel to improve heat transfer

4. steel structure

5. channel for the intake of secondary air and that which cleans the glass to keep the glass clean

6. the internal covering of the hearth made of ECOKERAM® which has a thick covering in order to increase the combustion temperature

7. ceramic glass thermal shock resistant at a temperature of 800°C

8. removable handle

9. bowl-shaped hearth to pile-up the embers and obtain optimal combustion

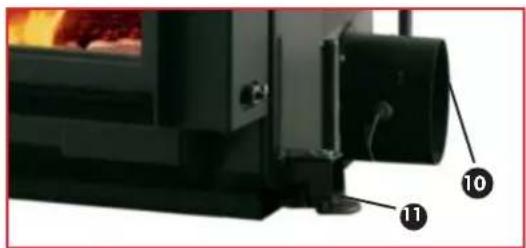

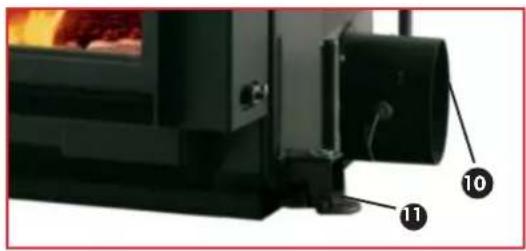

10. external air inlet fitting

11. adjustable feet

12. mantel cover for the circulation of warm air

13. inlets to intake air that is to be heated (recycle)

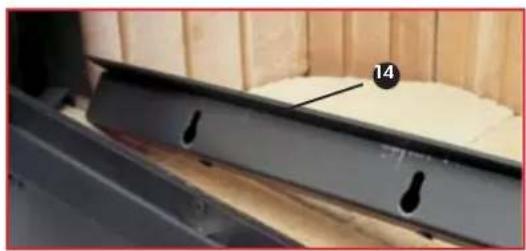

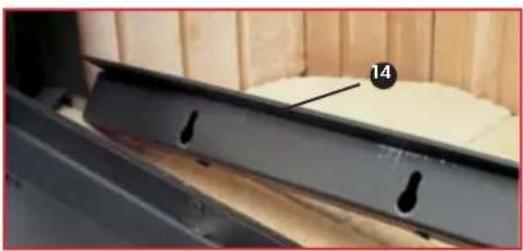

14. movable deflector

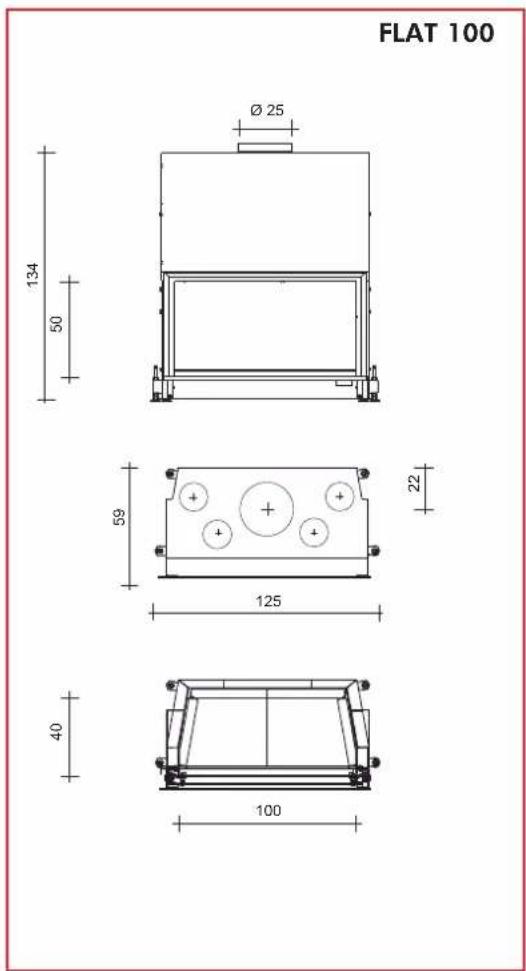

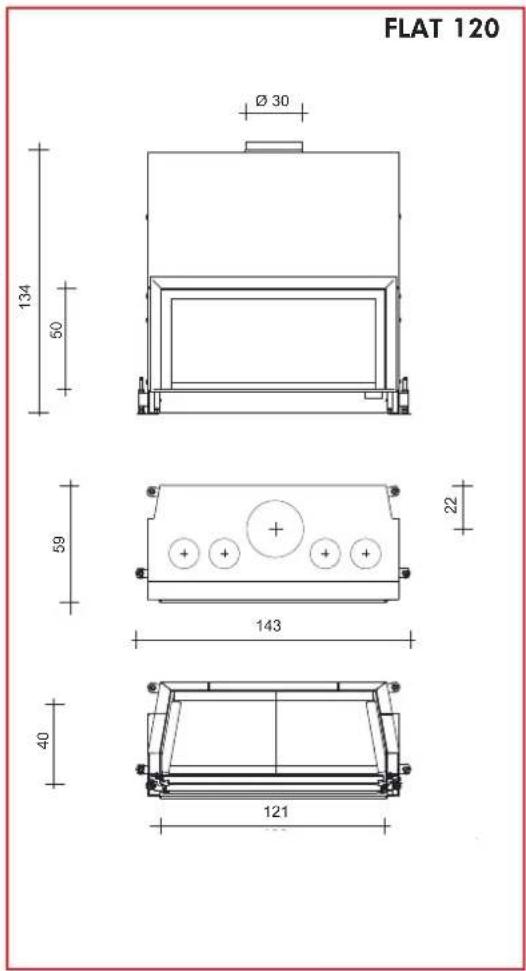

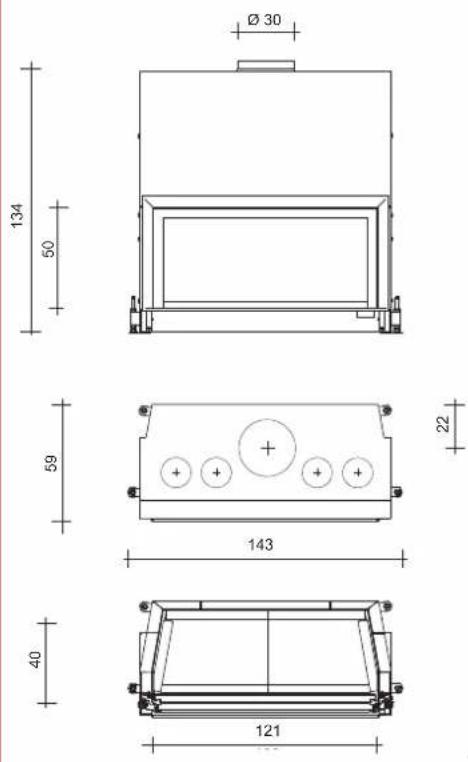

DIMENSIONI

ENGLISH

FLAT 120 Ø 30 134 50 59 22 143 40 121

Technical data
		FLAT 100 FLAT 120
power output kW 10,5 13
firewood consumption kg/h 3 3,8
efficiency % 75 75
smoke outlet ∅ cm 25 30
air inlet ∅ cm 12,5 * 12,5 *
weight including packaging	kg	350	367
heating capacity	m^3	275	340

NB: the heating capacity is only indicative as this depends on the conditions of the premises.
* Should the air volume result scarce, and the type of building in which the chimney is installed particularly air sealed, it will be necessary to install a supplementary air inlet of 120 cm ^2 (ø 12.5).

FLAT 100 Ø 25 134 50 59 22 125 40 100

THE TECHNOLOGY

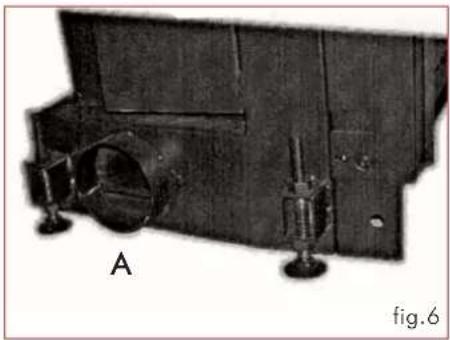

Mechanical device with labeled component A, shown from image A (no text or symbols on the device itself)

Air for combustion

The FLAT fireplaces can only be installed in places where there is a sufficient supply of air for combustion. For the fireplace to function properly it is fundamental that the air for combustion reaches the hearth through a tube that goes to the appropriate inlets provided on the sides and behind the fireplace. The fitting (A) with a diameter of 12.5 cm is supplied and this is to be applied to the inlet that is to be used (fig. 6).

The external connection must maintain a cross-section of at least 125 cm^2 throughout its path. The outlets that are not used to connect the flexible tube for the combustion air path must remain closed with a cover.

If the air volume is not sufficient and the type of premises in which the fireplace is installed is not sufficiently ventilated, an additional air inlet of 120 cm^2 ( 12.5 cm ) is required.

Mechanical component with black shaft and flange, no visible text or symbols

Throttle valve

The air for combustion flows to the hearth regulated by a throttle valve.

The throttle valve is supplied as an accessory together with a flexible tube and fastening clips.

The compact fireplace cannot be started-up if the throttle valve is not mounted and set solidly in place.

Mount the lever that regulates the air for combustion in the most suitable position below the edge.

Mechanical component with threaded shaft and bolt (no visible text or symbols)

Adjusting the throttle valve

The "on" position / max. calorific power (fig. 7):

the air valve adjustment lever is pulled out completely. The fireplace is lit up when cold and at maximum power output.

The "maintenance" position (fig. 8):

the valve adjustment lever is entered completely. All air inlets are closed.

The air that is to be heated

- natural convection

Room temperature enters from the side inlets (n 13 - fig.1 on page 13) located on the base of the shell. It warms up and moves along the hollow and comes out hot from the outlets on the cover of the shell itself.

In this mode, the covers of the air inlets on the shell must be removed (n 13 - fig.1 on page 13) and equivalent air passages must be provided for on the coverings in such a way that the air to be heated have easy access to the said inlets.

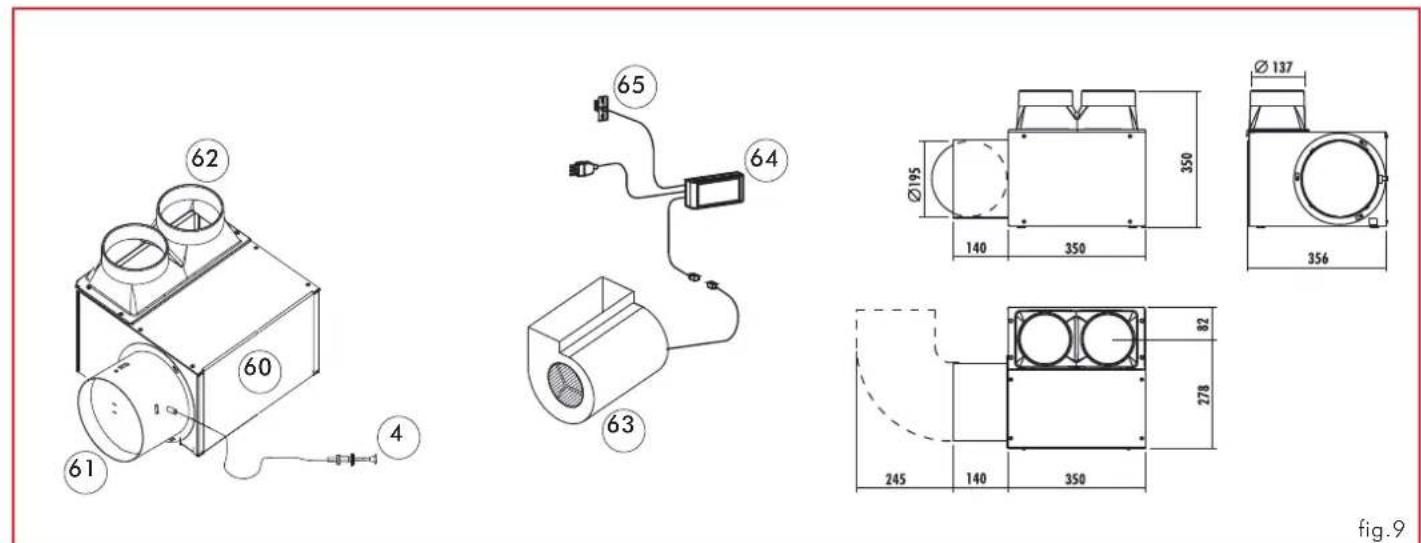

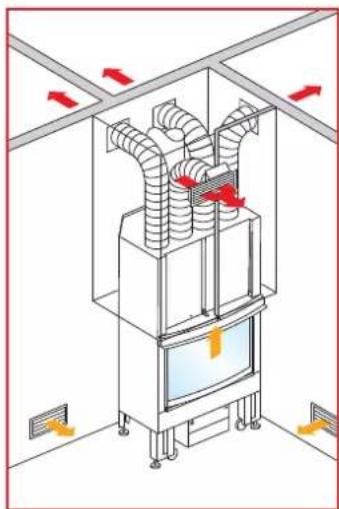

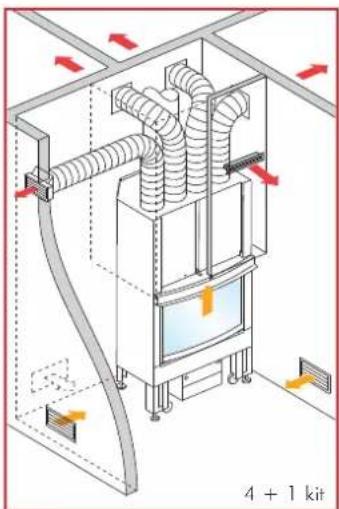

- forced ventilation

forced hot air circulation is obtained by means of application of a special kit (fig.9)

this kit is composed of a metal box (60), complete with:

- 800 m³/h fan (63)

- regulator (64)

- sensor (65)

- fitting (61) connecting to the external air inlet with smoke damper and wired control (4)

- two-way fitting (62) for conveying external air to the shell

the air box is positioned next to the fireplace, either on the right or left side.

Detailed information for forced ventilation kit installation is contained in its packaging.

62 60 4 61 65 64 63 Ø137 Ø195 140 350 350 356 82 278 245 140 350 fig.9

INSTALLATION INSTRUCTIONS

Important Notices

Other than that described in this documentation, you are also asked to note the following UNI standards:

- No. 10683 – firewood heat generators: installation requirements.

- No. 9615/90 – calculating the internal dimensions of fireplaces.

Particularly:

- before carrying out any assembly it is important to verify compatibility of the appliance as stipulated in the UNI standard 10683 in paragraphs 4.1 / 4.1.1 / 4.1.2.

- when assembly is completed, the installer must implement "start-up operations" and issue documentation as requested by the UNI standard 10683 in paragraphs 4.6 and 5, respectively.

Before setting up the fireplace covering, verify the proper functionality of all connections, controls and all moving parts.

This verification must be carried out with the fireplace turned on for a couple of hours, before covering the hearth in order to be able to intervene if need be.

After which, the finishing operations such as:

• setting-up the fireplace mantel
• mounting the fireplace covering
• pilasters, painting, etc.
  are carried out once verification is completed successfully.

Consequently, Edilkamin does not accept responsibility for expenses deriving from demolition as well as construction even if either occurs as a result after having replaced any damaged parts of the hearth.

The fireplace must only be calibrated and commissioned by a qualified dealer.

Premise

• The FLAT fireplaces must be installed in accordance with the instructions found below, since safety and efficiency depend on correct installation.

• Therefore, read these instructions carefully before proceeding with the assembly procedures.

• EDILKAMIN disclaims any responsibility for any damage deriving from non-compliance with these instructions and should this occur the warranty will be forfeited.

• The FLAT fireplace is supplied assembled and on a disposable pallet.

The internal covering of the hearth comes pre-installed.

• An identification plate is found below the door of the hearth and this indicates the model; the plate remains visible until the hearth is covered.

A model identification number is also shown in the documentation that comes with the product.

Protecting the premises

All areas that are adjacent to the hearth must be protected against overheating.

The insulation that is to be implemented depends on the type of surfaces there are and what material they are made of.

Warm air outlets / Grilles

The warm air outlets must be placed at a minimum distance of 50 cm from the ceiling and 30 cm from furniture.

Place the grilles or the air outlets at the highest point of the covering, in order to avoid an accumulation of heat inside the covering itself. Place the grilles or the air outlets in such a way so as to be easily accessible when cleaning.

Thermal insulation

The insulating layers must not have any bends and must not overlap. The thickness of the insulating material must be at least 3 cm.

Decorative beams

You can have decorative wooden beams in front of the fireplace covering as long as these are out of the radiation range, at a distance of at least 1 cm from the fireplace covering. The space that separates the ornamental components and the fireplace covering must not allow an accumulation of heat. The decorative wooden beams cannot be an integral part of the structure.

The floor in front of the hearth

Flooring made of combustible material must be protected with a sufficiently think non-combustible covering. The floor protection must be as follows:

front-view: equivalent to 30 cm higher than the hearth is to the floor and in any case at least 50 cm from the floor.

sideways: equivalent to 20 cm higher than the hearth is to the floor and in any case at least 30 cm from the floor.

Within the hearth's radiation range

Any structural components that are made of combustible material or may have combustible parts together with furniture must be

placed at a minimum distance of 80 cm from the opening of the hearth, from all three sides: front, upper and lateral.

If such components or furniture are protected by means of anti-radiation ventilation, they can be placed at a distance of 40 cm.

Out of the radiation range

Any structural components that are made of combustible material or may have combustible parts together with furniture must be placed at a minimum distance of 5 cm from the hearth's covering.

The air must circulate freely in this space and there must not be an accumulation of heat.

Power lines

There must be no power lines passing through the walls or ceilings found in the enclosed area of the hearth.

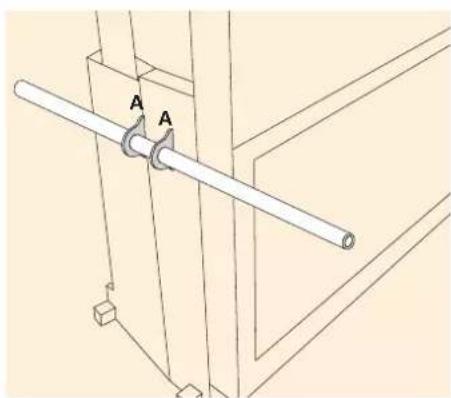

Handling rings.

2 rings (A) have been fixed to the sides of the hearth so as to facilitate transportation of the monobloc. Insert the two steel rods, which are supplied, into the rings.

The two rods will be used as support when handling the fireplace manually, after having removed the entire Ecokeram hearth in order to make it become lighter (about 70 kg).

Technical line drawing of a mechanical assembly with two labeled components (A), no text or symbols present.

Note: The product is supplied with two anti-corrosion discs (one on the outside and one on the inside of the combustion chamber). They must be removed during unpacking and disposed of as normal waste.

Budinger Product Description: 100 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm Product Description: 100 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm of 200 gm Product Description: Product name: Budinger Product Description: Product type: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product type: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product sizes: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product Size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product-size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product size: Budinger Product Description: Product quality: Budinger Product Description: Product smaller, Budinger Product Description: Product quality, Budinger Product Description: Product size, Budinger Product Description: Product quality, Budinger Product Description: Product size, Budinger Product Description: Product quality, Budinger Product Description: Product size, Budinger Product Description: Product quality, Budinger Product Description: Product size, Budinger Product Description: Product quality, Budinger Product Description: Product size, Budinger Product Description: Product quality, Budinger Product Description: Product smaller, BUDR Product Description: Product quality, BUDR

INSTALLATION INSTRUCTIONS

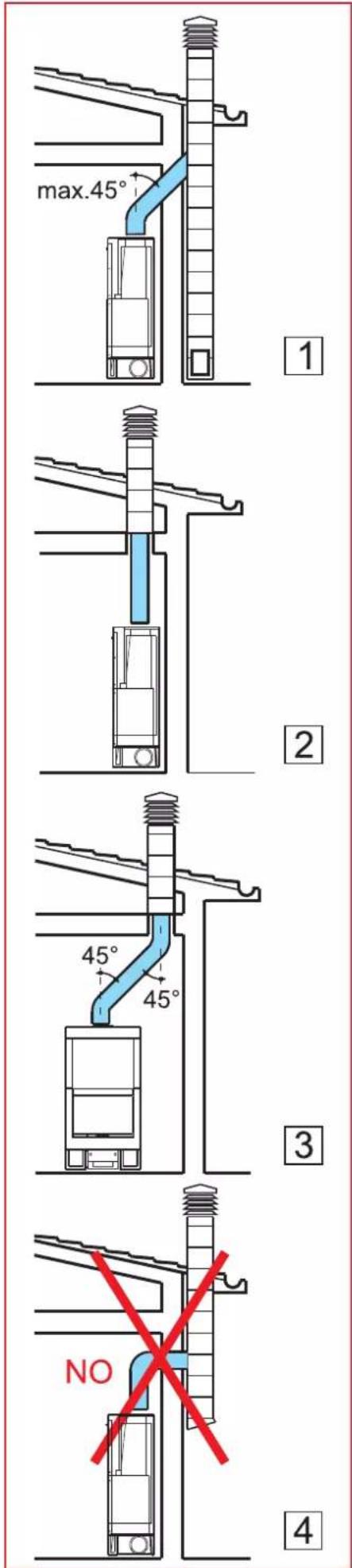

Smoke channel

This refers to the flue that connects the smoke outlet opening of the hearth with the chimney flue inlet.

The smoke channel must be made with rigid tubes made of steel or ceramic material; flexible metal tubes or fibre-cement pipes are not to be used.

Horizontal sections or counterslopes must be avoided.

Any changes to the sections are only allowed upon the chimney outlet and not (for example) upon the insert within the chimney flue.

Angles exceeding 45^ are not allowed.

The junction of the steel flue inlet and the smoke outlet of the fireplace must be sealed with high temperature mastic.

In addition to that mentioned above, you are asked to note the following, with reference to the UNI standard 10683, paragraph 4.2: "connection to the smoke outlet system" and its subsections.

max.45° 1 2 3 NO 4

Chimney flue and chimneypot

Chimney flue refers to the flue that reaches the top of the structure from the room where the fireplace is installed.

The fundamental characteristics of the chimney flue are:

• its capacity to withstand a smoke temperature of at least 450 °C with respect to mechanical resistance, insulation and gas capacity
• it must be appropriately insulated so as to prevent condensation forming
• it must have a constant cross-section that is practically vertical and must not have angles exceeding 45°
• preferably, its internal cross-sections are circular; if the cross-sections are rectangular, the relationship between the sides must not exceed 1.5
• it must have an internal cross-section with its surface at least the same as that shown in the technical specifications
• it must pertain to one hearth (fireplace or stove).

If the chimney flue is not brand new or too big it is recommended to fit in stainless steel tubes with an appropriate diameter and suitable insulation.

The fundamental characteristics of the chimney pot are:

• an internal cross-section at the base which is the same as that of the chimney flue
• an outlet cross-section which is no smaller than twice that of the chimney flue
• its position must be high enough to catch the wind and avoid downdraft areas in turbulent wind

INSTALLATION INSTRUCTIONS

INSTALLING COUNTERBALANCES

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

counterbalances 12 12

fig.11

The latch door is equipped with counterbalances which ensure smooth movements as well as closure of the door. The counterbalances can be regulated by adding washer/s (additional counterbalances) that are supplied with the fireplace. The additional counterbalances (washers) can be mounted at any time without removing the fireplace mantel cover.

PROCEDURE (fig. 11):

1. Open the latch door completely by pushing it upwards.
2. Release the left and right plates which support the walls of the Ecokeram hearth
3. Remove the walls of the Ecokeram hearth
4. At this point, you will see the lids which close the inspection inlet where the counterbalances are. Remove the lids (6) of these inlets by loosening the six screws (7).
5. Place the counterbalance washers (12) which are necessary to balance the door; these washers are supplied.
6. Be sure to insert the washers well in the counterbalance housing. The same number of additional counterbalances is to be added on either side.
7. Put the sheet metal lids back and put the walls of the hearth back in their position.
8. Put back the fastening plates of the hearth's walls.

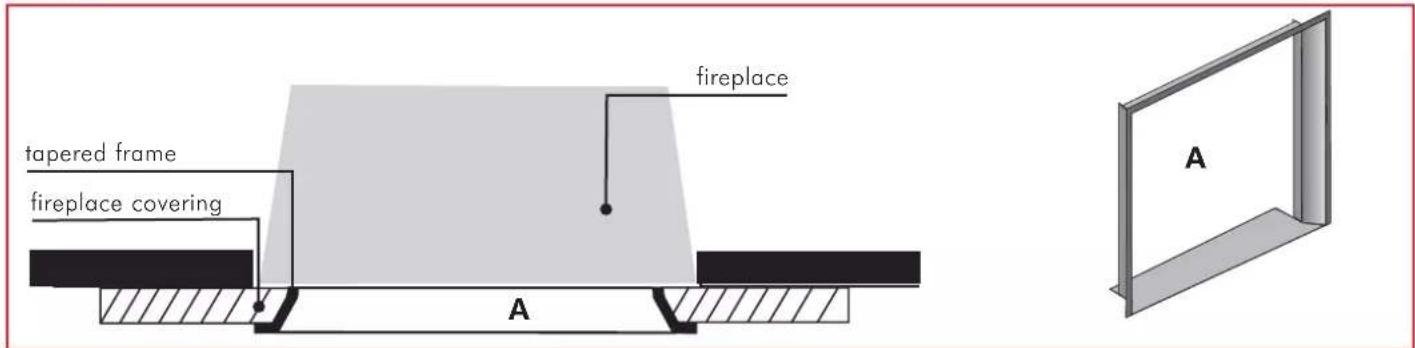

Finishing frame of the fireplace opening

To facilitate matching the FLAT fireplace covering, this can be done with a frame (A), which is to be placed at the front of the fireplace opening.

tapered frame fireplace covering A fireplace A

INSTALLATION INSTRUCTIONS

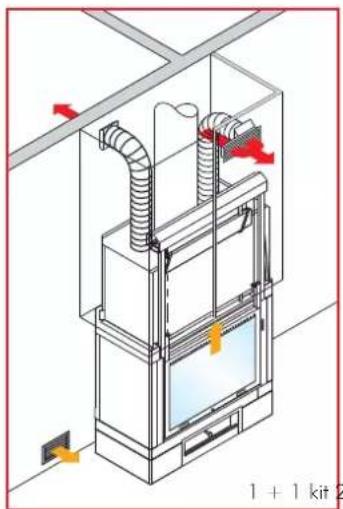

AIR-CHANNELLING KIT

To facilitate implementation of the distribution system of warm air, Edilkamin has prepared specific packages for every hearth used in different situations, from the simplest to the most complex.

Distribution of warm air:

1 + 1 kit 2

1 kit 3 + 1 kit

Isometric diagram of a ceiling HVAC unit with airflow arrows and ventilation ducts (no text or labels)

Isometric technical diagram of a mechanical or electrical enclosure with pipes and a control panel, no visible text or symbols.

2 rooms + fireplace room 1 room 3-room place fireplace room
4 rooms + fireplace room

~25% ~25%

Apart from heat radiation, the FLAT fireplaces produce a large quantity of warm air that can be channelled by means of flexible pipes in order to warm the whole house.

INSTRUCTIONS FOR USE

Combustible material and calorific power

The combustion process has been optimised from a technical point of view, with regards to the design of the hearth and the relative air supply, as well as that pertaining to emissions.

Please support our commitment in keeping the environment clean by observing the information explained below regarding the use of combustible materials which do not contain nor produce harmful substances.

As for combustible material, use only natural, seasoned timber or wood briquettes. Firewood which is damp, freshly cut or stored in unsuitable conditions, has high water content, therefore, it does not burn well, produces smoke and little heat.

Use only firewood that has been seasoned for at least two years in a dry and ventilated environment. That way the water content will be 20% less and therefore, you will save on combustible material since seasoned firewood has calorific power that is reasonably higher.

Never use liquid fuels such as gasoline, alcohol or anything similar. Do not burn waste.

Radiation range

Do not place any combustible material within the radiation range emitted through the glass door.

Initial start-up

The paint with which the hearth is covered is subject to "ageing" until it reaches its operating temperature for the first time.

This can cause unpleasant smells, however, in this case, see that the room where the hearth is installed is adequately ventilated. This occurrence will disappear after the first few times it is lit.

Burn hazards

The external surfaces of the FLAT fireplace become hot, especially the door that is made of ceramic glass. Do not touch these as you risk getting burnt! Warn children about this hazard. Children are to be kept away from the hearth when it is on anyway.

Air grilles

Be careful not to close or block the warm air outlets. This causes the internal part of the covering to overheat, which is a hazard.

Operating the hearth with the door open

When the hearth is used with the door open, you must constantly keep an eye on the hearth. Hot embers can spark out of the hearth.

Adding combustible material

When you wish to "add firewood" it is recommended you use a protective glove as the handle can become hot if the fireplace is used for a long period of time.

Open the door slowly. This way you will avoid causing the air to swirl as this may cause smoke to be emitted.

When should firewood be added? When the combustible material is finishing and all that is left are the embers.

Operating the fireplace in mid-season

To draw in air for combustion and smoke exhaustion, the FLAT fireplace needs a draught from the fireplace/chimney flue. An increase in the temperature outside causes the draught to decrease. When the temperature outside exceeds 10 °C, check the draught in the fireplace before lighting the fire. If the draught is weak, light up the fire in "start-up mode" by using igniting material that is small in size. Once the draught within the fireplace increases and is suitable you can add more combustible material.

Air inflow in the room where the hearth is installed

The FLAT fireplace can only function properly if in the room where it is installed there is a sufficient inflow of air for combustion. Before lighting the fireplace, ensure there is a sufficient inflow of air. If the appliance is equipped with a valve for outside air to enter, open it and leave it open for as long as the fireplace remains on. The devices related to air supply for combustion must not be altered.

If the air volume is not sufficient and the type of premises in which the fireplace is installed is not sufficiently ventilated, the additional air inlet of 150 cm2 mentioned earlier on, is required to be installed.

Lighting a cold hearth

1. Ensure the bed of ashes is not too high. The maximum height is 5 cm from the bottom edge of the door.

A bed of ashes that is too high, poses the risk of embers to fall out of the hearth when the door is opened to add firewood.

1. Pull the lever that adjusts the air valve into the "on" position. The air for combustion will flow in intensely towards the firewood in the hearth in order to quickly reach a good level of combustion.

2. The firewood must be placed in the hearth without cramming it too much. Place fire-starters between the wooden logs and light them up. Fire-starters are practical when lighting up combustion material.

Attention: Wooden logs that are big in size do not light up well in a cold hearth and release harmful gases.

Never use combustion material such as gasoline, alcohol or anything similar to light up the hearth!

1. Now close the door of the hearth and monitor it for a few minutes. If the fire should go off, open the door slowly, place another fire-starter in the middle of the wooden logs and light it up.

2. If the fire does not require more firewood to be added, when this fire dies down push the lever that adjusts the air valve into the "maintenance" position. Do not implement this during combustion as when the lever is in the "maintenance" position, the inflow of combustion air is completely blocked. In case of a sudden inflow of oxygen (e.g. caused when opening the door of the hearth), the "gases that are still present" in the hearth and on any surfaces where heat is drawn in, can react violently when atmospheric oxygen enters.

Adding firewood to a hot hearth

Using the glove supplied, slowly lift the door and add the desired amount of firewood in the hearth, placing the wooden logs on the embers. In this way, the firewood warms up and consequently lets off any water content as vapour. This in turn decreases the internal temperature of the hearth. The volatile substances released from the combustible material require sufficient air supply for this stage of emission to take place rapidly (which is critical from a technical point of view) and for the temperature required for a good level of combustion can be reached.

Another suggestion:

When lighting up the fireplace, always use the smaller wooden logs as these burn quicker and therefore, the hearth reaches the right temperature in less time. Use the larger wooden logs when adding firewood to a hot hearth.

Some types of wood briquettes expand once they are placed in the hearth (i.e. the heat causes them to increase in volume).

Always place the firewood at the far end of the hearth, almost touching its back wall so that if it slides down it does not fall against the door.

Removing the ashes

You can remove the ashes with a small sho- vel or a vacuum cleaner for ashes. Place the ashes in NON-COMBUSTIBLE containers. Bear in mind that the residues can even light up after more than 24 hours after combustion.

N.B. Seasoned wood has a calorific power of about 4 kWh/kg, whereas freshly cut firewood has a calorific power of only 2 kWh/kg. Therefore, twice as much is required of the latter to obtain the same calorific power.

	Firewood water content g/Kg	Calorific power kWh/kg	Greater consumption of firewood as a %
Seasoned for a very long time 100	4,50
Seasoned for two years 200 4 15
Seasoned for 1 year 350 3 71
Freshly cut firewood 500 2,1 153

ATTENTION: If too much combustible material is placed in the hearth or unsuitable combustible material is used, this may provoke an over-heating hazard.

CLEANING AND MAINTENANCE

Cleaning the fireplace

Once every season you must ensure that the smoke flue and all the exhaust channels of combustible gases are clear and free from any residue. Therefore, they have to be cleaned very well.

If need be, remove the volatile ashes with a suitable vacuum cleaner for ashes. Contact the dealer in your area for information pertaining to checking and maintaining procedures.

Cleaning the glass

You can tilt the door of the hearth to clean it.

To do this, first block the door in the closed position by turning the locking lever (6 fig. 1) towards the centre.

You can now loosen the pawl plates (7-fig. 3) on the left and right side of the door with the appropriate spanner supplied (rotate it by 90^ ).

The door can now be tilted and cleaned.

Once you finish cleaning it, put back the pawl plates (7 - fig. 4) and release the locking lever (6 - fig. 2).

If the glass is slightly dirty, clean it while it is hot with a dry cloth.

If it is very dirty, EDILKAMIN offers an appropriate product called "GlassKamin" and you can find this at authorised dealers.

Never use abrasive products or aggressive detergents!

Never clean when it is hot.

6

Figure 1 : blocked locking lever

6

Figure 2 : released locking lever

7

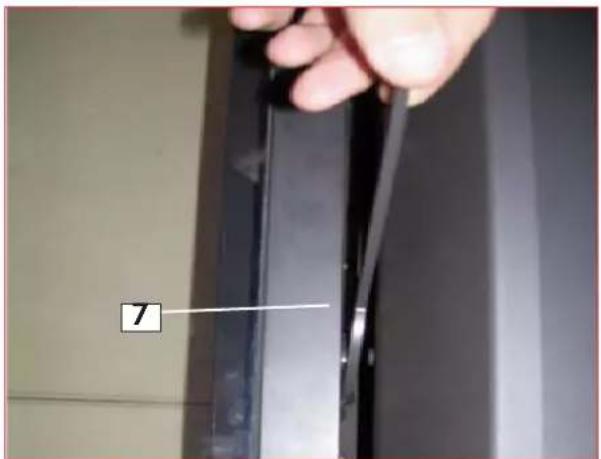

Figure 3 : blocking the door open (rotate the pawl by 90°)

Simple line drawing of a mechanical lever or clamp (no text or symbols)

Appropriate spanner

7

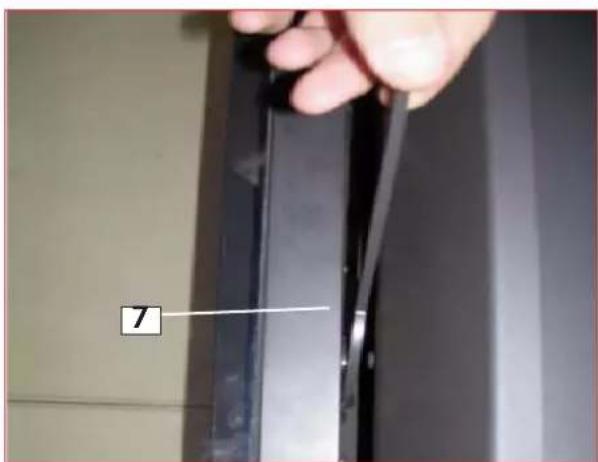

Figure 4 : blocking the door closed (rotate the pawl by 90°)

Madame/ Monsieur

Technical diagram of a furnace or reactor with numbered components and airflow indicators

fig.1

Interior view of a room with a wall-mounted shower structure and a numbered label (6), no visible text or symbols.

fig.2

Close-up of a metal shelf with a labeled component (14) and mounting holes, against a textured wall background (no readable text or symbols)

fig.3

Close-up of a black industrial machine component with labeled parts (10 and 11), no visible text or symbols beyond labels.

fig.4

Metal bracket component with two notches and a numbered label (8) pointing to the side (no text or symbols on the part itself)

fig.5

Mechanical device with labeled component A and figure number A6 (no text or symbols on the device itself)

Mechanical component with flanged shaft and bolted joint (no visible text or symbols)

Mechanical component with bolt and bolts, labeled 'fig.8' (no text or symbols on the object itself)

Technical drawings of industrial equipment with numbered components and dimensional annotations

INSTRUCTIONS POUR L'INSTALLATION

Technical line drawing of a mechanical assembly with a rod and mounting bracket (no text or symbols)

Dopfinder [1] 2018.1.14 Clinical history of the clinical history of Dopfinder's disease in the U.S. 2018.1.15: The clinical history of Dopfinder's disease in the U.S. 30 days since 2018.1.16: The clinical history of Dopfinder's disease in the U.S. [2] 2018.1.17: The clinical history of Dopfinder's disease in the U.S. [3] 2018.1.18: The clinical history of Dopfinder's disease in the U.S. [4] 2018.1.19: The clinical history of Dopfinder's disease in the U.S. [5] 2018.1.20: The clinical history of Dopfinder's disease in the U.S. [6] 2018.1.21: The clinical history of Dopfinder's disease in the U.S. [7] 2018.1.22: The clinical history of Dopfinder's disease in the U.S. [8] 2018.1.23: The clinical history of Dopfinder's disease in the U.S. [9] 2018.1.24: The clinical history of Dopfinder's disease in the U.S. [10] 2018.1.25: The clinical history of Dopfinder's disease in the U.S. [11] 2018.1.26: The clinical history of Dopfinder's disease in the U.S. [12] 2018.1.27: The clinical history of Dopfinder's disease in the U.S. [13] 2018.1.28: The clinical history of Dopfinder's disease in the U.S. [14] 2018.1.29: The clinical history of Dopfinder's disease in the U.S. [15] 2018.1.30: The clinical history of Dopfinder's disease in the U.S. [16] 2018.1.31: The clinical history of Dopfinder's disease in the U.S. [17] 2018.1.32: The clinical history of Dopfinder's disease in the U.S. [18] 2018.1.33: The clinical history of Dopfinder's disease in the U.S. [19] 2018.1.34: The clinical history of Dopfinder's disease in the U.S. [20] 2018.1.35: The clinical history of Dopfinder's disease in the U.S. [21] 2018.1.36: The clinical history of Dopfinder's disease in the U.S. [22] 2018.1.37: The clinical history of Dopfinder's disease in the U.S. [23] 2018.1.38: The clinical history of Dopfinder's disease in the U.S. [24] 2018.1.39: The clinical history of Dopfinder's disease in the U.S. [25] 2018.1.40: The clinical history of Dopfinder's disease in the U.S. [26] 2018.1.41: The clinical history of Dopfinder's disease in the U.S. [27] 2018.1.42: The clinical history of Dopfinder's disease in the U.S. [28] 2018.1.43: The clinical history of Dopfinder's disease in the U.S. [29] 2018.1.44: The clinical history of Dopfinder's disease in the U.S. [30] 2018.1.45: The clinical history of Dopfinder's disease in the U.S. [31] 2018.1.46: The clinical history of Dopfinder's disease in the U.S. [32] 2018.1.47: The clinical history of Dopfinder's disease in the U.S. [33] 2018.1.48: The clinical history of Dopfinder's disease in the U.S. [34] 2018.1.49: The clinical history of Dopfinder's disease in the U.S. [35] 2018.1.50: The clinical history of Dopfinder's disease in the U.S. [36] 2018.1.51: The clinical history of Dopfinder's disease in the U.S. [37] 2018.1.52: The clinical history of Dopfinder's disease in the U.S. [38] 2018.1.53: The clinical history of Dopfinder's disease in the U.S. [39] 2018.1.54: The clinical history of Dopfinder's disease in the U.S. [40] 2018.1.55: The clinical history of Dopfinder's disease in the U.S. [41] 2018.1.56: The clinical history of Dopfinder's disease in the U.S. [42] 2018.1.57: The clinical history of Dopfinder's disease in the U.S. [43] 2018.1.58: The clinical history of Dopfinder's disease in the U.S. [44] 2018.1.59: The clinical history of Dopfinder's disease in the U.S. [45] 2018.1.60: The clinical history of Dopfinder's disease in the U.S. [46] 2018.1.61: The clinical history of Dopfinder's disease in the U.S. [47] 2018.1.62: The clinical history of Dopfinder's disease in the U.S. [48] 2018.1.63: The clinical history of Dopfinder's disease in the U.S. [49] 2018.1.64: The clinical history of Dopfinder's disease in the U.S. [50] 2018.1.65: The clinical history of Dopfinder's disease in the U.S. [51] 2018.1.66: The clinical history of Dopfinder's disease in the U.S. [52] 2018.1.67: The clinical history of Dopfinder's disease in the U.S. [53] 2018.1.68: The clinical history of Dopfinder's disease in the U.S. [54] 2018.1.69: The clinical history of Dopfinder's disease in the U.S. [55] 2018.1.70: The clinical history of Dopfinder's disease in the U.S. [56] 2018.1.71: The clinical history of Dopfinder's disease in the U.S. [57] 2018.1.72: The clinical history of Dopfinder's disease in the U.S. [58] 2018.1.73: The clinical history of Dopfinder's disease in the U.S. [59] 2018.1.74: The clinical history of Dopfinder's disease in the U.S. [60] 2018.1.75: The clinical history of Dopfinder's disease in the U.S. [61] 2018.1.76: The clinical history of Dopfinder's disease in the U.S. [62] 2018.1.77: The clinical history of Dopfinder's disease in the U.S. [63] 2018.1.78: The clinical history of Dopfinder's disease in the U.S. [64] 2018.1.79: The clinical history of Dopfinder's disease in the U.S. [65] 2018.1.80: The clinical history of Dopfinder's disease in the U.S. [66] 2018.1.81: The clinical history of Dopfinder's disease in the U.S. [67] 2018.1.82: The clinical history of Dopfinder's disease in the U.S. [68] 2018.1.83: The clinical history of Dopfinder's disease in the U.S. [69] 2018.1.84: The clinical history of Dopfinder's disease in the U.S. [70] 2018.1.85: The clinical history of Dopfinder's disease in the U.S. [71] 2018.1.86: The clinical history of Dopfinder's disease in the U.S. [72] 2018.1.87: The clinical history of Dopfinder's disease in the U.S. [73] 2018.1.88: The clinical history of Dopfinder's disease in the U.S. [74] 2018.1.89: The clinical history of Dopfinder's disease in the U.S. [75] 2018.1.90: The clinical history of Dopfinder's disease in the U.S. [76] 2018.1.91: The clinical history of Dopfinder's disease in the U.S. [77] 2018.1.92: The clinical history of Dopfinder's disease in the U.S. [78] 2018.1.93: The clinical history of Dopfinder's disease in the U.S. [79] 2018.1.94: The clinical history of Dopfinder's disease in the U.S. [80] 2018.1.95: The clinical history of Dopfinder's disease in the U.S. [81] 2018.1.96: The clinical history of Dopfinder's disease in the U.S. [82] 2018.1.97: The clinical history of Dopfinder's disease in the U.S. [83] 2018.1.98: The clinical history of Dopfinder's disease in the U.S. [84] 2018.1.99: The clinical history of Dopfinder's disease in the U.S. [85] 2018.200: The clinical history of Dopfinder's disease in the U.S. [86] 2018.201: The clinical history of Dopfinder's disease in the U.S. [87] 2018.202: The clinical history of Dopfinder's disease in the U.S. [88] 2018.203: The clinical history of Dopfinder's disease in the U.S. [89] 2018.204: The clinical history of Dopfinder's disease in the U.S. [90] 2018.205: The clinical history of Dopfinder's disease in the U.S. [91] 2018.206: The clinical history of Dopfinder's disease in the U.S. [92] 2018.207: The clinical history of Dopfinder's disease in the U.S. [93] 2018.208: The clinical history of Dopfinder's disease in the U.S. [94] 2018.209: The clinical history of Dopfinder's disease in the U.S. [95] 2018.210: The clinical history of Dopfinder's disease in the U.S. [96] 2018.211: The clinical history of Dopfinder's disease in the U.S. [97] 2018.212: The clinical history of Dopfinder's disease in the U.S. [98] 2018.213: The clinical history of Dopfinder's disease in the U.S. [99] 2018.214: The clinical history of Dopfinder's disease in the U.S. [100] 2018.

INSTRUCTIONS POUR L'INSTALLATION

Conduit de fumées

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical schematic diagram of a mechanical device with numbered components labeled 6 and 7

contrepois 12 12

fig.11

KIT CANALISATION AIR

Diagram of airflow or ventilation system inside a room with pipes and control panel (no text or symbols)

~25% ~25% ~25%

Simple line drawing of a mechanical lever or clamp (no text or symbols)

Main froide

7

Technical diagram of a furnace or reactor with numbered components and airflow indicators

fig.1

Interior view of a room with vertical slats and a wall-mounted shower structure (no text or symbols visible)

fig.2

Close-up of a metal shelf with a numbered label '14' pointing to a cushioned panel (no text or symbols on the shelf itself)

fig.3

Close-up of a mechanical device with labeled components (10 and 11), no readable text or symbols beyond labels

fig.4

Metal bracket component with two notches and a numbered label (8) pointing to the top edge (no text or symbols on the part itself)

Mechanical device with labeled component A, shown from top (fig.6) without any readable text or symbols on the body itself.

Mechanical component with black shaft and flange, no visible text or symbols

Mechanical component with threaded shaft and flange, labeled 'fig.8' (no text or symbols on the object itself)

Technical drawings of industrial equipment with numbered components and dimensional annotations

Technical line drawing of a mechanical assembly with two labeled components (A), no text or symbols present.

Dakarone Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 100% Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1 Product 1

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 6 and 7

contrapesos 12 12

fig.11

Diagram of airflow or ventilation system inside a room with pipes and control panel (no text or symbols)

~25% ~25% ~25%

Simple black outline of a mechanical lever or clamp (no text or symbols)

mano fría

7

Figura 4 : bloqueo puerta cerrada (girar el trinquete 90°)

Technical diagram of a furnace or reactor with numbered components and airflow indicators

Abb. 1

Interior view of a room with vertical slats and a wall-mounted shower structure (no text or symbols visible)

Abb. 2

Close-up of a metal shelf with a numbered label '14' pointing to a textured surface (no readable text or symbols)

Abb. 3

Close-up of a black industrial machine with labeled components (10 and 11), no visible text or symbols beyond labels.

Abb. 4

LEGENDE: (Abb. 1-2-3-4-5)

Metal bracket component with two notches and a numbered label (8) pointing to the top edge (no text or symbols on the part itself)

Abb. 5

ABMESSUNGEN

FLAT 120 Ø 30 134 50 59 22 143 40 121

Mechanical device with labeled component A and Abb. 6 (no visible text or symbols on the device itself)

Mechanical component with black shaft, flange, and bolted joint (no visible text or symbols)

Mechanical component with black shaft and bolt, labeled Abb. 8 (no text or symbols on the object itself)

Verbrennungsluft

Technical line drawing of a mechanical assembly with two labeled components A (no text or symbols beyond labels)

Doxafovir Product name: Doxafovir Product type: 100 gm Product name: 100 gm Product type: 100 gm Product name: 100 gm Product type: 100 gm Product name: 100 gm Product type: 100 gm Product name: 100 gm Product type: 100 gm Product name: 100 gm Product type: 100 gm Product name: 100 gm Product type: 100 gm

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 6 and 7

Gegengewichte 12 12

Abb.11

~25% ~25% ~25%

Simple black outline of a wrench tool (no text or symbols)

Kalte Hand

7

Abbildung 4: Geschlossene Türsperre (die Knagge um 90° drehen)

Technical diagram of a furnace or reactor with numbered components and airflow indicators

Afb.1

Interior view of a room with a wall-mounted shower structure and a numbered label (6), no visible text or symbols.

Afb. 2

Close-up of a metal shelf with a numbered label '14' pointing to a specific component (no readable text or symbols beyond the number)

Afb. 3

Close-up of a black industrial machine with labeled components (10 and 11), no visible text or symbols beyond labels.

Afb. 4

LEGENDE: (Afb. 1-2-3-4-5)

Metal bracket with two notches and a numbered label (8) pointing to the side (no text or symbols on the bracket itself)

Afb. 5

AFMETINGENAFMETINGEN

FLAT 120

Ø 30 134 50 59 22 143 40 121

Technische gegevens
		FLAT 100 FLAT 120
Nuttig vermogen kW 10,5 13
Houtverbruik kg/h 3 3,8
Rendement % 75 75
Uitgang rookgassen ∅ cm 25 30
Luchttoevoer ∅ cm 12,5 *	12,5 *
Gewicht met verpakking	kg	350	367
Verwarmbaar volume	m3	275	340

Mechanical device labeled 'A' with no visible text or symbols on the body itself

Mechanical component with flanged shaft and bolted joint (no visible text or symbols)

Mechanical component with black shaft and bolts, no visible text or symbols

Technical line drawing of a mechanical assembly with two labeled components (A), no text or symbols present.

Dorante Product: 100 gm Product name: Dora de la Béché Product type: Mouté et al. Product quality: 95% (300 gm) Product size: 200 gm Product type: 100 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95%(300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 200 gm Product quality: 95% (300 gm) Product size: 20

INSTRUCTIES VOOR DE INSTALLATIEN

Rookgaskanaal

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 6 and 7

Tegengewichten 12 12

Afb. 11

Kachel Kader Bekleding A A

INSTRUCTIES VOOR DE INSTALLATIEGEN

KIT KANALISATIE LUCHT

~25% ~25% ~25%

NEDERLANDS

Simple black line drawing of a mechanical lever handle (no text or symbols)

koude hand 7a

7

Figuur 4: vergrendeling gesloten deur (verankering 90° draaien)

Technical diagram of a furnace or reactor with numbered components and airflow indicators

εικ. 1

Interior view of a room with vertical slats and a decorative wall fixture (no text or symbols visible)

εικ. 2

Close-up of a metal shelf with a numbered label (14) and a black arrow pointing to a specific area, against a textured background (no readable text or symbols)

EIK. 3

Labeled diagram of a device showing components 10 and 11 with visible parts and a flame inside the chamber.

EIK. 4

Metal bracket component with two notches and a labeled point (8) on the side, no text or symbols present.

εικ. 5

Mechanical device labeled 'A' with mounting feet and cylindrical ports, shown in black (no text or symbols on the device itself)

Mechanical component with flanged shaft and bolted joint (no visible text or symbols)

Mechanical component with threaded shaft and bolts (no visible text or symbols)

Αέρας καύσης

Technical drawings of industrial equipment with numbered components and dimensional annotations

Technical line drawing of a mechanical assembly with two labeled components A (no text or symbols beyond labels)

Daughter (No. 14) Limited Product name: 2500000000000000000000000000000000000000000000000000000000000000000000000000 16/28/28, 23, 27, 31, 33, 35, 37, 39, 41, 43, 45, 47, 49, 51, 53, 55, 57, 59, 61, 63, 65, 67, 69, 71, 73, 75, 77, 79, 81, 83, 85, 87, 89, 91, 93, 95, 97, 99, 101, 103, 105, 107, 109, 111, 113, 115, 117, 119, 121, 123, 125, 127, 129, 131, 133, 135, 137, 139, 141, 143, 145, 147, 149, 151, 153, 155, 157, 159, 161, 163, 165, 167, 169, 171, 173, 175, 177, 179, 181, 183, 185, 187, 189, 191, 193, 195, 197, 199, 201, 203, 205, 207, 209, 211, 213, 215, 217, 219, 221, 223, 225, 227, 229, 231, 233, 235, 237, 239, 241, 243, 245, 247, 249, 251, 253, 255, 257, 259, 261, 263, 265, 267, 269, 271, 273, 275, 277, 279, 281, 283, 285, 287, 289, 291, 293, 295, 297, 299, 301, 303, 305, 307, 309, 311, 313, 315, 317, 319, 321, 323, 325, 327, 329, 331, 333, 335, 337, 339, 341, (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.): (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No.:) (No. No:)

Technical line drawing of a mechanical device with mounting holes and structural supports (no text or symbols)

Technical diagram of a mechanical device with numbered components labeled 6 and 7

Avriβapa 12 12

EIK.11

Simple 3D diagram of a rectangular frame with a label 'A' on the side (no other text or symbols)

Diagram of airflow or ventilation system inside a room with pipes and control panel (no text or symbols)

Klt névte bis

~25% ~25% ~25%

Simple black line drawing of a mechanical lever or clamp (no text or symbols)

κρύο χέρι 7α

7
