Brand	Haier
Model	HWO38MG4HXBD
Product type	Built-in microwave oven
Capacity	38 L
Dimensions (H × W × D)	382 × 595 × 400 mm (approx.)
Weight	Approximately 20 kg
Power supply	230 V ~ 50 Hz
Microwave power	900 W
Main functions	Microwave, Grill, Convection, Combination, Defrost, Auto menu, Timer, Child safety
Microwave power levels	5 (100%, 80%, 50%, 30%, 10%)
Convection temperature	130 °C to 220 °C (10 levels)
Combination cooking modes	4 (C-1 to C-4)
Automatic programs	10 (potatoes, meat, fish, vegetables, beverages, pasta, popcorn, pizza, pastry, roast chicken)
Installation type	Built-in (cabinet width 60 cm)
Included accessories	Glass tray, tray ring, high rack, low rack, manual
Allowed materials	Glass, microwave-safe plastic, paper, ceramic
Forbidden materials	Metal, aluminum, wood, polystyrene foam, paper bags
Cleaning and maintenance	Clean with a damp cloth; do not use steam cleaners or abrasives
Safety	Child safety lock, door locking devices, mandatory grounding
Repairability	Repair by qualified personnel only; do not remove covers

Frequently Asked Questions - HWO38MG4HXBD HAIER

How to set the clock on the Haier HWO38MG4HXBD oven?

Press Clock/Kitchen Timer once. The screen displays 00:00. Use the dial or the + and - buttons to set the hours (0-23), then press Clock/Kitchen Timer again. Repeat for the minutes (0-59) and confirm.

What utensils can I use in this microwave oven?

Use only microwave-safe utensils: heat-resistant glass, suitable plastic, parchment paper, special plastic wrap. Avoid any metal, aluminum, wood, or polystyrene foam.

How to activate child safety lock?

In standby mode, press the Lock/Cancel button for 3 seconds. A long beep sounds and the lock icon appears. To deactivate, repeat the same action.

What to do if the oven does not start?

Check that the power cord is properly plugged in, that the door is closed correctly, and that the fuse/circuit breaker has not tripped. If the problem persists, contact a qualified technician.

How to clean the inside of the oven?

Unplug the appliance. Clean with a damp cloth and mild soap. For stubborn stains, heat a bowl of water with lemon at full power for 10 minutes, then wipe. Never use steam cleaners or abrasives.

Can I grill food with this oven?

Yes, use the Grill function (press Function until G-1 is displayed). Set the time and start cooking. At mid-cooking, a beep reminds you to turn the food over.

How to defrost food?

Use the Defrost function. Press Function 3 times for weight defrost (0.1-2 kg) or 4 times for time defrost. Halfway through, turn the food over.

What is the minimum installation height?

The minimum installation height is 850 mm above the floor. The appliance must be installed in a wall cabinet 60 cm wide, with adequate ventilation.

Why is the oven light dim?

This is normal when the oven operates at low power. The light may dim. This does not affect cooking.

What to do if there is smoke inside the oven?

Turn off or unplug the appliance immediately. Keep the door closed to suffocate the flames. Do not open the door. After cooling, clean thoroughly.

USER MANUAL HWO38MG4HXBD HAIER

CANDY HOOVER GROUP – Via Comolli 16, Brugherio–Italy

Haier

User Instructions
MICROWAVE OVEN	EN	4
Bedienungsanleitung
MIKROWELLENOFEN	DE	26
Istruzioni per l’uso
FORNO A MICROONDE	IT	48
Instrucciones de uso
HORNO DE MICROONDAS	ES	70
Mode d’emploi
FOUR À MICRO-ONDES	FR	92
Instrukcje użytkownika
KUCHENKA MIKROFALOWA	PL	114
Instruções para o utilizador
FORNO MICRO-ONDAS	PT	136
Uputstvo za upotrebu
MIKROTALASNA PEĆNICA	SR	158
Pokyny pro uživatele
MIKROVLNNÁ TROUBA	CS	180
Návod na použitie
MIKROVLNNÁ RÚRA	SK	202
Navodila za uporabnika
MIKROVALOVNA PEČICA	SL	224

Summary

Important safety indications

Product description

How the product works

Use of the appliance

Cleaning and maintenance

Environmental protection and disposal

Installation

Dear Customer,

We would like to thank you and congratulate you on your choice. This new product has been carefully designed and built using high-quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first use. This state-of-the-art appliance comes to you with our very best wishes.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

- Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Liquids and foods must not be heated in sealed containers since they are liable to explode.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- Only use utensils that are suitable for use in microwave ovens.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Details for cleaning door seals, cavities and adjacent parts.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• Only use the temperature probe recommended for this oven. (For ovens provided with a facility to use a temperature-sensing probe).
• The microwave oven must be operated with the decorative door open. (For ovens with a decorative door).
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
• farm houses;

- bed and breakfast type environments.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- Metallic containers for food and beverages are not allowed during microwave cooking.

- The appliance shall not be cleaned with a steam cleaner.

- The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with a decorative door.)

- The microwave oven is intended to be used built-in.

- The appliance must be operated with any cabinet door open.

- Care should be taken not to displace the turntable when removing containers from the appliance. (For fixed appliances and built-in appliances being used equal to or higher than 900 mm above the floor and having detachable turntables. But this is not applicable for appliances with a horizontal bottom hinged door.)

- The surface of a storage drawer can get hot.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

• During and after use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
• WARNING: Accessible parts may become hot during and after use. Young children should be kept away.
• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

- Electric Shock Hazard - Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

- Electric Shock Hazard - Improper use of the grounding can result in electric shock. Do not plug into an outlet until the appliance is properly installed and grounded. - This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. - This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be

plugged into an outlet that is properly installed and grounded.

- Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

- If it is necessary to use an extension cord, use only a 3-wire extension cord.

- A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

- If a long cord set or extension cord is used:

■ The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

■ The extension cord must be a grounding-type 3-wire cord.

■ The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

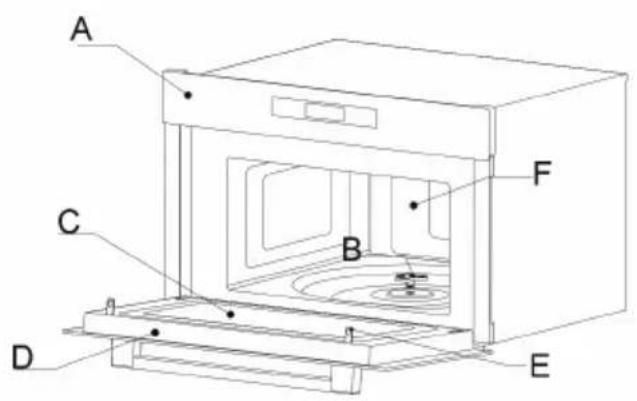

Product description

A) Control panel B) Turntable shaft C) Observation window D) Door assembly E) Safety interlock system F) Oven cavity

Serial number

Write here your serial number for future reference.

ACCESSORIES

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass Tray

Turntable Ring Assembly

Instruction Manual

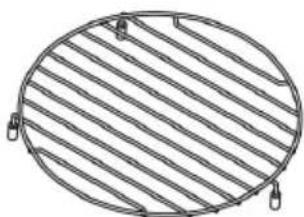

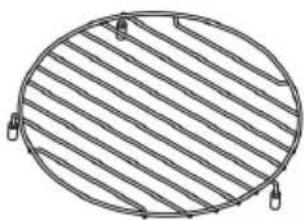

Higher Wire Rack. (For grilling, e.g. steaks, sausages and for toasting bread. As a support for shallow dishes).

Turntable Shaft

Lower Wire Rack. (For baking and roasting in the oven).

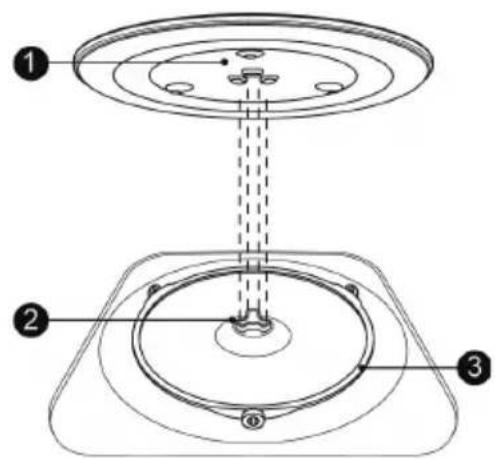

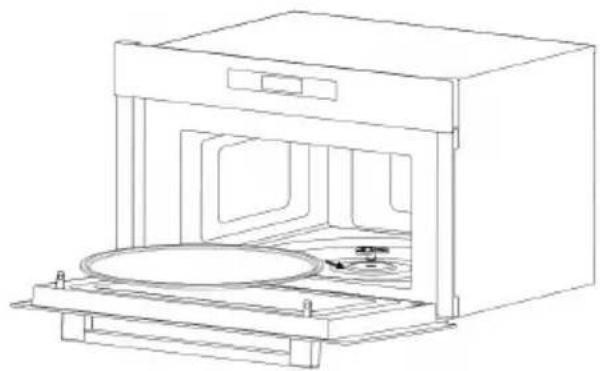

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place. For new installations, make sure all packaging and shipping tape has been removed from the turntable shaft. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

How to put the turntable in place:

1. Place the turntable ring assembly ③ into the recess in the cooking compartment.
2. Place the glass tray ① on the turntable ring assembly ③. Fit the raised, curved lines in the center of the glass tray bottom between the three spokes of the shaft. Make sure that the glass tray ① engages in the turntable shaft ② in the centre of the cooking compartment floor. The rollers on the shaft should fit inside the turntable bottom ridge.

Note:

1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
2. Never place the glass tray upside down. The glass tray should never be restricted.
3. Both glass tray and turntable ring assembly must always be used during cooking.
4. Some food and containers of food are always placed on the glass tray for cooking.
5. Never restrict the movement of the turntable.
6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

How the product works

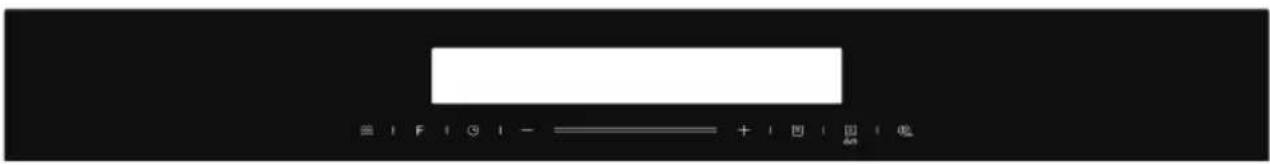

CONTROL PANEL

Symbol	Function
	Microwave
	Function
	Clock/Kitchen Timer
	Auto Menu
	Lock/Cancel
	Start/+30Sec./Confirm

OPERATION

Name	Description
Setting the clock	(1) Press “Clock/Kitchen Timer” once and then “00:00” will display.(2) Move the slider or press “+” or “-” to set the hour figures. The time should be within 0-23.(3) Press “Clock/Kitchen Timer” to confirm.(4) Move the slider or press “+” or “-” to set the minute figures. The time should be within 0-59.(5) Press “Clock/Kitchen Timer” to confirm.
Kitchen Timer	(1) Press “Clock/Kitchen Timer” twice and then “00:00” will display.(2) Move the slider or press “+” or “-” to set the time. The time should be within 0:05~95:00.(3) Press “Start/+30Sec./Confirm” to confirm.
Microwave	Power Level	100%	80%	50%	30%	10%
	Display	P10	P8	P5	P3	P1
	(1) In waiting state, Press “Microwave” and then “P10” will display.(2) Press “Microwave” repeatedly to adjust the power level, 5 power levels are available.(3) Move the slider or press “+” or “-” to set the cook time.(4) Press “Start/+30Sec./Confirm” to start cooking.
Grill	(1) Press “Function” once and then “G-1” will display.(2) Move the slider or press “+” or “-” to set the cook time.(3) Press “Start/+30Sec./Confirm” to start cooking.Note: When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.
Combination	(1) Press “Function” once and then “G-1” will display. Press “Function” repeatedly to choose the power you want, and “C-1”, “C-2”, “C-3” and “C-4” will display in order.(2) Move the slider or press “+” or “-” to set the cook time.(3) Press “Start/+30Sec./Confirm” to start cooking.Note: Combination instructions
	Instructions Display Microwave Grill Convection
	1 C-1 ● ●
	2 C-2 ● ●
	3 C-3 ● ●
	4 C-4 ● ● ●
Convection Cooking with Preheat Function	(1) Press “Function” twice and then “130” will display.(2) Move the slider or press “+” or “-” to set temperature. 10 options are available, including 130,140,150, 160, 170, 180, 190, 200, 210, 220 (°C).(3) Press “Start/+30Sec./Confirm” to start cooking.(4) When preheating is completed, the oven will beep twice. Open the door and place food in the oven.(5) Close the oven door.(6) Press number keys to enter cooking time. The maximum time value is “95:00”.(7) Press “Start/+30Sec./Confirm” to start cooking.
Convection Cooking without Preheat Function	(1) Press “Function” twice and then “130” will display.(2) Move the slider or press “+” or “-” to set temperature. 10 options are available, including 130,140,150, 160, 170, 180, 190, 200, 210, 220 (°C).(4) Press “Clock/Kitchen Timer” to enter cooking time.Press “Start/+30Sec./Confirm” to start cooking.
Defrost by Weight	(1) Press “Function” thrice and then the screen will display “0.1kg”.(2) Move the slider or press “+” or “-” to set the weight.it should be within 100-2000g.(3) Press “Start/+30Sec./Confirm” to start defrosting.
Defrost by Time	(1) Press “Function” four times and then the screen will display “1:00”.(2) Move the slider or press “+” or “-” to set the time.(3) Press “Start/+30Sec./Confirm” to start defrosting.Note: When the half time of defrost has elapsed, buzzer will sound, turn the food over. If no operation, the oven will continue working.
Speed cooking	(1) In waiting state, press “Start/+30Sec./Confirm” to cook food with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds and the maximum time value is 95 minutes.Note: Speedy cooking cannot be set in defrost by weight, multi-stage and auto menu.
Lock Function for Children	You can use this function to prevent children from accidentally turning the oven on. To activate the lock: In waiting state, press and hold “Lock/Cancel” for three seconds. A long beep sounds and the locked icon will display.To deactivate the lock:In locked state, press and hold “Lock/Cancel” for three seconds. A long beep sounds.
Inquire function	(1) If the clock has been set, the current time will display for three seconds by pressing “Clock/Kitchen Timer” in the cooking state.
Auto Menu	(1) In waiting state, press “Auto Menu”, the screen will display “A-1”. (2) Press “Auto Menu” repeatedly to choose the menu you need.10 auto menus are available.(3) Move the slider or press “+” or “-” to set the weight of the food.(4) Press “Start/+30Sec./Confirm” to start cooking.

AUTO MENU CHART

Menu	Weight(g)	Display	Power
A-1 POTATO	1 (about 230 g) 1		P100 2 (about 460
	3 (about 690 g) 3
A-2MEAT	150 g 150 g		P100
	300 g 300 g
	450 g 450 g
	600 g 600 g
A-3 FISH	150 g 150 g		P80
	250 g 250 g
	350 g 350 g
	450 g 450 g
	650 g 650 g
A-4 VEGETABLE	150 g 150 g		P100
	350 g 350 g
	500 g 500 g
A-5 BEVERAGE	1 cup (240 g) 1		P100
	2 cup (480 g) 2
	3 cup (720 g) 3
A-6 PASTA	50 g (cold water 450 g)	50 g	P80
	100 g (cold water 800 g)	100 g
	150 g (cold water 1200 g)	150 g
A-7 POPCORN	100 g 100 g P100
A-8 PIZZA	200 g 200 g		Conv.210
	300 g 300 g
	400 g 400 g
A-9 CAKE	475 g	475 g	Preheat at 160°C
A-10 ROAST CHICKEN	1200 g 1200 g		Preheat at 220°C Conv.220°C+Conv.210°C

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after use with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame, seal, and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip: For easier cleaning of the cavity walls that the food cooked can touch, place half a lemon in a bowl, add 300ml (1/2 pint) water, and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

Environmental protection and disposal

TROUBLESHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door is not closed well.	Close door well.

According to the Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in the future you need to dispose of this product, please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

INSTALLATION AND CONNECTION

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and the connecting cable must only be replaced by a qualified electrician. If the plug is no longer accessible after installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during and after operation.

BUILT-IN OVEN

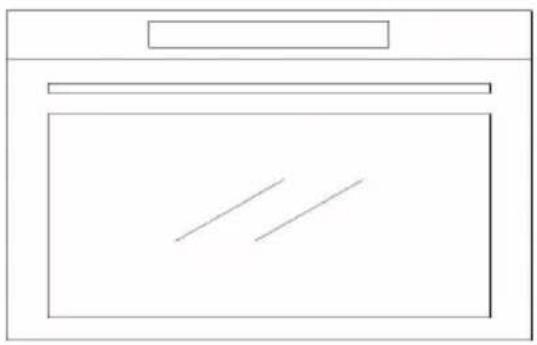

Model: HWO38MG4 BHXBD / HWO38MG6 HXBD

INSTALLATION

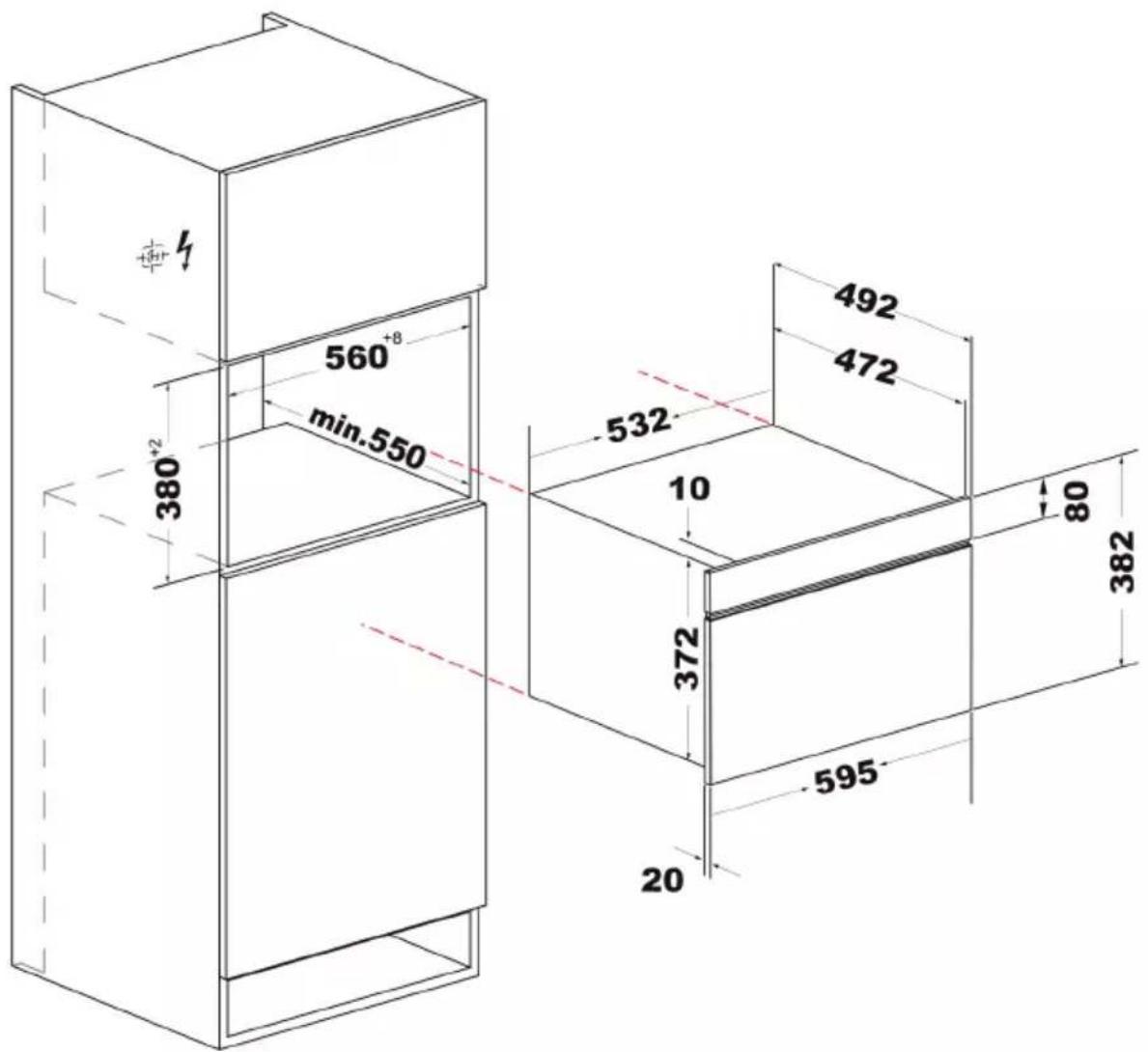

The dimensions attached are in mm.

The units into which the appliance is fitted must be heat-resistant up to 95°C.

The minimum installation height is 850mm.

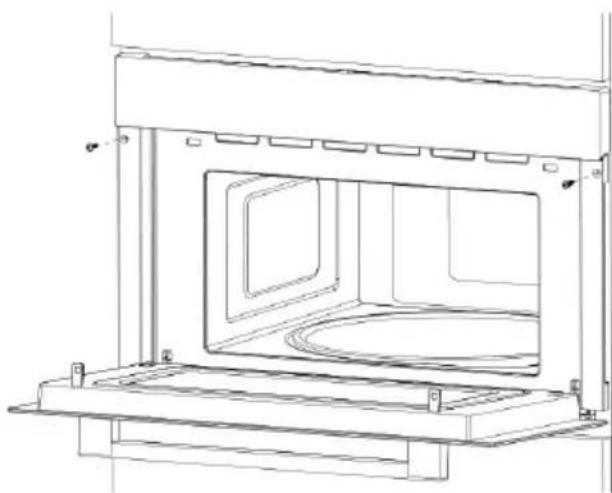

Building in

- Do not hold or carry the appliance by the door handle. The door handle cannot hold the weight of the appliance and may break off.

1. Carefully push the microwave into the box, making sure that it is in the centre.
2. Open the door and fasten the microwave with the screws that were supplied.

Fully insert the appliance and centre it.

Do not kink the connecting cable.

Screw the appliance into place.

Important information with plug

Electrical connection

The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. Only a qualified electrician who takes the appropriate regulations into account may install the socket or replace the connecting cable. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.

Contact protection must be ensured by the installation.

Fuse protection: see instructions for use - technical data.

Important information without plug

The appliance is designed to be permanently installed with a three-pin power cord and may only be connected by a licensed expert in accordance with the connection diagram.

Only a qualified electrician who takes the relevant regulations into account may replace the power cord. Do not use multiple plugs, power strips or extensions. Overloading causes a risk of fire.

If the connection is no longer accessible following installation, an all-pin isolating switch with a contact gap of at least 3 mm must be provided.

Connect the wires of the mains power cord in accordance with the following colour coding:

Green and yellow Earth wire (E)

Blue Neutral wire (N)

Brown Live wire (L)

Great Britain and Australia:

Do not connect the appliance using a 13 A plug or protect it with a 13 A fuse. The appliance must be protected using a fuse that is rated 16 A or higher. The appliance must be disconnected from the power supply during all installation work. When the appliance is installed, protection must be provided against accidental contact in the future.

Haier

User Manual

CANDY HOOVER GROUP—Via Comolli 16, Brugherio—Italy

Summary

Glass turntable

Note:

CANDY HOOVER GROUP – Via Comolli 16, Brugherio– Italy

Table of Contents

Glass tray

Note:

CANDY HOOVER GROUP—Via Comolli 16, Brugherio—Italy

Index

Glass tray

Note:

Blue Neutral wire (N)

Brown Live (L)

CANDY HOOVER GROUP—Via Comolli 16, Brugherio—Italy

Table of contents

Glass tray

Note:

CANDY HOOVER GROUP—Via Comolli 16, Brugherio—Italy

Table of contents

Glass tray

NOTE:

CANDY HOOVER GROUP – Via Comolli 16 Brugherio– Italy

Note:

CANDY HOOVER GROUP – Via Comolli 16, Brugherio – Italy

Glass tray Turntable ring assembly

User manual

High wire rack. (For grilling, e.g., steaks, sausages, and for toasting bread. As a support for shallow dishes).

Low wire rack. (For baking in the oven).

INSTALLING THE TURNTABLE

Cleaning the cooking compartment and placing the turntable in position. For new installations, make sure all packaging and packing tape is removed from the turntable support. Before first use of the food preparation appliance, you must properly position the turntable. You must clean the cooking compartment and accessories.

How to position the turntable:

1. Place the turntable ring assembly ③ into the recess in the cooking compartment.
2. Place the glass tray ① on the turntable ring assembly ③. Align the raised, curved lines on the center of the bottom of the glass tray between the three protrusions on the support. Make sure the glass tray ① rests on the turntable support ② in the center of the bottom of the cooking compartment. The rollers on the support should fit within the bottom edge of the turntable.

Note:

According to the Waste Electrical and Electronic Equipment (WEEE) Directive, WEEE equipment should be collected and treated separately. If at any time in the future you need to dispose of this product, DO NOT dispose of this product with household waste. Send this product to WEEE collection points where possible.

CANDY HOOVER GROUP—Via Comolli 16, Brugherio—Italy

Summary

Glass plate

Note:

CANDY HOOVER GROUP – Via Comolli 16, Brugherio – Italy

Contents

Glass plate

High wire rack. (For grilling, e.g., steaks, sausages, and for toasting bread. As a holder for shallow plates).

Rotisserie spit

Low wire rack. (For baking and roasting in the oven).

INSTALLING THE ROTATING PLATE

Note:

CANDY HOOVER GROUP – Via Comolli 16, Brugherio – Italy

Summary

Glass plate

Lower grid. (For baking in the oven.)

INSTALLING THE TURNTABLE

How to install the turntable:

Note:

• Insert the appliance completely and align it centrally. ■ Do not bend the power cord. ■ Screw the appliance into place.

Important information about the plug
