USER MANUAL VFC320DW VEDETTE

CORRECT DISPOSAL OF THIS PRODUCT

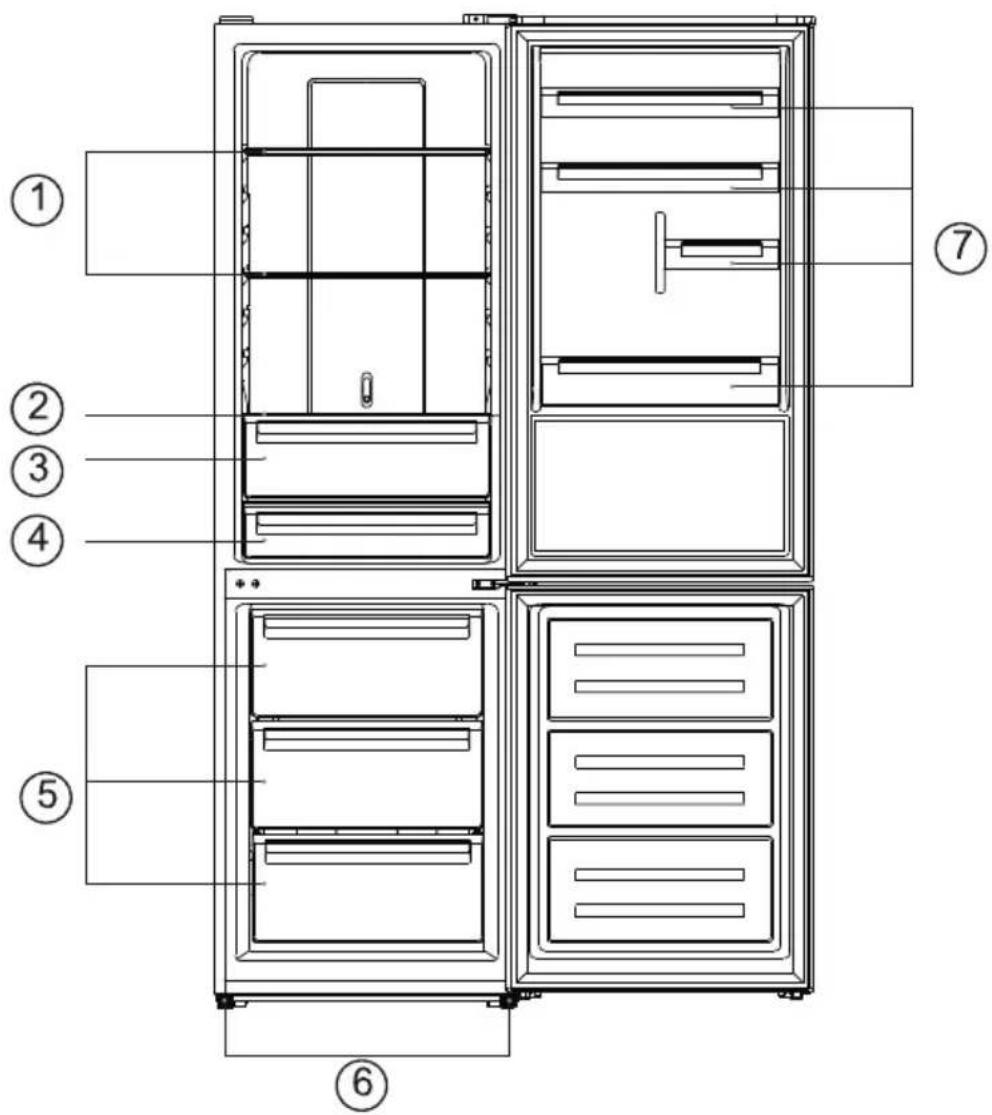

- 28-1 EN2 EN3 EN4 EN5 EN6 EN7 EN1.Fridge Shelves 2.Crisper Cover 3.Crisper 4.Fresh convertible box 5.Freezer Drawers 6.Leveling Feet 7.Fridge Balconies Note: Above picture is for reference only. Real appliance probably is different. OVERVIEW

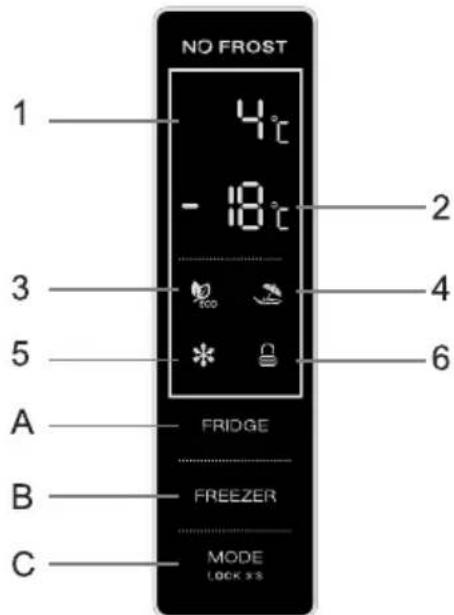

When ECO mode is activated, fridge / freezer temperature will be set automatically in a temperature according to enviorment temperature.USER INTERFACE

ENLED light replacement LED lighting source Replaceable by professional

Warning: the LED light must not be replaced by the user!

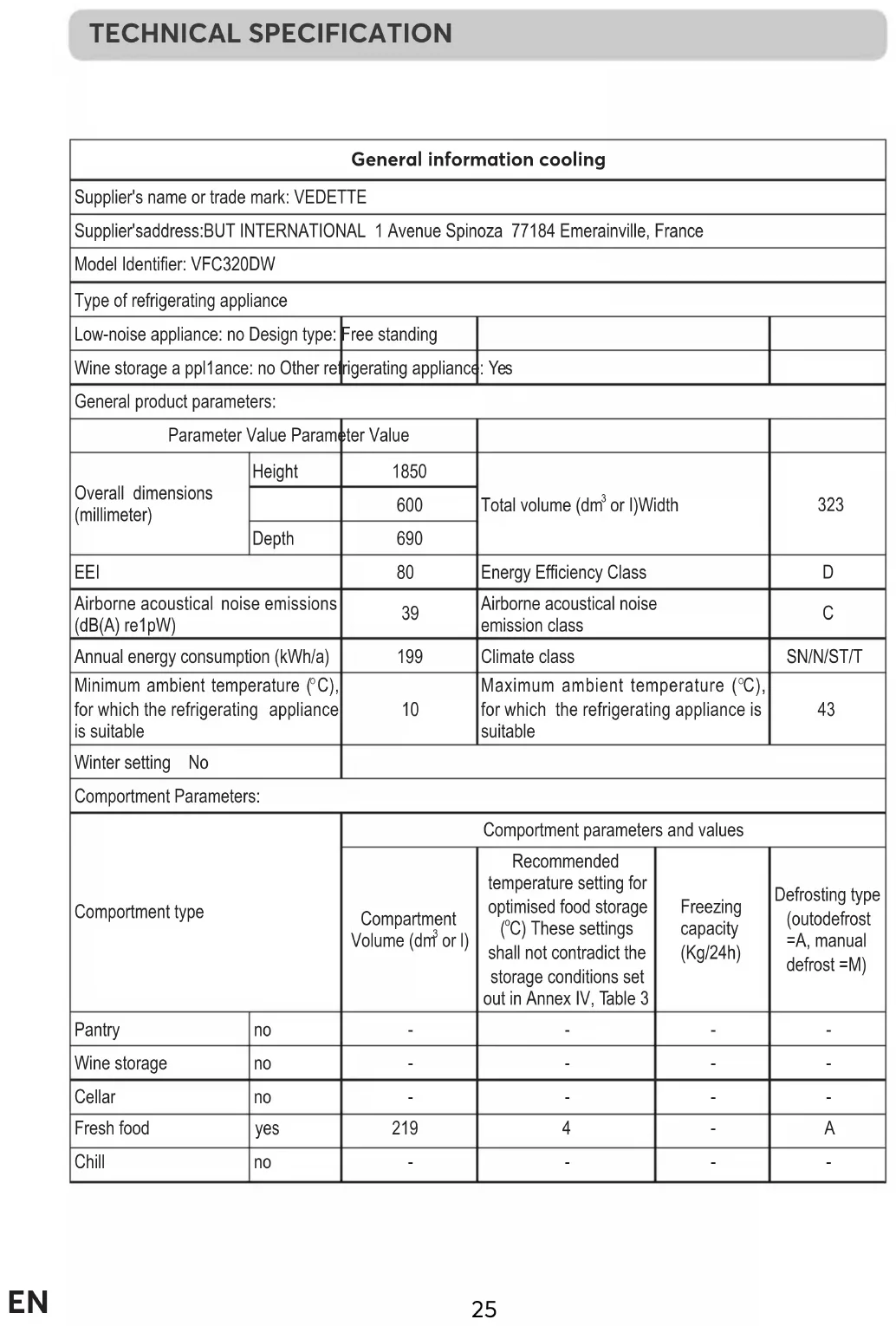

Energy Efciency Class Airborne acoustical noise emissions (dB(A) re1pW) Airborne acoustical noise emission class

C), for which the refrigerating appliance is suitable

C), for which the refrigerating appliance is suitable Winter setting No Comportment Parameters: Comportment type Comportment parameters and values Compartment Volume (dm

or l) Recommended temperature setting for optimised food storage

C) These settings shall not contradict the storage conditions set out in Annex IV, T able 3 Freezing capacity (Kg/24h) Defrosting type (outodefrost =A, manual defrost =M) Pantry no - - - - Wine storage no - - - - Cellar no - - - - Fresh food yes

ENComportment type Comportment parameters and values Compartment Volume (dm

or l) Recommended temperature setting for optimised food storage

2-star section non no - - - - Variable temperature - - - - - For 4-star compartment: Fast freeze facility

Light source parameters: Type of light source LED Energy efciency class Minimum duration of the guarantee offered by the manufacturer: 24 Months Additional information: N/A Weblink to the manufacturer’s website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

VFC320DW Rated voltage : 220-240V~ Ampere: 1.3A Rated frequency 5 0Hz Climate class: SN,N,ST,T Refrigerant: R600a(52g) Protection against electrical shock: I Insulat ion foam: CYCLOPENTANE

Climate class: - Extended temperate(SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C'; - Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C'; - Subtropical(ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'; Note: More data information, please scan the QR code on the energy label.

TECHNICAL SPECIFICATION ENWe decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet. Note:

• In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of of conformity of 2 years.

• Duration of availability of spare parts: 10 years.

• To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97,from Monday to Saturday from 8:00 am to 8:00 pm (local call price).

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection. ENBUT INTERNATIONAL 1 Avenue Spinoza 77184 Emerainville, France CKVED-G01-A
