GD867 - Food Warmer BUFFALO - Free user manual and instructions

Product Type	Food Warmers
Brand	Buffalo
Model	GD867
Dimensions (H x W x D)	800 x 355 x 530 mm
Weight	1.8 kg
Supply Voltage	230 V ~ 50 Hz
Power	500 W
Rated Current	2.2 A
Heating Type	Infrared Lamps
Number of Lamps	2
Height Adjustment	Yes, adjustable
Switch	Yes, on/off on pole
Housing Material	Stainless Steel
Recommended Use	Professional (catering)
Function	Keeps food warm, does not cook
Cleaning	Wipe exterior with damp cloth, do not immerse
Grounding	Required
Protection	Do not use extension cord, do not obstruct
Replacement Lamp	Part number AE307
Standards	CE, compliant with safety and hygiene standards
Included Accessories	2 lamps, instruction manual, fixing screws

Frequently Asked Questions - GD867 BUFFALO

How to install the Buffalo GD867 food warmer?

Remove the appliance from its packaging. Place the base on a flat, stable surface. Fit the upper part into the base and screw it in using the provided screw. You can choose from several holes to adjust the height. Make sure to remove all packaging material around the lamps before use.

What are the power and voltage of the appliance?

The Buffalo GD867 food warmer operates on a voltage of 230 V at 50 Hz and has a power of 500 W with a rated current of 2.2 A.

How to clean the food warmer?

Before cleaning, turn off the appliance, unplug it, and let it cool completely. Clean the exterior surface with a damp cloth and mild detergent. Never immerse the appliance in water and avoid abrasive cleaners.

What to do if the appliance does not heat?

First check that the appliance is properly plugged in and the switch is in the on position. If that does not work, check the fuse of the socket and replace it if necessary. If the problem persists, the lamp may be worn out: replace it with part number AE307. If nothing works, contact a qualified Buffalo technician.

Can I use an extension cord with this appliance?

No, it is strongly advised against using an extension cord with the Buffalo GD867 food warmer. Plug it directly into a suitable wall socket and ensure the circuit is properly grounded.

Are the lamps replaceable?

Yes, the lamps of this food warmer are replaceable. Use exclusively the replacement lamp with part number AE307. To replace, turn off and unplug the appliance, let it cool, then unscrew the old lamp and install the new one.

Is the appliance suitable for cooking food?

No, this appliance is designed only to maintain the temperature of already cooked food. It should not be used to cook or reheat raw food.

What are the essential safety precautions?

Do not touch the top surface during operation as it is hot. Never immerse the appliance. Do not place objects on top. Do not block ventilation openings. Use only on a stable, heat-resistant surface. Always unplug after use.

Is the Buffalo GD867 food warmer suitable for domestic use?

Although it can be used at home, it is primarily designed for professional use in catering. Ensure all safety instructions are followed and use it in an environment suitable for its power and size.

How to adjust the height of the food warmer?

The height is adjusted by choosing the appropriate screw hole during assembly. The provided screw can be inserted into one of the holes in the base to adjust the distance between the lamp and the food. This optimizes the warming function.

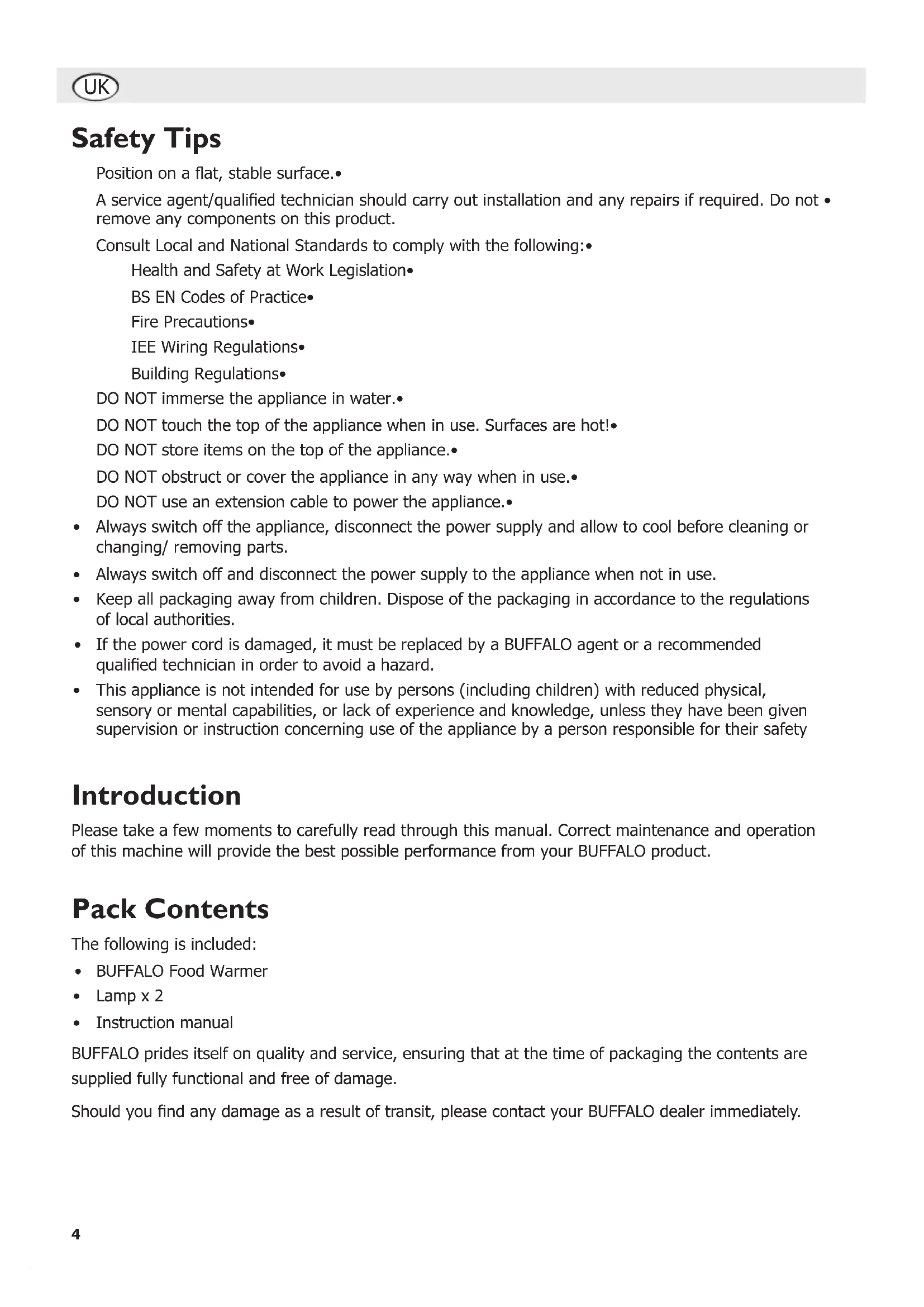

USER MANUAL GD867 BUFFALO

Position on a flat, stable surface.

A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.

Consult Local and National Standards to comply with the following:

Health and Safety at Work Legislation

BS EN Codes of Practice

Fire Precautions

IEE Wiring Regulations

Building Regulations

DO NOT immerse the appliance in water.

DO NOT touch the top of the appliance when in use. Surfaces are hot!

DO NOT store items on the top of the appliance.

DO NOT obstruct or cover the appliance in any way when in use.

DO NOT use an extension cable to power the appliance.

• Always switch off the appliance, disconnect the power supply and allow to cool before cleaning or changing/ removing parts.
  Always switch off and disconnect the power supply to the appliance when not in use.
• Keep all packaging away from children. Dispos of the packaging in accordance to the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your BUFFALO product.

Pack Contents

The following is included:

BUFFALO Food Warmer
- Lamp x 2
- Instruction manual

BUFFALO prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installation

Remove all packaging from the appliance.1.

Position the base of the appliance in a suitable location.2.

Slot the top of the appliance onto the base.3.

Screw the top to the base using the screw supplied. The screw can be inserted into any of the 4 holes so that the height of the appliance can be adjusted.

Note: Ensure that all packaging has been removed from around the lamp.

Operation

Turn the appliance On/Off using the power switch on the stem of the appliance.1.

Note: The appliance only maintains temperature, it does NOT continue to cook food.

Cleaning, Care & Maintenance

A BUFFALO dealer or qualified technician should carry out repairs if required.

Always switch off the appliance, disconnect the power supply and allow to cool before cleaning or performing maintenance.

Troubleshooting

If your BUFFALO appliance develops a fault, please check the following table before making a call to the Helpline.

Fault	Probable Cause	Action
The appliance is not working	The appliance is not switched on	Check the appliance is plugged in correctly and switched on
	Plug and lead are damaged	Call BUFFALO agent or qualified technician
	Fuse in the plug has blown	Replace the plug fuse
	Power supply	Check power supply
	Lamp expired	Replace lamp, part number AE307.

Technical Specifications

Model	Voltage	Power	Current	Dimensions h x w x d (mm)	Weight
GD867	230V 50Hz	500W	2.2A	800 x 355 x 530	1.8 kg

Electrical Wiring

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

Live wire (coloured brown) to terminal marked L

Neutral wire (coloured blue) to terminal marked N

Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO. Every effort is made to ensure all details are correct at the time of going to press, however, BUFFALO reserve the right to change specifications without notice.

Veiligheidstips

DECLARATION OF CONFORMITY

• Conformiteitsverklaring - Déclaration de conformité - Konformitätserklärgung - Dichiarazione di conformità - Declaración de conformidad - DeclARATION de conformidade -

Equipment Type • Ultrustingstype • Type d'équipement • Gerätotyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento:

Model · Modèle · Modell · Modello · Modelo · Malli

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) · Application de la/des directive(s) du Conseil · Anwendbare EU-Richtlinie(n) · Applicazione delle Direttive · Aplicacion de la(s) directiva(s) del consejo · Aplicacao de directiva(s) do Conselho

Standards • Standaarden • Normes • Normen • Standard • Estandares • Normas:

LVD Directive 2006/95/EC RoHS Directive 2002/95/EC

EN 60598-1:2004+AI:2006 EN 60598-2-4:1997

Buffalo

Fourth Way, Avonmouth, Bristol, BS1 8TB United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
