THANK YOU FOR PURCHASING THE HOOVER INDUCTION HOB. PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USING THE HOB KEEP IT IN A SAFE PLACE FOR FUTURE REFERENCE.

Download hOn App

In the hOn App you’ll have access to several recipes and extra contents

hOn

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON HUAWEI AppGallery

Available on the App Store

GET IT ON Google Play

SAFETY WARNINGS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

- This appliance is to be properly installed and earthed only by a suitably qualified person.

- This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

- Failure to install the applian ce correctly could invalidate any warranty or liability claims.

- Regarding the details of installation, thanks to refer to the section .

Operation and maintenance

Electrical Shock Hazard

- Do not cook on a broken or cracked cooktop. If the cooktop surface is break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.

- Switch the cooktop off at the wall before cleaning or maintenance.

- Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance comp lies with electromagnetic safety standards.

Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.4
• Children less than 8 years of age shall be kept away unless continuously supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

- The razor-sharp blade of a cook top scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

- Failure to use caution could result in injury or cuts.

Important safety instructions

- Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.

- Never use your appliance as a work or storage surface.

- Never leave any objects or utensils on the appliance.

- Never use your appliance for warming or heating the room.

- After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when You remove the pan.

- Do not allow children to play with the appliance or sit,

stand, or climb on it.

- Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.

- Do not leave children alone or unattended in the area where the appliance is in use.

- Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in a domestic household environment only! Commercial use of any kind is not covered under the manufacturer's warranty!

- WARNING: The appliance and its accessible parts become hot during use. Young children should be kept away.

- Care should be taken to avoid touching heating elements.

- Children less than 8 years of age shall be kept away unless continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

• A steam cleaner is not to be used.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised

continuously.

- Power cord can't accessible after installation.

Product Overview

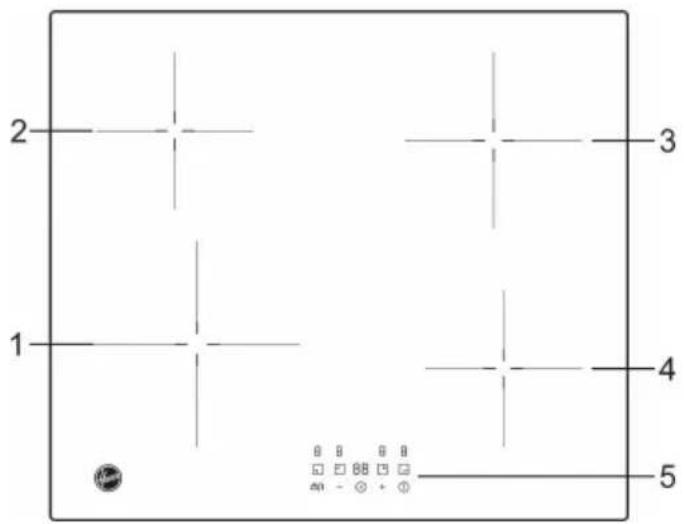

Top View

2 1 3 4 5

1. 2300 W zone, boost to 3000 W
2. 1200 W zone, boost to 1500 W
3. 1800 W zone, boost to 2100 W
4. 1200 W zone, boost to 1500 W
5. Control panel

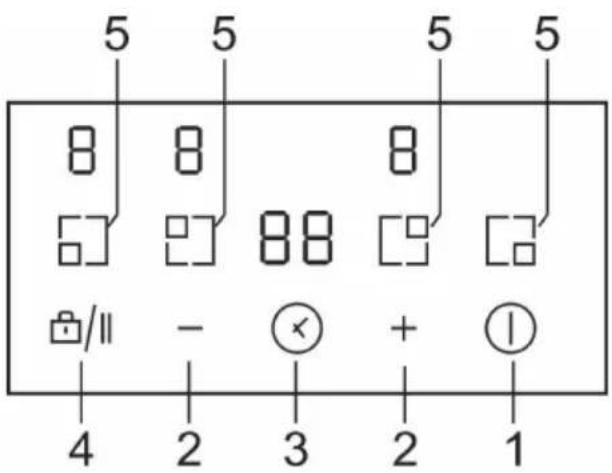

The Control Panel

5 5 5 5 8 8 8 6 2 88 9 6 #/|| - × + ① 4 2 3 2 1

1. ON/OFF control
2. Power/Timer regulating key
3. Timer control
4. Pause/Keylock control
5. Heating zone selection controls

Product Information

The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families.

The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the

pleasure from life.

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

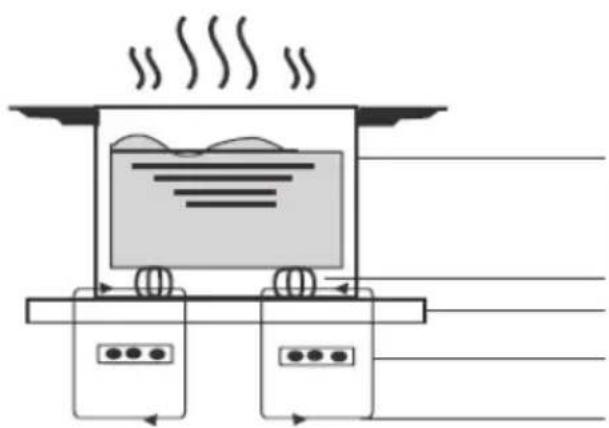

Diagram of a steam machine with cooling unit and two control panels (no text or symbols)

iron pot

magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Induction Hob

• Read this guide, taking special note of the ‘Safety Warnings’ section.
• Remove a ny protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
  • Use t he ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
  • Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

cult to operate. ✓ ×

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

•If you do not have a magnet:

1. Put some water in the pan you want to check.
2. Follow the steps under 'To start cooking'.
3. If U does not flash in the display and the water is heating, the pan is suitable.

•Cookware made by the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

Size of burner (mm)	The minimum cookware (diameter /mm)
160	120
180	140
210	160

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

Simple line drawing of a cooking pot with crossed arrows indicating pressure or resistance (no text or symbols)

- Use pa ns whose diameter of the ferromagnetic area (base of the pan) is in the range of dimensions in the table below. (Table 1)

• If you use smaller pots, performance could be affected
• If you use pot with a diameter smaller than the one indicated in the table above, pots may not be detected

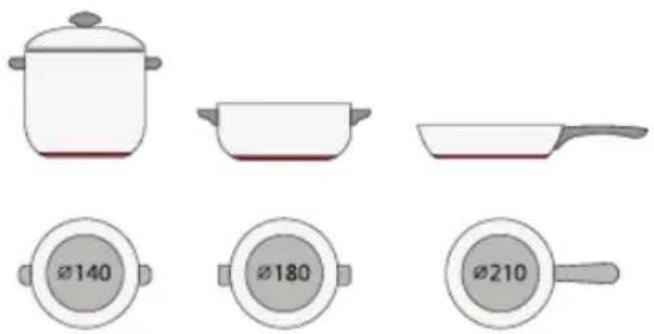

According to the dimension of the zone you can use pots of different diameters as picture below:

Ø140 Ø180 Ø210

- If the ferromagnetic part covers only partially the base of the pan, only the ferromagnetic area will heat up, the rest of the base may not heat up a sufficient temperature for cooking.

Two black cooking utensils: a pan with a lid and a rectangular plate with a speaker grille, both placed on red stands (no text or symbols visible)

- If the ferromagnetic area is not homogeneous, but presents others material such as aluminum this may affect the heating up and the pan detection.

If the base of the pan is similar to the pictures below the pan could be not detected.

Two kitchen utensils: a square pan with a side handle and a circular pan with a mesh grille (no text or symbols)

Using your Induction Hob

To start cooking

•After power on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered the state of standby mode.

1. Touch the ON/OFF switch. all the indicators show “-”

2. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

3. Touching the heating zone selection control, and an indicator next to the key will flash

4. Select a heat setting by touching the “-” or “+” control.

- If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

When you have finished cooking

1. Touching the heating zone selection that you wish to switch off

2. Turn the cooking zone off by scrolling down to "0".

Simple line drawing of a cooking pot and a finger pointing at a circular icon (no text or symbols)

5.27

- +

827 - + Power down

Make sure the display shows"0".

1. Turn the whole cooktop off by touching the ON/OFF control.

1. Beware of hot surfaces

“H” will show which means cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Power Management

It is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.

Induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter the power management function

1. Turn on the hob, then press at the same time the “+”(timer) and keylock. The time indicator will show “P5” which means power level 5. The default mode is on 7.2Kw.

✓/|| - Ⓧ + ⏱

To switch to another level

Press +/- from the timer. There are 5 power levels, from “P1” to “P5”. The timer indicator will show one of them.

“P1”: the maximum power is 2.5 Kw.

“P2”: the maximum power is 3.5 Kw.

“P3”: the maximum power is 4.5 Kw.

“P4”: the maximum power is 5.5 Kw.

“P5”: the maximum power is 7.2 Kw.

OR

Confirmation and Exit Power Management Function

Press at the same time the “+”(timer) and keylock for confirmation, then the hob will be turned off.

Hand-drawn icons showing a lock symbol, minus sign, cross, plus sign, and hand gestures with corresponding symbols.

Using Boost function

Activate the boost function

1. Select the zone with boost function (front left zone).

2. Touching the "plus" key until power level indication shows "P".

Cancel Boost function

1. Select the zone with boost function (front left zone).

2. Touching the "minus" key to cancel the Boost function, and select the level you want to set.

6 67 + → P 67

P 6

- Boost function can only last for 5 minutes, after that the zone will go to level 9 automatically.

Using the Pause function

1. Press the Pause control, the heating zones stop working. All the zone indication show“||”

Simple line drawing showing a hand holding a lock with a double arrow pointing to the number 11

1. Press the Pause control once again, all the heating zones will revert to its original setting.

• The function is available when one or more heating zones are working.

- If you don't cancel the stop working mode within 30 minutes, the induction cooktop will automatically switch off.

Locking the Controls

- You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).

- When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls

Touch the keylock 📋// control for 2 seconds. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the hob is turned on.

2. Touch and hold the keylock control

3. You can now start using your hob.

for 2 seconds.

When the hob is in lock mode, all the controls are disable except the ON/OFF, you can always turn the hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter “H” appears to warn you to keep away from it.

Auto Shutdown

Safety feature of the hob is auto shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hour)	8	8	8	4	4	4	2	2	2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can use it as cut-off timer to turn one or more cooking zones off after time is up.
  • You can set the timer up to 99 minutes.

Using the Timer as a Minute Minder

1. Make sure the cooktop is turned on. And zone selection key is not activated (zone indication ‘-’ is not blinking).

Note: you can set minute minder before or after cooking zone power setting finished.

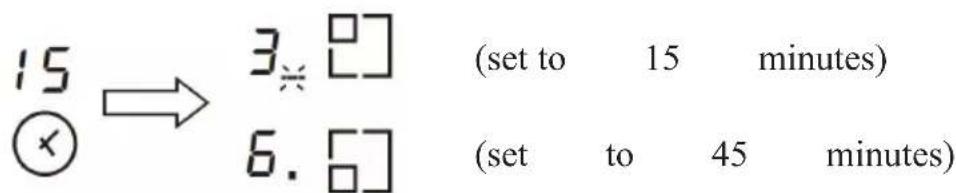

1. Touch timer key, "00" will show in the timer display and "0" will blink.

2. Set the time for between 1 to 99 minutes by touching the”-” or” +” control of the timer (e.g. 5)

3. Press the “+” once increases the time by one minute, Press the “-” once decrease the time by one minute. When the set time exceeds 99 minutes, it will automatically return to “00”, if the “-” and “+” keys are pressed simultaneously, the indicator will display “00”.

4. When the time is set, it will begin to count down immediately. The display will show the remaining time.

5. Buzzer will bips for 30 seconds and the timer indicator shows“-- “ when the setting time finished.

0.0 - + → 05

Timer Cancellation

After setting the time again, hold down the “Timer” key for 5 seconds, this will cancel the timer and the indicator will revert to “00”.

Using the timer to switch off one or more cooking zones

1. Touching the heating zone selection control that you want to set the timer for.

1. Touch timer control, the "00" will show in the timer display. and the "0" fiashes.

2. Set the time for between 1 to 99 minutes by touching the”-” or” +” control of the timer (e.g. 5)

3. Press the “+” once increases the time by one minute, Press the “-” once decrease the time by one minute. When the set time exceeds 99 minutes, it will automatically return to “00”, if the “-” and “+” keys are pressed simultaneously, the indicator will display “00”.

4. When the time is set, it will begin to count down immediately. The display will show the remaining time.

NOTE: There will be a red dot in the right bottom corner of power level indication

which indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will switch off automatically.

6.2] - 8]

Note: Other cooking zones will keep operating if they are turned on previously.

If the timer is set on more than one zone:

1. When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the min. timer. The dot of the corresponding zone blinks.

15 ⑧ → 3. [ ] 6. [ ] (set to 15 minutes) (set to 45 minutes)

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

30 ② → 6※ □□

Note: Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly, particularly if you're using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the power setting.
• Using a lid will reduce c ooking times and save energy by retaining the heat.
• Minimise t he amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmeri ng occurs below boiling point, at around 85^ , when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flourthickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more ‘well done’ it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1. Choose a ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.

4. Cook any meat first, put it aside and keep warm.

5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.

6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sauteing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no ‘hot surface’ indication but the cooking zone may still be hot! Take extreme care.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Al ways read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for ‘Everyday soiling on glass’ above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Hints and Tips

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the cooktop is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section ‘Using your ceramic cooktop’ for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See ‘Choosing the right cookware’.See ‘Care and cleaning’.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you’ve turned the induction hob off.	This is normal and needs no action.Do not switch the power to the induction hob off at the wall while the fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centered on it.	Use cookware suitable for induction cooking. See section ‘Choosing the right cookware’.Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact a qualified technician.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Problem	Possible causes	What to do
E4/E5	Temperature sensor failure	Please contact the supplier.
E7/E8	Temperature sensor of the IGBT failure.	Please contact the supplier.
E2/E3	Abnormal supply voltage	Please inspect whether power supply is normal. Power on after the power supply is normal.
E6/E9	Bad induction hob heat radiation	Please restart after the induction hob cools down.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob.

Technical Specification

Induction Hob	HI642CBB/HI642BCB
Cooking Zones	4 Zones
Supply Voltage	220-240V~ 50/60Hz
Installed Electric Power	7200W
Product Size D×W×H(mm)	590×520×58
Building-in Dimensions A×B (mm)	560×490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Installation

Selection of installation equipment

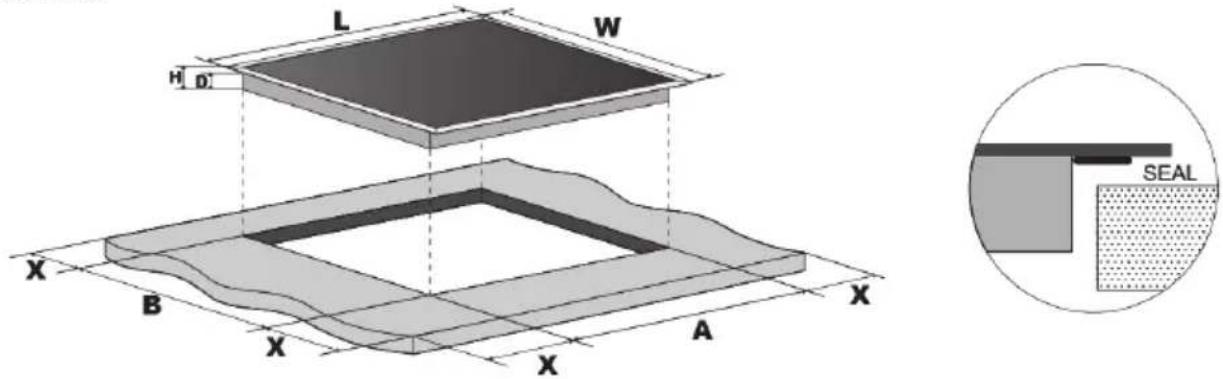

• Cut out the work surface according to the sizes shown in the drawing.
• For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
• Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

Warning: The work surface material must use the impregnated wood or other insulation material.

L W H D X B X A X SEAL

	L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
HI642	590	520	58	54	560	490	50 mini

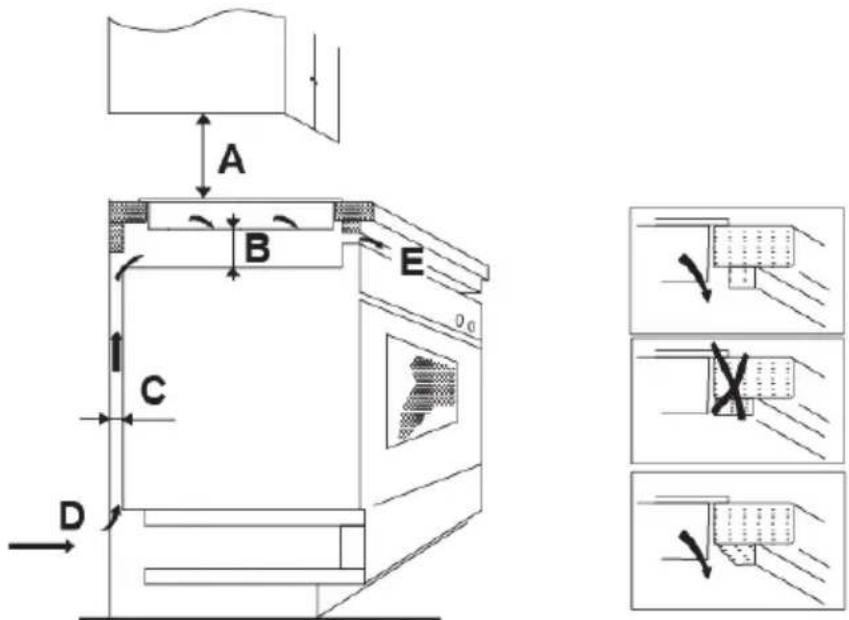

Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760mm.

A B E C D D0

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements.
  •the work surface is made of a heat-resistant material.
• if the hob is installed above an oven, the oven has a built-in cooling fan.
• the installation will comply with all clearance requirements and applicable standards and regulations.
• a suitable is olating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.
• The is olating switch must be of an approved type and provide a 3mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).
  •the isolatin g switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
  • There is adequate flow of air from outside the cabinetry to the base of the hob.
• If t he hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
  •The isolating switch is easily accessible by the customer.

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Locating the fixing brackets

• The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

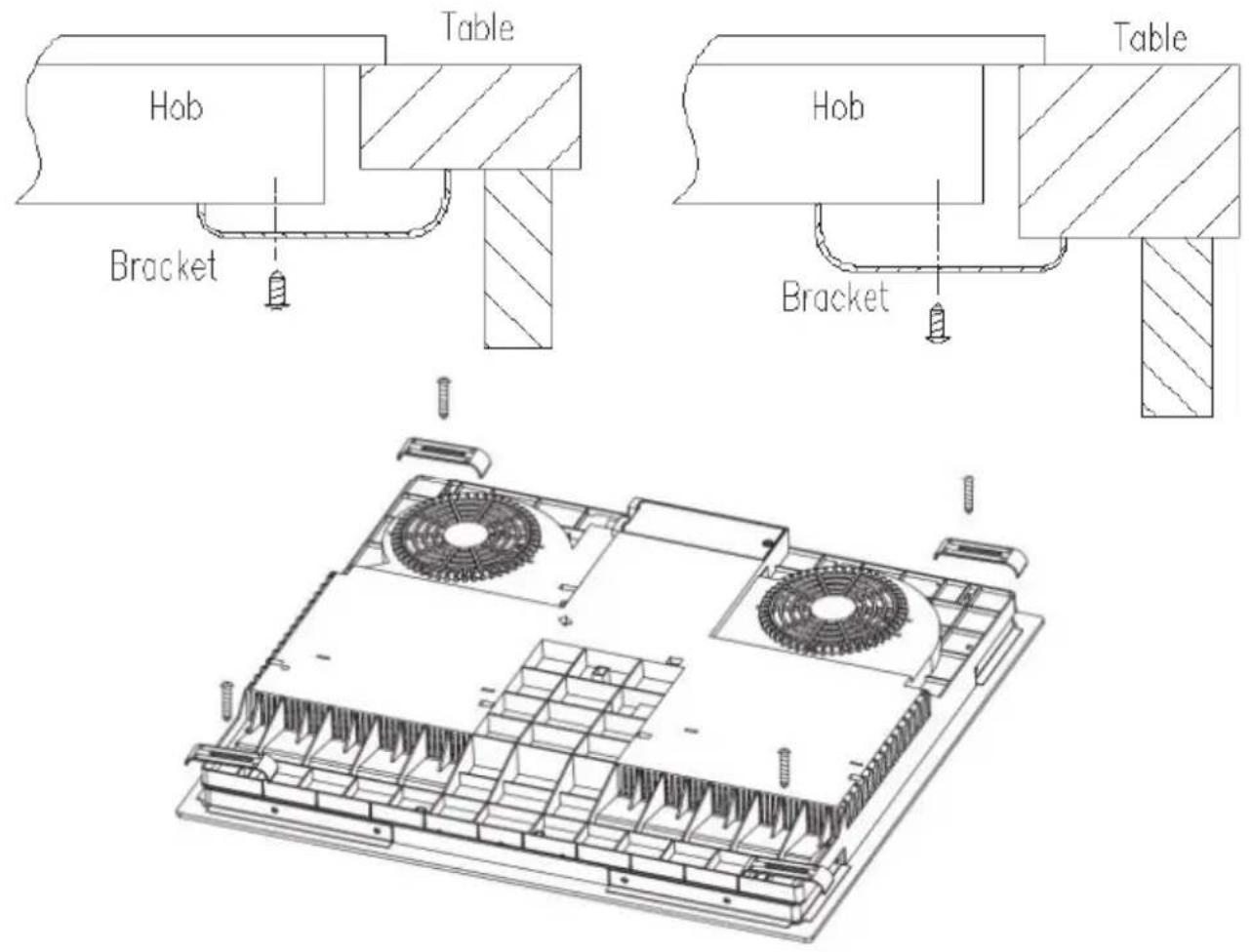

• Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.
• Adj ust the bracket position to suit for different work surface's thickness.

Cautions

• The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
• The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
• The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
• The wall and induced heating zone above the work surface shall withstand heat.
• To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
  • A steam cleaner is not to be used.
• This ceramic can be connected only to a supply with system impedance no more than 0.427 ohm. In case necessary, please consult your supply authority for system impedance information.

Connecting the hob to the mains power supply

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

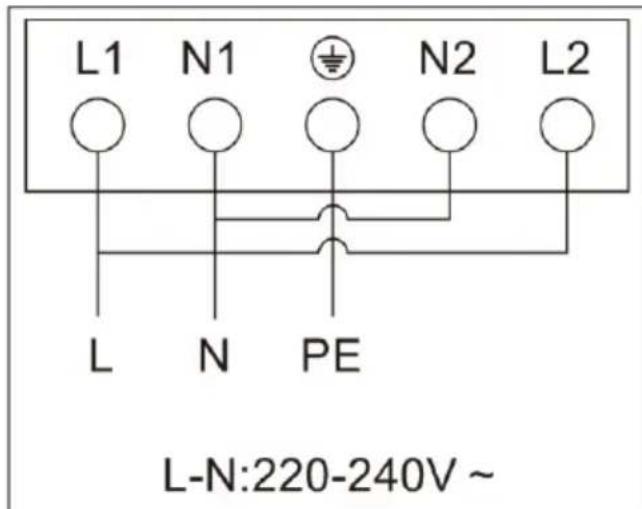

L1 N1 N2 L2 L N PE L-N:220-240V ~

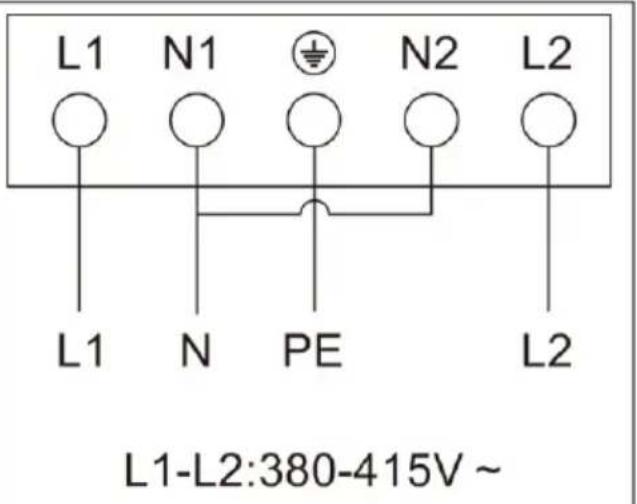

L1 L1 N1 N2 L2 L1 N PE L2 L1-L2:380-415V ~

• If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
• If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
  • The cable must not be bent or compressed.
• The cable must be checked regularly and only replaced by a proper qualified person.

This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON AppGallery

Available on the App Store

GET IT ON Google Play

SICHERHEITSHINWEISE

Diagram of a steam locomotive with wheels and exhaust lines, no text or symbols present

Eisentopf

Diagram showing two hand positions with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X symbols, no text or labels present

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or heating conditions.

Two kitchen utensils: a black pan with a handle and a black rectangular plate with a speaker grille, both shown with red stand brackets (no text or symbols)

Two kitchen utensils: a square pan with a side handle and a circular pan with a mesh lid (no text or symbols visible)

Simple line drawing of a cooking pot and a finger pointing at a circular icon (no text or symbols)

-5.27

- +

6 + → P P P -

Simple line drawing showing a hand holding a device and a right-pointing arrow labeled '11'

15 ⑧ → 3. [ ] 6. [ ]

L W H D' X B X A X

DICHTUNG

	L (mm)	B (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	50 Mini

Three-panel diagram illustrating a mechanical or electrical process with arrows indicating direction and cross marks, likely illustrating a step in machining or assembly.

A (mm)	B (mm)	C (mm)	D	E
760	50 Mini	20 Mini	Lufteintritt	Luftaustritt 5 mm

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON HUAWEI AppGallery

Available on the App Store

GET IT ON Google Play

CONSIGNES DE SÉCURITÉ VEUILLEZ LIRE ATTENTIVEMENT CES INSTRUCTIONS AVANT D'UTILISER L'APPAREIL.

Installation

Diagram of a machine with steam rising, showing motion lines and control panel (no text or symbols)

marmite en fer

Two hand-drawn diagrams showing correct and incorrect states, with checkmark and cross symbols (no text or labels)

Simple line drawing of a cooking pot with a U-shaped magnet attached (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

Diagram of a cooking pot with crossed arrows indicating pressure or flow (no text or symbols)

Two kitchen utensils: a black pan with a handle and a black cooking pot with a lid, both shown in red stands (no text or symbols)

Two black cooking pots, one with a side handle and the other with a circular lid (no text or symbols visible)

Simple line drawing of a cooking pot and a finger pointing at a numbered circle (no text or symbols)

-5.27

- +

|| - × + 1

Hand-drawn symbols including a lock, crossed-out circle, plus sign, and hand gestures with corresponding line drawings

6 6] + → P 6] P 6] -

Simple line drawing showing a person jumping over a wall with a battery icon, followed by an arrow pointing to the number 11.

6_2] - 8]

15 ⑧ → 3. □ 6. □]

L W H D' X B X A X X X JOINT

	L (mm)	I (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	50 mini

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON HUAWEI AppGallery

Available on the App Store

GET IT ON Google Play

AVVERTENZE PER LA SICUREZZA PRIMA DI UTILIZZARE L'ELETTRODOMESTICO, LEGGERE ATTENTAMENTE LE ISTRUZIONI CHE SEGUONO.

Installazione

Diagram of a machine with steam rising, showing motion lines and control panel (no text or symbols)

pentola in acciaio

Two hand-drawn diagrams showing a checkmark and an X symbol, no text or labels present.

Simple line drawing of a cooking pot with a curved handle (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

Symbolic illustration of a cooking pot with crossed arrows indicating pressure or heat (no text or labels)

Two kitchen utensils: a black pan with a handle and a black cooking pot with a lid, both shown in red stands (no text or symbols)

Two kitchen utensils: a square pan with a mesh fan and a circular pan with a spiderweb (no text or symbols)

Simple line drawing of a cooking pot and a hand gesture (no text or symbols)

-5 27

- +

Hand-drawn icons including a lock, finger, minus sign, plus sign, and hand gesture symbols

Hand-drawn icons showing a lock symbol, minus sign, and plus sign with numbered symbols

P 67 5

Simple line drawing showing a hand holding a device and a right-pointing arrow labeled '11'

6_2] - 6]

15 ⑧ → 3.□ 6.□]

30 ② → 6※□]

L W H D' X B X A X GUARNIZIONE

	L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	Min 50

Technical line drawing of a computer motherboard with cooling fans and screw holes (no text or symbols)

Precauzioni

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON HUAWEI AppGallery

Available on the App Store

GET IT ON Google Play

WAARSCHUWINGEN VOOR DE VEILIGHEID LEES DE VOLGENDE INSTRUCTIES ZORGVULDIG DOOR VOORDAT U HET APPARAAT IN GEBRUIK NEEMT.

Installatie

Diagram of a machine with steam rising, showing motion lines and control panel (no text or symbols)

ijzeren pan

Two hand-drawn diagrams showing a checkmark and an X symbol, no text or labels present.

Simple line drawing of a cooking pot with a U-shaped tube attached to the side (no text or symbols)

Grootte van de brander (mm)	Minimale grootte kookgerei (diameter/mm)
160	120
180	140
210	160

Simple line drawing of a cooking pot with crossed-out X marks (no text or symbols)

Simple line drawing of a cooking pot with crossed-out X symbol (no text or labels)

Simple line drawing of a cooking pot with crossed-out X mark (no text or symbols)

Simple diagram of a tank with crossed arrows indicating pressure or flow (no text or symbols)

Two kitchen utensils: a black pan with a handle and a black cooking pot with a lid, both placed on red stands (no text or symbols visible)

Two kitchen cookware illustrations: a square pan with a side handle and a circular pan with a mesh pattern (no text or symbols)

Simple line drawing of a cooking pot and a finger pointing at a numbered circle (no text or symbols)

-5 27

- +

Simple line drawing showing a person climbing a slope with an arrow pointing to a number 11

15 ⑧ → 3.□ 6.□]

L W H D X B X A X

AFDICHTING

	L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	50 mini

Three-step diagram illustrating a mechanical or structural modification process with checkmark and cross symbols indicating alignment or failure.

A (mm)	B (mm)	C (mm)	D	E
760	50 mini	20 mini	Luchtinlaat	Luchtuitlaat 5 mm

L1 L1 N1 N2 L2 L1 N PE L2 L1-L2: 380-415 V ~

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON HUAWEI AppGallery

Available on the App Store

GET IT ON Google Play

Diagram of a steam machine with cooling unit and two control panels, no text or symbols present

żelazny garnek

Two hand-drawn diagrams showing a checkmark and an X symbol, no text or labels present.

Simple line drawing of a cooking pot with a U-shaped tube attached (no text or symbols)

Three identical cooking pots with crossed-out X symbols, no text or labels present

Four identical cooking pots with crossed-out X marks, no text or symbols present

Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Two kitchen utensils: a black pan with a handle and a black cooking pot with a lid, both placed on red stands (no text or symbols visible)

Two kitchen utensils: a square pan with a mesh fan and a circular pan with a spiderweb (no text or symbols)

Simple line drawing of a cooking pot and a hand gesture (no text or symbols)

5:27

- +

Hand-drawn icons including a camera, a minus sign, and a plus sign with an arrow, likely illustrating a basic arithmetic or symbolic concept.

6 + → P P P

Simple line drawing showing a hand holding a small object and an arrow pointing to a number 11

6.2] - 8]

30 ⑧ → 6※ □]

L W H D X B X A X

PIECZEĆ

	L (mm)	H (mm)	W (mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	50 mini

Three-panel diagram illustrating a mechanical or structural change with arrows indicating direction of movement, showing different states or states.

Technical line drawing of a computer motherboard with cooling fans and screw holes (no text or symbols)

Uwagi

QR code image containing encoded data, no visible human-readable text

EXPLORE IT ON HUAWEI AppGallery

Available on the App Store

GET IT ON Google Play

ADVERTÊNCIAS DE SEGURANÇA LEIA ATENTAMENTE AS SEGUINTES INSTRUÇÕES ANTES DE UTILIZAR O APARELHO.

Instalação

Diagram of a steam locomotive with wheels and exhaust lines, no text or symbols present

panela de ferro

Two hand-drawn diagrams showing a checkmark and a cross on a line, no text or symbols present.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Two identical cooking pots with arrows indicating opposing pressure directions (no text or symbols)

Two kitchen utensils: a black pan with a handle and a black rectangular plate with a speaker grille (no text or symbols visible)

Two black cooking panes shown from top and side views, no text or symbols visible.

Simple line drawing of a cooking pot and a finger pointing at a circular icon (no text or symbols)

5.27

- +

Hand-drawn diagram showing three labeled symbols: a lock, a crossed-out circle, and a plus sign, with no readable text or labels.

Hand-drawn symbols including a lock, crossed-out cross, plus sign, and hand gestures with corresponding line drawings

Usar a função Boost

6 + → P P P -

Simple line drawing showing a hand holding a device and a right-pointing arrow labeled '11'

L W H D X B X A X

VEDANTE

	L (mm)	W (mm)	H (mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	50 mini

Three-panel diagram illustrating a mechanical or electrical process with arrows and cross symbols indicating movement or failure.

A (mm)	B (mm)	C (mm)	D	E
760	50 mini	20 mini	Entrada de ar	Saída de ar 5 mm

L1 L1 N1 N2 L2 L1 N PE L2 L1-L2: 380 - 415 V ~

QR code image containing encoded data, no visible human-readable text

PROZKOUMAT V AppGallery

K dispozici v App Store

ZÍSKAT Z Google Play

BEZPEČNOSTNÍ VAROVÁNÍ PŘED POUŽITÍM SPOTŘEBIČE SI POZORNĚ PŘEČTĚTE NÁSLEDUJÍCÍ POKYNY.

Instalace

Diagram of a steam heating machine with cooling unit and two control panels (no text or symbols)

litinový hrnec

Diagram showing two hand positions on a checkmark and an X, likely illustrating correct and incorrect hand positioning.

Simple line drawing of a cooking pot with a coiled hose (no text or symbols)

Three identical cooking pots with crossed-out X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two cooking pots with crossed arrows indicating heating or cooling conditions (no text or symbols)

Two kitchen utensils: a black frying pan and a rectangular oven, both with red standers (no text or symbols)

Two black cooking panes shown from top and side views, no text or symbols present.

Hand-drawn sketch showing a cooking pot, a hand gesture, and handwritten Chinese characters with numbers and symbols.

Hand-drawn diagram with symbols including a lock, crossed-out circle, plus sign, and a wavy line, possibly illustrating a logic or state transition.

6 + → P 6] P 6 -

Simple line drawing showing a hand holding a small object and a right-pointing arrow pointing to three vertical tick marks.

Technical line drawing of a multi-chamber electronic device with cooling fans and mounting hardware (no text or symbols)

Upozornění

QR code image containing encoded data, no visible human-readable text

PRESKÚMAJTE NA

AppGallery

Dostupné na

App Store

ZÍSKAJTE TO NA

Google Play

BEZPEČNOSTNÉ POKYNY

PRED POUŽITÍM SPOTREBIČA SI POZORNE PREČÍTAJTE NASLEDUJÚCE POKYNY.

Inštalácia

Simple line drawing of a steam machine with wheels and heat dissipation (no text or symbols)

železný hrniec

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand movement.

Simple line drawing of a cooking pot with a coiled tube (no text or symbols)

Vel’kost’ horáka (mm)	Minimálny kuchynský riad (priemer /mm)
160	120
180	140
210	160

Three identical cooking pots with crossed X marks, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Two cooking pots with crossed arrows indicating opposing pressure, one with a cross symbol and the other with an upward arrow (no text or labels)

Two kitchen utensils: a black pan with a lid and a rectangular plate with a speaker grille, both placed on red stands (no text or symbols visible)

Two black cooking panes shown from top and side views, no text or symbols present.

Hand-drawn diagrams showing a cooking pot, a magnifying glass, and hand gestures with Chinese characters.

827 + Vypnutie napájania

Hand-drawn diagram showing two hand positions with symbols: a lock icon and an X symbol, and a plus sign with a circled number.

6 + P P P

Hand-drawn sketch showing a hand holding a small object with a double vertical line, followed by an arrow pointing right to the right.

L W H D X B X A X TESNENIE

	D(mm)	Š(mm)	V(mm)	D (mm)	A (mm)	B (mm)	X (mm)
HI642	590	520	58	54	560	490	50 mini

Technical line drawing of a multi-chamber electronic device with cooling fans and mounting hardware (no text or symbols)

Upozornenia
