USER MANUAL BL93WH AYA

CLEANING AND MAINTENANCE

TECHNICAL SPECIFICATION

DISPOSAL OF OLD ELECTRICAL APPLIANCES

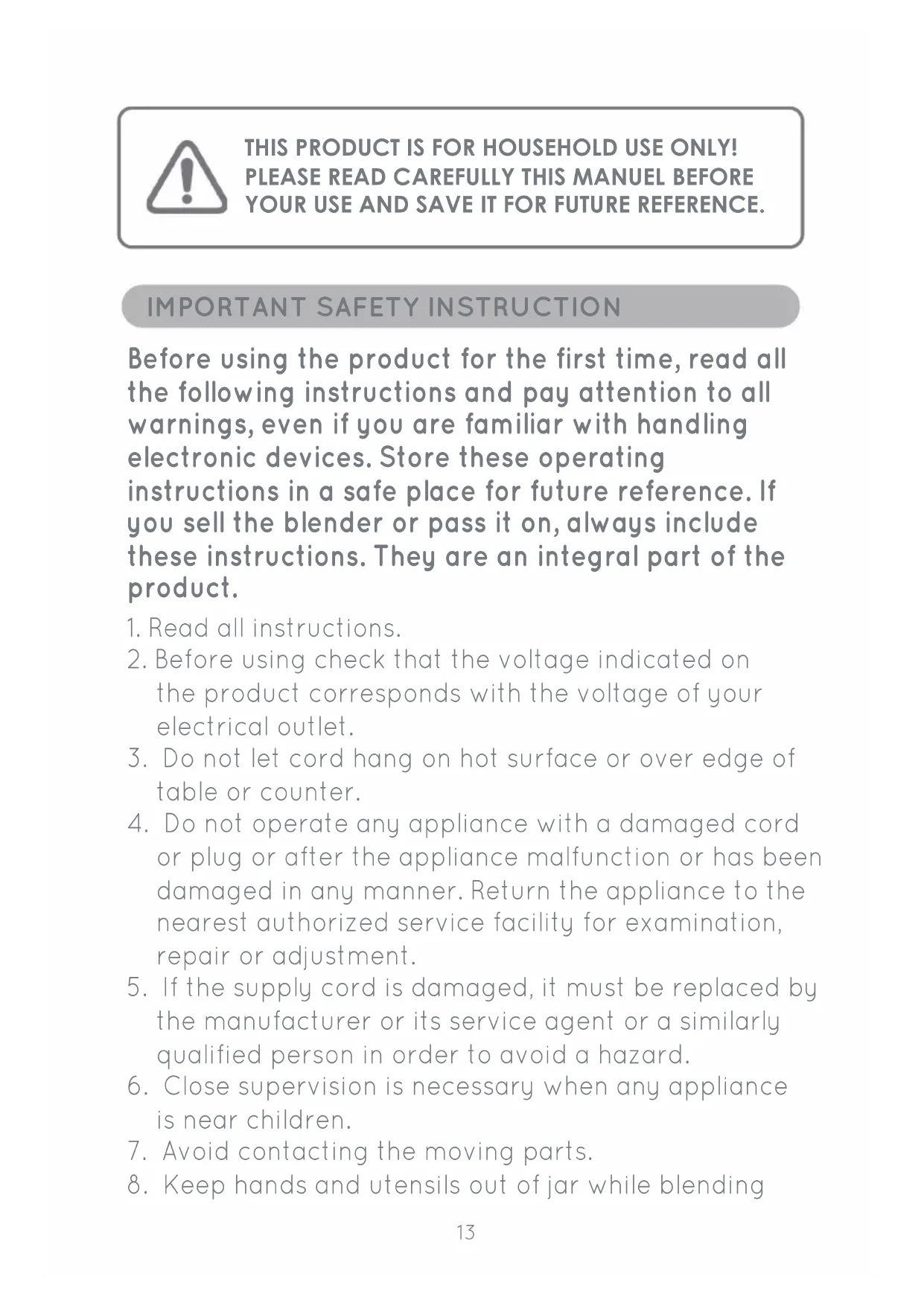

- 20 -13 Before using the product for the first time, read all the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell the blender or pass it on, always include these instructions. They are an integral part of the product.

1. Read all instructions.

2. Before using check that the voltage indicated on

the product corresponds with the voltage of your electrical outlet.

3. Do not let cord hang on hot surface or over edge of

4. Do not operate any appliance with a damaged cord

or plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

5. If the supply cord is damaged, it must be replaced by

the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

6. Close supervision is necessary when any appliance

7. Avoid contacting the moving parts.

8. Keep hands and utensils out of jar while blending

YOUR USE AND SAVE IT FOR FUTURE REFERENCE.14 to reduce the risk of severe injury to persons or damage to the blender.

9. The use of attachments not recommended or sold by

manufacturer may cause fire, electric shock or injury.

10. Unplug from outlet when not in use, before putting

on or taking off parts, and before cleaning. To disconnect, turn any control to “off”, then remove plug from wall outlet by grasping the plug, not the cord.

11. To reduce the risk of injury, never place blade

assembly on motor unit without the jar properly attached.

12. Do not leave the machine on unattended.

13. When removing the jar from the motor unit, wait

until the blades have completely stopped.

14. Always operate blender with cover in place.

16. Never place this appliance on or near a hot gas or

17. Do not use outdoors.

18 Do not use appliance for other than its intended use.

19. WARNING: Potential injury from misuse.

20. Care shall be taken when handling the sharp

blades, emptying the bowl and during cleaning.

21. Be careful if hot liquid is poured into the blender as

it can be ejected out of the appliance due to a sudden steaming.

22. Always disconnect the appliance from the supply if

it is left unattended and before assembling, disassembling or cleaning.

23. Switch off the appliance and disconnect from supply

before changing accessories or approaching parts15 that move in use.

24. CAUTION: Ensure that the blender is switched off

before removing it from the stand.

25. This appliance shall not be used by children. Keep

the appliance and its cord out of reach of children.

26. Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

27. Children shall not play with the appliance.

28. This appliance is intended to be used in household

and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

29. Regarding the operating times and rest time, thanks

to refer to the section “USING THE APPLIANCE”.

30. Regarding how to clean surfaces in contact with

food, please refer to section “CLEANING AND MAINTENANCE”.

31. Do not immerse the Motor Unit into water or

the protecting cover is damaged or has visible cracks.

33. The appliance cannot be used for blending hard

and dry substance, otherwise the blade could be blunted.16 GENERAL PRESENTATION

BEFORE THE FIRST USE

Check that all parts are complete and not damaged. The blender is suitable for blending fruits or vegetables. Clean the attachment according to the section “CLEANING AND MAINTENANCE”.

WARNING: The blade is sharp, handle with great care

and ensure that unplug the appliance from outlet before assembling and removing parts.BEFORE THE FIRST USE

Check that all parts are complete and not damaged. The blender is suitable for blending fruits or vegetables. Clean the attachment according to the section “CLEANING AND MAINTENANCE”.

WARNING: The blade is sharp, handle with great care

and ensure that unplug the appliance from outlet before assembling and removing parts.

1. Place the Jar on the Motor Unit, turn

the jar clockwise until a click will be heard when locked into position properly. Please see Fig.1. NOTE: There is a safety interlock device at the bottom of jar, if the jar is not assembled in place, the blender will not operate.

2. Peel or core the fruits or vegetables

and then cut it into small pieces, then put them into the jar. Usually, certain amount of purified water has to be added to facilitate the smooth running of appliance. The amount of mixture should not exceed the max level as indicated on the jar, nor sit lower the min level. The best proportion of the fruits or vegetables and water is 2:3. NOTE: The blender is not applicable for beating egg white, mashing potatoes, mixing dough, extracting juice from fruit and vegetable.

3. Replace jar cover on the jar.

4. You may add ingredient into the jar through the

USING THE APPLIANCE18

6. Do not run the appliance for more than 2 minutes per

time, and only wait until the unit is cooled to room temperature before performing next operation cycle.

7. Turn the Speed Selector to “0” Position once the

mixture has been blended to your desired consistency.

8. Turn the jar by anti-clockwise and remove it from the

motor unit, carefully take down the jar cover, then pour and serve. center opening of jar cover during operation.

5. Ensure the Speed Selector to “0” Position, then plug

into power outlet and set Speed Selector to your desired setting. You can set Speed Selector to the “P” position if want to accelerate the process of blending. The detailed information is shown in below fig.2. NOTE: Make sure the jar cover is placed in position completely before operating, and never open the jar cover during operation.19 WARNING

1. Never operate the appliance continuously for more

than 2 minutes per time.

2. Blades are very sharp. Handle with care.

3. Do not operate without the jar cover in place.

CLEANING AND MAINTENANCE

Make sure to disconnect appliance from power supply before cleaning. For blender

1. Pour a little warm soapy water into the Jar and turn

the Speed Selector to “1” position and press down the Pulse button without releasing it for a few seconds.

2. Dismantle all detachable parts. Disassemble the Jar

from the motor unit. Detach the blade assembly and remove the jar base seal ring. In addition, detach the jar cover seal ring from the jar cover. Rinse the jar, blade, jar cover and measuring cup under running water.

3. Wipe the outer surface of motor unit and with a damp

cloth. NOTE: Do not use abrasive cleanser and never immerse motor unit in water for cleaning

4. Dry all parts and then assemble them. The method

of assembling blender attachment just is in opposite of its detaching sequence. NOTE: If any problem has been encountered during using, never disassemble the Motor Unit by yourself. There are no user serviceable parts inside. Only20 contact the authorized service facility for examination and repair. Reference: AYA BL93WH Power supply: 220-240V~ 50-60Hz Power: 500W Capacity: 1.5L We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

TECHNICAL SPECIFICATION European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.BUT INTERNATIONAL 1 Avenue Spinoza - 77184 Emerainville, France
