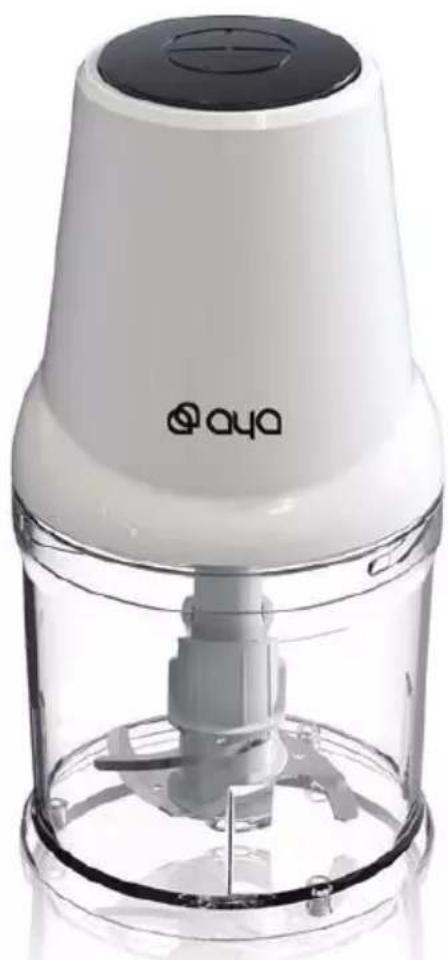

THA83GS - Food Processor AYA - Free user manual and instructions

Product Type	Food Processor (Chopper)
Brand	AYA
Model	THA83GS
Power	400 W
Power Supply	220-240 V ~ 50-60 Hz
Bowl Capacity	360 ml (max)
Bowl Material	Food-grade plastic
Blade Material	Stainless steel
Functions	Pulse chopping, continuous chopping
Safety	Lid locking system, thermal cut-out
Cleaning	Bowl and blades dishwasher safe; motor base wiped with a damp cloth
Use	Domestic use only
Warranty	2 years (statutory warranty of conformity)
Customer Service	09 78 97 97 97 (Mon-Fri 9am-7pm, Sat 9am-6pm)

Frequently Asked Questions - THA83GS AYA

How to use the AYA THA83GS chopper food processor?

Place the bowl on a flat surface, insert the blade assembly onto the shaft, add the food, position the motor unit by aligning the locking tabs, then press the start button. Use the pulse function for precise control.

What foods can I chop with this appliance?

You can chop fruits and vegetables (fresh or canned), herbs, nuts, meat (beef or pork cut into pieces), and even maltose. Follow the chopping guide for quantities and times.

Can I wash the parts in the dishwasher?

Yes, the bowl and blade assembly are dishwasher safe. The motor unit should only be wiped with a damp cloth, do not immerse it.

What to do if the appliance does not start?

Check that the motor unit is properly locked onto the bowl: the locking tabs must align with the slots. The appliance will not work if the lock is not engaged.

What is the maximum continuous use time?

In pulse mode, do not exceed 30 seconds of continuous operation. Let the appliance rest for at least 1 minute between cycles to avoid overheating.

How to safely clean the blades?

Always unplug the appliance before cleaning. Handle the blades with care as they are very sharp. Wash them in warm soapy water or in the dishwasher.

Is the appliance suitable for children?

No, this appliance should not be used by children. Keep it out of reach of children and do not leave it unattended nearby.

What to do in case of malfunction?

Contact customer service at 09 78 97 97 97 (Monday to Friday 9am-7pm, Saturday 9am-6pm). Do not try to repair the appliance yourself.

Can I use the appliance to blend liquids?

The chopping guide mentions cooked foods with their juice, but the bowl should not be filled more than half. Avoid blending pure liquids; the appliance is designed for chopping.

How to avoid injuries with the blades?

Always keep hands and utensils away from the blades when operating. Wait for the blades to stop completely before removing the motor unit. Use the plastic shaft to handle the blade assembly.

USER MANUAL THA83GS AYA

MANUEL D'UTILISATION THA83GS

FR

MINI HACHOIR

TABLE DES MATIERES

CONSIGNES DE SÉCURITÉ IMPORTANTES......1

PRÉSENTATION GÉNÉRALE....4

AVANT LA PREMIÈRE UTILISATION....5

UTILISATION DE L'APPAREIL....5

GUIDE DE HACHAGE......6

NETTOYAGE ET ENTRETIEN....7

SPÉCIFICATION TECHNIQUE....7

ENLÈVEMENT DES APPAREILS MÉNAGERS USAGÉS......8

MINI CHOPPER

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTION....1

GENERAL PRESENTATION......4

BEFORE FIRST USE....5

USING THE APPLIANCE ....5

CHOPPING GUIDE......6

CLEANING AND MAINTENANCE....7

TECHNICAL SPECIFICATION....7

DISPOSAL OF OLD ELECTRICAL APPLIANCES....8

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTION

Before using the product for the first time, read all the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell the chopper or pass it on, always include these instructions. They are an integral part of the product.

1. Read all instructions before using.
2. Do not open until blades stop.
3. The motor unit cannot be used for other than intended use.
4. Do not use the appliance for other than intended use.
5. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
6. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
7. Children shall not play with the appliance.

8. WARNING: Potential injury from misuse.

9. Regarding the operating times, rest time and the recipes, thanks to refer to the section "CHOPPING GUIDE".

10. Regarding the instructions for cleaning surfaces in contact with food, thanks to refer to the section "CLEANING AND MAINTENANCE".
11. Unplug from the outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
12. Do not let the cord hang over the edge of a table or counter.
13. Do not place on or near a hot gas or electric burner or in a heated oven.
14. Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to persons or damage to the chopper.
15. To protect against a fire, electric shock or personal injury, do not immerse cord, electric plugs, or motor unit in water or other liquids.
16. Close supervision is necessary when any appliance is used by or near children.
17. The appliance is not a toy. Do not let the children play it.
18. Avoid contacting moving parts.
19. The use of accessories not recommended or sold by manufacturer may cause fire, electric shock or injury.
20. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
21. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
22. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or it is dropped

or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.

1. Be sure motor unit is locked securely in place before operating appliance.
   24.Do not attempt to defeat the lid interlock mechanism.
   25.Do not use outdoors.

2. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

5. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

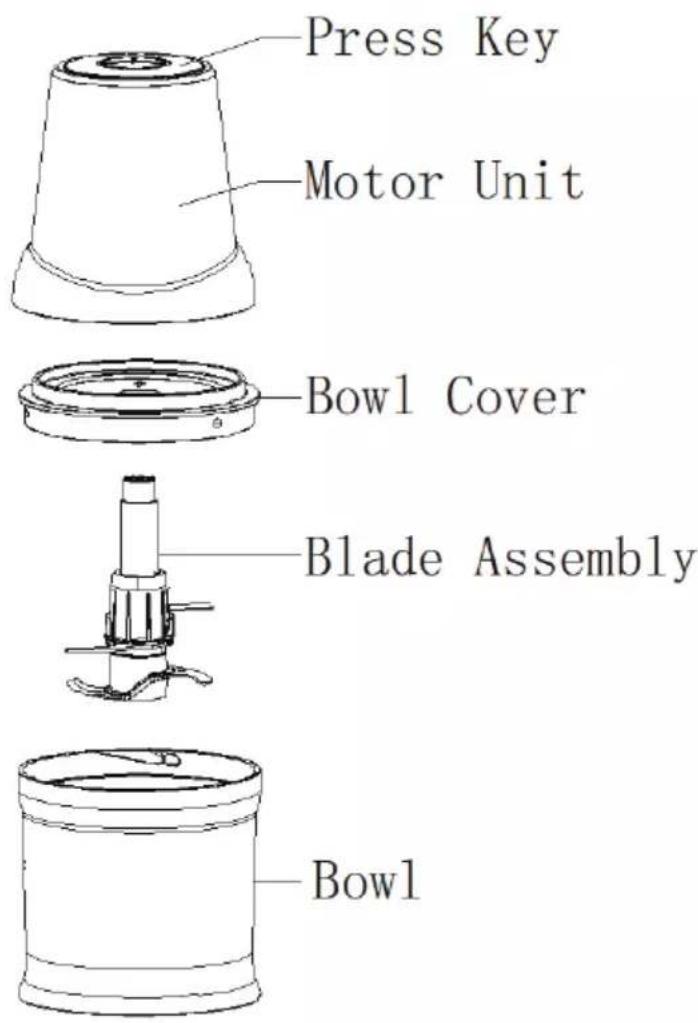

GENERAL PRESENTATION

BEFORE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in sudsy water and dry thoroughly, all of these parts are safe in dishwasher, wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

USING THE APPLIANCE

1. Place the bowl on a counter or other flat surface, then slide the blade down over the shaft in the bowl. Be careful not to touch the blade as it is extremely sharp.
2. Place dry food in the bowl, the desired food refers to the chopping guide.
3. Position the motor unit onto the bowl, lining up the motor unit locking tabs to the bowl locking slots till the motor unit locks.

Note: For your protection, this unit has a lid locking system, the unit will not operate unless the tabs in the motor unit and slots in the bowl align. Do not attempt to operate the unit without locking the motor unit in place.

1. Depress and hold the pulse button to process.

Note: This product has a “pulse action” feature. Avoid running the motor continuously in this mode for period over 30 seconds. The longer the continuous pulse, the finer the texture. For coarsely chopped foods, use short pulses.

1. Be sure the blade stops rotating completely before removing the motor unit. Unplug the unit. Remove the motor unit and grasp the plastic blade hub. Carefully pull the blade assembly out. Remove the bowl and empty the processed food. Do not use bowl for storing food.

CHOPPING GUIDE

FOOD TYPE PREPARATION HINTS
Boxed or fresh fruits and vegetables	Fill with the equivalent of 120g and mix for 10 seconds. Leave to rest for 1 minute, then start again until you achieve the desired result.
Cooked fruits and vegetables	Fill with the equivalent of 120g with the cooking juice (without exceeding half the mixing bowl capacity) and mix for 10 seconds. Leave to rest for 1 minute, then start again until you achieve the desired result.
Herbs	Wash and dry the ingredients. Fill without exceeding half of the mixing bowl capacity and mix for 10 seconds using pulse action. Leave to rest for 1 minute, then start again until you achieve the desired result.
Nuts	Fill without exceeding half of the mixing bowl capacity and mix for 10 seconds. Leave to rest for 1 minute, then start again until you achieve the desired result.
Fresh beef or pork to be cut into 30mm * 15mm * 15mm bulk	Fill with the equivalent of 120g and mix for 15 seconds. Leave to rest for 1 minute, then start again until you achieve the desired result.
Maltose	Fill with 60g maltose and 20g honey and mix for 5 seconds. Leave to rest for 1 minute, then start again until you achieve the desired result.

The following conditions will affect the final result:

• The size of the pieces: ensure that they are all the same size.
• The quantity of ingredients in the mixing bowl. Do not fill the mixing bowl beyond half of its capacity.
• Pulse or action or continuous.

CLEANING AND MAINTENANCE

Always disconnect the appliance from the power outlet before cleaning.

Wash the bowl, blade assembly immediately after use either with warm/sudsy water or in the dishwasher. Wipe off the motor unit with a damp cloth but do not immerse it in water.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the loss.

TECHNICAL SPECIFICATION

Reference: AYA THA83GS

Power supply: 220-240V\~50-60Hz

Power: 400W

The maximum working capacity: 360ml

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances

must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97, From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).
