Product type	Range hood
Brand	Glem Gas
Model	GHP645BK
Color	Black
Dimensions (W x D x H)	600 x 500 x 400-680 mm (adjustable)
Weight	Approximately 15 kg
Power supply	220-240 V ~ 50 Hz
Number of speeds	3 or 4 (depending on version): low, medium, high, booster
Lighting	Yes, dedicated switch
Timer	Yes, adjustable delayed shut-off
Filtration type	Aluminum grease filters + charcoal filter (recirculation version)
Grease filters	Dishwasher safe, frequent cleaning recommended
Charcoal filter	Replacement every 6 months (only in recirculation mode)
Minimum distance above cooktop	650 mm (electric) / 750 mm (gas)
Exhaust duct diameter	150 mm (exhaust version)
Installation mode	Wall-mounted, with or without external exhaust (recirculation possible)
Material	Stainless steel and glass (likely)
Maintenance	Clean with damp cloth and mild detergent; disconnect before any maintenance
Safety	Earthing mandatory; do not use with open flames; watch frying
Warranty	Consult the retailer or manufacturer

Frequently Asked Questions - GHP645BK Glem Gas

What is the minimum distance between the hood and the cooktop?

The minimum distance is 650 mm for an electric cooktop and 750 mm for a gas cooktop. Respect this distance to ensure good suction and avoid fire risks.

How to clean the grease filters?

The aluminum grease filters are dishwasher safe or can be washed by hand with hot detergent solution. Let them dry completely before reinstalling. Clean them frequently to maintain performance.

When should the charcoal filter be replaced?

In recirculation mode, the charcoal filter must be replaced every 6 months or more often with heavy use. This filter cannot be washed.

How to install the hood?

Installation requires two people. First fix the wall bracket, then hang the hood. Connect the exhaust duct (diameter 150 mm) or install the charcoal filter for recirculation mode. Then connect the power supply. Refer to the manual for details.

What to do if the light does not turn on?

First check that the hood is powered on. If the light still does not work, the bulb may be faulty. Contact a qualified technician to replace it. Always disconnect the hood before any intervention.

The hood is making an unusual noise, what to do?

Ensure the filters are clean and correctly installed. Also check that the exhaust duct is not obstructed. If the noise persists, contact after-sales service.

Can I use the hood with a gas cooktop?

Yes, but sufficient room ventilation is required to avoid backflow of combustion gases. The hood must not be connected to a duct that evacuates fumes from other appliances.

How to set the timer?

The timer allows you to program a delayed shut-off of the hood. Press the dedicated button to set the desired time (usually 1 to 15 minutes). The hood will turn off automatically after the chosen delay.

What types of filters are compatible with this hood?

The hood uses aluminum grease filters that are washable and, for recirculation version, charcoal filters. Use only filters recommended by the manufacturer.

How to contact Glem Gas customer service?

Customer service details can be found in the user manual or on the official Glem Gas website. Keep your proof of purchase for any warranty claims.

USER MANUAL GHP645BK Glem Gas

Thanks very much for choosing our product, please carefully read the following important information regarding installation safety and maintenance. And keep this information booklet accessible for further consultations.

RANGE HOOD INSTRUCTI ON MANUAL

Dear Customer,

If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come.

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

* The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
* Please read this instruction manual before installing and using this range hood. Please keep this instruction manual in a safe place for future reference.
* Only a qualified and trained service technician can undertake the work of installation and servicing.
* Check that the main voltage corresponds to the one indicated on the rating plate fixed inside the hood.
* If the hood is used in conjunction with non-electrical appliances (e. g. gas burning appliances), a sufficient degree of ventilation must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening directly with the open air in order to guarantee the entry of clean air.
* The minimum distance is 750mm from the range hood to a gas hob, and is 650mm to an electric hob. If the installation instructions for gas hobs specify a greater distance, this must be taken into account.

NOTICE: Two or more people are required to install or move this appliance. Failure to do so can cause physical injuries.

USE

* The range hood has been designed only for domestic use to eliminate kitchen fumes.
* Never use the hood for purposes other than what it has been designed for.

* Never leave high naked flames under the hood when it is in operation.
* Adjust the flame intensity to direct it onto the bottom of the pan only; making sure that it does not engulf the pan sides.
* Deep fat fryer must be continuously monitored during use: overheated oil can burst into flame.
* The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

* Proper maintenance of the range hood will assure proper performance of the unit.
* Disconnect the hood from the main supply before carrying out any maintenance work.
* Clean and/or replace aluminum grease filters and activated charcoal filters after specified period of time.
* Clean the hood using a damp cloth and a neutral liquid detergent.
* DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

WARNING!!

In certain circumstances electrical appliances may be a danger hazard.

* Do not check the status of the filters while the cooker hood is operating

* Do not touch the light bulbs after appliance use

* Do not disconnect the appliance with wet hands.

* To reduce the risk of fire or electric shock, do not use this fan with any solid-state.

* Avoid free flame, as it would do damage to the filters from a fire hazard

* Constantly check food frying to avoid that the overheated oil may become a fire hazard

* Disconnect the electrical plug prior to any maintenance or servicing.

* Children don't recognize the risks of electrical appliances. Therefore use or keep the appliance only under supervision of adults and out of the reach from children.

* TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a) Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

b) Sufficient air is needed for proper combustion and exhausting of gases

through the flue (chimney) of fuel burning equipment to prevent back drafting.

c) When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

d) Ducted fans must always be vented to the outdoors.

* Don't use this product outdoors.

* This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction, concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

* There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.

* There is a fire risk if cleaning is not carried out in accordance with instructions.

* The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

Do not flambe under the range hood.

Accessible parts may become hot when used with cooking appliances.

Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

CHARACTERI STI CS

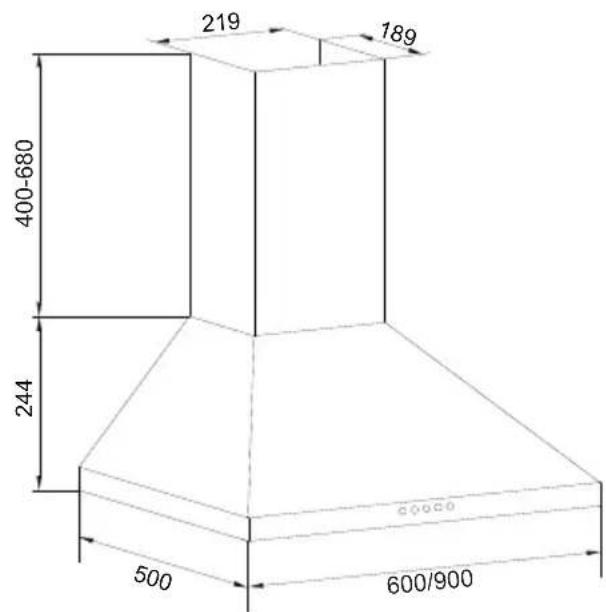

DIMENSIONS

INSTALLATION & USE

(1) OPERATION OF CONTROLS

The hood is operated using the push button on the front panel.

The light switch turns the lamps on and off.

The power switch turns the range hood off.

The blower switch turns the blower on to three speed settings:

1 - LOW SPEED

2 - MEDIUM SPEED

3 - HIGH SPEED

(2) OPERATION OF CONTROLS

Empty white rectangle with light blue border (no text or symbols)

The hood is operated using the electronic switch on the front panel.

The power switch turns the range hood on and off.

The light switch turns the lamps on and off.

The blower switch turns the blower on to four speed settings.

Low speed show F1

Medium speed shows F2

High speed shows FC3

Booster shows P

The timer delay switch decides how long the hood stays on after switching off.

Grease Filters

The grease filters should be cleaned frequently. Use a warm detergent solution. Grease filters are washable.

See "INSTALL FILTERS" section for removal and installation instructions.

Non-Ducted Recirculation charcoal filter

The non-ducted recirculation charcoal filter should be changed every 6 months.

See "INSTALL FILTERS" section for removal and installation instructions.

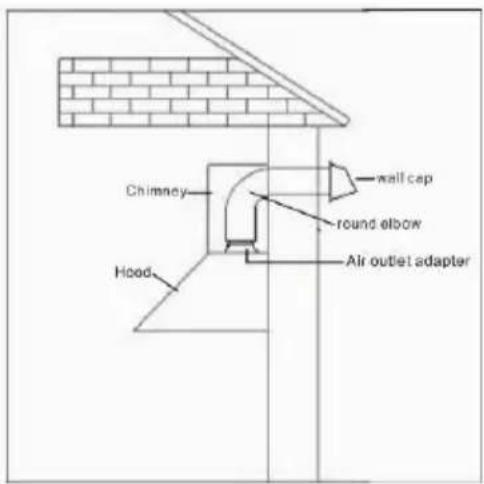

INSTALL THE DUCTWORK

(DUCTED HOODS ONLY)

Caution: To reduce the risk of fire, use metal ductwork is preferred.

1. Decide where the ductwork will run between the hood and the outside.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows, and transitions

will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.

1. The air must not be discharge into a flue that is used for exhausting fumes from appliances burning gas or other fuels" "Regulations concerning the discharge of air have to be fulfilled.
2. Install wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

INSTALL ELECTRICAL

Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard

INSTALL THE HOOD

Note 1: On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and chimney prior to final installation. Note 2: At least two people will be required to mount the hood.

INSTALL THE HOOD

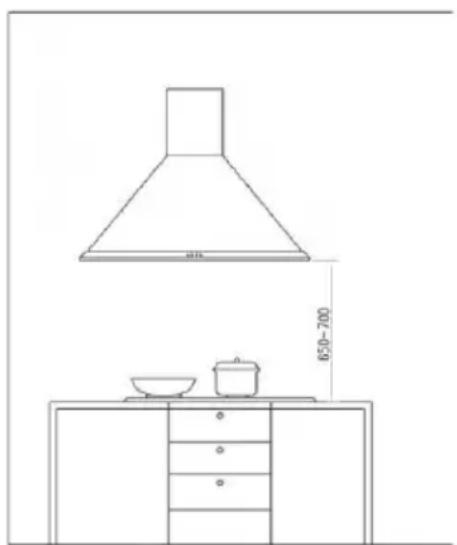

Minimum hood distance above the cooker must not be less than 650mm.

A maximum of 750mm above the cooker is highly recommended for best capture of cooking impurities.

Distance over 750mm above the cooker are at the installer's and user's discretion - providing that ceiling height and flue length permit.

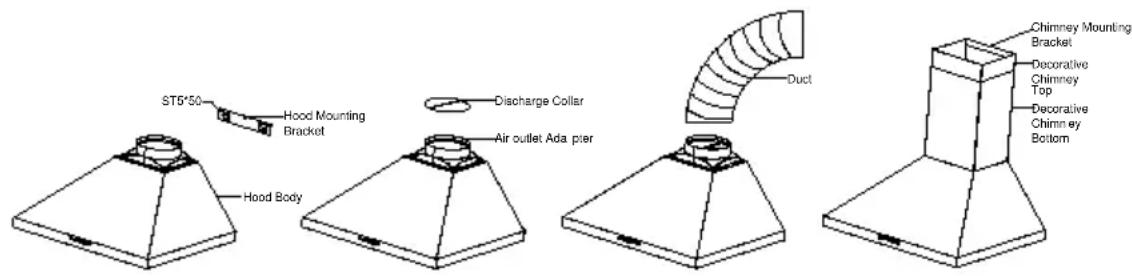

1. Secure the hood mounting bracket to the wall using (3) ST 5 x 45mm mounting

Line drawing of a kitchen interior with a double conical chimney, a bowl, and a cabinet (no text or symbols)

screws and dry wall anchors. Align the hood body with the hood mounting bracket. Gently lower the hood until it securely engages the bracket.

1. Fix the discharge collar into the air outlet adapter.
2. Attach an adequate length of 150mm round duct to the air outlet adapter.
3. Carefully slide the decorative chimney top down inside the decorative chimney bottom. Carefully place the decorative chimney bottom into the recessed area of the hood body top.
4. Secure the chimney mounting bracket to the wall using (2) ST 5 x 45mm mounting screws and dry wall anchors.
5. Raise the decorative chimney top until its holes align with holes in the chimney mounting bracket (located on the wall).
6. Level the hood and secure the chimney with 2 chimney bracket screws.
7. Fix the hood body with two screws from inside of body.

INSTALL FILTERS

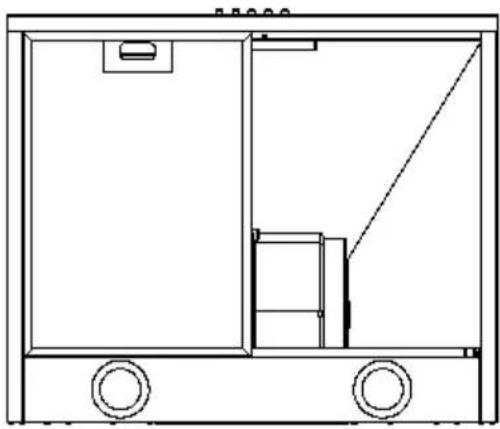

1. To remove the grease filter, push in on the metal latch tab. This will disengage the filter from the hood. Tilt the filter downward and remove.
2. To install the grease filter, align rear filter tabs with slots in the hood. Push in the metal latch tab, push filter into position and release. Make sure the filter is securely engaged after assembly.

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

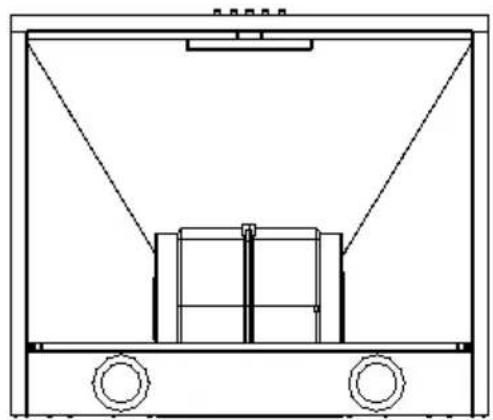

1. To install the charcoal filter, and lock it until the stop click is heard.

2. Install grease filter after charcoal filter is installed.

Technical line drawing of a mechanical assembly with no visible text or symbols

Blank white rectangle with light blue border (no text or symbols)

Line drawing of a kitchen interior with a double-hop chimney, a side table with a bowl and a cup, and a cabinet (no text or symbols)

Technical line drawing of a mechanical device with wheels and a door (no text or symbols)

Technical line drawing of a mechanical assembly with two wheels and a central frame (no text or symbols)

Empty white rectangle with light blue border (no text or symbols)

Line drawing of a kitchen interior with a double-lit high chimney, a side table with a bowl and a pot, and a cabinet (no text or symbols)

INSTALLATION DES FILTRES

Architectural line drawing of a two-story building interior with doors, windows, and structural elements (no text or symbols)

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

Blank white rectangle with light blue border (no text or symbols)

Line drawing of a kitchen interior with a double-horn chimney, a bowl, and a cabinet (no text or symbols)

Technical line drawing of a mechanical device with wheels and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

CONDIÇÕES GERAIS DE GARANTIA

*frame Saudi Arabia Ministry of the United States, Canada, and Australia.

Empty rectangular frame with light blue border (no text or symbols)

تركيب المرشحات

Architectural line drawing of a two-story building interior with doors, stairs, and circular fixtures (no text or symbols)

Technical line drawing of a mechanical assembly or enclosure with no visible text, numbers, or symbols.

技术参数贴纸粘贴处
