Product type	Built-in ceramic hob
Brand	Glem Gas
Model	GTH64TCIXN
Power supply	220-240 V ~ 50/60 Hz
Number of cooking zones	4
Control type	Touch Control (touch)
Power levels	9 levels (1 to 9)
Residual heat function	Yes, 'H' display
Child lock function	Yes, activation by pressing [-] and ○
Automatic safety shut-off	Yes, according to power level (from 1 h to 10 h)
Surface material	Ceramic glass
Cleaning	Scraper and specific products, avoid steam cleaner
Safety instructions	Do not leave unattended, risk of burns, electric shock
Warranty	Valid subject to compliance with instructions

Frequently Asked Questions - GTH64TCIXN Glem Gas

How to turn on the hob?

Press the On/Off button. All cooking zone displays light up in standby position '0'.

How to adjust the power of a cooking zone?

Select the desired zone with the Selection button, then press + or - to adjust the power from 1 (minimum) to 9 (maximum).

How to turn off a cooking zone?

Select the zone then press the + and - buttons simultaneously, or press - until the '0' position.

How to activate the child lock?

Press the - and ○ buttons simultaneously for 3 seconds. All symbols display 'L'.

What does the 'H' display mean?

The 'H' display indicates residual heat: the zone is still hot, risk of burns. It disappears when the temperature is below approximately 50 °C.

How to clean the ceramic hob?

Use the supplied scraper (optional) to remove residues, then clean with a suitable product and a paper cloth. Rinse and dry. Never use a steam cleaner.

What to do in case of oil or grease overheating?

Do not use water. Turn off the hob and smother flames with a lid or a damp cloth. Never leave the appliance unattended.

The appliance turns off by itself, is that normal?

Yes, the appliance has an automatic safety shut-off. The time limit depends on the set power level (from 1 hour to 10 hours).

Can I install an oven underneath the hob?

Yes, but it is necessary that the oven and the surface are properly insulated to avoid malfunction of the Touch Control system.

What to do if the power cord is damaged?

It must be replaced by the manufacturer, an authorized service center, or qualified personnel to avoid any risk.

USER MANUAL GTH64TCIXN Glem Gas

Illustration of a hand using a brush to clean or brush residue on a surface, with no text or symbols present.

Fig. 8

Ⓐ - ON/OFF > switch the hob on and off

⑧ - Plus > increase cooking level

© - Minus > reduce cooking level

(D) - Cooking Zone

ITALIANO

IT

GENERALITA'

ACCENSIONE APPARECCHIO

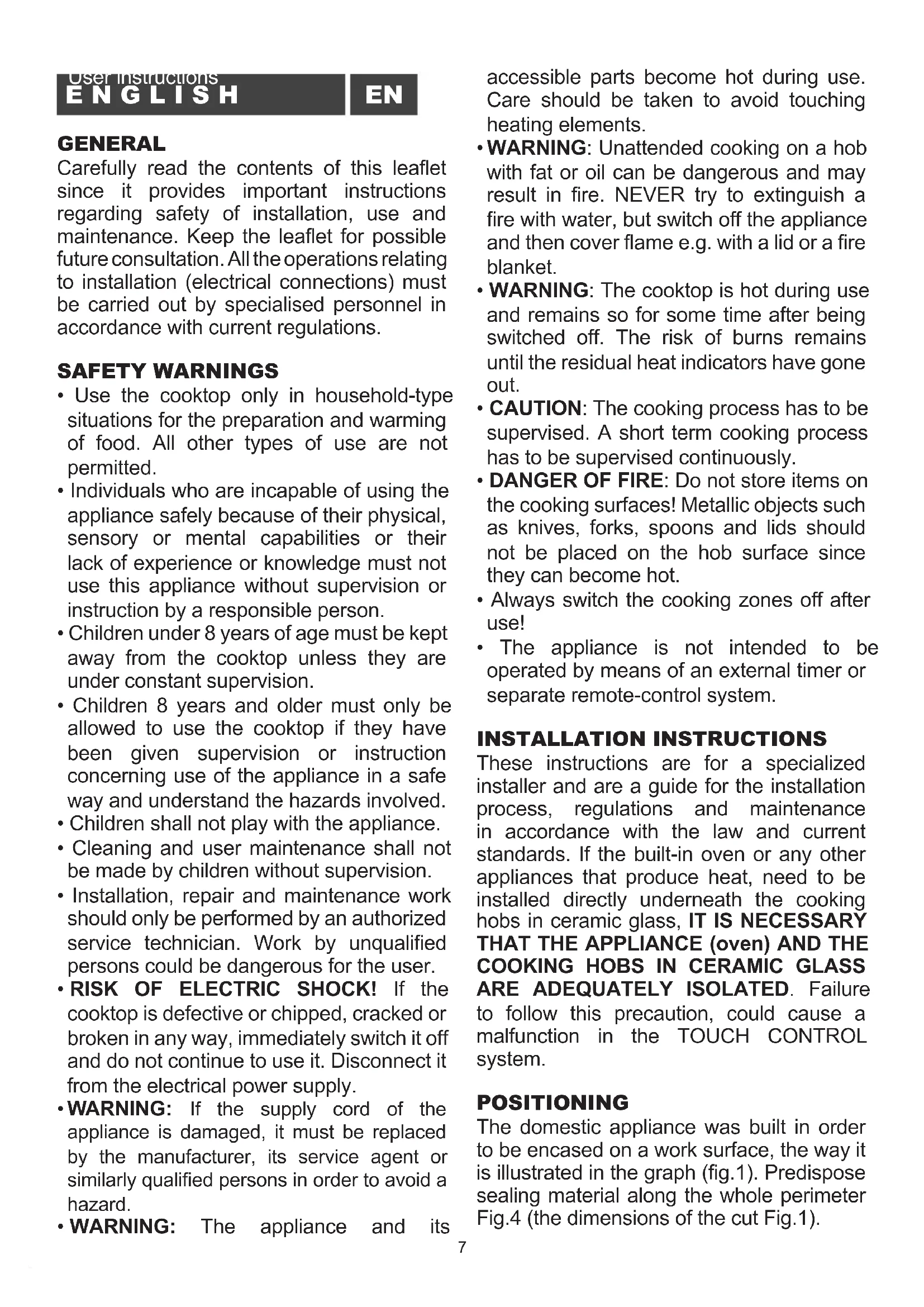

Carefully read the contents of this leaflet since it provides important instructions regarding safety of installation, use and maintenance. Keep the leaflet for possible future consultation. All the operations relating to installation (electrical connections) must be carried out by specialised personnel in accordance with current regulations.

SAFETY WARNINGS

• Use the cooktop only in household-type situations for the preparation and warming of food. All other types of use are not permitted.
• Individuals who are incapable of using the appliance safely because of their physical, sensory or mental capabilities or their lack of experience or knowledge must not use this appliance without supervision or instruction by a responsible person.
• Children under 8 years of age must be kept away from the cooktop unless they are under constant supervision.
• Children 8 years and older must only be allowed to use the cooktop if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Installation, repair and maintenance work should only be performed by an authorized service technician. Work by unqualified persons could be dangerous for the user.
• RISK OF ELECTRIC SHOCK! If the cooktop is defective or chipped, cracked or broken in any way, immediately switch it off and do not continue to use it. Disconnect it from the electrical power supply.
• WARNING: If the supply cord of the appliance is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: The cooktop is hot during use and remains so for some time after being switched off. The risk of burns remains until the residual heat indicators have gone out.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• DANGER OF FIRE: Do not store items on the cooking surfaces! Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can become hot.
  • Always switch the cooking zones off after use!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

INSTALLATION INSTRUCTIONS

These instructions are for a specialized installer and are a guide for the installation process, regulations and maintenance in accordance with the law and current standards. If the built-in oven or any other appliances that produce heat, need to be installed directly underneath the cooking hobs in ceramic glass, IT IS NECESSARY THAT THE APPLIANCE (oven) AND THE COOKING HOBS IN CERAMIC GLASS ARE ADEQUATELY ISOLATED. Failure to follow this precaution, could cause a malfunction in the TOUCH CONTROL system.

POSITIONING

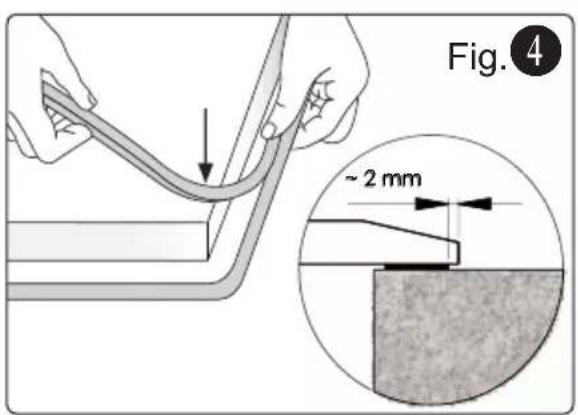

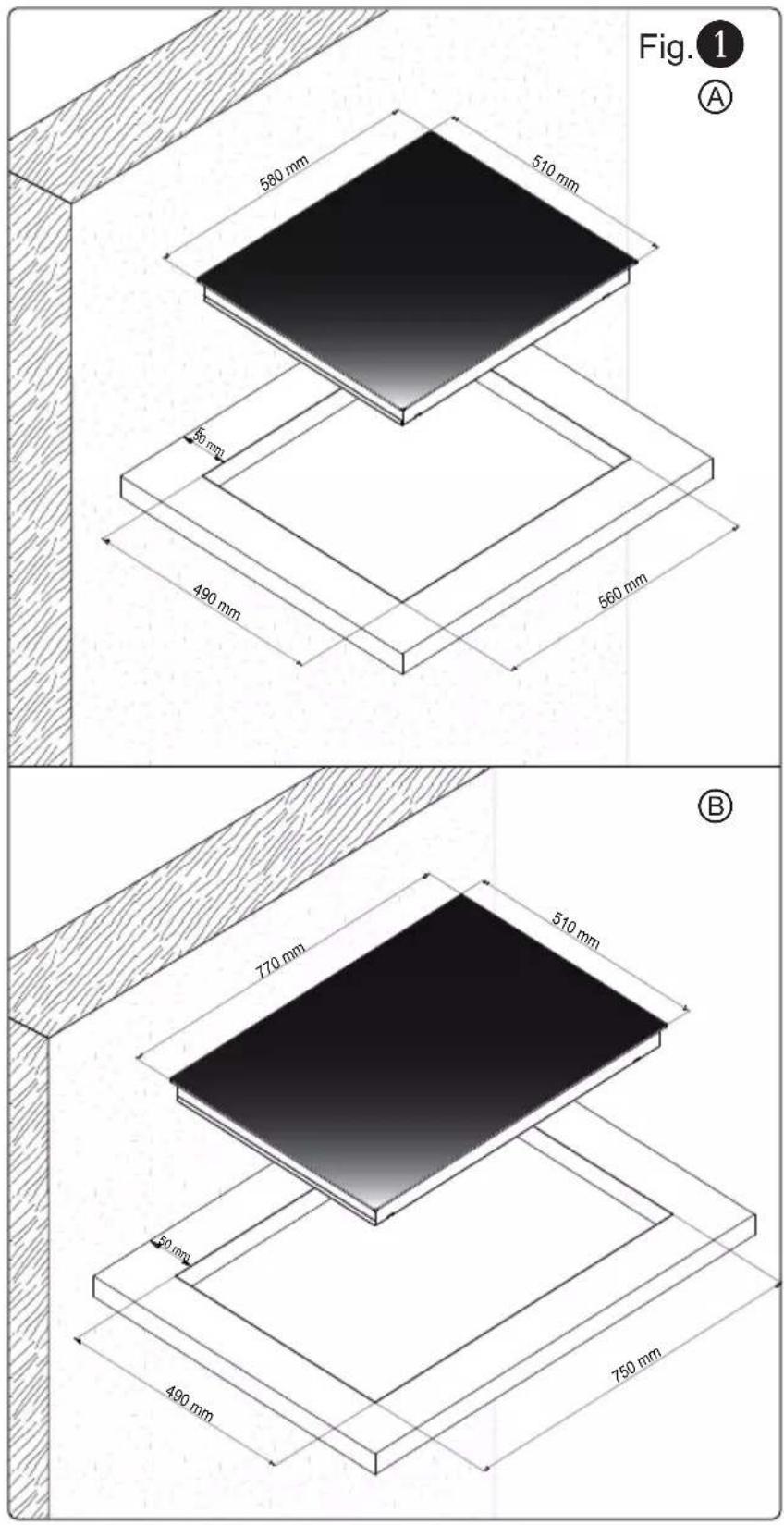

The domestic appliance was built in order to be encased on a work surface, the way it is illustrated in the graph (fig.1). Predispose sealing material along the whole perimeter Fig.4 (the dimensions of the cut Fig.1).

This operation is necessary to avoid any liquids penetrating the work top, as it is not possible to guarantee that the top, the glass and their connection are completely flat.

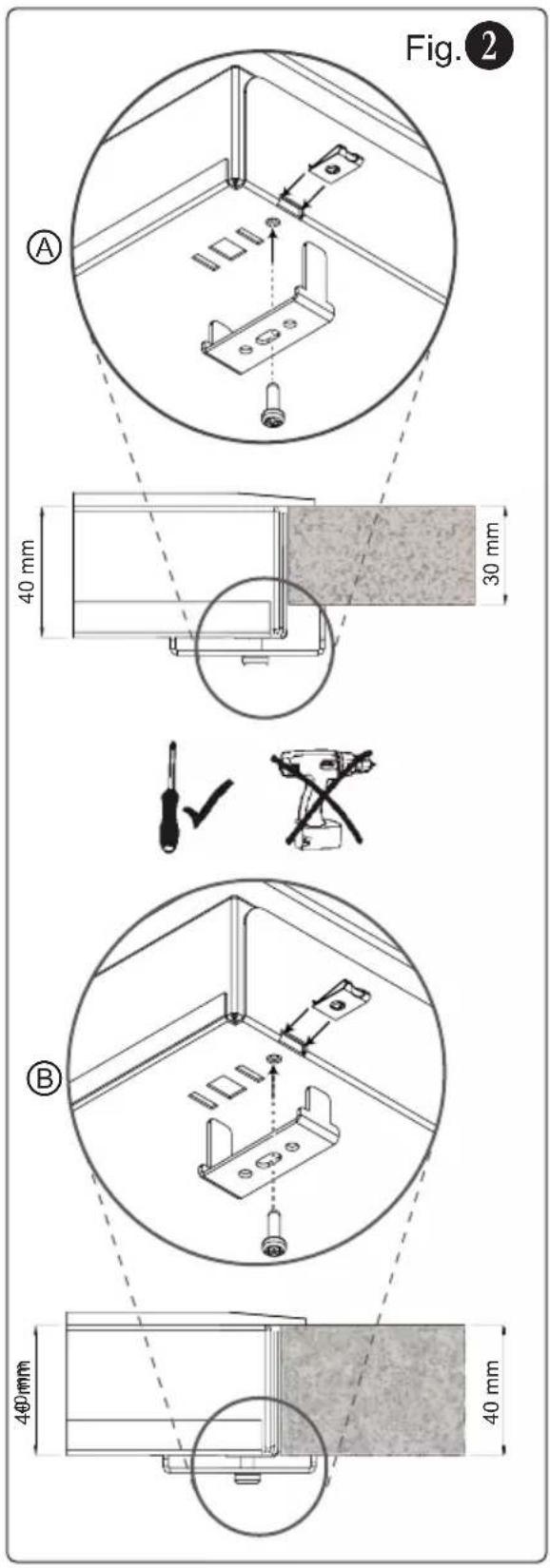

Lock the domestic appliance into place with 4 supporters, keeping in mind the width of the surface (Fig.2).

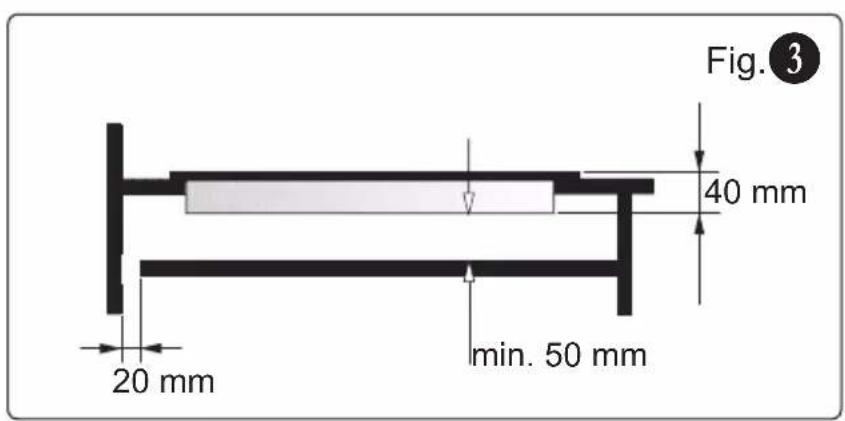

If the lower part of the appliance after installation, is accessible via the lower part of the furniture, it is necessary to mount a separating panel keeping in mind the distances indicated (Fig.3) if the appliance is being installed underneath an oven, this is not necessary.

ELECTRICAL CONNECTIONS (Fig.5)

Before making the electrical connections, check that:

• the ground wire is 2 cm longer than the other cables;
• the system ratings meet the ratings indicated on the identification plate fixed on the lower part of the work top;
• the system is fitted with efficient ground wires in accordance with the laws and current standards.

Grounding is mandatory by law.

If the domestic appliance is not supplied with a cable and/or suitable plug, use material suitable for the absorption value indicated on the identification plate and the operating temperature. If wishing to make a direct connection to the mains, an omnipolar switch must be installed with a minimum 3 mm opening between the contacts and appropriate for the load indicated on the plate and in accordance with current standards (the yellow/green ground conductor must not be disconnected by a switch). When the appliance has been installed, the omnipolar switch must be easily reachable.

MAINTENANCE

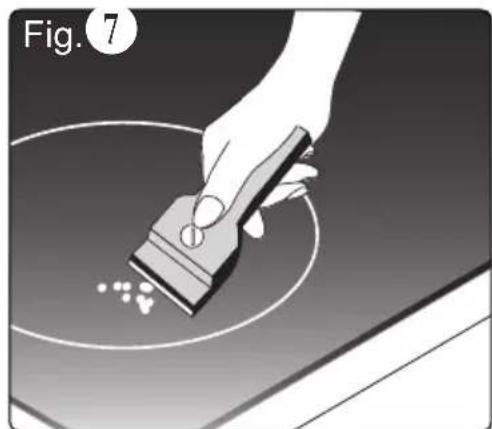

Remove any residues of food and drops of grease from the cooking surface by using the special scraper supplied on request (Fig.7) Clean the heated area as thoroughly as possible using suitable products, and a cloth/paper, then rinse with water and dry with a clean cloth.

Using the special scraper (optional) immediately remove any fragments of aluminium and plastic material that have unintentionally melted on the heated cooking area, or residues of sugar or food with a high sugar content (Fig.7). In this way, any damage to the cook top surface can be prevented. Under no circumstances should abrasive sponges, or corrosive chemical detergents, such as oven sprays or stain removers, be used.

WARNING: STEAM CLEANERS MUST NOT BE USED.

USE

Use the touch control system in the corresponding position according to individual cooking needs. Keep in mind that the higher the number, the more heat is produced.

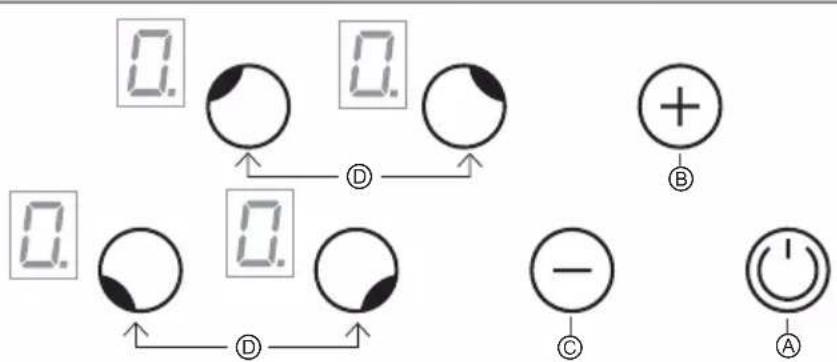

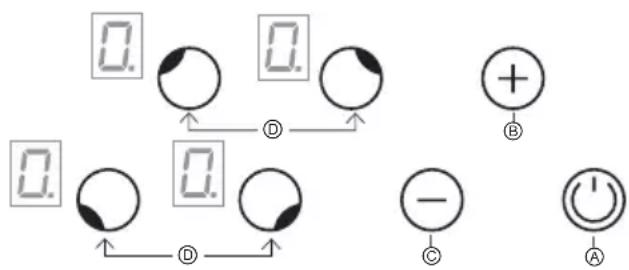

TOUCH CONTROL (Fig.8)

A-ON/OFFkey > switch the appliance on and off
B- Plus key > increase power level of the cooking zone
C-Minus key > reduce power level of the cooking zone
D-Zone Selection key > select and activate the desired cooking zone

SWITCHING ON THE HOB

Press the On-Off key to switch the appliance on. The displays will turn on in the «0» position.

SWITCHING ON THE COOKING ZONES

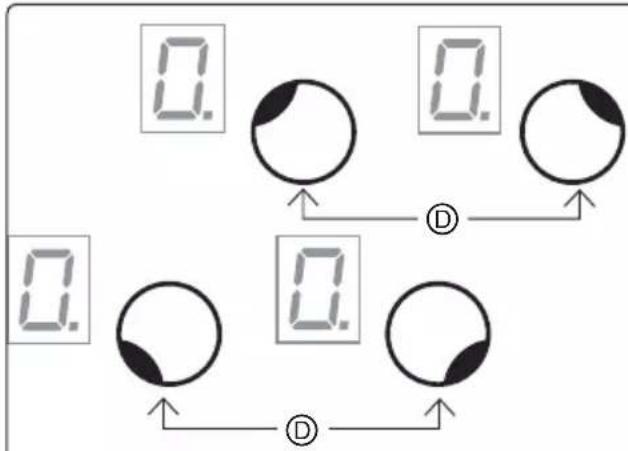

Press the relative Zone Selection key to select the desired cooking zone (see fig.8D) and press the «-» or «+» key within 10 seconds to set the power level.

If within this time no cooking zone is selected, the electronic device returns automatically

to the OFF position.

The «-» and «+» keys are used to adjust the power of the plates from level 1 (minimum) to level 9 (maximum).

RESIDUAL HEAT

If the temperature of a cooking area is still high (above 50^ ) after it has been switched off, the display relative that area will show the «H» (residual heat) symbol. The indication disappears only when the burn risk is no longer present.

CONTROL PANEL LOCK

Controls can be locked in order to prevent any risk of unintentional modification of the settings (children, cleaning etc.). This was no action on the keys has no effect unless it is turned off. To activate this function turn the appliance on and within 10 seconds simultaneously press «-» and the Zone Selection key ○ for 3 seconds and immediately after again the key Zone Selection key ○On all displays will appear the symbol «L». To disable the control panel lock just rerun the procedure as above.

SWITCHING OFF THE COOKING ZONES

To switch a cooking zone off, press the relative Zone Selection key to select it then press simultaneously the «-» and «+» key, or press the «-» key until reaching position «0».

SWITCHING OFF THE HOB

To turn off the appliance entirely hold down the On/Off key.

SAFETY SWITCH

The appliance has a safety switch that automatically switches off the grill when it has been operating for a certain amount of time at a given power level.

POWER LEVEL	OPERATING TIME LIMIT (hours)
1	10
2 - 3 5
4	4
5	3
6 - 7 - 8 2
9	1

DISPOSAL OF OLD ELECTRICAL APPLIANCES

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREAKING THE ABOVE WARNINGS.

THE WARRANTY IS NOT VALID IN THE CASE OF DAMAGE CAUSED BY FAILURE TO COMPLY WITH THE ABOVE WARNINGS.

SICHERHEITSHINWEISE

Illustration of a hand using a power tool to clean granular material on a surface, labeled Fig. 7 (no text or symbols on the diagram itself)

Two cooking utensils with crossed-out arrows indicating heating or cooling process (no text or symbols)

Two identical cooking pots with blue arrows indicating upward motion, no text or symbols present.

(A) - ON/OFF > switch the hob on and off

⑧ - Plus > increase cooking level

© - Minus > reduce cooking level

(D) - Cooking Zone

Fig. 8
