Product type	Radio-controlled alarm clock
Power supply	2 x 1.5V AA batteries (LR6, alkaline recommended)
Time reception	DCF-77 (automatic and manual synchronization)
Number of alarms	4 independent alarms
Snooze function	Yes (repeats every 5 minutes, up to 7 times)
Temperature display	Yes, in °C or °F (measuring range: unspecified)
Backlight	Manual (via SNOOZE/LIGHT button) and automatic (light sensor)
Date display	Yes, with day of the week in 8 languages
Time formats	12h / 24h
Time zone	Adjustable (default 0 for Germany)
Maintenance & cleaning	Damp cloth only, no cleaning agents
Use	Indoor only
General information	Clock with reset, battery compartment, alarm speaker

Frequently Asked Questions - FKW-8 Fysic

How to set the time manually if the DCF-77 signal is not received?

Press and hold the TIME SET button for 3 seconds until the time zone flashes. Use + and - to set time zone, hours, minutes, seconds, year, month, day, temperature unit (°C/°F), and day language. Press TIME SET to confirm each step.

How to set an alarm?

Press the ALARM SET button. The alarm 1 time flashes. Use + and - to set the time, then press ALARM SET to go to the next alarm. After 15 seconds of inactivity, the setting is saved. Activate the alarm by sliding the corresponding switch to ON.

How to turn off a sounding alarm?

You can press any button to stop the alarm (it will ring again 24 hours later) or slide the alarm switch to OFF to deactivate it completely.

How to use the snooze function?

When the alarm sounds, press the square SNOOZE/LIGHT button on top of the clock. The alarm stops and repeats every 5 minutes, up to 7 times. The snooze icon z^z flashes. To cancel snooze before the end, press any other button.

What does the DST icon mean?

DST stands for Daylight Saving Time. It appears when the clock has received the DCF-77 signal and daylight saving time is in effect.

Why does the clock not display the temperature?

If the temperature is outside the measuring range, the display shows LL.L (too cold) or HH.H (too hot). Check that the clock is not exposed to extreme heat or cold sources.

How to activate the automatic backlight?

Slide the AUTO LIGHT switch on the back of the clock to ON. The backlight will turn on automatically in darkness.

What to do if the clock does not receive the DCF-77 signal?

Make sure the clock is placed away from sources of interference (electronic devices, thick walls). You can initiate manual synchronization by pressing and holding the - button for 3 seconds. The reception icon flashes. If the signal is still not received, set the time manually (see question 1).

How to change the day display language?

During manual time setting (by holding TIME SET), after setting the temperature unit, you will reach the language setting. Use + and - to choose from 8 languages (German, English, Danish, Dutch, Italian, Spanish, French, Russian). Press TIME SET to confirm.

How to clean the clock?

Use a damp cloth (not wet) to wipe the clock. Never use cleaning agents or abrasives. Do not immerse the clock in water.

USER MANUAL FKW-8 Fysic

14:32 08.10.5UN 20.3°C ALARM-1 6:38 7:50 ALARM-1 ALARM-2 7:00 20:38 ALARM-4 TIME SET - + ALARM SET

KLOK

HORLOGE

UHR

CLOCK

FYSIC®

FKW-8

NL

OVERZICHT

5678910 Z° AM PM 38.88. AM PM 28:88 AM 28:88 ALARM ON ON I) AM 28:88 AM 28:88 ALARM ON ON I) PM 28:88 PM 28:88 ON I) TIME SET - + ALARM SET 18 17 16 14 SNOOZE / LIGHT 19 ALARM-3 ON OFF ALARM-4 ON OFF 11 13 20 21 RESET ON OFF AUTO LIGHT 22 23 4 ALARM-1 ON OFF ALARM-2 ON OFF -2-

1. Wekker/alarm instelling

ALARM-1 ON OFF ALARM-2 ON OFF

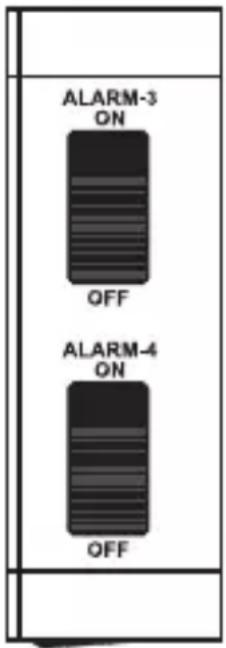

ALARM-3 ON OFF ALARM-4 ON OFF

Sluimerfunctie:

5678910 AM PM z² 38.88. 88 188.8° ALARM (1) ON (1) AM PM 28:88 AM 28:88 ALARM (1) ON (1) ALARM (1) ON (1) AM PM 28:88 AM 28:88 ALARM (1) ON (1) TIME SET - + ALARM SET SNOOZE / LIGHT 19 18 17 16 23 4 ALARM-1 ON OFF ALARM-2 ON ALARM-3 ON OFF ALARM-4 ON OFF RESET ON OFF AUTO LIGHT 20 21 22 -10-

ALARM-1 ON OFF ALARM-2 ON OFF

ALARM-3 ON OFF ALARM-4 ON OFF

Fonction Snooze :

ALARM-1 ON OFF ALARM-2 ON OFF

Wecksignal stoppen:

ALARM-3 ON OFF ALARM-4 ON OFF

Schlummerfunktion:

• 12/24 hours alarm display indication
- wake-up and/or alarm time
- wake-up/alarm indication "on" icon ( )((ON)) Valid for ALARM-1, ALARM-2, ALARM-3 and ALARM-4

1. alarm-2 on/off switch

2. date display

3. alarm-1 on/off switch

4. 12/24 hours clock display indication

5. clock display

6. day language (8 available language settings)

7. SNOOZE indication icon (z ^z )

8. DST indication during DCF-77 time. DST stands for Daylight Saving Time

9. DCF-77 time reception indication icon

10. alarm-3 on/off switch

11. temperature display (set unit °C or °F)

12. alarm-4 on/off switch

13. ALARM SET button

14. • button

15. automatic night light sensor

16. • button

17. TIME SET button

18. SNOOZE / LIGHT touch square

19. reset button

20. automatic night light function on/off switch

21. alarm signal speaker

22. battery compartment (2 x 1.5V AA)

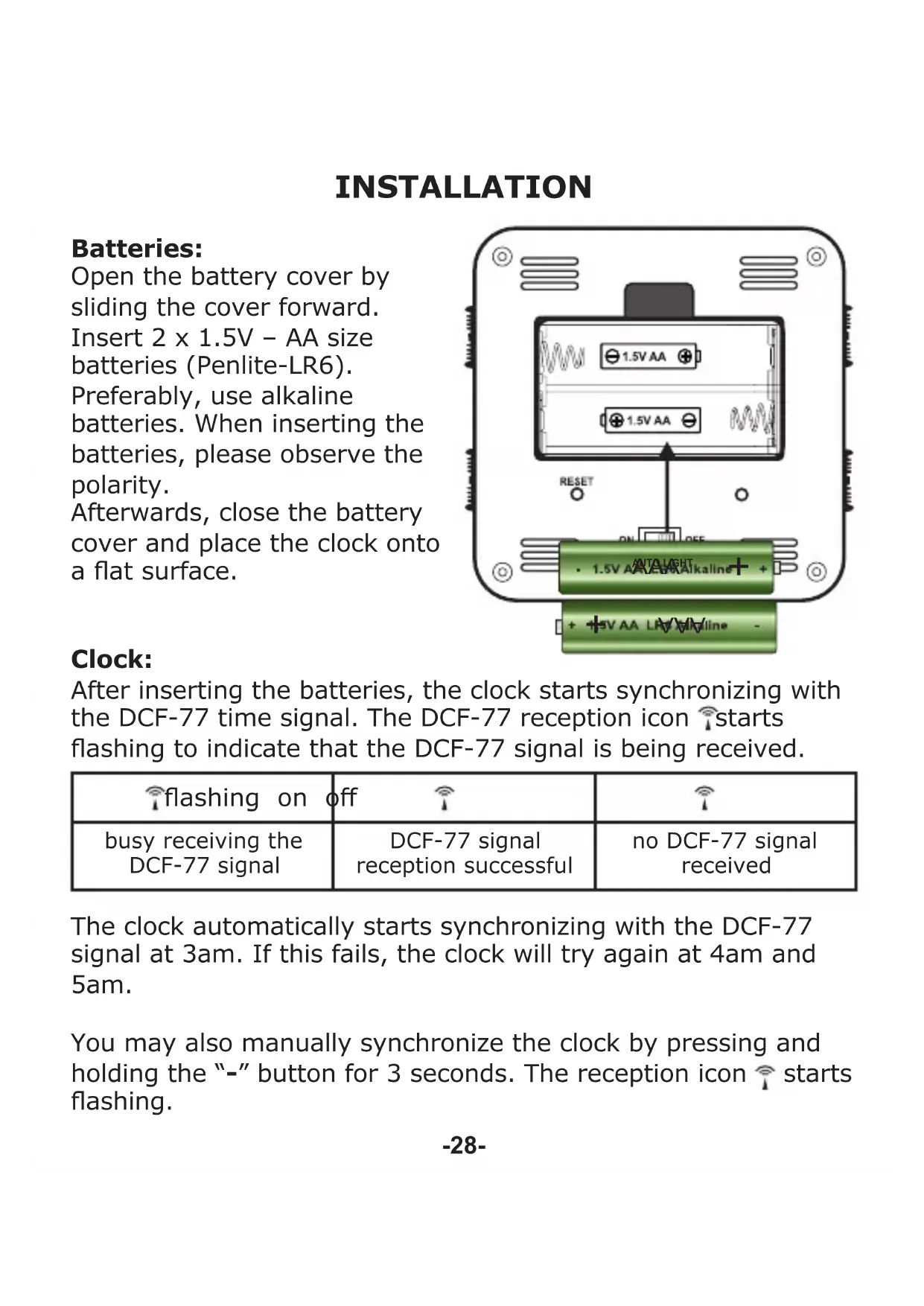

INSTALLATION

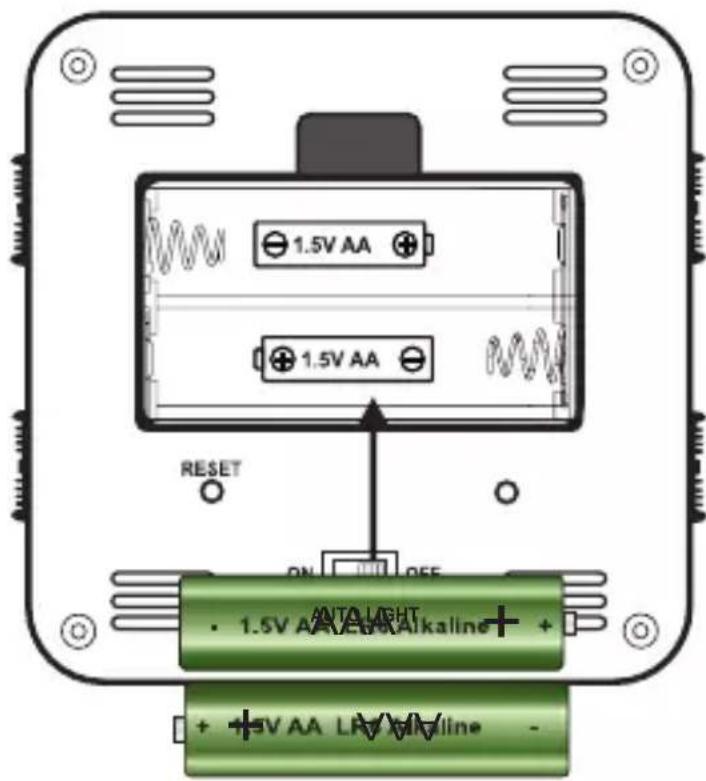

Batteries:

Open the battery cover by sliding the cover forward.

Insert 2 x 1.5V - AA size batteries (Penlite-LR6).

Preferably, use alkaline batteries. When inserting the batteries, please observe the polarity.

Afterwards, close the battery cover and place the clock onto a flat surface.

1.5V AA 1.5V AA RESET ON OFF AUTO LIGHT 1.5V AA LED Alkaline + + +5V AA LIV V/MLine -

Clock:

After inserting the batteries, the clock starts synchronizing with the DCF-77 time signal. The DCF-77 reception icon 📋starts flashing to indicate that the DCF-77 signal is being received.

flashing on off
busy receiving the DCF-77 signal	DCF-77 signal reception successful	no DCF-77 signal received

The clock automatically starts synchronizing with the DCF-77 signal at 3am. If this fails, the clock will try again at 4am and 5am.

You may also manually synchronize the clock by pressing and holding the "-" button for 3 seconds. The reception icon 📋 starts flashing.

The synchronizing process will take several minutes.

During summer time the "DST" icon appears. DST stands for Daylight Saving Time.

To manually set the time:

If it's not possible to receive the DCF-77-signal, you may set the clock time manually. During the manual setup, several other functions may be set.

Press and hold the "TIME SET" button for 3 seconds until the time zone starts flashing. Use the "+" and "-" buttons to set the values. Press the "TIME SET" button to confirm each step and to go to the next setting. You may set the following functions.

time zone hours

minutes seconds

year month day

°C or °F

day display language

Time zone: For countries with the same time as Germany, set the time zone to "0". For countries outside Germany's time zone, the time zone should be adjusted. When using the DCF-77 time, Germany is considered as time zone "0".

12/24 hours: Press the “+” button to switch between 12 hours and 24 hours display format.

day display language: To set the desired language in which the days must be displayed.

Language	Country Code	SundayMondayTuesday			Wednesday	Thursday	Friday	Saturday
Deutsche	GER	SON MON DIE		MIT DON FRE SAM
English	ENG	SUN MON TUE		WED THU FRI SAT
Denmark	DAN	SON MAN TIR		ONS TOR FRE LOR
Nederlands	DUT	ZON MAA DIN		WOE DON VRI ZAT
Italiano	ITA	DOM LUN MAR		MER GIO VEN SAB
Español	SPA	DOM LUN MAR		MIE JUE VIE SAB
Français	FRE	DIM LUN MAR		MER JEU VEN SAM
Русский	RU	BC	ПН	BT	CP	ЧТ	ПТ	СБ

Remarks: When you don't press any button for 15 seconds during the settings, the screen automatically returns to the normal display.

Alarm clock and snooze settings:

This clock also provides wake-up functions.

You may set 4 wake-up or alarm times.

The alarm clock is activated when the alarm clock icon (ON) appears in the display, by sliding the sliders at the sides upwards to the "ALARM ON" position.

While the snooze function is active, the snooze icon Z' keeps flashing.

Every 5 minutes an alarm signal will sound. While the alarm is active, the alarm clock icon (ON) keeps flashing.

Wake-up time setup:

Press the "ALARM SET" button to adjust the alarm time. Alarm time 1 starts flashing.

Use the "+" and "-" buttons to set the desired wake-up time.

Press the "ALARM SET" button to go to the alarm time 2

setting. Now, alarm time 2 starts flashing.

Repeat this for alarm time 3 and alarm time 4. When you don't press any button for 15 seconds after setting an alarm time, the device will leave the alarm setup menu. The wake-up time(s) is/are now set.

To activate the corresponding wake-up time, slide the desired "ALARM ON" switch upwards. The alarm clock icon (110 w) will appear in the display.

To stop the wake-up signal:

As soon as the wake-up time is reached, the clock will sound an alarm signal.

For the first 10 seconds, the alarm signal has a low volume. In between 10 and 20 seconds, the volume increases. From 20 to 30 seconds the volume is even higher and after 30 seconds the alarm signal volume is the loudest. The alarm signal will continue for up to 180 seconds.

Press any button within those 180 seconds to stop the alarm. The alarm signal will start again after 24 hours, in accordance with the set wake-up time, or you may slide the "ALARM ON/OFF" switch of the concerned alarm to "OFF" to fully switch off the alarm clock.

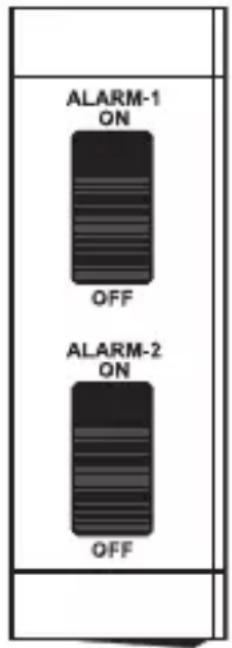

ALARM-1 ON OFF ALARM-2 ON OFF

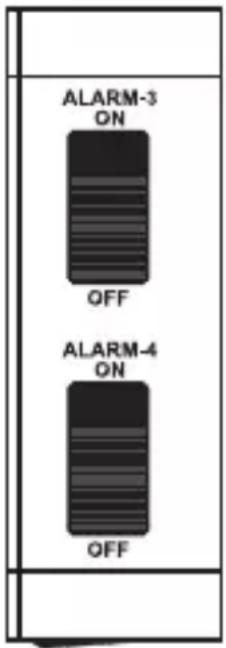

ALARM-3 ON OFF ALARM-4 ON OFF

Snooze function:

While the alarm sounds, press the SNOOZE / LIGHT square on

top of the clock. The alarm signal

will stop and switch to snooze mode. The snooze icon z^z starts flashing.

When the snooze mode is activated, the alarm signal will

sound again after 5 minutes. You may activate the snooze function up to 7 times in a row.

Press a random button (expect the "SNOOZE / LIGHT"

square) to cancel the snooze function beforehand.

SNOOZE / LIGHT

To stop the alarm signal:

While the alarm sounds, slide the corresponding alarm switch to "OFF" to stop the alarm signal.

The alarm clock is now disabled.

Thermometer display:

If the thermometer value is out of the measurement range, the display will show: LL.L (below the minimum temperature) or HH.H (above the maximum temperature)

Background lighting:

Press the SNOOZE / LIGHT square on top of the clock to switch on the background lighting.

The background lighting will turn off after 5 seconds.

Automatic background lighting:

When the switch "AUTO LIGHT" at the rear is set to "ON", the background lighting illuminates softly when it becomes dark.

TIPS & REMARKS

• The clock loses all its information when the batteries are removed.
• Don't expose the clock to direct sunlight, heat, cold, high humidity or moist environments.
• Only clean the clock with a moist cloth. Don't use cleaning agents.
• This clock is only suitable for indoor use.
