WorkCentre 55 - Printer XEROX - Free user manual and instructions

Product Type	Multifunction printer (copier, printer, scanner)
Brand	Xerox
Model	WorkCentre 55
Dimensions (W x D x H)	Approximately 50 x 40 x 30 cm
Weight	Approximately 20 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	Less than 150 W in standby
Main Functions	Copy, print, scan
Print Resolution	Up to 600 x 600 dpi
Toner Type	Standard black toner
Paper Tray Capacity	250 sheets (main tray)
Maintenance and Cleaning	Clean the exposure glass with a soft cloth; replace toner when empty
Safety	Laser safety device compliant with CE standards
Spare Parts and Repairability	Toner cartridge, drum, maintenance kit available
General Information	LCD screen for navigation; quick reference guide included

Frequently Asked Questions - WorkCentre 55 XEROX

How to align a document on the exposure glass?

Align the book or page with the arrow located in the upper left corner of the exposure glass, as shown in the guide.

What to do in case of a paper jam?

Open the front and rear covers, gently remove the jammed paper following the instructions in the manual. Avoid tearing the paper.

How to replace the toner?

Open the front cover, remove the old toner cartridge by pulling the handle, insert the new cartridge until it clicks, then close the cover.

Why does the screen display 'Service Call'?

This message indicates a problem requiring the intervention of a certified technician. Contact Xerox support with the displayed error code.

How to make a duplex copy?

In the Standard Copy tab, select the Duplex option and choose the desired mode (e.g., Flip pages). Place the original document.

What type of paper to use?

Use standard 80 g/m² paper. Avoid paper that is too thin or too thick to prevent jams.

How to clean the exposure glass?

Use a soft, lint-free cloth slightly dampened. Do not use abrasive products or harsh liquids.

Print quality is smudged, what should I do?

Clean the drum by running a cleaning cycle in the Maintenance menu. If the problem persists, replace the drum.

How to adjust the copy contrast?

In the Standard Copy tab, use the Contrast keys to adjust the level. You can also enable Background Suppression if needed.

Can I scan a document without a computer?

Yes, you can scan to a USB key or directly to a network folder configured in the printer settings.

USER MANUAL WorkCentre 55 XEROX

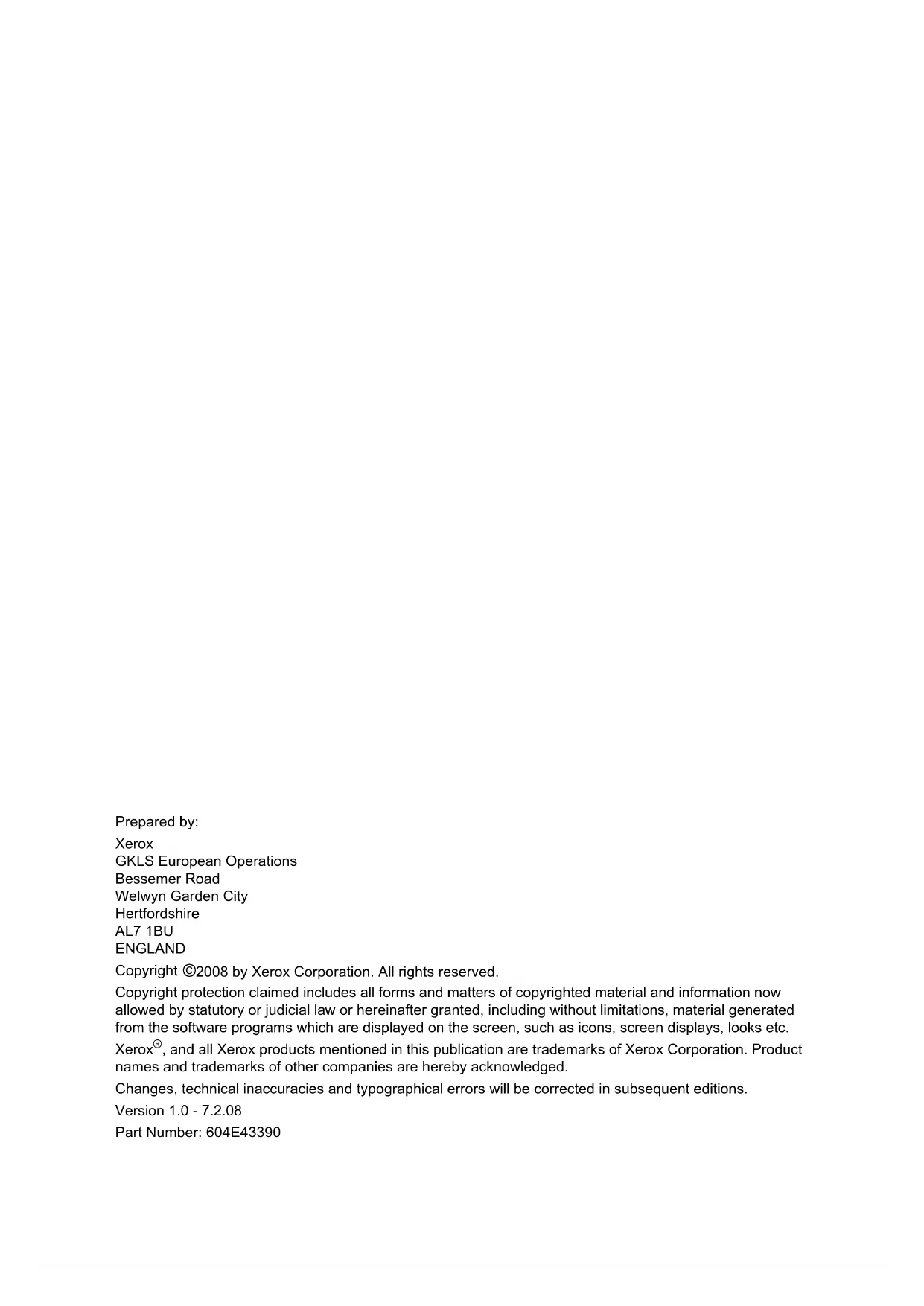

GKLS European Operations

Bessemer Road

Welwyn Garden City

Hertfordshire

AL71BU

ENGLAND

Copyright ©2008 by Xerox Corporation. All rights reserved.

Copyright protection claimed includes all forms and matters of copyrighted material and information now allowed by statutory or judicial law or hereinafter granted, including without limitations, material generated from the software programs which are displayed on the screen, such as icons, screen displays, looks etc.

Xerox®, and all Xerox products mentioned in this publication are trademarks of Xerox Corporation. Product names and trademarks of other companies are hereby acknowledged.

Changes, technical inaccuracies and typographical errors will be corrected in subsequent editions.

Version 1.0 - 7.2.08

Part Number: 604E43390

Thank you for choosing the Xerox WorkCentre BookMark 40 and 55. This product has been designed for ease of use, particularly in library environments. To use your machine to the it's fullest potential, take some time to read the Quick Reference Guide and this document.

The Quick Reference Guide provides an overview of the features and options that may be available on your machine.

Some features mentioned in the Quick Reference Guide are different for the WorkCentre BookMark 40 and 55. This document details the unique features of your machine.

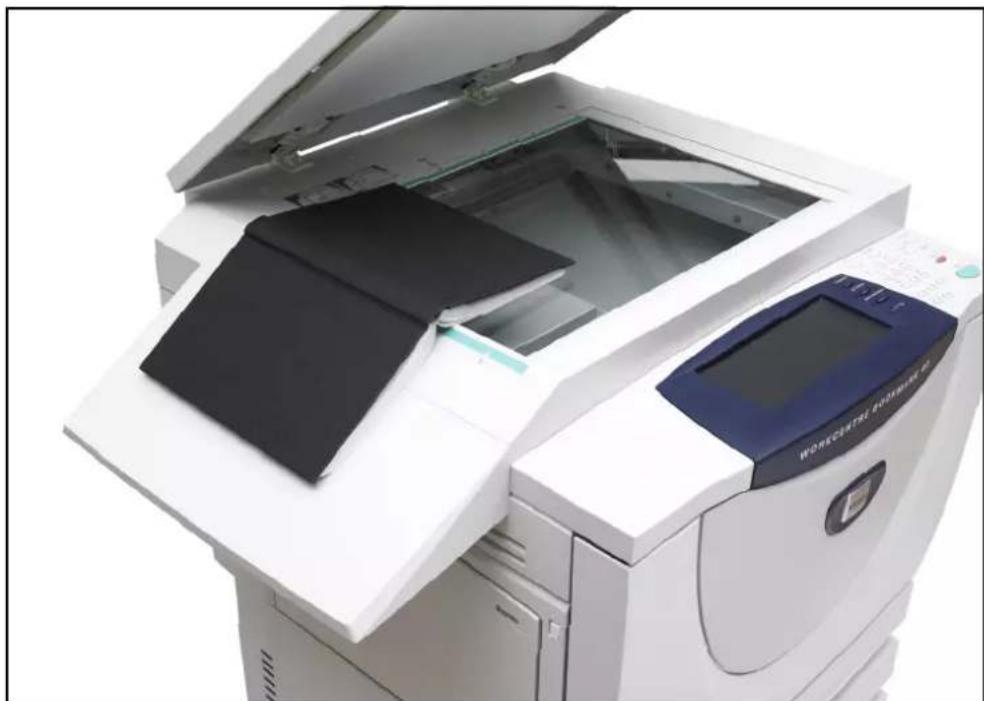

Align the book to the arrow at the top left of the document glass as shown in the picture.

The Basic Copying tab is the default Copy screen.

Select the Copy buttons on the Basic Copying tab as described in the User Guide to select the required copy features such as background suppression and contrast.

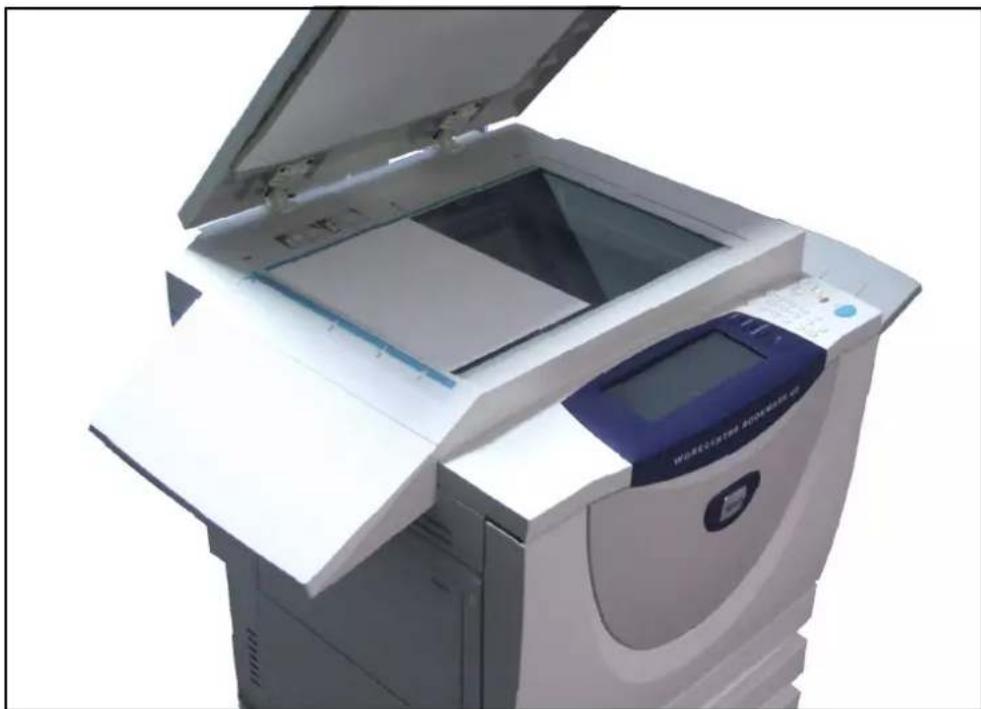

Align the document page to the arrow at the top left of the document glass as shown in the picture.

The Basic Copying tab is the default Copy screen.

Select the Copy buttons on the Basic Copying tab as described in the User Guide to select the required copy features such as background suppression and contrast.

Introduction
