Secret ICT4 - Speaker TRIANGLE - Free user manual and instructions

Product type	In-wall/ceiling speaker
Brand	Triangle
Model	Secret ICT4
Required cutout	152 mm diameter
Minimum mounting depth	70.5 mm
Maximum accepted cable diameter	4.5 mm
Recommended cable section	2x2.5 mm² OFC
Connection type	Push-type speaker terminals
Grille	Magnetic, removable, paintable
Tools provided	Cutting template, grille removal tool
Use	Stereo or Home Theater (front, side or rear speaker)
Recommended distance between speakers (stereo)	3 to 5 meters
Recommended distance from screen (HC)	About 0.5 m
Recommended cable material	OFC (oxygen-free copper)
Warranty	2 years, extendable to 5 years upon online registration
Care and cleaning	Soft, dry, lint-free cloth
Safety instructions	Do not use near water, do not block vents, keep away from heat sources
Installation	Flush mount in wall or ceiling (wall thickness 6 to 25 mm)

Frequently Asked Questions - Secret ICT4 TRIANGLE

What is the minimum mounting depth for the Secret ICT4?

The minimum mounting depth is 70.5 mm.

What type of cable should be used to connect the Secret ICT4?

It is recommended to use a high-quality cable of type 2x2.5 mm² OFC (oxygen-free copper). The maximum diameter accepted by the terminal is 4.5 mm.

How to install the Secret ICT4 speaker in a wall or ceiling?

Cut an opening of 152 mm diameter using the provided template, insert the speaker ensuring the clamping claws are oriented correctly, then tighten the claws with a Phillips screwdriver. Finally, place the magnetic grille.

Can the speaker grille be painted?

Yes, the grille can be painted for greater discretion. Remove the white protective fabric and preferably use a spray paint for best results.

How to adjust the treble and bass levels on the Secret ICT4?

The Secret ICT4 does not have treble/bass adjustments. Only the IWT and LCR models of the Secret range offer this feature.

What is the warranty for the Secret ICT4?

The warranty is 2 years, extendable to 5 years by registering your speakers online at http://register.trianglehifi.com/.

What are the warranty exclusions?

Excluded are: burned voice coil due to excess power, professional use, humid storage, punctured cone, torn suspension, mechanical shock, unauthorized intervention, and impacts on the cabinet.

How to clean the Secret ICT4 speaker?

Use a soft, dry, lint-free cloth. Do not use liquids or abrasive products.

What is the recommended distance between speakers for a stereo installation?

For stereo listening, space the speakers 3 to 5 meters apart, symmetrically with respect to the listening area.

Can the Secret ICT4 be installed in a bathroom or outdoors?

No, the speaker is not designed for use near water or in humid environments. Follow safety instructions: do not use near water or liquids.

USER MANUAL Secret ICT4 TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

SECRET

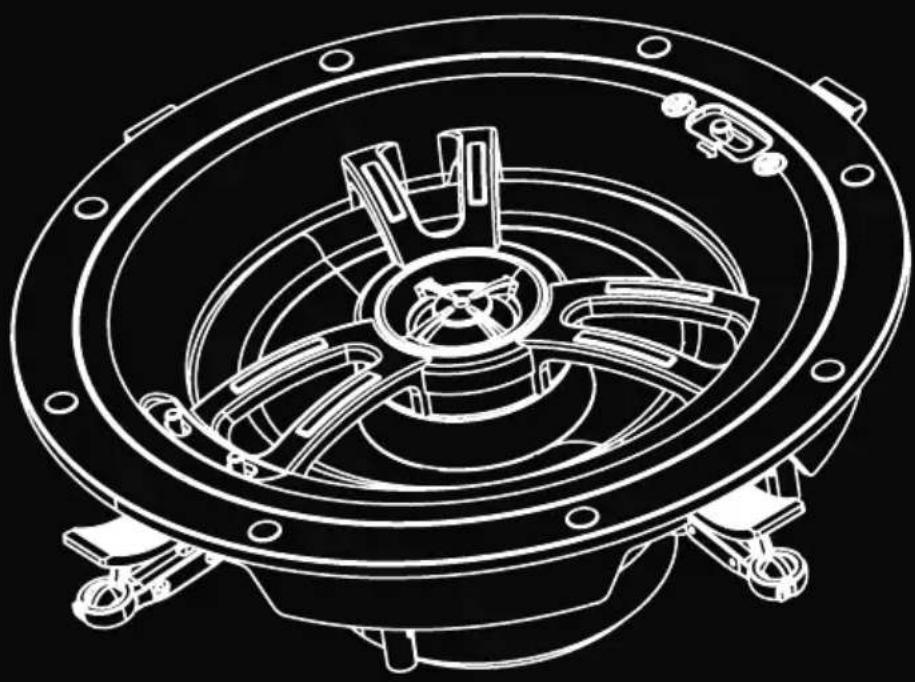

Technical line drawing of a mechanical fan or impeller assembly (no text or symbols)

Owner's manual & Warranty

SOMMAIRE / SUMMARY

MODE D'EMPLOI - FRANÇAIS 5

• Unpacking 12
• Preparation 12
• Speaker placement 13
• Connection 14
  • Installation ICT - IWT - LCR 15
  • Installation EMT 16

INFORMATIONS TECHNIQUES / TECHNICAL INFORMATIONS 18 INFORMATION DE SÉCURITÉ / SAFETY INSTRUCTIONS 20 GARANTIE / WARRANTY 22

MODE D'EMPLOI

FRANÇAIS

DÉBALLAGE

0.5m TV 0.5m

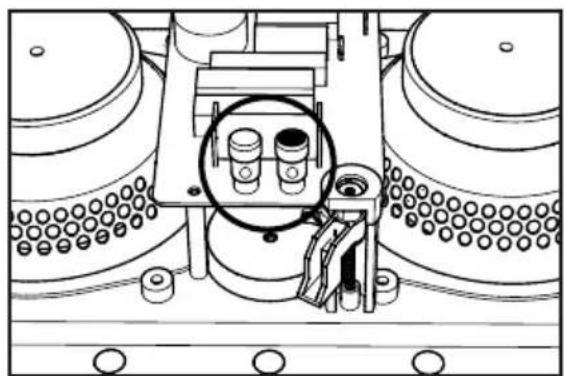

BRANCHEMENTS

Technical line drawing of a mechanical assembly with no visible text or symbols

EMT7 & LCR7

Technical line drawing of a mechanical assembly with cylindrical components and a circular inset showing two cylindrical parts (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Technical diagram showing a hand pressing a button on a mechanical component with arrows indicating the process.

INSTALLATION ICT - IWT - LCR

Diagram of a mechanical assembly with a rotating component and an upward arrow, no text or symbols present.

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Simple line drawing of a circular mechanical component with concentric rings and a central knob (no text or symbols)

Diagram of a rotating mechanical system with a rotating shaft and curved motion lines (no text or symbols)

Diagram of concentric circular patterns above a circular base, no text or symbols present

Simple black-and-white diagram of an oval-shaped object with concentric circular patterns, no text or symbols present.

Silhouette of two hands reaching toward a circular object with arrows, no text or symbols present

C

Mechanical conveyor belt system with directional arrow indicating motion (no text or symbols)

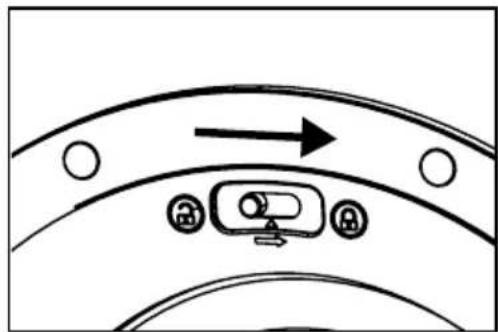

D

Diagram of a device interior with directional arrow and circular components (no text or symbols)

F

Mechanical component diagram showing a lever and adjustment mechanism (no text or symbols)

Treble 2/0/-2 dB
Bass Graves 0 / -2 / -4 dB

USER MANUAL

ENGLISH

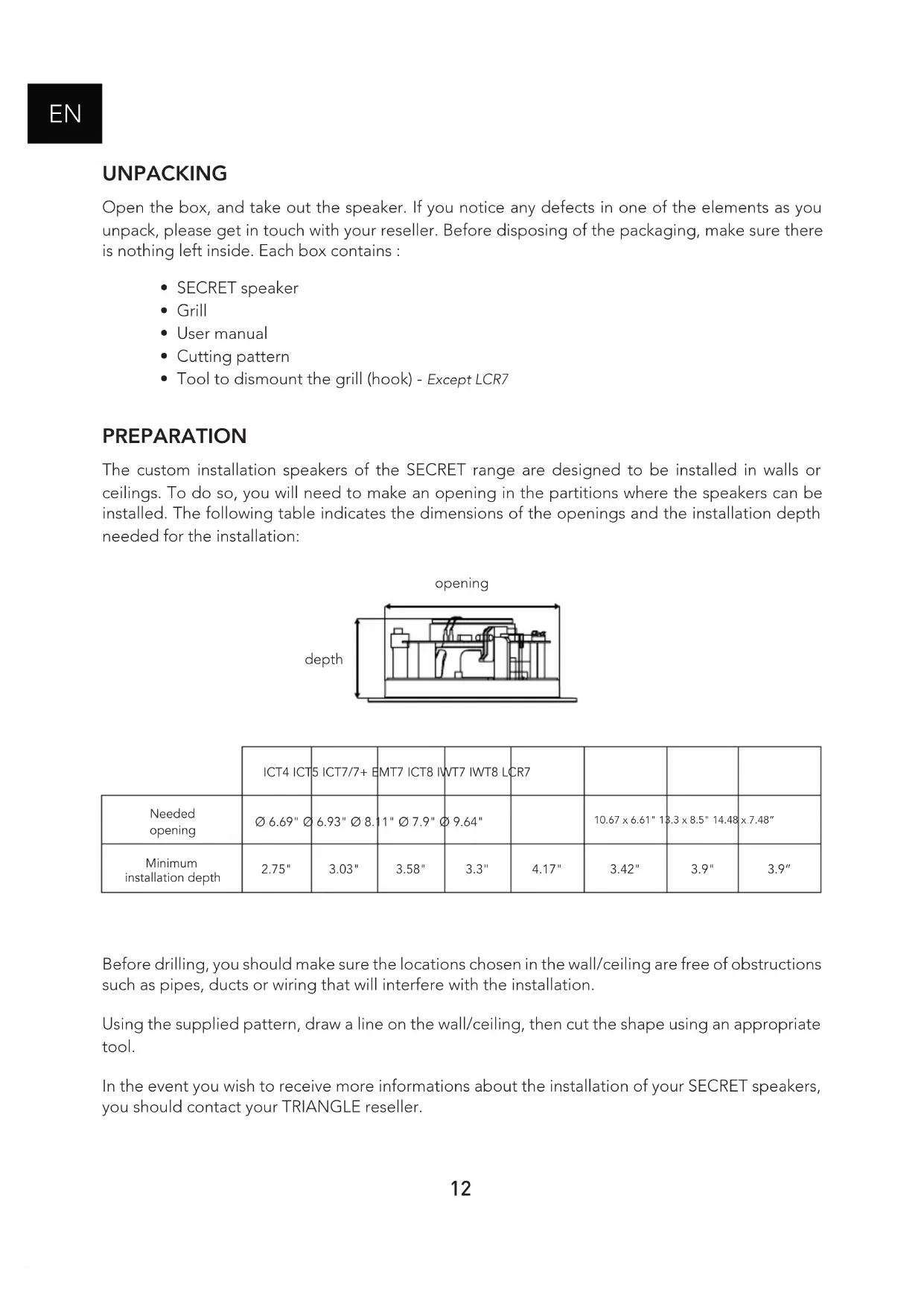

UNPACKING

Open the box, and take out the speaker. If you notice any defects in one of the elements as you unpack, please get in touch with your reseller. Before disposing of the packaging, make sure there is nothing left inside. Each box contains :

• SECRET speaker
• Grill
• User manual
• Cutting pattern
• Tool to dismount the grill (hook) - Except LCR7

PREPARATION

The custom installation speakers of the SECRET range are designed to be installed in walls or ceilings. To do so, you will need to make an opening in the partitions where the speakers can be installed. The following table indicates the dimensions of the openings and the installation depth needed for the installation:

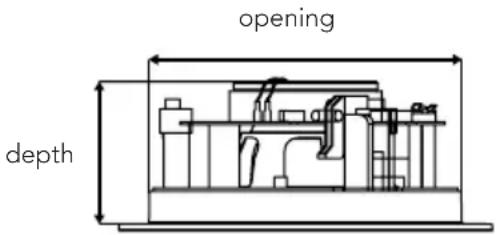

opening depth

	ICT4 ICT5	ICT7/7+	EMT7	ICT8	IWT7	IWT8	LCR7
Needed opening	6.69"	6.93"	8.11"	7.9"	9.64"			10.67 × 6.61"	13.3 × 8.5"	14.48" × 7.48"
Minimum installation depth	2.75"	3.03"	3.58"	3.3"	4.17"		3.42"	3.9"	3.9"

Before drilling, you should make sure the locations chosen in the wall/ceiling are free of obstructions such as pipes, ducts or wiring that will interfere with the installation.

Using the supplied pattern, draw a line on the wall/ceiling, then cut the shape using an appropriate tool.

In the event you wish to receive more informations about the installation of your SECRET speakers, you should contact your TRIANGLE reseller.

SPEAKER PLACEMENT

The SECRET range speakers have been developed to guarantee a high quality sound in most environments. In order to ensure the best possible listening experience, it is advisable to follow certain recommendations depending on the type of use wanted.

As a general rule, avoid placing the speakers too close to a corner or an obstacle (e.g. a pillar, etc.), that could affect the acoustics by creating unwanted reflections.

Stereo setup

For a stereo setup, the SECRET speakers should be located between 9 and 16 feet apart, on a symmetrical basis from the main listening position.

3 - 5m 3 - 5m

ICT models

0.5m TV

IWT & LCR models

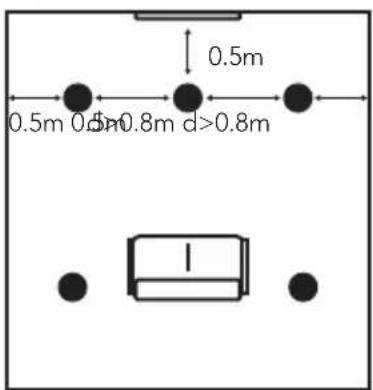

Home theater setup

To use the SECRET speakers in a home theatre setup, the front and center speakers must be located approximately 2 ft in front of the screen. The IWT in-wall speakers must be put on the sides, under the screen, or behind, if the screen is acoustically transparent. The rear speakers must be placed close to the main listening position.

0.5m 0.5m 0.5m 0.8m d>0.8m

ICT & EMT7 models IWT & LCR models

0.5m TV 0.5m

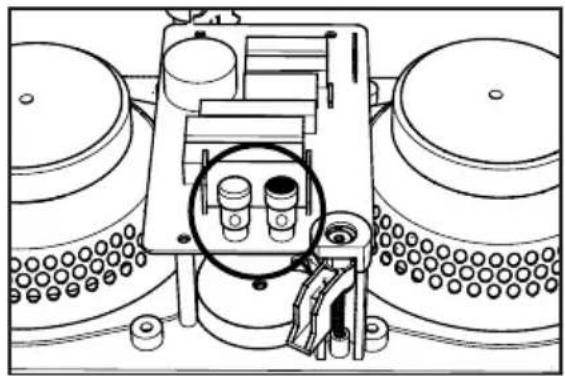

CONNECTION

The speakers of the SECRET range are fairly easy to install. To ensure an optimal installation, please follow these steps carefully.

First, ensure you route the cables through the wall/ceiling in order to connect your SECRET speakers to the amplifier. Leave some spare cables to ease connecting them to the terminals on the back of the speaker. The maximum cable diameter accepted by the terminals is 4.5mm.

Use high-quality cables: the length of the cables needed for this type of installation is important. It is therefore necessary to use cables that least influence the speaker's signal dynamics, type 2 × 2.5 ~mm^2 in OFC.

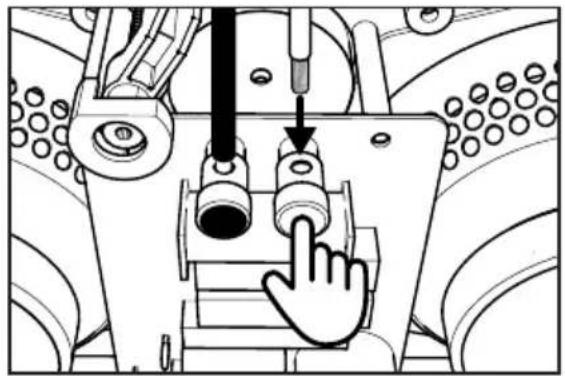

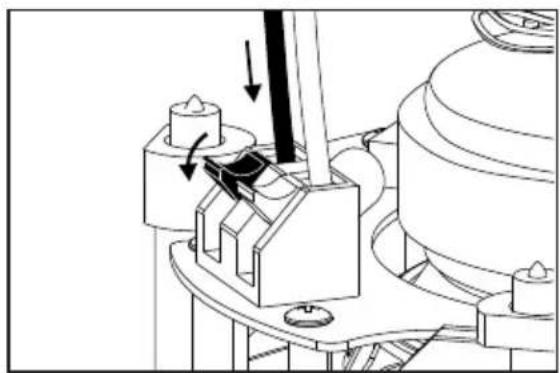

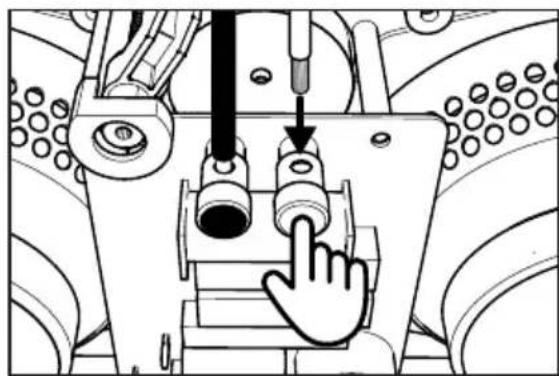

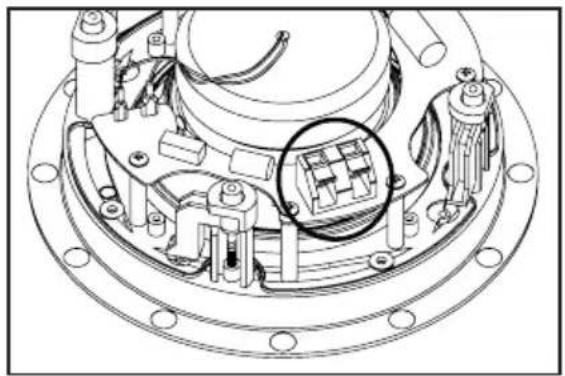

Strip the cable, and then connect it to the spring terminal. Ensure that the speaker connexion polarity is correct: the cable of the positive terminal on the amplifier must be connected to the red terminal, the cable of the negative terminal must be connected to the black terminal.

ICT & IWT

Technical line drawing of a mechanical assembly with no visible text or symbols

EMT7 & LCR7

Technical line drawing of a mechanical device with multiple cylindrical components and a central circular component (no text or symbols)

Mechanical assembly diagram showing a rotating component with arrows indicating motion (no text or symbols)

Technical diagram showing a hand pressing a button on a mechanical component with arrows indicating the process.

INSTALLATION ICT - IWT - LCR

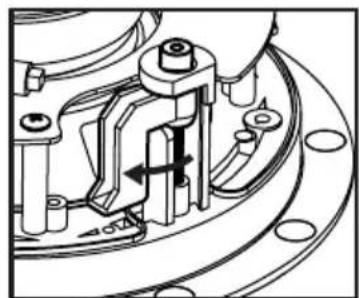

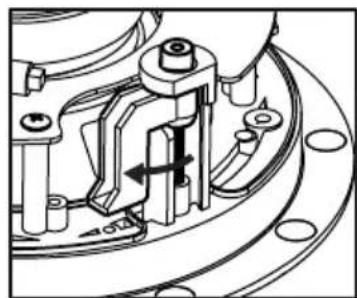

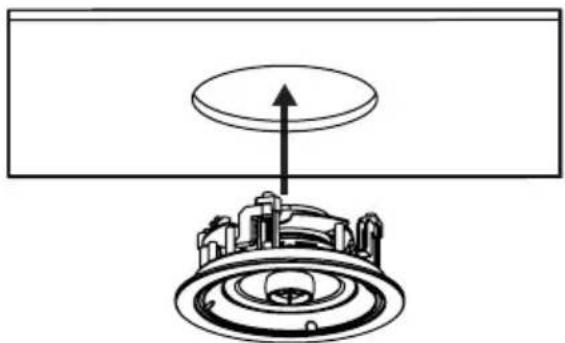

Once the speaker is connected, ensure that the tightening hooks are placed so they don't stop the speaker from entering into its allocated slot. Insert the speaker into the partition in a manner so the edge is at the level with the wall/ceiling. Beware not to trap the cables during the installation.

Diagram of a mechanical assembly with a rotating component and an upward arrow, no text or symbols present.

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

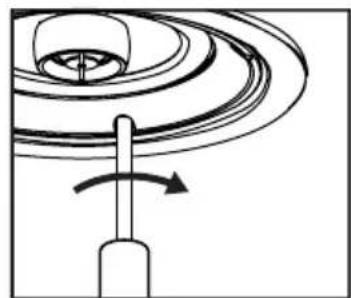

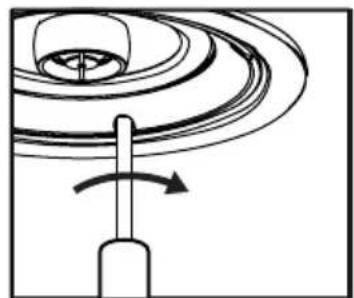

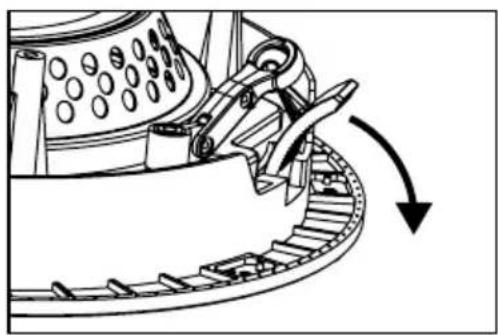

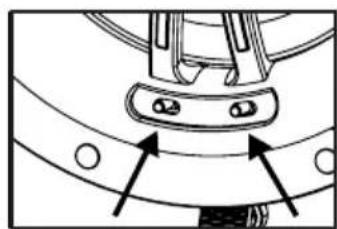

Then, secure the tightening hooks to fasten the speaker with a cross-head screwdriver. Be careful not to damage the speaker membrane during handling. Do NOT use electric screwdriver which could damage the clamping hooks if the torque is incorrectly adjusted.

Simple line drawing of a circular mechanical component with concentric rings and a central hub (no text or symbols)

Diagram of a rotating mechanical component with curved motion lines and a rotating shaft (no text or symbols)

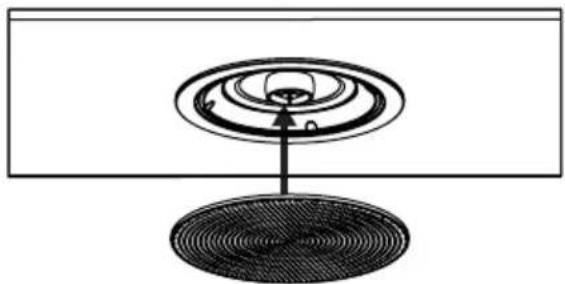

Finally, install the magnetic grill on the front of the speaker.

The speaker is ready for use. To remove the grill, use the dismounting tool that is supplied. For more discretion, the grill can be painted. Use the provided hook, remove the white fabric and preferably use a spray paint for an optimal result.

Diagram of a mechanical or optical setup with concentric circular components and a base, no visible text or symbols.

Simple oval shape with concentric rings, no text or symbols present

Note that the bass and treble level of IWT & LCR can be adjusted according to your needs by using the available switches: 0 / -3 dB for ITW models and 0 / -2 dB for LCR.

INSTALLATION EMT

Once the speaker is connected, ensure that the tightening hooks are placed so they don't stop the speaker from entering into its allocated slot.

(A) Insert the speaker into the partition in a manner so the edge is at the level with the wall/ceiling. Beware not to trap the cables during the installation.

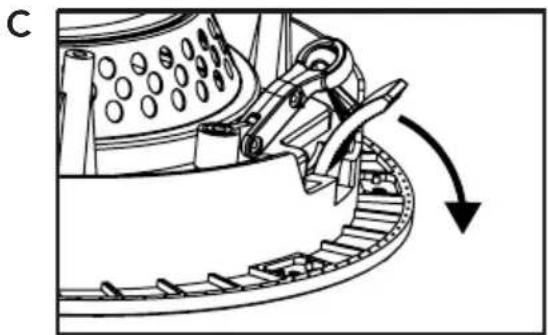

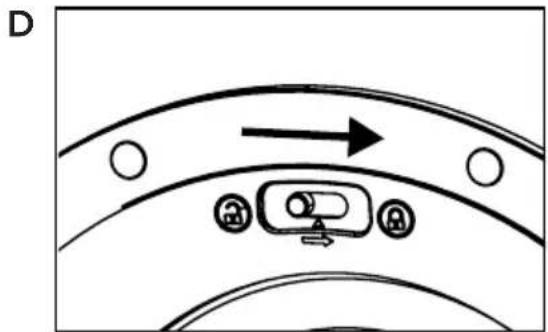

(B) With one hand hold the outer rim of the in-ceiling mount, with the other hand rotate clockwise the center part of the speaker using the three center arms. This will lock the speaker onto your ceiling. (C).

Illustration of two hands reaching toward a circular object with an arrow, no text or symbols present

Mechanical assembly diagram showing a conveyor belt system with rotating components and a curved arrow indicating motion (no text or symbols)

Diagram of a device with directional arrow and circular components (no text or symbols)

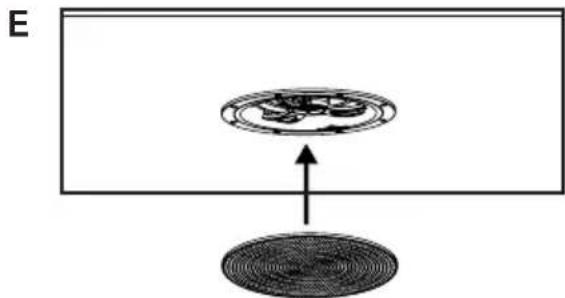

Finally, install the magnetic grill on the front of the speaker (E). The speaker is ready for use.

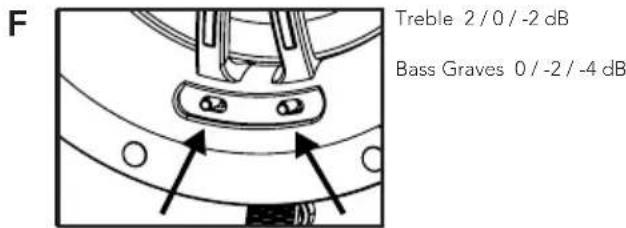

The bass and treble level of EMT can be adjusted to your liking by using the available switches. (F)

F Treble 2/0/-2 dB Bass Graves 0/-2/-4 dB

GAMME SECRET / SECRET RANGE

Spécifications Techniques Technical Specifications	ICT4 ICT5 ICT7 ICT7+
Type	Encastrable In-Ceiling	Encastrable In-Ceiling	Encastrable In-Ceiling	Encastrable In-Ceiling
Diamètre haut-parleur Driver diameter	10 cm 4"	13 cm 5.25"	17 cm 6.5"	17 cm 6.5"
Diamètre tweeter Tweeter diameter	13 mm 0.5"	20 mm 0.8"	25 mm 1"	25 mm 1"
Tweeter orientable Movable tweeter	Non No	Oui Yes	Oui Yes	Oui Yes
Réglage tweeter/medium Tweeter/medium setting	Non No	Non No	Non No	Non No
Sensibilité (1W/1m) Sensitivity	88 dB 90 dB 90 dB 90 dB
Bande passante (+/- 3dB) Bandwidth	80 Hz - 20 KHz 60 Hz - 20 KHz 55 Hz - 20 KHz 55 Hz - 20 KHz
Puissance musicale Musical power	90W 110W 140W 140W
Impédance minimum Minimal impedance	6.8 ohms 7.2 ohms 6.9 ohms 6.9 ohms
Dimensions (mm / inch)	∅ 190 x 75 ∅ 7.48 x 2.95	∅ 216 x 82 ∅ 8.5 x 3.22	∅ 246 x 96 ∅ 9.68 x 3.77	∅ 246 x 96 ∅ 9.68 x 3.77
Poids de l'enceinte Net weight	1,0 kg 2.20 lbs	1,24 kg 2.73 lbs	1.64 kg 3.62 lbs	1.64 kg 3.62 lbs

EMT7 ICT8 IWT7 IWT8 LCR7
Encastrable In-Ceiling	Encastrable In-Ceiling	Encastrable In-Wall	Encastrable In-Wall	Encastrable In-Wall
17 cm6.5"	20 cm8"	17 cm6.5"	20 cm8"	17 cm6.5"
25 mm1"	25 mm1"	25 mm1"	25 mm 25 mm1"	1"
OuiYes	OuiYes	OuiYes	OuiYes	OuiYes
Oui: 0 / -4 dBYes	NonNo	Oui: 0 / -3 dBYes	Oui: 0 / -3 dBYes	Oui: -2 / 0 /+2 dBYes
90 dB 91 dB 90 dB 90 dB
55 Hz - 20 KHz 55 Hz - 20 KHz 60 Hz - 20 KHz 40 Hz - 20 KHz 60 Hz - 20 KHz
140W 160W 140W 160W 140W
6.9 ohms 7 ohms 7.1 ohms 7 ohms 7.7 ohms
∅ 230 x 86∅ 7.9 x 3.77	∅ 284 x 111∅ 11.18 x 4.37	311x208x9212.24x8.18x3.66	311x208x9212.24x8.18x3.66	403x227x9015.8x8.9x3.5
1.6 kg3.5 lbs	2,33 kg5.14 lbs	1,67 kg3.68 lbs	2.13 kg4.69 lbs	2.95 kg4.4 lbs

INSTRUCTIONS DE SÉCURITÉ

WARNING: Read carefully all the safety instructions before using the device.

• Keep these safety instructions for future reference.
• Do not use this apparatus near water or liquid.
• Only clean with a dry and soft cloth.
• Make sure the openings (vents) on the device are not blocked.
• Do not install near any heat sources such as radiators, stoves, or any other apparatus (including amplifiers) that produce heat.
• Only use accessories specified by the manufacturer.
• Be sure that the stand/table/furniture is strong enough to support the apparatus (stand, shelf, furniture...).
• Protect the power cord from being walked on or pinched, particularly at the plugs, and protect the connector where it exits from the apparatus.
• Unplug the apparatus during lightning storms or when it's unused for long periods of time.
• The plug of the apparatus must fit with the outlet. Never modify the plug in any way. The apparatus should be connected to a mains socket outlet with protective earthing connection.
• Refer to your authorized TRIANGLE dealer or qualified service personnel if the apparatus is damaged in any way. For example, if the power cord or the wall outlet is damaged, liquid has been spilled or objects have fallen on the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

GARANTIE / WARRANTY

Thanks for buying a TRIANGLE product.

Our products are guaranteed for 2 years. Benefit from an additional 3-year warranty extension by registering your products online. This registration will allow you to benefit from the advice of our teams, to receive our news and to offer you a full 5-year warranty on your TRIANGLE speakers.

Online registration

Register your product easily online at the following address: http://register.trianglehifi.com/

Note on the warranty

Your TRIANGLE loudspeakers are warranted for 2 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeakers could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product and is not transmittable in the case of resale. To validate your warranty, you will need to register online or mail the warranty coupon to TRIANGLE. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are excluded from this warranty:

• A burned voice-coil caused by overloading the loudspeaker
• Any fault occurring from professional usage (public sound systems, PA systems, etc.)
• Any fault resulting from storage in areas of high humidity
  • A pierced or torn membrane
• A torn suspension
• Any fault resulting from a mechanical shock (e.g. if dropped or handled roughly)
• Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
  • Damaged cabinets due to mishandling
