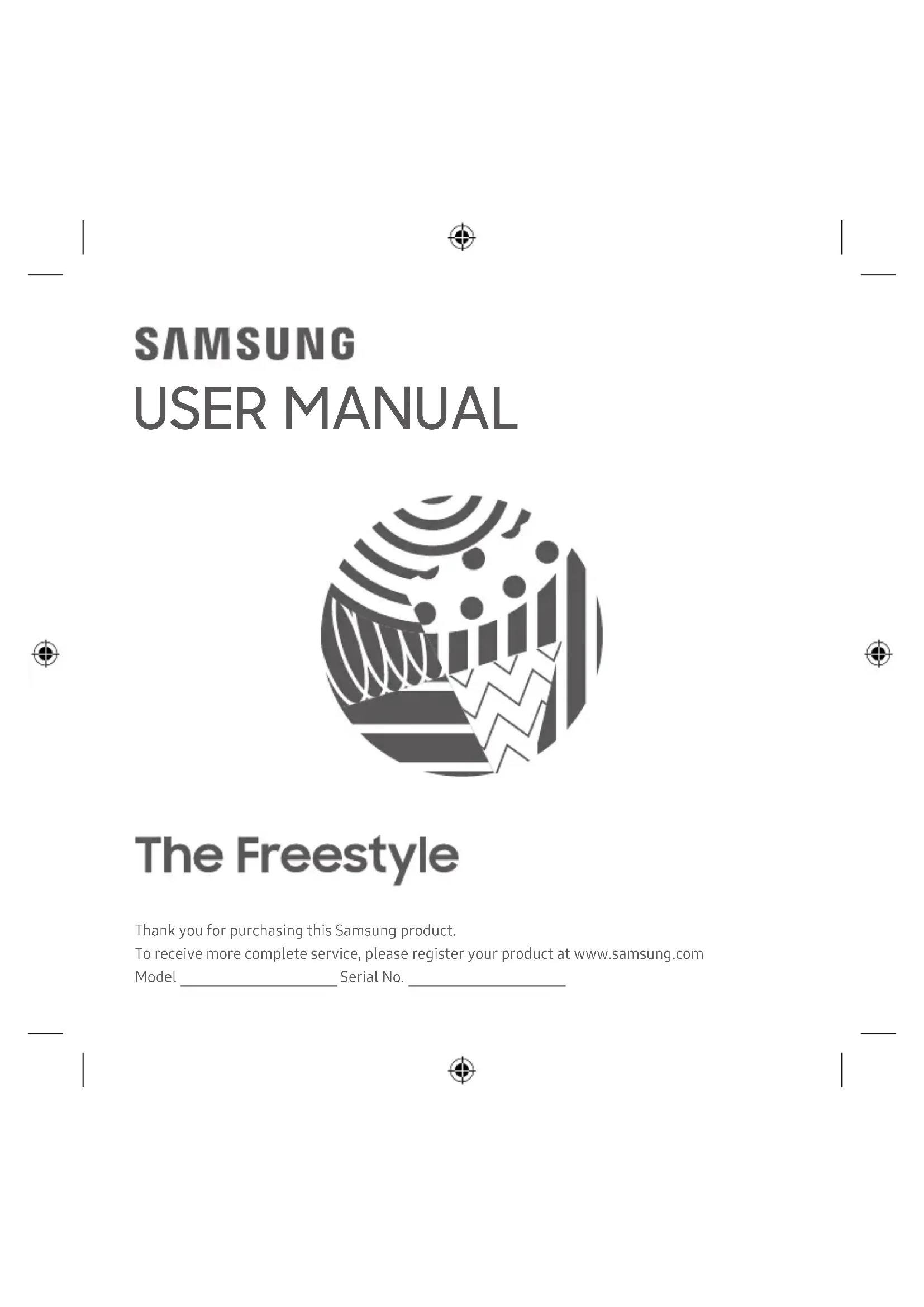

USER MANUAL The Freestyle 2nd Gen SAMSUNG

Abstract circular graphic with layered bars and waveforms, no text or symbols present

The Freestyle

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at www.samsung.com

Model ____ Serial No. ____

Before Reading This User Manual

This Projector comes with this User Manual and an embedded e-Manual (Menu > Settings > Support > Open e-Manual).

Warning! Important Safety Instructions

Please read the Safety Instructions before using your Projector. Refer to the table below for an explanation of symbols which may be on your Samsung product.

	This symbol indicates that this product has included important literature concerning operation and maintenance.
	Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
	AC voltage: Rated voltage marked with this symbol is AC voltage.
	DC voltage: Rated voltage marked with this symbol is DC voltage.
	Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

Contain with module complies with class 1 LASER product.

Power

• Do not overload wall outlets, extension cords, or adaptors beyond their voltage and capacity. It may cause fire or electric shock. Refer to the power specifications section of the manual and/or the power supply label on the product for voltage and amperage information.
• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.
• Never insert anything metallic into the open parts of this apparatus. This may cause electric shock.
• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.
• Be sure to plug in the power cable until it is firmly seated. When unplugging the power cable from a wall outlet, always pull on the power cable's plug. Never unplug it by pulling on the power cable. Do not touch the power cable with wet hands.
• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or Samsung service centre.
• To protect this apparatus from a lightning storm, or to leave it unattended and unused for a long time (especially when a kid, the elderly, or the disabled is left alone), be sure to unplug it from the wall outlet and disconnect the antenna or cable system.

- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cable to generate sparks and heat or by causing the insulation to deteriorate.

- Use only a properly grounded plug and wall outlet. - An improper ground may cause electric shock or equipment damage. (Class I Equipment only.)

- To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.

Installation

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.
• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.
• Do not expose this apparatus to water (rain) or moisture.
• Do not install your Projector in a location with heavy dust, chemical substances, too high or low temperature or high humidity, an automotive or other vehicle used for transportation, or a location where the Projector will operate continuously for an extended period of time, such as an airport or train station. If installed in such locations, a serious quality problem may occur due to the surrounding environment.
• Do not expose this apparatus to dripping or splashing.
• Do not expose this apparatus to oil or oil mist.
• Do not use oils or lubricants. This may cause this apparatus to crack.

Providing proper ventilation for your Projector

When you install your Projector, maintain a distance of at least 10 cm between the Projector and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

Operation

• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.
• Store the accessories (remote control, or etc.) in a location safely out of the reach of children.
• When you need to turn off the Projector completely, wait until the fan stops completely so that the Projector can cool down completely.
• Do not dispose of remote control or batteries in a fire.
• Do not short-circuit, disassemble, or overheat the batteries.
• CAUTION: There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.
• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.
• Do not drop or strike the product. If the product is damaged, disconnect the power cable and contact a Samsung service centre.

Caring for the Projector

• To clean this apparatus, unplug the power cable from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the Projector or erase the printing on the product.
• The exterior of the Projector can get scratched during cleaning. Be sure to wipe the exterior carefully using a soft cloth to prevent scratches.
• Do not spray water or any liquid directly onto the Projector. Any liquid that goes into the product may cause a failure, fire, or electric shock.

01 Product Overview

Diagram of a device interior with numbered parts labeled 1 to 4, showing circular components and internal structure.

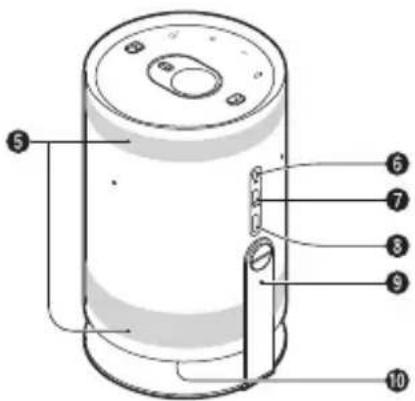

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

• To supply power via an external battery, ensure that the battery supports PD (Power Delivery) and its single port has output of 50 W or more.
• Please be advised that the pogo pin on the bottom of the Projector Is a feature only intended for certain socket adapter features that are not available/supported in your country. Please do not attempt to use or connect the pogo pin with any other accessories.

① Touch Keys
(Power)
+ - (Volume)
(Mobile)
Directly connect to the SmartThings app on your mobile device.

② Distance sensor

3 Lens

4 Remote control sensor / LED Indicator

5 Ventilation

6 MIC On/Off switch

7 Micro HDMI Port

USB Port (For Power)

9 Cradle

10 Speaker

• The product colour and shape may vary depending on the model.
  • Do not block Projector intake and exhaust vents.
• When operating the Projector in an enclosed space, allow at least 50 cm clearance around the intake and exhaust vents.
• When the Projector is not used, cover it with the Lens Cap to protect the lens and distance sensor. If the distance sensor is contaminated by dust, the Focus or Keystone function may not work properly.

Setting the MIC On/Off

You can turn the MIC on or off by using the MIC switch on the side of the Projector.

- During analysis using data from the MIC, the data is not saved.

OFF ON MC

02 The Samsung Smart Remote

1 2 3 4 SAMSUNG

(Power)

Press to turn the Projector on or off.

(Voice Assistant)

Runs Voice Assistant. Press and hold the button, say a command, and then release the button to run Voice Assistant.

- The supported Voice Assistant's languages and features may differ by geographical region.

① Directional button (up, down, left, right)

Moves the focus and changes the values seen on the Projector's menu.

② Select

Selects or runs a focused item.

(Return)

Press to return to the previous menu.

(Smart Hub) + (Control PAD)

Press to switch to the Media Home. From the Ambient screen, press to switch to the Ambient Home.

- When pressed for 1 second or more, the Control PAD appears. You can use Settings menu / virtual numeric pad / Option pad with Colour buttons by using Control PAD.

(D) (Play/pause)

Using these controls, you can control the media content that is playing.

+/−(Volume)

Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 1 second or more, the Accessibility Shortcuts menu appears.

∧/∨(Channel)

Move the button up or down to change the channel. To see the Guide screen, press the button.

- When pressed for 1 second or more, the Channel List screen appears.

③ Launch app button

Launch the app indicated by the button.

- App availability may vary by country or contents provider.

+ (Pairing)

If the Samsung Smart Remote does not pair to the Projector automatically, point it at the front of the Projector, and then press and hold the and buttons simultaneously for 3 seconds or more.

④ USB port (C-type) for charging

Used for quick charging. The LED on the front will light when charging. When the battery is fully charged, the LED will turn off.

• The USB Cable is not provided.

- Use the Samsung Smart Remote less than 6 m from the Projector. The usable distance may vary with the wireless environmental conditions.

- The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.

- It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of the product. In this case, the warranty service is not applicable.

- When the remote control does not work due to low battery, charge it by using the USB-C type port.

Fire or explosion may occur, resulting in damage to the remote control or personal injury.

• Do not apply shock to the remote control.
- Be careful not to let foreign substances such as metal, liquid, or dust come in contact with the charging terminal of the remote control.
- When the remote control is damaged or you smell smoke or burning fumes, immediately stop operation and then repair it at the Samsung service centre.
- Do not arbitrarily disassemble the remote control.
- Be careful not to let infants or pets suck or bite the remote control. Fire or explosion may occur, resulting in damage to the remote control or personal injury.

03 Initial Setup

When you turn on your Projector for the first time, it immediately starts the Initial Setup. Follow the Instructions displayed on the screen and configure the Projector's basic settings to suit your viewing environment.

04 Troubleshooting and Maintenance

Troubleshooting

For more information, see "Troubleshooting" in the e-Manual.

Menu > Settings > Support > Open e-Manual > Troubleshooting

If none of the troubleshooting tips apply, please visit "www.samsung.com" and click Support or contact the Samsung service centre.

- To keep your Projector in optimum condition, upgrade to the latest software. (Menu > Settings > Support > Software Update).

The Projector won't turn on.

• Make sure that the power cable is securely plugged in to the Projector and the wall outlet.
• Make sure that the wall outlet is working and the remote control sensor of the Projector is lit and glowing a solid white.
- Try pressing the Power button of the Projector to make sure that the problem is not with the remote control. If the Projector turns on, refer to "The remote control does not work".

The remote control does not work.

• Check if the remote control sensor of the Projector blinks when you press the button on the remote control.
• When the remote's battery is discharged, charge the battery using the USB charging port (C-type).
• Try pointing the remote directly at the Projector from 1.5-1.8 m away.
  • Make sure to pair the remote to the Projector.

05 Specifications and Other Information

Specifications

Model Name SP-LSP3BLA
Display Resolution 1920 x 1080
Lens Throw Ratio 1.2
Image Size (Diagonal) 30 - 100 inches(76.2 - 254.0 cm)
Sound (Output) 5 W
Dimensions (W x H x D)With CradleWith Cradle, Lens Cap	102.4 x 157.8 x 95.2 mm102.4 x 172.8 x 95.2 mm
WeightWith CradleWith Cradle, Lens Cap	785 g830 g
Operating Temperature10 °C to 40 °C (50 °F to 104 °F)Operating Humidity10 % to 80 %, non-condensingStorage Temperature-20 °C to 45 °C (-4 °F to 113 °F)Storage Humidity5 % to 95 %, non-condensing

Notes

• This device is a Class B digital apparatus.
- For information about the power supply, and more information about power consumption, refer to the information on the label attached to the product.
- For the label-rating, see the surface of the bottom of the Projector.

- The images and specifications of the Quick Setup Guide may differ from the actual product.

- Typical power consumption is measured according to IEC 62087.

- An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).

(b) You bring the unit to the Samsung service centre, but it is found that the product has no defect (i.e., where the user manual has not been read).

- You will be informed of the administration fee amount before a technician visits.

* Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

Please visit samsung.com/support to find further information about external power adapter and remote control associated with EU Ecodesign directive - ErP regulation

Decreasing power consumption

When you shut the Projector off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cable when you don't intend to use the Projector for a long time.

Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the relevant UK statutory requirements.

The full text of the declaration of conformity is available at the following internet address: http://www.samsung.com go to Support and enter the model name.

This equipment may be operated in all EU countries and in the UK.

The 5 GHz WLAN(Wi-Fi) function of this equipment may only be operated indoors.

BT max transmitter power : 100mW at 2.4GHz – 2.4835GHz Wi-Fi max transmitter power : 100mW at 2.4GHz - 2.4835GHz, 200mW at 5.15GHz - 5.25GHz, 100mW 5.25GHz - 5.35GHz & 5.47GHz - 5.725GHz

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in countries with separate collection systems)

The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery.

Removing the battery

• To remove the battery, contact an authorised service centre. To obtain battery removal instructions, please visit www.samsung.com/global/ecodesign_energy.
• For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe.

Licences

• These licences may not be supported depending on the model or geographical area.

Dolby Audio

rovi guide

HEVCA Advance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINED MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

This page is intentionally left blank.

Contain with module complies with class 1 LASER product.

Deutsch - 2

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINED MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Alimentation

Diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

(Alimentation)
+ - (Volume)
(Mobile)

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINED MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Alimentazione

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Questa pagina

è stata lasciata

Contain with module complies with class 1 LASER product.

Apparaat

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCA Advance™ Covered by Patents at patentlist.hevcadvance.com

HDMI ^TM

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Alimentación

Diagram of a circular device with numbered components and labeled parts, likely for assembly or labeling.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCA Advance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Potência

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINED MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Effekt

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Tænd/sluk

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Av/på

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contain with module complies with class 1 LASER product.

Virta

Diagram of a mechanical component with numbered parts labeled 1 to 4, showing internal structure and alignment lines.

Technical diagram of a cylindrical device with numbered parts labeled 5 to 10

HEVCAvance™ Covered by Patents at patentlist.hevcadvance.com

HDMI™ HIGH-DEFINED MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the Samsung service centre.

Country	Samsung Service Centre	Web Site
AUSTRIA 0800 72 67	864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
BOSNIA 055 233 999	www.samsung.com/ba/support
ALBANIA 045 620 202	www.samsung.com/al/support
BULGARIA	0800 111 31 - Безплатен за всички оператори*3000 - Цена на един градски разговор или според тарифата на мобилният оператор09:00 до 18:00 - Понеделник до Петък	www.samsung.com/bg/support
CROATIA 072 726 786	www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786) www.samsung.com/cz/support
	Samsung Electronics Czech and Slovak, s.r.o. V Parku 2323/14, 148 00 - Praha 4
DENMARK 707 019 70	www.samsung.com/dk/support
FINLAND 030-6227	515 www.samsung.com/fi/support
FRANCE 01 48 63 00	00 www.samsung.com/fr/support
GERMANY	06196 77 555 77	www.samsung.com/de/support
CYPRUS 8009 4000	only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
ITALIA	800-SAMSUNG (800.7267864)	www.samsung.com/it/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
NORTH MACEDONIA	023 207 777 www.samsung.com/mk/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY 21629099	www.samsung.com/no/support
POLAND	801-172-678* lub [phone]** (opłata według taryfy operatora)	www.samsung.com/pl/support

SAMSUNG

QR code image containing encoded data, no visible human-readable text

Barcode image containing encoded digital information

BP81-00493A-00

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the Samsung service centre.

Country	Samsung Service Centre	Web Site
PORTUGAL 808 207	267 www.samsung.com/pt/support
ROMANIA	0800872678 - Apel gratuit*8000 - Apel tarifat în rețea	www.samsung.com/ro/support
SERBIA 011 321 689	www.samsung.com/rs/support
KOSOVO 038 40 30	90 www.samsung.com/support
SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk/support
SPAIN 91175 00 15	www.samsung.com/es/support
SWEDEN 0771-400	300 www.samsung.com/se/support
SWITZERLAND 0800	726 786	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
UK 0333 000 0333	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100	www.samsung.com/ie/support
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA 800-7267	www.samsung.com/ee/support
TURKEY	444 7711	www.samsung.com/tr/support

© 2022 Samsung Electronics Co., Ltd. All rights reserved.
