Dear Customer, Congratulations on your purchase of the world's finest brand of car audio speakers.At Rockford Fosgate we are fanatics about musical reproduction at its best, and we are pleased you chose our product.Through years of engi- neering expertise, hand craftsmanship and critical testing procedures, we have created a wide range of products that reproduce music with all the clarity and richness you deserve. For maximum performance we recommend you have your new Rockford Fosgate product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized training through Rockford Technical Training Institute (RTTI). Please read your warranty and retain your receipt and original carton for possible future use. Great product and competent installations are only a piece of the puzzle when it comes to your system. Make sure that your installer is using 100% authentic installation accessories from Connecting Punch in your installation. Connecting Punch has everything from RCA cables and speaker wire to Power line and battery connectors. Insist on it! After all, your new system deserves nothing but the best. To add the finishing touch to your new Rockford Fosgate image order your Rockford accessories, which include everything from T-shirts and jackets to hats and sunglasses. To get a free brochure on Rockford Fosgate products and Rockford accessories, visit our web site at: www.rockfordfosgate.com or, in the U.S. call 1-800-669-9899 or FAX [phone]. For all other countries, call +001-480-967-3565 or FAX [phone].

Visit our web site for the latest information on all Rockford products. GETTING STARTED Welcome to Rockford Fosgate! This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents.We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice. This symbol with “WARNING” is intended to alert the user to the presence of important instructions. Failure to heed the instructions will result in severe injury or death. This symbol with “ CAUTION” is intended to alert the user to the presence of important instructions. Failure to heed the instructions can result in injury or unit damage. CAUTION:To prevent injury and damage to the unit, please read and follow the instructions in this manual.We want you to enjoy this system, not get a headache. CAUTION If you feel unsure about installing this system yourself, have it installed by a qualified Rockford Fosgate technician. CAUTION Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. Punch DVC Woofer Trim Ring Screw Pack Installation & Operation Manual The Punch DVC Woofers are high performance, low frequency drivers with dual voice coils.These woofers were designed for use primarily in small sealed and small ported enclosures. By utilizing the latest materials and construction techniques, we are able to offer a speaker with high output at low frequencies while requiring a minimum of operating space. DESIGN FEATURES4 RECOMMENDED ENCLOSURES This manual outlines two specific types of enclosures that provide distinctly different performance.This section is to help you decide which type is best for your application. SEALED ENCLOSURES Sealed enclosures are the simplest to build.The most important part of building a sealed enclosure is to make sure that the enclosure is airtight. Using glue and some type of sealant on all seams will ensure solid construction and prevent air leaks.The box volume will directly impact the performance of the speaker. Larger enclosures will provide flatter response and deeper bass where smaller boxes will provide a bump in the response curve and generally higher output for greater SPL. Advantages of sealed enclosures:

• Linear (Flat) response

• High power handling at all frequencies

• Excellent for sound quality

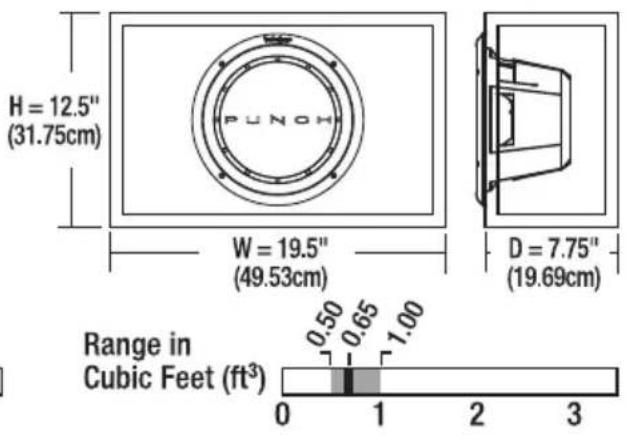

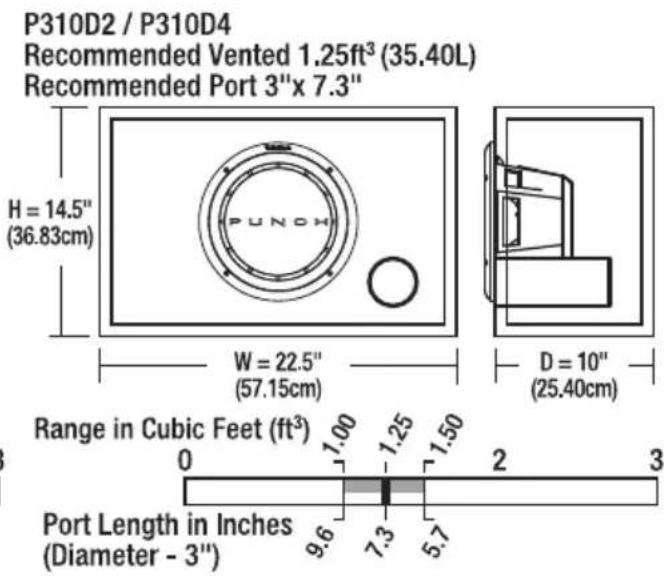

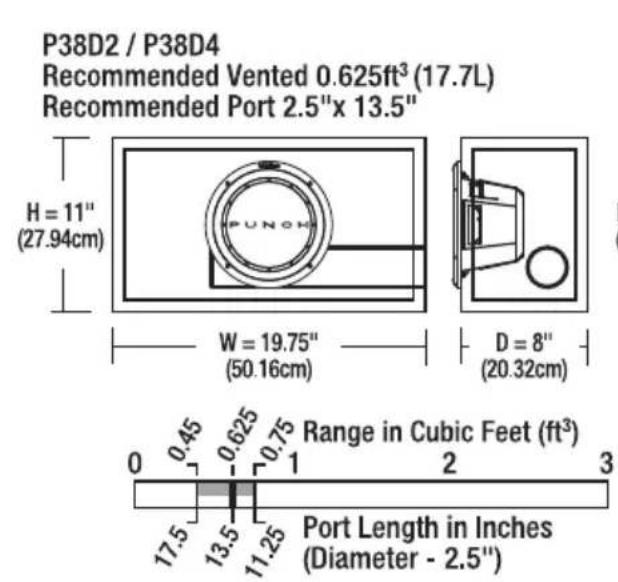

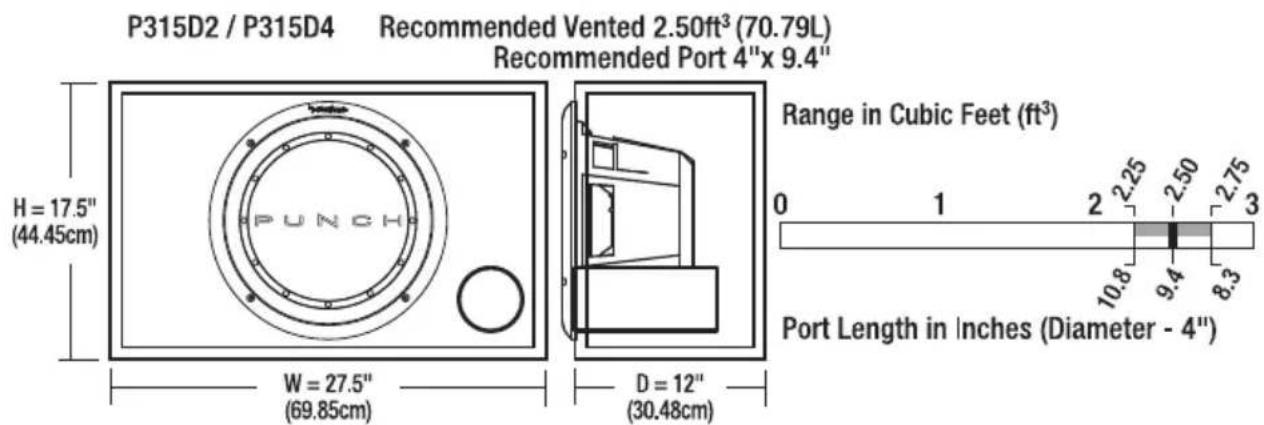

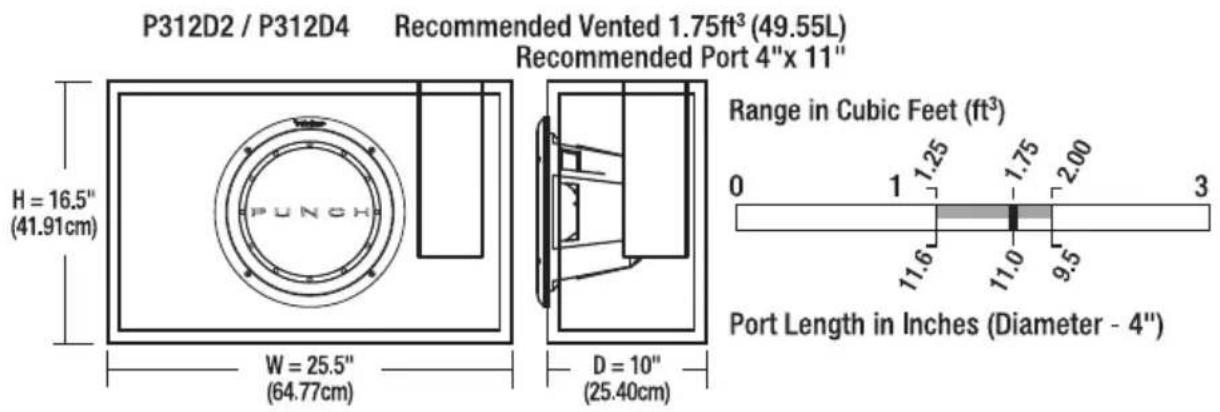

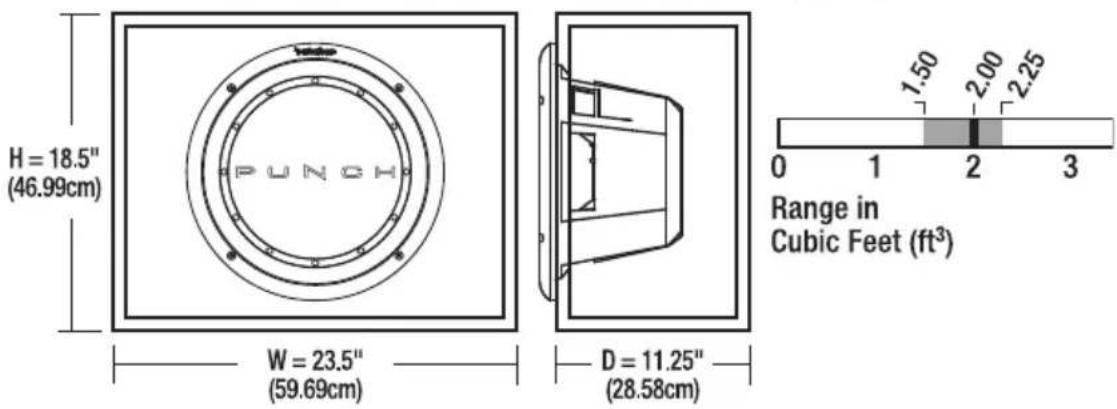

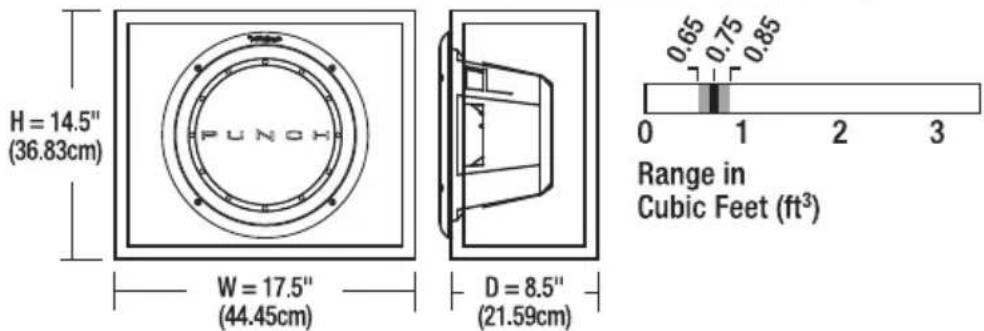

• Extended low frequency output when compared to vented enclosures5 RECOMMENDED ENCLOSURES VENTED ENCLOSURES Vented enclosures vary only from the sealed enclosure in that a vent or port is added to “tune” the enclosure.The enclosures recommended are designed for great overall performance. Larger boxes tend to be easy to tune to lower frequencies while medium and small boxes are easier to tune to higher frequencies.The vented design is less linear in response than the sealed box but with noticeably more output at the tuning frequency. Advantages of vented enclosures:

• Higher average output than sealed

• Tuning frequency can be easily adjusted by changing port length

• Deep bass response with lower power requirements

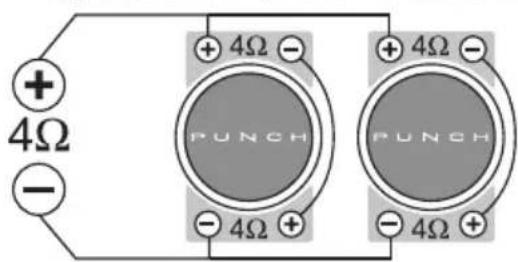

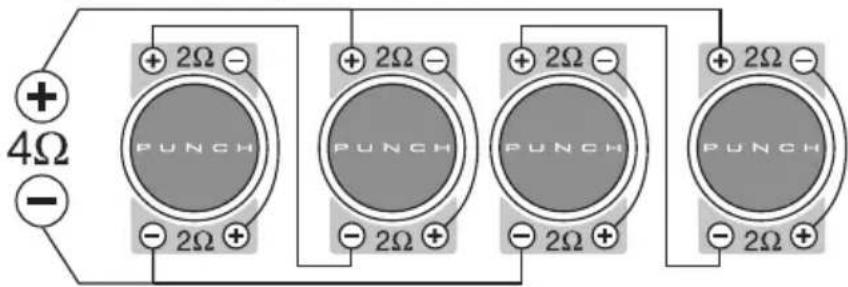

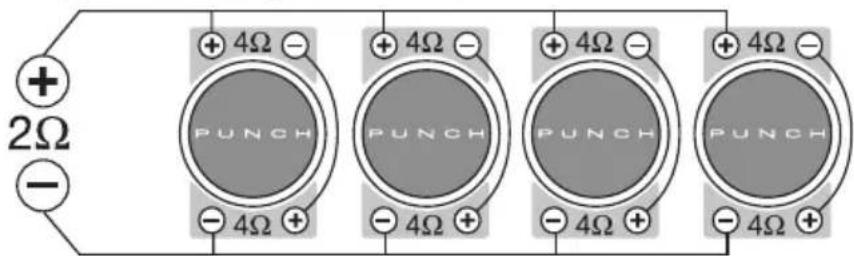

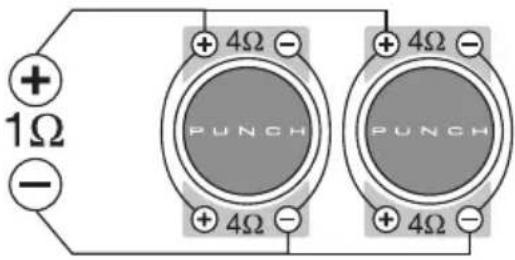

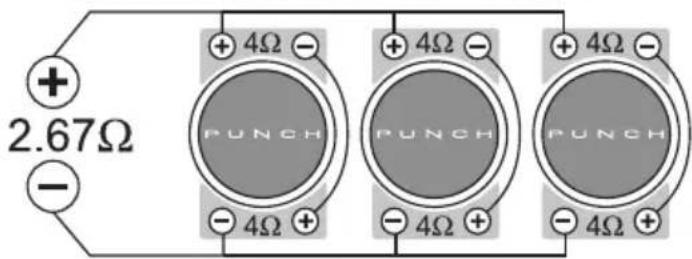

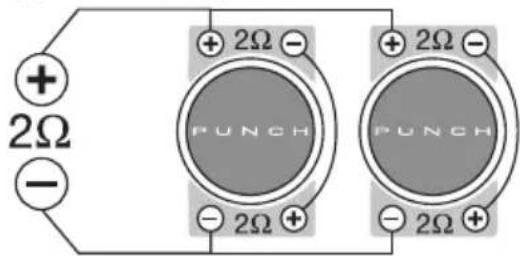

• Great for high output with limited power6 WIRING CONFIGURATIONS By varying the wiring configuration of your speakers you can create an impedance load to match your system. Since each voice coil of a DVC speaker carries its own impedance, altering the wiring configurations gives a range of options for impedance loads. Series, Parallel, or Series-Parallel wiring configurations are different techniques for wiring speakers that provide different loads. Series configuration is a string method where speakers are wired end to end. Parallel configuration uses two or more speakers wired across common terminals. Series-Parallel configuration combines both techniques. Choose the wiring diagram below that corresponds to the number of woofers and the impedance of your amplifier.7

BUILDING AN ENCLOSURE

To work properly, the walls of the enclosure must be rigid and not flex when subjected to the high pressures generated by the speaker's operation. For optimum performance, we recommend using 3/4" MDF (Medium Density Fiberboard) and internal bracing.The enclosure should be glued together and secured with nails or screws. CALCULATING VOLUME Calculating volume is merely a matter of measuring the dimensions in inches and using the formula: SUBWOOFER CROSSOVERS There are two operational types of crossovers, passive and active. Passive crossovers (coils or inductors) are placed on the speaker leads between the amplifier and speaker.An active crossover is an electronic filter which separates the audio signal fed to different amplifiers. For optimum subwoofer performance, we recommend using an active 80-100Hz low-pass crossover at 12dB/octave. Box Volume = Height “ x Width” x Depth” (cubic feet) 1728 cu. in./cu. ft. If two facing sides are of uneven length, add them together and divide by two to take the average. Using this number will give you the volume without the necessity of calculating the box in sections and adding the sections together.The thickness of the baffle material reduces the internal volume so this must be subtracted from the outside dimensions to determine the internal volume.The speaker itself also reduces the internal volume.The amount of air displaced by each model is listed on the specification sheet and should also be subtracted from the gross volume calculation.8 Specifications subject to change without notice SPECIFICATIONS FEATURES - Punch DVC P3
