Product Type	Subwoofer
Brand	Rockford Fosgate
Model	Prime R2S-1X10
Category	Car Audio Subwoofer
Woofer Size	10 inches
Impedance	4 ohms (single voice coil)
RMS Power Handling	300 Watts
Peak Power Handling	600 Watts
Sensitivity	87 dB (1W/1m)
Frequency Response	28 Hz - 250 Hz
Recommended Enclosure	Sealed or ported (0.6-1.2 cu ft)
Mounting Depth	5.3 inches
Cutout Diameter	9.25 inches
Voice Coil	Single 4-ohm
Magnet	High-temperature ferrite
Warranty	1 year limited
Care Instructions	Clean with a dry microfiber cloth; avoid moisture
Safety Precautions	Disconnect negative battery terminal during installation; ensure secure mounting
Spare Parts & Repairability	Not user-serviceable; contact authorized service center
General Information	Designed for car audio systems; requires external amplifier

Frequently Asked Questions - Prime R2S-1X10 Rockford Fosgate

What is the RMS power rating of the Rockford Fosgate Prime R2S-1X10 subwoofer?

The RMS power rating is 300 watts, with a peak power handling of 600 watts.

What impedance is the subwoofer?

It has a single 4-ohm voice coil, making it suitable for most mono amplifiers.

What size is the subwoofer?

It is a 10-inch subwoofer.

What type of enclosure should I use?

It works well in both sealed and ported enclosures. Recommended volumes: 0.6-1.0 cu ft for sealed, 1.0-1.2 cu ft for ported.

Can I use this subwoofer without an amplifier?

No, a dedicated subwoofer amplifier is required to power it properly.

What are the mounting dimensions?

Mounting depth is 5.3 inches, cutout diameter is 9.25 inches.

Is the subwoofer suitable for home audio?

It is designed for car audio applications but can be used in home setups with proper power supply and enclosure.

How do I break in the subwoofer?

Play music at moderate volume for 10-20 hours to allow the suspensions to loosen. Avoid full power during break-in.

What is the frequency response?

The frequency response is 28 Hz to 250 Hz.

What is the sensitivity rating?

Sensitivity is 87 dB (1 watt/1 meter).

USER MANUAL Prime R2S-1X10 Rockford Fosgate

QUICK, EASY, C.L.E.A.N. LEVEL SETUP

P1 SUBS

NOW AVAILABLE IN 20HM

6 PRIME

AMPLIFIER ADDITIONS

PRIME COAXIALS WITH

NEW MIX NEW LOOK

5.99 US6.99 CAN 7 80687 34345 3

MOTORSPORTS

Two black-and-white photos showing a car engine compartment and its internal combustion engine housing (no visible text or symbols)

Interior view of a black sports car with visible dashboard and front grille, alongside a close-up of a person's helmet (no text or symbols)

Two black-and-white photos: one showing a white off-road vehicle on a dirt road under clear blue sky, the other showing a motorcycle with red emblem (no visible text or symbols)

Coastal scene with waves crashing against a rocky hillside under a clear blue sky (no text or symbols visible)

Close-up of a black electronic device with a white top panel and a blue cable attached (no visible text or symbols)

Interior view from a vehicle's cab showing water spray and camera rig (no visible text or symbols)

MARINE

Speedboat in red and white racing suit speeding on water with hills in background (no visible text or symbols)

MOBILE

Front view of a cockpit with multiple circular ceiling lights (no visible text or symbols)

Exterior view of a silver hatchback car parked outdoors near a building (no visible text or symbols)

Exterior view of a vehicle's roof structure with water spray and a small boat on the water surface (no visible text or symbols)

Close-up of a car dashboard with four circular vented lights (no visible text or symbols)

Close-up of a car's front camera with large circular lenses and a small blue logo on the nose (no visible text or symbols)

Exterior view of a dark-colored sedan parked outdoors in front of a modern building (no visible text or symbols)

Close-up of deep blue ocean waves with no visible text or symbols

Interior view of a dimly lit room with furniture and equipment (no visible text or symbols)

Side profile of a white pickup truck against a dark background (no visible text or symbols)

TABLE OF CONTENTS

BUYER'S GUIDE 2013

Rockford Fosgate PUNCH AMPS

5	AMPLIFIERFAMILIES	45	SPEAKERFAMILIES
13	TECHNOLOGIESAMPLIFIER	53	TECHNOLOGIESSPEAKER
15	LINE UPAmps COMPARED	55	LINE UPSPEAKERS COMPARED
17	GUTSOF AN AMPLIFIER	57	FRAMEWORKOF A SPEAKER
25	SUBWOOFERFAMILIES	67	MARINEPRODUCTS
33	TECHNOLOGIESSUBWOOFER	73	TECHNOLOGIESMARINE
35	LINE UPSubs COMPARED	77	VEHICLEINTERGRATION
37	ANATOMYOF A SUBWOOFER

clean C.L.E.A.N.

PRIME COAX

P1 SUBS

©2013 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE®, PUNCH®, 3SIXTY® and associated logos where applicable, are registered trademarks of Rockford Corporation in the United States and/or other countries. iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Rockford Corporation is under license. All other trademarks are the property of their respective owners. Specifications subject to change without notice. "Made for iPod" and "Made for iPhone mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Rockfordfosquito

CLEAN.

The NEW lineup of Punch amplifiers is now available.

Visit your local authorized Rockford Fosgate retailer to discover our secret behind a clean sound.

AMPLIFIERS

Close-up of a black Volkswagen car's rear taill with red LED headlights (no visible text or symbols)

POWER™

30 YEARS OF PUSHING THE ENVELOPE

24 dB/OCT

CROSSOVER SLOPE

2 YEAR

LIMITED WARRANTY

1 YEAR

FREE* EXTENDED WARRANTY

2/1 OHMS

IMPEDANCE STABILITY

PUNCH™

PUNCH HAS REVOLTIONIZED THE INDUSTRY

12dB/OCT

CROSSOVER SLOPE

1 YEAR

LIMITED WARRANTY

1 YEAR

FREE* EXTENDED WARRANTY

4/2 OHMS

IMPEDANCE STABILITY

PRIME

Black-and-white photo of multiple electronic devices on a metal rack, no visible text or symbols on the devices themselves.

Stacked storage racks with black plastic units labeled 'Vacuum / Package' (no additional text or symbols visible)

Poduford/fosquito

300WATTS

400WATTS

500WATTS

1000WATTS

300WATTS

400WATTS

500WATTS

1000WATTS

400WATTS

600WATTS

1000WATTS

PUNCH

Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch Punch SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUNH SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN H SUN I

300WATTS

500WATTS

300WATTS 300WATTS

Powered forgate

Black-and-white photo of multiple power amplifiers with visible brand logos, arranged in rows on a perforated metal surface (no readable text or symbols)

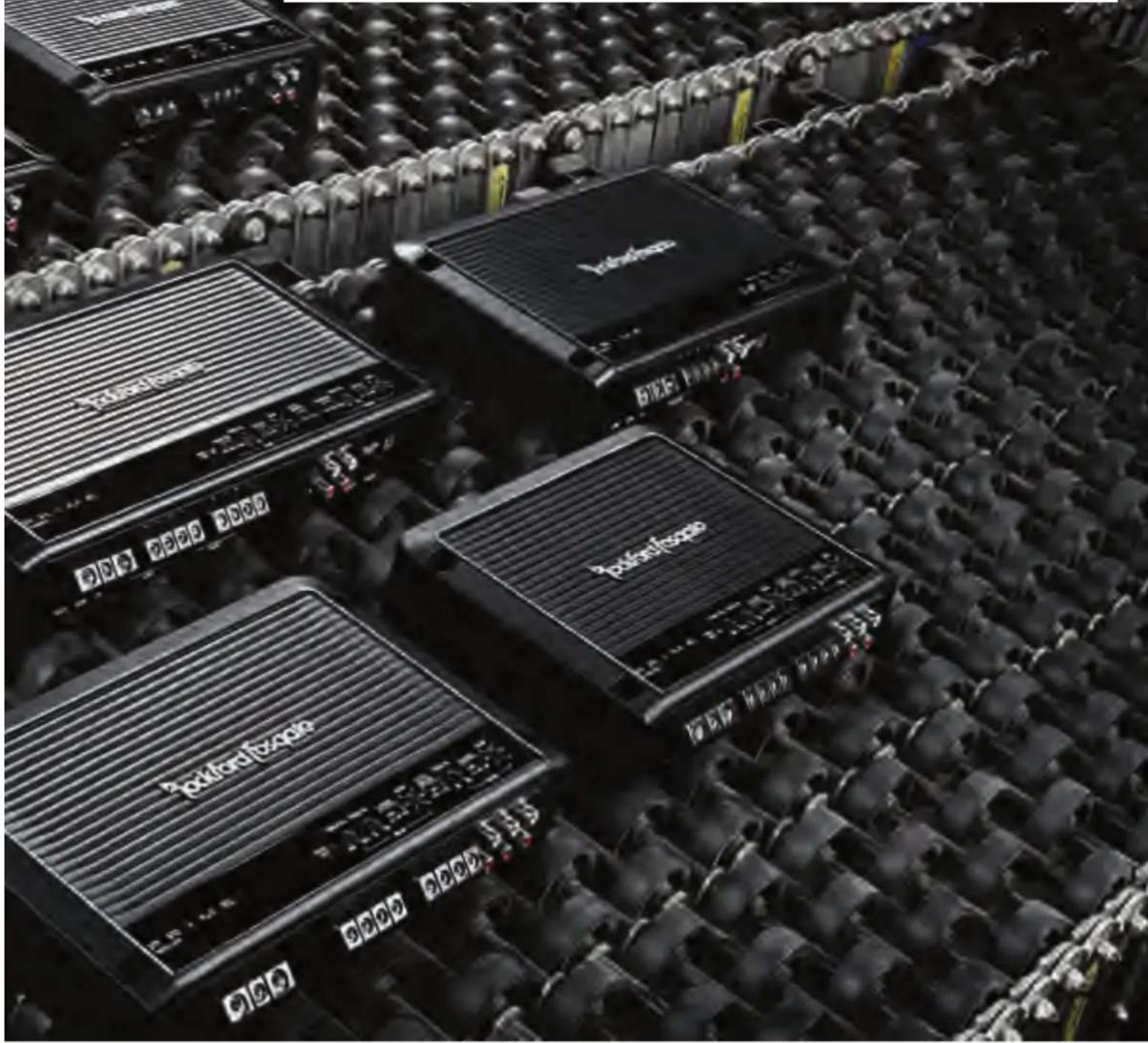

PRIME™

250WATTS

500WATTS

750WATTS

1200WATTS

150WATTS 250WATTS

300WATTS

400WATTS

600WATTS

600WATTS

Tokuford Fosquito

Podcastbox LED Podcastbox LED Podcastbox LED

Amplifiers PROPRIETARY ROCKFORD TECHNOLOGY

When you make a product purchase that bears the Rockford Fosgate name, you are receiving the technology, engineering, and innovation that has taken over three decades to hone. Our constant desire to push the performance envelope has lead us to develop proprietary amplifier topologies and acoustic/electrical technologies that put a spin on the normal and make it Rockford.

HEATSINK ALUMINIUM MOSFET THERMAL GREASE CERAMIC

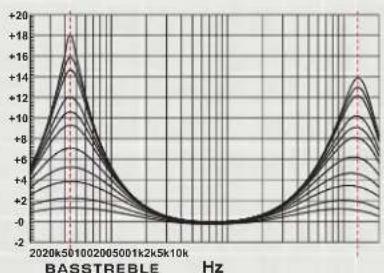

PUNCH EQUALIZATION

U.S. Patent (21,323)

In the early 70's, Jim Fosgate studied the acoustical properties of automobiles by using a real time analyzer. Jim discovered multiple problems common in all vehicles; a midbass hump, a steep high frequency roll off and reduced bass response. This research lead to adding Punch EQ to Rockford Fosgate amps to help correct the acoustical deficiencies found in the automotive listening environment. The new Punch EQ2 is an on-board equalization circuit that when set to Low-Pass (LP) operation, becomes a variable Bass Boost. When set to High-Pass (HP) operation, it acts as a variable Mid-Bass and Treble Boost. When set to All Pass (AP) operation, both Bass and Treble frequencies are boosted.

Products Featuring on-board PUNCH EQ

MAXIMUM EFFICIENCY HEAT SINK APPLICATION

MEHSA3 heat management technology takes heat sink efficiency to a new level. The key was to create a dielectric layer between the ceramic topside and the aluminum base that retains all of the electrical isolation and capacitive coupling of the early material increasing its thermal conductivity. The higher power handling results in a 20% reduction in thermal impedance.

Products Featuring MEHSA

4/2/1

The ability to deliver continuous total RMS rated power to the speaker(s) in any impedance ranging between 4 ohm through 1 ohm.

Products Featuring 4/2/1

YOUTUBE.COM/ROCKFORDFOSGATE

WATCH DETAILED VIDEOS ON OUR AMPLIFIER TECHNOLOGIES

Stockford Stocke

Pickford'shopate

NOMAD

Amplifier Power Standard CEA CEA-2006 Compliant

CONSTANT POWER

CONSTANT POWER

U.S. Patent (7,994,857)

Music and speakers have a dynamic relationship. As the frequency of music varies, so does the impedance of the speaker. Rockford Fosgate's Constant Power circuit design actively monitors and increases voltage and current as the speaker's impedance rises with music. Resulting in up to a 25% increase in total amplifier power.

Products Featuring CONSTANT POWER

DYNAMIC THERMAL MANAGEMENT

Our engineers at Rockford Fosgate have developed an award winning cooling design called DTM (Dynamic Thermal Management). This patent pending design seamlessly manages the output and power supply temperatures, while evenly distributing the excess heat across the entire amplifier.

Products Featuring DTM

NON MULTIPLYING ADVANCED DECISION

Safe output protection is handled by our proprietary NOMAD circuit. NOMAD is an analog computer designed to calculate the maximum level of safe current allowable for each output device (based on their instantaneous voltage drop). This allows the protection to be much more precise than ever before; offering protection against:

- Reverse Polarity

- Short Circuit

- Thermal

- Low Impedance

- Under/Over Voltage

Products Featuring NOMAD

CEA-2006

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

Products Compliant with CEA-2006

C.L.E.A.N.

Time and sophisticated test equipment have been replaced, with Rockford's integrated level setting technology called CLEAN (Calibrated Level Eliminates Audible Noise). Using simple LED indicators to identify both signal clipping from the audio source and the output level clipping to the speakers. This precise level set-up eliminates speaker damaging distortion.

Products Featuring CLEAN

AMPLIFIER PERFORMANCE LINEUP

TOPOLOGIESEXPLAINED

Amplifier topology is the arrangement of parts in an amplifier design. These designs are broken out into 'classes'. Each class has tradeoffs, making the various classes suited for various applications...like Class D or BD with higher RMS power, but undesirable noise in the higher frequencies making it better suited to power subwoofers.

CLASS BD (Patent RE40550) -The Rockford Fosgate bd topology is more efficient than typical class AB and has lower distortion than class D designs. Rockford bd amplifiers are 75-80% efficient vs. 20-60% efficient class ab amplifiers. Delivering more power from your amplifier with less drain on your vehicles electrical and charging system.

CLASS AD -The Rockford Fosgate ad topology brings our high efficiency bd amplifier design to a full range application. Using our Dynamic Frequency Switching to increase the switching frequency during lower output levels for better signal resolution. Coupled with Post Choke Feedback Filtering to compare the input signal to the output signal at the speaker connector removing any unwanted distortion. These technologies eliminate the inherent switching noise associated with typical class D designs.

CLASS D -High efficiency amplifier design that reduces current consumption from the charging system

CLASS TA -The trans•ana topology operates the output stage with its full voltage gain, which allows the input stage to operate from a low voltage regulated supply. The signal is then shifted up in level to the high voltage section by the driver stage which forms an active node at ultrasonic frequencies. This results in a very stable, highly linear operation.

CLASS BR (Patent 8,212,620) -To achieve higher efficiency with lower distortion, Rockford's br topology combines, Cycle-by-Cycle, an indirectly coupled high/low voltage rail linear topology with a switched high/low voltage linear rail topology. This combination yields an unsurpassed power density (watts per cubic inch).

CLASS AB -The combination of a class B power output with the class A low distortion attributes make class AB the most common amplifier topology in the electronics industry.

FULL RANGE CLASS D -High efficiency amplifier design that reduces current consumption from the charging system

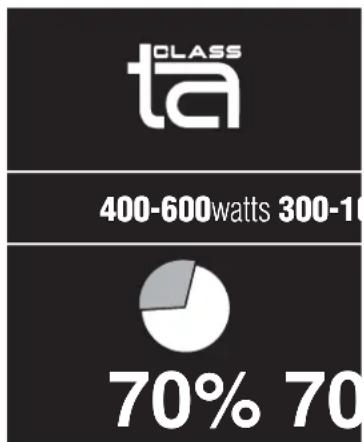

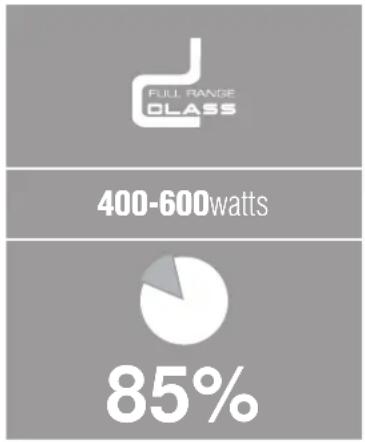

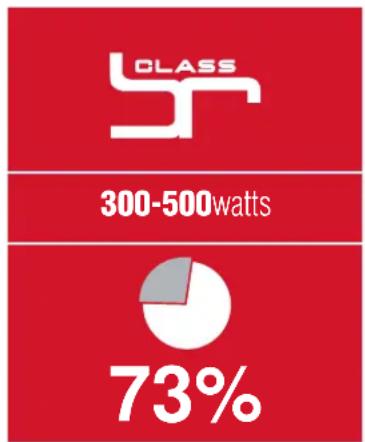

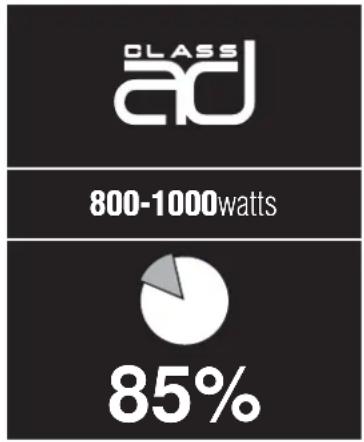

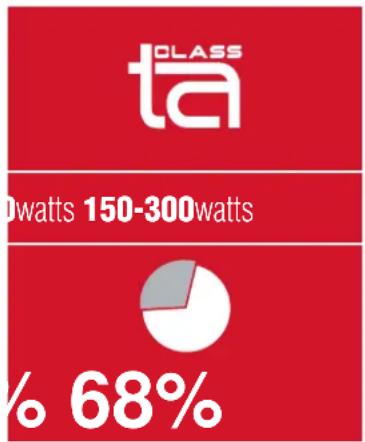

CLASSRMSEFFICIENCY

POWER. PUNCH. PRIME.

1 CHANNEL

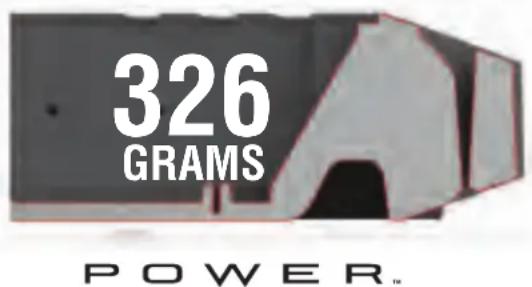

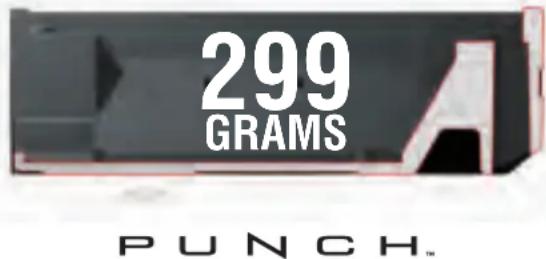

THERMAL MASS PER INCH - These amplifier cross sections show the amount of heatsink material (Thermal Mass). A greater thermal mass means increased play time and lower device distortion.

326 GRAMS POWER™

299 GRAMS PUNCH™

POWER PUNCH PRIME

CLASS ab

1CH / 2CH / 4CH

Red background with two intersecting white lines forming an 'X' shape (no text or symbols)

1CH / 2CH / 4CH

Two intersecting diagonal gray lines on a dark background, forming an 'X' shape (no text or symbols)

Simple gray X-shaped line on a plain background (no text or symbols)

1CH / 2CH / 4CH

101 GRAMS

PUNCH.

BOOSTED RAIL

137 GRAMS

PRIME.

THE GUTS

OF A AMPLIFIER

Organizing the combination of parts that make up the guts of an amplifier tremendously impacts their performance capabilities. A change in topology type matched with a variation of power supply components deliver a higher power output and enhanced audio quality. Rockford's proprietary amplifier topologies and electrical technologies in our amplifier lineup will drive your system to new heights.

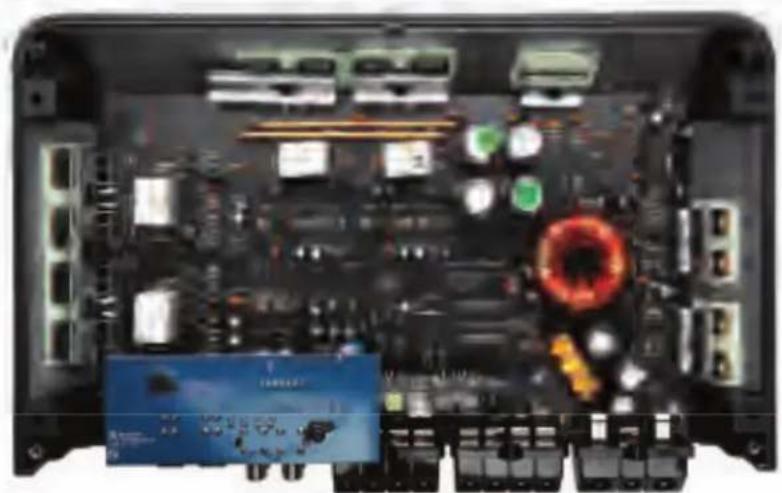

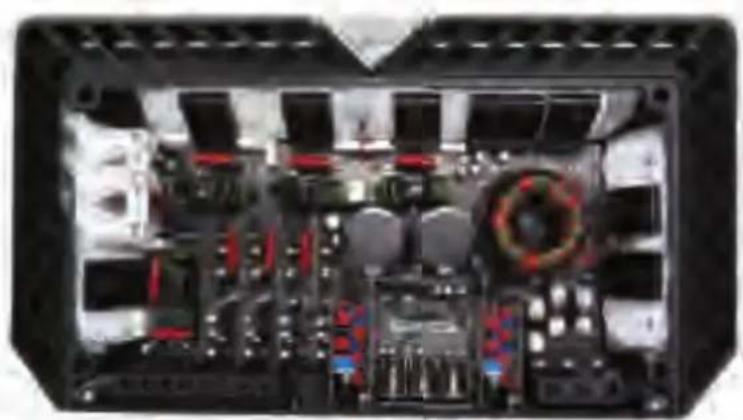

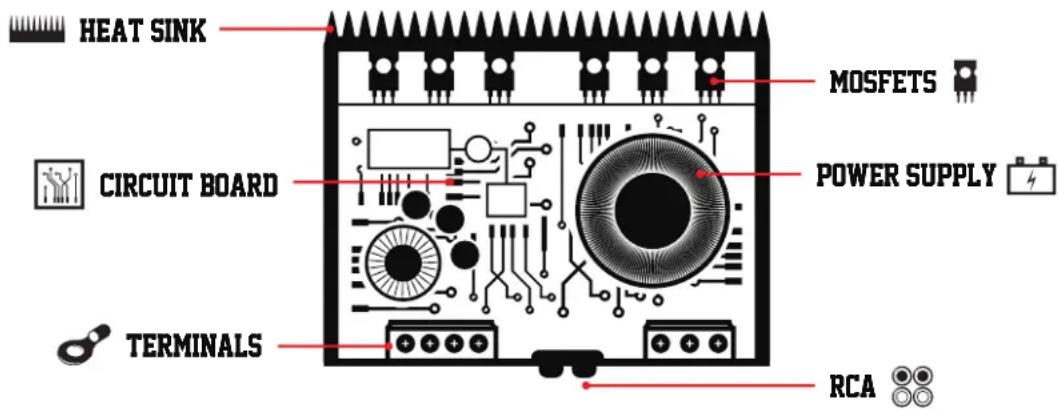

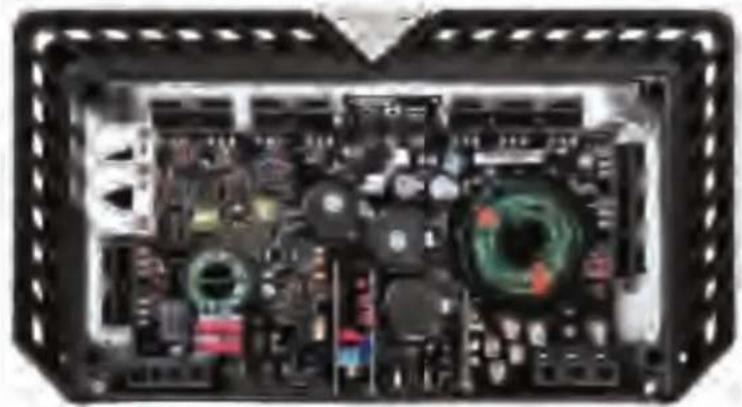

HEAT SINK CIRCUIT BOARD TERMINALS MOSFETS POWER SUPPLY RCA

Heat Sink - This heavy outer shell protects the parts inside by transferring away the heat made reproducing an audio signal (music).

MOSFETs - A type of transistor used to amplify audio signal(music). You'll see more of these guys lined up as wattage demands increase.

Circuit Board - Sometimes referred to as the PCB, is used to connect this-to-that through tiny lines of copper across multiple layers of pathways.

Power Supply - A.K.A the transformer, as the name suggest it takes the incoming voltage and converts it to a useable voltage for speakers.

Terminals - These are the connection points for the speakers or subwoofers and the power source(battery) for the amplifier.

RCA - These are the connection points for the audio signal(music) coming from the audio source(radio). RCA connectors are most commonly used.

HEAT SINK

• Die-Cast Aluminum w/ DTM™
• Die-Cast Aluminum
• Extruded Aluminum

TERMINALS

• C-Clamp compression
- Set-Screw
• Molex; Set-Screw or Pigtail

RCA

• Balanced Differential; High-Level Capable with Auto Turn-On
• Balanced Differential; High-Level Capable
• Balanced Differential

CLASS ta b CLASS

	Die-Cast Aluminum w/DTMTM	★★★★★
	C-Clamp compression	★★★★★
	Balanced Differential	★★★
	TO-247 MOSFETs w/MEHSA ^TM	★★★★★
	Ferrite Core Coated/Booted Transformer,withCONSTANT POWER ^TM	★★★★★
	4 layer 3 oz. Copper CircuitBoard	★★★★★

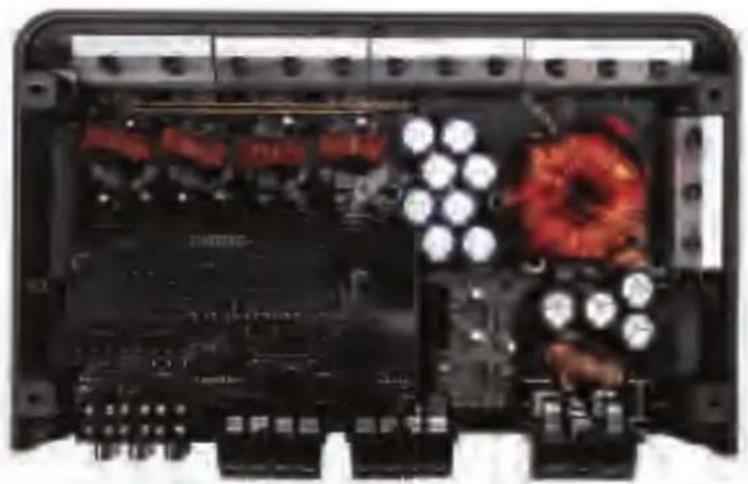

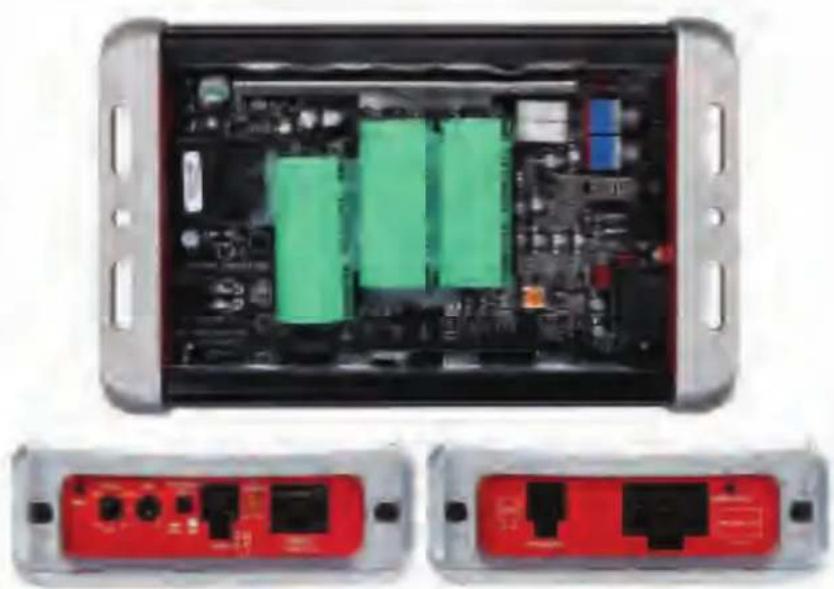

Interior view of an electronic device casing with visible circuitry and components (no text or symbols)

Back panel of a black electronic device with ports and indicators (no readable text or symbols)

	Die-Cast Aluminum w/DTMTM	★★★★★
	C-Clamp compression	★★★★★
	Balanced Differential	★★★
	TO-247 MOSFETs w/MEHSA ^TM	★★★★★
	Ferrite Core Coated/Booted Transformer,withCONSTANT POWER ^TM	★★★★★
	4 layer 3 oz. CopperCircuit Board	★★★★★

Interior view of an electronic device casing with visible circuitry and components (no text or symbols)

Back panel of a black electronic device with four circular buttons and indicator lights (no visible text or symbols)

MOSFETS

• TO-247 MOSFETs w/ MEHSA™
• TO-220 MOSFETs w/ MEHSA™
• TO-220 MOSFETs
• TO-220 Bipolar Transistors

POWER SUPPLY

• Ferrite Core Coated/Booted Transformer, with CONSTANT POWER™
• Ferrite Core Coated/Booted Transformer
  • Ferrite Core Transformer
• Storage Capacitor

CIRCUIT BOARD

• 4 layer 3 oz. Copper Circuit Board
• 4 layer 2 oz. Copper Circuit Board
• 2 layer 2 oz. Copper Circuit Board

IOZZON ta CLASS y CLASS

	Die-Cast Aluminum w/DTMTM	★★★★★
	C-Clamp compression	★★★★★
	Balanced Differential; High-Level Capable with Auto Turn -On	★★★★★
	TO-220 MOSFETs w/MEHSA ^TM	★★★★
	Ferrite Core Coated/Booted Transformer POWER ^TM	★★★★
	4 layer 2 oz. Copper Circuit Board	★★★★

Interior view of a computer monitor case with visible circuitry and control knobs (no text or symbols)

Back panel of a black electronic device showing front panel, buttons, and display (no visible text or symbols)

IZON CLASS

	Extruded Aluminum	★★★
	Molex; Set-Screw or Pigtail	★★★
	Balanced Differential; High-Level Capable with Auto Turn -On	★★★★★
	TO-220 MOSFETs w/ MEHSA ^TM	★★★★
	Storage Capacitor	★★
	4 layer 2 oz. Copper Circuit Board	★★★★

Interior view of an electronic device showing internal circuit board and two external ports (no visible text or symbols)

BEST GOOD

HEAT SINK

• Die-Cast Aluminum w/ DTM™
• Die-Cast Aluminum
- Extruded Aluminum

TERMINALS

• C-Clamp compression
- Set-Screw
• Molex; Set-Screw or Pigtail

RCA

• Balanced Differential; High-Level Capable with Auto Turn-On
• Balanced Differential; High-Level Capable
• Balanced Differential

PRIME CLASS ab CLASS

	Die-Cast Aluminum	★★★★
	Set-Screw	★★★★
	Balanced Differential;High-Level Capable	★★★★
	TO-220 Bipolar Transistors	★★
	Ferrite Core Transformer	★★★
	2 layer 2 oz. CopperCircuit Board	★★★

Interior view of an electronic device showing circuit board, capacitors, and a speaker (no visible text or symbols)

Back panel of a black electronic device showing ports, switches, and buttons (no readable text or symbols)

PRIME. full range CLASS

	Die-Cast Aluminum	★★★★
	Set-Screw	★★★★
	Balanced Differential	★★★
	TO-220 MOSFETs	★★★
	Ferrite Core Transformer	★★★
	2 layer 2 oz. Copper Circuit Board	★★★

Interior view of a black electronic device with visible circuitry and components (no readable text or symbols)

Back panel of a network device showing ports and connectors (no visible text or labels)

MOSFETS

• TO-247 MOSFETs w/ MEHSA™
• TO-220 MOSFETs w/ MEHSA™
• TO-220 MOSFETs
• TO-220 Bipolar Transistors

POWER SUPPLY

• Ferrite Core Coated/Booted Transformer, with CONSTANT POWER™
• Ferrite Core Coated/Booted Transformer
  • Ferrite Core Transformer
• Storage Capacitor

CIRCUIT BOARD

• 4 layer 3 oz. Copper Circuit Board
• 4 layer 2 oz. Copper Circuit Board
• 2 layer 2 oz. Copper Circuit Board

	Rated Power	Frequency Response	THD-N @ Rated Power	Input Sensitivity	S/N Ratio	Channel Separation	Dimensions	Topology	Circuit Board	Variable Crossover
T400-2	120x2 @ 4 ohms200x2 @ 2 ohms400x1 @ 4 ohms bridged	20Hz - 20kHz <0.05% 150mV - 5V >105dB >50dB			H 2.14" x W	8.14" x	L11.41" (Small chassis)	TRANS•ana 4 layer 3 oz	copper circuit board	24 dB/oct - variable High or Low Pass and All Pass
T600-2	200x2 @ 4 ohms300x2 @ 2 ohms600x1 @ 4 ohms bridged	20Hz - 20kHz <0.05% 150mV - 5V >105dB >50dB			H 2.14" x W	8.14" x	L13.66" (Medium chassis)
T400-4	60x4 @ 4 ohms100x4 @ 2 ohms200x2 @ 4 ohms bridged	20Hz - 20kHz <0.05% 150mV - 5V >105dB >50dB			H 2.14" x W	8.14" x	L13.66" (Medium chassis)
T600-4	100x4 @ 4 ohms150x4 @ 2 ohms300x2 @ 4 ohms bridged	20Hz - 20kHz <0.05% 150mV - 5V >105dB >50dB			H 2.14" x W	8.14" x	L14.91" (Large chassis)
T800-4ad	150x4 @ 4 ohms150x4 @ 2 ohms200x4 @ 1 ohm300x2 @ 4 ohms bridged400x2 @ 2 ohms bridged	20Hz - 20kHz <1.0% 150mV - 5V >95dB >50dB H			2.14" x W	8.14" x	L13.66" (Medium chassis)	Class ad w/ Constant Power
T1000-4ad	250x4 @ 4 ohms250x4 @ 2 ohms250x4 @ 1 ohm500x2 @ 4 ohms bridged500x2 @ 2 ohms bridged	20Hz - 20kHz <1.0% 150mV - 5V >95dB >50dB H			2.14" x W	8.14" x	L14.91" (Large chassis)	Class ad w/ Constant Power and 4/2/1
T500-1bdCP	300x1 @ 4 ohms500x1 @ 2 ohms500x1 @ 1 ohm	20Hz - 250Hz <0.5% 150mV - 5V >100dB N/A H 2			2.14" x W	8.14" x	L11.41" (Small chassis)	Class bd w/ Constant Power	4 layer 3 oz. copper circuit board	24 dB/oct - variable Low Pass
T1000-1bdCP	700x1 @ 4 ohms1000x1 @ 2 ohms1000x1 @ 1 ohm	20Hz - 250Hz <0.8% 150mV - 5V >100dB N/A H 2			2.14" x W	8.14" x	L13.66" (Mediumchassis)
T1500-1bdCP	1000x1 @ 4 ohms1500x1 @ 2 ohms1500x1 @ 1 ohm	20Hz - 250Hz <0.8% 150mV - 5V >100dB N/A H 2			2.14" x W	8.14" x	L14.91" (Large chassis)
T2500-1bdCP	1500x1 @ 4 ohms2500x1 @ 2 ohms2500x1 @ 1 ohm	20Hz - 250Hz <0.8% 150mV - 5V >100dB N/A H 2			2.14" x W	8.14" x	L21.9" (X-Large chassis)
P300X2	100x2 @ 4 ohms150x2 @ 2 ohms300x1 @ 4 ohms bridged	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 9.9"	(Mini chassis)	TRANS•ana 4 layer 2 oz	copper circuit board	12 dB/oct - variable High or Low Pass and All Pass
P400X2	125x2 @ 4 ohms200x2 @ 2 ohms400x1 @ 4 ohms bridged	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 11.0"	(Small chassis)
P500X2	150x2 @ 4 ohms250x2 @ 2 ohms500x1 @ 4 ohms bridged	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 13.3"	(Medium chassis)
P1000X2	300x2 @ 4 ohms500x2 @ 2 ohms1000x1 @ 4 ohms bridged	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 15.0"	(Large chassis)
P400X4	50x4 @ 4 ohms100x4 @ 2 ohms200x2 @ 4 ohms bridged	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 11.0"	(Small chassis)
P500X4	60x4 @ 4 ohms125x4 @ 2 ohms250x2 @ 4 ohms bridged	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 13.3"	(Medium chassis)
P1000X5	75x4 + 200x1 @ 4 ohms125x4 + 400x1 @ 2 ohmsN/A + 500x1 @ 1 ohm	20Hz - 20kHz <1.0% 150mV - 12V >105dB >50dB			H 2.4" x W	7.8" x L 15.0"	(Large chassis)	TRANS•ana & Class bd	4 layer 2 oz. copper circuit board	12 dB/oct - variable High or Low Pass and All Pass12 dB/oct - fixed infrasonic
P300X1	200x1 @ 4 ohms300x1 @ 2 ohms	20Hz - 20kHz <1.0% 150mV - 12V >105dB N/A H			2.4" x W	7.8" x L 9.9"	(Mini chassis)	TRANS•ana 4 layer 2 oz	copper circuit board	12 dB/oct - variable High or Low Pass and All Pass
P400X1	200x1 @ 4 ohms400x1 @ 2 ohms	20Hz - 20kHz <1.0% 150mV - 12V >105dB N/A H			2.4" x W	7.8" x L 9.9"	(Mini chassis)
P500X1bd	150x1 @ 4 ohms300x1 @ 2 ohms500x1 @ 1 ohm	20Hz - 250Hz <1.0% 150mV - 12V >100dB N/A H			2.4" x W	7.8" x L 11.0"	(Small chassis)	Class bd 12 dB/oct - variable		Low Pass
P1000X1bd	250x1 @ 4 ohms500x1 @ 2 ohms1000x1 @ 1 ohm	20Hz - 250Hz <1.0% 150mV - 12V >100dB N/A H			2.4" x W	7.8" x L 13.3"	(Medium chassis)
PBR300X2	100x2 @ 4 ohms150x2 @ 2 ohms300x1 @ 4 ohms bridged	20Hz - 20kHz <0.5% 150mV - 11V >100dB >50dB			H 1.5" x W	4.25" x L 6.75"	Class br 6 layer 2 oz. copper		circuit board	12 dB/oct - 80Hz fixed High or Low Pass and All Pass
PBR300X4	75x4 @ 4 ohms	20Hz - 20kHz	<0.5%	150mV - 11V	>100dB	>50dB	H 1.5" x W 4.25" x L 6.75"
PBR300X1	75x1 @ 4 ohms150x1 @ 2 ohms300x1 @ 1 ohm	20Hz - 250Hz	<0.2%	150mV - 11V	>105dB	N/A	H 1.5" x W 4.25" x L 6.75"		4 layer 2 oz. copper circuit board	12 dB/oct - variable Low Pass
PBR500X1	175x1 @ 4 ohms300x1 @ 2 ohms500x1 @ 1 ohm	20Hz - 20kHz	<0.1%	150mV - 11V	>105dB	N/A	H 1.5" x W 4.25" x L 8.25"
Impedance Stability	Protection	Status Indicators	Heatsink Design	RCA Inputs	Power Terminals	Speaker Terminals	Additional Features
1 ohm stereo / 2 ohm mono stable	NOMAD circuitReverse PolarityShort CircuitThermalLow ImpedanceUnder/Over Voltage	Discrete light pipe Power, Thermal and Protection indicators	Focused mass die-cast heatsink / DTMTM-Dynamic Thermal Management / MEHSATM-Maximum Efficiency HeatSink Application	Balanced differential RCA inputs and RCA pass thru	4 Ga. c-clamp compression connector	8 Ga. c-clamp compression connector	Punch EQ variable from 0dB to +18dB @ 45Hz and/or 0dB to +12dB @ 12KHz with optional PEQ
				Differential RCA inputs
				Differential RCA inputs and RCA pass thru
			Focused mass die-cast heatsink / 4-Point Thermal Monitoring / MEHSATM-Maximum Efficiency HeatSink Application	Differential RCA inputs
				Differential RCA inputs and RCA pass thru
1 ohm mono rated NOMAD circuitReverse PolarityShort CircuitThermalLow ImpedanceUnder/Over Voltage		Discrete light pipe Power, Thermal and Protection indicators	Focused mass die-cast heatsink / DTMTM-Dynamic Thermal Management / MEHSATM-Maximum Efficiency HeatSink Application	Balanced differential RCA inputs and RCA pass thru	4 Ga. c-clamp compression connector	8 Ga. c-clamp compression connector	Punch EQ variable from 0dB to +18dB @ 45Hz with optional Punch Equalization
		Discrete light pipe Power, Thermal and Protection indicators / In Mold Roll LED backlit signal/power Volume Units meters		Balanced differential panel mount RCA and RCA pass thru	stealth proprietary 1/0 Ga. 4mm allen head set-screw cast zinc connector	stealth proprietary 8 Ga. 4mm allen head set-screw cast zinc connector	Punch EQ variable from 0dB to +18dB @ 45Hz with optional Punch Equalization and BOSync or Master/Slave
2 ohm stereo / 4 ohm mono rated	NOMAD circuitReverse PolarityShort CircuitThermalLow ImpedanceUnder/Over Voltage	Discrete light pipe Power, Thermal and Protection indicators	Focused mass die-cast heatsink / DTMTM-Dynamic Thermal Management / MEHSATM-Maximum Efficiency HeatSink Application	High-level capable with auto turn-on balanced differential RCA inputs and RCA pass thru	4 Ga. c-clamp compression connector	8 Ga. c-clamp compression connector	Punch EQ variable from 0dB to +18dB @ 45Hz and/or 0dB to +14dB @ 12.5KHz with optional Punch Level Control(PLC2)
				High level capable with auto turn-on balanced differential RCA inputs
				High level capable with auto turn-on balanced differential RCA inputs and RCA pass thru
2 ohm stereo / 1 ohm mono rated	NOMAD circuitReverse PolarityShort CircuitThermalLow ImpedanceUnder/Over Voltage	Discrete light pipe Power, Thermal and Protection Indicators	Focused mass die-cast heatsink / DTMTM-Dynamic Thermal Management / MEHSATM-Maximum Efficiency HeatSink Application	High level capable with auto turn-on balanced differential RCA inputs	4 Ga. c-clamp compression connector	8 Ga. c-clamp compression connector	Punch EQ variable from 0dB to +18dB @ 45Hz and/or 0dB to +14dB @ 12.5KHz with optional Punch Level Control(PLC2)
2 ohm mono rated NOMAD circuitReverse PolarityShort CircuitThermalLow ImpedanceUnder/Over Voltage		Discrete light pipe Power, Thermal and Protection Indicators	Focused mass die-cast heatsink / DTMTM-Dynamic Thermal Management / MEHSATM-Maximum Efficiency HeatSink Application	High level capable with auto turn-on balanced differential RCA inputs and RCA pass thru	4 Ga. c-clamp compression connector	8 Ga. c-clamp compression connector	Punch EQ variable from 0dB to +18dB @ 45Hz and/or 0dB to +14dB @ 12.5KHz with optional Punch Level Control(PLC2)
1 ohm mono rated
2 ohm stereo / 4 ohm mono rated	Reverse PolarityShort CircuitThermalLow ImpedanceUnder/Over Voltage	LED Power/Protection and boost mode indicators	Inter-locking extruded aluminum heatsinks w/ pierced metal recessed badge	RCA/Speaker level pigtailed Molex connector with auto turn-on	10 Ga. Molex connector	16 Ga. pigtailed Molex connector	Optional PEQ variable from 0dB to +18dB @ 45Hz and/or 0dB to +12dB @ 12KHz, variable high-level adjust and 6V DC offset w/ remote out
4 ohm stereo ONLY							Variable high-level adjust and 6V DC offset w/ remote out
1 ohm mono rated				8 Ga. Molex			Optional PEQ variable from 0dB to +18dB @ 45Hz, variable high-level adjust and 6V DC offset w/ remote out

	Rated Power	Frequency Response	THD-N @ Rated Power	Input Sensitivity	S/N Ratio	Channel Separation	Dimensions	Topology	Circuit Board	Variable Crossover
R150X2	50x2 @ 4 ohms75x2 @ 2 ohms150x1 @ 4 ohms bridged	20Hz - 20kHz <1.0%	150mV - 12V	>100dB >50dB	H 2.0" x W 6	8" x L 11.2"	Class ab Single layer 2 oz. cop-		per circuit board	12 dB/oct - variableHigh or Low Pass andAll Pass
R250X4	40x4 @ 4 ohms60x4 @ 2 ohms125x2 @ 4 ohms bridged	20Hz - 20kHz	<1.0%	150mV - 12V	>100dB	>50dB	H 2.0" x W 6.8" x L 11.2"
R300X4	50x4 @ 4 ohms75x4 @ 2 ohms150x2 @ 4 ohms bridged	20Hz - 20kHz <1.0%	150mV - 12V	>100dB >50dB	H 2.0" x W 6	8" x L 13.2"
R400-4D	75x4 @ 4 ohms100x4 @ 2 ohms200x2 @ 4 ohms bridged	20Hz - 20kHz <1.0%	150mV - 5V	>90dB >50dB H	2.0" x W 6.8"	x L 9.1" Full Range Class d 4 layer 2 oz. copper			circuit board
R600-4D	100x4 @ 4 ohms150x4 @ 2 ohms300x2 @ 4 ohms bridged	20Hz - 20kHz <1.0%	150mV - 5V	>90dB >50dB H	2.0" x W 6.8"	x L 11.1"
R600X5	50x4 + 200x1 @ 4 ohms75x4 + 300x1 @ 2 ohms150x2 + N/A @ 4 ohms bridged	20Hz - 20kHz	<1.0%	150mV - 12V	>100dB	>50dB	H 2.0" x W 6.8" x L 13.2"	Class ab & Class d	Single layer 2 oz. cop-per circuit board	12 dB/oct - variableHigh or Low Pass andAll Pass
R250X1	150x1 @ 4 ohms250x1 @ 2 ohms	20Hz - 250Hz <1.0%	150mV - 12V	>100dB N/A H	2.0" x W 6.8"	x L 11.2" Class ab Single layer 2 oz. cop-			per circuit board	12 dB/oct - variableLow Pass
R500X1D	300x1 @ 4 ohms500x1 @ 2 ohms	20Hz - 250Hz <1.0%	150mV - 12V	>100dB N/A H	2.0" x W 6.8"	x L 8.5" Class d
R750-1D	250x1 @ 4 ohms500x1 @ 2 ohms750x1 @ 1 ohm	20Hz - 250Hz	<1.0%	150mV - 4V	>100dB	N/A	H 2.0" x W 6.8" x L 9.1"		4 layer 2 oz. copper circuit board	12 dB/oct - variableLow Pass12 dB/oct - variableinfrasonic
R1200-1D	400x1 @ 4 ohms800x1 @ 2 ohms1200x1 @ 1 ohm	20Hz - 250Hz <1.0%	150mV - 4V	>100dB N/A H	2.0" x W 6.8"	x L 11.1"
Impedance Stability	Protection	Status Indicators	Heatsink Design	RCA Inputs	Power Terminals	Speaker Terminals	Additional Features
2 ohm stereo / 4 ohm mono rated	• Short Circuit• Thermal	LED Power and Protection indicators	Focused mass die-cast heatsink RCA	or speaker level pig-tailed Molex connector input and RCA pass thru	4 Ga. set-screw connector	10 Ga. set-screw connector	Punch EQ variable from 0dB to +12dB @ 45Hz
				pigtailed Molex connector Input	Punch EQ variable from 0dB to		Punch EQ selectable from 0dB/+6dB/+12dB @ 45Hz
				RCA input and RCA pass thru			+18dB @ 45Hz
2 ohm stereo / 4 ohm mono rated(Front/Rear) and 2 ohm mono rated(Sub)	• Short Circuit• Thermal	LED Power and Protection indicators	Focused mass die-cast heatsink RCA	input or speaker level pigtailed Molex connector input	4 Ga. set-screw connector	10 Ga. set-screw connector	Punch EQ selectable from 0dB/+6dB/+12dB @ 45Hz(Front/Rear) and Var-able from 0dB to +12dB @ 45Hz(Sub)
2 ohm mono rated	• Short Circuit• Thermal	LED Power and Protection Indicators	Focused mass die-cast heatsink RCA	or speaker level pig-tailed Molex connector input and RCA pass thru	4 Ga. set-screw connector	10 Ga. set-screw connector	Punch EQ variable from 0dB to +12dB @ 45Hz and Included Punch Level Control(PLC)
1 ohm mono rated				RCA input and RCA pass thru	Punch EQ variable from 0dB to		+18dB @ 45Hz and included Punch Level Control(PLC)

Subwoofer Subwoofer

SUBWOOFER

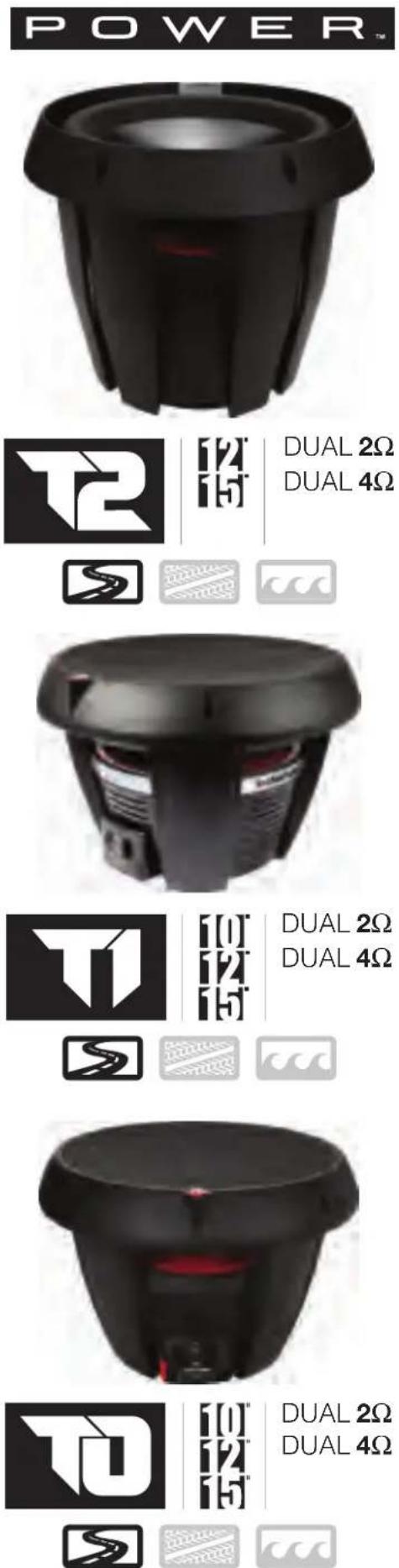

POWER™

WE'VE RAISED THE BAR...AGAIN

1200WATIS

UP TO RMS POWER HANDLING

1 YEAR LIMITED WARRANTY

4" VOICE COIL

44 ^M MM XMAX PEAK TO PEAK

PUNCH™

DON'T JUST REACH YOUR SYSTEM'S POTENTIAL

600Watts

UP TO RMS POWER HANDLING

1 YEAR LIMITED WARRANTY

2." VOICE COIL

28 ^M

XMAX PEAK TO PEAK

PRIME™

PERFECT STEP INTO PERFORMANCE AUDIO

250Watts

UP TO RMS POWER HANDLING

1 YEAR LIMITED WARRANTY

2" VOICE COIL

13 _M

XMAX PEAK TO PEAK

DUAL 2Ω

DUAL 4Ω

DUAL 2Ω

DUAL 4Ω

DUAL 2Ω

DUAL 4Ω

Two black circular objects on wooden slabs, one with a central lens and the other with a circular base (no text or symbols visible)

Overhead view of multiple black speaker lamps arranged on wooden pallets, no visible text or symbols

Top-down view of circular black objects arranged on a grid-patterned surface (no text or symbols visible)

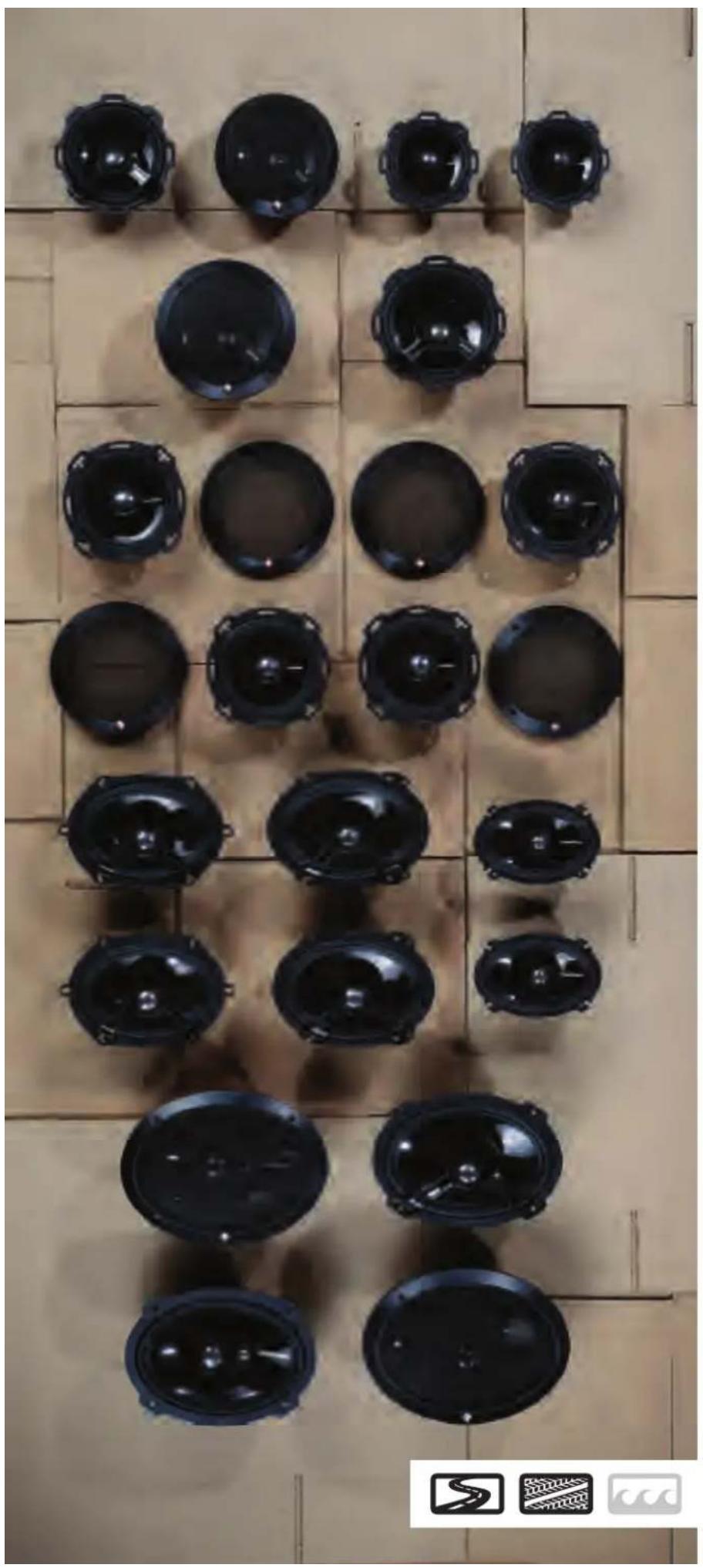

PUNCH.

Close-up of a black speaker cone (no text or symbols visible)

DUAL 2Ω DUAL 4Ω

Close-up of a black speaker cone (no text or symbols visible)

DUAL 2Ω DUAL 4Ω

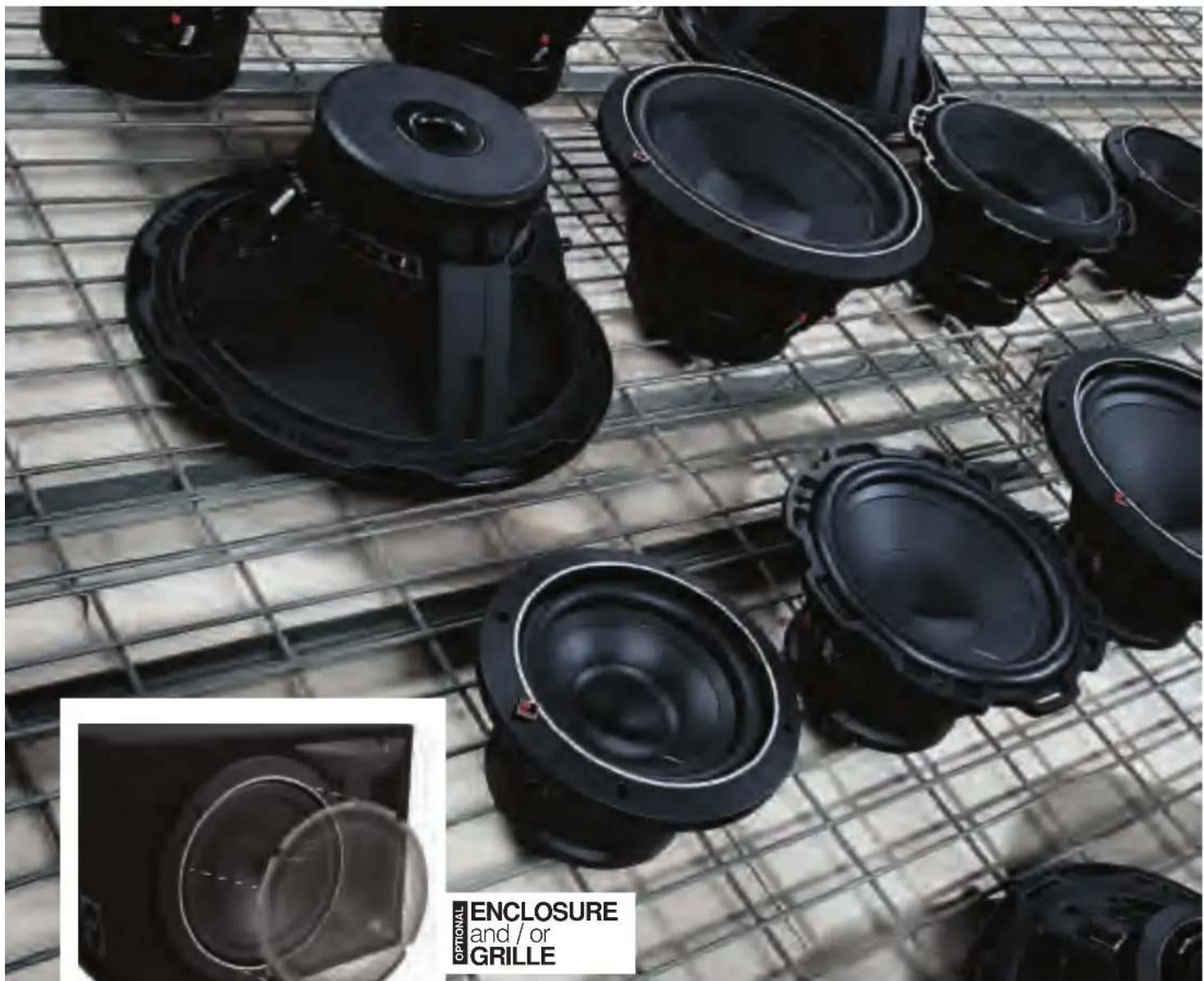

OPTIONAL ENCLOSURE and / or GRILLE

Optional integrated grille available for ALL PUNCH subwoofers. Loaded encolsures available for all 10" or 12" PUNCH subwoofers and 8", 10" or 12" PUNCH SHALLOW subwoofers.

Close-up of a black speaker cone with red indicator lights (no text or symbols visible)

SINGLE 2Ω SINGLE 4Ω

Close-up of a black speaker component with a red accent (no text or symbols visible)

DUAL 2Ω DUAL 4Ω

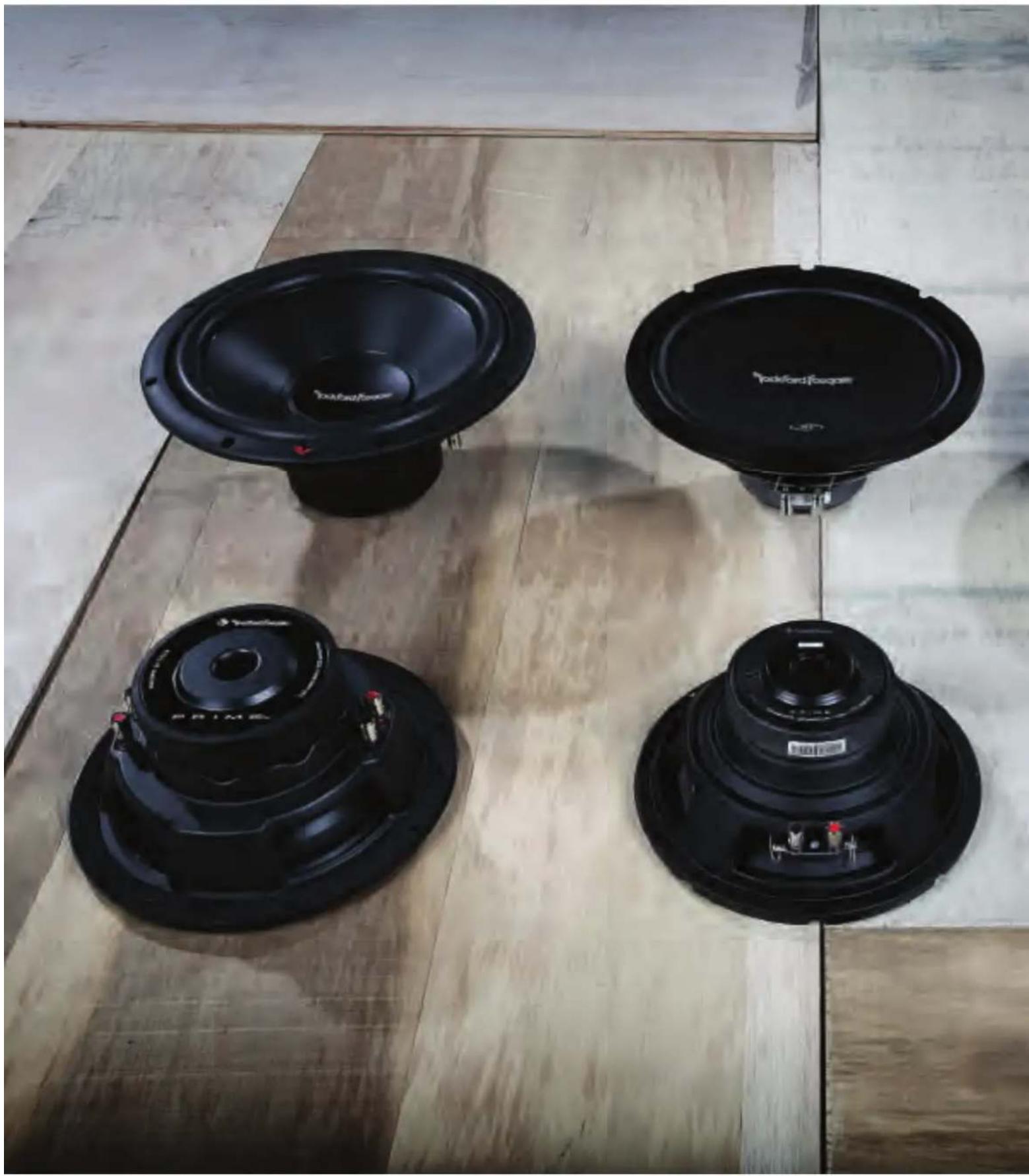

Four black speaker speakers on a wooden floor, no visible text or symbols

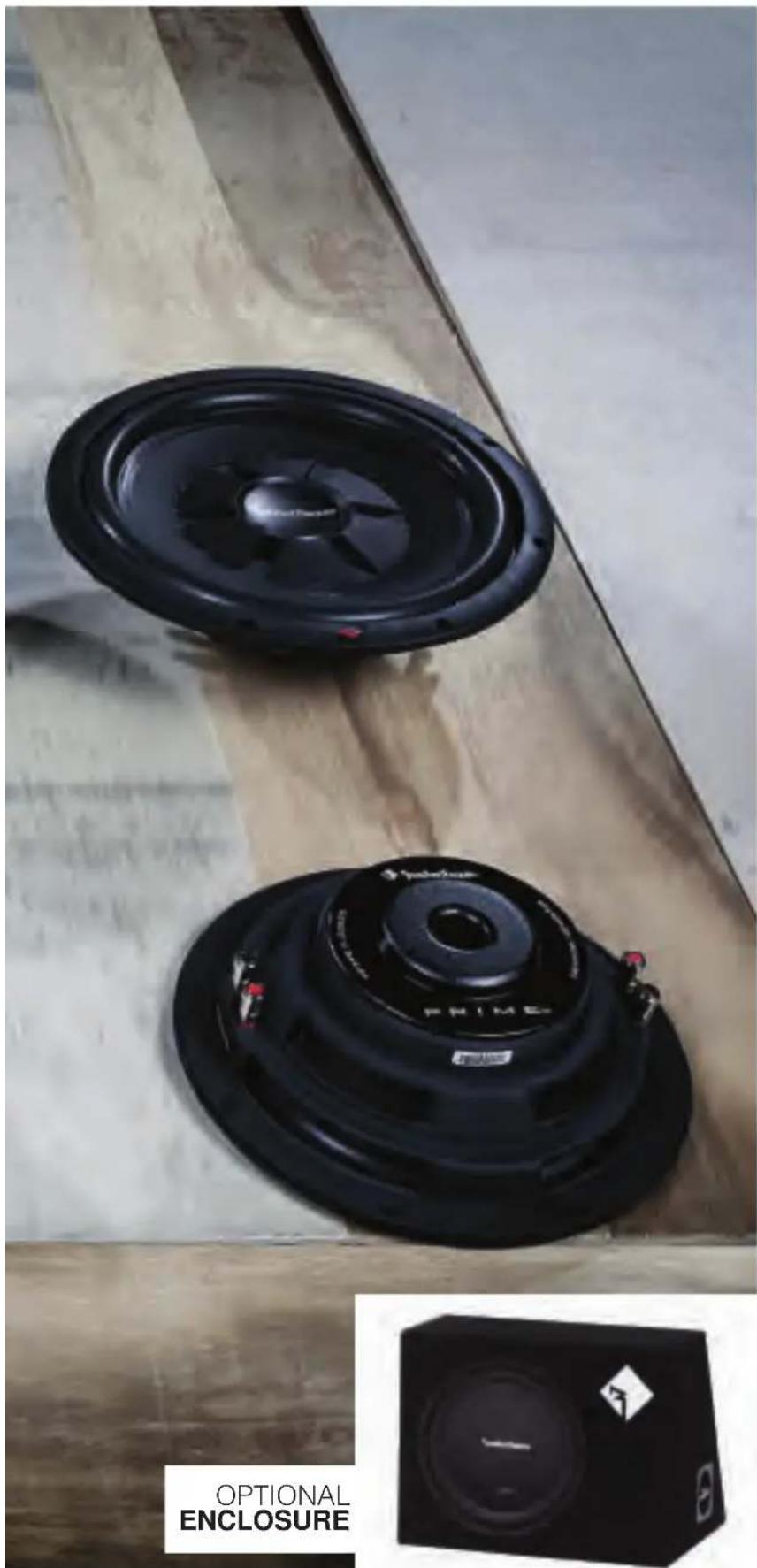

OPTIONAL ENCLOSURE

Loaded encolsures available for all 10" or 12" PRIME R1 and R2 Shallow subwoofers.

PRIME™

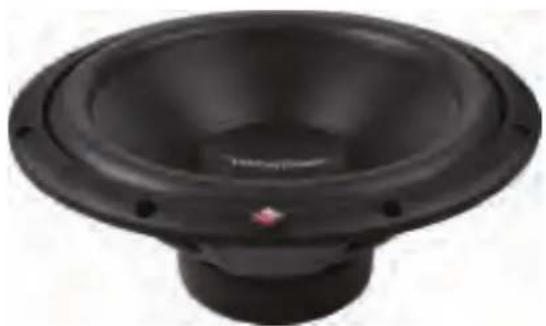

Close-up of a black speaker cone with a red star logo on the side (no text or symbols visible)

10" | DUAL 2Ω 12" | DUAL 4Ω

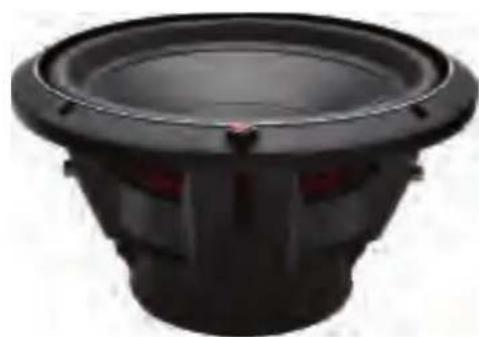

Close-up of a black speaker cone with no visible text or symbols on the body

[1] SINGLE 4Ω

Close-up of a black speaker cone with a red diamond accent (no text or symbols visible)

[1] | DUAL 2Ω [2] | DUAL 4Ω

Sub WOOFERS PROPRIETARY ROCKFORD TECHNOLOGY

When you make a product purchase that bears the Rockford Fosgate name, you are receiving the technology, engineering, and innovation that has taken over three decades to hone. Our constant desire to push the performance envelope has lead us to develop proprietary amplifier topologies and acoustic/electrical technologies that put a spin on the normal and make it Rockford.

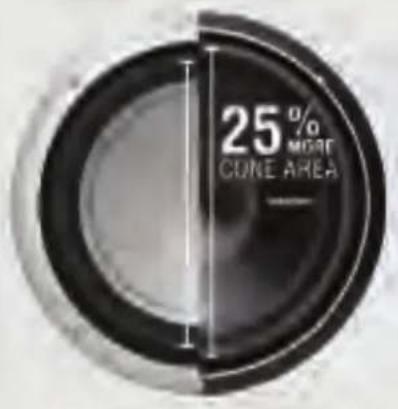

25% MORE CURE AREA

VAST

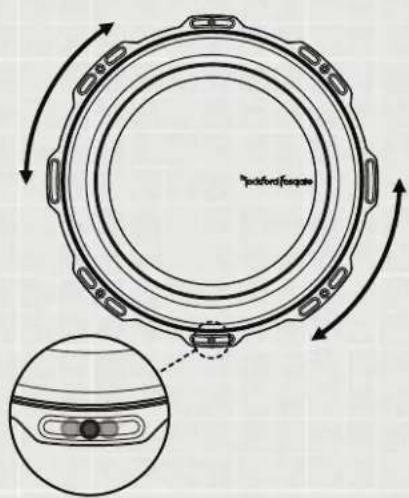

VERTICAL ATTACH SURROUND TECHNIQUE

Rockford's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing) which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.

Products Featuring VAST

T1 TO P|3 P|2 P|1 R|2 R|1 P|3 R|2 SHALLOW SHALLOW

Paciford/fragrane

FLEX FIT

The slot mounted frame pattern of the Flex Fit basket utilizes slots (where feasible) instead of single screw sized holes. This allows slight adjustment of the speaker when mounted.

Products Featuring FLEX FIT

T1 T0 P|3 P|2 P|1 R|2 R|1 P|3 R|2 SHALLOW SHALLOW

4Ω 31 1Ω 39

Technical diagram of a device with labeled components and an arrow indicating a specific part.

Close-up of a speaker grille with sound waves indicating sound pressure (no text or symbols visible)

Loudspeaker Standard CEA- CEA-2031 Compliant

VERIFIED WITH

KLIPPEL

SWIFG

sJims

SELECTABLE WOOFER IMPEDANCE FUSED TERMINATION

Removing and inverting the center plug allows nominal impedance of voice coils to quickly be configured in a Series or Parallel wiring configuration. This removable impedance selection jumper also provides fused protection in severe overload conditions.

Products Featuring SWIFT

P|3 P|2 P|1 R|2 R|1 P|3 R|2

SHALLOW SHALLOW

IDHS

INDUCTIVE DAMPING HEAT SINK

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.

Products Featuring IDHS

TO P|3 P|2 P|1 R|2 R|1 P|3 R|2

SHALLOW SHALLOW

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling that over time can damage voice coils.

Products Compliant with CEA

TO P|3 P|2 P|1 R|2 R|1 P|3 R|2

SHALLOW SHALLOW

VERIFIED WITH KLIPPEL

To adorn the 'Verified with Klippel' mark, the qualifying company's loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test.

• Klippel DA-2 (Designed)
• Klippel PM-8 (Developed)
• Klippel QC (Tested)

Products Verified with KLIPPEL

TO P|3 P|2 P|1 R|2 R|1 P|3 R|2

SHALLOW SHALLOW

SUBWOOFER PERFORMANCE LINEUP

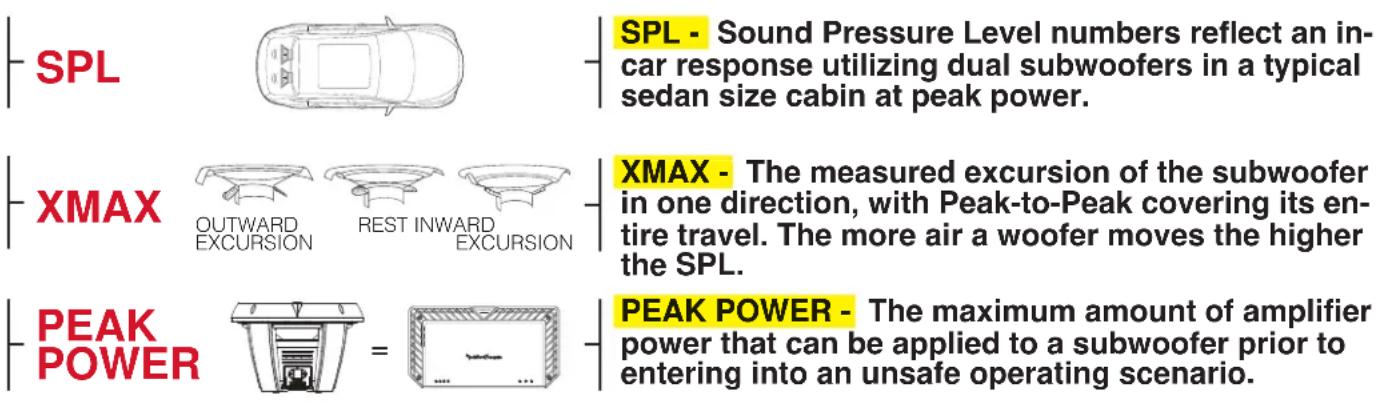

SPL XMAX PEAK POWER SPL - Sound Pressure Level numbers reflect an in-car response utilizing dual subwoofers in a typical sedan size cabin at peak power. XMAX - The measured excursion of the subwoofer in one direction, with Peak-to-Peak covering its entire travel. The more air a woofer moves the higher the SPL. PEAK POWER - The maximum amount of amplifier power that can be applied to a subwoofer prior to entering into an unsafe operating scenario.

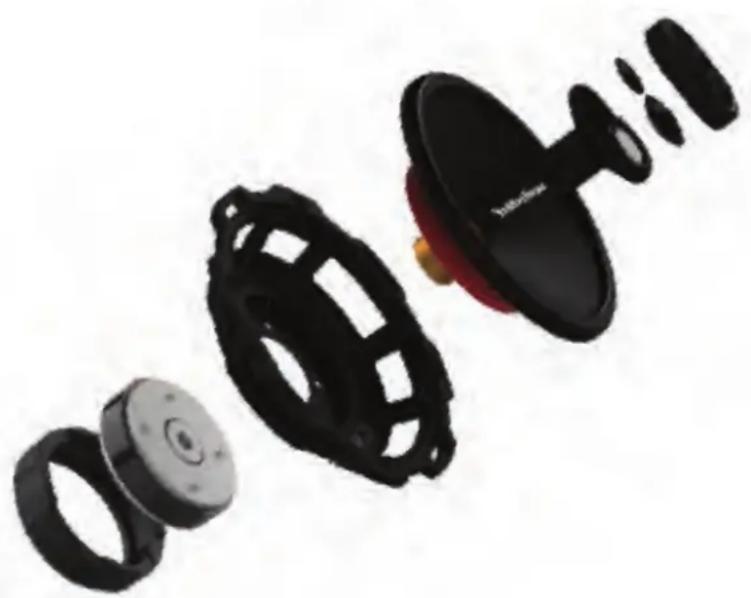

ANATOMY

of a subwoofer

Variations in the anatomy of a subwoofer dramatically changes their performance characteristics. An increase in voicecoil size coupled with a stronger cone material yields a higher power handling and increased output. By combining quality materials with Rockford's proprietary acoustic technologies, our subwoofer lineup is sure to meet your system's demands.

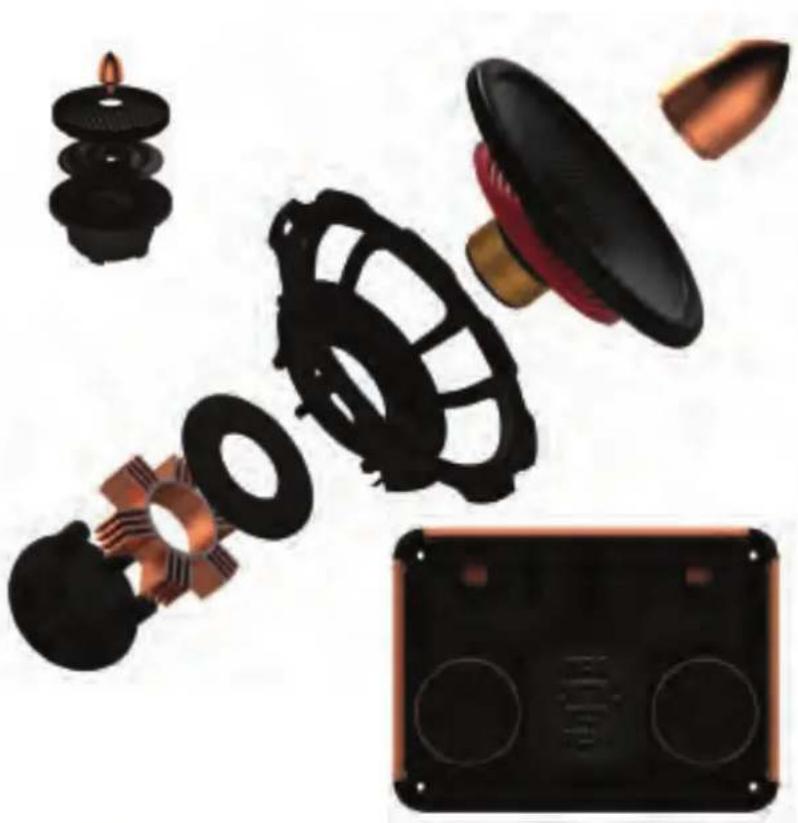

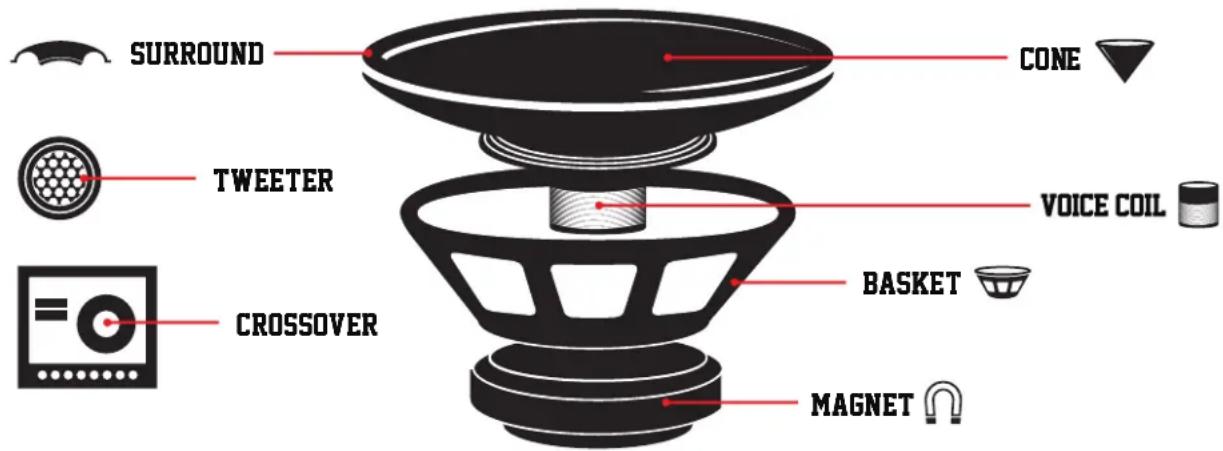

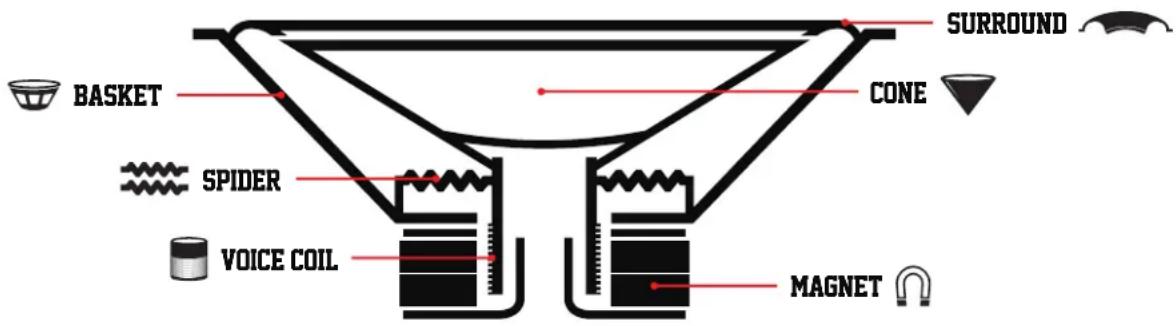

BASKET SPIDER VOICE COIL MAGNET CONE SURROUND

Basket - Also referred to as the frame or chassis, this is the skeletal system of the speaker. Here to keep everything in its place.

Surround - First part in the speakers suspension, attached to the cone to maintain the centering of the voice coil in the magnetic gap.

Spider - Second part of the speakers suspension, connects the cone and voice coil to the basket and controls the travel of the cone assembly.

Cone - A.K.A the diaphragm, this is the voice of the speaker. Shape and material dramatically change tonality.

Voice Coil - The brains of the operation, directing the force from the magnet to push or pull based on the applied electrical signal.

Magnet - The heart of speaker, creating the force to push and pull cone assembly. Size, material, and design may differ, depending on performance goals.

BEST GOOD

SURROUND

• Tall Profile, Santoprene™ w/VAST™
• M-Roll, Santoprene™ w/ VAST™
• Tall Profile, Santoprene™
• Half-Roll, Nitrile Butadiene Rubber
- Half-Roll, Sealed Polyether-ester Foam

CONE

• Hard Anodized Aluminum
- Kevlar Fiber Paper w/ Hard Anodized Aluminum dustcap
- Kevlar Fiber Paper
• Injection Molded Polypropylene
- Polypropylene

SPIDER

• Dual Mirror Imaged w/ Stitched Lead Wire and Cooling Vents
• Dual Laminated w/ Embedded Lead Wire Cooling Vents
• Single w/ Stitched Lead Wire and Cooling Vents
• Single Spider

	Tall Profile, SantopreneTM	★★★
	Hard Anodized Aluminum	★★★★★
	Dual Mirror Imaged w/ Stitched Lead Wire and Cooling Vents	★★★★★
	4" 4-Layer High Temp. Aluminum w/ NomexTM collar	★★★★★
	Die Cast Aluminum	★★★★

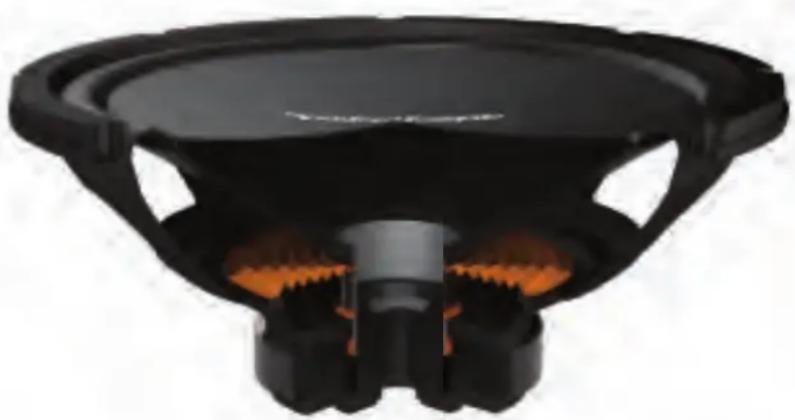

	Triple Stack Ferrite Magnet w/ IDHSTM	★★★★★

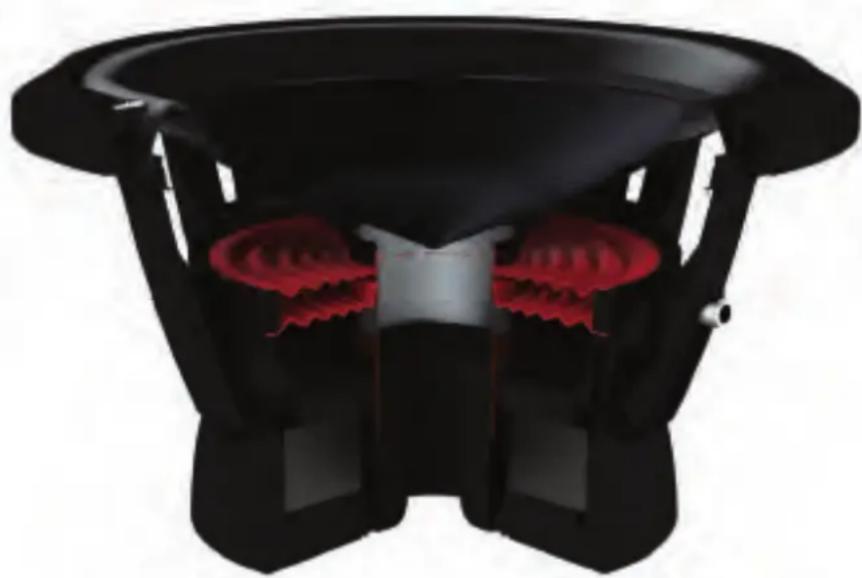

Cross-sectional diagram of a mechanical component with internal red and orange highlighted sections (no text or symbols)

	Tall Profile, SantopreneTMw/ VASTTM	★★★★★
	Kevlar Fiber Paper/ HardAnodized Aluminum	★★★★
	Dual Mirror Imaged w/ Stitched LeadWire and Cooling Vents	★★★★★
	3” 4-Layer High Temp.Aluminum w/NomexTMcollar	★★★★
	Die-Cast Aluminumw/ FlexFitTM	★★★★★

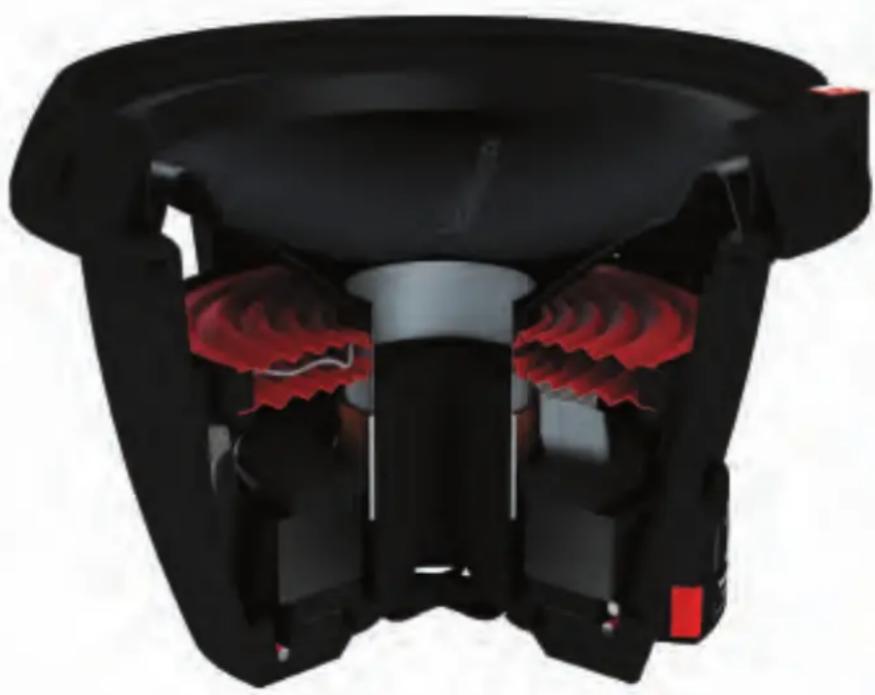

	Double Stack FerriteMagnet w/ IDHSTM	★★★★

Cross-sectional diagram of a mechanical device showing internal components with no visible text or symbols

VOICE COIL

• 4" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 3" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2.50" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2.25" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2" 4-Layer High Temp. Aluminum w/ Nomex™ collar

BASKET

• Die-Cast Aluminum w/ Flex-Fit™
• Die-Cast Aluminum
- StampCast™ w/ FlexFit™
- Stamped Steel

MAGNET

• Triple Stack Ferrite Magnet w/ IDHS™
• Double Stack Ferrite Magnet w/ IDHS™
  • Double Stack Ferrite Magnet
• Single Ferrite Magnet

	Tall Profile, SantopreneTMw/ VASTTM	★★★★★
	Kevlar Fiber Paper/ HardAnodized Aluminum	★★★★
	Dual Mirror Imaged w/ Stitched LeadWire and Cooling Vents	★★★★★
	3” 4-Layer High Temp. Aluminumw/ NomexTM collar	★★★★
	Die-Cast Aluminumw/ FlexFitTM	★★★★★
	Double Stack Ferrite Magnet	★★★

Cross-sectional view of a black plastic device with red internal components (no text or symbols visible)

	Tall Profile, SantopreneTMw/ VASTTM	★★★★★
	Hard Anodized Aluminum	★★★★★
	Dual Mirror Imaged w/ Stitched LeadWire and Cooling Vents	★★★★★
	2.50" 4-Layer High Temp. Aluminum w/NomexTM collar	★★★
	StampCastTMw/ FlexFitTM	★★★
	Double Stack Ferrite Magnet	★★★

3D cutaway view of a speaker into a black housing with red internal components (no text or symbols visible)

BEST GOOD

SURROUND

• Tall Profile, Santoprene™ w/VAST™
• M-Roll, Santoprene™ w/ VAST™
• Tall Profile, Santoprene™
• Half-Roll, Nitrile Butadiene Rubber
- Half-Roll, Sealed Polyether-ester Foam

CONE

• Hard Anodized Aluminum
- Kevlar Fiber Paper w/ Hard Anodized Aluminum dustcap
- Kevlar Fiber Paper
• Injection Molded Polypropylene
- Polypropylene

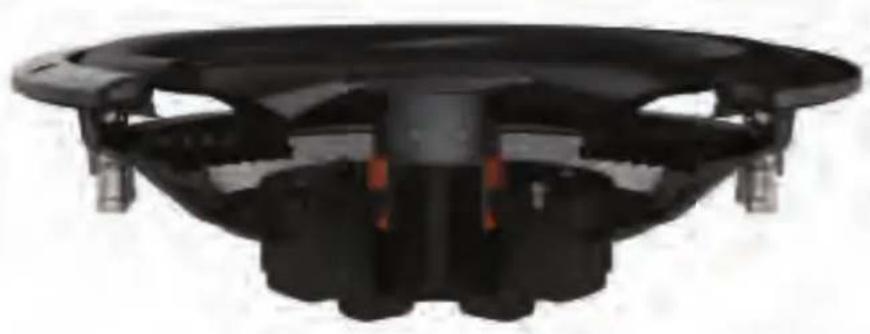

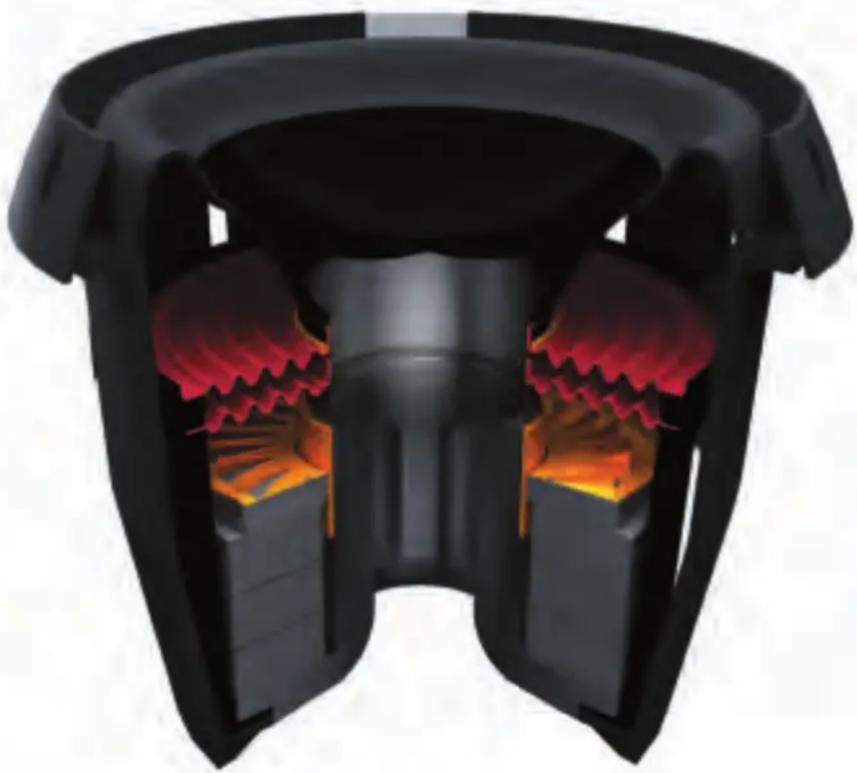

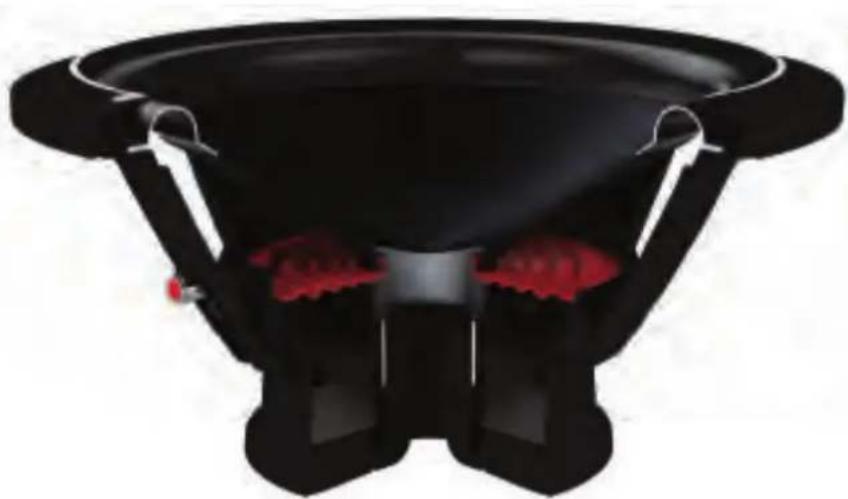

SPIDER

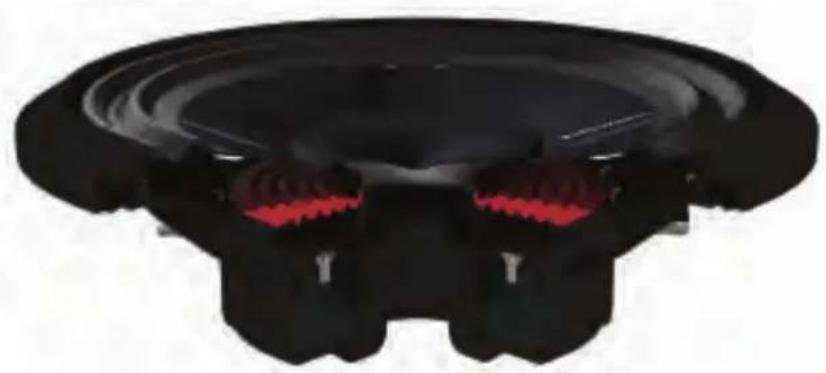

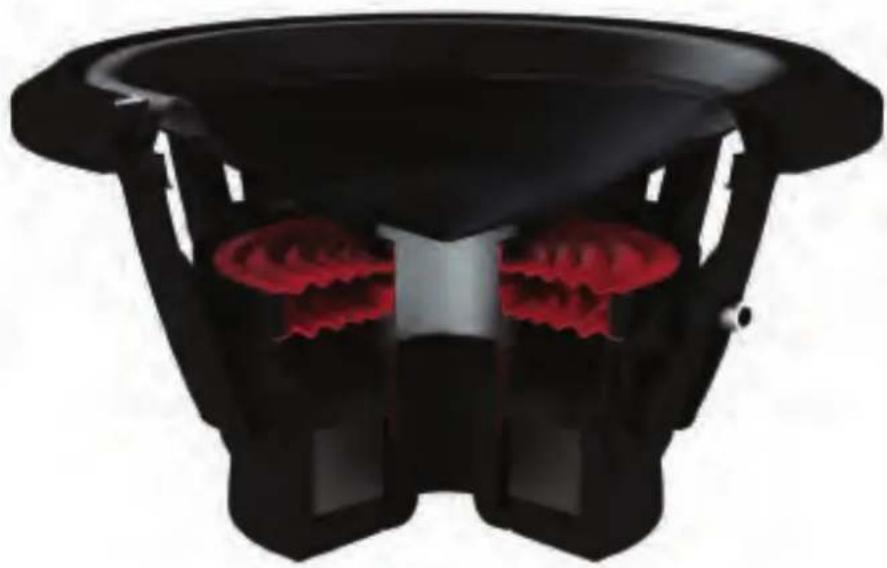

• Dual Mirror Imaged w/ Stitched Lead Wire and Cooling Vents
• Dual Laminated w/ Embedded Lead Wire Cooling Vents
• Single w/ Stitched Lead Wire and Cooling Vents
• Single Spider

	Tall Profile, SantopreneTMw/ VASTTM	★★★★★
	Kevlar Fiber Paper	★★★
	Dual Mirror Imaged w/ Stitched LeadWire and Cooling Vents	★★★★★
	2.25" 4-Layer High Temp. Aluminum w/NomexTM collar	★★
	StampCastTM w/ FlexFitTM	★★★
	Double Stack Ferrite Magnet	★★★

Cross-sectional view of a black speaker cone with red internal components (no text or symbols)

	Half-Roll, Nitrile Butadiene Rubber	★★
	Kevlar Fiber Paper	★★★
	Single Stitched Lead Wire and Cooling Vents	★★★
	2” 4-Layer High Temp. Aluminum w/ NomexTM collar	★
	StampCastTM w/ FlexFitTM	★★★
	Single Stack Ferrite Magnet	★★

Black speaker cone with red foam base and white connectors (no text or symbols)

VOICE COIL

• 4" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 3" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2.50" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2.25" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2" 4-Layer High Temp. Aluminum w/ Nomex™ collar

BASKET

• Die-Cast Aluminum w/ Flex-Fit™
• Die-Cast Aluminum
- StampCast™ w/ FlexFit™
- Stamped Steel

MAGNET

• Triple Stack Ferrite Magnet w/ IDHS™
• Double Stack Ferrite Magnet w/ IDHS™
  • Double Stack Ferrite Magnet
• Single Ferrite Magnet

	Half-Roll, SealedPolyether-ester Foam	★
	Polypropylene	★
	Single Spider	★★
	2” 4-Layer High Temp. Aluminum w/ NomexTM collar	★
	Stamped Steel	★★
	Single Ferrite Magnet	★★

Top-down view of a black speaker cone with visible sound waves and mechanical components (no text or symbols)

	Half-Roll, Nitrile Butadiene Rubber	★★
	Polypropylene	★
	Single Spider	★★
	2” 4-Layer High Temp. Aluminum w/ NomexTM collar	★
	StampCast	★★
	Single Ferrite Magnet	★★

Close-up of a black speaker cone with orange flame-like heat exchanger (no text or symbols visible)

BEST GOOD

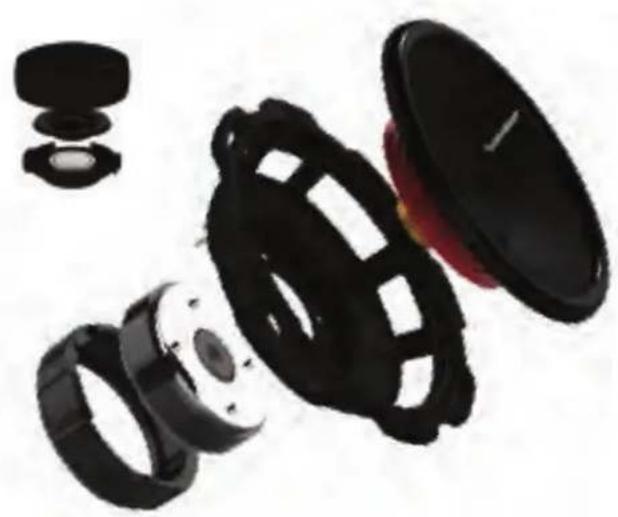

SURROUND

• Tall Profile, Santoprene™ w/VAST™
• M-Roll, Santoprene™ w/VAST™
• Tall Profile, Santoprene™
• Half-Roll, Nitrile Butadiene Rubber
- Half-Roll, Sealed Polyether-ester Foam

CONE

• Hard Anodized Aluminum
- Kevlar Fiber Paper w/ Hard Anodized Aluminum dustcap
- Kevlar Fiber Paper
• Injection Molded Polypropylene
- Polypropylene

SPIDER

• Dual Mirror Imaged w/ Stitched Lead Wire and Cooling Vents
• Dual Laminated w/ Embedded Lead Wire Cooling Vents
• Single w/ Stitched Lead Wire and Cooling Vents
• Single Spider

	M-Roll, SantopreneTMw/ VASTTM	★★★★
	Hard Anodized Aluminum	★★★★★
	Dual Laminated w/ Embedded Lead Wireand Cooling Vents	★★★★
	2.50" 4-Layer High Temp. Aluminum w/NomexTMcollar	★★★
	StampCastTMw/ FlexFitTM	★★★
	Single Ferrite Magnet	★★

Close-up of a black speaker grille with red sound waves (no text or symbols visible)

	Half-Roll, Sealed Polyether-ester Foam	★
	Injection Molded Polypropylene	★★
	Single Spider	★★
	2” 4-Layer High Temp. Aluminum w/ NomexTM collar	★
	Stamped Steal	★★
	Single Ferrite Magnet	★★

Close-up of a black speaker component with no visible text or symbols

VOICE COIL

• 4" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 3" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2.50" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2.25" 4-Layer High Temp. Aluminum w/ Nomex™ collar
• 2" 4-Layer High Temp. Aluminum w/ Nomex™ collar

BASKET

• Die-Cast Aluminum w/ Flex-Fit™
• Die-Cast Aluminum
- StampCast™ w/ FlexFit™
- Stamped Steel

MAGNET

• Triple Stack Ferrite Magnet w/ IDHS™
• Double Stack Ferrite Magnet w/ IDHS™
  • Double Stack Ferrite Magnet
• Single Ferrite Magnet

SHALLOW

	Speaker SizeNominal ImpedanceXmax (mm)SensitivityRMS Power Handling (watts)Peak Power Handling (watts)Mounting DiameterMounting DepthSpeaker Displacement (cu. ft.)Sealed Enclosure (cu. ft.)
	T20212/T20412	12"	Dual 2 Ω or 4 Ω	22.08	85 dB	1200	2400	10.6"	9.0"	0.151	N/A
	T20215/T20415	15"	Dual 2 Ω or 4 Ω	22.0	87 dB	1200	2400	13.94"	10.0"	0.176	N/A
	T10210/T10410	10"	Dual 2 Ω or 4 Ω	16.4	83 dB	600	1200	9.13"	6.5"	0.203	0.75
	T10212/T10412	12"	Dual 2 Ω or 4 Ω	16.4	86 dB	800	1600	11.25"	6.9"	0.308	1.25
	T10215/T10415	15"	Dual 2 Ω or 4 Ω	16.4	88 dB	1000	2000	13.94"	8.4"	0.547	2.25
	T00210/T00410	10"	Dual 2 Ω or 4 Ω	14.8	81 dB	550	1100	9.13"	6.5"	0.203	0.75
	T00212/T00412	12"	Dual 2 Ω or 4 Ω	14.8	84 dB	700	1400	11.25"	6.9"	0.308	1.25
	T00215/T00415	15"	Dual 2 Ω or 4 Ω	14.8	87 dB	800	1600	13.94"	8.4"	0.547	2.25
	P302-10/P304-10	10"	Dual 2 Ω or 4 Ω	13.9	82 dB	500	1000	9.13"	6.2"	0.127	0.59
	P302-12/P304-12	12"	Dual 2 Ω or 4 Ω	13.9	85 dB	600	1200	11.25"	6.7"	0.194	1.02
	P302-15/P304-15	15"	Dual 2 Ω or 4 Ω	13.9	86 dB	600	1200	13.94"	7.6"	0.247	1.58
	P202-8/P204-8	8"	Dual 2 Ω or 4 Ω	7.8	83 dB	250	500	7.13"	4.8"	0.071	0.23
	P202-10/P204-10	10"	Dual 2 Ω or 4 Ω	11	84 dB	300	600	9.13"	5.9"	0.068	0.59
	P202-12/P204-12	12"	Dual 2 Ω or 4 Ω	13.3	86 dB	400	800	11.25"	6.4"	0.170	1.02
	P202-15/P204-15	15"	Dual 2 Ω or 4 Ω	13.3	86 dB	400	800	13.94"	7.3"	0.219	1.58
	P1S2-8/P1S4-8	8"	Single 2 Ω or 4 Ω	7.6	83.5 dB	200	400	7.13"	4.4"	0.053	0.23
	P1S2-10/P1S4-10	10"	Single 2 Ω or 4 Ω	9.4	85 dB	250	500	9.13"	5.3"	0.085	0.59
	P1S2-12/P1S4-12	12"	Single 2 Ω or 4 Ω	9.4	86 dB	250	500	11.25"	6.0"	0.113	1.02
	P1S2-15/P1S4-15	15"	Single 2 Ω or 4 Ω	9.4	87.5 dB	250	500	13.94"	7.0"	0.191	1.58
	R202-12/R204-12	12"	Dual 2 Ω or 4 Ω	6.5	89 dB	250	500	9.13"	4.3"	0.101	0.59
	R1S410	10"	Single 4 Ω	5.8	86 dB	150	300	9.13"	4.6"	0.024	0.75
	R1S412	12"	Single 4 Ω	6.3	87 dB	150	300	10.94"	5.0"	0.043	1.02
	P3SD2-8/P3SD4-8	8"	Dual 2 Ω or 4 Ω	8.4	82 dB	150	300	7.13"	2.7"	0.040	0.25
	P3SD2-10/P3SD4-10	10"	Dual 2 Ω or 4 Ω	8.4	83 dB	300	600	9.13"	3.5"	0.074	0.50
	P3SD2-12/P3SD4-12	12"	Dual 2 Ω or 4 Ω	8.4	85 dB	400	800	11.25"	3.7"	0.086	1.00
	R2SD2-10/R2SD4-10	10"	Dual 2 Ω or 4 Ω	8	83 dB	200	400	9.13"	3.4"	0.037	0.70
	R2SD2-12/R2SD4-12	12"	Dual 2 Ω or 4 Ω	10	85 dB	250	500	11.25"	3.6"	0.039	0.90

	Speaker Model	Nominal Impedance	RMS Power Handling	Peak Power Handling Dimensions (HxWxD)
P3-2X12	(2) P3D4-12 1 Ω	1200 Watts 2	400 Watts 15.125"	" x 33.875" x 15	75"
P3-1X12	(1) P3D2-12 1 Ω	600 Watts 12	00 Watts 15.125"	" x 19.125" x 15.75"
P3-2X10	(2) P3D4-10 1 Ω	1000 Watts 2	000 Watts 13.125"	" x 31.125" x 15	125"
P3-1X10	(1) P3D2-10 1 Ω	500 Watts 10	00 Watts 13.125"	" x 17.0" x 15.125"
P2-2X12	(2) P2D4-12 1 Ω	800 Watts 16	00 Watts 15.125"	" x 33.875" x 15.75"
P2-1X12	(1) P2D2-12 1 Ω	400 Watts 8	00 Watts 15.125"	" x 19.125" x 15.75"
P2-2X10	(2) P2D4-10 1 Ω	600 Watts 12	00 Watts 13.125"	" x 31.125" x 15	125"
P2-1X10	(1) P2D2-10 1 Ω	300 Watts 6	00 Watts 13.125"	" x 17.0" x 15.125"

	Speaker Model	Nominal Impedance	RMS Power Handling	Peak Power Handling Dimensions (HxWxD)
P1-2X12	(2) P1S4-12 2 Ω	500 Watts 100	Watts 15.125" x 33.875" x 15.75"
P1-1X12	(1) P1S4-12 4 Ω	250 Watts 500	Watts 15.125" x 19.125" x 15.75"
P1-2X10	(2) P1S4-10 2 Ω	500 Watts 100	Watts 13.125" x 31.125" x 15.125"
P1-1X10	(1) P1S4-10 4 Ω	250 Watts 500	Watts 13.125" x 17.0" x 15.125"
R1L-1X10	(1) R1S410 4 Ω	150 Watts 300	Watts 12.0" x 15.825" x 12.25"
R1L-2X10	(2) R1S410 2 Ω	300 Watts 600	Watts 12.0" x 30.0" x 12.25"
R1L-1X12	(1) R1S412 4 Ω	150 Watts 300	Watts 14.0" x 17.5" x 12.25"
R1L-2X12	(2) R1S412 2 Ω	300 Watts 600	Watts 14.0" x 33.75" x 12.25"

Cone Material	Voice Coil	Spider	Frame Structure	Motor Structure	Motor Cover	Terminal Connectors	Trim Ring
Hard anodized aluminum	4" 4-layer ultra-high temp. aluminum flat-wound voice coil with spun-laced NomexTM insulating reinforcement collar	Dual mirror imaged, progressive roll tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique	Die-cast aluminum Trip	e stack ferrite magnet with extended vented pole and bumped vented backplate with IDHSTM	Die-cast motor cover/heat sink	Dual 8 Ga. custom insulated/isolated compression style	Reversible die-cast aluminum w/ Soft Touch paint
Kevlar® fiber reinforced semi-pressed paper	3" 4-layer ultra-high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Dual mirror imaged, progressive roll tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and proprietary spider cooling vents	Die-cast aluminum with FlexFitTM	Double stack ferrite magnet with extended vented pole and bumped vented backplate with IDHSTM	Frame integrated	Dual 10 Ga. proprietary SWIFTTM terminal	Reversible die-cast aluminum w/ Soft Touch paint and integrated/removable grille
Kevlar® fiber reinforced semi-pressed paper	3" 4-layer ultra-high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Dual mirror imaged, progressive roll tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and proprietary spider cooling vents	Die-cast aluminum with FlexFitTM	Double stack ferrite magnet with extended vented pole and bumped vented backplate	Frame integrated	Dual 10 Ga. proprietary SWIFTTM terminal	Reversible die-cast aluminum w/ Soft Touch paint and integrated/removable grille
Hard anodized aluminum	2.5" 4-layer ultra-high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Dual mirror imaged, progressive roll tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and proprietary spider cooling vents	StampCastTM with FlexFitTM	Double stack ferrite magnet with extended vented pole and bumped vented backplate.	Removable Semi-flexible Polyvinyl Chloride (PVC)	8 Ga. custom insulated/isolated compression style	Reversible die-cast aluminum w/ Soft Touch paint and optional integrated grille
Kevlar® fiber reinforced semi-pressed paper	2.25" 4-layer high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Dual mirror imaged, progressive roll tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and proprietary spider cooling vents	StampCastTM with FlexFitTM	Double stack ferrite magnet structure with extended vented pole and bumped backplate.	Removable Semi-flexible Polyvinyl Chloride (PVC)	8 Ga. custom insulated/isolated compression style	Reversible die-cast aluminum w/ Soft Touch paint and optional integrated grille
Kevlar® fiber reinforced semi-pressed paper	2" 4-layer high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and proprietary spider cooling vents.	StampCastTM with FlexFitTM	Ferrite magnet structure with extended vented pole and bumped backplate.	Removable Semi-flexible Polyvinyl Chloride (PVC)	8 Ga. custom insulated/isolated compression style	Reversible Acrylonitrile Butadiene Styrene with optional integrated grille
Polypropylene	2" 4-layer high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and spider cooling vents.	Stamped steel	Ferrite magnet structure with extended vented pole and bumped backplate.	Removable Semi-flexible Polyvinyl Chloride (PVC)	Standard 10 Ga. Integrated Polyvinyl Chloride trim ring
Polypropylene	2" 4-layer high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Tear & fatigue resistant poly-cotton spider	Stamped steel	Ferrite magnet structure with extended vented pole and bumped backplate.		Standard 10 Ga.
Hard anodized aluminum	2.5" 4-layer ultra-high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Dual laminated, progressive roll tear & fatigue resistant poly-cotton spiders with embedded lead wire technique and proprietary spider cooling vents	StampCastTM with FlexFitTM	Ferrite magnet structure with extended vented pole and bumped vented backplate.	Removable Semi-flexible Polyvinyl Chloride (PVC)	8 Ga. custom insulated/isolated compression style	Reversible die-cast aluminum w/ Soft Touch paint and optional grille
Injection molded Polypropylene	2" 4-layer high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Tear & fatigue resistant poly-cotton spider with multipoint stitched lead wire technique and spider cooling vents.	Stamped steel	Ferrite magnet structure with extended vented pole and bumped backplate.		Standard 10 Ga. Integrated Polyvinyl Chloride trim ring

Speaker Model

P3S-1X10	(1) P3SD2-10	1 Ω	300 Watts	600 Watts	13.5" x 19.0" x 5.3"/3.3"
P3S-1X12	(1) P3SD2-12	1 Ω	400 Watts	800 Watts	13.5" x 27.4" x 5.3"/3.3"

Speaker Model

R2S-1X10	(1) R2SD4-10	2 Ω	200 Watts	400 Watts	13.5" x 19.0" x 5.3"/3.3"
R2S-1X12	(1) R2SD4-12	2 Ω	250 Watts	500 Watts	13.5" x 27.4" x 5.3"/3.3"

BETECH

ROCKFORDFOSGATE.COM

Don't forget to use our Woofer Wiring Wizard to properly wire woofers to your amplifier or our Woofer Box Advisor for optimized enclosure bass performance.

Close-up of a red and black car with illuminated dome-shaped lenses, no visible text or symbols

SPEAKERS

Close-up of a red and white car interior with three circular headsets, no visible text or symbols

POWER™

ONCE YOU HEAR THEM...YOU'LL KNOW

150

WATTS

UPT

RMS POWER

HANDLING

1 YEAR

LIMITED

WARRANTY

45Hz

40

FREQUENCY

RESPONSE

PUNCH™

Black electronic device with multiple speakers and a rectangular case (no visible text or symbols)

2WAY

6.5 Inch

Product photo of a set of black speakers and sound amplifiers (no text or symbols visible)

2WAY

6.5 Inch

Product photo of black electronic speakers and earwatches (no visible text or labels)

2WAY

6.5 Inch

5.25 Inch

Tweeter Kit

Black mechanical components including a cylindrical housing and two circular cutouts (no visible text or symbols)

2WAY

6.75 Inch

6.5 Inch

6.0 Inch

5.25 Inch

Tweeter Kit

Top-down view of a multi-tiered floor-mounted speaker array with multiple speakers and control units (no visible text or labels)

Top-down view of a grid of black speaker speakers arranged in rows on a tiled floor (no text or symbols visible)

POWER™

Two black speaker speakers with exposed mechanical components, no text or symbols visible

2WAY

6.75 Inch
6.5 Inch
6 Inch
5.25 Inch
4 Inch

2WAY

6x9 Inch
6x8 Inch
5x7 Inch
4x6 Inch

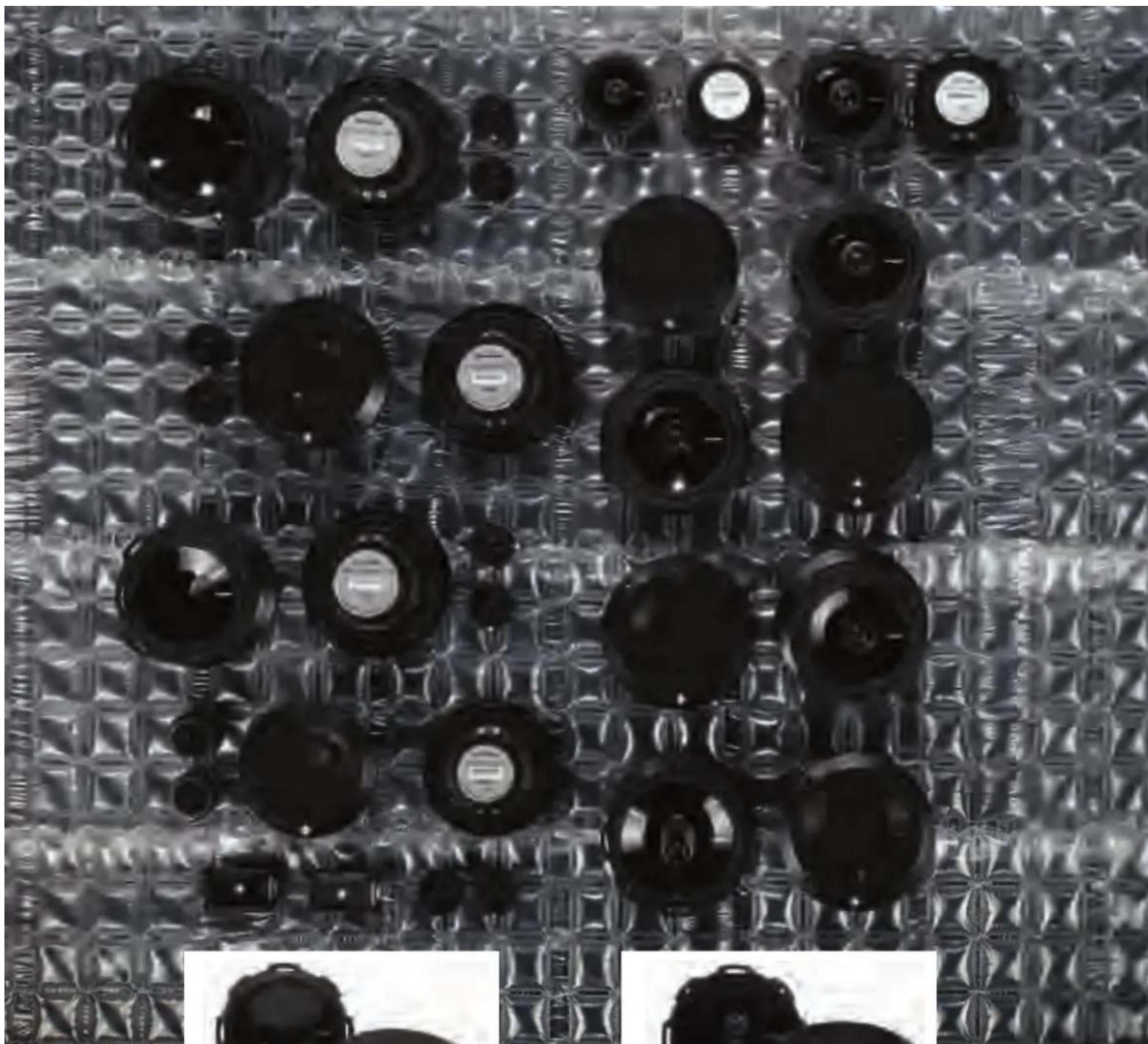

3WAY

6x9 Inch

COAXIALS

Close-up of black plastic components with reflective surfaces, no visible text or symbols

Black plastic kitchenware including a large bowl, a side table, and a small pot (no text or symbols visible)

2WAY

6.75 Inch

6.5 Inch

6.0 Inch

5.25 Inch

Tweeter Kit

2WAY

6.5 Inch

4.0 Inch

3WAY

6.75 Inch

6.0 Inch

3.5 Inch

5.25 Inch

Tweeter Kit

2WAY

6x9 Inch

3WAY

6x8 Inch

4WAY

6x9 Inch

HIGH OUTPUT

EXTREME LEVELS OF MID TO HIGH RANGE WILL BE EXPERIENCED

SCENARIOS TO CONSIDER WHEN USING THIS PRODUCT:

A superior sensitivity yields low power (Watts) requirements.

Their unique structure gives opportunity to an equally unique fitment.

It is HIGHLY encouraged to incorporate a generous quantity of this product in one application for a preferred outcome.

To all the Rockford Fosgate Fanatics we would like to introduce the speakers to accompany your two strapped T2500-1bdCP pushing (4) T2 15's... the PUNCH PRO speakers are guaranteed to provide HIGH OUTPUT full range for extreme SQL (Sound Quantity Level) systems.

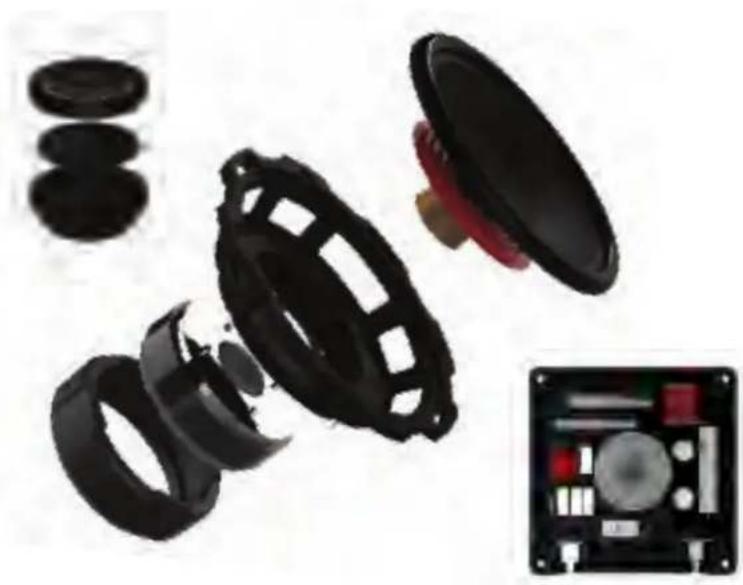

Black plastic electronic component with multiple speaker covers and a mesh cover on a textured surface (no visible text or symbols)

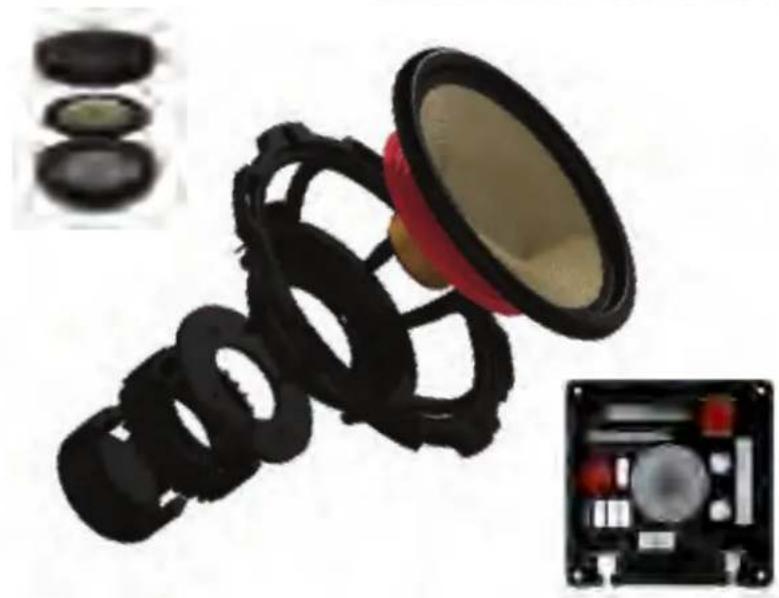

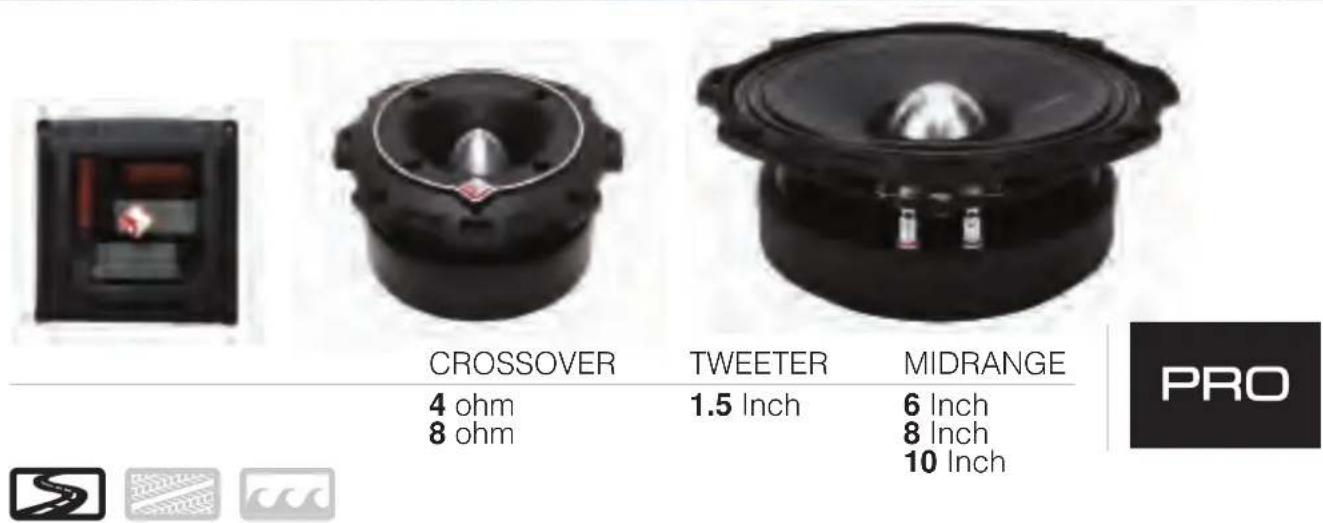

CROSSOVER 4 ohm 8 ohm TWEETER 1.5 Inch MIDRANGE 6 Inch 8 Inch 10 Inch PRO

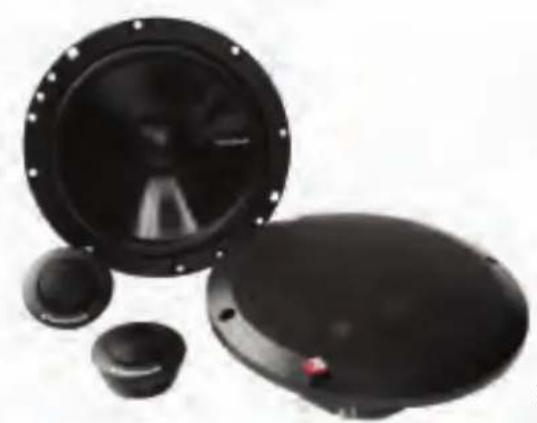

PRIME™

Black speaker components including a speaker, speaker bowl, and multiple speakers (no text or symbols visible)

2WAY

6.75 Inch

6.5 Inch

6 Inch

5.25 Inch

Tweeter Kit

R|1

COMPONENTS

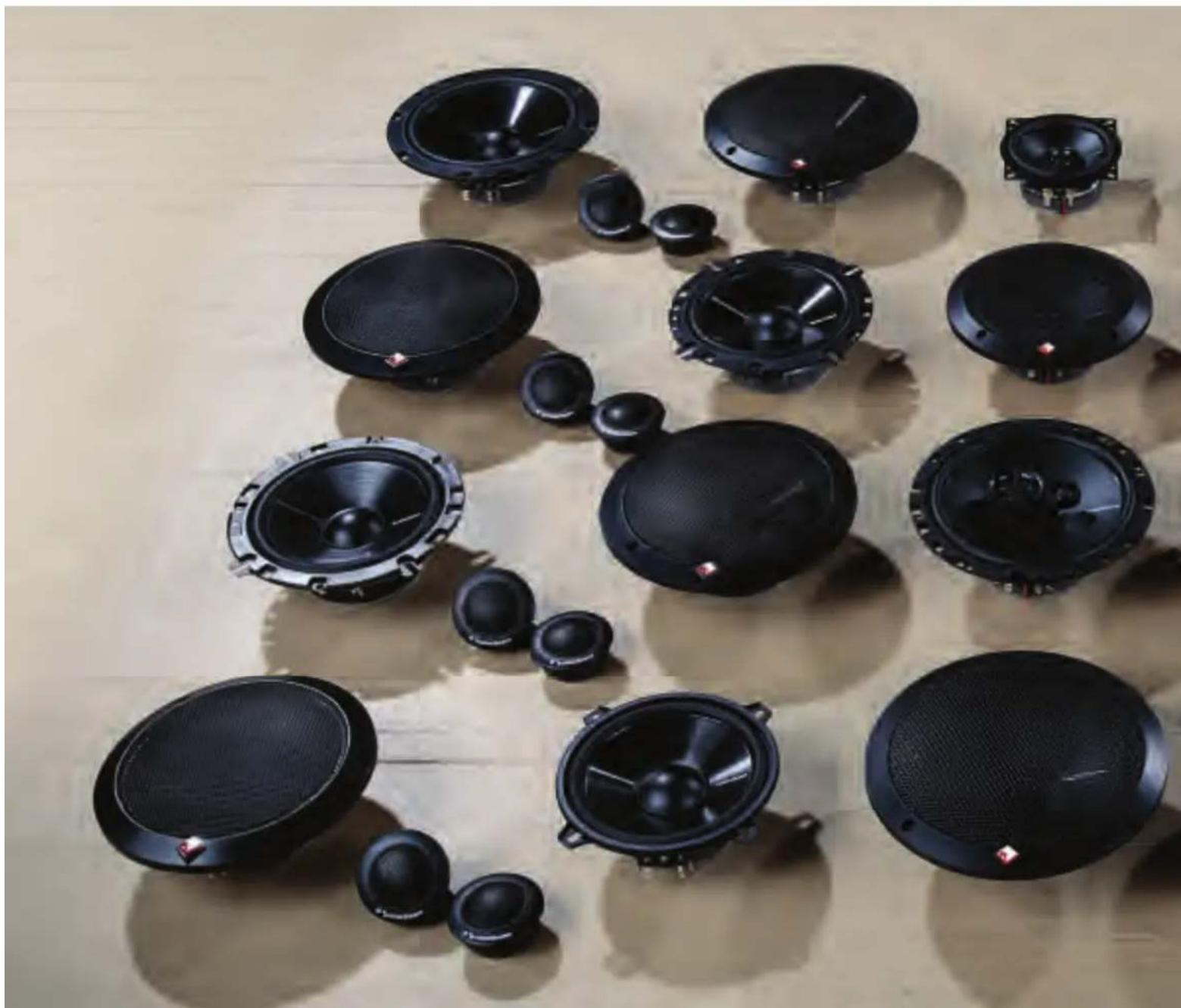

Top-down view of numerous black speaker speakers arranged on a wooden floor, no visible text or labels.

R|1

2WAY

6.75 Inch

5.25 Inch

4 Inch

3WAY

6.5 Inch

2WAY

6x9 Inch

6x8 Inch

3WAY

6x9 Inch

Two black speaker speakers with visible sound waves and red indicator lights (no text or symbols)

COAXIALS

Collection of black automotive speakers arranged on a wooden floor, no visible text or symbols

Speakers PROPRIETARY

PROPRIETARY ROCKFORD TECHNOLOGY

When you make a product purchase that bears the Rockford Fosgate name, you are receiving the technology, engineering, and innovation that has taken over three decades to hone. Our constant desire to push the performance envelope has lead us to develop proprietary amplifier topologies and acoustic/electrical technologies that put a spin on the normal and make it Rockford.

25% NOV CONE AREN

VERTICAL ATTACH SURROUND TECHNIQUE

Rockford's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing) which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.

Products Featuring VAST

Technical diagram of a mechanical component with rotational arrows and a close-up inset showing internal structure (no text or symbols)

FLEX FIT

The slot mounted frame pattern of the Flex Fit basket utilizes slots (where feasible) instead of single screw sized holes. This allows slight adjustment of the speaker when mounted.

Products Featuring FLEX FIT

RF LINK

Rockford's proprietary RF Link is a bus-power component connection system enabling integration and control of all RF Link equipped products. The use of this systems allows for the expansion of auxiliary controls and managed system turn on.

Products Featuring RFLINK

Technical illustration of a mechanical assembly with gears and shafts (no text or symbols)

Illustration of a stylized brown object with a rainbow-colored background (no text or symbols)

Close-up of a mechanical component with red and black parts, no visible text or symbols

Loudspeaker Standard CEA- CEA-2031 Compliant

VERIFIED WITH KLIPPEL

DDC

DISCREET DUAL CLAMP

Rockford's proprietary tweeter mounting design provides concentric clamping pressure around the perimeter of the mounting hole, utilizing a single center screw. This applies balanced pressure to both faces of the mounting surface. From there, the tweeter simply snaps into place and is finished with a snap on trim ring.

Products Featuring DDC

INDUCTIVE DAMPING HEAT SINK

Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-magnetic force). Also radiates heat to reduce voice coil temperature.

Products Featuring IDHS

INTEGRATED CONCEALED CROSSOVER

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.

Products Featuring IC

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling that over time can damage voice coils.

Products Compliant with CEA-2031

VERIFIED WITH KLIPPEL

To adorn the 'Verified with Klippel' mark, the qualifying company's loudspeaker engineering personnel must be trained and certified by Klippel prior to using the three separate Klippel systems to design, develop and test.

- Klippel DA-2 (Designed)

• Klippel PM-8 (Developed)

- Klippel QC (Tested)

Products Verified with KLIPPEL

SPEAKER PERFORMANCE LINEUP

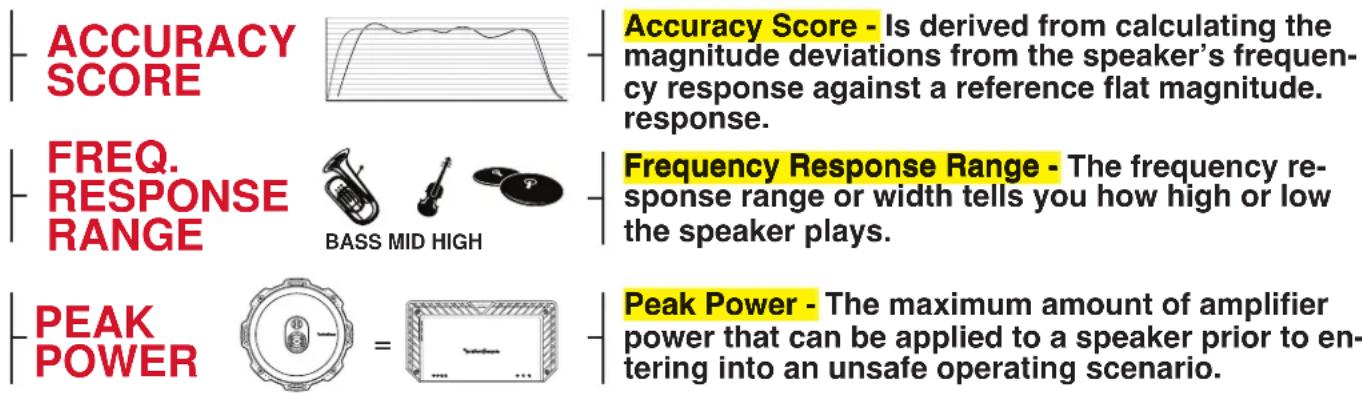

ACCURACY SCORE FREQ. RESPONSE RANGE PEAK POWER Accuracy Score - Is derived from calculating the magnitude deviations from the speaker's frequency response against a reference flat magnitude. response. Frequency Response Range - The frequency re- sponse range or width tells you how high or low the speaker plays. Peak Power - The maximum amount of amplifier power that can be applied to a speaker prior to en- tering into an unsafe operating scenario.

FRAMEWORK

OF A SPEAKER

Modifications to the framework of a speaker significantly impact their sonic signature. Combining various materials will strengthen, add volume and resonate the music to a desired sound. By intertwining superior speaker designs with Rockford's proprietary acoustic technologies in our speaker lineup we are sure to bring your music to life.

SURROUND TWEETER CROSSOVER CONE VOICE COIL BASKET MAGNET

Tweeter - Composed of the same parts as an speaker, surround, cone, voice coil, basket and magnet. Just on a smaller scale.

Cone - A.K.A the diaphragm, this is the voice of the speaker. Shape and material dramatically change tonality.

Crossover - Works like a switch board, directing the audio signal through caps, filters and switches to the appropriate speaker.

Basket - Also referred to as the frame or chassis, this is the skeletal system of the speaker. Here to keep everything in their place.

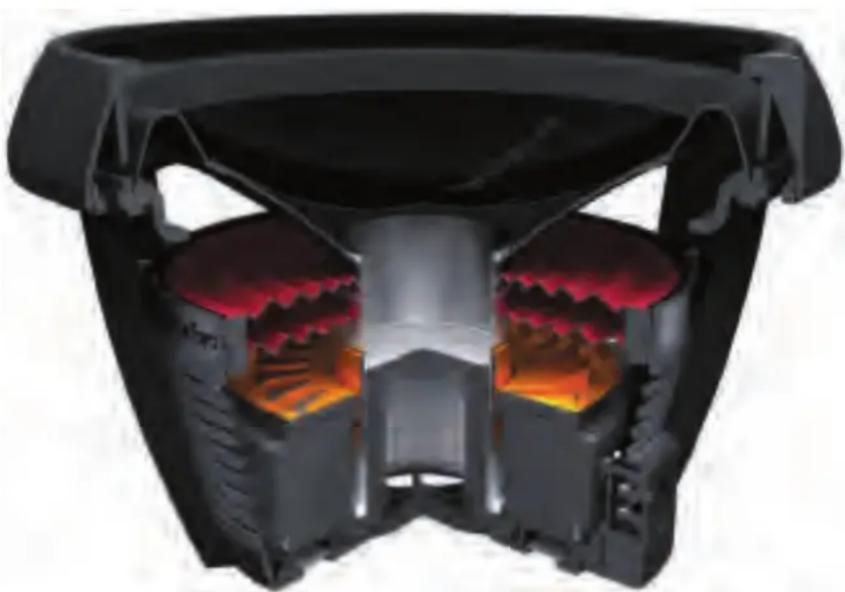

Surround - Works in harmony with the spider, attached to the cone to maintain the centering of the voice coil in the magnetic gap.

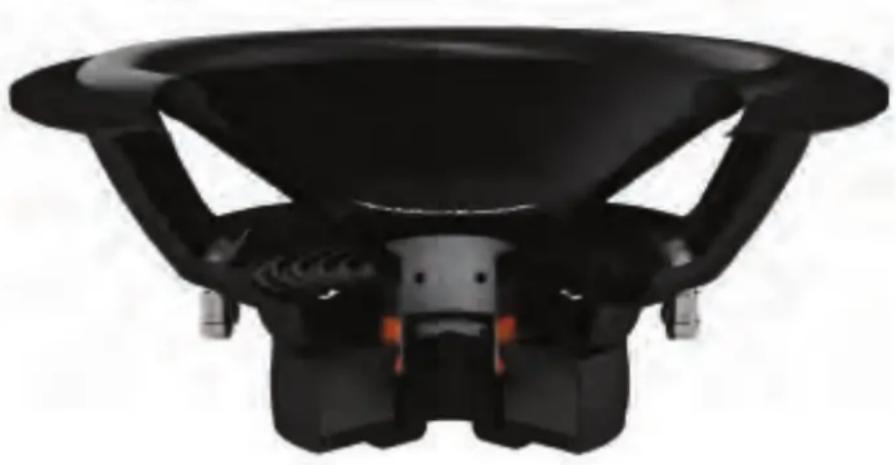

Magnet - The heart of speaker, creating the force to push and pull cone assembly. Size, material, and design may differ, depending on performance goals.

BEST GOOD

TWEETER

• Liquid Crystal Polymer Fiber
- Aluminum Dome
• Treated Fabric Dome
- Plated Polyether Imide (PEI) Dome
• Mylar Balanced Dome

CROSSOVER

• RFLink™ Equipped External Component Crossover w/ 1% Mil-Spec Parts
  • External Component Cross-over w/ 5% (Tol) Parts
• ICC™ Component Crossover w/ 5% (Tol) Parts
• ICC™ Component Crossover w/ 10% (Tol) Parts
• Integrated High-Pass Cross-over

SURROUND

• Butyl rubber w/ VAST™
  • Nitrile Butadiene Rubber w/VAST™
  • Nitrile Butadiene Rubber
  • W-Style, Treated Cloth
• SPE Foam

	1"(25mm) Liquid Crystal Polymer Fiber Ring Radiator Dome, Dual Neodymium Magnets w/ IDHSTM Low Resonant Chamber and DDCTM ★★★★★★
	RFLinkTM Equipped External Component Crossover w/ 1% Mil-Spec Parts and In-elligent Protection w/ Integrated/Remote Tuning Module ★★★★★★
	Butyl Rubber w/ VASTTM ★★★★★★
	Tri-laminate Liquid Crystal Polymer Fiber w/ Machined ★★★★★★ Copperphase Plug
	Die-Cast Aluminum w/ FlexFitTM ★★★★★★
	Multi-PoleTM Dual Neodymium Magnet w/ IDHSTM ★★★★★★

	1"(25mm) Liquid Crystal Polymer FiberDome w/ NeodymiumMagnet and DDCTM	★★★★
	External Audiophile Grade ComponentCrossover w/ 5% (Tol) Parts	★★★★
	Butyl Rubber w/ VASTTM	★★★★★
	Woven Liquid CrystalPolymer Fiber	★★★★★
	Die-Cast Aluminumw/ FlexFitTM	★★★★★
	Neodymium Magnetw/ IDHSTM	★★★★

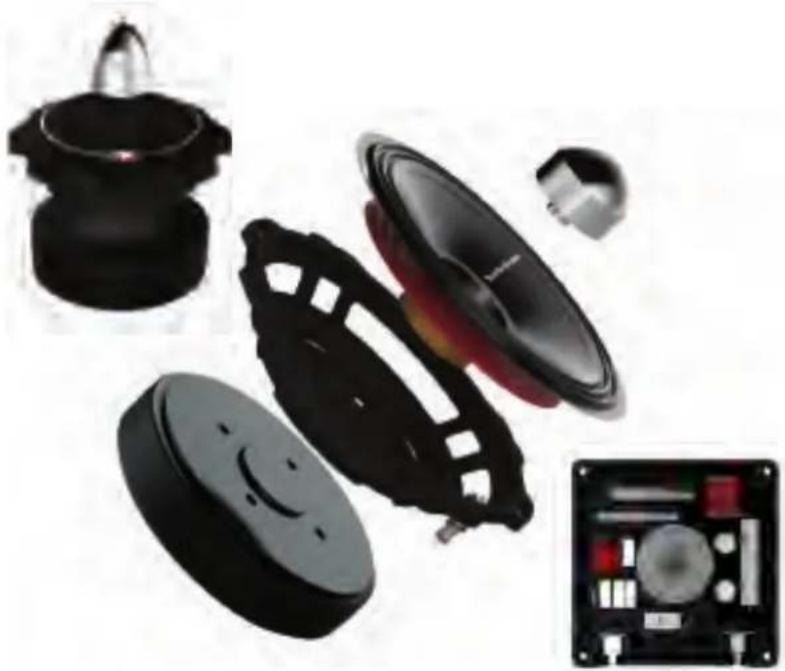

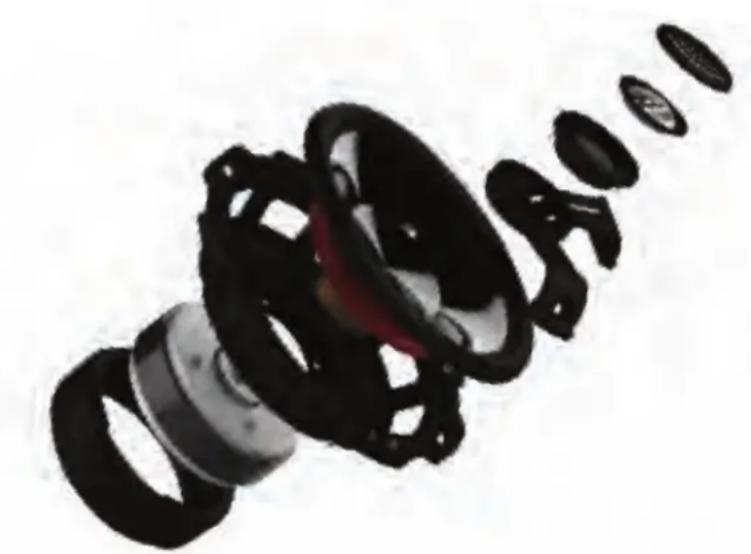

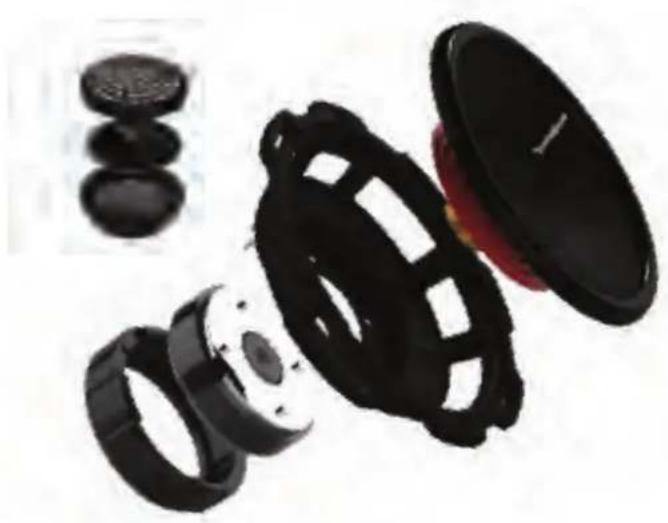

Exploded view of various electronic components including speaker, motor, and display unit (no text or symbols visible)

Black spiral speaker component with red lens, shown alongside an inset image of its internal components (no text or symbols visible)

CONE

• Liquid Crystal Polymer Fiber
- Injection Molded Polypropylene-carbon Fiber Blend
• Injection Molded Mineral Filled Polypropylene
• Vacuum Formed Polypropylene
• Fiber Reinforced Paper

BASKET

• Die-Cast Aluminum w/ Flex-Fit™
- StampCast™ w/ FlexFit™
- Stamped Steel

MAGNET

• Multi-pole™ Dual Neodymium Magnet w/ IDHS™
- Neodymium Magnet w/ IDHS™
- Single Ferrite Magnet

	1"(25mm) Aluminum Dome w/ Neodymium Motor and DDCTM ★★★★
	External Audiophile Grade Component Crossover w/ 5% (Tol) Parts ★★★★
	Butyl Rubber w/ VASTTM ★★★★★
	Injection Molded Polypropylene-Carbon Fiber Blend w/ Machined Aluminum Phase Plug ★★★★
	StampCastTM w/ FlexFitTM ★★★★
	Single Ferrite Magnet ★★★

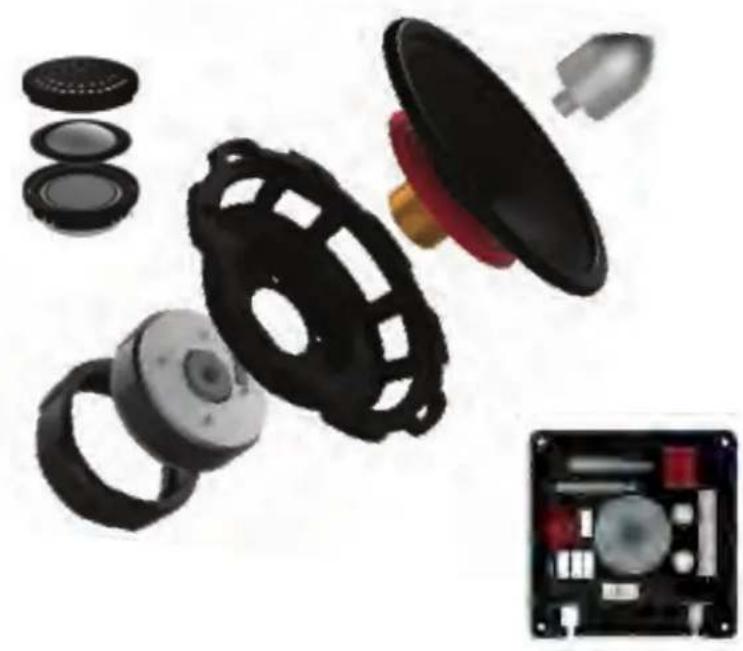

Exploded view of a mechanical assembly showing disassembled components including speaker, ring, and motor parts (no text or symbols visible)

	1"(25mm) Treated Fabric Dome w/ Neodymium Motor and DDCTM ★★★★
	External Audiophile Grade Component Crossover w/ 5% (Tol) Parts ★★★★★
	Butyl Rubber w/ VASTTM ★★★★★★
	Injection Molded Polypropylene-Carbon Fiber Blend ★★★★★
	StampCastTM w/ FlexFitTM ★★★★★
	Single Ferrite Magnet ★★★

Exploded view of a speaker with multiple earthen blades and a close-up of the internal components (no text or symbols visible)

BEST GOOD

TWEETER

• Liquid Crystal Polymer Fiber
- Aluminum Dome
• Treated Fabric Dome
- Plated Polyether Imide (PEI) Dome
• Mylar Balanced Dome

CROSSOVER

• RFLink™ Equipped External Component Crossover w/ 1% Mil-Spec Parts
  • External Component Cross-over w/ 5% (Tol) Parts
• ICC™ Component Crossover w/ 5% (Tol) Parts
• ICC™ Component Crossover w/ 10% (Tol) Parts
• Integrated High-Pass Cross-over

SURROUND

• Butyl rubber w/ VAST™
  • Nitrile Butadiene Rubber w/ VAST™
  • Nitrile Butadiene Rubber
  • W-Style, Treated Cloth
• SPE Foam

	1"(25mm) Plated Polyether Imide (PEI) Dome w/ Neodymium Motor and DDCTM	★★
	ICCTM Component Crossover w/ 10% (Tol) Parts	★★
	Nitrile Butadiene Rubber w/ VASTTM	★★★★
	Injection Molded Mineral Filled Polypropylene	★★★
	StampCastTM w/ FlexFitTM	★★★★
	Single Ferrite Magnet	★★★

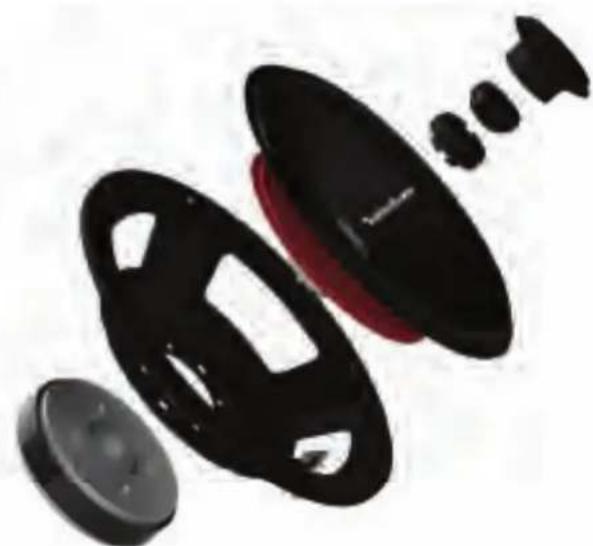

Exploded view of a mechanical component with cutaway views showing internal structure (no text or symbols)

	1"(25mm) Mylar Balanced Dome	★
	Integrated High-Pass Crossover	★
	SPE Foam	★
	Vacuum Formed Polypropylene	★★
	Stamped Steel	★★★
	Single Ferrite Magnet	★★★

Exploded view of a black and white mechanical component with multiple circular cutouts (no text or symbols visible)

CONE

• Liquid Crystal Polymer Fiber
- Injection Molded Polypropylene-carbon Fiber Blend
• Injection Molded Mineral Filled Polypropylene
• Vacuum Formed Polypropylene
• Fiber Reinforced Paper

BASKET

• Die-Cast Aluminum w/ Flex-Fit™
- StampCast™ w/ FlexFit™
- Stamped Steel

MAGNET

• Multi-pole™ Dual Neodymium Magnet w/ IDHS™
- Neodymium Magnet w/ IDHS™
- Single Ferrite Magnet

	1"(25mm) Aluminum Dome w/ Neodymium Motor ★★★★
	ICC^TM Component Crossover w/ 5% (Tol) Parts ★★★★
	Butyl Rubber w/ VAST^TM ★★★★★
	Injection Molded Polypropylene-Carbon Fiber Blend ★★★★
	StampCast^TM w/ FlexFit^TM ★★★★
	Single Ferrite Magnet ★★★

Exploded view of a speaker into a multi-ring microphone (no text or symbols visible)

	1"(25mm) Plated Polyether Imide (PEI) Dome w/ Neodymium Motor and DDCTM	★★
	ICC ^TM w/ 10% (Tol) Parts	★★
	Nitrile Butadiene Rubber w/ VAST ^TM	★★★★★
	Injection Molded Mineral Filled Polypropylene	★★★★★
	StampCast ^TM w/ FlexFit ^TM	★★★★★
	Single Ferrite Magnet	★★★

Exploded view of a black and white electronic device showing internal components (no text or symbols visible)

BEST GOOD

TWEETER

• Liquid Crystal Polymer Fiber
- Aluminum Dome
• Treated Fabric Dome
- Plated Polyether Imide (PEI) Dome
• Mylar Balanced Dome

CROSSOVER

• RFLink™ Equipped External Component Crossover w/ 1% Mil-Spec Parts
  • External Component Cross-over w/ 5% (Tol) Parts
• ICC™ Component Crossover w/ 5% (Tol) Parts
• ICC™ Component Crossover w/ 10% (Tol) Parts
• Integrated High-Pass Cross-over

SURROUND

• Butyl rubber w/ VAST™
  • Nitrile Butadiene Rubber w/VAST™
  • Nitrile Butadiene Rubber
  • W-Style, Treated Cloth
• SPE Foam

	1/2"(13mm) Embedded Phase Coherent Mylar Balanced Dome	★
	Integrated High-Pass Crossover	★
	Nitrile Butadiene Rubber	★★★
	Vacuum Formed Polypropylene	★★
	Stamped Steel	★★★
	Single Ferrite Magnet	★★★

Exploded view of a mechanical component with multiple black and red parts (no text or symbols visible)

	1.5"(38mm) Horn Design	★★★★
	External Audiophile Grade ComponentCrossover w/ 5% (Tol) Parts	★★★★
	W-Style, Treated Cloth	★★★
	Fiber Reinforced Paper w/ MachinedAluminum Phase Plug	★
	StampCastTM w/ FlexFitTM	★★★★
	Single Ferrite Magnet	★★★

Disassembled black speaker parts and a close-up of the internal components (no text or symbols visible)

CONE

• Liquid Crystal Polymer Fiber
- Injection Molded Polypropylene-carbon Fiber Blend
• Injection Molded Mineral Filled Polypropylene
• Vacuum Formed Polypropylene
• Fiber Reinforced Paper

BASKET

• Die-Cast Aluminum w/ Flex-Fit™
- StampCast™ w/ FlexFit™
- Stamped Steel

MAGNET

• Multi-pole™ Dual Neodymium Magnet w/ IDHS™
- Neodymium Magnet w/ IDHS™
- Single Ferrite Magnet

SPEAKER SPECIFICATIONS

Speaker Size	Tri-luminae Liquid Crystal
Tweeter Size	Polypropylene-w/ m-chined copper phase plug
RMS Power Handling (watts)	Woven Liquid Crystal
Peak Power Handling (watts)	Fulgen molded poly-cotton linear fiber w/woven fiber
Frequency Response	Polypropylene-carbon fiber blend w/machined aluminum phase plug
Sensitivity (1W/1M)	Aluminum dome w/megral suspension & tuned chamber
Surround Material	Spider
Frame Structure	PorexFitTM with Flex-iftTM
Speaker Size	Tri-luminae Liquid Crystal
Tweeter Size	Polypropylene-w/ m-chined copper phase plug
RMS Power Handling (watts)	Woven Liquid Crystal
Peak Power Handling (watts)	Polypropylene-carbon fiber blend w/machined aluminum phase plug
Frequency Response	Aluminum dome w/megral suspension & tuned chamber
Sensitivity (1W/1M)	Aluminum dome w/megral suspension & tuned chamber
Surround Material	Spider
Frame Structure	PorexFitTM with Flex-iftTM

Motor Structure	Motor Cover	Tweeler	Crossover	Terminal Connectors	Accessories
Multi-poleTM dual neodymium magnet w/ IDHSTM		1"(25mm) Liquid Crystal Polymer Fiber ring radiator dome, dual neodymium magnets w/ IDHSTM, low resonant chamber and DDCTM	Single chassis stereo w/ audiophile 1% mil-spec components and dual micro-controller for intelligent protection w/ integrated/remote tuning module and RFLinkTM equipped	3-way connection terminal Cat 5	remote extension cable, grilles and mounting hardware
Neodymium magnet w/ IDHSTM		1"(25mm) Liquid Crystal Polymer FiberTM dome w/ neodymium magnet and DDCTM	External audiophile grade component crossover w/ 5% (Tol) parts	3-way connection terminal Grilles	and mounting hardware
Ferrite magnet structure Removable Semi-flexible Polyvinyl Chloride		1"(25mm) aluminum dome w/ neodymium motor and DDCTM	External audiophile grade component crossover w/ 5% (Tol) parts	Unified tab Multi-OEMTM adaptor plates, grilles and mounting hardware
Neodymium				18 Ga. Pigtail	Flush w/ DDCTM surface and angle mounting hardware
Ferrite magnet structure Removable Semi-flexible Polyvinyl Chloride		1"(25mm) treated fabric dome w/ neodymium motor and DDCTM	External audiophile grade component crossover w/ 5% (Tol) parts	Unified tab Multi-OEMTM adaptor plates, grilles and mounting hardware
Neodymium			External audiophile grade component crossover w/ 5% (Tol) parts	18 Ga. Pigtail	Flush w/ DDCTM surface and angle mounting hardware
Ferrite magnet structure Removable Semi-flexible Polyvinyl Chloride		1"(25mm) aluminum dome w/ neodymium motor and DDCTM	ICCTM component crossover with 5% (Tol) parts	Unified tab Multi-OEMTM adaptor plates, grilles and mounting hardware
Ferrite magnet structure Removable Semi-flexible Polyvinyl Chloride		1"(25mm) plated Polyether Imide (PEI) dome w/ neodymium motor and DDCTM	ICCTM component crossover with 10% (Tol) parts	Unified tab Multi-OEMTM adaptor plates, grilles and mounting hardware
Neodymium			External component crossover w/ 10% (Tol) parts	18 Ga. Pigtail	Flush w/ DDCTM surface and angle mounting hardware
Ferrite magnet structure Removable Semi-flexible Polyvinyl Chloride		3/4"(20mm) pole mounted plated Polyether imide (PEI) dome w/ neodymium motor	ICCTM with 10% (Tol) parts	Unified tab Multi-OEMTM adaptor plates, grilles and mounting hardware
Ferrite magnet structure	Removable Semi-flexible PVC	N/A	ICCTM with 10% (Tol) parts	12 Ga. compression style	Grilles and mounting hardware

Speaker Size

Tweeter Size

RMS Power Handling (watts)

Peak Power Handling (watts)

Frequency Response

Sensitivity (1W/1M)

Sensitivity (2.33V/1M)

Mounting Depth

Surround Material

Cone Material

Spider

Frame Structure

PPS4-10

10.0" N/A

350 watts

700 watts 40Hz-3kHz 95dB

98dB 4.17"

W-Style, Treated Cloth

Fiber reinforced paper w/ machined aluminum phase plug

Fatigue resistant polycotton linear spider w/ woven load wire

StampCastTM with Flex-fitTM

PPS8-10

10.0" N/A

350 watts

700 watts 40Hz-3kHz 95dB

98dB 4.17"

PP4-T

N/A 1.5"

50 watts

100 watts 3kHz-20kHz 103dB

106dB 2.59"

N/A

N/A

N/A

Die-cast aluminum with FlexFitTM

PP8-T

N/A 1.5"

50 watts

100 watts 3kHz-20kHz 103dB

106dB 2.59"

R152-S

5.25" 1"

40 watts

30 watts 58Hz-20kHz

85dB 88dB 1.91"

SPE Foam

Vacuum formed PP

Fatigue resistant spider

Stamped steel

R16-S

6.0"

1" 40 watts

80 watts 60Hz-20kHz

89dB 92dB 1.97"

R165-S

6.5"

1" 40 watts

80 watts 60Hz-20kHz

89dB 92dB 1.97"

R1675-S

6.75" 1"

40 watts

80 watts 55Hz-20kHz

89dB 92dB 2.00"

R1T-S

N/A 1" 40 watts

80 watts

2.5kHz-22kHz 72.5dB

75.5dB *0.76"

Mylar balanced dome

R14X2

4"

0.5" 30 watts

60 watts

100Hz-20kHz

85dB 88dB 1.72"

Nitrile Butadiene Rubber

Vacuum formed Polypropylene

Fatigue resistant spider

Stamped steel

R1525X2

5.25" 0.5"

40 watts

80 watts 62Hz-20kHz

88dB 91dB 1.93"

R165X3

6.5"

0.5" 45 watts

90 watts

52Hz-20kHz

91dB 94dB 2.15"

R1675X2

6.75" 0.5"

45 watts

90 watts

52Hz-20kHz

91dB 94dB 2.19"

R168X2

6"x8" 0.5"

55 watts

110 watts

51Hz-20kHz

87dB 91dB 2.54"

R169X2

6"x9" 0.5"

65 watts

130 watts

48Hz-20kHz

90dB 93dB 2.85"

R169X3

6"x9" 0.5"

65 watts

130 watts

47Hz-20kHz

90dB 93dB 2.85"

Motor Structure	Motor Cover	Tweeler	Crossover	Terminal Connectors	Accessories
Ferrite magnet structure	Removable Semi-flexible PVC	N/A	ICC^TM with 10% (Tol) parts	12 Ga. compression style	Grilles and mounting hardware
Ferrite magnet structure	N/A	1.5"(38mm) horn design	ICC^TM with 10% (Tol) parts	12 Ga. compression style	Mounting hardware
Ferrite magnet structure	N/A	1"(25mm) mylar balanced dome	Integrated high-pass crossover	Standard spade connector	Grilles and mounting hardware
				18 Ga. Pigtail	Flush, surface and angle mounting hardware
Ferrite magnet structure N/A	1/2"(13mm) Embedded Phase Coherent mylar balanced dome		Integrated high-pass crossover	Standard spade connector	Grilles and mounting hardware

*Flush Mount

MARINE

MARINE

AMPLIFIERS

BRING YOUR SYSTEM TO LIFE & CRANK IT

SUBWOOFERS

MAKE WAVES WITH HUGE BASS, ANY PLACE

SPEAKERS

ROCKING THE LATEST SINGLE NOT MOTOR DRONE

SOURCE UNITS

MP3, CD, OR MOBILE DEVICE...PLUG-IN & GO

Exterior view of various electronic devices and fans on a wooden dock, with ocean and railings in the background (no visible text or symbols)

MARINE

Tobacco

AMPLIFIERS SUBWOOFERS

Exterior view of a plastic bucket with black interior and side compartments (no text or symbols visible)

750WATTS 1200WATTS

400WATTS 600WATTS

SINGLE 4Ω

OPTIONAL COLOR SUBS | SPEAKERS | WAKE TOWER ENCLOSURE

Close-up of a black and white mechanical component with a circular top (no visible text or symbols)

SPEAKERS

Close-up of a metallic microphone grille with mesh grille (no visible text or symbols)

2WAY

6.5 Inch

8.0 Inch

QUICK

DISCONNECT

SOURCE UNITS

RFX9700CD mp3 Made for iPod COMPACT DISC S2™ (<

RFX5000 Made for iPod ((SiriusXM)) INTERNATIONAL Bluetooth™



Interior view from a car cockpit showing a pilot silhouette against a clear blue sky, with desert landscape visible in the background (no text or symbols)


RFXMR7 RFXMR6 RFXMR8 RFXMR5BB

REMOTES ACCESSORIES  RFX30 RFX33SD

Simple icon of a headset inside a circle (no text or symbols)

RFXBT

Exterior view of a modern office building (no signage)

Marine PROPRIETARY

PROPRIETARY

ROCKFORD TECHNOLOGY

When you make a product purchase that bears the Rockford Fosgate name, you are receiving the technology, engineering, and innovation that has taken over three decades to hone. Our constant desire to push the performance envelope has lead us to develop proprietary amplifier topologies and acoustic/electrical technologies that put a spin on the normal and make it Rockford.

M2

MARINE GRADE

ASTM

INTERNATIONAL Standards Worldwide

Loudspeaker Standard CEA- CEA-2031 Compliant


Amplifier Power Standard CEA CEA-2006 Compliant

M2 MARINE GRADE

Rockford's M2 marine grade standard takes into account the devastating effects of the outdoor environment and takes extreme measures to ensure optimum performance. - 100% UV stable CENTREX® injection molded plastic • Corrosion resistant gold plated polarized terminals - Injection molded polypropylene cone with UV inhibitors - Internal full magnetic shielding • Stainless steel grilles and mounting hardware - UV and salt fog resistant thermo-plastic elastomer surround

ASTM B117 - SALT/FOG &

D4329 - UV TEST STANDARDS

ASTM B117 salt/fog test standard provides accelerated aging in a controlled corrosive environment to produce relative corrosion resistance information for specimens of metals and coated metals. ASTM D4329 test standard is intended to induce property changes associated with end-use conditions, including the effects of sunlight, moisture, and heat.

CEA-2031

Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has the capacity to handle power under continuous demand, not instantaneous power handling that over time can damage voice coils.

CEA-2006

Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.

25% OFF ONION


VERTICAL ATTACH SURROUND TECHNIQUE

U.S. Patent (Patent Pending) Rockford's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective radiating cone area without complicated installation issues. This design alters the typical design and manufacturing technique by eliminating the large flat glue surface area (the landing) which allows the surround to be shifted for increased cone area. In turn, both nominal efficiency and maximum output capabilities are dramatically improved.

Diagram of a mechanical component with rotational arrows and a close-up inset showing internal structure (no text or symbols)


FLEX FIT

The slot mounted frame pattern of the Flex Fit basket utilizes slots (where feasible) instead of single screw sized holes. This allows slight adjustment of the speaker when mounted.

Close-up of a refrigerator interior with visible door and backrest (no text or symbols)


INTEGRATED CONCEALED CROSSOVER

The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.

	Rated Power	Frequency Response	THD-N @ Rated Power	Input Sensitivity	S/N Ratio	Channel Separation	Dimensions	Topology	Circuit Board	Variable Crossover
M400-4D	75x4 @ 4 ohms100x4 @ 2 ohms200x2 @ 4 ohms bridged	20Hz - 20kHz <0.1	% 150mV - 5V	>90dB >50dB H	2.0" x W 6.8"	x L 9.1" Full Range Class d Conformal coated 4			layer 2 oz. copper circuit board	12 dB/oct - variable High or Low Pass and All Pass
M600-4D	100x4 @ 4 ohms150x4 @ 2 ohms300x2 @ 4 ohms bridged	20Hz - 20kHz <0.1	% 150mV - 5V	>90dB >50dB H	2.0" x W 6.8"	x L 11.1"
M750-1D	250x1 @ 4 ohms500x1 @ 2 ohms750x1 @ 1 ohm	20Hz - 250Hz <0.8	% 150mV - 5V	>100dB N/A H 2	2.0" x W 6.8"	x L 9.1" Class d Conformal coated 4			layer 2 oz. copper circuit board	12 dB/oct - variable Low Pass
M1200-1D	400x1 @ 4 ohms800x1 @ 2 ohms1200x1 @ 1 ohm	20Hz - 250Hz <0.8	% 150mV - 5V	>100dB N/A H 2	2.0" x W 6.8"	x L 11.1"

Speaker Size

Nominal Impedance

Xmax (mm)

Sensitivity

RMS Power Handling (watts)

Peak Power Handling (watts)

Mounting Diameter

Mounting Depth

Speaker Displacement (cu. ft.)

Sealed Enclosure (cu. ft.)

Ported Enclosure

*Surround Material

Dusicap Material

M210S4/M210S4B

10"

Single 4 Ω

10

86 dB

250

500

9.13"

5.54"

0.154

0.75"

1.25 cu ft. Port: (1) 4"x8.52"*Infinite Baffle compatible

Tall profile, SantopreneTM with VASTTM

Injection molded Polypropylene

M212S4/M212S4B

12"

Single 4 Ω

12

87 dB

300

600

11.25"

6.58"

0.258

1.00"

1.50 cu ft. Port: (1) 3"x5.7 4"*Infinite Baffle compatible

Speaker Size

Tweeter Size

RMS Power Handling (watts)

Peak Power Handling (watts)

Frequency Response

Sensitivity (1W/1M)

Sensitivity (2.63V/1M)

Mounting Depth

Surround Material

Cone Material

Spider

Frame Structure

M262/M262B

6.5" 1" 75 watts

150 watts

53 Hz-22kHz

88dB 91dB 2.80 ^

Ultraviolet & salt-fog resistantThermo-Plastic Elastomer

Injection molded, parabolic shape mineral filled Polypropylene w/ UV inhibitors

Moisture, tear and fatigue resistant aramid fiber spider

Injection molded 100% UV stable Cantrex® w/ Flex-fitTM

M282/M282B

8"

1" 100 watts

200 watts

48Hz-22kHz

90dB 93dB 3.42 ^*

	Speaker Model	Nominal Impedance	RMS Power Handling	Peak Power Handling Dimensions (HxWxD)
M262-WAKE/M262B-WAKE	(1pair) M262 or M262B	4 Ω	75 Watts	150 Watts	10.96^ × 7.03^ × 11.26^
M282-WAKE/M282B-WAKE	(1pair) M282 or M282B	4 Ω	100 Watts	200 Watts	13.25^ × 9.06^ × 13.09^

Impedance Stability	Protection	Status Indicators	Heatsink Design	RCA Inputs	Power Terminals	Speaker Terminals	Additional Features
2 ohm stereo / 4 ohm mono rated	• Short Circuit• Thermal	LED Power and Protection indicators	Focused mass die-cast heatsink RCA	input and RCA pass thru 4 Ga. set-screw connector		10 Ga. set-screw connector	Punch EQ variable from 0dB to +18dB @ 45Hz
1 ohm mono rated • Short Circuit• Thermal		LED Power and Protection Indicators	Focused mass die-cast heatsink RCA	input and RCA pass thru 4 Ga. set-screw connector		10 Ga. set-screw connector	Punch EQ variable from 0dB to +18dB @ 45Hz with optional PEQ level control and infrasonic filter

Cone Material	Voice Coil	Spider	Frame Structure	Motor Structure	Motor Cover	Terminal Connectors	Trim Ring
Injection molded Polypropylene	2" 4-layer high temp. aluminum voice coil with spun-laced NomexTM insulating reinforcement collar	Tear & fatigue resistant NomexTM blend spider with multipoint stitched lead wire technique.	CentrexTM	Shielded ferrite magnet structure with extended vented pole and bumped backplate.	Sealed CentrexTM motor cover	Proprietary gold plated compression terminal. 8 Ga.	Water draining CentrextM trim ring with integrated stainless steel grille

Motor Structure	Motor Cover	Tweeter	Crossover	Terminal Connectors	Accessories
Ferrite magnet structure	Injection molded 100% Ultraviolet stable Centrex®	1" (25mm) bridge mounted coated aluminum alloy dome tweeter	ICCTM component crossover with 10% (Tol) parts	Corrosion resistant gold plated polarized input terminals w/ a spare terminal set for optional additional tweeters	Removable Centrex® trim ring w/ 18 gauge corrosion resistant integrated/removable stainless steel grille and mounting hardware

	Description	Features	Dimensions
RFX9700CD	Flip down AM/FM Stereo CD Player 40 watts x 4	AM/FM Tuner, Disc Player, MP3, SiriusXM Ready, Made for iPod, USB Input, SD card	DIN size chassis with 1.5 DIN face
RFX9900DM	Digital Media Receiver 40 watts x 4	AM/FM Tuner, MP3, SiriusXM Ready, Made for iPod, USB Input, BLUETOOTH	DIN size chassis with 1.8 DIN face
RFX3000	Hide-away box w/ AM/FM Stereo for RFXMR5BB 50 watts x 4	AM/FM Tuner, SiriusXM Ready, iPod Support, USB Input, AUX Input, Video In/Out, Dual Zone, Disc Changer Ready	H 2.50" x W 6.875" x L 8.375"
RFX5000	Hide-away box w/ AM/FM Stereo for RFXMR5BB 50 watts x 4	AM/FM Tuner, SiriusXM Ready, iPod Support, USB Input, AUX Input, Video In/Out, Dual Zone, Disc Changer Ready, BLUETOOTH ready	H 2.50" x W 6.875" x L 8.375"
RFXMR5BB	Waterproof wired remote w/ digital display for RFX3000 & RFX5000	3-Line LCD Display, Full Function Control	H 3.90" x W 6.70" x D 0.70"
RFXMR6	Waterproof wired remote for RFX3000, RFX5000 RFX9700CD & RFX9900DM	Full Function Control	Overall Diameter 2.5" (64mm) (Mounting Diameter 2.2" (55mm), Depth .5" (12.5mm))
RFXMR7	Waterproof wired remote w/ digital display for RFX3000,RFX5000, RFX9700CD & RFX9900DM	Capactive Touch LCD Display, Full Function Control	Overall Diameter 3.5" (90mm) (Mounting Diameter 3" (76mm), Depth 1.1" (29mm))
RFXMR8	Waterproof wired remote w/ digital display for RFX3000,RFX5000, RFX9700CD & RFX9900DM	Full Function Control w/ LCD Display	Overall Diameter 3.5" (90mm) (Mounting Diameter 3" (76mm), Depth 1.1" (29mm))
RFX10	10 foot 5-Pin Mini DIN extension cable for RFXMR5BB		10 FT
RFX16	16 foot 8-Pin DIN extension cable for RFXMR6, RFXMR7, RFXMR8		16 FT
IPODEC	9-Pin mini DIN to 30-Pin Apple connector for use with RFX30 & RFX33SD		6 FT
RFX30	USB and 3.5mm input socket for use with RFX3000 & RFX5000		Overall Diameter 2" (49mm) w/ 6 FT cable (Mounting Diameter 1.5" (37mm), Depth 1.1" (28mm))
RFX33SD	USB, 3.5mm, SD card, iPod input socket for use with RFX5000 & RFX9900DM		Overall Diameter 2" (49mm) w/ 6 FT cable (Mounting Diameter 1.5" (37mm), Depth 1.1" (28mm))
RFXBT	Bluetooth dongle for use with RFX5000		Receiver: 1.08" (27mm) x 2.06" (52mm) x 0.5" (13mm) Cable: 9.33" (237mm)


VEHICLE INTEGRAT

VEHICLE INTEGRAT


READY W Navi Audio Phone Video System KTAR-HD1 92.3 FM 85 90 95 100 105 110 MHz FM News / Talk: Karie & Chuck - KTAR-FM HD

DIGITAL PROCESSORS

ULTIMATE SIGNAL MANAGEMENT

SIGNAL CONVERTERS

HIGH TO LOW...GOOD TO GO

POWERED LOADED

THE QUICK AND EASY SOLUTION FOR BASS

Close-up of two rectangular electronic components with vertical light beams, mounted on a dark panel (no visible text or symbols)

ACCESSORIES

THE LIFE LINE TO ANY SYSTEM

OK ON DO CLEAR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90


5 6 IKL MND 8 9 TUV WXYZ 0 8 - 0


Close-up of a black triangular warning symbol on a row of metallic square buttons (no text or symbols visible)


Max COGS A/C OFF 60 72 80 64 80 60 84 °F

TION

DIGITAL PROCESSORS

PROPRIETARY 3SIXTY TECHNOLOGY

When you make a product purchase that bears the Rockford Fosgate name, you are receiving the technology, engineering, and innovation that has taken over three decades to hone. Our constant desire to push the performance envelope has lead us to develop proprietary amplifier topologies and acoustic/electrical technologies that put a spin on the normal and make it Rockford.

Bluetooth®



BLUETOOTH®

A2DP wireless audio streaming via the included dongle allows you to listen to audio from any BLUETOOTH enabled device.

RF LINK

Rockford's proprietary RF Link is a bus-power component connection system enabling integration and control of all RF Link equipped products. The use of this system allows for the expansion of auxiliary controls and managed system turn on.

FREQUENCY NORMALIZATION OF AUDIO SIGNALS

U.S. Patent (7.778,718,B2) Frequency normalization is achieved by characterizing the frequency response of the audio source based on a reference input signal. This reference input signal is used to establish a reference frequency response, which is stored in memory and used to select equalizer settings. The system restores missing spectral content by summing multiple input signals from the audio source. The system then normalizes the frequency response based on characterizations of the signal by utilizing equalizer settings from memory. 3SIXTY GRAPHIC USER INTERFACE (GUI)

SIXTY® Tralcofrage SIXTY® Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage Tralcofrage TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO2 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO0 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1 TralCO1

3Sixty interactive graphic user interface allows for control of the crossover type, slope, high/low pass filter, the 248 band parametric eq, phase, and time delay. INPUT CHANNEL CONFIGURATOR

Scanned interface panel with Chinese labels and numeric input fields

CHANNEL SUMMING CONFIGURATOR

Close-up of a black electronic device with a vertical indicator and control buttons (no readable text or symbols)

OUTPUT CHANNEL CONFIGURATOR

Scanned image of a device control panel with labeled buttons and display screen showing text and icons

ADJUSTING INPUT GAIN

Close-up of a dark electronic device with multiple vertical bars and indicator lights (no readable text or symbols)

3 SIXTY.3 SIGNAL PROCESSOR

The new 3sixty.3 interactive signal processor is the perfect solution for those customers who want to add aftermarket equipment to their factory source unit, integrate their mobile devices, or have complete control over their audio signal. With features like Bluetooth streaming, selectable crossover types and a USB interface, the versatility is endless.

Black rectangular electronic device with a diamond-shaped logo and ports (no visible text or symbols)

3SIXTY.3

	Input/Output AUX Inputs Input Voltage Output Voltage				AutoTurn-On Remote Dimensions
3SIXTY.3	8 Speaker/RCABalanced/Unbalanced	Stereo/Digital (SPDIF)	2v-24v 8v RMS	Unbalanced/Balanced	6v DC Offset Master or Sub Level/PEQ/ EQPresets/Input	H 1.75" x W 5.125" x L 9.25"

DA2 DIGITAL & ANALOG PRE-AMP


mObridge DIGITAL | ANALOG PRE-AIMFLITER

M1000-M-DA2 The DA2 provides a connection between the MOST system in the vehicle with any aftermarket digital or analog amplifier. Providing 8 channels of RCA analog outputs, a digital Toslink output, and an amplifier turn on/off control. With full retention of the factory controls (volume, balance, fader, and equalizer).

SIGNAL CONVERTERS / POWERED LOADED

BALANCED LINE DRIVER

PictusfordFosgate. 3SIXTY® LINE DRIVER MSC

RF-BLD Rockford's 2 channel Balanced Line Driver improves the performance of any aftermarket or factory radio. Designed to eliminates system noise and compatible with high level (speaker) inputs or low level (RCA) inputs. What happens when your radio isn't equipped with RCA inputs? Rockford offers high (speaker) to low (RCA) level converters in 2 or 4 channel versions. HIGH TO LOW CONVERT

Black electronic device labeled 'RF-HLC4' with three ports, no additional text or symbols visible.

RCA TO SPEAKER WIRE ADAPTER


Coiled black electrical plug with two terminal connectors, no visible text or symbols

Bought an amplifier without high level inputs or looking to adapt speaker wire to an RCA connectors...these adapters allow you to quickly connect speaker wire to female or male RCA ends.

	Input/Output AUX Inputs Input Voltage Output Voltage			AutoTurn-On Remote Dimensions
RF-BLD	2 Speaker/RCA Balanced/Unbalanced	N/A 650	mV-10.5v 11v RMS Unbalanced22v RMS Balanced	6v DC Offset N/A H 1.32" x W 5.90" x L 4.09"
RF-HLC4	4 Speaker/4 RCA N/A Up to 10.5		v Up to 3v N/A N/A H 1" x W 3" x L 3.5"
RF-HLC	2 Speaker/2 RCA N/A Up to 10.5v Up to 3v N/A N/A H 1" x W 1.56" x L 3.5"
RFI2SW	2 Speaker/2 RCA (MALE)	N/A N/A	N/A	N/A N/A N/A"
RFIF2SW	2 Speaker/2 RCA (FEMALE)	N/A N/A	N/A	N/A N/A N/A

PUNCH POWERED LOADED

Punch Powered Loaded enclosures are the quick and easy to install bass solution to upgrade your factory or aftermarket stereo system.

Close-up of three colored cable connectors with a red arrow pointing upward (no text or symbols visible)

With removable power and signal connectors quick connection and disconnection of the Punch bass solution can be made.

VERED ed ck and lution y or tem. Rockford Fasqatio

P300-12

AVAILABLE in 10" or 12" Powered Loaded Solutions


Integrated grille included.


INPUT LEVEL LO REM DC OFFSET HI AUDIO AUTO TURN ON

Three different automatic turn on modes; REM (+12V), DC Offset, and Audio Signal. Speaker Size Rated Power Signal Input Auto Turn-On Remote Dimensions

P300-10	10" 300 watts RMS/600 watts PEAK	Low-Level (RCA) or High-Level (Speaker)	12v REM, 6v DCOffset, Audio Signal	Included Punch Level Control (PLC)	H 13.3" x W 18.38" x L 9.37"
P300-12	12" 300 watts RMS/600 watts PEAK	Low-Level (RCA) or High-Level (Speaker)	12v REM, 6v DCOffset, Audio Signal	Included Punch Level Control (PLC)	H 14.96" x W 20.35" x L 11.5"

RF ACCESSORIES

EXCEEDING THE STANDARD

The American Wire Gauge standard was developed to rationalize selecting wire for a particular purpose. In an electronic environment wire size can have a significant impact on performance. Rockford Fosgate products are designed and engineered to perform at a superior level. It is only fitting that the accessories linking them together perform with the same expectation.

THE AMERICAN WIRE GAUGE STANDARD

The American Wire Gauge standard specifies the exact amount of copper needed to indicate a specific wire diameter or gauge. Rockford Fosgate accessories are all designed and engineered in accordance with the AWG specification.

ANATOMY OF WIRE

The construction of wire is broken out into three elements, strands, clusters and bundles. Varying these combinations will directly change the wire gauge and significantly effect the flexibility of the wire.

WIRE SIZE IMPACTS SYSTEM PERFORMANCE

The smaller the wire gauge (copper content) the greater the resistance which results in a loss in power to your amplifier(s) and speaker(s), thus creating a poor performing audio system!

BETECH

ROCKFORDFOSGATE.COM Don't forget to use our Amp Wire Calculator to optimize output with properly sized wire.  1/0 AWG

Collection of colorful circular and ring-shaped objects with no visible text or symbols

RFK1D - Dual Amp Kit RFK1 - Power Only Kit 4 AWG

Close-up of electronic components including capacitors and connectors (no visible text or symbols)

RFK4D - Dual Amp Kit RFK4X - Complete Kit RFK4i - Power w/ Interconnect Kit RFK4 - Power Only Kit 8 AWG  RFK81 RFK8X - Complete Kit RFK8i - Power w/Interconnect Kit RFK8 - Power Only Kit 10 AWG  RFK10I RFK10i - Power w/ Interconnect Kit RFK10 - Power Only Kit Dual Twisted Pair

Coiled black cable with two connectors, labeled RFIT-20 (no text or symbols on the cable itself)

• Available 3ft - 20ft Length - Y-Adapters Twisted Pair  RFI-20 • Available 3ft - 20ft Length - Y-Adapters Coupler  - Couplers Battery Clamps

Close-up of two electronic connectors with metallic contacts, one gray and one blue, labeled RFDB1 (no text or symbols on the connectors themselves)

RFDB1 - 1/0 AWG +/- Battery Clamp Fuses  RFFU30 • ANL Style 500-100A • MAXI Style 100-50A - AGU Style 60-30A Terminals  RFT1 - Set Screw - 1/0 AWG & 4 AWG • Crimp - 1/0 AWG, 4AWG & 8 AWG • Barrier Spades - 4 AWG & 8 AWG Battery Post Adapters  RFDGM RFDGM - GM Battery Post Adapter RFDGML - GM Battery Post Adapter for Double Stacked Terminals Fuse Holders

Close-up of a black electronic component with two metallic pins (no visible text or symbols)

RFFANL - Inline ANL or MAXI Fuse Holder RFFAGU - Inline AGU Fuse Holder RFFMAXI - Inline MAXI Fuse Holder RFFDAGU - Fused AGU Distribution Block RFD1 - 1/0 AWG Distribution Block RFD4 - 4 AWG Distribution Block 1/0 AWG

Red circular object with concentric rings and a central hole, no visible text or symbols

- Red or Black • 51ft Spool 4 AWG

Two circular electronic components labeled RFW4R and RFW48, shown in black and red respectively (no additional text or symbols visible)

- Red or Black • 100ft Spool 8 AWG  RFW8B - Red or Black • 250ft Spool Speaker Wire  RFWP12 • 12 AWG, 16 AWG, 18 AWG • 250/1000 ft Spool or Packaged Hybrid  RFC10HB RFC10HB - 10 Farad Hybrid Digital Capacitor RFC2D - 2 Farad Hybrid Digital Capacitor Electrolytic  RFC1 RFC1D - 1 Farad Digital Capacitor RFC1 - 1 Farad Capacitor Deadskin

Close-up of a dark, glossy object with a red-orange background and a small circular emblem (no readable text or symbols)

RFDS RFDS - Sound Damping Material 20' square feet
