USER MANUAL S04 TRIANGLE

MANUFACTURE ELECTROACQUSTIQUE

Mode d'emploi & Garantie User's Manual & Warranty

SOMMAIRE / SUMMARY

MODE D'EMPLOI - FRANÇAIS 5

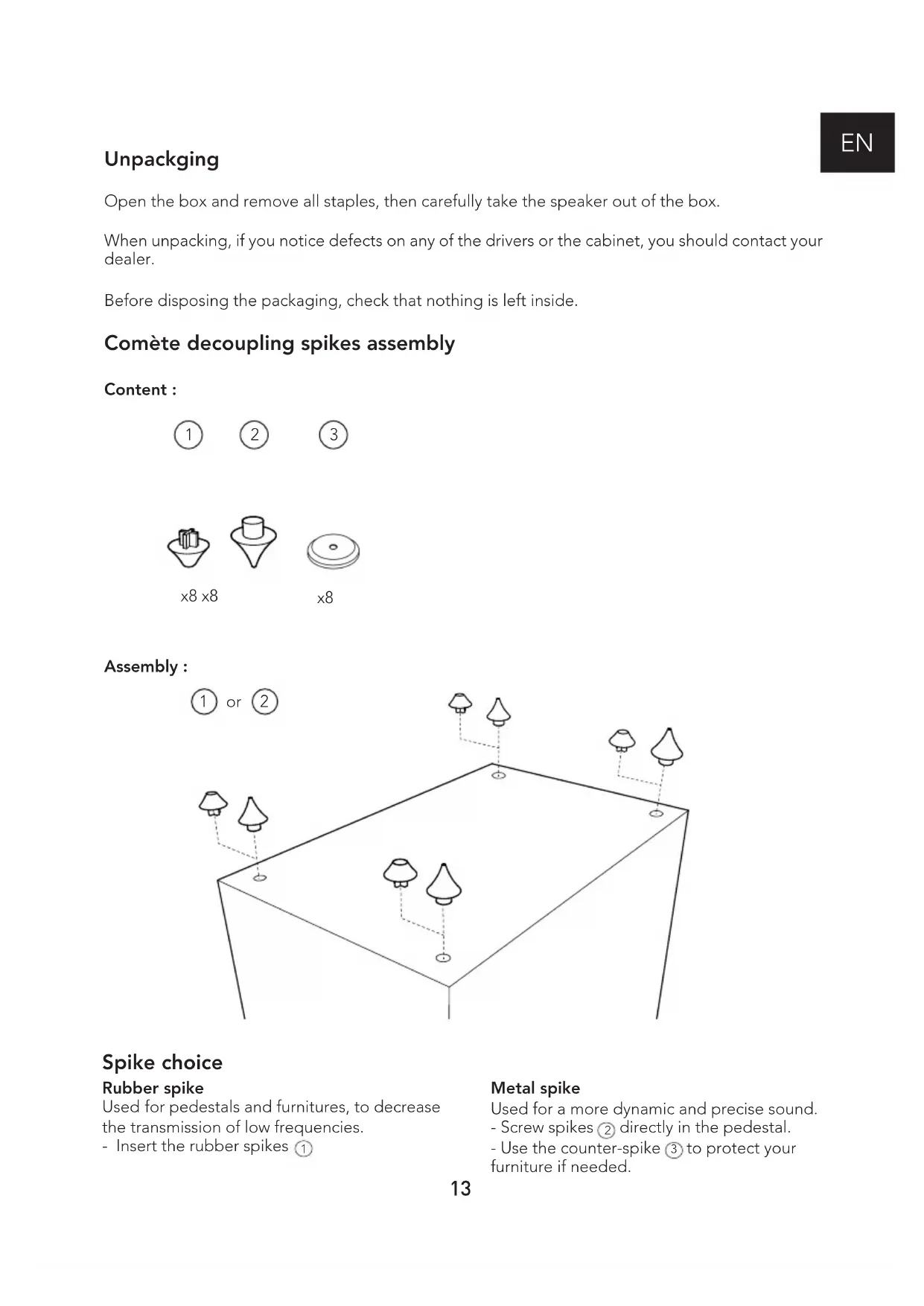

Open the box and remove all staples, then carefully take the speaker out of the box.

When unpacking, if you notice defects on any of the drivers or the cabinet, you should contact your dealer.

Before disposing the packaging, check that nothing is left inside.

Comete decoupling spikes assembly

Content :

x8x8

×8

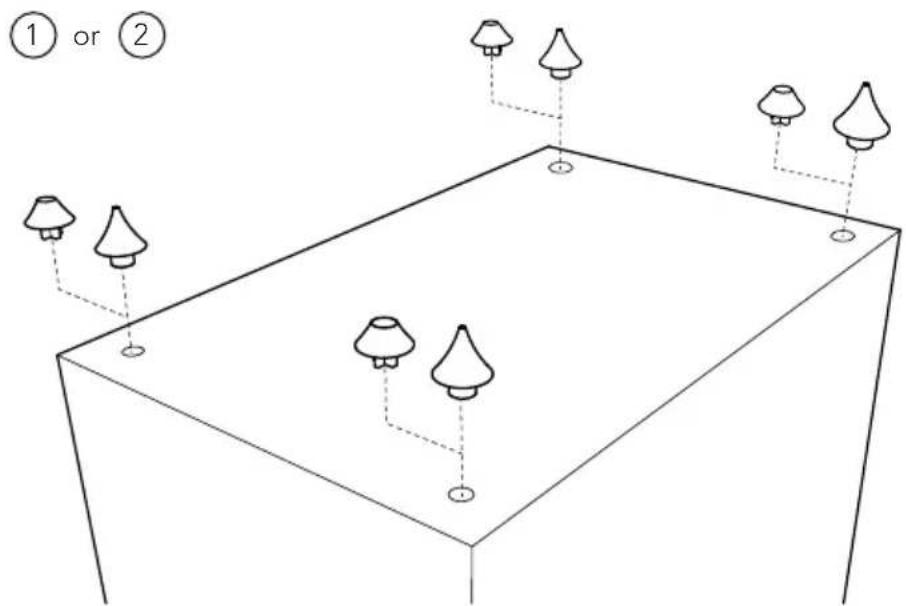

Assembly:

Spike choice

Rubber spike

Used for pedestals and furnitures, to decrease the transmission of low frequencies.

• Insert the rubber spikes ①

Metal spike

Used for a more dynamic and precise sound.

• Screw spikes ② directly in the pedestal.

• Use the counter-spike ③ to protect your furniture if needed.

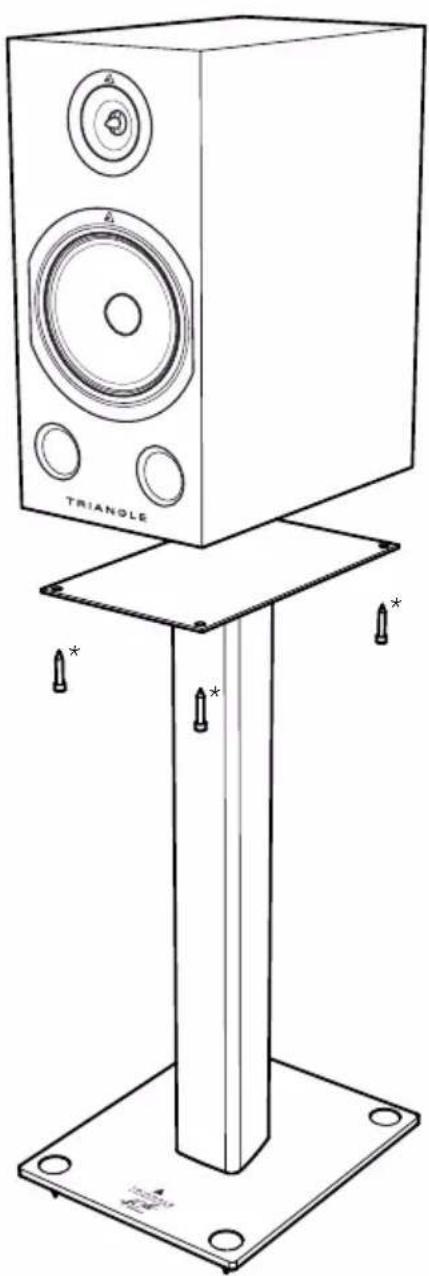

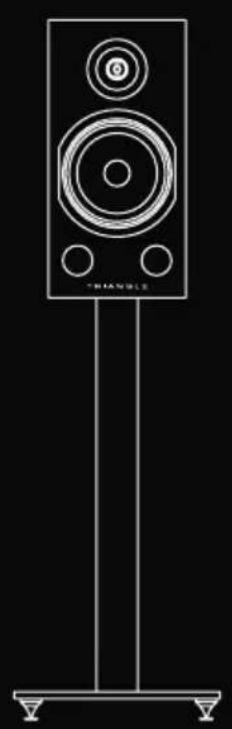

Comete assembly on S04 - 40^th stand

Use the dedicated S04-40^th anniversary stand for optimal ear level position. For more stability, you can fasten the speaker to the stand with the supplied screws.

(* These screws are supplied with the stand)

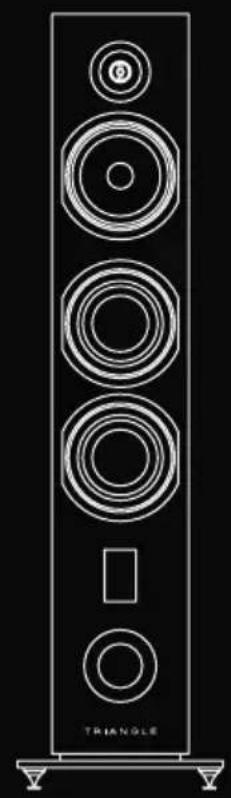

Antal 40^th pedestal assembly

Content :

1

× 4 × 4 × 4 × 4 × 1

6
x4

7
×1

Assembly:

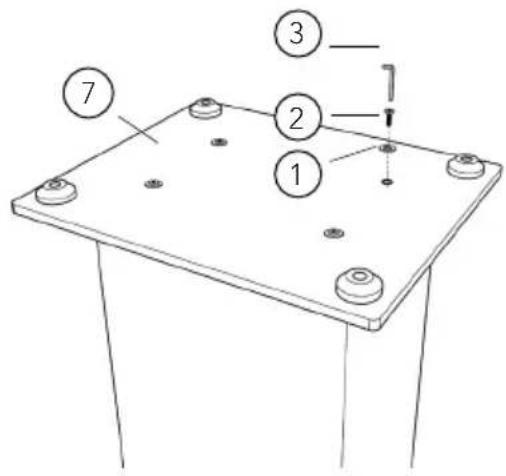

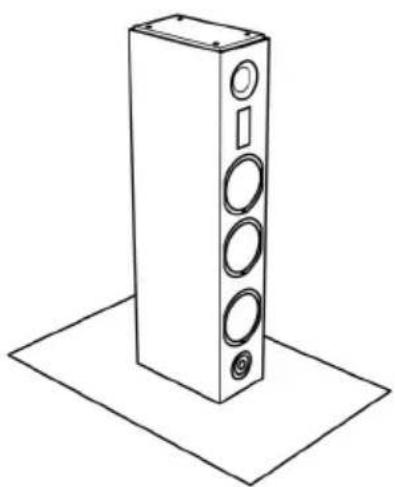

1- Put the loudspeaker upside-down (be sure to put it on non-abrasive surface).

2- Fasten the pedestal ⑦ on the loudspeaker by using the supplied washers ①, screws ② and Allen key ③.

Spike choice

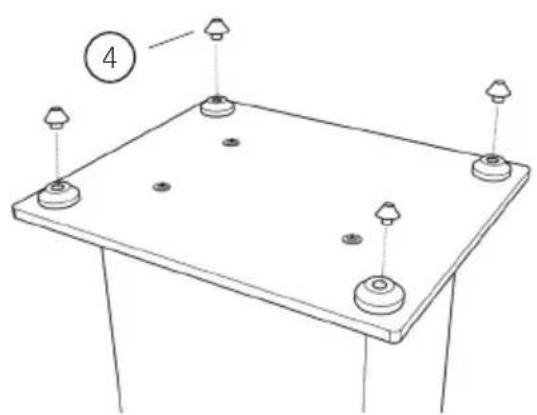

Rubber spike

Used for wooden floor or tiles, to decrease the transmission of low frequency to the floor - Insert the rubber spikes 4.

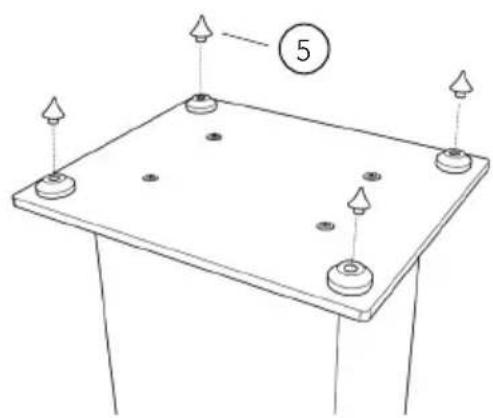

Metal spike

Used for a more dynamic and precise sound.

• Screw the metal spikes ⑤

• Use the counter-spike ⑥ to protect your furniture if needed.

Connections

For optimal sound reproduction, we suggest that you choose a loudspeaker cable of high quality to connect your amplifier to your TRIANGLE loudspeakers. You should use cables of the same length for the left and right channels and take special care to respect the + and - polarity for each channel. Don't forget to strip the cables if it's necessary.

BI-AMPLIFICATION AND BI-WIRING

For those wishing to improve their listening system further, it is possible to use bi-amplification or bi-wiring.

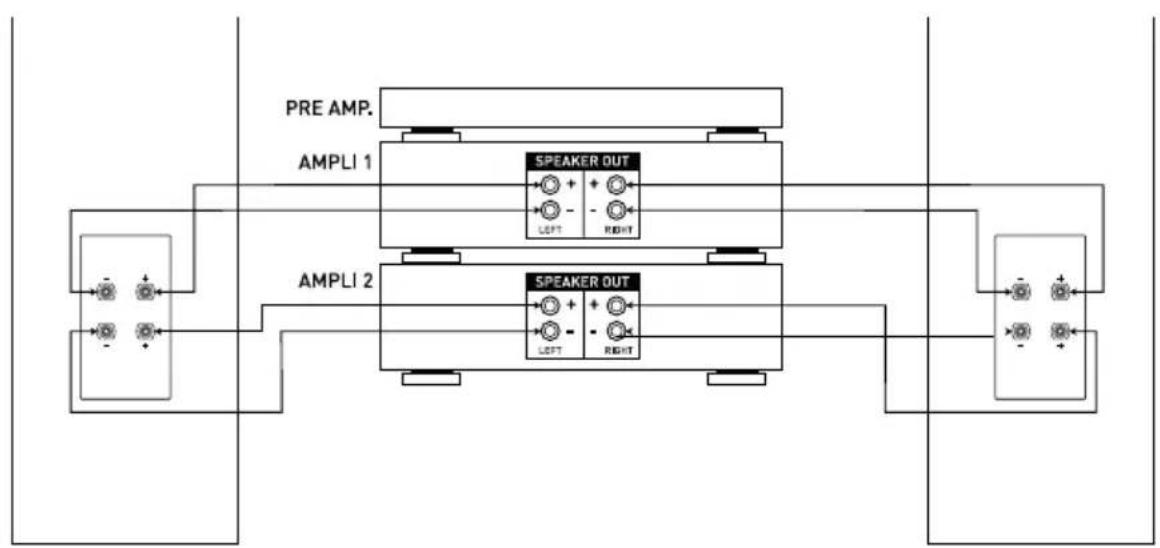

Bi-amplification

With bi-amplification, interference between the woofers and other drivers is totally eliminated, as each one is driven by its own amplifier. It is compulsory to use identical amplifiers to conserve the uniformity of the loudspeaker.

To do this, remove the terminal jumpers and use two stereo amplifiers. On the speakers, the upper terminals are the signal inputs for midrange and treble. The lower terminals are the signal inputs for bass. Use one amplifier to feed the bass, and the second for the midrange and treble (see the next page diagram).

Bi-wiring

Instead of two amplifiers, you can use a single amplifier if it is equipped with zones 1 and 2. Both zones should be selected.

You need to remove the terminal jumpers for bi-wiring.

To get the most out of you loudspeakers, we advise you to get a good quality amplifier. You do not have to choose your amplifier power by checking your loudspeaker power handling. It is better to have a powerful amplifier that you will be using in its lower range of power than a «small» amplifier that will be pushed to its limits. Distorted sound from an amplifier is bad for your loudspeakers. As soon as you hear distorted sound you should lower the volume on your amplifier. Stay reasonable when using your loudspeaker at high power, they are not made for sound reinforcement system at large concert venue.

For further informations concerning your system, please consult our website :

http://trianglehifi.com/

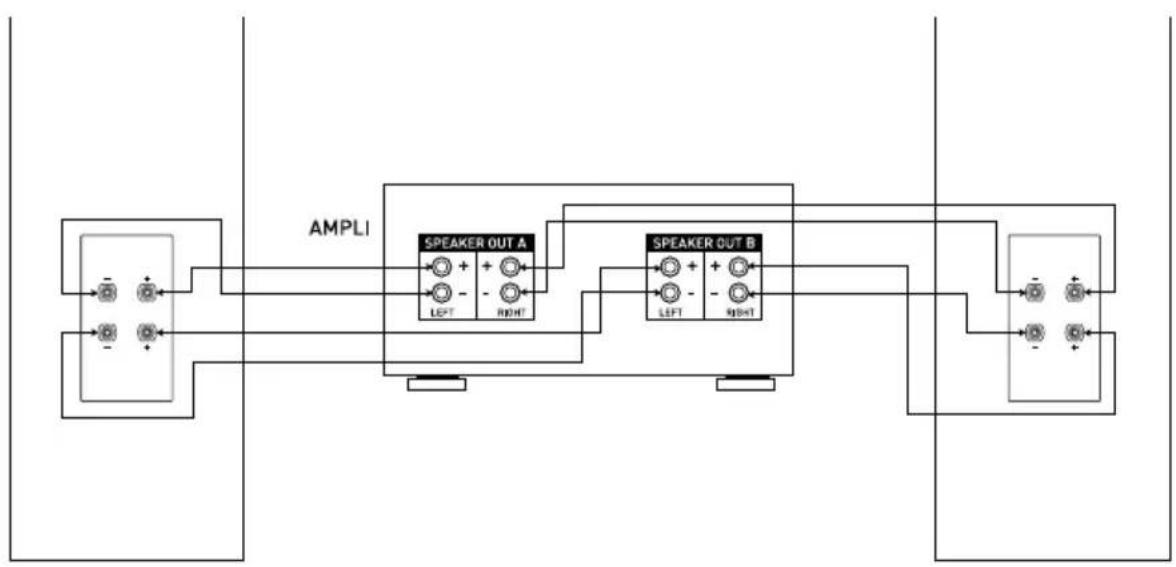

BI-AMPLIFICATION AND BI-WIRING

EN

Bi-amplification

Bi-wiring

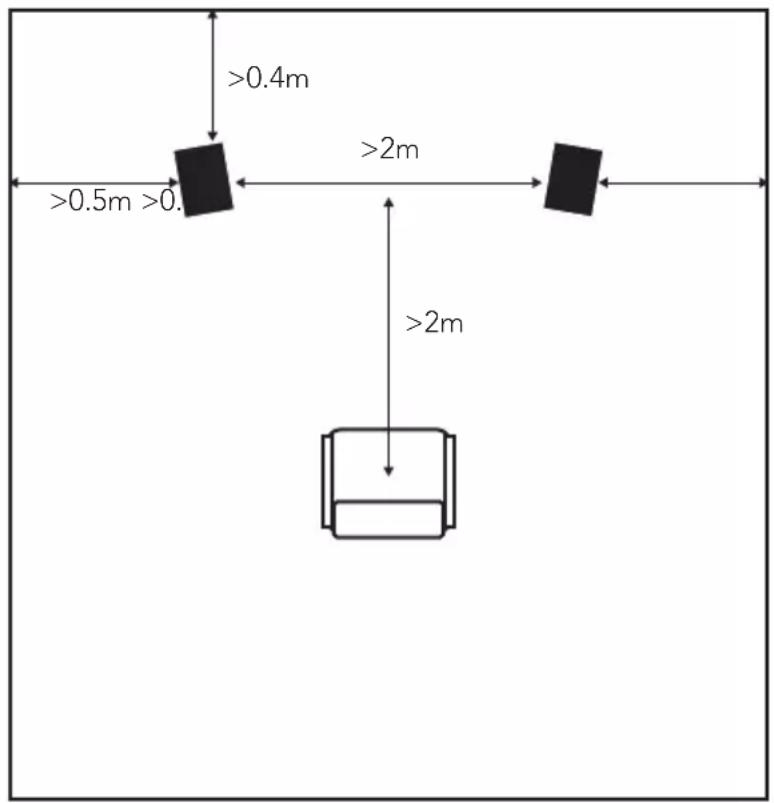

Positioning for stereo

When positioning your loudspeakers, apply the following rules :

• Avoid rooms with too much reverberation, such as tiled rooms without carpets or curtains.
• Your listening position should not be too close to the loudspeakers, leave a minimum of 2m
• The distance between the speakers should be a minimum of 2m for a good stereo effect.
• If possible, place the speakers so that sound is «diffused» lengthwise within the room.
• Avoid placing the speaker in corners; they should be at least at 40~cm away from the back wall and at least 50~cm from the sidewalls. Generally, a position close to the rear wall increases the response in the low frequencies (and reduce the imaging) and contrariwise, a position far from the back wall reproduces a wide and deep sound image. Carry out several test positions to find the best room set-up.

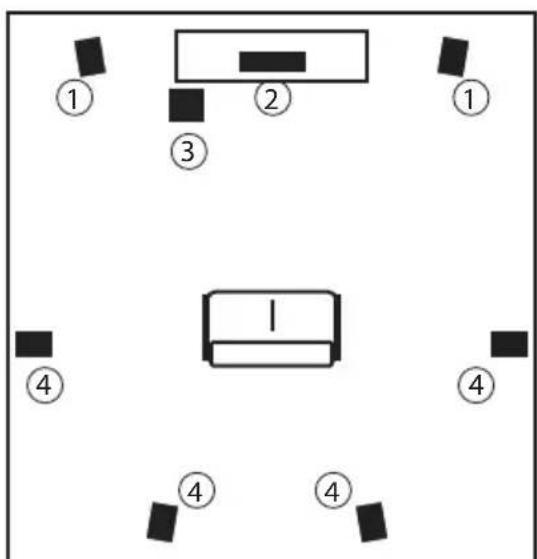

Positioning for home-cinema

A typical home-cinema installation includes :

① Two main speakers, left and right
② A center speaker
One or several subwoofoers
④ Surround speakers (5.1 signal : 2 rear speakers, 6.1 signal : 3 rear speakers, 7.1 signal : 4 rear speakers)

To place the main speakers in the best position, follow the same rules as for a stereo installation (see previous page on stereo positioning).

• The center speaker should be placed along the line formed by the two main speakers.

• For home-cinema setups a subwoofer is highly recommended in order to reproduce the special bass effects channel featured on supports such as DVD, Blu-Ray, streaming services and digital TV broadcast. The positioning of the subwoofer is not critical if you select a crossover frequency below 80Hz . Above this frequency, it is better to move the subwoofer closer to the main speakers. The best position being in between the two main speakers. Ensure that it is not placed in the corner of the room to avoid creating unpleasant resonances.

• We recommend that you place the rear speakers at between 1.5 and 2m of height. Their role is to reproduce surround sound. Ensure that you take into account the weight of the speaker when fixing it onto the wall.

You will find further instructions for configuring your installation in your A/V amplifier owner's manual.

GAMME 40ème anniversaire / 40^th anniversary RANGE

Spécifications Techniques Technical Specifications	COMÈTE ANTAL
Type	Bass-Reflex Bass-Ref. ex
Nombre de voies Ways	2	3
Sensibilité Sensitivity (dB/m)	92 91
Bande passante Bandwidth (+/-3dB Hz-Khz)	47-22 37-22
Puisance admissible Power handling (W RMS)	90 140
Impédance minimum Minimal impedance (ohms)	4.2 3
Dimensions (mm, LxPxH)	200x324x400	200x345x1090
Dimensions (inch, WxDxH)	7.8x12.7x15.7	7.8x13.6x42.9
Dimensions avec pied (mm, LxPxH)	-	300x424x1128
Dimensions with pedestal (inch, WxDxH)		11.8x16.9x44.4
Poids de l'enceinte (Kg)	8.8	26.8
Net Weight (lbs)	19.4	59
Poids avec packaging (Kg)	17.6 (paire)	29.8 (piece)
Gross Weight (lbs)	38.8 (pair)	65.7 (piece)

www.trianglehifi.com

facebook.com/trianglehifi

instagram.com/trianglehifi

twitter.com/trianglehifi

GARANTIE / WARRANTY

Thanks for buying a TRIANGLE product.

We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 3 years warranty.

Online registration

Register your product easily online at the following address : https://www.trianglehifi.com/en/register/

Note on the warranty

Your TRIANGLE loudspeakers are warranted for 3 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeakers could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product, and is not transmittable in the case of resale. To validate your warranty, you will need to register online on TRIANGLE website. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are not guaranteed :

A burned voice-coil caused by overloading the driver
Any fault occurring from professional usage (public sound systems, PA systems, etc.)
Any fault resulting from storage in areas of high humidity
A pierced or torn membrane
A torn suspension
Any fault resulting from a mechanical shock (ex if dropped or handled roughly)
Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
Damaged cabinets due to mishandling
