USER MANUAL 4712 SP-A SOLO

text_image D DK GB S NL N F FIN E EST P LV I LT SLO RUS HR UA SRB BG PL RO CZ GR SK MK H TR

INFORMATION | MANUALS | SERVICE

BENZINRASENMÄHER

Betriebsanleitung

SOLO 4712 SP-A - BENZINRASENMÄHER - 1

SOLO 4712 SP-A - BENZINRASENMÄHER - 2

SOLO 4712 SP-A - BENZINRASENMÄHER - 3

SOLO 4712 SP-A - BENZINRASENMÄHER - 4

SOLO 4712 SP-A - BENZINRASENMÄHER - 5

SOLO 4712 SP-A - BENZINRASENMÄHER - 6

470 592_c I 10/2014

SOLO 4712 SP-A - BENZINRASENMÄHER - 7

GB: Operating Instructions .....22

natural_image Technical diagram showing a mechanical assembly with a bracket and housing, no visible text or symbols

SOLO 4712 SP-A - BENZINRASENMÄHER - 8

text_image Technical diagram illustrating mechanical assembly steps with numbered annotations and magnified detail view

SOLO 4712 SP-A - BENZINRASENMÄHER - 9

text_image Diagram of a lawn mower showing labeled parts and motion directions, including wheel wheels and gear mechanism.

SOLO 4712 SP-A - BENZINRASENMÄHER - 10

text_image Technical diagram illustrating mechanical assembly steps with numbered instructions and component illustrations

SOLO 4712 SP-A - BENZINRASENMÄHER - 11

text_image ② ① 13

SOLO 4712 SP-A - BENZINRASENMÄHER - 12

text_image 14 ① ②

SOLO 4712 SP-A - BENZINRASENMÄHER - 13

text_image 15 2 START 1

SOLO 4712 SP-A - BENZINRASENMÄHER - 14

natural_image Technical diagram of a mechanical assembly with a central component and directional arrow (no text or symbols)

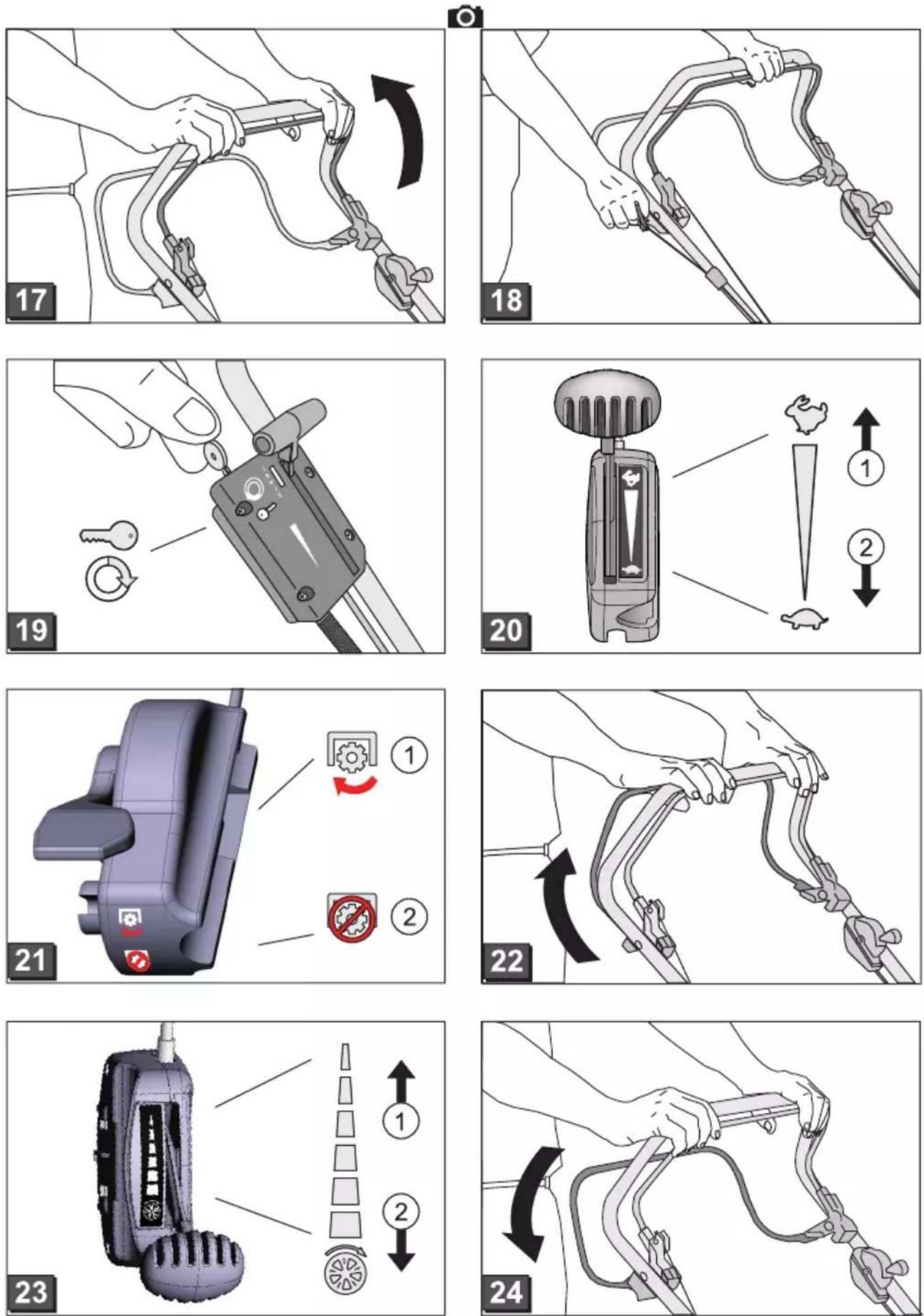

SOLO 4712 SP-A - BENZINRASENMÄHER - 15

©
SOLO 4712 SP-A - BENZINRASENMÄHER - 16

natural_image Illustration of a person using a cable clamp device to lift a vehicle (no text or symbols present)

SOLO 4712 SP-A - BENZINRASENMÄHER - 17

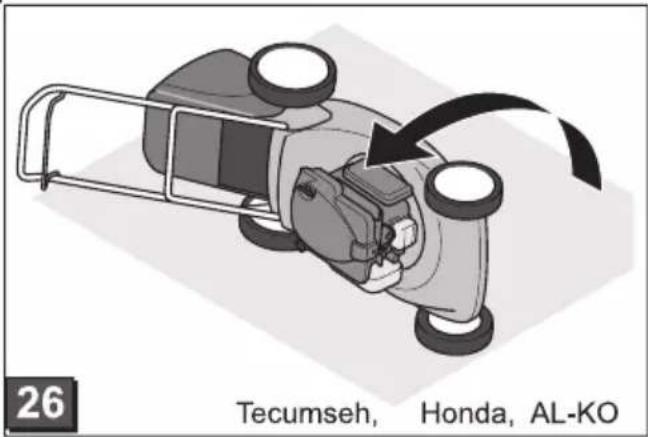

text_image 26 Tecumseh, Honda, AL-KO

SOLO 4712 SP-A - BENZINRASENMÄHER - 18

natural_image Illustration of a lawn mower with directional arrows indicating motion (no text or symbols on the diagram itself)

SOLO 4712 SP-A - BENZINRASENMÄHER - 19

natural_image Illustration of hands connecting wires to a device component (no text or symbols visible)

SOLO 4712 SP-A - BENZINRASENMÄHER - 20

natural_image Illustration of hands installing or adjusting a device with wires and components (no text or symbols visible)

SOLO 4712 SP-A - BENZINRASENMÄHER - 21

natural_image Diagram of a mechanical device with a close-up view showing a cable being inserted into a bracket (no text or symbols present)

SOLO 4712 SP-A - BENZINRASENMÄHER - 22

natural_image Diagram of a car's lift mechanism with arrow indicating rotational motion (no text or symbols)

SOLO 4712 SP-A - BENZINRASENMÄHER - 23

natural_image Diagram of a lawn mower with a handle and blade, showing mechanical components and motion direction (no text or symbols)

Zu diesem Handbuch

text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, top, and side views.
  • Read through these operating instructions before starting up the machine. This is a prerequisite for safe and trouble-free working.
    ■ You should save these instructions, and also pass them on to any subsequent users.
  • Observe the safety and warning signs on the machine.

Pictogram description

SOLO 4712 SP-A - Pictogram description - 1

Caution!

Strict following of these warning alerts can prevent injury to persons and/or materials.

SOLO 4712 SP-A - Caution! - 1

Special information for better understanding and handling.

SOLO 4712 SP-A - Caution! - 2

The camera symbol refers to illustrations

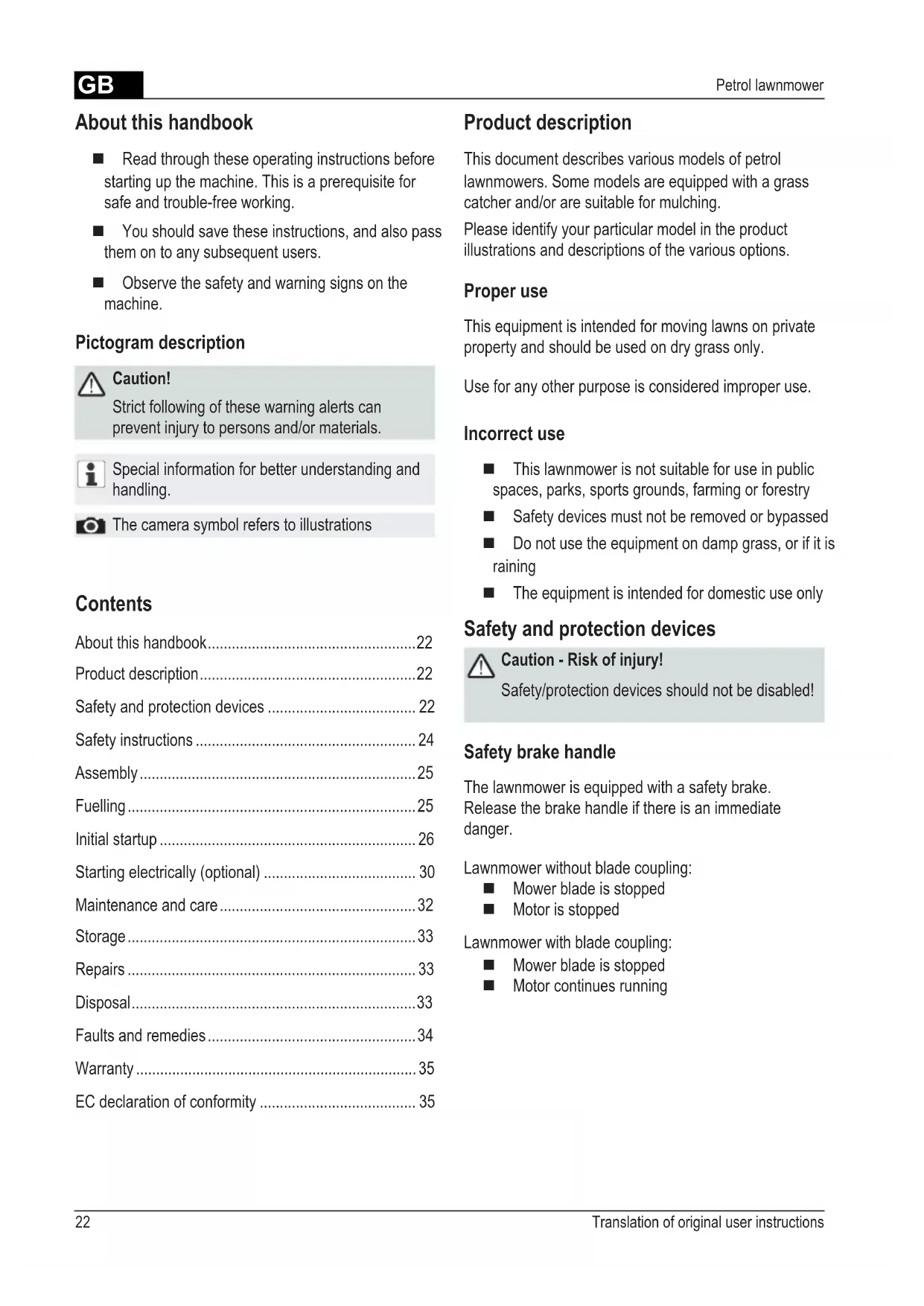

Contents

About this handbook....22

Product description....22

Safety and protection devices 22

Safety instructions 24

Assembly 25

Fuelling 25

Initial startup 26

Starting electrically (optional) 30

Maintenance and care 32

Storage 33

Repairs 33

Disposal....33

Faults and remedies....34

Warranty 35

EC declaration of conformity 35

Product description

This document describes various models of petrol lawnmowers. Some models are equipped with a grass catcher and/or are suitable for mulching.

Please identify your particular model in the product illustrations and descriptions of the various options.

Proper use

This equipment is intended for moving lawns on private property and should be used on dry grass only.

Use for any other purpose is considered improper use.

Incorrect use

■ This lawnmower is not suitable for use in public spaces, parks, sports grounds, farming or forestry
■ Safety devices must not be removed or bypassed
■ Do not use the equipment on damp grass, or if it is raining
■ The equipment is intended for domestic use only

Safety and protection devices

SOLO 4712 SP-A - Safety and protection devices - 1

Caution - Risk of injury!

Safety/protection devices should not be disabled!

Safety brake handle

The lawnmower is equipped with a safety brake. Release the brake handle if there is an immediate danger.

Lawnmower without blade coupling:

■ Mower blade is stopped
■ Motor is stopped

Lawnmower with blade coupling:

■ Mower blade is stopped
■ Motor continues running

Deflector plate

The deflector plate provides protection against any projectiles thrown up.

SOLO 4712 SP-A - Deflector plate - 1

text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.

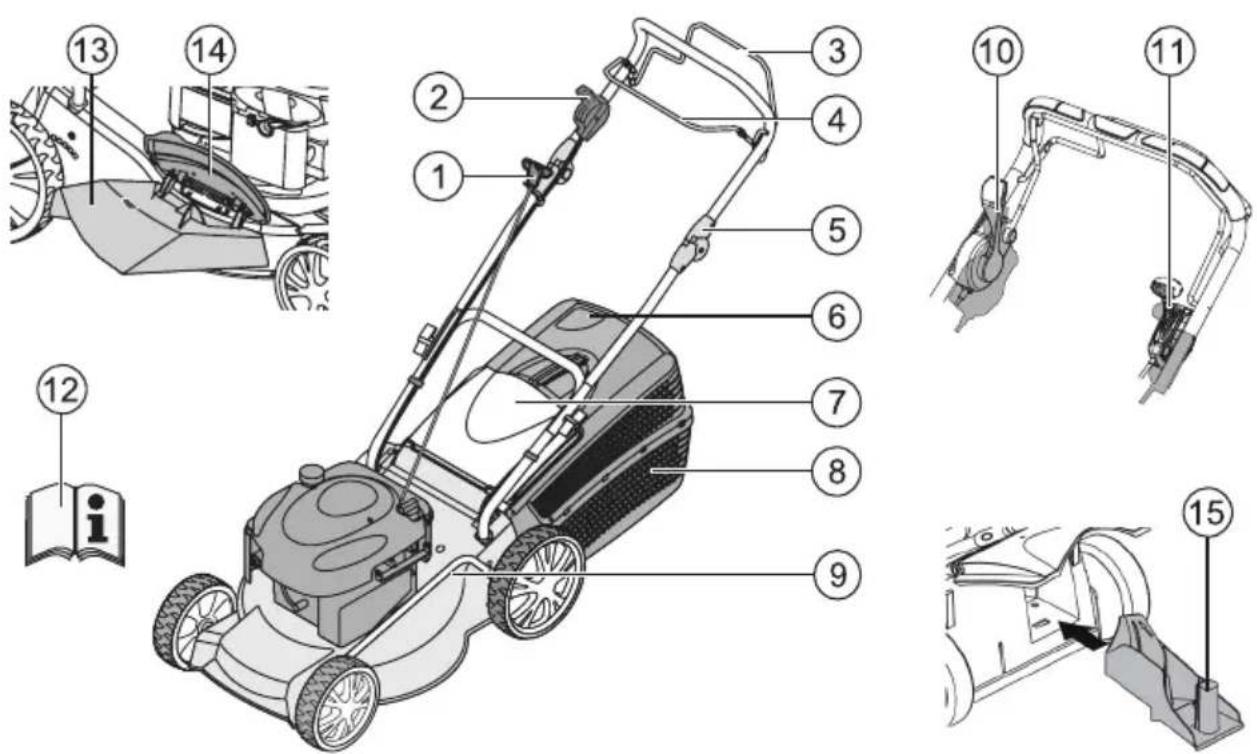

1 Starter cable 9 Cutting height adjustment*
2 Start, stop* 10 Blade coupling*
3 Wheel drive* 11 Vario transmission*
4 Safety brake handle 12 Operating instructions
5 Ergonomic height adjustment* 13 Outlet shaft insert*
6 Fill level indicator* 14 Cover flap*
7 Deflector plate* 15 Mulch kit*
8 Grass catcher* * depending on version

Symbols on the device

SOLO 4712 SP-A - Deflector plate - 2Caution!Be particularly careful when handling.Remove the spark plug connector before working on the cutting gear.
SOLO 4712 SP-A - Deflector plate - 3Before initial startup read the instructions for use! Release the motor brake.
SOLO 4712 SP-A - Deflector plate - 4Keep other people out of the danger area! Switch on the wheel drive.
SOLO 4712 SP-A - Deflector plate - 5Keep hands and feet away from the cutting gear!Remote throttle control Start / Stop.
SOLO 4712 SP-A - Deflector plate - 6Keep away from the danger area.

Additional symbols on lawnmowers with Electrostart

SOLO 4712 SP-A - Additional symbols on lawnmowers with Electrostart - 1

Caution! Risk of electric shock.

SOLO 4712 SP-A - Additional symbols on lawnmowers with Electrostart - 2

Keep the connection line away from the mower blades.

SOLO 4712 SP-A - Additional symbols on lawnmowers with Electrostart - 3

If the cable is damaged, or when carrying out maintenance work, always disconnect the equipment from the mains supply.

Safety instructions

SOLO 4712 SP-A - Safety instructions - 1

Caution!

Use the equipment only if it is in correct operating condition!

SOLO 4712 SP-A - Caution! - 1

Caution - Risk of injury!

Safety/protection devices should not be disabled!

SOLO 4712 SP-A - Caution - Risk of injury! - 1

Caution - risk of fire!

After fuelling, do not store the machine in buildings where the petrol fumes might come into contact with naked flames or sparks!

Keep the area around the motor, exhaust, battery case, and fuel tank clear of grass cuttings, petrol and oil.

  • Keep other people out of the danger area
    ■ The machine operator or user is responsible for any accidents affecting other people or their property
    ■ Children, or any persons who have not read these operating instructions, should not be allowed to use this machine
    ■ Follow the local regulations regarding the minimum age for operators of this type of machine
    ■ Do not use the equipment if under the influence of alcohol, drugs or medication

■ Wear appropriate work clothes

Long trousers
Hard, non-slip shoes
■ Hearing protection

■ If working on slopes
■ always make sure you are positioned securely
■ always work across the slope, never upward or downward

do not work on slopes where the gradient is greater than 20^

■ Only use the lawnmower if there is sufficient daylight or artificial lighting
- Keep the body, limbs and clothing away from the cutting gear
■ Follow the hours of use regulations applying in the country concerned
■ Do not leave the equipment unattended when ready to operate
■ Only use the lawnmower if the mower blade is sharp
■ Do not operate the equipment if the safety devices / protective grilles are damaged
■ Never operate the equipment if the safety devices are not fully assembled (e.g. deflector plate, grass catching devices)
■ Before each use, check the equipment for damage; replace any damaged parts before using again
■ Switch off the motor, wait for the equipment to come to a standstill, then pull out the spark plug connector

■ if leaving the equipment unattended
■ if a fault has occurred
■ before clearing blockages
■ before removing obstructions
■ if the lawnmower has run into foreign objects

SOLO 4712 SP-A - Caution - risk of fire! - 1

Check the lawnmower for damage, and carry out the necessary repairs before restarting or using the lawnmower again.

■ Insert the spark plug connector and start the motor
■ after correcting the fault (see Faults table) and checking the equipment
■ after cleaning the equipment

■ Carefully check the ground to be mowed, and remove any foreign objects

■ Take particular care when turning the lawnmower around, or if pulling it towards you

■ Do not mow over obstacles (such as branches, tree roots)

■ Remove cuttings only when the motor has stopped

■ Switch off the motor / mower blade when passing over areas other than those that have to be mowed
■ Never lift or carry the equipment while the motor is running
■ Do not eat or drink when topping up the petrol or motor oil
■ Do not inhale the petrol fumes

Assembly

Follow the accompanying assembly instructions.

SOLO 4712 SP-A - Assembly - 1

Caution!

The equipment can be used only after complete assembly.

Fuelling

Fill the lawnmower with fuel before the initial startup.

SOLO 4712 SP-A - Fuelling - 1

Warning - risk of fire!

Petrol and oil are highly inflammable!

SOLO 4712 SP-A - Warning - risk of fire! - 1

Always observe the operating instructions supplied by the motor manufacturer.

Operating fluids

Petrol Motor oil
Grade Regular petrol / unleadedRefer to the motor manufacturer's instructions
Filling capacityRefer to the motor manufacturer's instructionsabout 0.6 l

Safety

SOLO 4712 SP-A - Safety - 1

Warning!

Never leave a motor running in an enclosed space. Toxic hazard!

■ Store petrol and oil only in containers intended for this purpose
■ Only add or drain oil in the open air, and when the motor has cooled down
■ Do not add petrol or oil while the motor is running
■ Do not overfill the tank (petrol expands)
■ Do not smoke when refuelling
■ Do not open the tank lock when the motor is running or when hot
■ Replace the tank or tank lock if damaged
■ Always close the tank cap firmly
■ If petrol has been spilt:
Do not start the motor
Do not start the equipment
Clean the equipment
■ If motor oil has been spilled:
Do not start the motor
Soak up the spilled oil with an oil binding agent and dispose of appropriately
Clean the equipment

SOLO 4712 SP-A - Warning! - 1

Used oil should not be:

■ disposed of with domestic rubbish
■ poured into the sewage system, drains, or onto the ground

We recommend to collect the used oil in a closed container and to deliver it to a suitable recycling or service station.

Adding petrol

  1. Unscrew the tank cap, and keep in a clean place.
  2. Pour in petrol using a funnel.
  3. Firmly replace the cap on the filler opening and clean it.

Adding motor oil

  1. Unscrew the filler cap, and keep in a clean place.
  2. Pour in oil using a funnel.
  3. Firmly replace the cap on the filler opening and clean it.

Initial startup

SOLO 4712 SP-A - Initial startup - 1

Caution!

The equipment should not be used if the cutting gear and/or fastenings are loose, damaged or worn.

Carry out a visual inspection before each start-up.

SOLO 4712 SP-A - Caution! - 1

The camera symbol on the following page refers to the illustrations on Page 4–7.

Adjusting the cutting height

SOLO 4712 SP-A - Adjusting the cutting height - 1

Caution - Risk of injury!

Adjust the cutting height only with the motor switched off and when the mower blade has come to a standstill.

SOLO 4712 SP-A - Caution - Risk of injury! - 1

- Always set all the wheels to the same cutting height.

- Cutting height adjustment depends on the particular model.

Central adjustment (☐)

  1. Press and hold the central height adjustment knob (d/1).

For shorter grass, press the central adjustment handle downward (C1/2)

For longer grass, pull the central adjustment handle upward (6/2)

The central height adjustment level is indicated (C/3)

  1. Release the knob at the desired cutting height.

Axle adjustment or central adjustment (☐, 3)

  1. To release the lever, press to the side and hold.
  2. Push the lever to the left or right to select the desired cutting height.
  3. Let the lever click into position.
  4. Check that all wheels are set to the same position.

Quick adjustment of individual wheels or axle adjustment (4)

  1. To release the lever, press to the side and hold.
  2. Push the lever to the left or right to select the desired cutting height.
  3. Let the lever click into position.
  4. Check that all wheels are set to the same position.

Individual wheel adjustment (5)

  1. Loosen the wheel bolt.
  2. Insert the wheel bolt in the hole corresponding to the desired cutting height.
  3. Tighten the wheel bolt.
  4. Check that all wheels are set to the same position.

Central axle adjustment (6)

  1. Place a thumb at each end of the axle.
  2. Place the fingers under the mower housing.
  3. Using both thumbs, press the axle out of its present height setting notch.
  4. Using both thumbs, push the axle to the desired height setting notch, then allow it to engage.
  5. Check that all wheels are set to the same position.

Mowing with the grass catcher

SOLO 4712 SP-A - Mowing with the grass catcher - 1

Caution - Risk of injury!

Attach/detach the grass catcher only when the motor is switched off and the mower blade has come to a standstill.

  1. Lift the deflector plate and insert the grass catcher in the holders (☐).

Fill level indicator

The fill level indicator is pushed upward by the air flow when mowing (da).

If the grass catcher is full, the indicator points to the box (☐b). The grass catcher must be emptied.

Emptying the grass catcher

  1. Lift the deflector plate.
  2. Unhook the grass catcher and pull backward to remove (6).
  3. Empty the grass catcher.
  4. Lift the deflector plate and insert the grass catcher in the holders (a).

Mowing without the grass catcher

SOLO 4712 SP-A - Mowing without the grass catcher - 1

Caution!

Only work without the grass catcher if the deflector plate torsion spring is working correctly.

The deflector plate is held to the mower spring force. This causes the mowed grass to be thrown backward and downward.

Mulching with the mulch kit (optional)

When mulching, the grass cuttings are not collected, but are left on the lawn. The grass mulch prevents the soil from drying out, and supplies it with nutrients.

The best results are obtained by cutting back regularly by about 2 cm. Only young grass with a soft leaf texture decomposes quickly.

■ Grass height before mulching: 8 cm maximum
■ Grass height after mulching: 4 cm minimum

SOLO 4712 SP-A - Mulching with the mulch kit (optional) - 1

Adapt your walking pace to the mulching process, do not walk too fast.

Inserting the mulch kit

SOLO 4712 SP-A - Inserting the mulch kit - 1

Caution - Risk of injury!

Insert/remove the mulch kit only with the motor switched off and when the mower blade has come to a standstill.

  1. Remove the grass catcher ( 6)
  2. Lift the deflector plate and insert the mulch kit in the outlet shaft (c). It must lock into place.

SOLO 4712 SP-A - Caution - Risk of injury! - 1

If the mulch kit is not locked into position, both the mulch kit and the mower blade may be damaged.

Removing the mulch kit

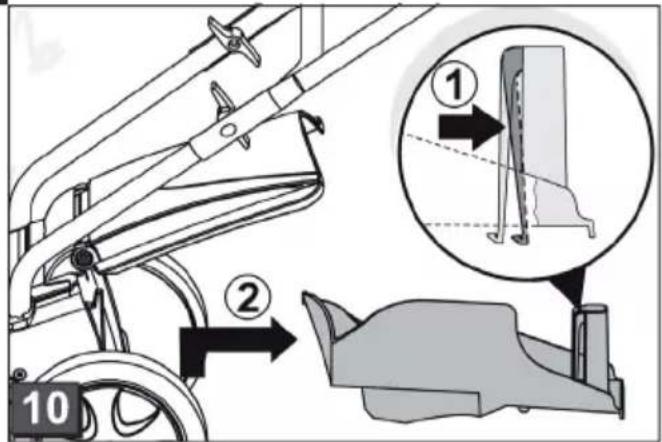

  1. Lift the deflector plate.
  2. Release the lock on the mulch kit (10/1).
  3. Pull out the mulch kit (10/2).

housing by

Mowing with the side outlet duct (optional)

SOLO 4712 SP-A - Mowing with the side outlet duct (optional) - 1

Caution - risk of injury!

Attach/detach the side outlet only when the motor is switched off and the mower blade has come to a standstill.

Inserting the side outlet

  1. Remove the grass catcher and insert the mulch kit.

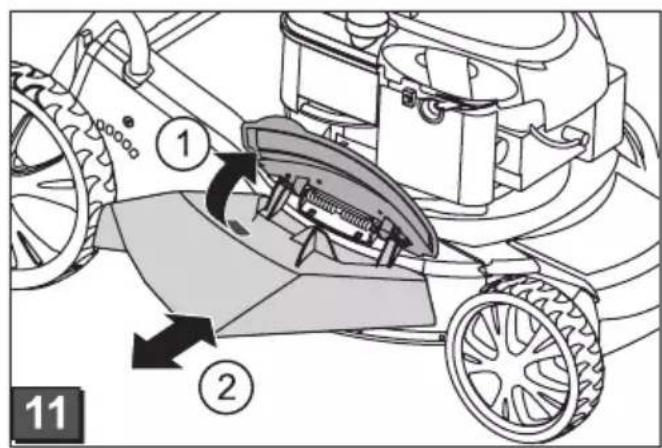

  2. Fold up the side outlet cover and hold it ( 1/1).
  3. Insert the side outlet duct ( 14/2).
  4. Slowly close the cover.
    The cover holds the side outlet duct and prevents it falling out.

Removing the side outlet

  1. Fold up the side outlet cover and hold it ( 10/1).
  2. Remove the side outlet and close the cover (1/2).

Setting the handle height (optional)

Knob adjustment

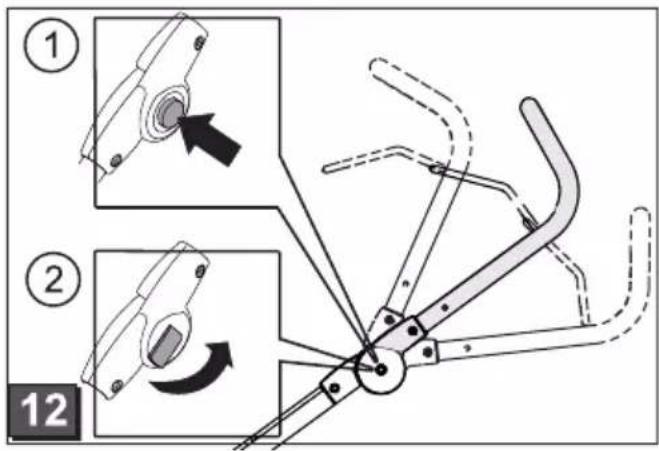

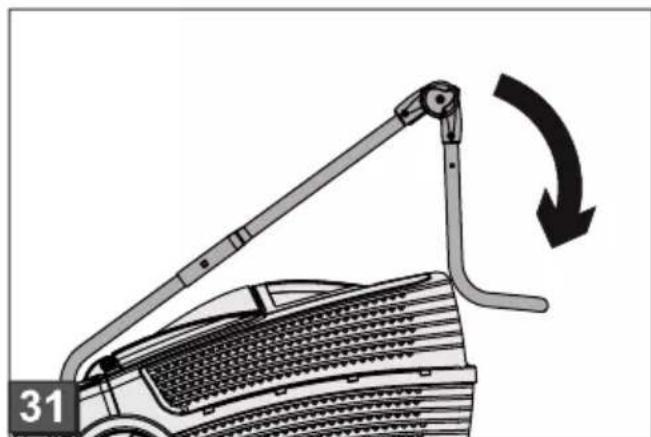

  1. Press and hold both knobs on the handlebar and select the desired position (☐12/1).
  2. Release the knobs to lock the handlebar in position.

Clamp adjustment

  1. Hold the bar and loosen both clamps ( 12/2).
  2. Move the bar to the desired position
  3. Lock the clamps.

Starting the motor

SOLO 4712 SP-A - Starting the motor - 1

Caution - risk of poisoning!

Never leave a motor running in an enclosed space.

SOLO 4712 SP-A - Caution - risk of poisoning! - 1

Caution - Risk of injury!

Do not tilt the lawnmower while starting.

SOLO 4712 SP-A - Caution - Risk of injury! - 1

  • Start the motor only when the blade is mounted (the blade acts as a flywheel mass)
  • If starting the motor when hot do NOT use the choke or primer button
  • Do not change the motor controller settings

■ Do not start the equipment if the outlet shaft is not covered by one of the following parts:

Grass catcher
Deflector plate
Mulch kit

■ Be particularly careful when operating the starter switch - follow the manufacturer's instructions

- Keep your feet at a safe distance from the cutting gear

■ Start the lawnmower where the grass is shorter

Position symbols on the equipment:

Choke*On OffSOLO 4712 SP-A - Caution - Risk of injury! - 2SOLO 4712 SP-A - Caution - Risk of injury! - 3
Remote throttle control*Start StopSOLO 4712 SP-A - Caution - Risk of injury! - 4SOLO 4712 SP-A - Caution - Risk of injury! - 5
Remote throttle control with choke*SOLO 4712 SP-A - Caution - Risk of injury! - 6SOLO 4712 SP-A - Caution - Risk of injury! - 7
Vario transmission*Fast SlowSOLO 4712 SP-A - Caution - Risk of injury! - 8SOLO 4712 SP-A - Caution - Risk of injury! - 9
Blade coupling*On OffSOLO 4712 SP-A - Caution - Risk of injury! - 10SOLO 4712 SP-A - Caution - Risk of injury! - 11

* depending on version

Starting manually

without remote throttle control, with choke

ChokeOn OffSOLO 4712 SP-A - Starting manually - 1

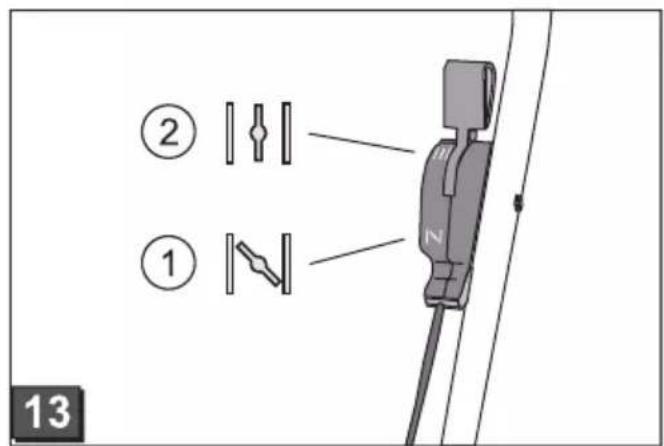

  1. Set the choke at position 1 (10/1).

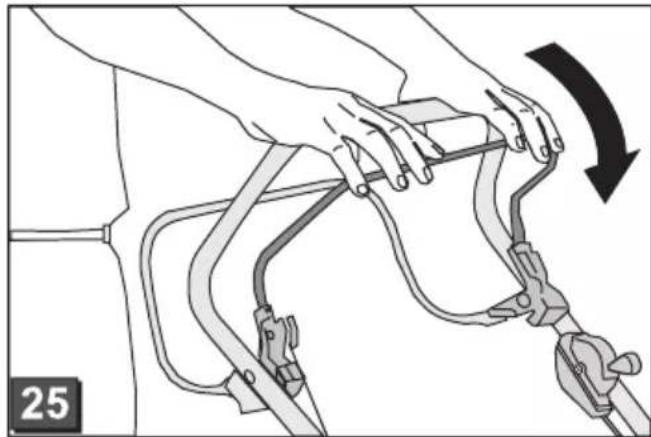

  2. Pull in the safety brake handle on the handlebar and hold it (17) – the brake handle does not lock.
  3. Pull out the starter cord sharply, then allow it to slowly rewind (☐8).
  4. When the motor has warmed up (about 15–20 seconds), set the choke to position 2 (3/2).

SOLO 4712 SP-A - Starting manually - 2

Motor speed (rpm value) is fixed. Motor speed cannot be adjusted.

without remote throttle control, with primer (C16)

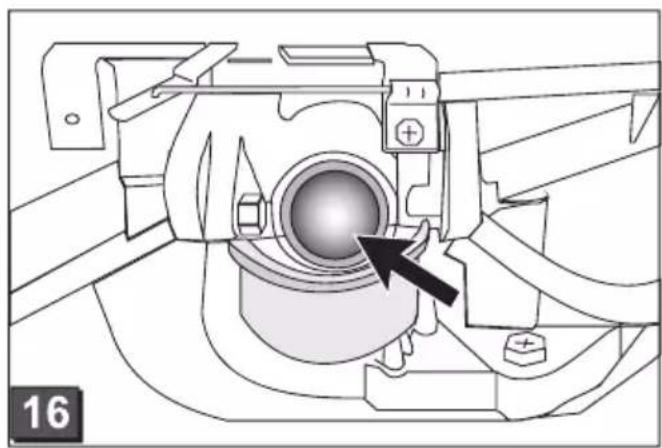

  1. Press the primer button 3 times at intervals of about 2 seconds (6). If the temperature is below 10 °C, press the primer button 5 times.
  2. Pull in the safety brake handle on the handlebar and hold it (17) – the brake handle does not lock.
  3. Pull out the starter cord sharply, then allow it to slowly rewind (☐8).

SOLO 4712 SP-A - without remote throttle control, with primer (C16) - 1

Motor speed (rpm value) is fixed. Motor speed cannot be adjusted.

without remote throttle control, without primer/choke

  1. Pull in the safety brake handle on the handlebar and hold it (17) – the brake handle does not lock.
  2. Pull out the starter cord sharply, then allow it to slowly rewind (c18).

SOLO 4712 SP-A - without remote throttle control, without primer/choke - 1

Motor speed (rpm value) is fixed. Motor speed cannot be adjusted.

with remote throttle control, with choke

Remote throttle control with chokeSOLO 4712 SP-A - with remote throttle control, with choke - 1

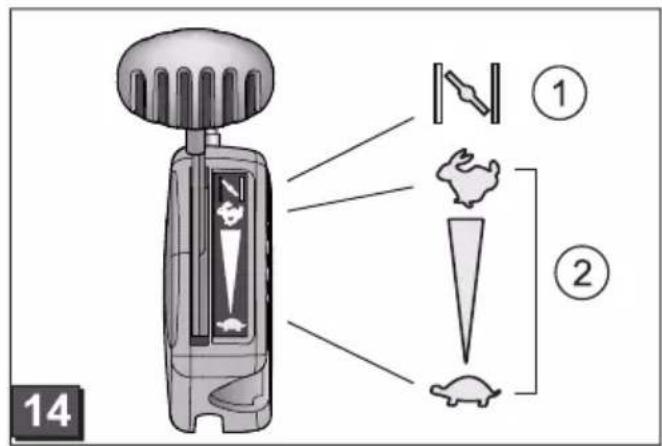

  1. Set the throttle lever to position (141).
  2. Pull in the safety brake handle on the handlebar and hold it (17) – the brake handle does not lock.
  3. Pull out the starter cord sharply, then allow it to slowly rewind (8).
  4. When the motor has warmed up (about 15–20 seconds), set the throttle lever to a position between and (14/2)

with remote throttle control, without primer/choke

Remote throttle control Start StopSOLO 4712 SP-A - with remote throttle control, without primer/choke - 1
  1. Set the throttle lever to position 📋 (20/1).
  2. Pull in the safety brake handle on the handlebar and hold it (17) - the brake handle does not lock.
  3. Pull out the starter cord sharply, then allow it to slowly rewind (☐8).
  4. When the motor has warmed up (about 15–20 seconds), set the throttle lever to a position between and (-20).

with remote throttle control, with primer (16)

Remote throttle control

Start Stop

SOLO 4712 SP-A - with remote throttle control, with primer (16) - 1

  1. Set the throttle lever to position (20(1)).

  2. Press the primer button 3 times at intervals of about 2 seconds (6). If the temperature is below 10 °C, press the primer button 5 times.

  3. Pull in the safety brake handle on the handlebar and hold it (17) - the brake handle does not lock.
  4. Pull out the starter cord sharply, then allow it to slowly rewind (18).
  5. As soon as the motor starts running, set the throttle lever for the desired motor rpm, at a position between and (\~20).

Starting electrically (optional)

Electrostart with primer (6)

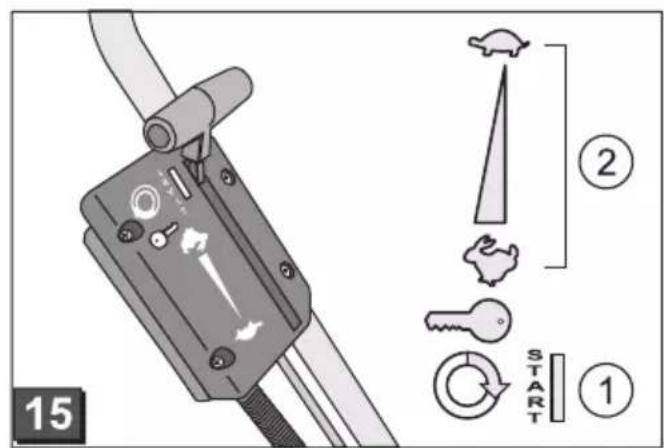

  1. Set the throttle lever to the "START" position (☐5/1).
  2. Press the primer button 3 times at intervals of about 2 seconds (16). If the temperature is below 10 °C, press the primer button 5 times.
  3. Pull in the safety brake handle on the handlebar and hold it (c7) – the brake handle does not lock.
  4. Turn the ignition key fully to the right in the ignition lock (C19).
  5. As soon as the motor starts running, release the ignition key (it returns automatically to position "0").
  6. According to the desired motor speed, set the throttle lever to a position between and (15/2).

Electrostart without primer/choke (15)

  1. Set the throttle lever to the "START" position (45/1).
  2. Pull in the safety brake handle on the handlebar and hold it (47) – the brake handle does not lock.
  3. Turn the ignition key fully to the right in the ignition lock (c19).
  4. As soon as the motor starts running, release the ignition key (it returns automatically to position "0").
  5. According to the desired motor speed, set the throttle lever to a position between and (45/2).

Blade coupling (optional)

Blade coupling

On

Off

SOLO 4712 SP-A - Blade coupling (optional) - 1

SOLO 4712 SP-A - Blade coupling (optional) - 2

With the blade coupling, the mower blade can be engaged or disengaged while the motor is running.

Engaging the blade coupling

  1. Pull in the safety brake handle on the handlebar and hold it (C47) - The brake handle does not lock.
  2. Push the coupling lever away from you (24/1) - The blade coupling is engaged.

Disengaging the blade coupling.

  1. Release the safety brake handle (15).

  2. The blade coupling is disengaged.

  3. The coupling lever moves to rest position (21/2).

Turn the motor off

Lawnmower without blade coupling

  1. Set the throttle lever to position (20/2)
  2. Release the safety brake handle ( 26).
  3. The motor is switched off.

SOLO 4712 SP-A - Lawnmower without blade coupling - 1

Caution - danger of serious cut injuries!

The motor may continue running. After switching off, make sure the motor has stopped turning.

Lawnmower with blade coupling

Blade coupling

On

Off

SOLO 4712 SP-A - Lawnmower with blade coupling - 1

SOLO 4712 SP-A - Lawnmower with blade coupling - 2

  1. Release the safety brake handle (25).

  2. Set the throttle lever to position (20/2)

- The motor is switched off.

SOLO 4712 SP-A - Lawnmower with blade coupling - 3

Caution - danger of serious cut injuries!

The motor may continue running. After switching off, make sure the motor has stopped turning.

Wheel drive (optional) (2)

SOLO 4712 SP-A - Wheel drive (optional) (2) - 1

Caution!

Engage the transmission only when the motor is running.

Switching on the wheel drive

  1. Press the transmission control handle against the handlebar and hold it (2) – the transmission control handle does not lock.
  2. The wheel drive is switched on.

Switching off the wheel drive

  1. Release the transmission control handle (24).
  2. The wheel drive is switched off.

Vario transmission (Speed Control) (optional)

Vario transmission

Fast

Slow

SOLO 4712 SP-A - Vario transmission (Speed Control) (optional) - 1

SOLO 4712 SP-A - Vario transmission (Speed Control) (optional) - 2

The Vario transmission allows continuous variation of the ground speed of the lawnmower.

SOLO 4712 SP-A - Vario transmission (Speed Control) (optional) - 3

Caution!

Operate the lever only when the motor is running. Operating the lever without the motor drive may damage the drive mechanism.

■ To increase the speed, pull the lever (23) towards (3/2)
■ To lower the speed, pull the lever (☐ 23) towards (☐ 3/1)

SOLO 4712 SP-A - Caution! - 1

Always adjust the ground speed to suit the current ground and lawn conditions.

Maintenance and care

SOLO 4712 SP-A - Maintenance and care - 1

Caution - Risk of injury!

  • Before carrying our any care or maintenance work, always switch off the motor and pull out the spark plug connector.
  • The motor may continue running. After switching off, make sure the motor has stopped turning.
  • Always wear working gloves when carrying out maintenance or repair work.

  • Check the grass catcher regularly for wear, and to ensure it is working correctly
    ■ Clean the equipment after each use
    ■ Do not wash the equipment by hosing or spraying with water
    Water infiltration can cause faults (in the ignition system, carburettor)
    ■ Check the mower blade regularly for damage
    ■ Always replace the muffler if faulty

Tilting the lawnmower

Depending on the motor manufacturer:

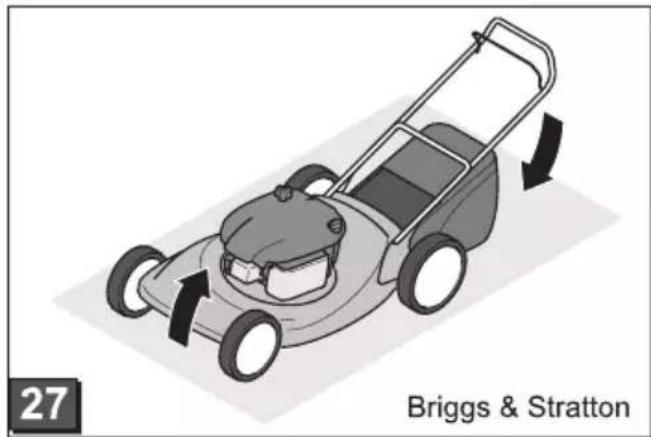

■ the carburettor / air filter must be facing upward (26)
■ the spark plug must be facing upward (27)

SOLO 4712 SP-A - Tilting the lawnmower - 1

Follow the operating instructions of the motor manufacturer!

Resharpening/replacing the mower blade

■ Blunt or damaged blades should be resharpened / replaced only at a service point or by an authorised specialist
■ Resharpened blades must be rebalanced

SOLO 4712 SP-A - Resharpening/replacing the mower blade - 1

Caution!

Blades that have not been rebalanced can cause serious vibrations, and may result in damage to the lawnmower.

Charging the starter battery (optional)

The starter battery is maintenance-free and is normally charged by the lawnmower.

In certain cases, however, the battery will need to be charged by the user:

■ Before the initial start-up of the lawnmower
If discharged, before the winter season, or if left unused for long periods (> 6 months)

Charging procedure:

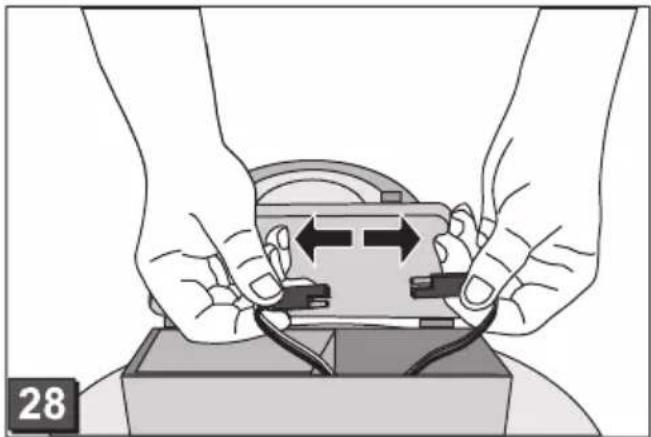

  1. Take the battery charger out of the battery box.
  2. Disconnect the battery cable from the motor cable (128).

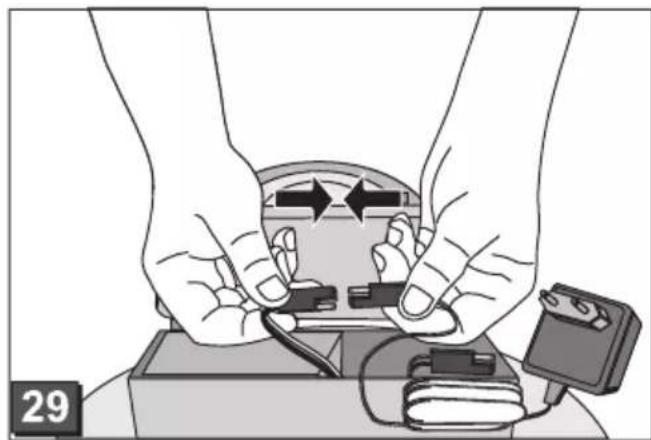

  3. Connect the battery cable with the charger cable (☐9).
  4. Connect the charger to the mains supply. The mains voltage must match the operating voltage of the charger.

The required charging time is about 36 hours.

Use only the original battery charger supplied.

SOLO 4712 SP-A - Charging the starter battery (optional) - 1

Caution!

  • Charge the starter battery only in dry, well-ventilated rooms.
  • Do not start up the lawnmower while the battery is charging.

Care of the motor

Changing the motor oil

  1. Have a suitable container ready to collect the used oil.
  2. Drain or suction off all the oil through the oil filler opening.

SOLO 4712 SP-A - Changing the motor oil - 1

Dispose of used motor oil in a manner that is compatible with the environment!

We recommend to collect the used oil in a closed container and to deliver it to a suitable recycling or service station.

Used oil should not be

  • disposed of with domestic rubbish
  • poured into the sewage system or drains
  • poured out onto the ground

Changing the air filter

■ Follow the instructions of the manufacturer of the motor.

Changing the spark plug

■ Follow the instructions of the manufacturer of the motor.

Wheel drive (optional)

Adjusting the Bowden cable

If the wheel drive can no longer be switched on or off while the motor- is running, the related Bowden cable needs to be adjusted.

SOLO 4712 SP-A - Adjusting the Bowden cable - 1

Caution!

Adjust the Bowden cable only when the motor is switched off.

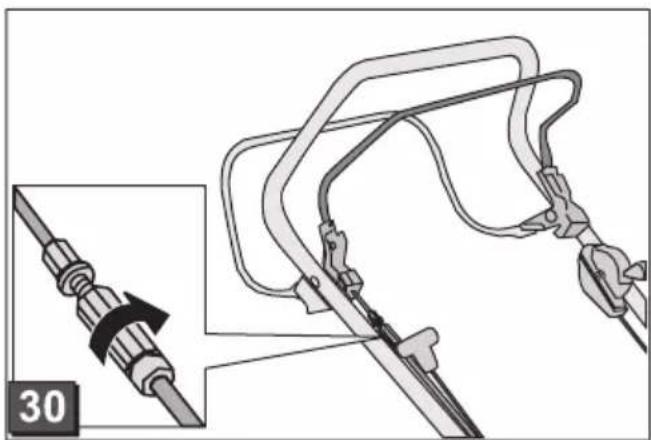

  1. Turn the adjuster on the Bowden cable in the direction of the arrow (☐0).
  2. To test the cable setting, switch on the motor and switch on the wheel drive.
  3. If the wheel drive is still not working, the lawnmower must be taken to a service point or an authorised specialist.

Lubricating the drive pinion

■ From time to time, lubricate the drive pinion on the transmission shaft

SOLO 4712 SP-A - Lubricating the drive pinion - 1

The wheel drive gearing is maintenance free.

Storage

SOLO 4712 SP-A - Storage - 1

Caution - risk of explosion!

Do not store the equipment where there are naked flames or heat sources.

■ Allow the motor to cool down

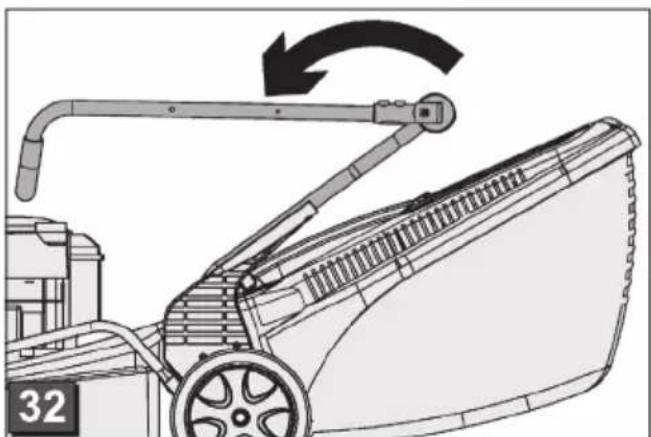

■ To save storage space, fold the handlebar down (1, 32)
■ Store the equipment in an area which is kept dry, and which cannot be accessed by children or unauthorised persons

■ Store the starter battery where it will be protected from frost

■ Recharge the starter battery from time to time

- Drain the fuel tank

■ Pull out the spark plug connector

Repairs

Repairs should be carried out only by a service point or an authorised specialist.

Disposal

SOLO 4712 SP-A - Disposal - 1

Do not dispose of old equipment, batteries or accumulators as household waste!

Machine, packaging, and accessories were made with recyclable materials, and should be disposed of accordingly.

Faults and remedies

SOLO 4712 SP-A - Faults and remedies - 1

Caution!

The motor shaft and mower blade should not be aligned.

Fault Solution
The motor does not start • Add petrol• Set throttle lever to "Start"• Switch on the choke• Press the motor switch at the handlebar• Check the spark plugs and replace if necessary.• Clean the air filter.• Spin the mower blade• Recharge the starter battery• Start on a surface already mowed
Motor power reduced • Adjust the cutting height• Resharpen / replace the mower blade• Clean the outlet shaft/housing• Clean the air filter.• Reduce the working speed
Lawnmower cuts unevenly •Resharpen/replace the mower blade• Adjust the cutting height
Grass catcher does not fill sufficiently• Adjust the cutting height• Allow the lawn to dry• Resharpen/replace the mower blade• Clear the grille on the grass catcher• Clean the outlet shaft/housing
Wheel drive does not work •Adjust the Bowden cable• V-belt faulty• Contact the service-workshop• Clean any dirt away from the wheel drive, toothed belt and gearing• Lubricate the freewheels (drive pinion on drive shaft) with spray oil
Wheels do not turn when the transmission is switched on• Retighten the wheel bolts• Wheel hub faulty• V-belt faulty• Contact the service-workshop
Unusually strong vibrations in the lawnmower• Check the mower blade

SOLO 4712 SP-A - Caution! - 1

For faults not listed in this table, or which you cannot resolve by yourself, please contact our customer service.

■ Always have the equipment checked out by a professional in the following cases:

■ after bumping against an obstacle
■ if the motor stops suddenly
■ if there is damage to the transmission
■ if the V-belt is faulty
if the blade is bent
■ if there is warping of the motor shaft

EC declaration of conformity

■ see assembly instructions

Warranty

If any material or manufacturing defects are found during the statutory customer protection period, we will either repair or replace the equipment, whichever we consider the more appropriate. This statutory period may vary according to the legislation in force in the country where the equipment was purchased.

Our warranty is valid only if: The warranty is no longer valid if:

■ The equipment has been used properly
■ The operating instructions have been followed
■ Genuine replacement parts have been used

■ The equipment has been tampered with
■ Technical modifications have been made
■ The equipment was not used for its intended purpose (for example, used for commercial or communal applications)

The following are not covered by warranty:

■ Paint damage due to normal wear
■ Wear parts identified by a border XXXXX (X) on the spare parts list

Combustion motors – these are covered by a separate warranty from the manufacturer concerned

To make a claim under warranty, please take this statement of warranty and proof of purchase to the nearest authorised customer service centre. This warranty does not affect the usual statutory rights of the customer relative to the seller.

Over dit handboek

text_image Technical diagram of a lawn mower with numbered parts and exploded view, including open book and mechanical components.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
1 Vrv zaganjalnika 9 Nastavitev višine rezanja*
2 Start, Stop* 10 Sklopka rezila*
3 Kolesni pogon* 11 Menjalnik Vario*
4 Varnostno streme 12 Navodila za uporabo
5 Ergonomska nastavitev višine* 13 Vstavek za izmetavanje*
6 Kazalnik nivoja napolnjenosti* 14 Zaporna loputa*
7 Prestrezni zaklop* 15 Komplet za zastiranje*
8 Zbiralna košara za travo* * odvisno od izvedbe

Simboli na napravi

text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
1 Uže pokretača 9 Namještanje visine rezanja*
2 Start, stop* 10 Spojka noža za rezanje*
3 Pogon kotača* 11 Vario prijenosnik*
4 Sigurnosni stremen 12 Upute za uporabu
5 Ergonomsko namještanje visine* 13 Nastavak za izbacivanje*
6 Pokazatelj razine napunjenosti* 14 Zatvarač*
7 Zaklopac 15 Komplet za malčiranje*
8 Košara* * ovisno o izvedbi

Simboli na uređaju

SOLO 4712 SP-A - Over dit handboek - 1Pozor!Naročit oprez pri rukovanju.SOLO 4712 SP-A - Over dit handboek - 2Prije radova na alatu za rezanje izvucite utikač svjećice.
SOLO 4712 SP-A - Over dit handboek - 3Prije puštanja uređaja u rad pročitajte upute za uporabu!SOLO 4712 SP-A - Over dit handboek - 4Otpustite kočnicu motora.
SOLO 4712 SP-A - Over dit handboek - 5Ostale osobe držite dalje od područja opasnosti! UkSOLO 4712 SP-A - Over dit handboek - 6kotača.
SOLO 4712 SP-A - Over dit handboek - 7Šake i stopala držite podalje od alata za rezanje!SOLO 4712 SP-A - Over dit handboek - 8Daljinsko upravljanje gasom Start / Stop.
SOLO 4712 SP-A - Over dit handboek - 9Održavajte razmak od opasnih područja.

Dodatni simboli kod uređaja s električnim pokretanjem

SOLO 4712 SP-A - Dodatni simboli kod uređaja s električnim pokretanjem - 1

natural_image Simple line drawing of a rabbit, a triangle, and a turtle (no text or symbols)
  1. Polugu gasa postavite na položaj 📋 (20/1).
  2. Sigurnosni stremen izvucite do gornje priječnice i čvrsto ga držite (17) - sigurnosni stremen ne uskače u ležište.
  3. Naglo izvucite uže startera i zatim ga pustite da se ponovno polako uvuče (18).
  4. Nakon zagrijavanja motora (oko 15–20 sekundi) postavite polugu gasa na položaj između 📄 i 🏶 (📞0).

s daljinskim upravljanjem gasom, s prajmerom (6)

Daljinsko upravljanje gasom Start Stop

SOLO 4712 SP-A - s daljinskim upravljanjem gasom, s prajmerom (6) - 1

  1. Polugu gasa postavite na položaj 📋 (20/1).
  2. Pritisnite gumb prajmera 3x u vremenskom razmaku od oko 2 sekunde (6). Kod temperatura ispod 10 °C gumb prajmera pritisnite 5x.
  3. Sigurnosni stremen izvucite do gornje priječnice i čvrsto ga držite (17) - sigurnosni stremen ne uskače u ležište.
  4. Naglo izvucite uže startera i zatim ga pustite da se ponovno polako uvuče (8).
  5. Čim se motor pokrene, postavite polugu gasa za željeni broj okretaja motora u položaj između 📄 i 🏠 (0).

Električno pokretanje (opcija)

Električno pokretanje s prajmerom (6)

  1. Polugu gasa postavite na položaj "START" (15/1).
  2. Pritisnite gumb prajmera 3x u vremenskom razmaku od oko 2 sekunde (616). Kod temperatura ispod 10 °C gumb prajmera pritisnite 5x.
  3. Sigurnosni stremen izvucite do gornje priječnice i čvrsto ga držite (17) – sigurnosni stremen ne uskače u ležište.
  4. Ključ za paljenje u bravi okrenite do kraja udesno (c19).
  5. Čim se motor pokrene, pustite ključ za paljenje (vraća se na položaj "0").
  6. Polugu gasa u skladu sa željenim brojem okretaja motora postavite u položaj između i (25/2).

Električno pokretanje bez prajmera/čoka (15)

  1. Polugu gasa postavite na položaj "START" (45/1).
  2. Sigurnosni stremen izvucite do gornje priječnice i čvrsto ga držite (17) – sigurnosni stremen ne uskače u ležište.
  3. Ključ za paljenje u bravi okrenite do kraja udesno (19).
  4. Čim se motor pokrene, pustite ključ za paljenje (vraća se na položaj "0").
  5. Polugu gasa u skladu sa željenim brojem okretaja motora postavite u položaj između 📋 i 🙏 (145/2).

Spojka noža za rezanje (opcija)

Spojka noža za rezanje Uklj Isklj

SOLO 4712 SP-A - Spojka noža za rezanje (opcija) - 1

SOLO 4712 SP-A - Spojka noža za rezanje (opcija) - 2

Spojkom noža za rezanje može se ukopčati i iskopčati nož za rezanje dok motor nastavlja raditi.

Ukapčanje noža za rezanje

text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.

Advarsel - brandfare!

text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including open book and mechanical arm assembly.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, top, and side views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and exploded views, including front, side, and top views.
text_image Technical diagram of a lawn mower with numbered parts and labeled parts, including front, side, and top views.
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SOLO

Model : 4712 SP-A

Category : Lawn mower
