USER MANUAL COWM370 ABUS

Intended use Only use the device for the purpose which it was designed and built for. Any other use is not considered to be the intended use! This device may only be used for the following purpose:

• Carbon monoxide detection in private households If there is any question as to the cause of an alarm it should be assumed that the alarm is due to dangerous levels of carbon monoxide and the dwelling should be evacuated. Scope of delivery

• Mounting material screws, dowels

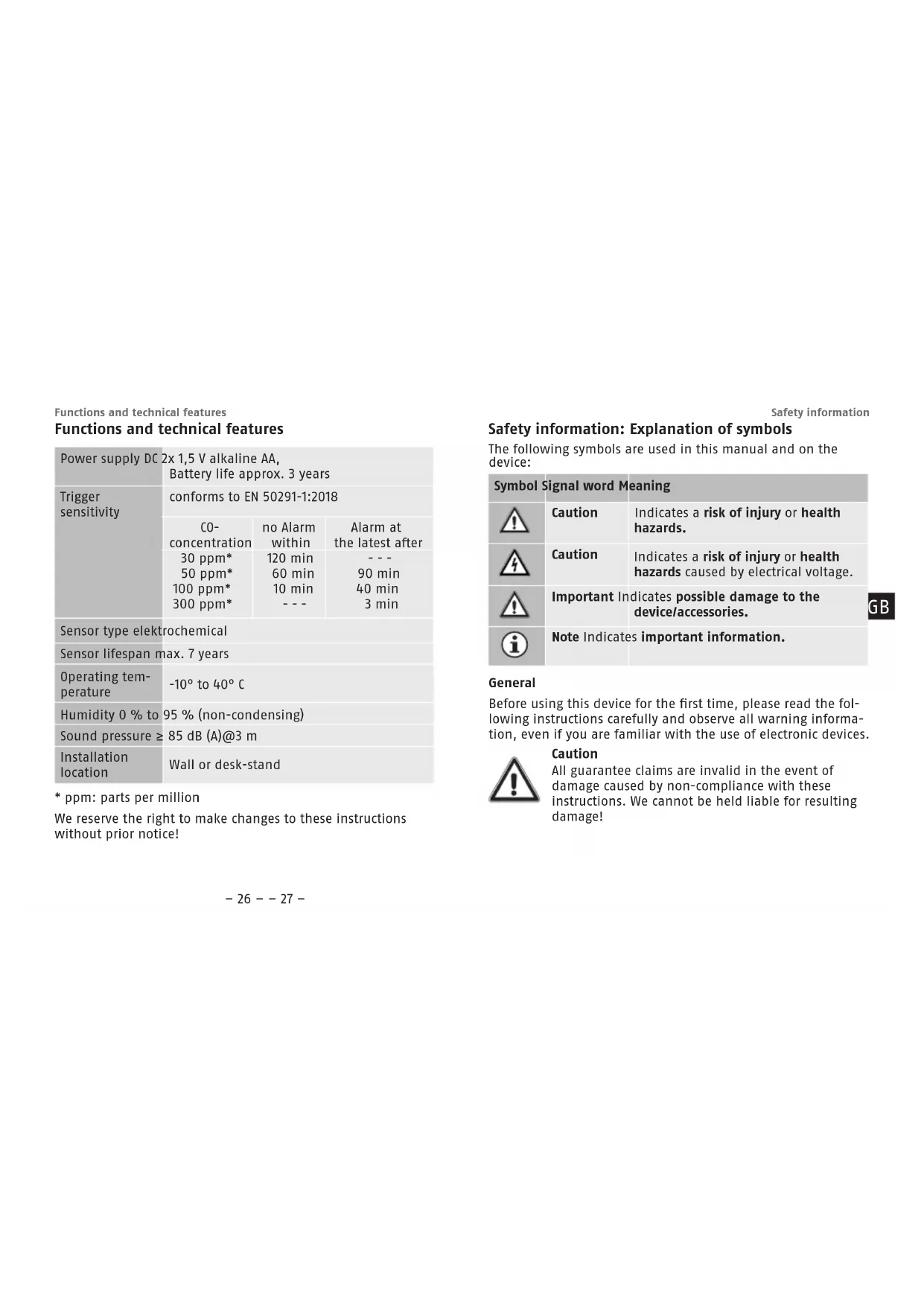

• This user guide Intended use, Scope of delivery– 26 – – 27 – Functions and technical features Power supply DC 2x 1,5 V alkaline AA, Battery life approx. 3 years Trigger sensitivity conforms to EN 50291-1:2018 CO- no Alarm Alarm at concentration within the latest aer 30 ppm* 120 min - - - 50 ppm* 60 min 90 min 100 ppm* 10 min 40 min 300 ppm* - - - 3 min Sensor type elektrochemical Sensor lifespan max. 7 years Operating tem- perature -10° to 40° C Humidity 0 % to 95 % (non-condensing) Sound pressure ≥ 85 dB (A)@3 m Installation location Wall or desk-stand Functions and technical features

• ppm: parts per million We reserve the right to make changes to these instructions without prior notice!

Safety information: Explanation of symbols The following symbols are used in this manual and on the device: General Before using this device for the rst time, please read the fol- lowing instructions carefully and observe all warning informa- tion, even if you are familiar with the use of electronic devices. Caution All guarantee claims are invalid in the event of damage caused by non-compliance with these instructions. We cannot be held liable for resulting damage! Safety information Symbol Signal word Meaning Caution Indicates a risk of injury or health hazards. Caution Indicates a risk of injury or health hazards caused by electrical voltage. Important Indicates possible damage to the device/accessories. Note Indicates important information.– 28 – – 29 – Caution In the event of personal or material damage caused by improper operation or non-compliance with the safety information, we cannot be held liable. All guarantee claims are void in such cases! Store these instructions in a safe place for later use. If you sell or pass on the device on to third parties, you must include these instructions with the device. Battery warning information This product contains two 1,5 V alkaline AA batteries. Keep batteries out of the reach of children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. Seek immediate medical attention in this event! Batteries must be inserted with the correct polarity (+ and -). Empty batteries must be removed or replaced immediately. Dierent battery types, or new and used batteries, must not be mixed. The battery terminals must not be short-circuited. Risk of burns from contact with leaking or damaged batteries! In these cases, use suitable protective gloves and clean the battery compartment with a dry cloth. Batteries must not be dismantled, punctured, damaged, short-circuited, heated, charged or thrown into an open re (risk of explosion!). Do not use or store the product in areas where the temperature could reach below -10°C or above +40°C. Do not expose the product to direct sunlight for long periods of time. Safety information, Battery warnings Functioning of the device Packaging

• Keep packaging material and small parts away from children - danger of suocation!

• Remove all packaging material before using the device. Functioning of the device To ensure that the device functions correctly, please note the following points:

• Do not cover the device!

• Do not paint over the device or cover it with wallpaper!

• Do not, on any account, open or repair the device. Failure to observe this instruction will invalidate the warranty.

• Do not use the device if it has been dropped or damaged in any other way.

• If the device has been tampered with, there is a risk of electric shock or malfunction.

• According to EN 50291, the COWM370 ABUS CO alarm is designed and approved exclusively for detecting CO (carbon monoxide) in private homes!

• Application in industrial facilities, oces, boats, caravans or mobile homes is therefore not permitted!

• The battery-operated ABUS CO alarm COWM370 detects carbon monoxide (CO) in even low concentrations, then gives o an acoustic as well as optical signal. GB– 30 – – 31 –

• The purpose of the CO alarm is to protect persons against the acute eects of carbon monoxide. However, it cannot prevent the chronic aects of carbon monoxide exposure or oer persons with special risks complete safety.

• The CO alarm is not a substitute for smoke, re or other alarms!

• It does not detect smoke, heat or other gases!

• In addition, the electrochemical sensor can only detect CO on time in a limited area (max. 60 m², depending on the environmental conditions). Formation & dangers from carbon monoxide Poisonous eect

• Carbon monoxide (CO) is a colourless, odourless, non-irritating gas which can quickly become a deadly threat.

• Carbon monoxide bonds to the pigment of the red blood cells, thereby preventing the transport of oxygen, which can lead to unconsciousness and death by suocation.

• High concentrations of CO can lead to death in just a few minutes! Typical symptoms of poisoning Low Mild headaches, nausea, tiredness, CO concentration u-like symptoms Medium Bad headaches, racing heart, vomiting CO concentration Functioning of the device, Formation & dangers from carbon monoxide High Cramps, confusion, unconsciousness, CO concentration cardiac arrhythmia

• Please note that the symptoms can occur earlier with children, pregnant women, senior citizens and persons with respiratory or heart diseases and even low CO levels could cause organ damage in unborn children! Sources of carbon monoxide & preventative measures

• Carbon monoxide is created, among others, during incomplete combustion processes (e.g. defective oor heating or clogged smoke outlets).

• Installing a CO alarm is not a substitute for the proper installation, use and maintenance of fuel-burning devices including related ventilation and exhaust gas systems.

• Have such devices/systems installed only by qualied persons. Acquire the devices/systems in perfect technical condition and have them regularly inspected!

• Make sure that ovens, chimneys and the like are kept clean at all times!

• Never operate barbecues, deck ovens, heating devices or other devices intended for use outside inside closed rooms. Formation & dangers from carbon monoxide GB– 32 – – 33 – Behaviour in case of alarm When a carbon monoxide alarm sends out a signal, take the following measures in the specied order: (1) Keep calm and open all doors and windows to increase the rate of ventilation. Stop using all combustion devices and make sure that they are switched o. (2) Leave the building in particular when the CO level is high or when the source cannot be instantly detected and alert occupants, if applicable. (3) Call the re service/rescue worker immediately from outside the building. Follow their instructions. Inform them that you assume carbon monoxide is being inhaled. (4) Do not enter the area in question before the CO concentration has dropped to a non-critical value. (5) Do not use the aected combustion device until the cause of CO emission has been removed by a professional. (6) Check the functionality of the CO alarm aer it has triggered (using Test button) and replace the batteries if necessary. Selecting location General The design and spacial distribution of residential buildings as well as the number, type and location of carbon monoxide sources can vary greatly. However, there are general Behaviour in case of alarm, Selecting location instructions concerning where the device should and should not be installed to keep the risk of false alarms as low as possible. Which room? Installation for optimum safety

• In every room that contains a combustion device.

• In every room that is used as a sleeping area.

• In every hallway per oor.

• In every room in which people spend long periods of time and from which they could not hear an alarm from another part of the building. Minimum installation If the number of alarms is limited or there are combustion devices in more than one room, the following criteria should be taken into account when installing the alarms:

• The alarms should be installed in rooms which contain a device without a smoke outlet or with an open smoke outlet.

• The alarms should be installed in rooms in which occupants spend the most amount of time. Where in the room? Carbon monoxide (CO) has almost the same density as air and therefore distributes itself uniformly in space. Consider the following points when positioning the CO alarm: It is impossible to give exact instructions on the correct arran- gement of an alarm which apply for all types of rooms and their use. The following points should be taken into account when choosing the optimal location for each corresponding situation. Selecting location GB– 34 – – 35 – Alarm located in the same room as a combustion device When CO escapes from a combustion point, the heat initially rises. This is why you should install alarms as high as possible on a free wall in rooms with combustion devices, while consi- dering the following points:

• The alarm should be assembled on a free wall, at least 200 mm below the ceiling.

• Install the alarm at a height at which you can reach it without tools and at which you can see all alarm displays. (Between chest and head)

• The alarm should be at a horizontal distance of 1 to 3 m from the possible source of carbon monoxide.

• If the room is divided, the alarm should be on the same side of the division as the possible source of carbon monoxide.

• In rooms with slanted ceilings, the carbon monoxide alarms should be installed at the higher side of the room. Alarms located in bedrooms and rooms far away from com- bustion devices In rooms located far away from combustion devices, the carbon monoxide has already cooled to room temperature. Due to the fact that CO has nearly the same density as air, it distributes uniformly in the air. Consider the following points:

• In bedrooms and in rooms which are located far away from combustion devices, the devices should be at the breathing level of the occupants (e.g. "desk level" at the bed-side table Selecting location Behaviour in case of alarm, Selecting location in bedrooms and "eye level" in living rooms).

• Make sure there is sucient spacing to the ceiling as well as to corners and furnishings (min. 200 mm). Where alarms should not be installed

• outside (use only possible in closed rooms);

• where they can be blocked (e.g. by furniture);

• on ceilings (only suitable for wall installation);

• next to a door or a window (reliable detection cannot be guaranteed);

• next to an air duct or similar ventilation opening;

• in areas in which the temperature can fall below -10° C and rise over 40° C;

• in rooms that are exposed to large amounts of dust/dirt or grease. Installation and start-up The following two variants are possible for operating the CO alarm: Wall installation Take the following steps in the specied order to install the alarm on the wall:

1. Hold the mounting base in a horizontal position at the

desired location and mark the drill holes.

2. Drill the holes with a suitable power drill ø 5 mm at the

previously marked locations. GB– 36 – – 37 – Make sure not to damage any cables! Keep CO alarm away from getting plaster dust when you drill the holes!

3. Press the plastic dowels into the drill holes and screw the

mounting base with the two supplied screws. Desk-stand "At breathing level" in bedrooms and living rooms without combustion devices during operation.

1. Use the two feet to place the alarm on the bottom side of

the housing on a at, dust-free base.

2. Make sure that the alarm is standing securely and no objects

prevent CO from entering the alarm. Start-up

1. Remove the protective strips from the inserted batteries - the

warning tone sounds and the CO alarm is ready for operation.

2. Then enter the current date (date of installation) on the

label on the bottom of the alarm with a water- and smudge- proof pen: e.g. 30.04.2022.

3. To mount on the wall: Place the CO alarm onto the mounting

base from above until it clicks into place. Testing the device electronics Check the function of the CO alarm by pressing the test button. To protect your hearing, keep away from the device! The alarm sounds four times and the LED ashes four times. This does not signalise that CO is present in the room; it is a conrmation that the alarm is functioning properly. Installation and start-up Display and functions Test the alarm function aer installation and aer every batte- ry change without fail (wait about 5 seconds aer establishing the battery contact). A regular weekly test is also recommended. Displays and functions Condition Operation LED Alarm Power up and warm-

Installing the 2 AA- batteries ash alter- natively red/ yellow/green 1 beep Stand-by condition ashes green approx. every 30 seconds

Test condition Press test button ashes 4 times red 4 beeps Alarm condition Increased CO concentra- tion in the room ashes 4 times red every 5 seconds 4 beeps every 5 seconds Low battery - ashes yellow every 30 sec. 1 beep every 30 sec. Sensor failure - ashes twice yellow every 30 seconds 2 beeps every 30 seconds GB– 38 – – 39 – Display and functions Displays and functions Condition Operation LED Alarm End of unit life - ashes twice yellow every 30 seconds 1 long and 1 short beep every 30 seconds Hush condi- tion when alarm Silence an unwanted alarm: Push and release the test/ hush button, it will enter hush mode ashes 4 times red every 5 seconds

Hush condi- tion durati- on: approx. 10 minutes Hush condi- tion when battery low When the CO alarm is alarming as low battery, push the test/hush button, it will enter hush mode ashes yellow every 30 seconds

Hush condi- tion durati- on: approx. 12 hours Troubleshooting Test: If the CO alarm does not react aer a functional test has been performed, rst check that the batteries are inserted correctly (polarity). If the detector does not react to a new function test even aer this, please contact your dealer. Weak batteries: If the CO alarm signals low battery perfor- mance, replace the batteries immediately, at the latest within 7 days. Only use 1,5 V brand alkaline AA batteries of the same type. Malfunction: If the CO alarm registers a sensor error, the com- plete alarm must be replaced - the sensor cannot be replaced! The end of sensor lifespan: The lifespan of the electrochemi- cal sensor is 7 years. If the end of the lifespan is reached, the complete alarm must be replaced immediately! Care and maintenance Cleaning

• Dusty detectors must be cleaned. You can clean dust from the air vents of the detector using a vacuum cleaner or compressed air.

• If necessary, you can remove the dust with a brush.

• You can clean the surface using a cloth slightly dampened in soapy water.

• Do not allow water to penetrate inside the device!

• Do not clean the device in a dishwasher! Troubleshooting, Care and maintenance GB– 40 – – 41 – Care and maintenance, Manufacture date

• Do not use sharp, pointed, abrasive, caustic or corrosive cleaning materials or hard brushes!

• Do not use chemicals. The following substances can impair sensor function and trigger false alarms: Methane, propane, isobutane, isopropanol, ethylene glycol, benzene, toluene, ethyl acetate, hydrogen sulphide, sulphur dioxide, products with an alcohol base, dyes, thinners, solvents, adhesives, hairsprays and cleaning products.

• Do not use ammable liquids for cleaning the alarm! Maintenance

• The electrochemical sensor is subject to ageing. The sensor lifespan is thereby limited to 7 years.

• The sensor cannot be exchanged. For this reason, replace the entire device 7 years aer the date of its installation at the latest. (See label on the rear side of the alarm). Manufacture date There is a 21-digit bar code on the back of the alarm from which the date of manufacture and the soware version of the alarm can be derived. Positions 11, 12 and 21 of the bar code are relevant here: Position 11 - [Year of manufacture]

L M N O ... Manufacture date and soware version, Battery replacement Position 12 - [Month of manufacture] Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec 1 2 3 4 5 6 7 8 9 A B C Position 21 - [Soware version] A B C ... V1.0.0 V1.0.1 V1.0.2 ... Example: Battery replacement

1. To mount on the wall: Push the CO alarm upwards to

detach it from the mounting base.

2. Remove the two at batteries and replace them with two

new AA-batteries into the two compartments ensuring they are the right way round - the warning tone will sound. The CO alarm is ready for operation again.

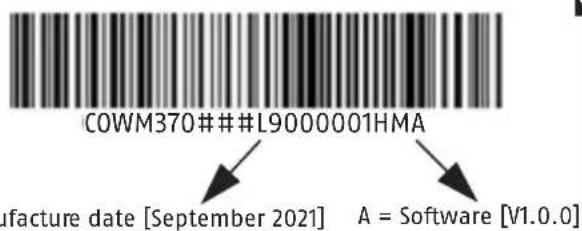

COWM370###L9000001HMA

L9 = Manufacture date [September 2021] A = Soware [V1.0.0] GB– 42 – – 43 – Battery replacement, Warranty

3. To mount on the wall: Place the CO alarm onto the mounting

base from above until it clicks into place. Warranty

• ABUS products are designed and manufactured with the greatest care and tested according to the applicable regulations.

• The warranty only covers defects caused by material or manufacturing errors at the time of sale. If there are demonstrable material or manufacturing errors, the CO alarm will be repaired or replaced at the guarantor's discretion.

• In such cases, the warranty ends when the original warranty period of 2 years expires. All further claims are expressly rejected.

• The warranty does not cover the batteries supplied.

• ABUS will not be held liable for defects and damage caused by external inuences (e.g. transport, use of force, operating errors), inappropriate use, normal wear and tear or failure to observe the instructions in this manual.

• In the event of a warranty claim, the original receipt with the date of purchase and a short description of the problem must be supplied along with the CO alarm.

• If you discover a defect on your CO alarm which existed at the time of purchase, contact your dealer directly within the rst two years. Disposal This product contains valuable raw materials. At the end of its service life, dispose of the product in accordance with the Disposal, Declaration of conformity applicable legal requirements. Electrical appliances, rechar- geable batteries and batteries must not be disposed of with household waste. Disposal must be carried out in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), or Directive 2006/66/EC on batteries and accumulators and waste batteries and accumulators. Batteries must be removed from electrical appliances and dis- posed of separately before disposal. Dispose of the packaging according to type. Separate the cardboard, foil and plastic elements for recycling. Please contact the local authority res- ponsible for disposal if you have any queries. You can obtain information on collection points for your old appliances, for example, from the local municipal or city administration, the local waste disposal companies, or your specialist dealer. Declaration of conformity ABUS August Bremicker Söhne KG hereby declares that the device type COWM370 complies with Directives 2014/30/EU and 2011/65/EU. The full text of the EU Declaration of Conformity can be requested by contacting [e-mail]. WEEE-Reg.-Nr. DE79663011 Subject to technical alterations. No liability for mistakes and printing errors. GB– 44 – – 45 – © ABUS 2022 ABUS August Bremicker Söhne KG D 58292 Wetter | Germany. Tel.: [phone]
