WP-DC22 - Camera CANON - Free user manual and instructions

Product Type	Waterproof housing for Canon digital camera
Compatible Brand	Canon (compatible models WP-DC22/23)
Maximum underwater depth	40 meters (130 feet)
External dimensions	128.1 x 86.8 x 68.2 mm (excluding protrusions)
Weight (housing only)	Approx. 295 g (WP-DC22) / 305 g (WP-DC23)
Materials	Polycarbonate, ABS, tempered glass, EPDM (seal)
Waterproof seal	Removable O-ring, to be greased with supplied silicone grease
Operating temperature	0 °C to 40 °C
Package contents	Waterproof housing, collar, wrist strap, diffuser plate, silicone grease, instruction manual
Power supply	Uses the camera's battery and memory card
Main features	Underwater protection up to 40 m; allows access to all camera buttons; anti-condensation double-glazed optical window; flash diffuser plate
Safety precautions	Do not use beyond 40 m; do not leave in sunlight; remove the camera after use; do not use as a flotation device
Care and cleaning	Rinse thoroughly with fresh water after saltwater use; wipe with a soft cloth; do not wash the interior with water
Seal replacement	Recommended once a year (contact Canon customer service)
Optional accessories	Dive weight WW-DC1 (sold separately, 1 weight recommended)
Storage temperature	Avoid high, low, or humid temperatures; store slightly open to preserve the seal
Warranty	Canon disclaims all liability for damage due to misuse or water ingress
Camera compatibility	Compatible Canon models (refer to the guide's list)

Frequently Asked Questions - WP-DC22 CANON

What is the waterproof rating of the WP-DC22 housing?

The housing is waterproof up to 40 meters (130 feet) depth, compliant with JIS protection class 8.

Which Canon cameras are compatible with the WP-DC22?

The WP-DC22 is designed for Canon digital cameras compatible with this housing. Check the manual or Canon website for the exact list of models.

How to maintain the waterproof seal?

Remove the seal, clean it with a cotton swab, apply a thin layer of the supplied silicone grease, then reinstall without twisting. Replace it once a year.

Can I use the flash underwater with this housing?

Yes, but you must attach the supplied diffuser plate to distribute the light and avoid shadows on the edges.

How to clean the housing after use in the sea?

Rinse the exterior thoroughly with fresh water (below 30°C) for several hours, then wipe with a soft cloth. Do not wash the interior with water.

What to do in case of water ingress into the housing?

Immediately stop using, remove the camera, carefully dry the interior and the camera, then contact Canon customer service.

Can I use the housing in cold weather?

Yes, but battery life decreases. Avoid negative temperatures and protect the housing in a bag when not in use.

How to avoid condensation in the housing?

Avoid sudden temperature changes. If condensation occurs, wipe with a soft dry cloth and wait for complete evaporation before reuse.

Can the supplied collar be used underwater?

No, remove the collar and attach the wrist strap before any underwater use to avoid the risk of strangulation.

Where can I get spare parts like the seal?

Contact Canon customer service to order a replacement water seal or for any repairs.

USER MANUAL WP-DC22 CANON

Close-up of a mechanical component with no visible text or symbols

Line drawings of two camera modules with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with rotating components and gear-like elements (no text or symbols)

撮影

Illustration of a car's front bumper with visible seatbelt and dashboard (no text or symbols)

バックル

取り外しかた

手前に引いて取り外します。

Line drawing of a hand holding a camera module with a black arrow indicating the adjustment (no text or symbols present)

再生

保管するときは

• While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change the specifications of the hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the camera, the software, the memory cards, personal computers, peripheral devices, or use of non-Canon memory cards.

Copyright © 2008 Canon Inc. All rights reserved.

Please read this manual carefully to operate the Waterproof Case correctly.

Store this manual in a safe place for further reference once you have read it.

Introduction

- Thank you for purchasing this Waterproof Case. Once installed in the Waterproof Case, you can use your Canon Digital Camera in the rain, at the beach or on the ski slopes. You can also use it underwater at depths down to 40 meters (130 ft.) and in wet or dusty environments.

- Before you use the Waterproof Case, please make sure the case is functioning correctly and does not leak. Close the Waterproof Case before installing the camera and hold it underwater at an approximate depth of 15 cm (5.9 in.) for around three minutes to check for leaks. Perform a similar check after you install the camera. If it leaks, contact your Canon Customer Support Help Desk.

- Canon Inc., its subsidiaries and affiliates, and distributors of the Waterproof Case are not liable for any consequential damages arising from corrupted or lost data due to mistaken operation or malfunction of the Waterproof Case, the camera, the battery or the memory card that results in the failure of an image to be recorded. - Please carefully read the Camera User Guide supplied with your camera also.

Unpacking

The Waterproof Case is shipped with the items listed below. Please check your package now to confirm that it is complete. Contact your Canon dealer if anything is missing.

• Waterproof Case
• Neck Strap
• Wrist Strap
• Diffusion Plate
• Silicone Grease for the Waterproof Seal
• User Guide (this guide)

Sold Separately

- Canon Waterproof Case Weight WW-DC1 Weights used for the Canon Waterproof Case to prevent it from floating while taking pictures underwater. Refer to the specifications (p. 20) for the number of weights needed for this Waterproof Case. For details on installing the weights, refer to the Waterproof Case Weight user guide.

Safety Precautions

Before you use the Waterproof Case, thoroughly read these precautions to ensure correct use. The precautions described below are for ensuring safe use of the Waterproof Case and for preventing danger and damage to yourself and others. Thoroughly understand the details of these precautions before reading the rest of this manual.

• After you use the Waterproof Case, be sure to remove the camera from it. If you leave the Waterproof Case containing the camera in direct sunlight or in a high-temperature place, this may cause a fire or the case to burst.
- Do not use the Waterproof Case in place of a personal flotation device (life jacket).
- Do not use the neck strap underwater. Remove the neck strap and attach the wrist strap before use underwater. There is danger that the neck strap will become entangled and cause strangulation or another mishap.
- Do not use the Waterproof Case at water depths exceeding 40 meters (130 ft.). The case may malfunction, suffer damage or leak.

• Do not press the buttons or the lever of the Waterproof Case with unnecessary force when in the water. This may warp the casing and cause leaks.
• When cleaning the case, do not spray water at the waterproof seal under pressure. This may cause leaks.
• Do not disassemble or modify the Waterproof Case. This may cause leaks.
• Do not damage the waterproof seal, scratch its contact surfaces, or allow dirt, sand, hair or other debris to accumulate between the waterproof seal and the case. This may cause leaks.
• Do not use the Waterproof Case in water at temperatures above 40 °C (104 °F). Heat may warp the casing and cause leaks.
• Do not leave the Waterproof Case in direct sunlight, inside a car in hot weather, or near a heater. Heat may warp the casing and cause leaks. Cover it with a towel, for example, if you have to leave it in the sun.

Handling Precautions

• Do not drop or throw the Waterproof Case.
• Use only the supplied silicone grease. Use of other waterproofing products may impair the strength of the Waterproof Case. If any other waterproofing product is mistakenly applied, wipe it off immediately.
• Avoid opening or closing the Waterproof Case near water. When you are installing the camera or changing the memory card or the battery, choose a place with low humidity well away from salty sea air.
• Avoid using the Waterproof Case for long periods of time in hot temperatures.

• Battery life is reduced in cold temperatures. When you use the Waterproof Case in very cold places, keep it warm by putting it in a bag whenever you are not shooting. It is not advisable to use the Waterproof Case in temperatures below the freezing point.

• Moving the Waterproof Case rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its internal surfaces. If this occurs, stop using the camera immediately as the condensation may cause a malfunction. Remove the camera from the Waterproof Case and wipe off the condensation from the Waterproof Case and the camera with a soft and dry cloth, and wait until the moisture evaporates completely before resuming use.

About Water Leakage

Stop shooting immediately if the Waterproof Case leaks. If you use the camera in this state, this may cause a fire or electric shocks. Never use it in this state. Thoroughly wipe the Waterproof Case interior and the camera dry. Please contact your Canon Customer Support Help Desk.

Waterproof Seal

- Debris (e.g. sand, dirt or hair) stuck to the waterproof seal may cause water leakage. Catching a single strand of hair or a tiny grain of sand in the seal can cause leaks.

• When removing the seal from your Waterproof Case, use your fingers so you do not damage the waterproof seal (as shown in Fig 1.). Do not dig your fingernails into it or use pointed or metallic objects to remove it.
• Do not pull the waterproof seal. Pulling the seal may overstretch it, which may cause the case to not close properly and cause leaks.
• While mounting the waterproof seal, do not twist or pull the seal with force. Extreme care should be taken to ensure the waterproof seal is level around the mounting groove. Please check to ensure that the waterproof seal is working.

• Be careful not to apply too much grease. Applying too much grease to the seal may cause water leakage (about a droplet is sufficient).
• Do not use paper or cloth to apply the grease to the seal.
• A damaged or cracked waterproof seal may cause leaks. Please contact your Canon Customer Support Help Desk.

To ensure that the Waterproof Case remains waterproof, it is recommended to replace the seal once a year. Please contact your Canon Customer Support Help Desk.

Care and Maintenance

• Wash the exterior of the Waterproof Case with enough clean fresh water (tap water under 30 °C/86 °F, etc.) as soon as possible after using it.
  It is particularly advisable to soak it in fresh water for several hours after use in salt water to remove salt deposits. Please check that you have locked the catch securely to prevent water from entering the case. Wipe it dry with a soft cloth after washing. To avoid scratching the
  Waterproof Case, do not wipe it while any sand or grit remains on it. The metal parts may rust or the buttons may become hard to press if salt deposits remain.
  Wipe the interior of the case with a soft, dry cloth. Do not wash it with water.

Components

Front

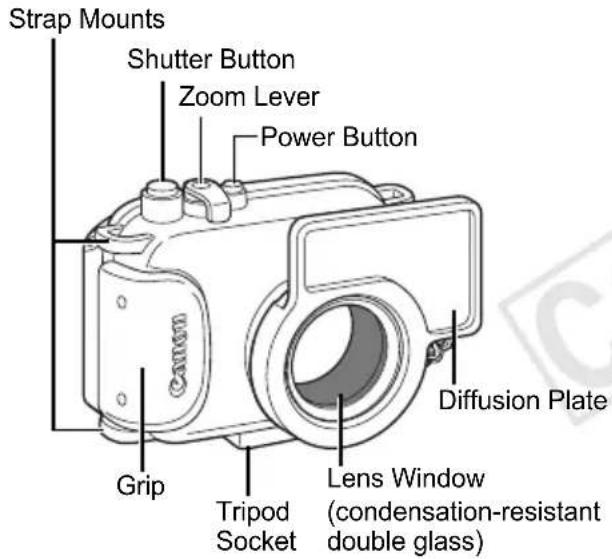

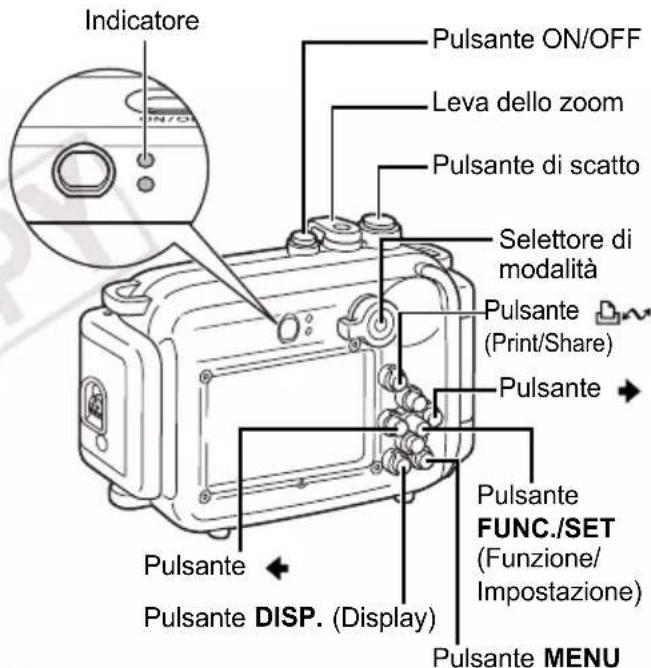

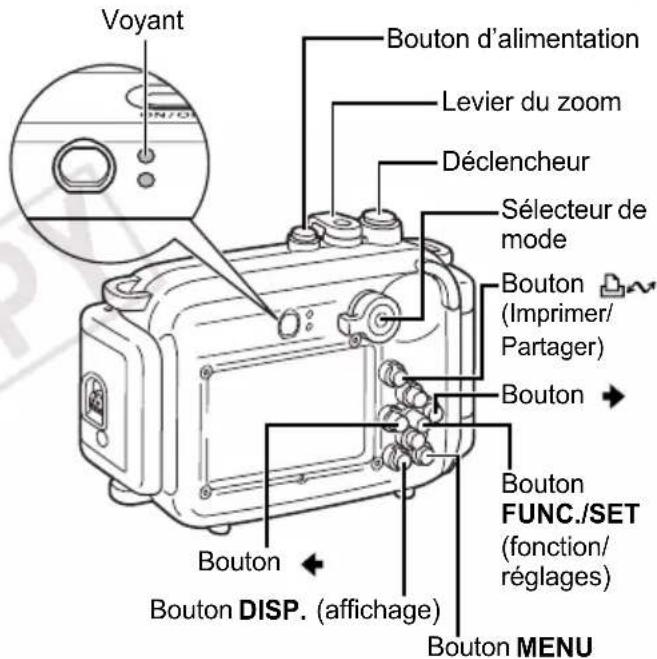

Lens Window

Since dirt or smudges on the lens window may show in photographs, keep the lens window clean by wiping it gently with a soft, dry cloth.

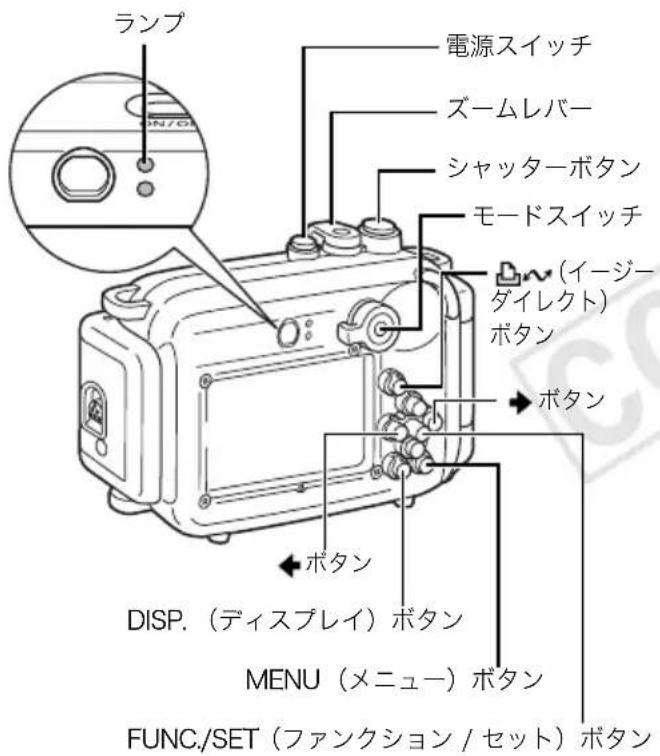

Back

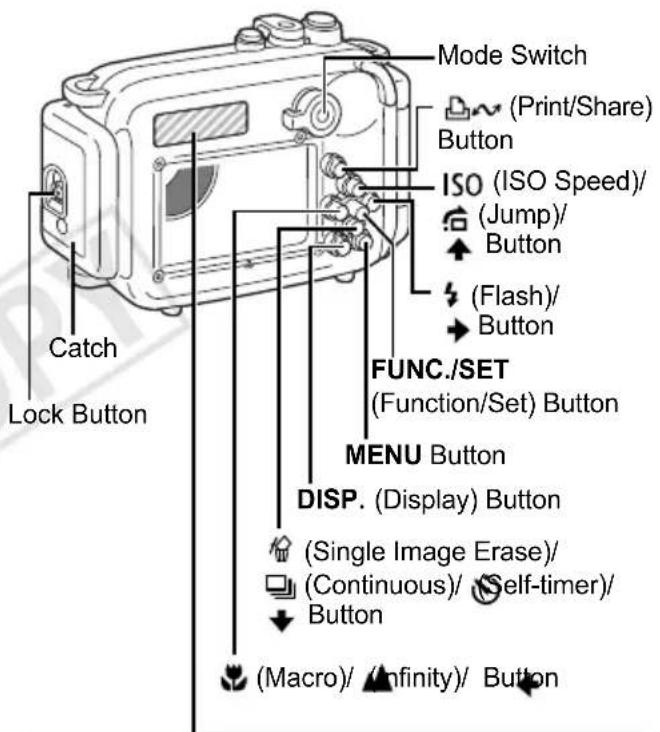

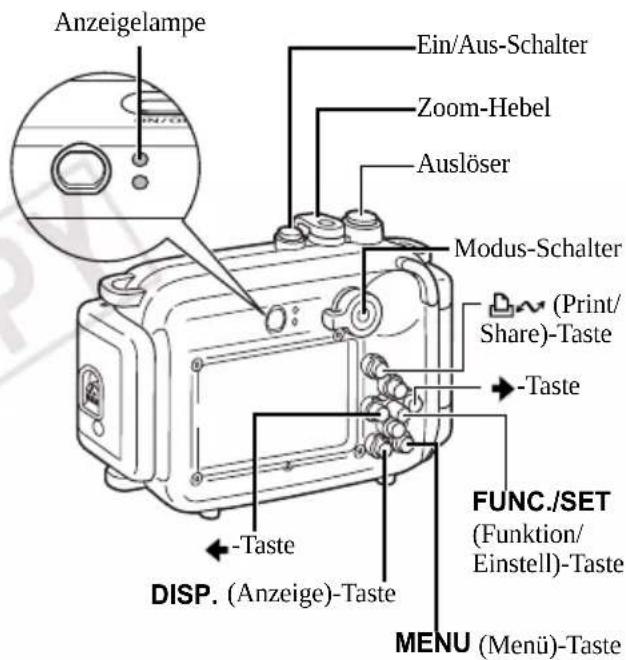

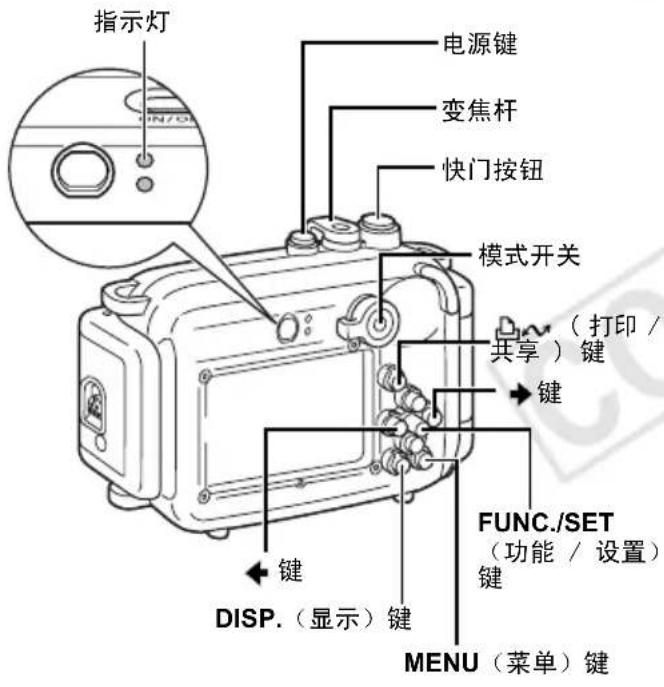

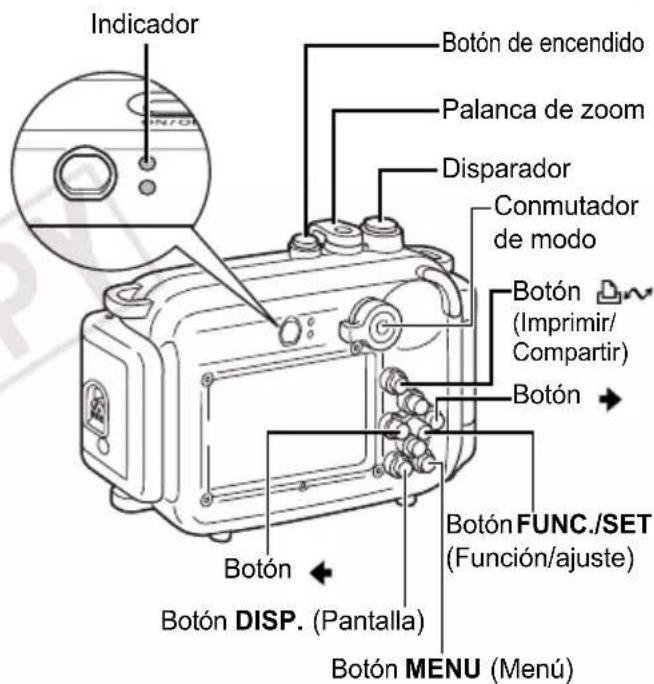

Apply the included controls layout sticker to this area to aid in using the camera controls.

Preparations

Preparing the Camera

Please also read the Camera User Guide for detailed instructions.

1 Confirm that the camera's power is off and open the memory card slot/battery cover.

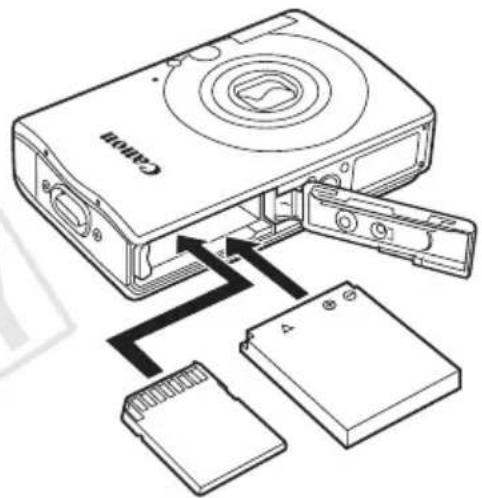

2Insert the battery and the memory card.

• Please refer to the Camera User Guide for information regarding the type of battery to use with the camera and installation methods for the battery and memory card.
• Use a battery that is adequately charged.
• Check the estimated capacity (recordable images) of your memory card and ensure there is enough storage space on the card to record your images.

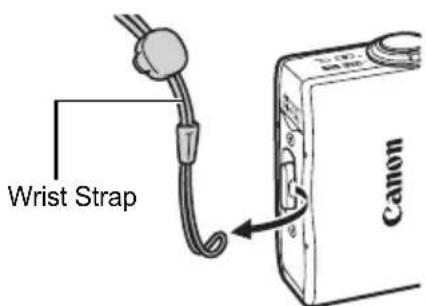

3Remove the wrist strap from the camera.

The camera's strap may catch in the waterproof seal when opening or closing the Waterproof Case and cause leaks if it is not removed.

Close-up of a mechanical component with no visible text or symbols

Do not use the camera's wrist strap as a strap for the Waterproof Case.

Preparing the Waterproof Case

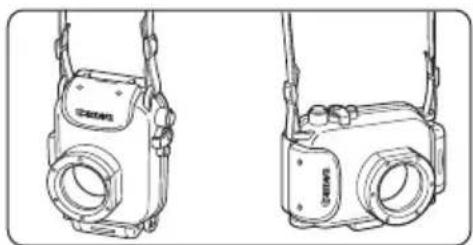

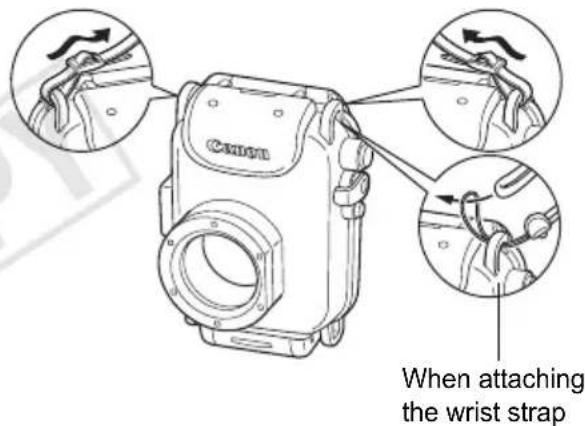

4 Fasten both ends of the neck strap to the strap mounts as shown, and adjust it to a comfortable length.

Line drawing of two identical camera cases with attached lenses and a small lens (no text or symbols)

Use the neck strap when carrying the camera on the beach. Remove the neck strap and attach the wrist strap before use underwater. There is danger that the neck strap will become entangled and cause strangulation or another mishap.

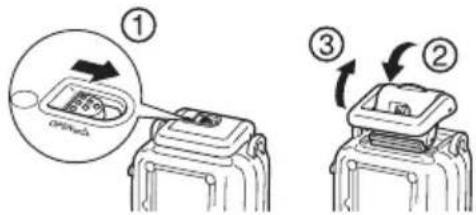

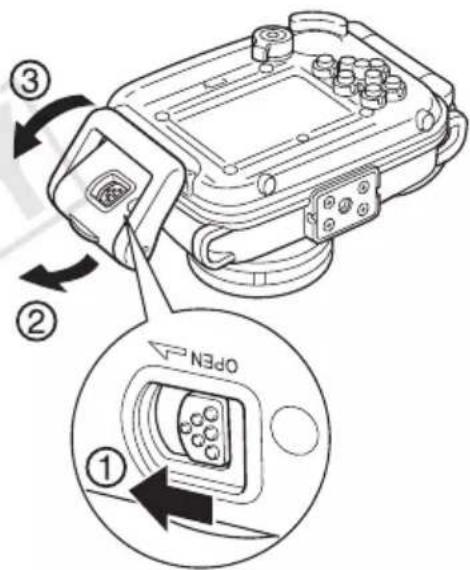

5Slide the lock button as shown, and release the catch to open the back cover.

- When using commercially available anticondensation products, the anticondensation solution should only be applied to the inside surface of the lens window using a soft cloth. If anticondensation solution comes in contact with any surface other than the inside of the lens window, wipe it off immediately with a soft, dry cloth, as it could lead to deterioration of the Waterproof Case.

Apply a thin coat of grease to the entire seal before using the Waterproof Case in order to prevent abrasion and deterioration.

For waterproof seal handling precautions, see Waterproof Seal (p 6).

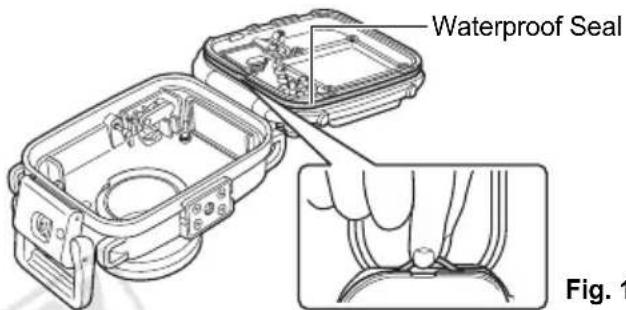

1. Remove the waterproof seal.
2. Using a cotton swab, wipe off any debris (e.g. sand, dirt or hair) which is present on the waterproof seal and on the seal mounting groove of the Waterproof Case.
3. Apply a small amount (droplet) of grease to your fingertip.
4. Evenly coat the entire surface of the waterproof seal, taking care not to scratch the surface.
5. Place the waterproof seal back in the seal mounting groove of the Waterproof Case.

Installing the Camera

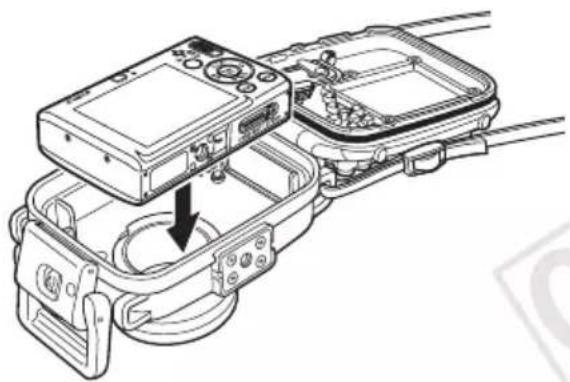

6 Insert the camera into the Waterproof Case as shown.

Technical line drawing of a mechanical assembly with a device housing and internal components (no text or symbols)

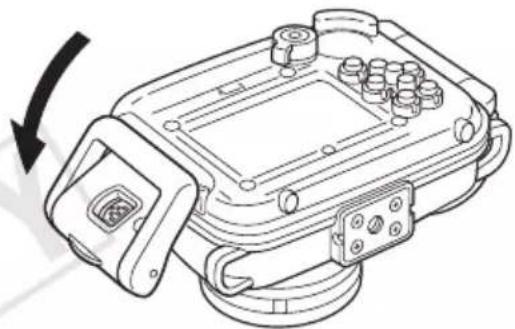

7 Close the Waterproof Case.

- Make sure that the waterproof seal and its contact surfaces are free of debris (e.g. sand, dirt or hair). Catching a single strand of hair or a tiny grain of sand in the seal can cause leaks.

• Make sure that the catch is fastened properly.

Technical line drawing of a mechanical device with no visible text or symbols

8Turn the mode switch in the direction of the arrow to engage the camera's mode switch.

Diagram of a mechanical device with rotating components and a pile of circular components (no text or symbols)

Shooting

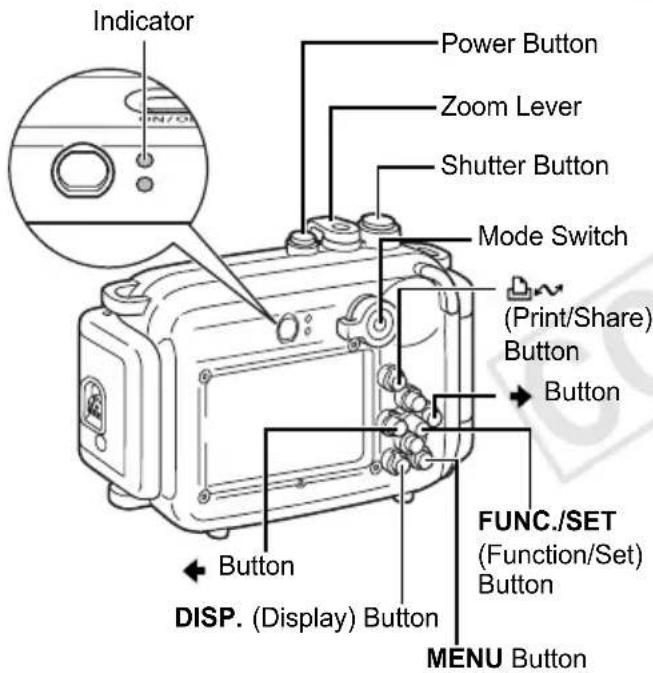

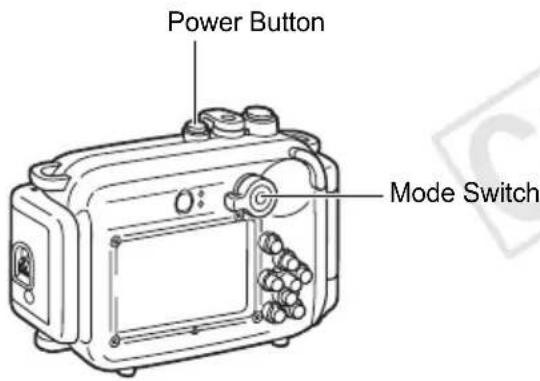

7 Press the power button to turn on the power.

2Turn the mode switch to

3Adjust settings as required.

• You can adjust the zoom with the zoom lever.
• Press the DISP. button to turn on the LCD monitor.

Setting the Scene mode to (Underwater) to shoot

You can obtain more natural appearing coloration underwater if you set the Scene mode to This mode selects the optimal white balance for marine lighting and tones down the blue colors.

1. Turn the mode switch to
2. Press the FUNC./SET button.
3. Use the or buttons to select * and press the DISP. button.
   * The current setting is displayed.
4. Use the or buttons to select .
5. Press the FUNC./SET button.

When shooting in the following modes, note that you can set the white balance manually with the press of a single button if you assign the 📄Custom White Balance) function to the 📄button. This is recommended for adjusting the white balance to the shooting conditions.

• (Manual)
• Digital Macro)
- Standard)
• ( C o m p a c t )
• Time Lapse)

4Use the LCD monitor to compose the shot. Press the shutter button halfway and wait until the indicator lights green or orange. After it lights, press the shutter button all the way.

• Make sure that the lens window is always clean.
- Ensure that your fingers do not obstruct the lens window, flash or diffusion plate when shooting.

- If the power saving function activates and shuts off the power, press the power button again.

5 When you are finished, press the power button to turn off the camera.

Using the Flash

In order to evenly distribute light from the flash, please attach the diffusion plate.

• Do not scratch the surface of the diffusion plate, as this may prevent flash light from being diffused properly.
• Attach the diffusion plate for flash photography because image edges may darken otherwise. Please note, however, that the effectiveness of the diffusion plate may be impaired if the subject is too close to the camera.

Attaching the Diffusion Plate

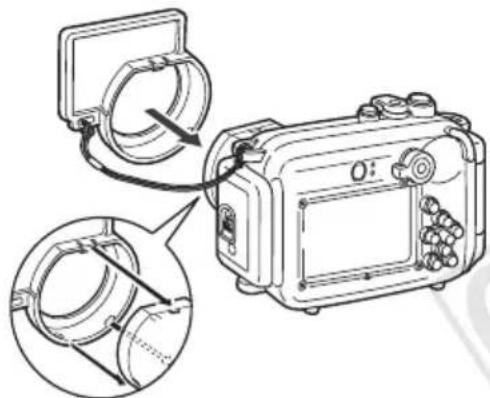

1 Thread the cord through the strap mount.

Diffusion Plate

2Fit the diffusion plate onto the Waterproof Case.

Be sure not to trap the cord of the diffusion plate when closing the catch of the Waterproof Case.

Illustration of a car front bumper with visible seatbelt and rearview mirror (no text or symbols)

Catch

Removing the Diffusion Plate

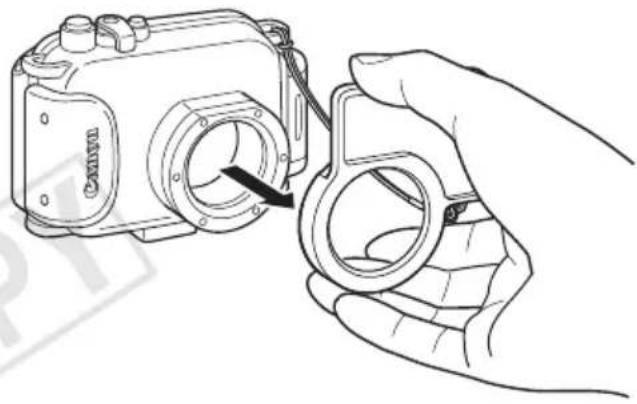

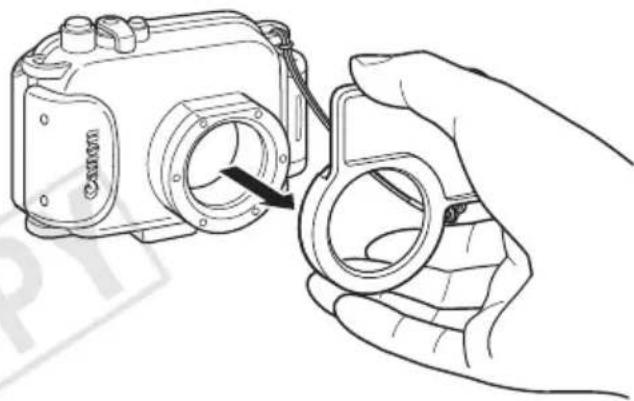

Pull the diffusion plate towards you to remove it.

Line drawing of a hand holding a camera module with a magnifying glass (no text or symbols)

Playback

1 Press the power button to turn on the power.
2Turn the mode switch to (Playback).

3 When you are finished, press the power button to turn off the camera.

After you use the Waterproof Case, be sure to remove the camera from it. If you leave the Waterproof Case containing the camera in direct sunlight or in a high-temperature place, this may cause a fire or the case to burst.

Removing the Camera

1 After use, be sure to completely dry all the water from the Waterproof Case.

- Remove any dirt, sand, hair or other debris from the Waterproof Case, and wash it with clean, running tap water to remove salt deposits.

2 Slide the lock button as shown, and release the catch to open the back cover. Remove the camera from the case.

• Be careful not to allow drops of water from your hair or body to fall on the camera or Waterproof Case interior when the case is open.
• Do not wash the interior of the Waterproof Case with water. Wipe it with a soft, dry cloth.

Storage

• Store your Waterproof Case carefully, in an opened state to prevent the waterproof seal from deforming and to maintain its waterproof effect.
• Protect the waterproof seal from dust or scratches during storage.
• Do not store the Waterproof Case in hot, cold or humid places, or near substances such as naphthalene or insecticides.

Specifications

WP-DC22/23

Maximum Depth: 40 m (130 ft.) (Meets JIS protection class 8 for waterproofing.)

Waterproofing: Seal, O-ring, etc.

Main Materials: Polycarbonate, ABS, clear plate glass, EPDM, etc.

Camera's Operating Temperature:

0 to 40 °C

(32 to 104 °F)

Dimensions: 128.1 x 86.8 x 68.2 mm

(5.04 × 3.42 × 2.69 in.)

(excluding protrusions)

Volume: Approx. 460 cm ^3

(15.6 fl. oz.(US))

Weight: WP-DC22:

Approx. 295 g (10.4 oz.)

WP-DC23:

Approx. 305 g (10.8 oz.)

(Waterproof Case only*)

Number of Separately Sold Waterproof Case Weights (WW-DC1) Recommended for Mounting:

1 weight

* Including diffusion plate

Subject to change without notice.

Deutsch

Haftungsausschluss

Close-up of a mechanical component with no visible text or symbols

Line drawing of two identical camera cases with attached lenses (no text or symbols)

Technical line drawing of a device chassis with an open box and cable, showing internal components and a downward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with circular components and an arrow indicating rotation (no text or symbols)

Aufnahme

Technical line drawing of a mechanical component with no visible text or symbols

Verriegelung

Line drawing of a hand holding a camera module with a circular lens (no text or symbols)

Wiedergabe

Lagerung

Close-up of a mechanical component with no visible text or symbols

Line drawing of two identical camera cases viewed from the side, no text or symbols present

Technical line drawing of a device chassis with internal components and a directional arrow indicating assembly (no text or symbols present)

7 Cierre la funda impermeable.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical component with circular components and directional arrow (no text or symbols)

Fotografiado

Line drawing of a camera with an attached lens and close-up view of the lens (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Cierre

Line drawing of a hand holding a camera module with a black arrow indicating the adjustment (no text or symbols present)

Reproducción

Almacenamiento

Close-up of a mechanical component with no visible text or symbols

Line drawing of two identical camera cases with lenses and side attachments (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with circular components and an arrow indicating rotation (no text or symbols)

Prise de vue

Technical line drawing of a mechanical component with no visible text or symbols

Cliquet

Line drawing of a hand holding a camera module with a black arrow indicating the adjustment (no text or symbols present)

Lecture

Stockage

Close-up of a mechanical component with no visible text or symbols

Line drawing of two identical camera cases with lenses and frame (no text or symbols)

Technical line drawing of a device housing with an internal component and cable (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a cam mechanism with rotating components and a directional arrow (no text or labels)

Ripresa

Line drawing of a hand holding a camera module with a magnifying glass (no text or symbols)

Riproduzione

Conservazione

Close-up of a mechanical component with no visible text or symbols

请勿将相机的腕带作为防水套的腕带。

准备防水套

Technical line drawing of two camera modules with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

7 关上防水套。

Technical line drawing of a mechanical device with a rotating arrow indicating rotation (no text or symbols present)

Diagram of a mechanical device with rotating components and circular elements (no text or symbols)

拍摄

Line drawing of a Canon camera being held by a hand, showing the lens and frame (no text or symbols)

播放

存放

CDI-M399-010 XXXXXXX © CANON INC. 2008

PRINTED IN JAPAN

IMPRIMÉ AU JAPON
