FS16USB - Razor Duronic - Free user manual and instructions

Product Type	Electric Lint Remover
Brand	Duronic
Model	FS16USB
Power Source	Rechargeable Ni-MH Battery 2 x 600 mAh
Rated Voltage	5 V
Rated Power	3 W
Charging Time	Approximately 8 hours
Operating Time	Approximately 50 minutes
Charging via	USB cable (included)
Main Functions	Removes lint and fuzz from clothing
Protective Grid	Yes, removable for cleaning
Blades	Sharp rotating blades, removable
Lint Reservoir	Yes, transparent, capacity 80%
Cleaning Brush	Included
Indicator Light	Green when operating, red/green during charging
Usage	Domestic, on flat clothing
Maintenance and Cleaning	Clean the reservoir and blades with the included brush
Safety	Do not use without grid, blades are very sharp, keep out of reach of children
Warranty	1 year
Manual Languages	French, English, German, Spanish, Italian, Polish

Frequently Asked Questions - FS16USB Duronic

How to recharge the FS16USB lint remover?

Make sure the device is turned off. Connect the included USB cable to a USB port (charger). The indicator light turns on to indicate charging. Full charging takes about 8 hours.

What is the operating time of the Duronic FS16USB?

Once fully charged, the device offers an operating time of approximately 50 minutes of continuous use.

How to clean the lint reservoir?

Detach the rim of the reservoir, empty it using the included brush. Remove the blades for deep cleaning, then replace them after drying. Put the grid back and lock the rim.

Can I use the device on worn clothes?

No, the device must be used on flat clothing, not on a person or their clothes. This avoids any risk of injury and ensures better efficiency.

Are the blades removable and how to clean them?

Yes, the blades are removable. To clean them, carefully remove the grid, then the blades by pushing them slightly on the central axis. Use the included brush to remove lint. Replace them carefully.

What to do if the device stops working?

First check the battery. If the problem persists, consult the full manual. The one-year warranty covers manufacturing defects. Contact customer service with proof of purchase.

Is the device suitable for delicate fabrics?

Yes, but it is advisable to test on a small hidden area first. For thin fabrics, fold the garment in half and use the device on a flat surface like an ironing board.

How to adjust the handle of the FS16USB?

Place one hand on the handle, hold the head with the other hand, and rotate the handle safely to adjust it to your preference.

What types of clothing can be treated?

Suitable for most fabrics: sweaters, scarves, coats, etc. Avoid areas with buttons, zippers, collars, seams, and decorative elements that could get damaged.

Where can I find the full manual in French?

The manual is available for free in PDF format on the notice-facile.com website for the Duronic FS16USB model. You can download it directly.

USER MANUAL FS16USB Duronic

FS16USB - LINT REMOVER

Contents

English Manual 3

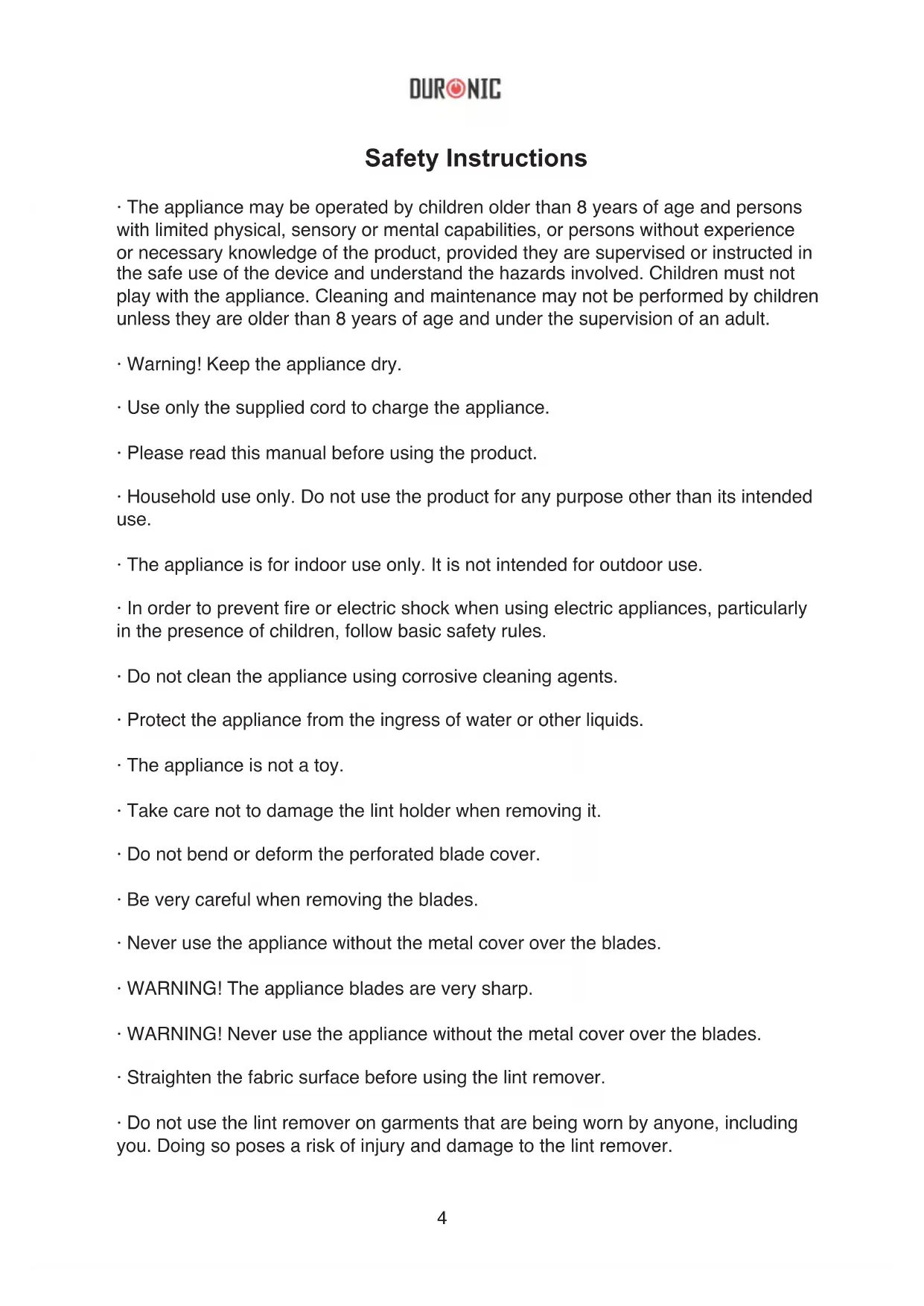

· The appliance may be operated by children older than 8 years of age and persons with limited physical, sensory or mental capabilities, or persons without experience or necessary knowledge of the product, provided they are supervised or instructed in the safe use of the device and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance may not be performed by children unless they are older than 8 years of age and under the supervision of an adult.

- Warning! Keep the appliance dry.

- Use only the supplied cord to charge the appliance.

- Please read this manual before using the product.

- Household use only. Do not use the product for any purpose other than its intended use.

- The appliance is for indoor use only. It is not intended for outdoor use.

- In order to prevent fire or electric shock when using electric appliances, particularly in the presence of children, follow basic safety rules.

- Do not clean the appliance using corrosive cleaning agents.

- Protect the appliance from the ingress of water or other liquids.

· The appliance is not a toy.

· Take care not to damage the lint holder when removing it.

· Do not bend or deform the perforated blade cover.

- Be very careful when removing the blades.

- Never use the appliance without the metal cover over the blades.

- WARNING! The appliance blades are very sharp.

- WARNING! Never use the appliance without the metal cover over the blades.

- Straighten the fabric surface before using the lint remover.

· Do not use the lint remover on garments that are being worn by anyone, including you. Doing so poses a risk of injury and damage to the lint remover.

Components

Product Specification

• Nominal Voltage: 5V, 3W
• Battery: 2 x Ni-MH 600mAh
• Charging time: approx. 8 hours
• Operating time at full charge: approx. 50 minutes

Model Name	Rated Frequency Rated	Power Battery
FS16 USB	5V 3W 2x Ni-MH 600mAh

DURONIC

Charging

• Use the power cord to connect the appliance to a mains outlet
  • The on/off switch lights up in red to indicate charging.
• It takes approximately 8 hours to fully charge the appliance.
  • After charging, unplug the appliance from the mains outlet.

Tips

Do not shave pills, fuzz etc. when garments are being worn, because doing so poses an injury risk.

- Pay particular attention when shaving the following parts of garments:

• around buttons and zippers
  – protruding parts
  -seams
• stitches

• items glued to cloth
  – delicate parts

• Before using the appliance, try it on an area of the garment that is barely visible.

• Slide the appliance along the pattern on the garment.
• For stubborn pills, slide the appliance along the pattern vertically and horizontally.
• For thin fabrics, fold two layers of garment and shave on a surface such as an ironing board.

Instructions

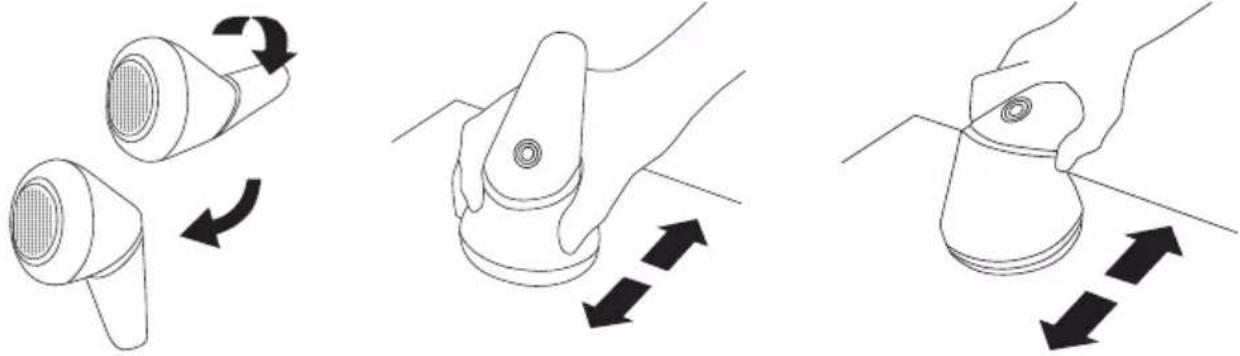

Setting the handle

Put one hand on the handle, placing the other on the appliance head, then twist.

Operating

Remove the plastic cover.

Turn the appliance on by pressing the on/off switch. Afterwards, the on/off switch will light up in green.

Place the garment on a flat surface and smooth the creases. Slide the appliance over the surface of the material. After finishing, turn off the appliance by pressing the on/off switch

Cleaning

When the lint container is approx. 80% full, empty it and clean the container as well as the internal blades.

Cleaning the container

Detach the lint container cover

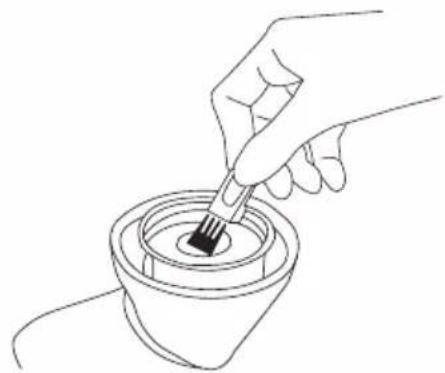

Empty the container, using the supplied brush

Remove the blades, to thoroughly clean the container.

Replace the blades, Cleaning the blades.

Replace the lint container cover and secure it on the appliance.

Cleaning the blades

Remove the metal blade cover

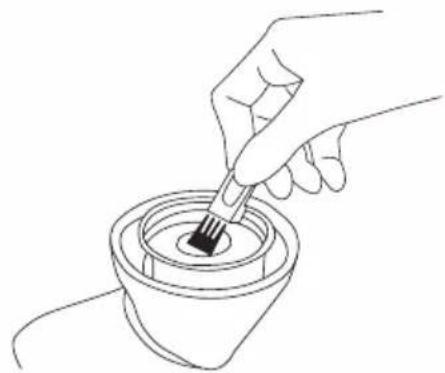

Clean the blades and the blade cover with the supplied brush

Carefully hold the base for attaching the blades and gently pull upwards

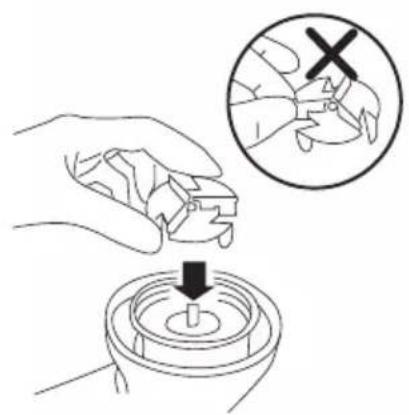

Carefully replace the blades on the base and push them in gently

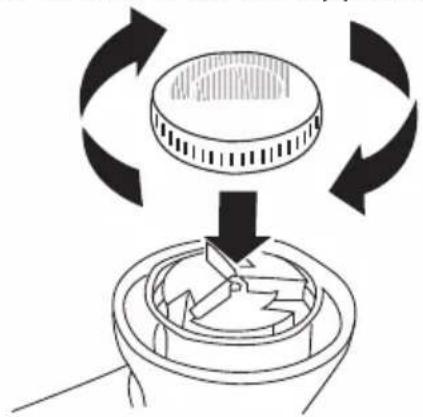

Replace the metal blade cover, then attach the lint container cover

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

duronic.com

duronic

Gduronicmedia

Duronic

@duronicmedia
