CH500 - Mechanical chipper Duronic - Free user manual and instructions

Product type	Electric chopper
Brand	Duronic
Model	CH500
Power	300 W (estimated)
Bowl capacity	500 ml (estimated)
Bowl material	Glass or plastic (not specified)
Blades	Double blade (upper and lower) removable
Functions	Chopping, mixing, pureeing, continuous operation and pulse
Safety	Lid lock, automatic stop if lid not locked, overheat protection
Cleaning	Bowl, lid, blades and scraper washable in soapy water; base wiped with a damp cloth
Maintenance	Do not use abrasives; dry parts before use; removable silicone seal
Warranty	1 year (Shine-Mart Ltd)
Power supply	220-240 V ~ 50/60 Hz (European plug)
Weight	Approximately 1.5 kg (estimated)
Dimensions (H x W x D)	Approximately 25 x 20 x 20 cm (estimated)
Included accessories	Scraper, silicone seal, instruction manual

Frequently Asked Questions - CH500 Duronic

How to assemble the blades of the Duronic CH500 chopper?

Place the lower blade on the central axis, then optionally the upper blade for finer chopping. Lock the blades by turning the lock in the indicated direction.

Can I chop hot ingredients with the CH500?

No, you must let hot ingredients cool to room temperature before chopping, as steam must be able to escape and the bowl is not designed for heat.

How to clean the silicone seal of the lid?

Carefully remove the seal from the lid, wash it in soapy water, rinse and dry. Replace it by pressing evenly over its entire surface.

What to do if the appliance does not start?

Check that the lid is properly locked (turned counterclockwise). The appliance has a safety feature that prevents operation if the lid is not in place.

What is the maximum continuous use time?

It is recommended not to exceed 30 seconds of continuous use, then let the appliance rest for 2 minutes before using again to protect the motor.

Can I chop ice or coffee beans?

No, very hard ingredients like ice, coffee beans, hard spices, or chocolate can damage the blades and prematurely wear the appliance.

How to get a smooth puree for baby?

Use both blades (upper and lower) and blend in pulses. Check the consistency and repeat if necessary. For optimal results, cut ingredients into small pieces.

Can the bowl go in the microwave?

No, no part of the appliance can be placed in the microwave.

How to use the pulse function?

Press the start button gently for short impulses. For continuous operation, press the button fully.

What to do if the motor heats up and stops?

The appliance is protected against overheating. Unplug it, remove some of the ingredients, and let it cool for at least 10 minutes before reusing.

USER MANUAL CH500 Duronic

Creative Consumer Products

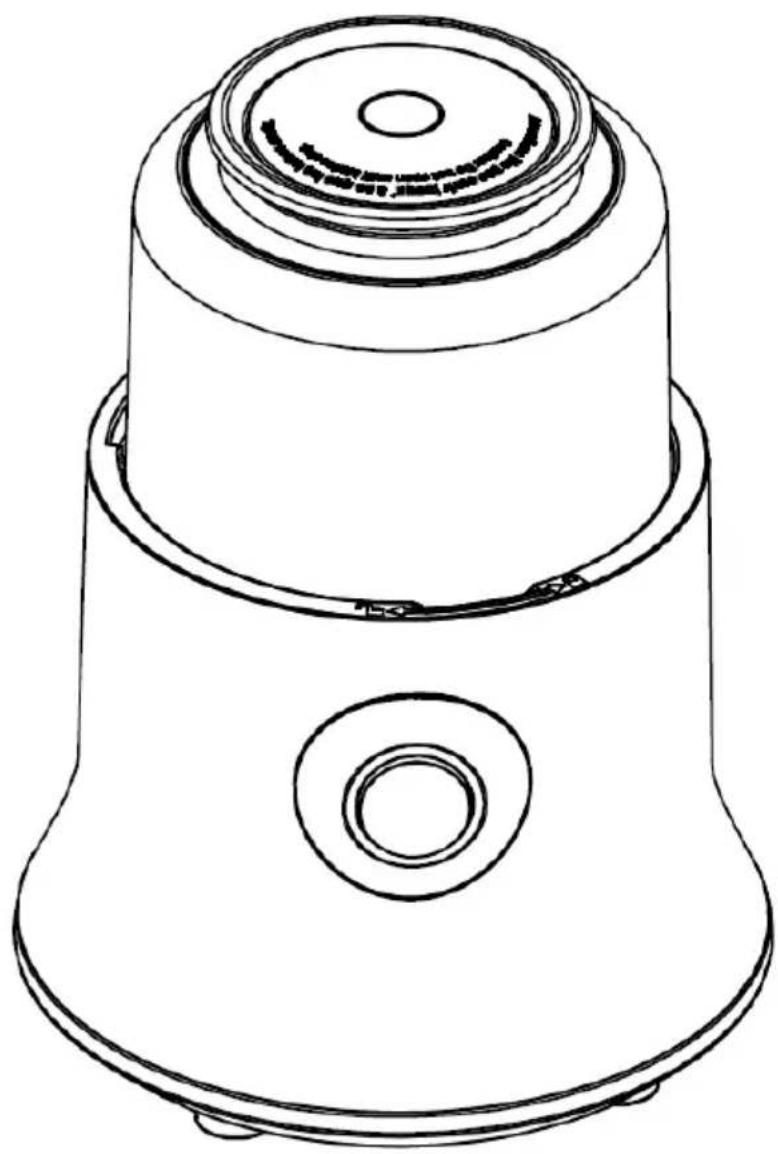

Line drawing of a mechanical component with a circular top and central hole (no text or symbols)

CH500 - Chopper

DURONIC

Contents

English Manual 5

1. Top Cover
2. Silicon Ring
3. Food Scraper
4. Upper Knife Blade
5. Finger Grip

6. Blade interlock

7. Lower Knife Blade

8. Bowl
9. Safety Interlock
10. Power Switch
11. Motor base
12. Rubber feet

DURONIC

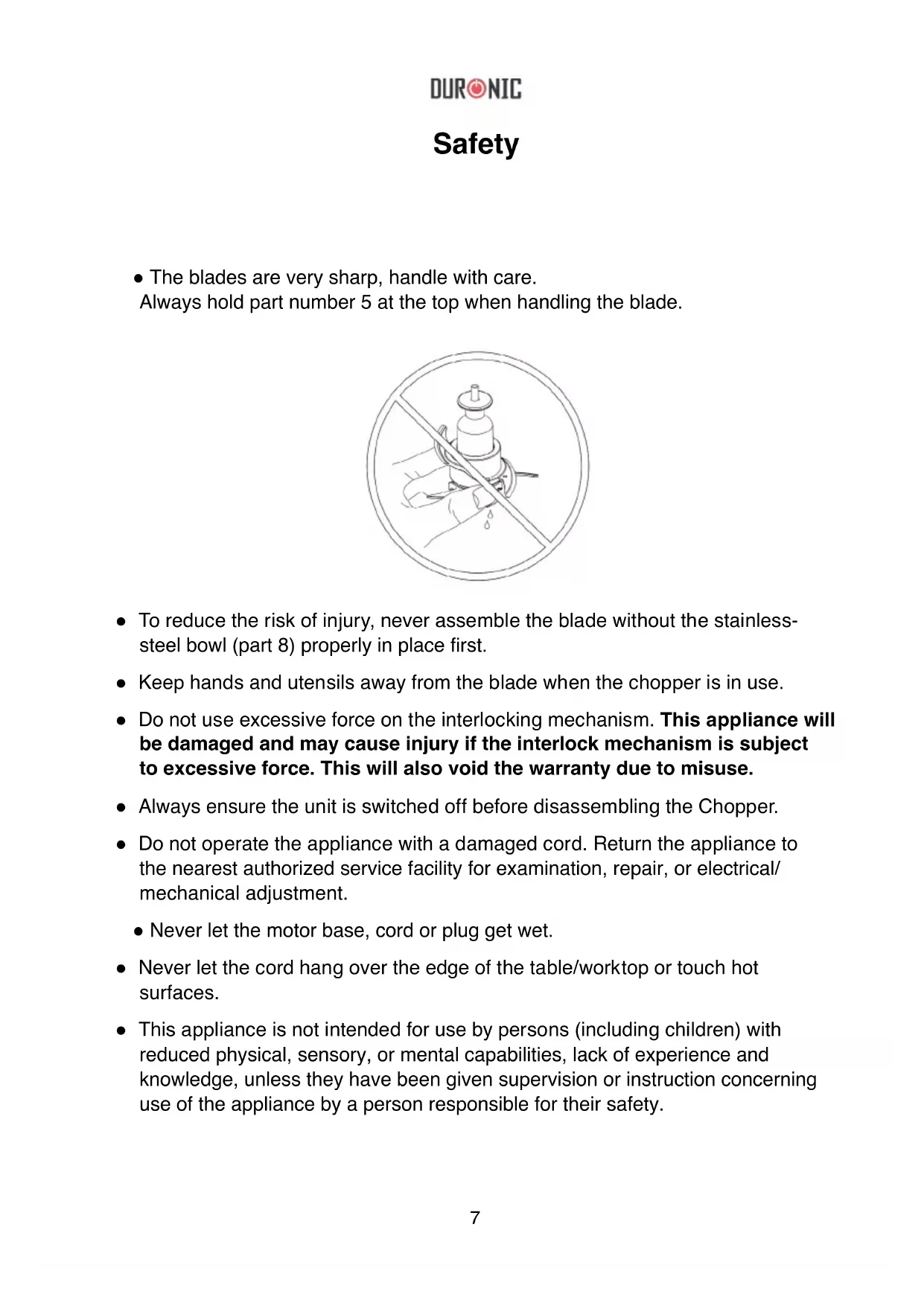

Safety

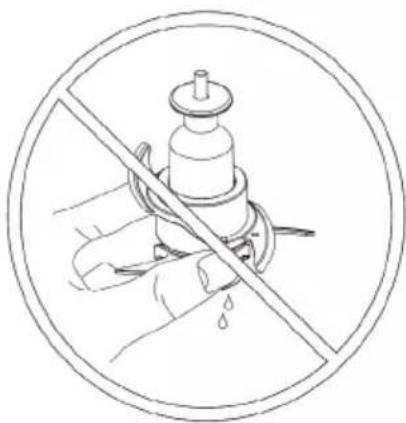

- The blades are very sharp, handle with care. Always hold part number 5 at the top when handling the blade.

Diagram of a hand using a tool to stop a valve, no text or symbols present

- To reduce the risk of injury, never assemble the blade without the stainless-steel bowl (part 8) properly in place first.

- Keep hands and utensils away from the blade when the chopper is in use.

- Do not use excessive force on the interlocking mechanism. This appliance will be damaged and may cause injury if the interlock mechanism is subject to excessive force. This will also void the warranty due to misuse.

- Always ensure the unit is switched off before disassembling the Chopper.

- Do not operate the appliance with a damaged cord. Return the appliance to the nearest authorized service facility for examination, repair, or electrical/mechanical adjustment.

- Never let the motor base, cord or plug get wet.

- Never let the cord hang over the edge of the table/worktop or touch hot surfaces.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not use outdoors. This product is made for indoor domestic use only. Duronic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.
• To protect against the risk of an electrical shock, do not put the motor base in water or other liquids.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Make sure the cover is securely locked in place before operating appliance.

\*Before plugging in\*

Make sure your household voltage corresponds with the rating label on the product.

To use your food chopper

The knife blade unit comes in 2 parts, a lower and an upper blade.

• For coarser chopping use the lower blade on its own.
• For fine chopping or to make puree, use both blades together. This will also achieve faster results.

Technical line drawing of a mechanical device with a circular component and a separate view showing a pin (no text or symbols)

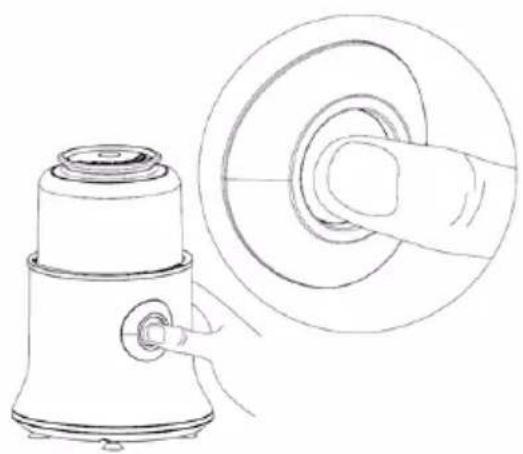

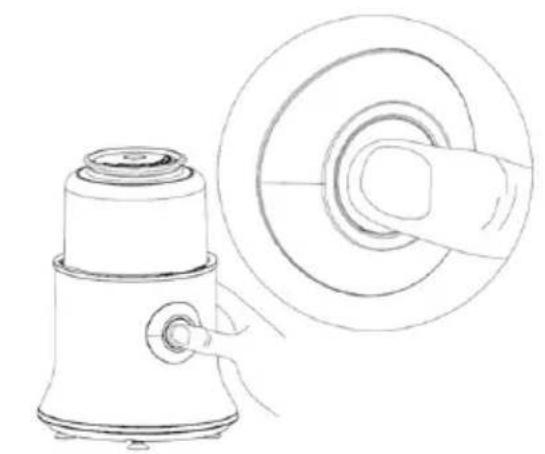

Soft press for pulse Press full for continuous use

Technical line drawing of a mechanical device with a magnified inset showing a circular component (no text or symbols)

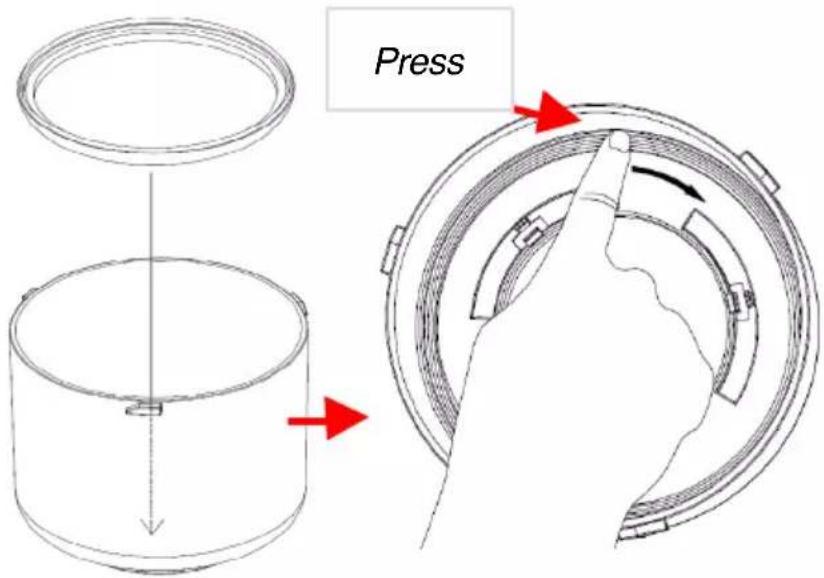

How to assemble the silicon ring.

Install the silicon ring into the inside of the lid then press the ring by hand until it is fixed on.

Press

Note: After processing food, the upper blade may disengage from the lower blade. This is normal as the blade assembly is designed to be loose to ease separation after use.

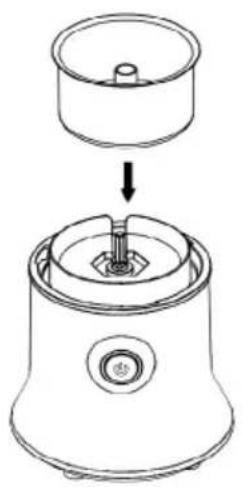

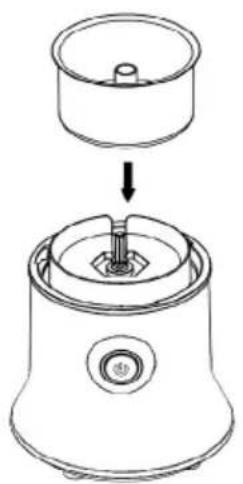

1. Fit the bowl on to the power unit.

Line drawing of a mechanical device with a top component and a base, showing a step-down assembly (no text or symbols)

1. Cut the food into small pieces and place into the bowl. Larger pieces of food should be cut into smaller pieces to fit into the bowl.

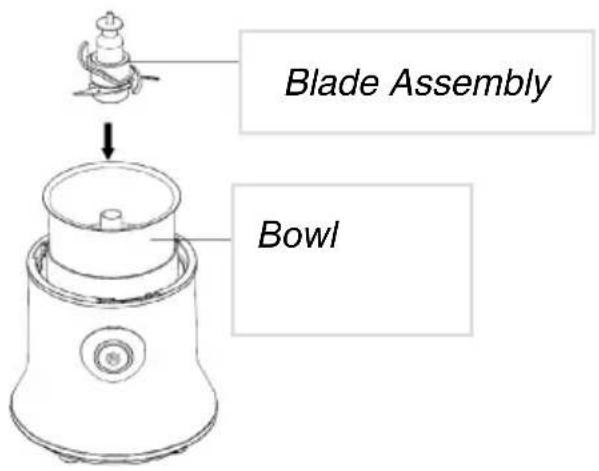

2. Fit the blade assembly into the bowl.

Blade Assembly Bowl

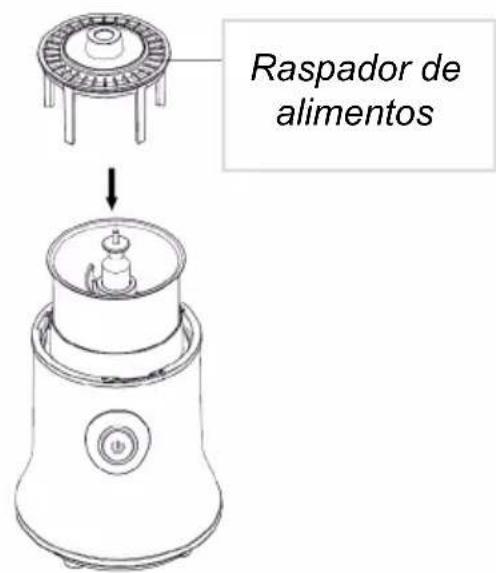

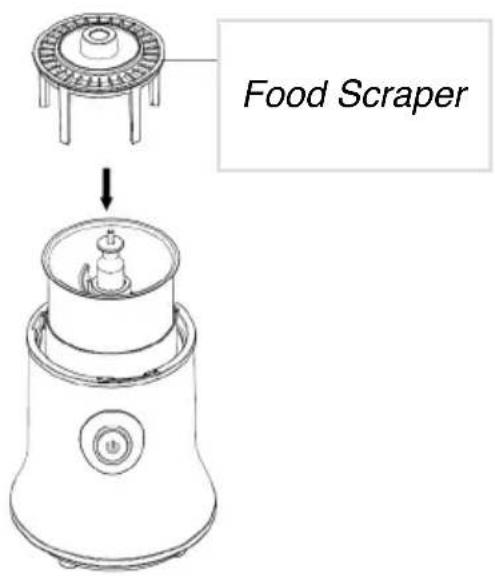

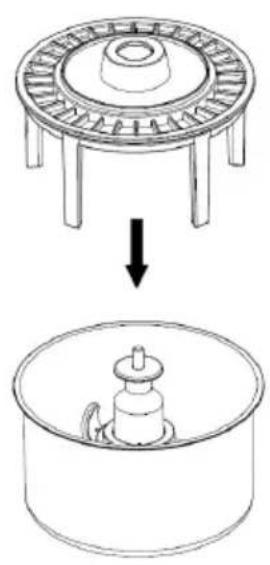

1. Fit the food scraper into the bowl. Turn the scraping rotator to scrape the sides of the bowl.

Diagram showing a circular component being processed into a cylindrical container with a central knob (no text or symbols present)

Food Scraper

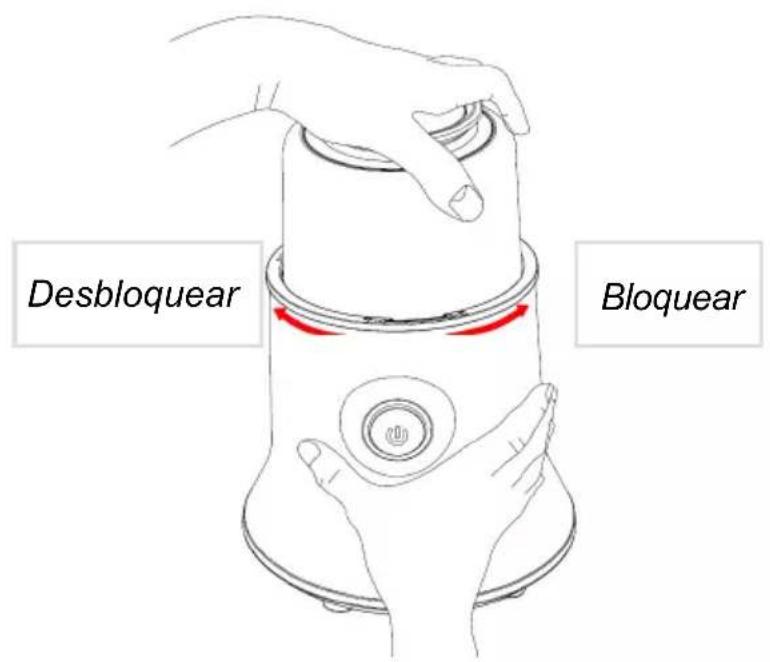

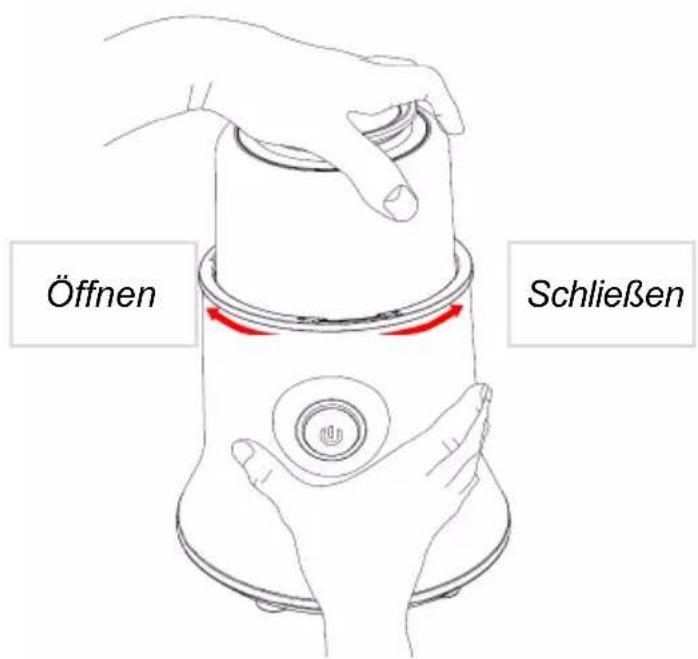

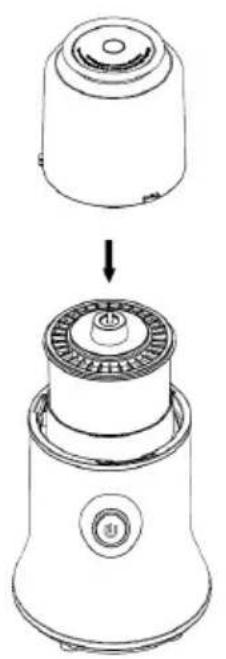

1. Place the top cover on to unit and turn it anti-clockwise to lock into place and to activate safety switch.

Note: The chopper has a safety switch, which can be activated by locking the top cover, as shown below.

Line drawing of a mechanical device with a top component and a base, showing a step-by-step assembly (no text or symbols)

LockUnlock

IMPORTANT

• If preparing food for babies or young children, always check that the ingredients are thoroughly blended before feeding.
• Do not run the food chopper continuously for longer than 30 seconds. Leave to cool for 2 minutes' in-between each 30 second operation.
• Do not operate the food chopper if the bowl is empty.
• Always allow hot food to cool before processing.
• Do not place any part of the chopper in a microwave.

Hints

- If the chopper struggles to process the ingredients, remove some of the mixture and continue processing in several batches, otherwise you may strain the motor and cause it to overheat.

- Remember that chopping hard ingredients such as coffee beans, spices, chocolate or ice will wear down the blade.

- Beware of over processing some ingredients. Stop and check the consistency frequently.

• To achieve better results, always scrape food down from the side of the bowl.

- The best results are obtained by chopping small ingredient quantities at a time.

- Ensure that the blade, bowl and cover are thoroughly dry before chopping dry ingredients such as nuts or breadcrumbs.

Care and Cleaning

- Do not use harsh detergents or metallic, abrasive objects to clean the unit as the surface of the unit or accessories might get damaged.

- If necessary, just wipe the motor unit with a dry or damp cloth.

- Store the unit in a dry safe place out of the reach of children.

- IPlease dry all parts including rubber seal before assembling again after cleaning.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products.

NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

Diagram of a hand using a tool to stop a device, no text or symbols present

Technical line drawing of a mechanical device with a circular component and a separate view showing a ring and handle (no text or symbols)

Line drawing of a mechanical device with a magnified circular component detail (no text or symbols)

Insertion

Note: After processing food, the upper blade may disengage from the lower blade. This is normal as the blade assembly is designed to be loose to ease separation after use.

1. Placez le bol sur la base.

Line drawing of a small appliance with a lid and base, showing a step-down view from top to bottom (no text or symbols)

Diagram showing a circular mechanical component being processed into a cylindrical container (no text or symbols present)

Diagram of a hand using a tool to stop a valve, no text or symbols present

Technical line drawing of a mechanical component with a cylindrical shaft and flange (no text or symbols)

Technical line drawing of a mechanical device with a magnified circular component (no text or symbols)

Line drawing of a mechanical device with a cylindrical top and a base, showing a step-down view of the component (no text or symbols)

Diagram showing a circular component being processed into a cylindrical container, with no visible text or symbols.

Line drawing of a small electric shaver with a top component, showing internal structure and assembly (no text or symbols)

Line drawing of a mechanical device with a top component and a base, showing a step-down view (no text or symbols)

Diagram of a hand using a tool to stop a device, no text or symbols present

Technical line drawing of a mechanical device with a circular component and a separate view of its ring (no text or symbols)

Line drawing of a portable device with a circular button and a finger inserted, showing no text or symbols.

Line drawing of a mechanical device with a top component and a base, showing a step-down view (no text or symbols)

Diagram showing a mechanical component being lowered into a cylindrical housing (no text or symbols present)

Raspador de alimentos

Line drawing of a mechanical device with a cylindrical top and a base, showing a downward arrow indicating transformation (no text or symbols present)

Desbloquear Bloquear

IMPORTANTE

Cross-sectional diagram of a hand holding a device with a diagonal line crossing through it, no text or symbols present.

Technical line drawing of a mechanical device with a circular component and a separate view showing a pin (no text or symbols)

Line drawing of a portable device with a circular button and a finger inserted, showing no text or symbols.

Line drawing of a small appliance with a lid and base, showing a step-down view from top to bottom (no text or symbols)

Diagram showing a circular mechanical component being processed into a cylindrical container (no text or symbols present)

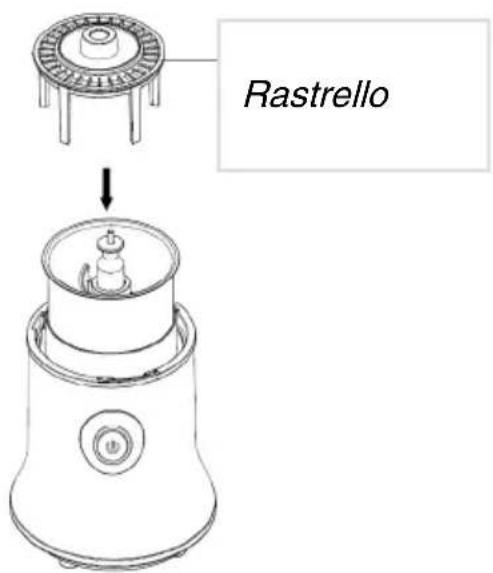

Rastrello
