USER MANUAL EK42 Duronic

Creative Consumer Products

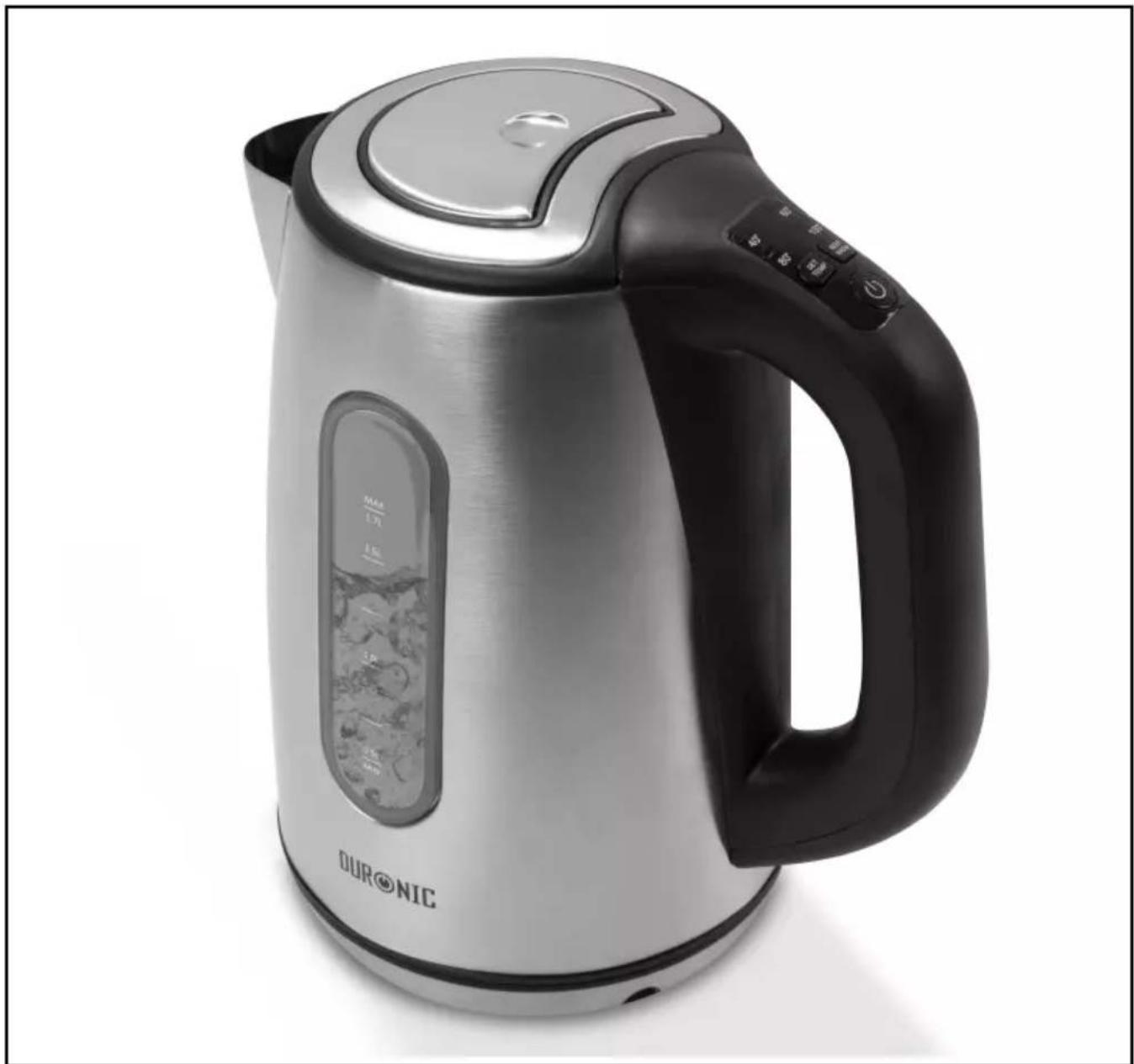

Exterior view of a modern stainless steel water heater with black handle and digital keypad (no visible text or symbols)

EK42 Electric Kettle

DURONIC

Contents

English Manual 5

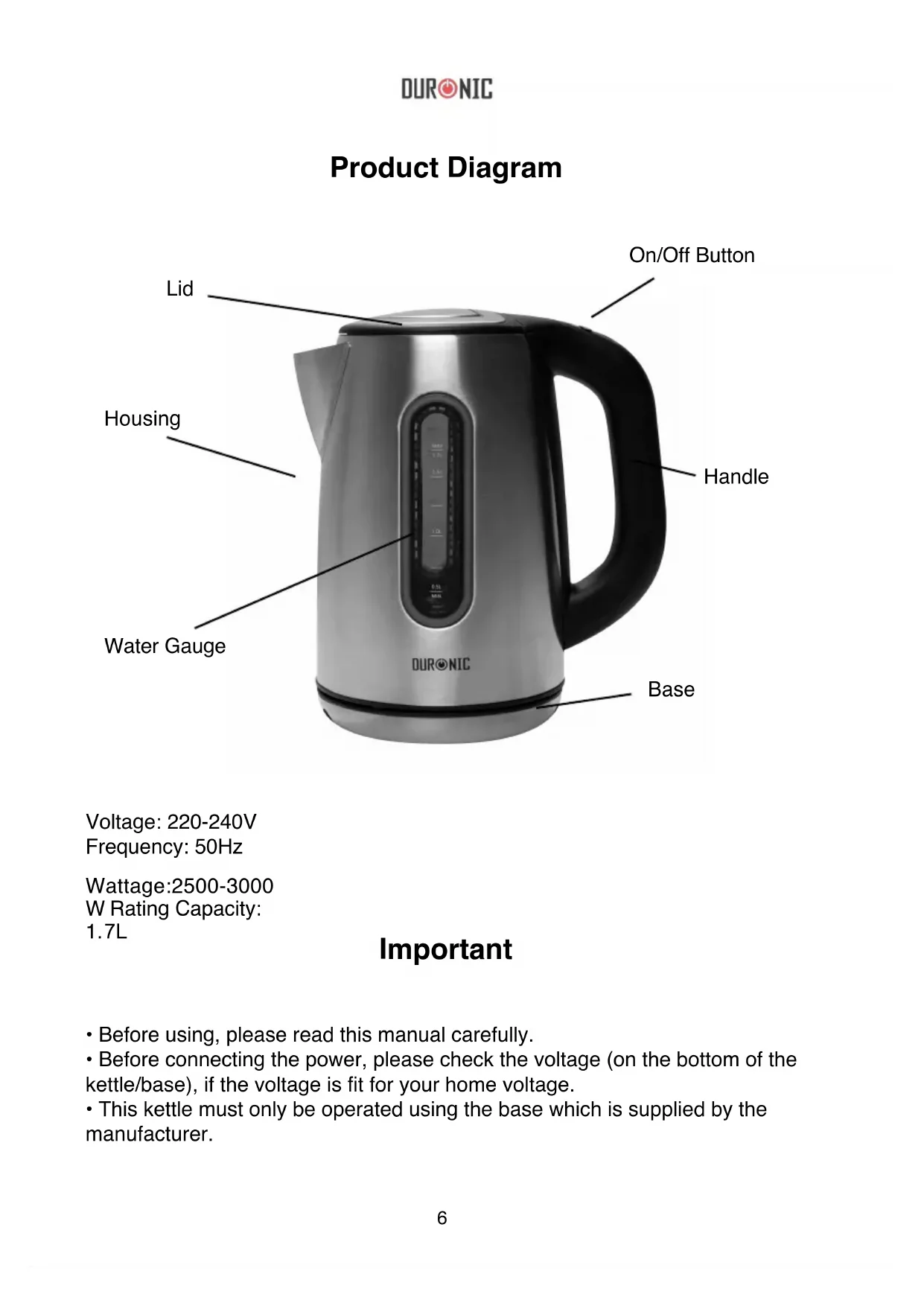

On/Off Button Lid Housing Handle Water Gauge DURONIC Base

Voltage: 220-240V

Frequency: 50Hz

Wattage:2500-3000

W Rating Capacity:

1.7L

Important

• Before using, please read this manual carefully.
• Before connecting the power, please check the voltage (on the bottom of the kettle/base), if the voltage is fit for your home voltage.

• This kettle must only be operated using the base which is supplied by the manufacturer.

• If the kettle is damaged in any way, please stop usage and contact the manufacturer.

• Do not allow the power cord to hang on the edge of the table.
• Do not place the kettle on or next to high temperature surfaces.
• Please do not put the kettle on boil when there is a lack of water. It is easy to damage the heating plate and shorten the lifespan of the appliance.
• When using, keep appliance out of reach of children.
• Do not dip the product into water or other liquids.
  • After boiling, please do not touch the steam emitted from the spout.
• When pouring, please keep a safe distance away from the kettle in order to avoid getting into contact with hot water

CAUTION - Material Damage

• Take care that any steam escaping from the appliance might damage wall paper, wall cabinets or other items. Turn the spout away from furniture and walls.

- Keep hard items away from the appliance.

- Although the kettle is protected from boiling dry, operating it without water will shorten the lifespan of the kettle.

- If the cut-out switch turns off the kettle to prevent overheating and boiling dry, proceed as follows:

- Take the kettle off from the base.

- Allow the kettle to cool down for at least 15 minutes before refilling it with water or replacing the kettle on its base.

Operating Instructions

Boiling Water

1. Fill the kettle with the amount of water required. Do not fill with more than 1.5 litres of water.

2. Press the lid down firmly to ensure it is closed properly.

3. Place the kettle onto the base.

4. Press the power button to turn on the kettle; the 100°C button will light up and flash.

5. The kettle will automatically boil to 100°C/boiling point.

Heating Water

If you wish to change the temperature from 100°C:

1. Press the SET TEMP button. This will then change to 40^ C; if you wish to select 60^ C or 80^ C, press the SET TEMP button repeatedly until you reach the temperature setting you require.

Keeping Warm Water

The KEEP WARM button can be used to keep the hot water at the selected temperature of 40^ C, 60^ C or 80^ C.

1. To use this function, switch on the kettle and press the KEEP WARM button.

2. Select the desired temperature button (40°C / 60°C / 80°C).

3. The kettle will heat the water until the set temperature is reached. The keep warm function will keep the selected temperature for 30 minutes.

Cleaning & Maintenance

- Unplug the kettle before cleaning. - Do not wet the power base and the electric parts outside the kettle. - Please do not use abrasive of the chemical, iron or wood to wash it.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products.

NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
