RL74 - Flashlight Duronic - Free user manual and instructions
Find the device manual for free RL74 Duronic in PDF.
| Product type | Rechargeable flashlight |
| Brand | Duronic |
| Model | RL74 |
| Power | 8 W |
| Bulb type | LED |
| Luminous flux (torch mode) | ≥320 lumens |
| Luminous flux (lamp mode) | ≥300 lumens |
| Charging time | 8 to 12 hours |
| Battery life (torch – bright mode) | 4 hours |
| Battery life (torch – low mode) | 17 hours |
| Battery life (lamp) | 3.5 hours |
| Power supply | Rechargeable via USB port (cable included) |
| Battery type | Lithium-ion 3.7V / 10,000 mAh |
| Input voltage | 220-240 V ~ 50/60 Hz |
| IP protection class | IP20 (not waterproof) |
| Dimensions | 23.5 x 12.2 x 15 cm |
| Number of lighting modes | 3 (bright torch, low torch, lamp) |
| Built-in protection | Against overcharge and overdischarge |
| Operating and storage temperature | 0 to 40°C |
| Warranty | 1 year (Shine-Mart Ltd) |
Frequently Asked Questions - RL74 Duronic
User questions about RL74 Duronic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flashlight in PDF format for free! Find your manual RL74 - Duronic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RL74 by Duronic.
USER MANUAL RL74 Duronic
Creative Consumer Products


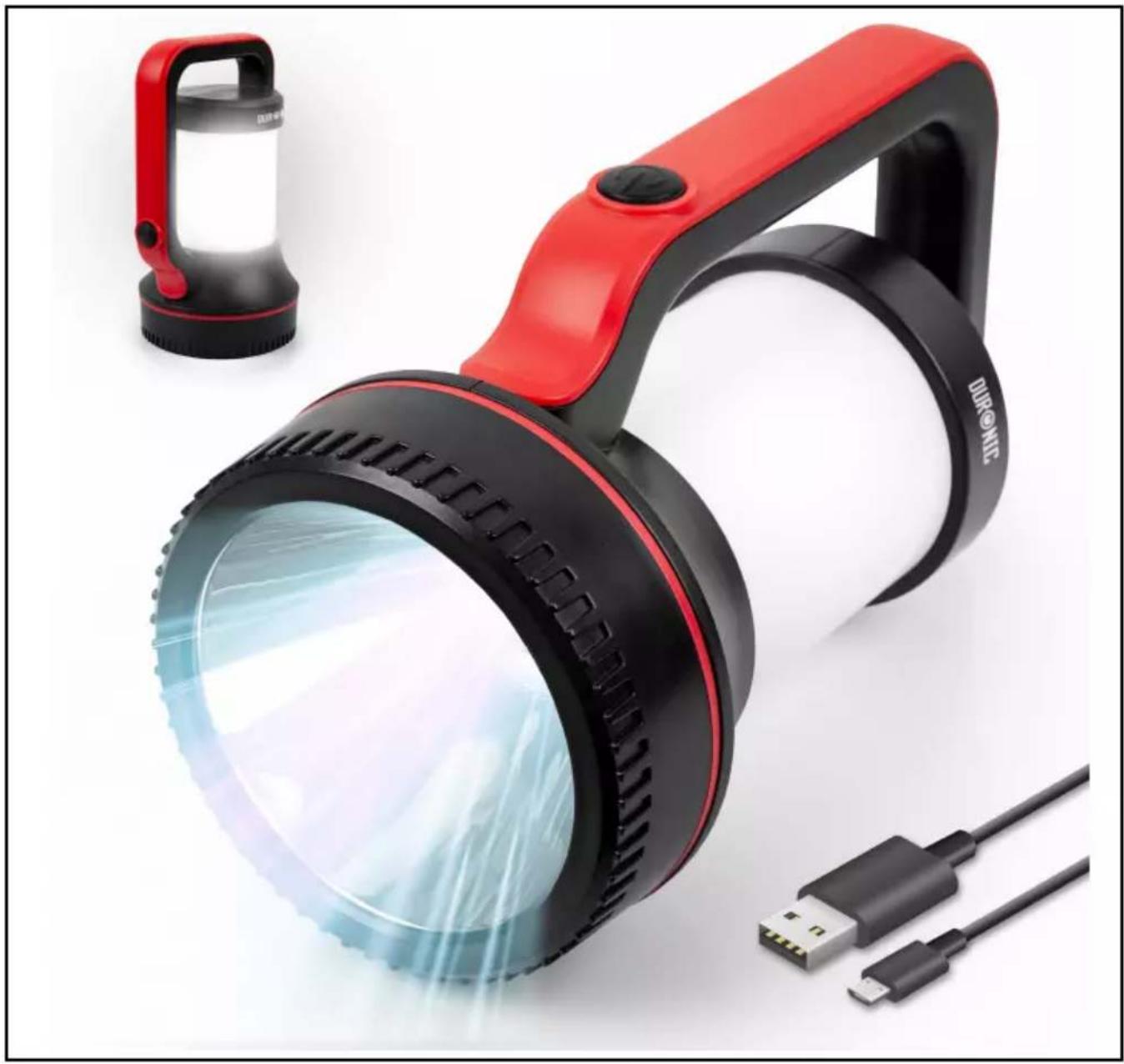

Product photo of a red and black DUR® NTE flash lamp with illuminated lens and USB cable (no text or symbols visible)RL74
LED 2-in-1 Lantern
PLEASE READ ALL THE INSTRUCTIONS BEFORE USE
duronic.com
duronic
@duronicmedia
Duronic
@duronicmedia
DURONIC
Contents
English Manual 5
Features and Specifications
| Model RL74 | ||
| Wattage | 8W | |
| Bulb type LED | ||
| Lumens | Torch | ≥320 lumens |
| Lamp | ≥300 lumens | |
| Charge time 8-12 hours | ||
| Duration | Torch: | bright mode 4 hours / weak mode 17 hours |
| Lamp: 3.5 hour | ||
| Power type USB rechargeable | ||
| IP rating | IP20 | |
| Dimensions 23.5 x 12.2 x 15 cm | ||
| Battery type 3.7V / 10,000mAh rechargeable lithium battery | ||
| Input Voltage / Frequency | 220-240V ~ 50/60Hz | |
DURONIC

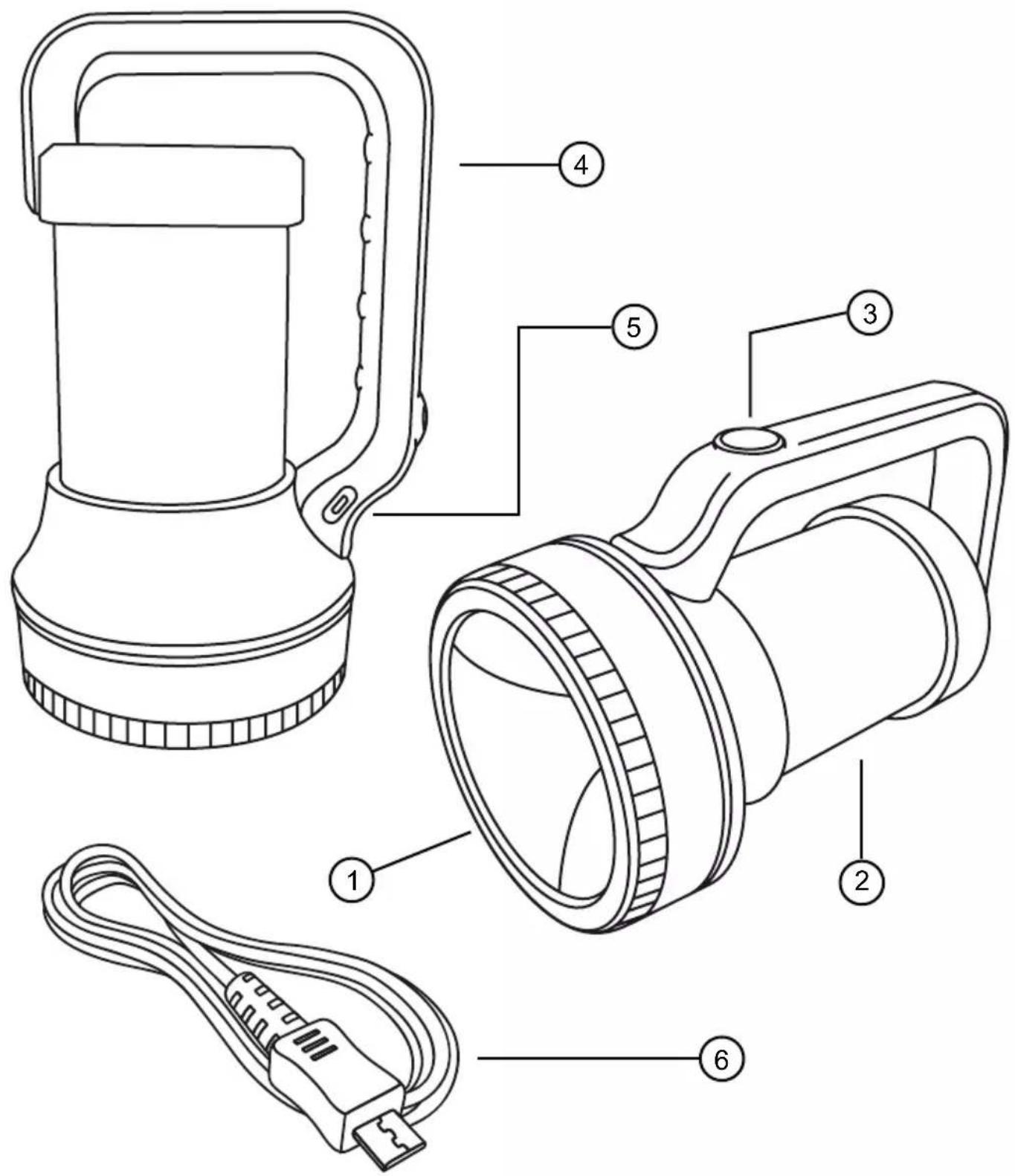

Components
- Lamp light
-
Power button
-
Handle
- USB charge port
- USB charging cable
DURONIC

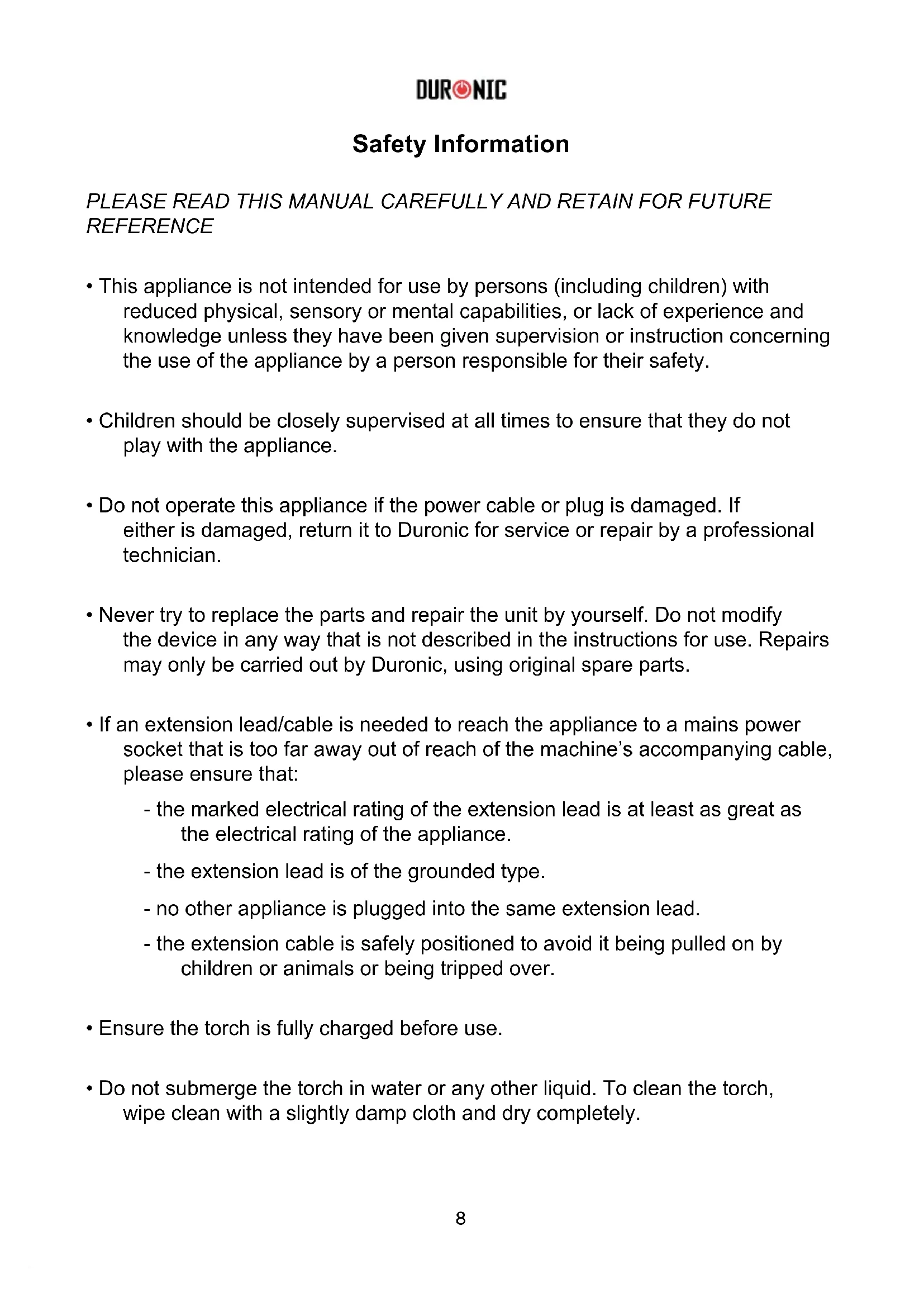

Safety Information
PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be closely supervised at all times to ensure that they do not play with the appliance.
- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.
- Never try to replace the parts and repair the unit by yourself. Do not modify the device in any way that is not described in the instructions for use. Repairs may only be carried out by Duronic, using original spare parts.
- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:
- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.
- the extension lead is of the grounded type.
- no other appliance is plugged into the same extension lead.
- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.
- Ensure the torch is fully charged before use.
- Do not submerge the torch in water or any other liquid. To clean the torch, wipe clean with a slightly damp cloth and dry completely.
WARNING:
- Never point the torch directly towards your eyes or the eyes of others
- Do not over charge the torch or leave on charge longer than 24 hours
- Only charge the torch using the power adapter included
How to Use
The RL74 can be used in 2 ways:
| 1) Handheld torch 2) Freestanding lamp |
This torch as 3 different functions: torch (bright), torch (low) and lamp. To switch between the functions, simply press the power button.
- Press the power button once – to switch on the torch on bright mode
- Press the power button second time – the torch will be on low mode
- Press the power button for the third time – the lamp will illuminate
- Press the power button for the fourth time to switch off completely
When you notice the light performance reduces, this means the torch needs to be recharged again.
DURONIC
Recharging
The RL74 torch features an overcharge and over-discharge protection function. The torch can also be used whilst it is on charge if needed.
To recharge, plug the power adapter into the torch USB charging port, then plug the other end of the cable into the wall socket.
Cleaning and Maintenance
• To clean the torch, wipe clean with a slightly damp cloth and dry completely.
- Do not submerge the torch in water or any other liquid.
- When not in use, store in a cool dry place away from direct sunlight. The ideal usage and storage temperature is 0 - 40^ C .
DURONIC
Warranty
1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER
This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.
Duronic Products are offered with a 1 year guarantee under the following conditions:
- The product must be returned to the retailer with original proof of purchase.
- The product must be installed and used in accordance with the instruction's contained in this operating manual.
- It must be used only for domestic purposes.
- It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
- Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
- Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
- Valid in the UK only
This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB
Information on waste Disposal for Consumers of Electrical & Electronic Equipment.
This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).
Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.
If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
Follow Us
Technical diagram of a flashlight with labeled parts including handle, lens, and cabletext_image
Technical diagram of a flashlight with labeled parts including handle, lens, and cabletext_image
Technical diagram of a flashlight with labeled parts including handle, lens, and cablenatural_image
Line drawing of a hand holding a flashlight with motion lines indicating light or motion (no text or symbols)1) Torcia portatile

