RL13 - Flashlight Duronic - Free user manual and instructions
Find the device manual for free RL13 Duronic in PDF.
| Brand | Duronic |
| Model | RL13 |
| Category | Rechargeable flashlight |
| Product type | Flashlight with floor lamp and wall lamp functions |
| Power | 5 W |
| Bulb type | LED |
| Luminous flux (flashlight) | ≥ 240 lumens |
| Luminous flux (lamp) | ≥ 65 lumens |
| Battery life (flashlight) | 10 hours |
| Battery life (high mode lamp) | 2.5 hours |
| Battery life (low mode lamp) | 10 hours |
| Charging time | 20 to 24 hours |
| Power supply type | Mains rechargeable (220-240 V ~ 50/60 Hz) |
| Battery type | Rechargeable lead-acid battery 4 V, 2000 mAh |
| Dimensions (L × W × H) | 22.8 × 10.6 × 8 cm |
| Protection rating | IP20 |
| Usage modes | Portable flashlight, floor lamp, wall lamp |
| Number of modes | 3 (flashlight, high lamp, low lamp) |
| Switch | Power switch to toggle between modes |
| Charging indicator | Red when charging, off when charged |
| Cleaning | Wipe with a slightly damp cloth, do not immerse |
| Recommended storage | Cool, dry place away from sunlight, between 0 and 40 °C |
| Safety | Do not direct light into eyes, do not charge for more than 24 h |
| Warranty | 1 year |
| Repairability | Repairs reserved for Duronic, do not modify the device |
Frequently Asked Questions - RL13 Duronic
User questions about RL13 Duronic
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flashlight in PDF format for free! Find your manual RL13 - Duronic and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RL13 by Duronic.
USER MANUAL RL13 Duronic
Creative Consumer Products


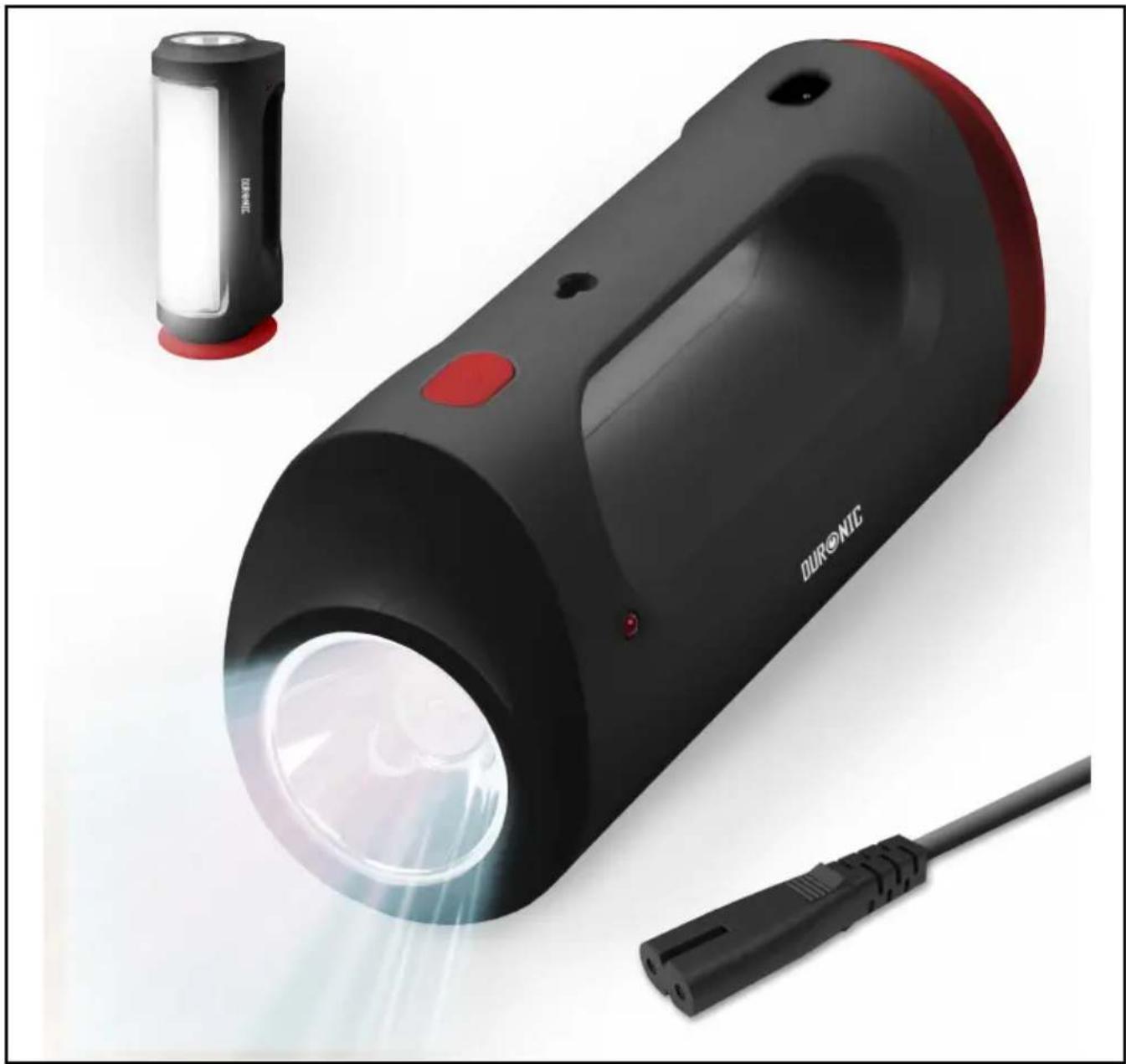

Black DURONIC flashlight with red and black casing, accompanied by a lit lamp and cable (no visible text or symbols on main subject)RL13
LED 3-in-1 Lantern
PLEASE READ ALL THE INSTRUCTIONS BEFORE USE
duronic.com
duronic
@duronicmedia
Duronic
@duronicmedia
Contents
English Manual 5
Features and Specifications
| Model RL13 | ||
| Wattage | 5W | |
| Bulb type LED | ||
| Lumens | Torch | ≥240 lumens |
| Lamp | ≥65 lumens | |
| Charge time 20-24 hours | ||
| Duration | Torch: 10 hours | |
| Lamp: | High mode 2.5 hoursWeak mode: 10 hours | |
| Power type AC rechargeable | ||
| IP rating | IP20 | |
| Dimensions 22.8 x 10.6 x 8 cm | ||
| Battery type 4V 2000mAh rechargeable lead-acid battery | ||
| Input Voltage / Frequency | 220-240V ~ 50/60Hz | |
Components
1
3
2
4
5
6
7
8
9
-
Torch light
-
Lamp light
-
Charging indicator
-
Power button
-
Handle
-
Wall tting
-
AC charge port
-
Base
-
AC charging cable
DURONIC

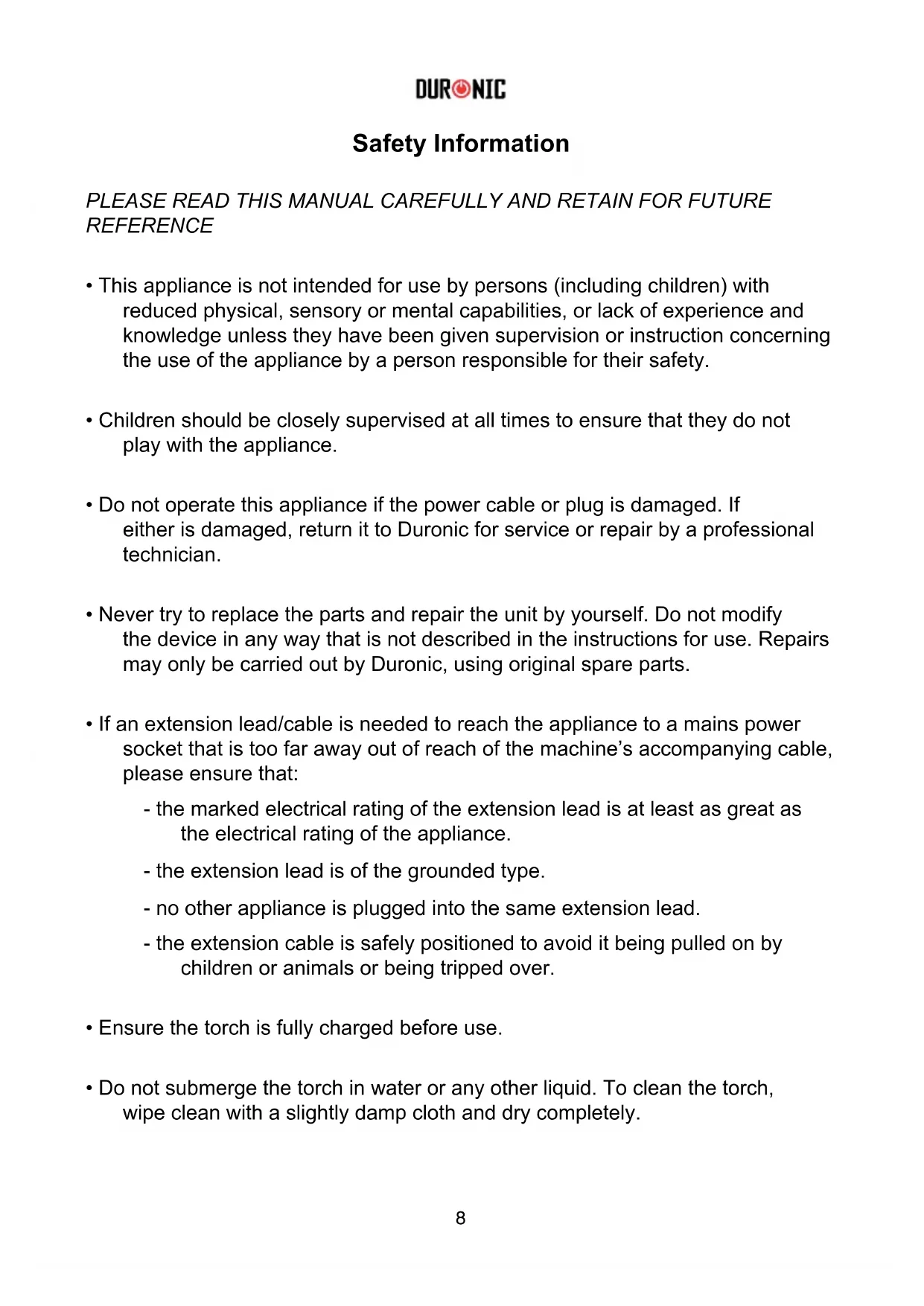

Safety Information
PLEASE READ THIS MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be closely supervised at all times to ensure that they do not play with the appliance.
- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.
- Never try to replace the parts and repair the unit by yourself. Do not modify the device in any way that is not described in the instructions for use. Repairs may only be carried out by Duronic, using original spare parts.
- If an extension lead/cable is needed to reach the appliance to a mains power socket that is too far away out of reach of the machine's accompanying cable, please ensure that:
- the marked electrical rating of the extension lead is at least as great as the electrical rating of the appliance.
- the extension lead is of the grounded type.
- no other appliance is plugged into the same extension lead.
- the extension cable is safely positioned to avoid it being pulled on by children or animals or being tripped over.
- Ensure the torch is fully charged before use.
- Do not submerge the torch in water or any other liquid. To clean the torch, wipe clean with a slightly damp cloth and dry completely.
WARNING:
- Never point the torch directly towards your eyes or the eyes of others
- Do not over charge the torch or leave on charge longer than 24 hours
- Only charge the torch using the power adapter included
How to Use
The RL13 can be used in 3 ways:
 |  |  | ||

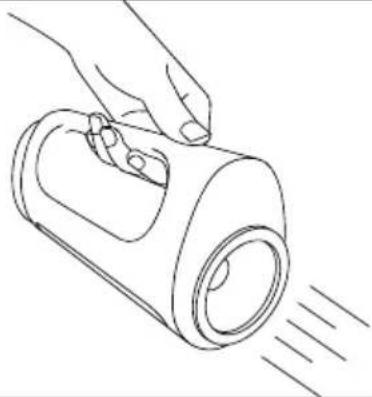

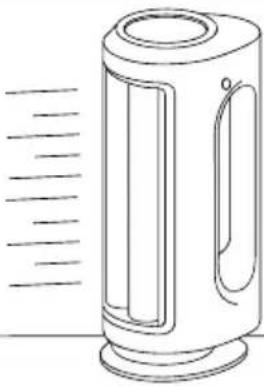

| 1) Handheld torch | 2) Freestanding lamp | 3) Wall-mounted lamp | ||
This torch as 3 different functions: torch light, bright lamp and low lamp. To switch between the functions, simply press the power button.
- Press the power button once – to switch on the torch
- Press the power button second time – the lamp will be on bright mode
- Press the power button for the third time – the lamp will be on low mode
- Press the power button for the fourth time to switch off completely
When you notice the light performance reduces, this means the torch needs to be recharged again.
DURONIC
Recharging
- Plug the power adapter into the torch AC charging port, then plug the other end of the cable into the wall socket.
- When the charger is plugged in, the charging indicator light will light up red. Once it has finished charging the light will go off.
Cleaning and Maintenance
• To clean the torch, wipe clean with a slightly damp cloth and dry completely.
- Do not submerge the torch in water or any other liquid.
- When not in use, store in a cool dry place away from direct sunlight. The ideal usage and storage temperature is 0 - 40^ C .
DURONIC
Warranty
1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER
This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.
Duronic Products are offered with a 1 year guarantee under the following conditions:
- The product must be returned to the retailer with original proof of purchase.
- The product must be installed and used in accordance with the instruction's contained in this operating manual.
- It must be used only for domestic purposes.
- It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
- Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
- Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
- Valid in the UK only
This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB
Information on waste Disposal for Consumers of Electrical & Electronic Equipment.
This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).
Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.
If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
