WM60 - Waffle Maker Duronic - Free user manual and instructions

Product type	Waffle maker
Brand	Duronic
Model	WM60
Power	1200 W
Voltage	220-240 V / 50 Hz
Plate coating	Non-stick
Removable plates	Yes (hand washable)
Heating indicator light	Yes
Preheating time	Approximately 3 minutes
Cooking time	6 to 8 minutes
Recommended use	Household, indoor
Safety	Insulated handle, do not immerse, unplug before cleaning
Cleaning	Removable plates hand washable, do not use abrasives
Warranty	1 year
Recipe included	Yes (in the manual)
Included accessories	None
Certifications	CE
Waste management	WEEE compliant

Frequently Asked Questions - WM60 Duronic

Why is there smoke or odor during first use?

This is normal. It is the burning of manufacturing residues. Heat the appliance empty for 10 minutes, then let it cool and clean the plates before first use.

How to clean the cooking plates?

Unplug the appliance and let it cool down. The removable plates can be washed by hand with warm water and mild soap. Do not put them in the dishwasher and do not use abrasive sponges.

Should I grease the plates before each use?

No, the non-stick coating usually does not require grease. If the batter sticks, apply a little melted butter or oil with a brush.

How long does it take to preheat the waffle maker?

Approximately 3 minutes. The indicator light turns off when the ideal temperature is reached.

Can I use homemade waffle batter?

Yes, the manual provides a recipe. You can use any waffle batter suitable for waffle makers.

What to do if the indicator light remains off?

Check that the appliance is plugged in and the outlet works. If the problem persists, contact customer service.

Can I open the lid during cooking?

No, the appliance must always be used closed. Opening the lid during cooking may result in uneven cooking and burns.

How to prevent waffles from sticking?

Make sure the plates are well preheated and lightly greased if necessary. Use a plastic or wooden spatula to remove them.

Can the appliance be used outdoors?

No, the waffle maker is designed for indoor use only.

Where can I find spare parts?

Contact Duronic customer service or check the official website for spare parts.

USER MANUAL WM60 Duronic

Creative Consumer Electronics

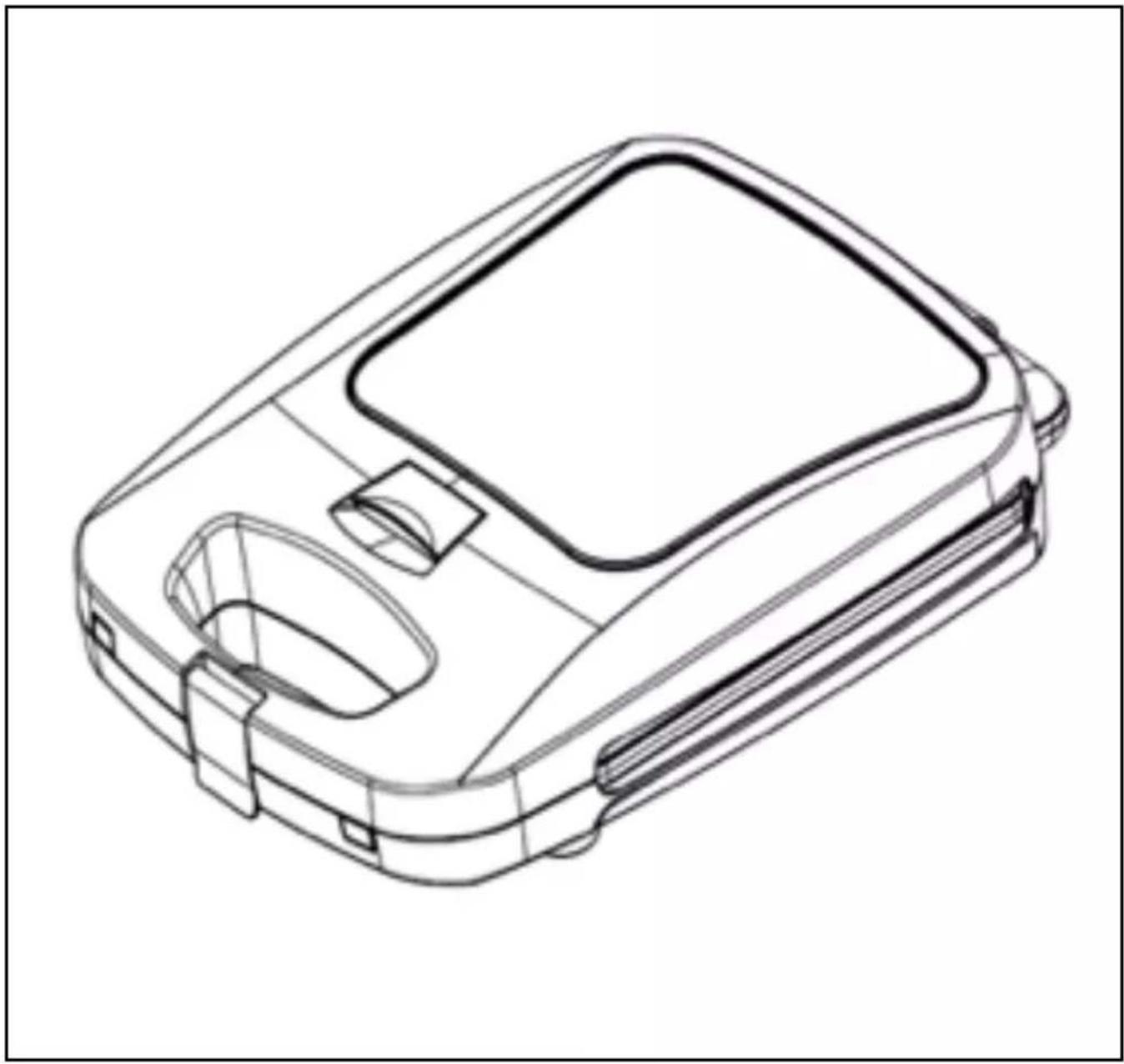

Line drawing of a mechanical device casing with handle and mounting bracket (no text or symbols)

WM60 - Waffle Maker

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 4

- This appliance is for indoor/household use only. Do not use outdoors.

- The WM60 Waffle Maker is only for domestic use, it is not for commercial use.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by professional technician.

- Please ensure the mains power supply is 220-240V / 50Hz.

- Never try to replace the parts and repair the unit by yourself.

- To reduce the risk of electric shock, never operate this product near water, with wet hands, spill liquid on the appliance or submerge it in water or any other liquid.

- Do not use the unit near gas or other inflammable materials (such as benzene, paint thinner, sprays, etc.)

- Do not place an appliance on or near a hot gas or on a heated oven.

- Do not touch the cooking plates when hot. Use the handle to safely hold or move the waffle maker.

- Unplug from the mains power outlet when not in use and also before cleaning. Allow to cool down before putting on or taking off parts.

- Do not let the power cable hang over the edge of a table or counter, or touch a hot surface.

- Pay close attention to the appliance whilst in use, never leave it unattended.

- Do not use any accessories or attachments that did not come with the Waffle Maker, as this can pose a risk of injury or can damage the machine.

- Do not leave the appliance unattended when switched on.

- Do not use appliance for anything other than the intended use.

DURONIC

Safety Instructions (Continued)

• Always attach plug to appliance first, then plug the cable into the wall outlet. To disconnect, remove plug from wall outlet.
• This appliance is only to be operated in the closed position.
- When setting up your Waffle Maker, ensure that it is placed on a flat, even and dry surface.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- The temperature of the outside cover surfaces may be high when the appliance is operating.

PLEASE NOTE: You may notice a faint smoke or odour when first using the WM60 Waffle Maker. This is completely normal and should disappear after the first few uses.

DURONIC

Features and Specifications

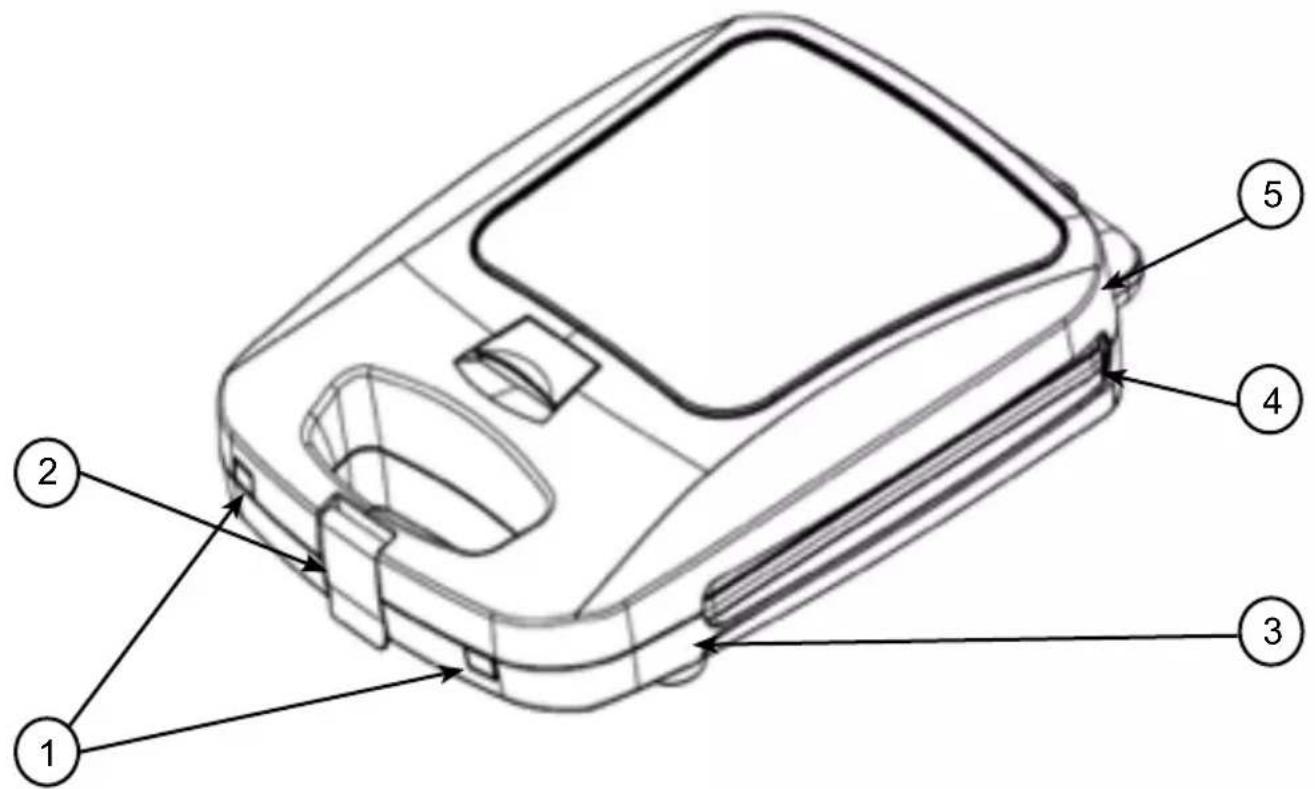

Technical diagram of a device casing with numbered parts labeled 1 to 5

1) 'Ready' light indicator
4) Cooking hotplates
2) Handle clip
5) Top cover
3) Bottom cover

MODEL POW	VER VOLTAGE RATING
WM60 1200V	W 220-240V / 50Hz

DURONIC

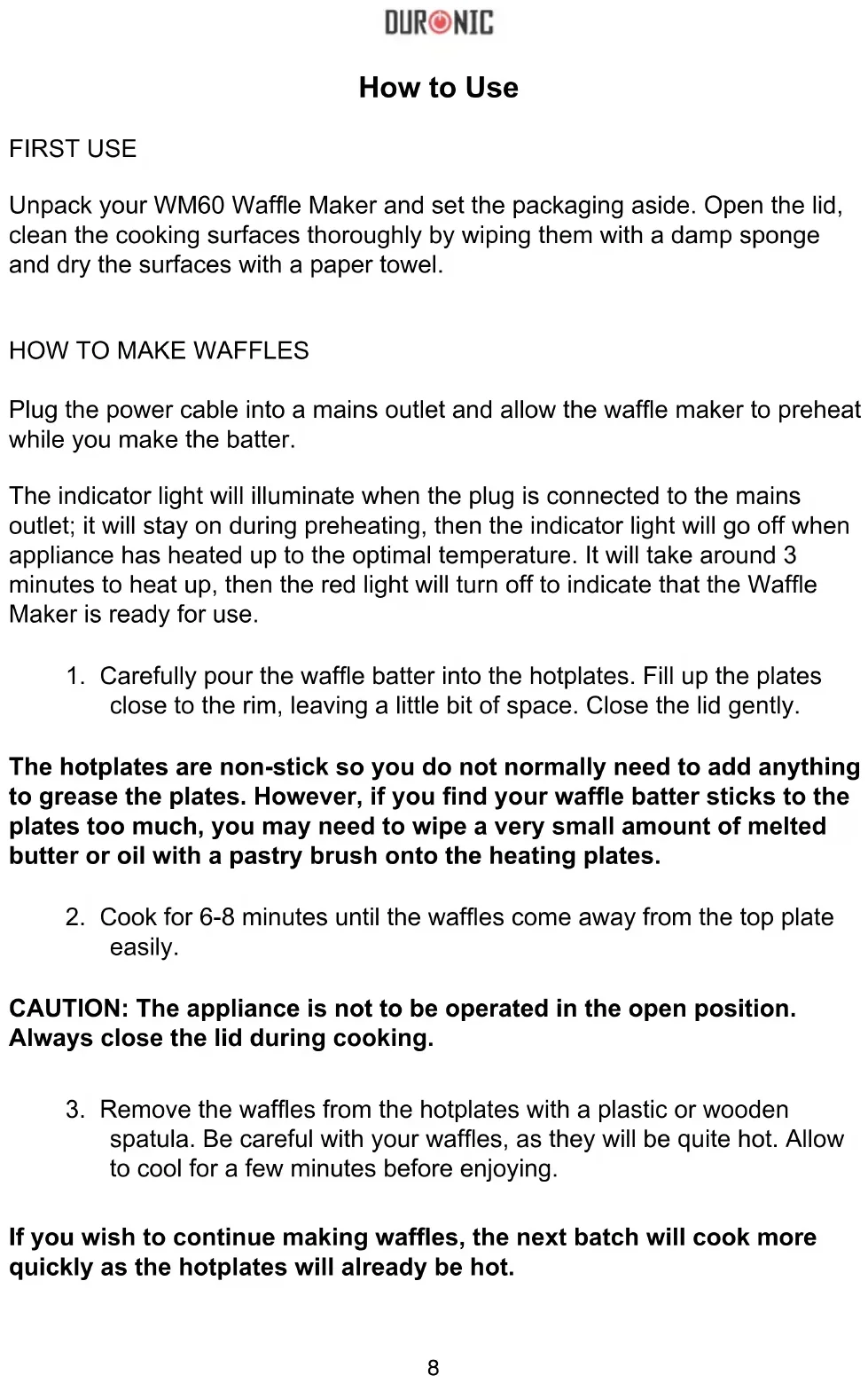

How to Use

FIRST USE

Unpack your WM60 Waffle Maker and set the packaging aside. Open the lid, clean the cooking surfaces thoroughly by wiping them with a damp sponge and dry the surfaces with a paper towel.

HOW TO MAKE WAFFLES

Plug the power cable into a mains outlet and allow the waffle maker to preheat while you make the batter.

The indicator light will illuminate when the plug is connected to the mains outlet; it will stay on during preheating, then the indicator light will go off when appliance has heated up to the optimal temperature. It will take around 3 minutes to heat up, then the red light will turn off to indicate that the Waffle Maker is ready for use.

1. Carefully pour the waffle batter into the hotplates. Fill up the plates close to the rim, leaving a little bit of space. Close the lid gently.

The hotplates are non-stick so you do not normally need to add anything to grease the plates. However, if you find your waffle batter sticks to the plates too much, you may need to wipe a very small amount of melted butter or oil with a pastry brush onto the heating plates.

1. Cook for 6-8 minutes until the waffles come away from the top plate easily.

CAUTION: The appliance is not to be operated in the open position. Always close the lid during cooking.

1. Remove the waffles from the hotplates with a plastic or wooden spatula. Be careful with your waffles, as they will be quite hot. Allow to cool for a few minutes before enjoying.

If you wish to continue making waffles, the next batch will cook more quickly as the hotplates will already be hot.

1. Unplug the power cable after cooking, and allow the Waffle Maker to cool down before cleaning.

CAUTION:

• Cooking surface is hot; handle with care.
• Always use protective, heat-resistant, gloves or mitts when handing this product to avoid steam or other burns.
• Always remove the food from the waffles maker by using a plastic heatproof spatula or tongs.

Cleaning and Maintenance

Always unplug the Waffle Maker from power source and wait until it cools down before cleaning.

There is no need to take your Waffle Maker apart for cleaning after every use. Simply dry the cooking plates with a paper towel to absorb excess oil. Brush away any crumbs from the grooves, and then wipe the hotplates with damp cloth and mild soap.

For a deeper clean, the hotplates can be removed and washed by hand in warm water and soap. Then dry with a towel. Only place the hotplates back in the machine once they are fully dry. To clean handles and other parts of the machine, use a damp (well wrung) cloth with mild soap.

CAUTION:

• Never immerse the machine in water.
• Avoid using sharp utensils, steel wool, metal scouring pads or abrasive cleaners as they will scratch the non-stick surface.
• Do not use cleansers or oven cleaners on the heating plates.

DURONIC

Basic Waffle Batter Recipe

INGREDIENTS:

• 4 large eggs, separated
- 300g plain flour
- 1 / 2 tsp bicarbonate of soda
• 2 tbsp golden caster sugar
- 50g butter, melted
- 600ml semi-skimmed milk

• 3 drops of vanilla extract (optional)

METHOD:

1. In one bowl, whisk the egg whites into stiff peaks. Set aside.
2. In a separate bowl, mix together the flour, bicarbonate, caster sugar and a pinch of salt.
3. Make a well in the middle of the dry ingredients and add the egg yolks and melted butter. Mix together using a whisk, and then slowly add milk until you achieve a thick smooth batter.
4. Add the egg whites into the mixture and carefully fold them in.

DURONIC

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of

Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
