Product Type	Tumble Dryer
Brand	Midea
Model	MLE47R5BWW
Capacity	7.0 cubic feet (198 L)
Power Supply (Electric Model)	120/240 V~, 60 Hz, 30 A
Power Supply (Gas Model)	120 V~, 60 Hz, 15 A
Dimensions (H x W x D)	106 x 68.6 x 78 cm (41.7 x 27 x 30.7 in)
Weight	Approximately 54 kg (120 lb)

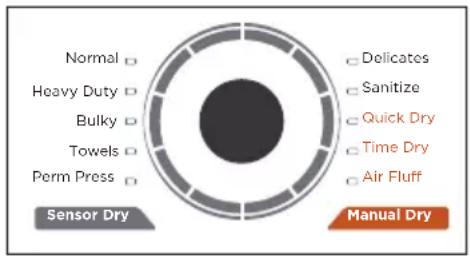

Drying Cycles	Normal, Heavy Duty, Bulky, Towels, Perm Press, Delicates, Sanitize, Quick Dry, Time Dry, Air Fluff
Drying Types	Sensor Dry (moisture sensing) and Manual Dry (timer)
Temperature Settings	High, Medium, Low, No Heat
Special Features	Anti-wrinkle (Wrinkle Care), Damp Dry Signal, Child Lock
Filter Type	Removable lint filter

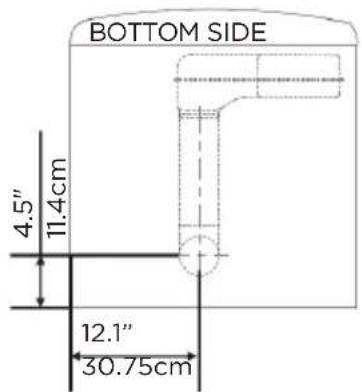

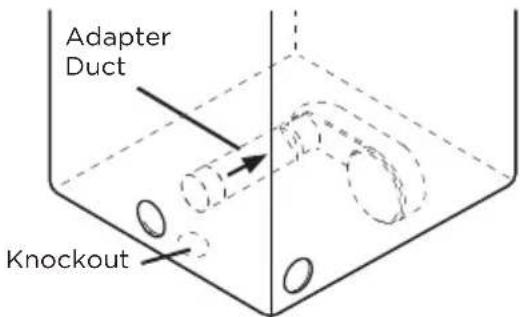

Venting Options	Rear, left side, bottom (with optional kit)
Door Reversal	Yes, reversible
Adjustable Legs	Yes, 4 legs
Drum Material	Stainless steel or anodized
Noise Level	Normal hum due to air flow
Power Cord Included	No for US electric models (purchased separately); Yes for Canada and gas models
Warranty	1 year limited (parts and labor), possible 3-month extension upon registration
Maintenance and Cleaning	Clean lint filter before/after each cycle; clean vent duct annually; control panel with soft cloth; drum with mild non-abrasive cleaner
Spare Parts and Repairability	Contact Midea customer service at 1-866-646-4332 or the retailer

Frequently Asked Questions - MLE47R5BWW MIDEA

What to do if the dryer does not start?

Check that the door is properly closed and locked. Ensure the power cord is plugged in and the circuit breaker has not tripped. If the door was opened during the cycle, press Start/Pause again.

Why is the dryer not heating?

Check that the selected cycle is not Air Fluff (no heat). Clean the lint filter and vent duct. For a gas model, ensure the gas valve is open. Also check the fuses/circuit breakers.

How to clean the lint filter?

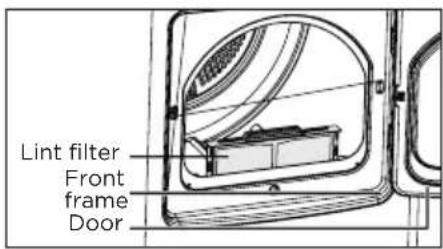

The lint filter is located inside the door, in the front frame. Remove it, take off the lint by hand or with a vacuum, then replace it. Clean it before or after each load to avoid fire hazards.

Can I use a plastic vent duct?

No, never use a flexible plastic duct. Use a rigid metal duct 10.2 cm (4 in) in diameter or a flexible metal duct with rigid walls. Plastic ducts can sag, accumulate lint, and increase fire risk.

What is the maximum capacity of the dryer?

The capacity is 7.0 cubic feet. Do not overload the drum: items must be able to tumble freely. A large load is about 3/4 full.

What does error code E4 mean?

Code E4 indicates a humidity sensor fault. The dryer may finish the current cycle but clothes may be over-dried. You can continue using timed cycles. Contact customer service at 1-866-646-4332.

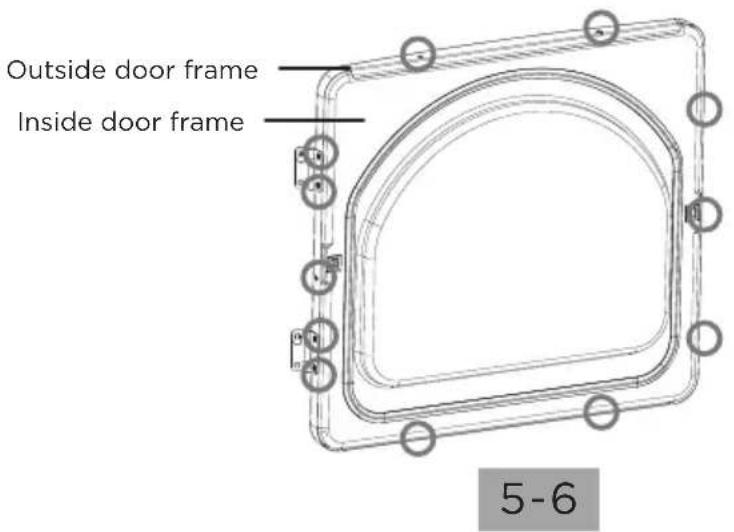

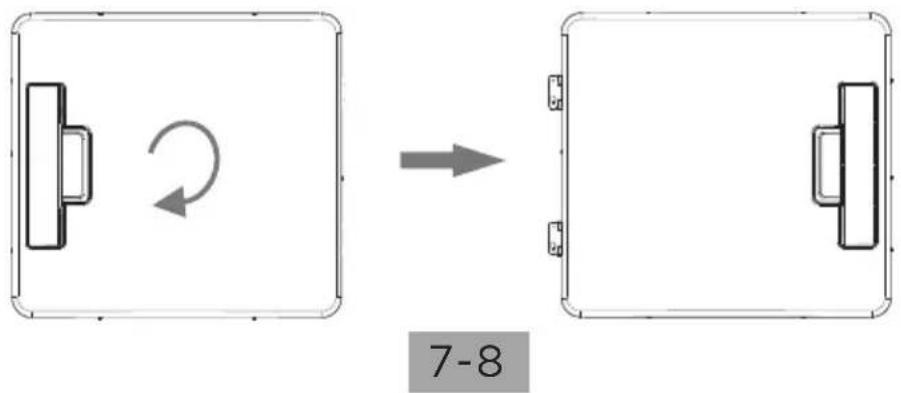

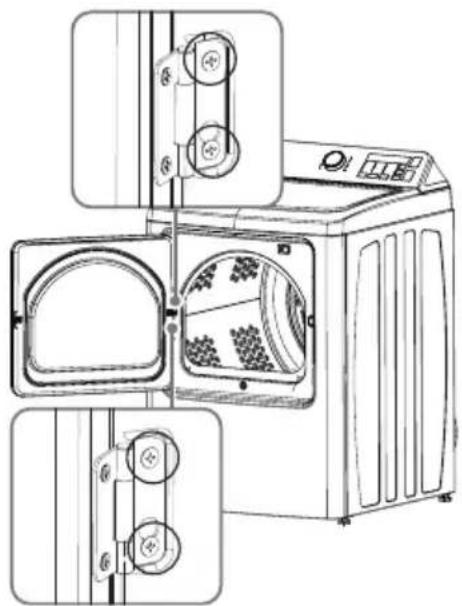

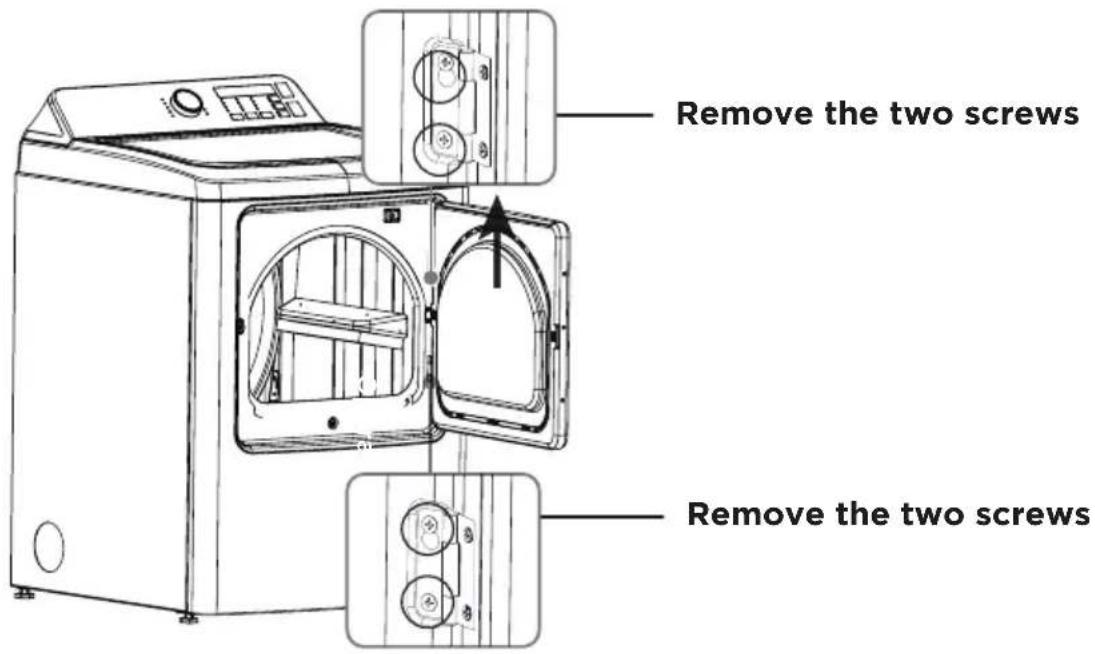

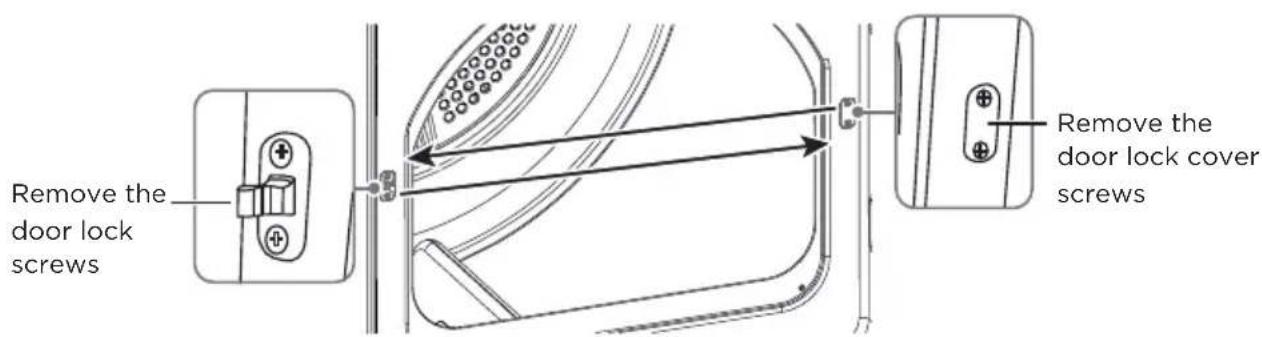

How to reverse the door?

Unplug the appliance. Remove the four hinge screws, then the door. Remove the latch and cover screws, install them on the opposite side. Disassemble the door, rotate the outer frame 180°, reassemble and attach the hinges on the left side. Refer to the Door Reversal Procedure section of the manual.

Can I install the dryer in a closet?

Yes, provided you respect minimum clearances: 25 mm (1 in) on sides, 127 mm (5 in) rear, 610 mm (24 in) above, and 51 mm (2 in) front. Venting must be to the outside. The closet door must have two unobstructed air openings totaling at least 465 cm².

Why are clothes still damp after the cycle?

Check that the lint filter is not clogged, the vent duct is not blocked, and the exterior vent flap opens freely. Avoid mixing heavy items (towels) with light ones (sheets). If the load is too small, add a few towels to improve tumbling.

How to activate child lock?

Press and hold the Temp. and Dryness buttons simultaneously for three seconds. An indicator lights up. To deactivate, repeat the same action. When child lock is active, only the Power button remains functional.

USER MANUAL MLE47R5BWW MIDEA

Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

version A

USER MANUAL & INSTALLATION INSTRUCTIONS

Line drawing of a simple kitchen oven with control panel and door (no text or symbols)

Free 3 months extension of the original limited warranty period!* Simply text a picture of your proof of purchase to:

1-844-224-1614

*The warranty extension is for the three months immediately following

the completion of the product's original warranty period. Individuals do not need to register the

product in order to get all the rights and remedies of registered owners under the original limited

warranty.

Dear user

THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea dryer is designed for reliable, trouble-free performance. Please take a moment to register your new dryer.

Register your new dryer at www.midea.com under the Support tab.

For future reference, record your product model and serial numbers located on the inside frame of the dryer.

Model Number ____

Serial Number

DRYER SAFETY......4

OPERATION REQUIREMENTS......8

Important to Installer....8

Basic Requirements....9

Location Requirements....9

Ducting Requirements....12

Exhausting Requirements....14

Gas Requirements....14

Electric Requirements 16

Grounding 18

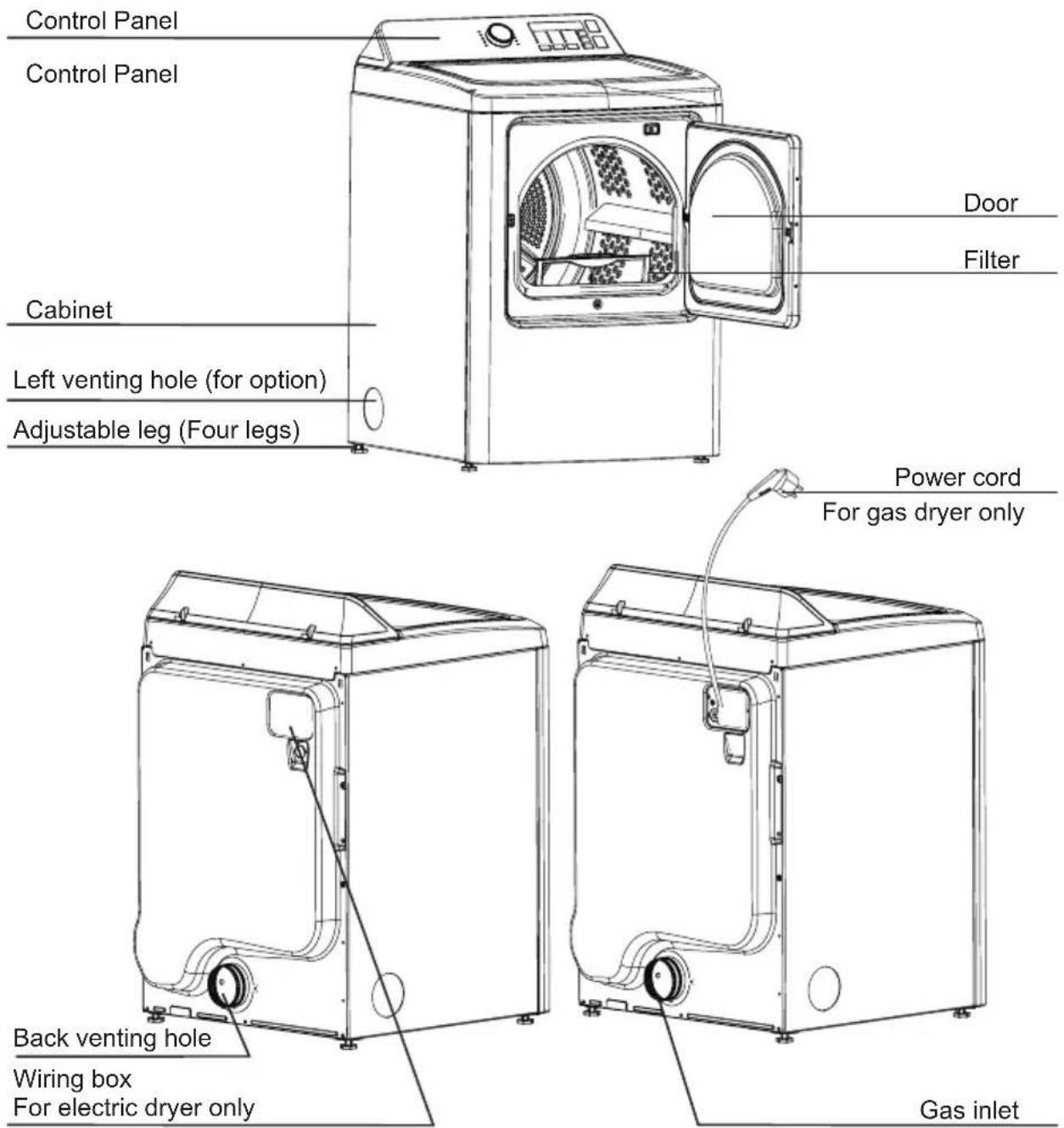

PARTS AND FEATURES....19

Replacement Parts and Accessories.... 19

INSTALLATION INSTRUCTIONS 20

Removing From the Package 20

Tools Required....20

Choose the Proper Location....21

Install the Exhaust System....21

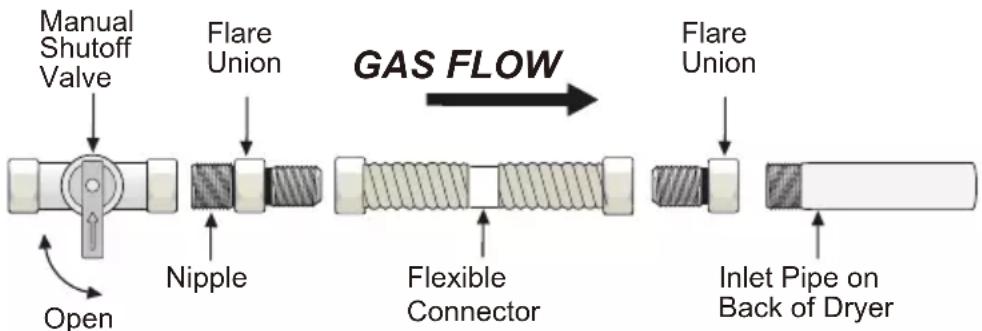

Connect the Gas Line (For Gas Models)....23

Connect the Electrical Wiring 24

Level the Dryer 27

Power On....27

Final Check 27

Door Reversal Procedure 28

Change the dryer vent location....30

DRYER USE....33

Control Panel 33

Drying a Load of Laundry 35

Special Laundry Tips.... 38

DRYER CARE....39

Cleaning and Maintenance 39

TROUBLESHOOTING 40

Check These Solutions if Your Dryer 40

Error Codes....42

APPENDIX....43

Fabric Care Chart 43

WARRANTY 44

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage.

Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your dryer.

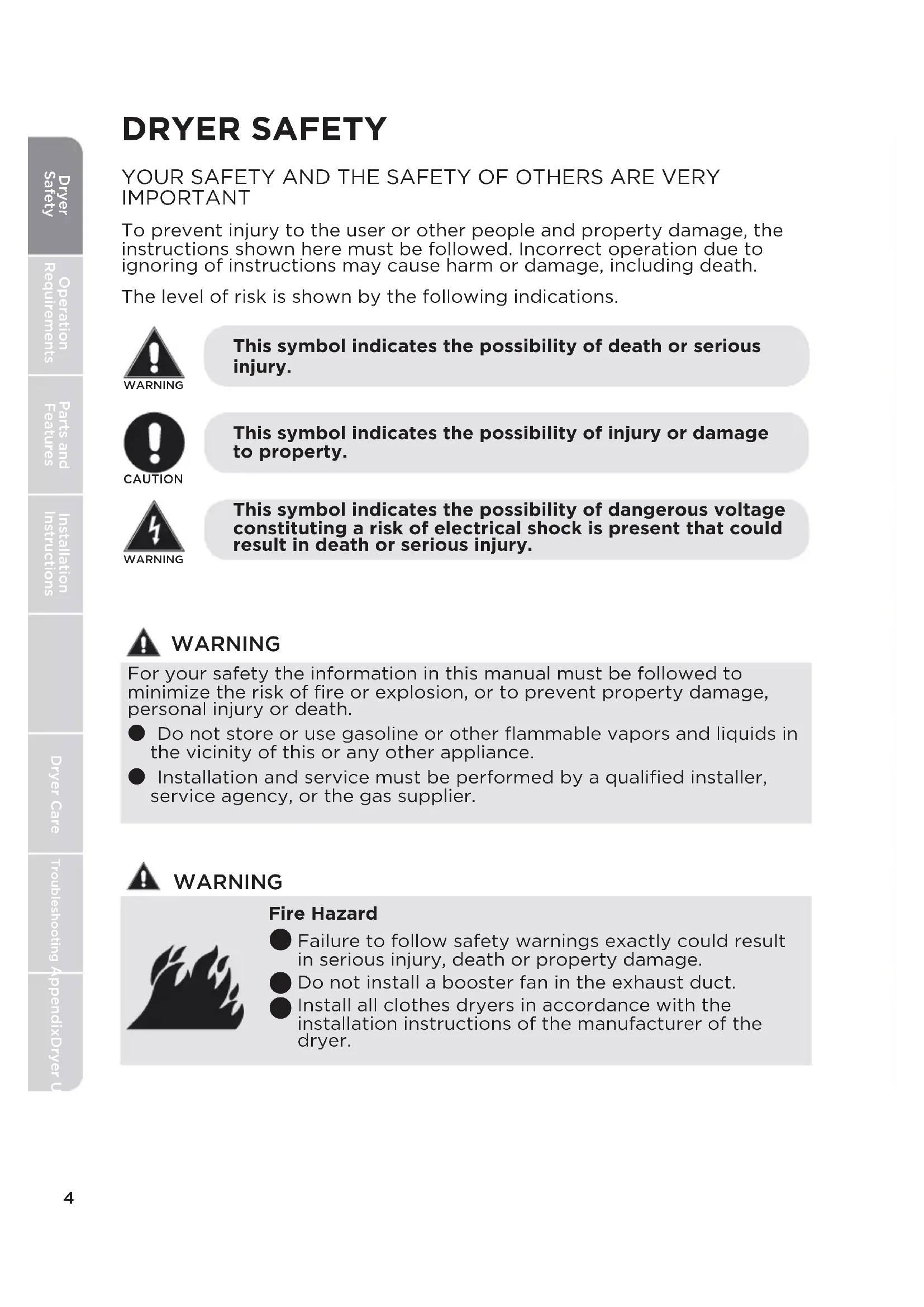

DRYER SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to property.

This symbol indicates the possibility of dangerous voltage constituting a risk of electrical shock is present that could result in death or serious injury.

WARNING

For your safety the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  ● Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

WARNING

Fire Hazard

● Failure to follow safety warnings exactly could result in serious injury, death or property damage.
- Do not install a booster fan in the exhaust duct.
● Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.

WARNING

What to do if you smell gas:

• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas utility provider, and call the fire department.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Before use, the dryer must be properly installed as described in this manual.
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
• Do not use the dryer to dry clothes which have traces of any flammable substance, such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as mops and cleaning clothes. Flammable substances may cause the fabric to catch fire by itself.

- Do not store or use gasoline or other flammable vapors and liquids near this or any other appliance.

- Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.

- Before the appliance is removed from service or discarded, remove the lid of the washing or door of the drying compartment.

- Do not reach into the appliance if the drum is moving.

- Do not install or store this appliance where it will be exposed to the weather or freezing temperatures below 33^ F.

- Do not tamper with the controls and latch.

- Do not install a booster fan in the exhaust duct.

• Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
• Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period).
• Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Unplug the dryer if the machine is to be left for an extended period of time, such as during vacations.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging items from children.
• Always check the inside of the dryer for foreign objects before loading laundry. Keep the door closed when not in use.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product manufacture.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.
• This appliance must be grounded. See “Electric Requirements” and
• “Grounding” in the “Operation Requirements” section.
• This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. Refer to installation instructions for grounding this appliance.
• Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber like - materials.

WARNING

To reduce the risk of fire or explosion

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode.
  Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.
• There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by spontaneous combustion.

CAUTION

• Do not sit on top of the dryer.
• Because of continuing product improvements, Midea America reserves the right of change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid things.
• Install and use in accordance with the manufacturer's instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils.
• Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat. Heat source such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur.
• Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a fire hazard.
• Take care that children's fingers are not caught in door when closing it. This may result in injury.
• Gas leaks may occur in your system, resulting in a dangerous conditions.
  • Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL approved gas detector.

State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm

-www.P65Warnings.ca.gov.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryer. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct with the clothes dryer's airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions
• Save these instructions.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference.

CAUTION

• The dryer is not suitable for installation in a mobile home.
• Remove the door from all discarded appliances to avoid the danger of a child being trapped and suffocating, after unplugging cut off Power Cord.

BASIC REQUIREMENTS

Make sure you have everything necessary for the proper installation.

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the "Electrical requirements" section.
• A POWER CORD electric dryer (except for Canada).
  • GAS LINES (if a gas dryer) must meet national and local codes.
• The EXHAUST SYSTEM must be made of rigid metal or flexible stiff-walled metal exhaust ducting.

LOCATION REQUIREMENTS

1. The dryer should be located where there is enough space at the front for loading the dryer, and enough space behind for the exhaust system.

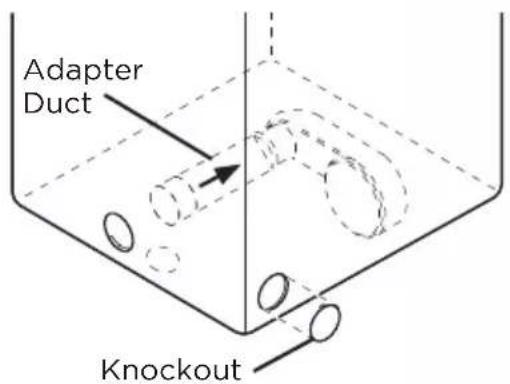

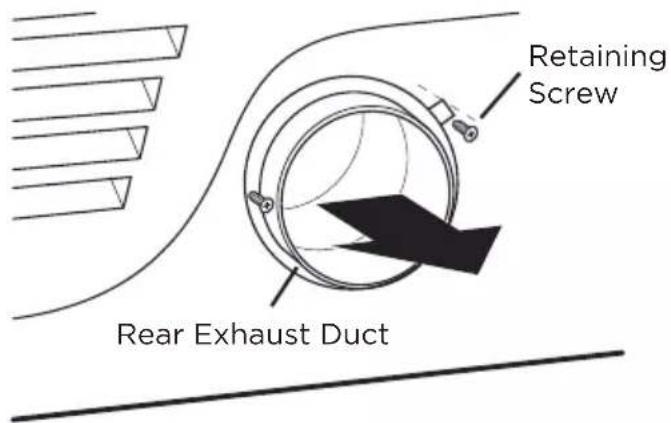

2. This dryer is factory-ready for the rear exhaust option. If you want to change the vent location, see "Change the dryer vent location" section.
3. Make sure the room in which the dryer is located has enough fresh air. The dryer must be located where there are no air-flow obstructions. Ambient temperature shall not be lower than 33^ F.
4. For gas dryers, adequate clearance must be maintained as noted on the data plate to ensure adequate air for combustion and the proper dryer operation.
5. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A dryer produces combustible lint. The area around the dryer should be kept lint-free.

ALCOVE OR CLOSET OR WALL INSERT/RECESSED INSTALLATIONS

WARNING

• The dryer must be exhausted to the outside to reduce the risk of fire when installed any place inside the house.
• No other fuel-burning appliance should be installed in the same closet as the dryer.

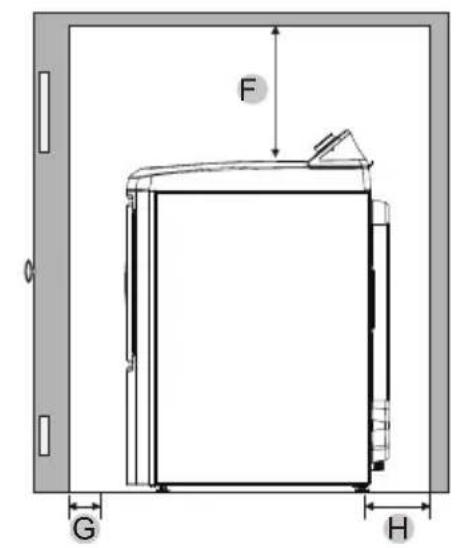

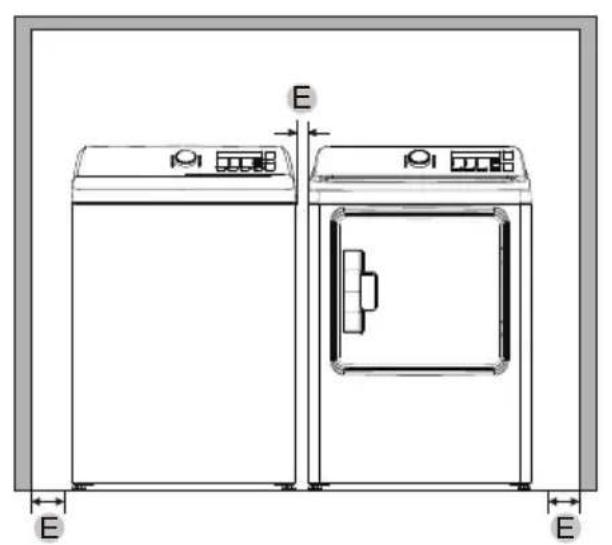

Minimum clearances between the dryer and adjacent walls or other surfaces:

Sides 1	in. (25 mm) Rear 5 in. (127 mm)
Top 24	n. (610 mm) Closet front 2 in. (51 mm)

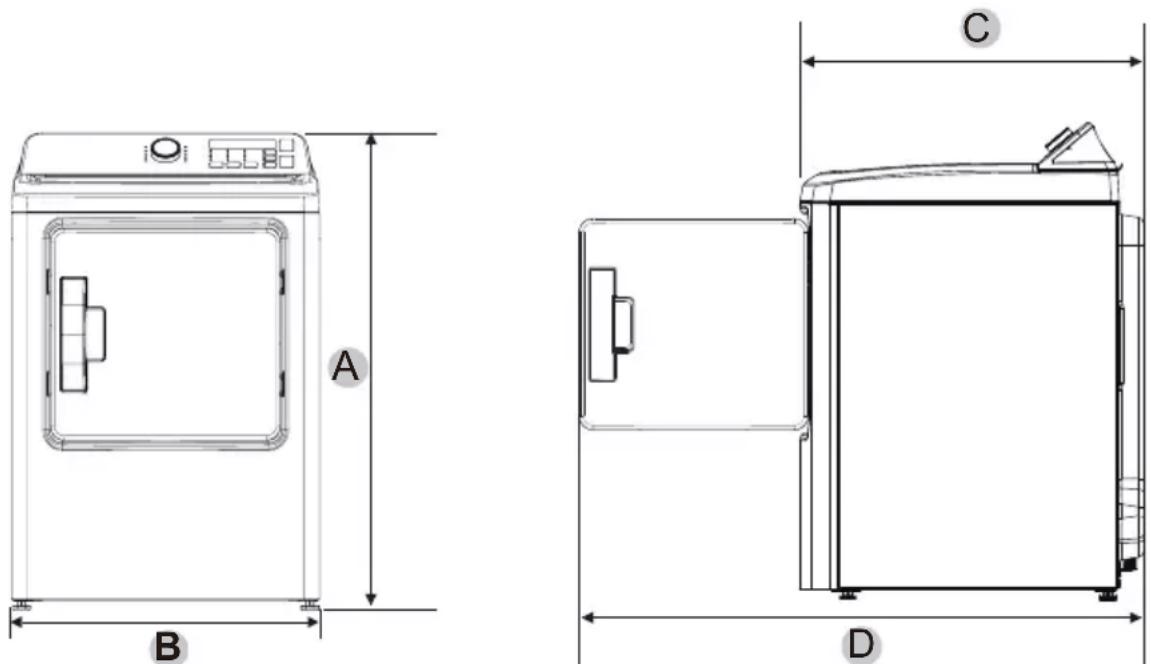

A 41.7 in. (1060 mm) B 27 in. (686 mm)
C	30.7 in. (780 mm)	D	50 in. (1270 mm)

Technical line drawing of a two-part kitchen appliance with labeled dimensions (E), no text or symbols present.

F G H

J K L I

E 1	n. (25 mm) F 24 in. (610 mm)
G 2	in. (51 mm) H 5 in. (127 mm)
I 3	n. (76 mm) J 48 in.		^2 (31000 mm) ^2
K 2	4 in. ^2 (15500 mm) ^2	L 3	in. (76 mm)

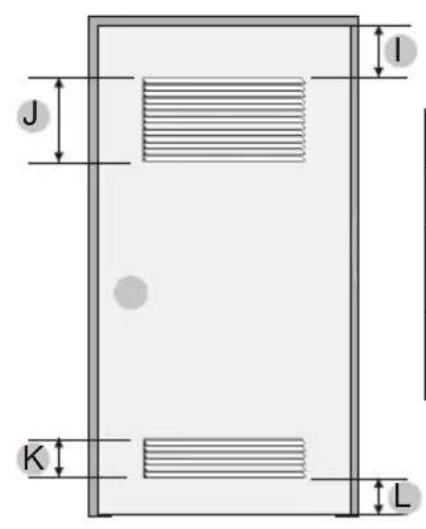

NOTE:

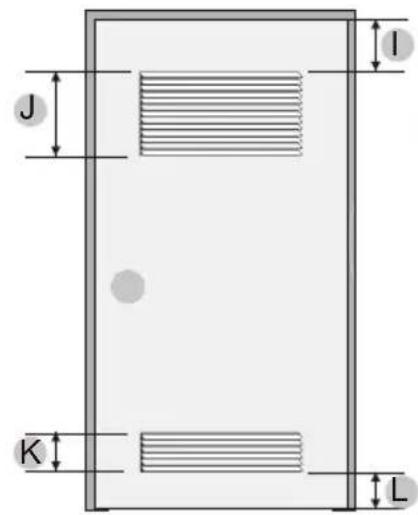

The front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76 mm) at the top and bottom. A slatted door with equivalent space clearance is acceptable.

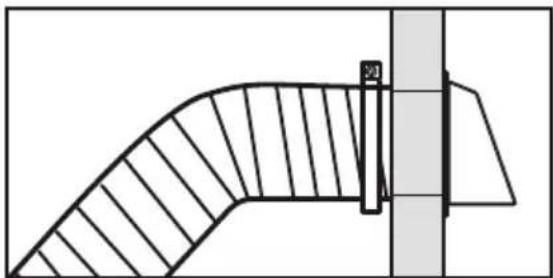

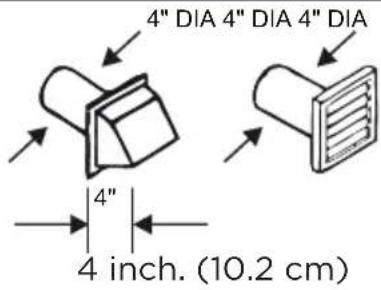

DUCTING REQUIREMENTS

	Recommended	Use only for short-run installation
Weather Hood Type		:m)
No. of 90° elbows	Rigid Metallic Rigid Metallic
0 90 ft. (27.4 m) 60 ft. (18.3 m)
1 60 ft. (18.3 m) 45 ft. (13.7 m)
2 45 ft. (13.7 m) 35 ft. (10.7 m)
3 35 ft. (10.7 m) 25 ft. (7.6 m)

If this new dryer is installed into an existing exhaust system you must make sure:

• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To inspect and clean all lint buildup from inside the existing duct.
  • The duct is not dented or crushed.
• The exhaust hood damper opens and closes freely.

Manometer measurements

The static pressure in any exhaust system for best results shall be between 0.3 to 0.8 inches of water column, and cannot be less than 0 under any circumstances. with installed duct of 4 inch diameter. Measurement must be done with the empty dryer working with a manometer at the point where the exhaust duct connects to the dryer. A no-heat setting should be used. Lint filter must be clean.

WARNING

The correct exhaust installation is YOUR RESPONSIBILITY.

• Use a 4-inch (10.2cm) diameter rigid aluminum or rigid galvanized steel duct.
• Do not use smaller diameter than recommended diameter duct.
• Ducts larger than 4 inches (10.2cm) in diameter can result in increased accumulation of lint and changes in performance
• Lint should be removed from internal filter before every cycle and clean ducts periodically.
• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct with a thin foil wall. A serious blockage can result if the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
• Keep the exhaust duct as straight, short as possible, minimum elbows
• Secure joints with duct tape. Do not use screws.
• Plastic flexible ducts can kink, sag, be punctured, reduce airflow, extend drying times, and affect the dryer operation.
• Exhaust systems longer than recommended 90 ft can extend drying times, affect machine operations, and collect lint.
• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper.
• The hood should have at least 12 inches (30.5cm) of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch.
• If the exhaust duct must run through an unheated area, the duct should be insulated and slope slightly down towards the exhaust hood to reduce condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before cleaning.
• Check frequently to make sure the exhaust hood damper opens and closes freely.
• Check once per month, and clean at least once per year. NOTE: If your clothes are not getting dry, then check the ducting for obstructions.
• Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building, gas vent, or any other common duct or chimney. This could create a fire hazard from the lint expelled by the dryer.
• Do not use non-metallic flexible duct.
  • To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS.

EXHAUSTING REQUIREMENTS

WARNING

• The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a building.
• The dryer must be exhausted to the outside to reduce the risk of fire when installed in alcove or closet.

Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room.

WARNING

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal before installation this appliance

Use only a metal exhaust duct that is non-flammable to ensure containment of the exhaust air heat, and lint.

Refer to the “Ducting requirements” section on page 12 for the maximum duct length and number of bends.

• All dryers must be exhausted to the outside.
• Do not assemble the duct with screws or other fastening means that extend into the duct and catch lint.
• The exhaust duct should be 4 inches (102mm) in diameter.
• The total length of flexible metal duct shall not exceed 7.8 feet (2.4 meters).

GAS REQUIREMENTS

Use only natural or LP (liquid propane) gases.

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, LATEST REVISION (FOR THE UNITED STATES), OR THE NATURAL GAS AND PROPANE INSTALLATION CODE, CSA B149.1, LATEST REVISION (FOR CANADA).

Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.

A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off valve be installed within 6" (15,24 cm) of your dryer.

Gas dryers installed in residential garages must be raised 18" (46cm) above the floor.

Additionally, a 1/8" (0.3cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge connection, must be installed immediately upstream of your dryer's gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system.

This dryer must be connected to the gas supply piping with a listed flexible gas connector that complies with the standard for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas Association (CGA in Canada).

• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner. There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION INSTRUCTIONS

Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be installed in the gas supply line to installed dryer at location of operation. If a flexible gas connector is used to connect dryer, the connector may not be longer than 3' (36", 91.5 cm).

WARNING

• Gas leaks may occur in your system, creating a dangerous situation.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend that you purchase and install a UL-approved gas detector.
• Install and use it in accordance with the manufacturer's instructions.

ELECTRIC REQUIREMENTS

The wiring diagram is located on the back board of the unit.

WARNING

• The improper connection of the equipment grounding conductor can result in the risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 - Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical services for your dryer.
• All gas installations must be done in accordance with the National Fuel Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and local codes and ordinances.

Electrical connections

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD.

Gas models - U.S. and Canada

A 120V\~, 60Hz AC approved electrical service, with a 15 ampere fuse or circuit breaker is required.

Electric models - U.S. only

The dryers require a 120/240 V\~, 60Hz AC approved electrical service. The electric service requirements can be found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOT provided with U.S. electric model dryers.

Electrical Shock Hazard

When local codes allow, the electrical supply of the dryer may be connected by means of a new power supply cord kit, marked for use with a dryer, that is UL listed and rated at a minimum of 120/240 V\~, 30-ampere with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for 4 wire receptacles, NEMA type 14-30R.)

Electric models - Canada only

• A 120/240 V\~, 60Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required.
• All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle.

GROUNDING

This dryer must be grounded. In the event of a malfunction or breakdown, the grounding the product will reduce the risk of electrical shock by providing a path of least resistance for the electrical current.

WARNING

Gas and Electric models

• Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel - Do not contact the following parts while the appliance is energized: inlet valve, control board and temperature-regulating thermistor (located on blower housing).

WARNING

Gas models

• Your dryer has a three prong power cord with grounding conductor. 120V\~60 Hz
• The plug must be plugged into an appropriate individual outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Electric models

Dryer must be grounded with 3 or 4 wire cord power cord with ground grounding conductor and a grounding plug, which is sold separately.

• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet installed by a qualified electrician.
• If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dryer.

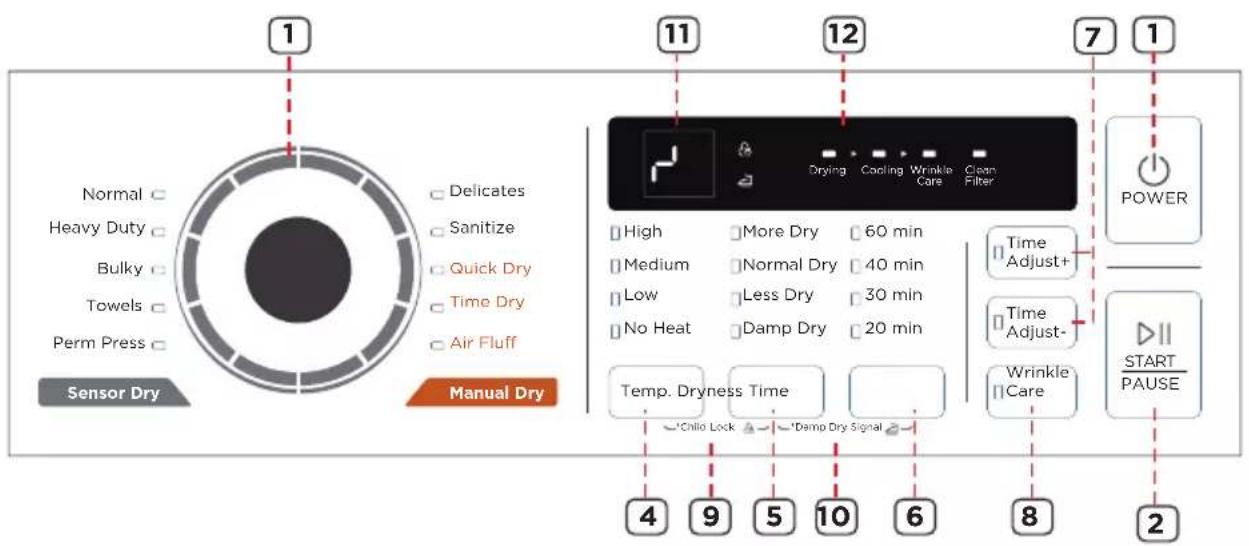

PARTS AND FEATURES

Control Panel Control Panel Cabinet Left venting hole (for option) Adjustable leg (Four legs) Door Filter Power cord For gas dryer only Back venting hole Wiring box For electric dryer only Gas inlet

Electric dryer Gas dryer

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer where you purchased your dryer or MIDEA customer care center at 1-866-646-4332

INSTALLATION INSTRUCTIONS

For the proper installation, we recommend that you hire a qualified installer.

REMOVING FROM THE PACKAGE

• Unpack your dryer and inspect it for shipping damage. Make sure you have received all the items shown below.
• To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

WARNING

Packaging materials can be dangerous to children;

Keep all packaging material (plastic bags, polystyrene, etc.) well out of children's reach.

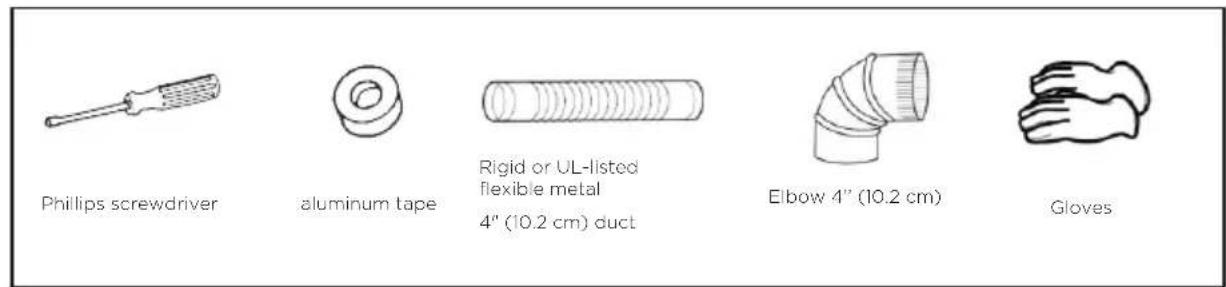

TOOLS REQUIRED

Phillips screwdriver

Flat screwdriver

Level

Pliers

Adjustable wrench that opens to 1" (25 mm)

Aluminum tape

Cutting knife

Pipe wrench (gas only)

1. Move your dryer to an appropriate location for the installation. Consider installing the dryer and washer side-by-side, to allow access to the gas, electrical, and exhaust connections. Place two of the carton cushion-tops on the floor. Tip your dryer on its side so it lies across both cushion-tops.
2. Set your dryer back in an upright position.
3. The rear surface of appliances which, according to the instructions, shall be placed against a wall.

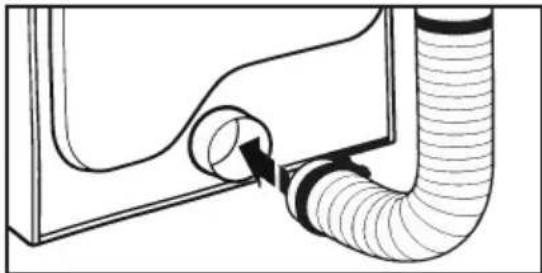

INSTALL THE EXHAUST SYSTEM

1. Review the "Exhausting Requirements" section before installing the exhaust system.

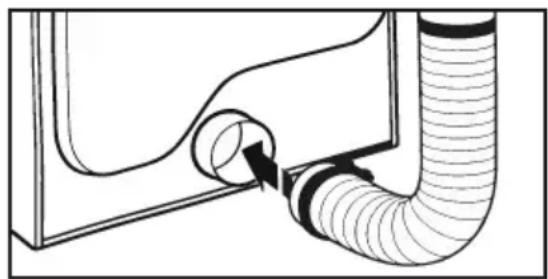

2. Install the ductwork from your dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer.
3. DO NOT use sheet metal screws when assembling the ducting.
4. These joints should be taped.
5. Never use plastic flexible exhaust material.

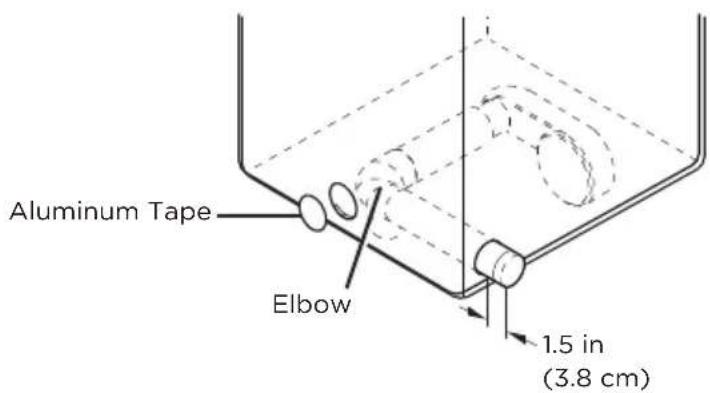

6. Tip for tight installations: install a section of the exhaust system onto your dryer before putting it in place.
7. Use aluminum tape to secure this section to your dryer, but do not cover the ventilation slots at the back of the unit in dryer cabinet.
8. Risk of Fire. Do not install a booster fan in the exhaust duct.

Technical line drawing of a curved structural component with hatched fill and a vertical bar (no text or symbols)

Diagram of a pipe fitting with a valve and tubing (no text or symbols)

WARNING

Make sure your dryer is installed properly so it exhausts air easily.

Dryor Wall Duct exhaust

Use a 4" (10.2 cm) diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws.

Tape 4" Duct

Keep ducts as straight as possible.

Technical line drawing of a mechanical device with no visible text or symbols

Clean all old ducts before installing your new dryer. Be sure the vent flap opens and closes freely. Inspect and clean the exhaust system annually.

DO NOT restrict your dryer with a poor exhaust system.

DO NOT use a plastic, thin foil, or non-metal flexible duct.

DO NOT use unnecessarily long ducts that have many elbows.

Safety warning symbol with crossed-out circle and diagonal line, indicating no hazard or absence of a device.

DO NOT use dented or clogged ducts and vent.

No smoking sign with pictogram of hand holding a cigarette and downward arrow indicating reduction

Review the “Gas Requirements” section on page 14. Remove the pipe thread protective cap.

Apply a pipe joint compound or about 11/2" wraps of teflon tape over all threaded connections.

- The pipe joint compound must be resistant to the actions of any liquefied petroleum gas.

Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm) female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer. Use only new AGA or CSA certified gas supply line with SS flexible connectors. The National Fuel Gas Code requires that an accessible, approved manual gas shutoff valve be installed within 6 in. (15 cm) of your dryer.

Securely tighten the gas line fitting over the threads.

Turn on the gas supply.

All connections must be wrench-tightened

WARNING

• All gas installations of the dryer must be equipped with Manual Shut-Off valve.
• Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plastic-coated brass piping for gas supply.
• Check all gas connections for leaks using a soap solution.
• If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.

CONNECT THE ELECTRICAL WIRING

Review the "Electric Requirements" section on page 16.

BEFORE OPERATING OR TESTING, follow the grounding instructions in the "Grounding" section on page 18.

THREE WIRE OUTLET

Simple electrical circuit symbol for a three-phase power supply (no text or labels)

3-Wire receptacle (10-30R)

If your outlet is a three-wire outlet, choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord must:

• Beat least 4 ft. (1.22 m) long.
• Have three 10-gauge solid copper wires.
• Match a three-wire receptacle of NEMA Type 10-30R.

3-Wire system connections

1. Remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power cord to the center terminal screw of the terminal block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.
3. Connect the other wires to the outer terminal block screws. Be sure to cross the screw through the terminal ring and tighten the screw.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your dryer's rear panel slot. Secure the cover with a screw.

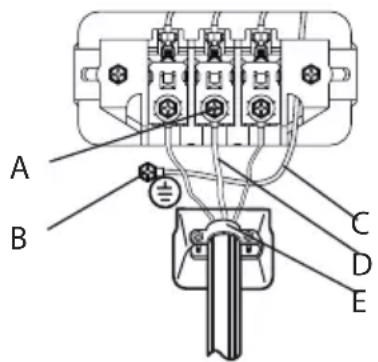

3-wire system instructions:

A Center terminal block screw
B External ground connector
C Neutral grounding wire (White)
D Neutral wire (white or center wire)
E 3/4" (1.9cm) UL-listed strain relief

A B C D E

WARNING

If converting from a 4-wire electrical system to a 3-wire, the ground strap must be reconnected to the terminal block support to ground the dryer frame to the neutral conductor. Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

FOUR WIRE OUTLET

Simple electrical circuit symbol for a socket (no text or labels)

4-Wire receptacle (14-30R)

If your outlet is a four-wire outlet, choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord must:

• Be at least 4 ft. (1.22 m) long.
• Have four 10-gauge solid copper wires.
• Match a four-wire receptacle of NEMA Type 14-30R. The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identified by a white color.

4-Wire system connections

1. Remove the center terminal block screw.
2. Connect the ground wire (green or unwrapped) of the power cord to the external ground conductor screw.
3. Connect the neutral wire (white or center wire) of the power cord and the appliance ground wire (white) under the center screw of the terminal block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.
4. Connect the other wires to the outer terminal block screws. Be sure to cross the screw through the terminal ring and tighten the screw.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover into your dryer's rear panel slot. Secure the cover with a screw.

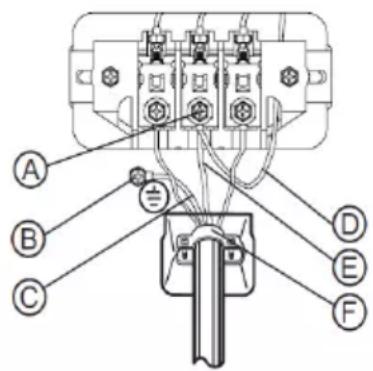

4-wire system instructions:

IMPORTANT: Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

Ⓐ Center terminal block screw
B External ground connector
© Green or bare copper wire of the power cord
(D) Neutral grounding wire (White)
E Neutral wire (white or center wire)
⑤ 3/4" (1.9cm) UL-listed strain relief

Electrical wiring diagram showing connections between components labeled A through F, with no readable text or symbols beyond labels.

WARNING

Electrical Shock Hazard

All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION.

The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral conductor. If the 4-wire system is used, the dryer frame cannot be grounded to the neutral conductor at the terminal block. Refer to the “Electric Requirements” section on page 16 for 3-WIRE or 4-WIRE SYSTEM CONNECTIONS.

Remove the terminal block cover plate.

Insert the power cord with a UL-listed strain relief through the hose provided in the cabinet near the terminal block. - A strain relief must be used.

Do not loosen the nuts already installed on the terminal block. Be sure they are tight. Use a 3/8" (1 cm) deep-well socket.

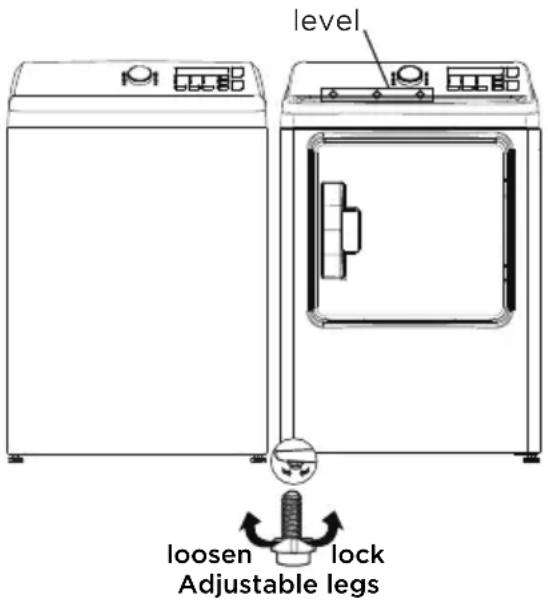

LEVEL THE DRYER

To ensure that the dryer provides the optimal drying performance, it must be leveled. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

- Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate.

level loosen lock Adjustable legs

POWER ON

Make sure all gas connections (Gas Models only), exhaust and electrical connections are complete. Plug in your dryer.

FINAL CHECK

• Make sure the dryer is plugged into an electrical outlet and is properly grounded.
• The exhaust ductwork is hooked up and the joints are taped.
• A plastic flexible duct CAN NOT BE USED.
• Use rigid or stiff-walled flexible metal vent material.
• The dryer is leveled and is sitting firmly on the floor.
• Gas models - the gas is turned on with no gas leakage.
• Start your dryer to confirm that it runs, heats, and shuts off.

CAUTION

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. In order to confirm the gas ignition, check the exhaust for heat.

DOOR REVERSAL PROCEDURE

1 Make sure that the power cord is unplugged.
2 While supporting the door, remove the four hinge screws from the door, then lift the door to remove it and set the door aside.

Remove the two screws Remove the two screws

3 Remove the screws for the door lock cover on the right side of the dryer and the screws for the door lock cover on the left side of the dryer.

4 Install the door lock onto the right side of the dryer with the screws you just removed, then install the door lock cover on the left side of the dryer.

Remove the door lock screws Remove the door lock cover screws

5 Remove the 12 screws around the door.
6 Pull the inside door frame from the outside door frame.

Outside door frame Inside door frame 5-6

7 Rotate the outside door board 180°, then reassemble it with the inside door board with the screws you removed previously.
8 Install the hinges onto the left side of the dryer.
    note right of B "7-8"

9 Align the hinges on the door with the hinge screw holes on the front of your dryer, then secure the door with the four screws you previously removed.

Line drawing of a washing machine with multiple doors open, showing internal components and mounting brackets (no text or labels)

Your new dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or left side (as seen from the front).

An Adapter kit can be purchased from any retailer. This kit contains the necessary duct components to change the dryer vent location.

Tools and materials you will need

Phillips screwdriver aluminum tape Rigid or UL-listed flexible metal 4" (10.2 cm) duct Elbow 4" (10.2 cm) Gloves

1. Remove the rear exhaust retaining screws. Pull out the exhaust duct.

Retaining Screw Rear Exhaust Duct

Option 1: Side venting

1. Press the tabs on the knockout and carefully remove the knockout for the desired vent opening.

Attach the adapter duct onto the blower housing of the dryer as shown.

Adapter Duct Knockout

1. Preassemble a 4 inches (10.2cm) elbow to the next 4 inches (10.2cm) duct section, and secure all joints with aluminum tape. Be sure that the male end of the elbow faces AWAY from the dryer.

Insert the elbow/duct assembly through the side opening and attach it onto the adapter duct.

Secure in place with aluminum tape. Be sure that the male end of the duct protrudes 1.5 inches (3.8cm) to connect the remaining ductwork. Attach aluminum tape to the back of the dryer.

Aluminum Tape Elbow 1.5 in (3.8 cm)

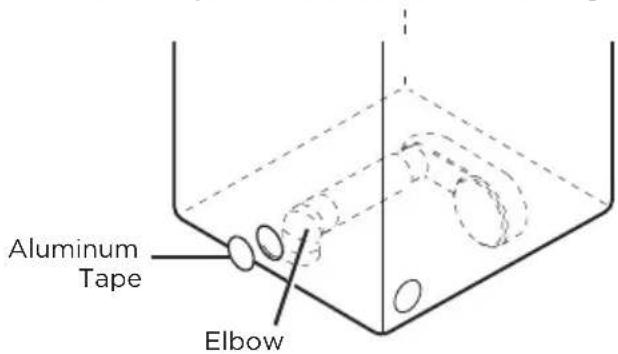

Option 2: Bottom venting

1. Press the tabs on the knockout and carefully re move the knockout for the desired vent opening.

Attach the adapter duct onto the blower housing of the dryer as shown.

Adapter Duct Knockout

3 Insert the 4 inch (10.2cm) elbow through the rear opening and attach it onto the adapter duct.

Be sure that the male end of the elbow faces down through hole in the bottom of the dryer.

Secure in place with aluminum tape.

Attach aluminum tape to the back of the dryer.

Aluminum Tape Elbow

Dimensions for installation

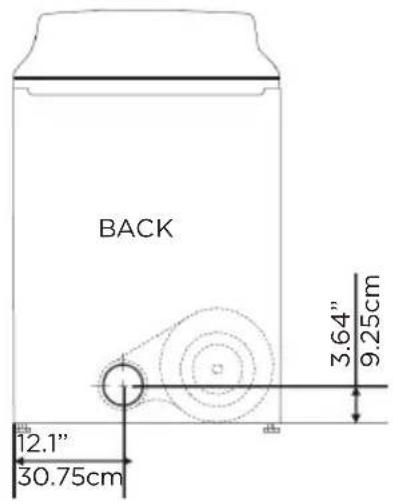

- Rear Venting (Default)

BACK 12.1" 30.75cm 3.64" 9.25cm

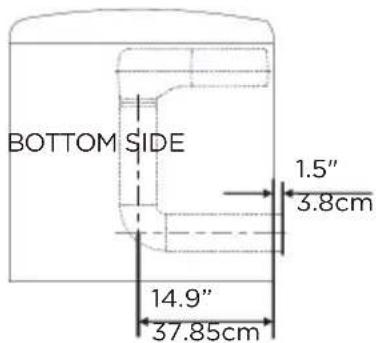

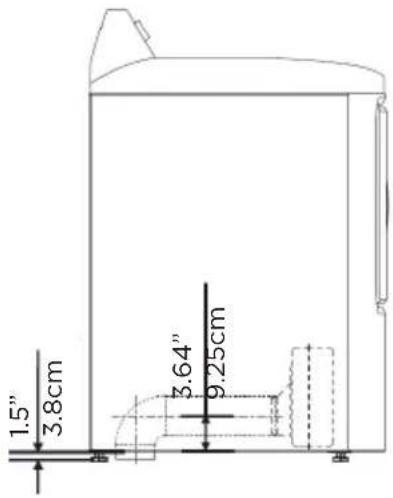

- Side Venting

BOTTOM SIDE 1.5" 3.8cm 14.9" 37.85cm

3.64" 9.25cm 5.3" 13.4cm

- Bottom Venting

BOTTOM SIDE 4.5" 11.4cm 12.1" 30.75cm

1.5" 3.8cm 3.64" 9.25cm

DRYER USE

CONTROL PANEL

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the appliance.

① POWER Button

Press to turn your dryer on or off. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns off.

2 START/PAUSE Button

Press to start or pause the program. You can't change any setting except add a garment.

③ Cycle selector

Select your desired cycle for the type of load.

The cycle you select determines the heat control for the cycle.

The Normal, Heavy Duty, Bulky, Towels, Perm Press, Delicates and Sanitize are Sensor Dry cycles.

The Quick Dry, Time Dry and Air Fluff are Manual Dry cycles.

4 Temp.

Press the button to select the drying temperature.

High - For sturdy cottons or those labeled Tumble Dry.

Medium - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium.

Low - For lower heat than Medium to dry synthetic or washable knit fabrics.

No Heat - Provides just the air cycle without any heat.

5 Dryness

Press the button to select the dryness level. Di erent dryness level will result in di erent drying time. For clothes to be ironed manually, a lower dryness level should be selected.

6 Time

This button is a quick selection for Time Dry setting.

⑦ Time Adjust+\-

Press these buttons repeatedly to adjust the drying time for Manual cycles. (These buttons do not work for Sensor cycles.)

8 Wrinkle Care

Press to turn the Wrinkle Care program on or o . When turned on, the Wrinkle Care indicator lights up. Wrinkle Care provides approximately 90 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. The load is already dry and can be removed at any time during the Wrinkle Care cycle.

9 Child lock

Press and hold the Temp. and Dryness buttons at the same time for three seconds to turn on the Child Lock function. All buttons except Power will not work when the control lock is activated. Press and hold again for another three seconds to turn o the function.

10 Damp Dry Signal

Press and hold the Dryness and Time buttons at the same time for three seconds to turn on the Damp Dry Signal function. Press and hold again for another three seconds to turn o the function. This function is useful when you want to take some garments out for ironing. The unit will beep 6 times when the moisture in the clothes is good for ironing. At this time, you can take those garments out and continue drying the other by pressing the START/PAUSE button once.

NOTE: The unit will not stop operating if you don't take those garments out for ironing.

11 Digital display

This digital will display the time of cycle you are setting or remaining time of cycle operating.

12 Cycle status display

The relative indicator Light will be flash when the dryer is in

DRYING A LOAD OF LAUNDRY

1. Power on your dryer.

• Select any program (except Off and blank) to power your dryer on.
• The “Clean Filter” light in the process bar will flash 10 times when your dryer is powered on
• You should clean the filter before the dryer is loaded.

2. Load your dryer.

• Place only one wash load in your dryer at a time.
• Mixed loads of heavy and light weight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.
• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.
  • Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

3. Select the appropriate cycle and options for the load.

• Select the appropriate cycle by Cycle Selector according to the cycle chart on next page.
• Select the appropriate optional function according to the chart on next page.

4. Start your dryer.

Pressing START/PAUSE button will start the selected cycle. To PAUSE cycle press START/PAUSE button then open the door. To resume operation after closing the door always press START/PAUSE. Opening the door during the operation will instantly stop operation and will require pressing the START/PAUSE button to resume operation.

Cycle Fabric type Dry		Temp	Dryness WRINKLE CARE	Maximim Amount
Normal Cotton	Under wear Linen	Med More Y
			Normal
			Less
			Damp
Heavy Duty Jeans	Corduroys Work clothes	High More Y
			Normal
			Less
			Damp
Bulky Blankets	Sheets Comforters	Med More Y
			Normal
			Less
			Damp
Towels Towels	Heavy cottons	High More		Y
			Normal
			Less
			Damp
Perm press Wrinkle - free cottons synthetic fabrics knits		Low	More Y
			Normal
			Less
			Damp
Delicates	Sensitive items	Low	More	Y
			Normal
			Less
			Damp
Sanitize	Bedding Curtains	High More Y
Quick Dry		High / Y
		Med
		Low
Time Dry High / Y
		Med
		Low
Air Fluff		No Heat / Y

* Table in grey is an initial setting. "Y" are all optional functions you can select.
* For even better drying effect, please select higher dryness level.

Load Size Recommendations:

For best results, follow the wet load size recommendations noted for each cycle.

Small load: Fill the dryer drum with 3-4 items, not more than 1/4 full.

Medium load: Fill the dryer drum up to about 1/2 full.

Large load: Fill the dryer drum up to about 3/4 full. Do not overload. Items need to tumble freely.

5. Unloading your laundry.

• The dryer will beep 6 times after the cycle is done.

FILTER CLEAN

Lint filter Front frame Door

To prevent a risk of fire, make sure to clean the lint filter before or after every load.

• To shorten drying time.
• To operate more energy efficiently.

CAUTION

• Do not operate your dryer without the lint filter in place.
• Do not use a damage or broken lint filter. This may reduce performance and/or cause fire.

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer's instructions for drying special items. If care label instructions are not available, use the following information as a guide.

Items Drying guide
Bedspreads & Comforters	Follow the care label instructions or dry in Heavy Duty cycle.Make sure the item is thoroughly dry before using or storing.May require repositioning to ensure even drying.
Blankets	Use the Normal cycle and dry only one blanket at a time for best tumbling action.Make sure the item is thoroughly dry before using or storing.May require repositioning to ensure even drying.
Curtains & Draperies	Use the Casual cycle, medium temperature and less dry to help minimize wrinkling.Dry these in small loads for best results and remove as soon as possible.
Cloth Diapers	Use the Normal cycle on High temperature for soft fluffy diapers.
Down Filled Items (jackets, sleeping bags, comforters, etc.)	Use the Normal cycle on High temperature.Add a couple of dry towels to shorten drying time and absorb moisture.
Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)	DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).WARNING: Drying a rubber item with heat may damage it or create a fire hazard.
Pillows	Use the Normal cycle.Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item.DO NOT dry kapok or foam pillows in the dryer. You can dry these items in the dryer as long as you use the air fluff cycle.
Plastics (shower curtains, outdoor furniture covers, etc.)	Use the Air Fluff cycle or the Time Dry cycle on the Low temperature setting depending on the care label instructions.

Items NOT to dry:

• Fiberglass items (curtains, draperies, etc.)
- Woolens, unless recommended on the label.
- Items spotted or soaked with vegetable or cooking oils.

DRYER CARE

WARNING

- Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the following parts while the appliance is energized: inlet valve, control board and temperature-regulating thermistor (located on blower housing).

CLEANING AND MAINTENANCE

CONTROL PANEL

• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray cleaners directly on the panel.
• The control panel finish may be damaged by some laundry pretreatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately.

STAINLESS STEEL OR ANODIZED DRUM

• To clean the stainless steel or anodized drum, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel and anodized surfaces.
• Remove the cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them in a separate storage box. This may scratch or damage the top cover of the dryer.
• Since the entire dryer has a high-gloss finish, the surface can be scratched or damaged.
• Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

• Should be inspected and cleaned yearly to maintain optimum performance.
• Disconnect the exhaust duct from the dryer and from the exhaust hood (at the exhaust outlet) outside of the building.
• Check the interior of the duct and remove any lint accumulation.

• Be sure that lint is removed from the exhaust hood. Lint may collect in the exhaust hood so that the flappers or louvers will not open or close completely.

• After cleaning the exhaust hood, check that the flapper or louvers move freely.

• Reassemble the exhaust duct and hood, checking that the joints are secure and sealed.
• Operate the dryer and verify that the exhaust air is not obstructed in the vent and that there are no leaks in the system.
• The outside exhaust hood should be cleaned more frequently to ensure proper operation.

TROUBLESHOOTING

CHECK THESE SOLUTIONS IF YOUR DRYER...

If your dryer has any of the following problems, you can check the solutions listed below before making a service call. This will help you save time and money.

Problem Solution
The unit doesn’t start.	Make sure the door is latched shut.Be sure the power cord is plugged into a live electrical outlet.Check the home’s circuit breaker and fuses.Press the Start/Pause button again if the door is opened during the cycle.
The unit doesn’t heat.	Check the home’s circuit breaker and fuses.Select a heat setting other than Air fluff and check that the Temp selection is not on “No heat”On a gas dryer, check that the gas supply is on.Clean the lint filter and exhaust duct.Dryer may have moved into the cool-down process of the cycle.
Doesn’t dry.	Check all of the above, plus...Be sure the exhaust hood outside the home can open and close freely.Check exhaust system for lint buildup. Ducting should be inspected and cleaned annually.Use a 4” rigid metal exhaust duct.Do not overload. 1 wash load = 1 dry load.Sort heavy items from lightweight items.Large, bulky items like blankets or comforters may require repositioning to ensure even drying.Load may be too small to tumble properly. Add a few towels.
The unit is noisy.	Check the load for objects such as coins, loose buttons, nails, broken zips, etc. Remove promptly.It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.Be sure the dryer is leveled properly as outlined in the installation instruction.It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system.
Clothes are unevenly dried.	Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal.Select the Extra Dry setting if desired.If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level.Sort heavy items from lightweight items for best drying results.
Shuts off before load is dry.	Dryer load is too small. Add more items or a few towels and restart the cycle.Dryer load is too large. Remove some items and restart the dryer.
The unit has a special odor.	Household odors from painting, varnishing, strong cleaners, etc. may enter the dryer with surrounding room air. This is normal as the dryer draws the air from surrounding air space of the dryer locations.When these odors linger in the air, ventilate the room completely before using the dryer.
Odors remain in clothing after refresh	Fabrics containing strong odors should be washed utilizing desired wash cycle.
Garments still wrinkled after Wrinkle-prevent	Small loads of 1 to 4 items work best.Load fewer garments. Load similar-type garments.
Lint on clothes	Clean lint filter before every cycle.Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that arew lint trappers (for example, a pair of black linen pants).Divide larger loads into smaller loads for drying.Check pockets thoroughly before washing and drying clothes.

ERROR CODES

Error Code Possible Cause Solutions
C9 The PCB failed. Call the service center for help do not use dryer.
E4 The humidity sensor failed.		The unit will complete the current operating cycle but garments could be over dried.The unit can still operate under the Time Cycles.Call the service center for help.
E5 The NTC at the back failed.		Call the service center for help, do not use dryer.

*When error occurs, the buzzer will beep 5 seconds and repeat once per 15 minutes. After 24 hour, machine will power off automatically.

APPENDIX

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Wash Cycle Special Instructions				Warning Symbols for Laundering
	Normal	[1Y66]	Line Dry/Hang to Dry		Do Not Wash
[78VG]	Permanent Press / Wrinkle Resistant / Wrinkle Control	[ADOK]	Drip Dry Do Not Wrin	[CAWE]
	Gentle/Delicates Dry	[1XC3]	Do Not Bleach
[32TT]	Hand Wash Heat Sett		Do Not Tumble Dry
Water Temperature**		[●●]	High	[IMAGE]	No Steam (added to iron)
	Hot Medium Do Not	[39V8]
[Y4ZS]	Warm Low Dryclean
	Cold Any Heat Dry Cl
Bleach			No Heat/Air		Do Not Dry Clean
	Any Bleach (when needed)		n-Dry or Steam Temperatures		Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)	[76AT]	High Drip Dry	[3270]
[1CXG]	Tumble Dry Cycle	[2TAK]	Medium Dry Flat
Normal		[73T3]	Low
	Permanent Press/ Wrinkle Resistant/ Wrinkle Control		For machine-washable wool. Loads should be under 8 pounds.
	Gentle/ Delicates

** The number of dots represent appropriate wash water temperatures for various items. The temperature range for Hot is 105-125°F/41-52°C, for Warm 85-105°F/29-41°C and for Cold 60-85°F/16-29°C.

MIDEA

LAUNDRY

DRYER LIMITED

WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.

Please have the following information available when you call the Customer Service Center:

■ Name, address and telephone number
■ Model number and serial number
■ A clear, detailed description of the problem
■ Proof of purchase including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the User Manual, or visit http://us.Midea.com/support
2. All warranty service is provided exclusively by our authorized Midea Service Providers, in the U.S. and Canada.

Midea Customer Service

In the U.S.A. or Canada, call 1-866-646-4332 or email [e-mail].

If outside the 50 States of the United States or Canada, contact your authorized Midea dealer to determine whether another warranty applies.

LIMITED WARRANTY

WHAT IS COVERED

FIRST YEAR LIMITED WARRANTY (PARTS AND LABOR)

For one year from the date of purchase, if this major appliance is installed, operated and maintained according to instructions attached to or furnished with the product, Midea America Corporation (hereafter “Midea”) will pay for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased, or at its sole discretion replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. Service must be provided by a Midea designated service company. This limited warranty is valid only in the 50 States of the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

LIMITED WARRANTY

WHAT IS NOT COVERED

1. Commercial, non-residential or multiple-family use, or use inconsistent with published user, operator or installation instructions.
2. In-home Instruction on how to use your product.
3. Service to correct improper product maintenance or installation, installation not in accordance with electrical codes or correction of household electrical system (i.e. house wiring, fuses, etc.).
4. Consumable parts (i.e. light bulbs, batteries, air or water filters, etc.).
5. Defects or damage caused by the use of non-genuine Midea parts or accessories.
6. Damage from accident, misuse, abuse, fire, floods, electrical issues, acts of God or use with products not approved by Midea.
7. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration or modification of the appliance.
8. Cosmetic damage including scratches, dents, chips, and other damage to appliance finishes unless such damage results from defects in materials and workmanship and is reported to Midea within 30 days.
9. Routine maintenance of the product.
10. Products that were purchased "as is" or as refurbished products.
11. Products that have been transferred from its original owner.
12. Discoloration, rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations, high moisture or humidity or exposure to chemicals.
13. Pick-up or delivery. This product is intended for in-home repair.
14. Travel or transportation expenses for service in remote locations where an authorized Midea servicer is not available.
15. Removal or reinstallation of inaccessible appliances or built-in fixtures (i.e. trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal or replacement of the product.
16. Service or parts for appliances with original model/serial numbers removed, altered or not easily identified.

The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY

Midea makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance, you should ask Midea or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. MIDEA SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

Sécurité

Line drawing of a simple kitchen oven with control panel and door (no text or symbols)

Extension gratuite

Silhouette of a flame with jagged edges, resembling a stylized fire or smoke plume (no text or symbols)

Risque d'incendie

Technical line drawing of a two-part kitchen appliance with labeled dimensions (E), no text or symbols present.

F G H

J K L l

E 25 mm (1 po) F 610 mm	(24 po)
G 51 mm (2 po) H 127 mm	(5 po)
I 76 mm (3 po) J		31 000 mm^2 (48 po^2 )
K 15 500 mm^2 (24 po^2 )	L 76 mm (3 po)

REMARQUE :

Technical line drawing of a curved structural component with hatched fill and a vertical bar (no text or symbols)

Diagram of a pipe fitting with a valve and tubing, showing airflow direction (no text or labels)

AVERTISSEMENT

Technical line drawing of a mechanical device with no visible text or symbols

Safety warning symbol with crossed-out circle and pipe, indicating no hazard or absence of safety

Prohibition sign with circular background and diagonal line, indicating no smoking or anti-smoking

RACCORDEMENT DE LA CONDUITE DE GAZ (POUR LES MODÈLES AU GAZ)

Simple electrical circuit symbol for a three-pin socket (no text or labels)

Simple electrical circuit symbol with three vertical lines and a diode, enclosed in a circle (no text or labels)

Electrical wiring diagram showing connections between components labeled A through F, with a central connector and cable routing.

AVERTISSEMENT
    note right of B "7-8"

Line drawing of a washing machine with two doors open, showing internal components and control panel (no text or symbols)

CHANGER L'EMPLACEMENT DE L'ÉVACUATION D'AIR DE LA SÉCHEUSE

GARANTIE LIMITÉE D'UN AN (PIÈCES ET MAIN-D'ŒUVRE)
