USER MANUAL TOAD8 H.KOENIG

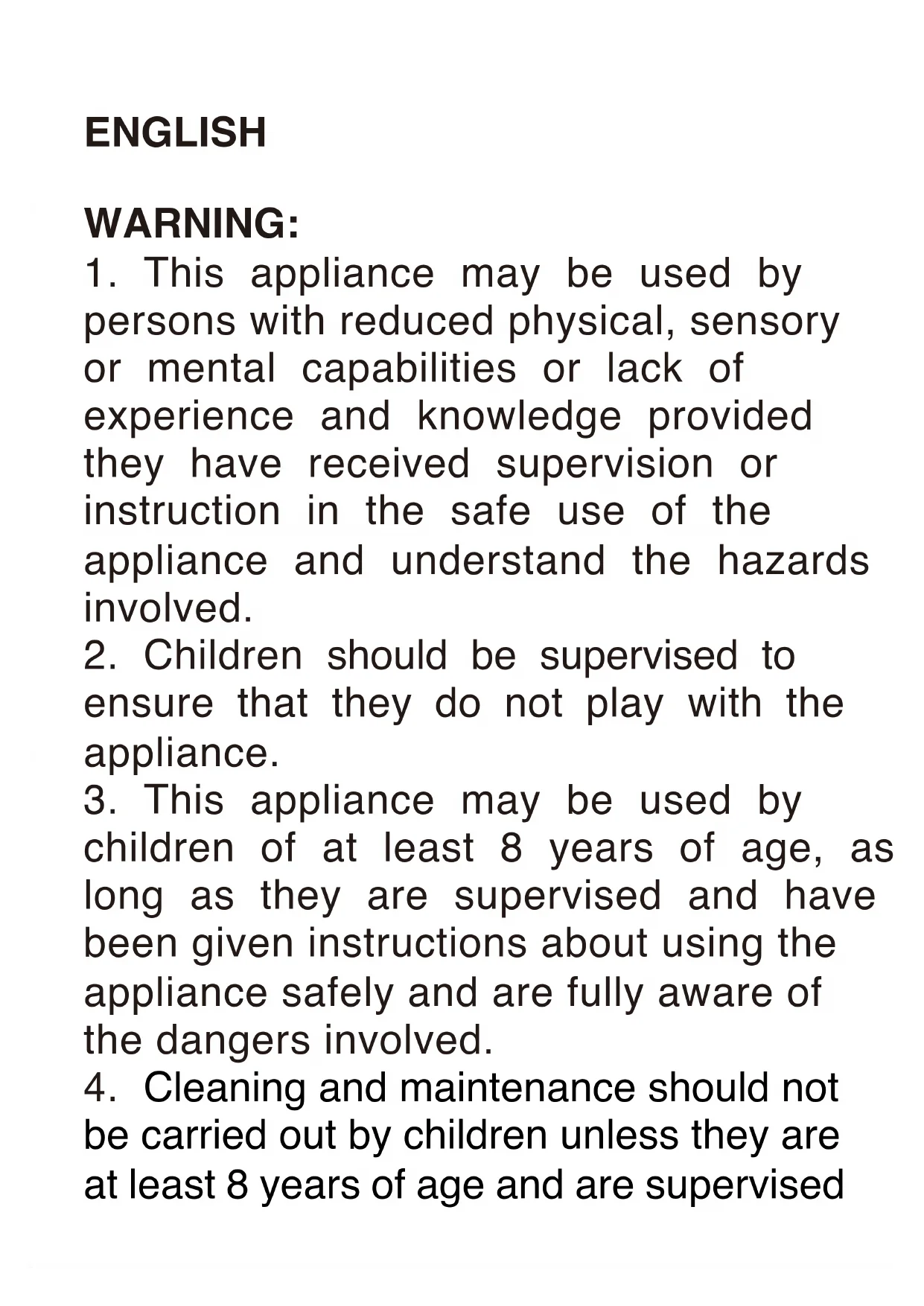

This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided they have received supervision or instruction in the safe use of the appliance and understand the hazards involved.

Children should be supervised to ensure that they do not play with the appliance.

This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervisedby an adult.

Keep the appliance and its power cord out of reach of children under 8 years of age.

When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

When positioning the appliance, ensure the supply cord is not trapped or damaged.11. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

The device must not be used if it has been dropped, it obvious signs of damageare visible or if it has leaks.

Please keep this document at hand and give it to the future owner in case of transfer of your device.

Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;- farm houses and by clients in hotels, motels and other residential type environments; - bed and breakfast type environments; catering and similar non-retail applications.

To avoid contamination of drink, please respect the following instructions:

Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

Clean regularly surfaces that can come in contact with drink and accessible drainage systems.

Clean water tanks if they have not been used for 48 h, flush the water system connected to a water supply if water has not been drawn for 5 days.

If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.Note : The refrigerant gas contained in the circuit of this appliance is isobutane (R600a), a low-polluting but flammable gas. - When transporting and installing the appliance, take care not to damage any part of the refrigerant circuit. - Do not use any sharp or pointed tools to defrost the unit. - Do not use any electrical appliances inside the unit. If the refrigeration system is damaged: Do not use a flame near the appliance. Avoid sparks - do not light any electrical appliance or electric lamp.

Ventilate the room immediately. Indication of Parts

• Your refrigerator has only one control for regulating the temperature. The temperature control is located on the top of the refrigerator inside

• To control the internal temperature, adjust the control knob according to the ambient temperature or purpose of use.

• The range of the temperature control is from position "0" to "3".

Position your refrigerator so that the plug is accessible.

Keep your refrigerator out of direct sunlight.

Do not place next to heat generating appliance.

Do not place directly on the ground. Provide suitable stand. Very important

The refrigerator will have better performance at ambient of 20-25 degree; We suggest the refrigerator be powered off if the ambient temperature is lower than 10 degree.

After plugging the appliance, allow the unit to cool down for 2-3 hours before placing beverage into the refrigerator compartment.

Ventilation is very important for this kind thermoelectric refrigerator. Poor ventilation could damage your refrigerator, and could damage the interior PCB.

The refrigerator applies automatic defrosting system, so there is no need to defrost it manually.Power supply

The refrigerator must be connected to a properly earthed socket in line with relevant valid country regulations before operating;

Check the data label (which is on the side of the refrigerator) for voltage and frequency corresponds to your local one; If not, don't plug your cable into the socket;

WARNING: To avoid a hazard due to instability of the appliance, it

must be fixed in accordance with the instruction.

Installation instructions When install, ventilation should be considered seriously, please refer to the following:

There should be left at least 200 cm³ for ventilation

The distance between wall and refrigerator side should be at least 20mm

The bottom should be left at least 50mm for air flowing air passing through must not be preheated

Entire cooling system should be considered in the ventilation

The following four pictures show four installation ways:· Trouble Shooting Guide PROBLEM POSSIBLE CAUSE Refrigerator does not operate Not plugged in. The circuit breaker tripped or a blown fuse. Refrigerator does not operate. The room temperature is hotter than normal. The door is opened too often. The door is not closed completely. The temperature control is not set correctly. The door gasket does not seal properly. The refrigerator does not have the correct clearances. Abnormal voltage. The light does not work. Not plugged in. The circuit breaker tripped or a blown fuse. The LED light has burned out. Vibrations. Check to assure that the refrigerator is level. The door will not close properly. The refrigerator is not level. The door was reversed and not properly installed. The gasket is dirty. The shelves, bins, or baskets are out of position.· Electric Diagram

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

• Overloading the refrigerator forces the thermoelectric cooling system to run longer.

• Reduce door openings and extended searches, remove as many item as needed at one time, and close the door as soon as possible.

• One characteristic of heat-pipe units is the length of time it requires to recover from having the door opened and shut frequently. It may be necessary to wait longer for the temperature to return to its former level once the door has been opened for too long. This is normal for the type of unit.

• Heat-pipe technology costs just pennies to operate. It is environmentally friendly due to the lack of CFC's.

It is intended to be used exclusively for the cooler.

This refrigerating appliance is not suitable for the freezing foodstuffs.

The cooler is recommended to be designed at 12℃.

The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.The first shelf

When the surrounding temperature is 25℃ and the cooler has no load, it will take around

3.5 hours to decrease the cooler’s temperature from 25℃ to 12℃.

The cooler is recommended to be designed at 12℃.The energy consumption is 0.208kWh/24h. If the setting temperature is higher than 12℃, the energy consumption will be lower. If the setting temperature is lower than 12℃, the energy consumption will be higher.· TECHNICAL DATA Net Volume liters

Approval CB/CEList of parts :

1. Install the fixing bolts on the door

2. Insert the handle into the fixing bolts

3. Fix the handle from below with the screws.WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition.(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/. ENVIRONMENT CAUTION: Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Dimension (cm) 40.2x43.5x53.7 Emballage (cm) 47.6x50.8x61.5 Poids net (kg)
