HCM-890 - Humidifier HONEYWELL - Free user manual and instructions

Product type	Humidifier
Brand	Honeywell
Model	HCM-890
Production capacity	7.6 liters per day (2 gallons)
Power supply	120 V~, 60 Hz, 0.6 A
Filter type	Natural Cool Moisture (replaceable, part AC888)
Diffusion system	Invisible air humidified by natural evaporation
Speed settings	High and Low
Automatic function	Automatic Moisture Balance system
Base	Rinse-to-Clean (easy cleaning)
Tank	Removable with handle and fill cap
Weekly maintenance	Descaling with white vinegar or DuraRinse, then disinfection with diluted bleach
Safety precautions	Polarized plug, do not use hot water, unplug before maintenance
Replacement parts available	Filter AC888, base HCM890-1, tank HCM890-2, cap HCM890-3
Warranty	5-year limited (excluding filter)

Frequently Asked Questions - HCM-890 HONEYWELL

I don't hear water noise and don't see mist, is the humidifier working?

Yes, that's normal. The Natural Cool Moisture system produces invisible air. Monitor the water level drop in the tank over 24 hours to verify operation.

Why doesn't the water level drop while the fan is running?

Check that the Natural Cool Moisture filter is wet. If dry, rinse it with fresh water and replace it wet. If ambient humidity exceeds 60%, the humidifier produces less.

What type of water to use?

Use fresh tap water. Never pour hot water, as it would damage the unit. The water is filtered by the Natural Cool Moisture filter.

How to clean the humidifier?

Perform weekly cleaning: first descale the base with 250 mL of white vinegar or DuraRinse (20 min), then disinfect the tank with 1 teaspoon of bleach diluted in 4 L of water (20 min). Rinse thoroughly.

Can I use additives in the water?

Only products recommended by Honeywell, such as DuraFree (water softener) or DuraSept (bacteriostatic treatment), are allowed. Other products may damage the filter or unit.

How often to replace the filter?

The Natural Cool Moisture filter (part AC888) should be replaced at the beginning of each season or more often if water is very hard. Do not clean it with chemicals.

The humidifier produces an unpleasant odor, what to do?

Perform a complete cleaning (descaling and disinfection) as described in the manual. Empty stagnant water and let parts dry before reassembling. If the odor persists, replace the filter.

Can I store the humidifier with water inside?

No, always empty the tank and base before storage. Clean the unit, remove and discard the used filter. Store in a cool, dry place, preferably in original packaging.

What to do if the plug does not fit into the outlet?

The polarized plug only inserts one way. Turn it over and try again. If it still does not fit, contact an electrician. Do not force or modify the plug.

Does the warranty cover the filter?

No, the 5-year limited warranty does not cover the Natural Cool Moisture filter. It applies to defects in materials and workmanship of the product, excluding normal wear of the filter.

USER MANUAL HCM-890 HONEYWELL

Honeywell Off High Low

Model HCM-890 Series

2.0 GALLON (7.6 LITERS)

OUTPUT PER DAY*

NATURAL COOL MOISTURE™ HUMIDIFIER

*Output dependent on room temperature and humidity.

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly on an uneven surface.
2. Place this humidifier in an area where it is not accessible to children.
3. Do not place the humidifier near any heat sources such as stoves, radiators, and heaters.
4. Before using the humidifier, check the power cord for any signs of damage. If the cord is found to be damaged, DO NOT USE and return the humidifier to the manufacturer under the warranty agreement for repair.
5. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
6. To disconnect the humidifier, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
7. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the plug. Contact a qualified electrician to replace loose or worn outlet.
8. The humidifier should always be unplugged and emptied when not in operation or while being serviced or cleaned.
9. Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the humidifier before moving.
10. This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean the humidifier in any manner other than as instructed in this manual.
11. Turn the humidifier OFF if the relative humidity exceeds 60%, or if you notice moisture on the inside of your windows. For proper humidity reading use a hygrometer, which is available in many hardware and department stores or by ordering one from the manufacturer (see Care Products).

INTRODUCTION

Thank you for purchasing a Honeywell Natural Cool Moisture™ humidifier. If you would like more information on our full line of products please visit our website at: www.honeywell.com/yourhome.

HOW DOES IT WORK?

Natural Cool Moisture™ System

The fan pulls dry air through a wet filter and releases invisible moisture into the air. When the unit is running you will not see or feel a “mist”. You will know your humidifier is putting moisture into the air as you watch the water level in your tank decrease throughout the day.

The Honeywell® exclusive Automatic Moisture Balance System™ increases moisture output when the air is dry and lowers the moisture output when the humidity level is high. This automatically helps to adjust the output for maximum comfort and helps prevent condensation.

MODEL HCM-890

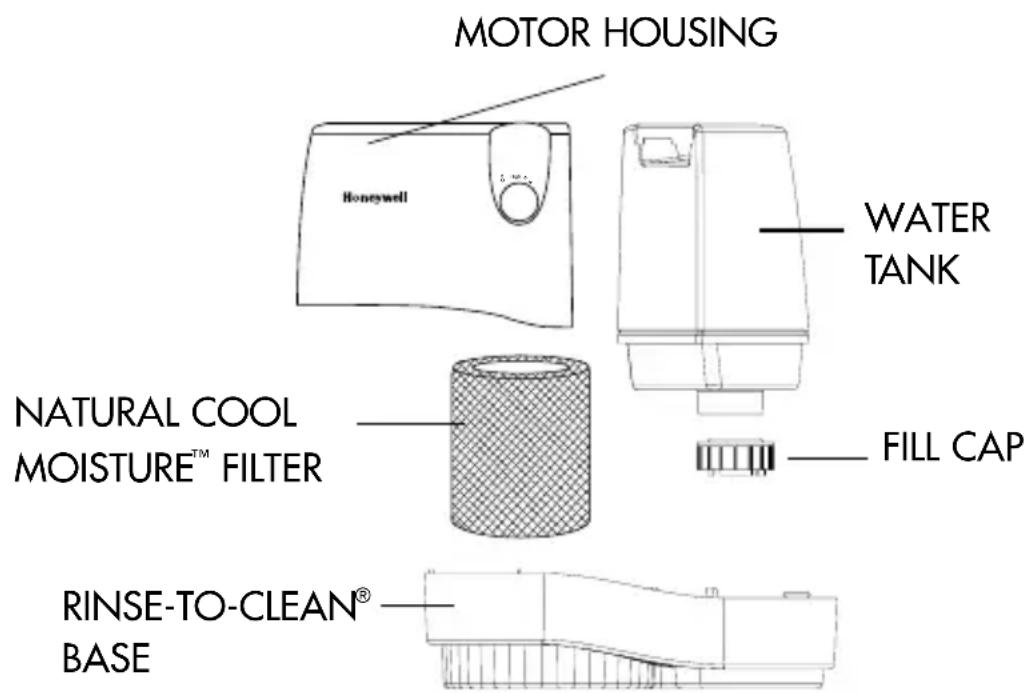

Your humidifier is made up of the following parts:

MOTOR HOUSING Honeywell WATER TANK NATURAL COOL MOISTURE™ FILTER FILL CAP RINSE-TO-CLEAN® BASE

SET UP

NOTE: We recommend that the humidifier be disinfected prior to first use. Please see CLEANING instructions.

• Select a firm, level, flat location — at least six inches (15 cm) from any wall for proper air flow (Fig. 1).
• Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Honeywell will not accept responsibility for property damage caused by water spillage.

FILLING

Fig. 1 Wall 6"

Fig. 2 Fig. 3 Lift

Diagram of a hand pouring liquid into a cylindrical container with an arrow indicating downward flow (no text or symbols)

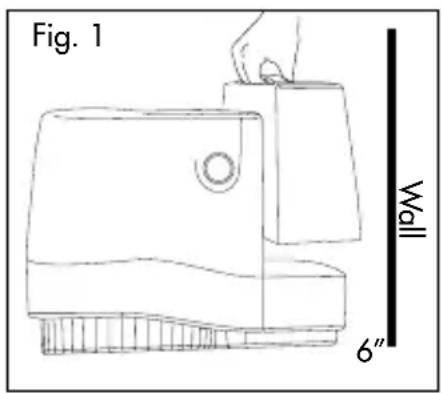

- Remove the water tank by grasping the handle and pulling straight up (Fig. 1).

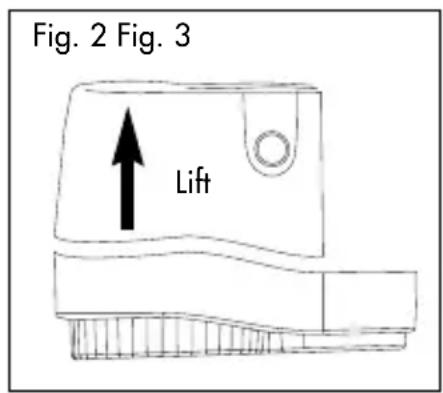

- Lift up on the Motor Housing to remove and set aside (Fig. 2). Remove the Natural Cool Moisture™ filter from the base before filling the unit with water. Soak in a sink full of cool water to help reduce mineral build up and place back in the humidifier while wet. DO NOT SQUEEZE OR WRING OUT THE NATURAL COOL MOISTURE™ FILTER. To help extend the life of your filter repeat this step each time you fill your humidifier.

- Turn the water tank upside down so that the fill cap is facing up; unscrew the fill cap by turning it counter-clockwise and set aside.

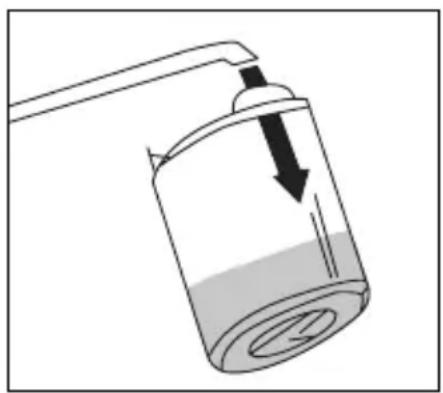

- Fill the water tank with COOL tap water (Fig. 3). Distilled water is not necessary as the water is filtered by the Natural Cool Moisture™ filter. DO NOT USE HOT WATER. Doing so may damage the humidifier.

- Replace the fill cap by turning it clockwise 📄. DO NOT OVER TIGHTEN. Turn the water tank right-side up.

FILLING CONTINUED

NOTE: WHEN CARRYING THE FILLED WATER TANK, PLEASE USE THE HANDLE AND PLACE YOUR OTHER HAND UNDER THE TANK FOR ADDITIONAL SUPPORT.

• Place the Motor Housing back onto Rinse-to-Clean™ Base.
• Once the filled tank has been positioned, do not attempt to move the humidifier. If it has to be moved, unplug the humidifier and remove the water tank first.

NOTE: DO NOT POUR WATER INTO THE GRILL ON THE TOP OF THE MOTOR HOUSING. DOING SO MAY DAMAGE THE HUMIDIFIER OR CAUSE PERSONAL INJURY.

OPERATION

CAUTION: DO NOT PLUG IN THE HUMIDIFIER WITH WET HANDS AS AN ELECTRIC SHOCK COULD OCCUR.

POWER

- With the power switch in the OFF position, plug the filled humidifier into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way.

HUMIDITY CONTROL

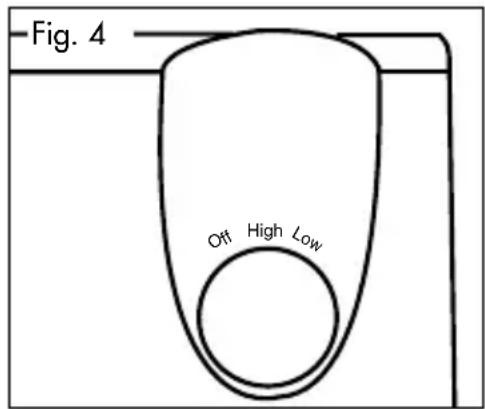

1. Set the fan speed control to the desired position (Fig. 4).

HIGH: For fast humidifying LOW: For quieter operation

Fig. 4 Off High Low

NOTE: The length of time your humidifier runs will vary depending on the quality of construction and insulation of your room and house, as well as the fan speed.

1. Turn the humidifier OFF if the humidity level feels too moist or you notice condensation forming on the walls and/or windows.

ALWAYS be sure to empty any unused water in the Rinse-to-Clean™ Base and/or Water Tank each time you refill the water tank or finish using the humidifier.

WEEKLY CLEANING

We recommend cleaning the humidifier once a week, more often if you have hard water or notice a build up of impurities or detect unpleasant odors.

NOTE: THE USE OF OTHER WATER TREATMENT PRODUCTS MAY DAMAGE THE FILTER OR HUMIDIFIER.

Cleaning involves two steps SCALE REMOVAL and DISINFECTING. Be sure to perform these in the proper order to avoid harmful chemical interactions.

• First, turn off and unplug the humidifier.
• Remove the Water Tank and Motor Housing.
• Remove the Natural Cool Moisture™ filter from the Rinse-to-Clean™ Base.
• Discard any residual water from the Base.
• Clean all outside surfaces with a dry, soft cloth. DO NOT USE WATER. THIS MAY DAMAGE THE HUMIDIFIER OR CAUSE ELECTRIC SHOCK.

NOTE: Remove filter before cleaning

Failure to remove the filter during cleaning will destroy the filter

STEP ONE:

SCALE REMOVAL

RINSE-TO-CLEAN™ BASE

1. Fill the Rinse-to-Clean™ Base with either:

• one cup (8 ozs, 250 ml) of undiluted white vinegar

OR

- DuraRinse™ Humidifier Cleaner, part no. AC-816, following bottle instructions

1. Let solution stand for 20 minutes

2. With the vinegar or DuraRinse ^TM in the Rinse-to-Clean ^TM Base clean all interior surfaces with a soft cloth or brush to help remove scales.

3. Rinse the Rinse-to-Clean™ Base thoroughly with water to remove scale and cleaning solution.

STEP TWO:

DISINFECTING

WATER TANK

1. Fill the water tank with:
   • 1 teaspoon of household bleach
   • 1 gallon (4 L) of water.
   Pour some of this solution into the Rinse-to-Clean™ Base.

2. Let solution stand for 20 minutes.

3. Rinse with water until the odor of bleach is gone.

PROLONGING THE LIFE OF THE FILTER AND MAINTAINING A CLEAN HUMIDIFIER

NOTE: DO NOT ATTEMPT TO CLEAN THE NATURAL COOL MOISTURE™ FILTER WITH ANY CHEMICAL SOLUTIONS, DOING SO WILL DAMAGE THE FILTER.

- If the Natural Cool Moisture™ filter appears to be clogged by hard water or mineral deposits, soak it in a sink full of cool water for 10 minutes. DO NOT SQUEEZE OR WRING OUT THE NATURAL COOL MOISTURE™ FILTER. Always place it back in the humidifier wet.

There are many steps you can take each time you fill your humidifier to make sure you get the most life out of our Natural Cool Moisture ^™ filter.

1. To prevent mineral deposits use DuraFree™ Humidifier Descaler Water Softener, part no. AC817, each time the Water Tank is refilled.
2. Treat the Natural Cool Moisture™ filter with care. DO NOT squeeze or wring it out, DO NOT clean the filter using any chemical solution.
3. Always purchase Honeywell Brand Natural Cool Moisture™ filters as the fan motor of this humidifier and the Natural Cool Moisture™ filter are designed to function efficiently as a set. Using any other filter could damage the motor or impair the humidifier's performance.
4. Be sure to empty water from the Water Tank and Base when not in use.

END-OF-THE-SEASON CARE AND STORAGE

• Follow weekly CLEANING instructions when the humidifier will not be used for at least one week or more, or at the end of the season.
• At the end of the season, remove and throw away the filter; do not store with a used filter.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.
• Before next use, remember to install a new filter and clean the humidifier.

TROUBLE SHOOTING

Q: I hear the fan turning, but I don't see any mist. Is my humidifier operating properly?

A: Dry air is pulled through the Cool Moisture system and a fan disperses invisible, moisture balanced air. There is no "mist" emitted. When operating normally you will feel only cool air coming from the unit. Monitor the water level in your tank/base. If you notice a decrease in the water tank over 24 hours then the unit is operating normally.

Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the water level in the tank decreasing.

A: First, check the moisture pad to be sure it is wet. If the pad appears dry, remove it from the base and gently rinse under cool water. Reposition wet filter in the base. You may also want to check the current moisture level in your home. If the humidity level is over 60%, the unit will not put out much moisture as your air is already saturated.

ELECTRICAL RATINGS

This product is rated at 0.6 amps, 120V, 60 Hz.

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HUMIDIFIER PLEASE SEE THE WARRANTY INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HUMIDIFIER YOURSELF. DOING SO WILL VOID THE WARRANTY AND COULD CAUSE DAMAGE TO THE UNIT OR PERSONAL INJURY. IF THE PROBLEM PERSISTS PLEASE CONTACT THE CONSUMER SERVICE CENTER.

CUSTOMER ASSISTANCE

Mail questions or comments to: Honeywell Consumer Service Center 250 Turnpike Road Southborough, MA 01772 USA

Please be sure to specify model number.

Call us toll-free at: 1-800-332-1110

Or visit our website at: www.honeywell.com/yourhome

CARE PRODUCTS

If your local dealer is out of stock, Honeywell replacement parts and care products may be ordered directly. You can call 1-800-332-1110 to order with a MasterCard, Visa or Discover or fill out the form below and mail it along with a check or money order (sorry no COD's accepted) to:

Honeywell

Consumer Service Center

250 Turnpike Road

Southborough, MA 01772 USA

Please allow four to six weeks for delivery.

Massachusetts residents please add 5% Sales Tax.

PRICE

Item Item No. Qty. US CAN Total
Natural Cool MoistureTM Filter, one per pack AC888 9.9913.50
DuraSept® Humidifier Bacteriostatic Treatment (32 oz., 1L) AC802 5.00 6.75
DuraFree® Humidifier Water Softener (32 oz., 1L) AC817 5.00 6.75
DuraRinse® Humidifier Cleaner (32 oz. 1L) AC816 5.00 6.75
Rinse-to-Clean Base		HCM890-1		10.00	13.50
Water Tank and Fill Cap		HCM890-2		19.99	27.00
Fill Cap		HCM890-3		5.00 6.75
	Digital Hygrometer and Thermometer (F°/C°)Measure room temperature and humidity level. Free standing can be used anywhere in the room. Display Temperature.	HAC555		19.99	27.00
SUBTOTAL
MA Residents add 5% Sales Tax/CAN residents only add 7% GST
Shipping and Handling (US residents add 4.95/CAN residents add7.00)
TOTAL ENCLOSED
Name		Check or Money Order Enclosed				□
Address		Credit Card No.				□
		Exp. Date
Day Time Phone		Signature

LIMITED WARRANTY

Limited Warranty Terms and Conditions

You should first read all instructions before attempting to use this product. The enclosed Customer Response card should be filled out and returned within 7 days of purchase.

A. This 5 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty. HONEYWELL IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY, INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.
B. At its option, Honeywell will repair or replace this product if it is found defective in material or workmanship. Defective product should be returned directly to Honeywell.
C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with this manual.

NOTE: THIS WARRANTY DOES NOT COVER THE NATURAL COOL MOISTURE™ FILTER, WHOSE PERFORMANCE WILL DEPEND UPON THE CONDITION OF THE WATER USED IN THE HUMIDIFIER.

D. Return defective product to the place of purchase in accordance with store policy or to the following address with a brief description of the problem. Include proof of purchase and a U.S. \10/\14.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Mark carton “Attention Returns Department.” Ship to:

In the US: In Canada:

Honeywell

Honeywell

ATTN: Returns Department ATTN.: Returns Department

Southpoint Distribution Center 510 Bronte Street

4755 Southpoint Drive Milton, ON L9T 2X6

Memphis, TN 38118, U.S.A. Canada

1-800-332-1110 1-800-332-1110

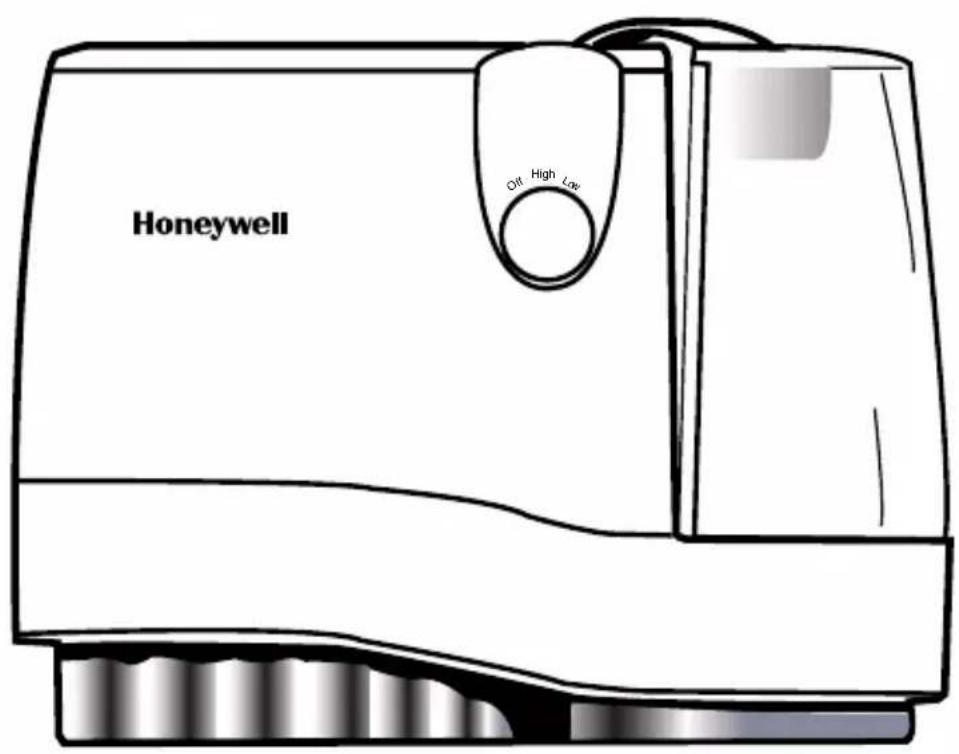

GUIDE D'UTILISATION

Honeywell Off High Low

Diagram of a hand pouring liquid into a cylindrical container with an arrow indicating downward flow (no text or symbols)

Consumer Service Center

250 Turnpike Road

Southborough, MA 01772

USA

www.honeywell.com/yourhome

PRODUITS D'ENTRETIEN

Consumer Service Center

250 Turnpike Road

Southborough, MA 01772

USA

Attn: Returns Department Attn: Returns Department

South Point Distribution Center 510 Bronte Street

4755 South Point Drive Milton, ON L9T 2X6, Canada

Memphis, TN 38118 USA 1-800-554-4558

1-800-554-4558

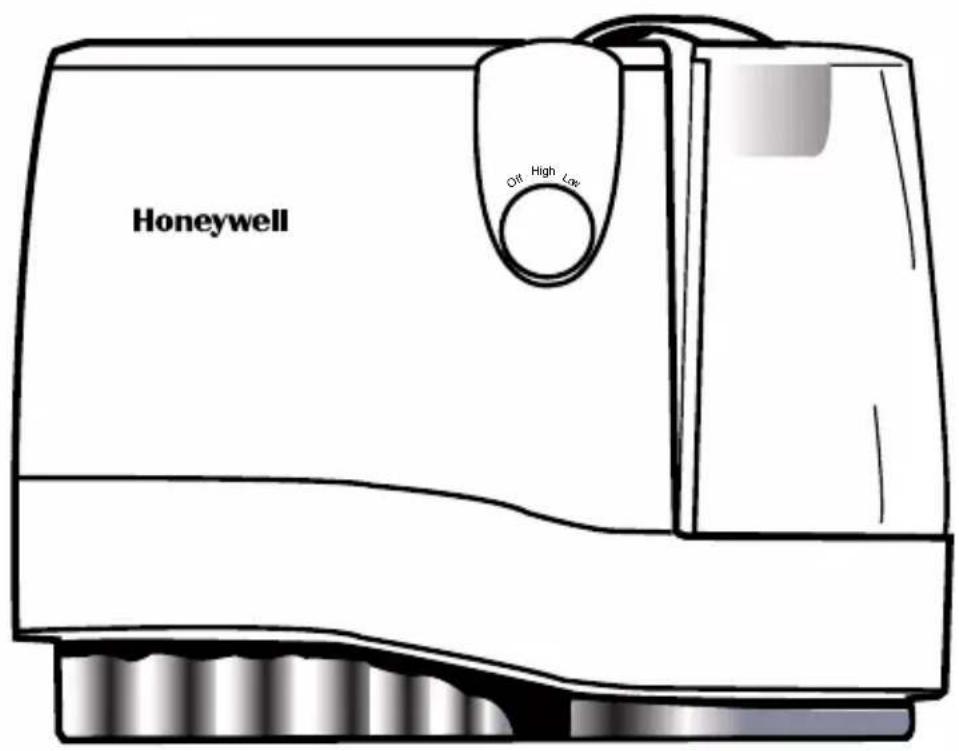

MANUAL DEL PROPIETARIO
