16200085 - Hand blender Melissa - Free user manual and instructions

Product type	Immersion blender / Hand mixer
Brand	Melissa
Model	16200085
Power supply	230 V ~ 50 Hz
Power	Not specified (estimated 300-500 W)
Speeds	5 speeds + Turbo function
Included accessories	2 whisks, 2 dough hooks
Accessory material	Metal
Cable length	Approximately 1.2 m
Dimensions (L x W x H)	Approximately 20 x 10 x 15 cm
Weight	Approximately 0.8 kg
Usage	Household use only
Main functions	Mixing, whisking, kneading
Safety	Accessory ejection when unpowered, suction feet (not verified), manual stop
Maintenance and cleaning	Wipe with a damp cloth; accessories hand washable
Storage	In a dry place, cable not wound
Warranty	Standard (see terms)
Spare parts and repairability	Contact customer service via www.commaxx.nl
General information	Made in China for Commaxx B.V.

Frequently Asked Questions - 16200085 Melissa

How to install the whisks or dough hooks?

Insert the accessories into the mounting holes, push them in and turn them until you hear a click.

What speeds are available?

The appliance has 5 speed levels (1 = low, 5 = high) and a Turbo button for temporary maximum power.

How to use the Turbo button?

Press the Turbo button at any setting to increase the speed. Use it only for short periods.

Can I use the appliance without a bowl?

No, always use the appliance with a bowl to avoid splashes and ensure proper mixing.

What is the maximum continuous use time?

Do not operate the appliance for more than 5 minutes at a time. Let it cool down before reusing.

How to eject the accessories?

Turn off the appliance and unplug it. Press the eject (EJECT) button to release the whisks or hooks.

How to clean the appliance?

Unplug it and wipe the body with a damp cloth. The accessories are hand washable. Never immerse the motor.

What to do if the appliance does not start?

Check that the speed button is in a position other than 0, that the plug is properly connected, and that the cord is not damaged.

Is the appliance suitable for children?

Children over 8 years can use it under supervision. Children should not play with the appliance.

Where to find spare parts?

Contact customer service via the website www.commaxx.nl or the retailer.

USER MANUAL 16200085 Melissa

OVERSIGT OVER APPARATETS DELE

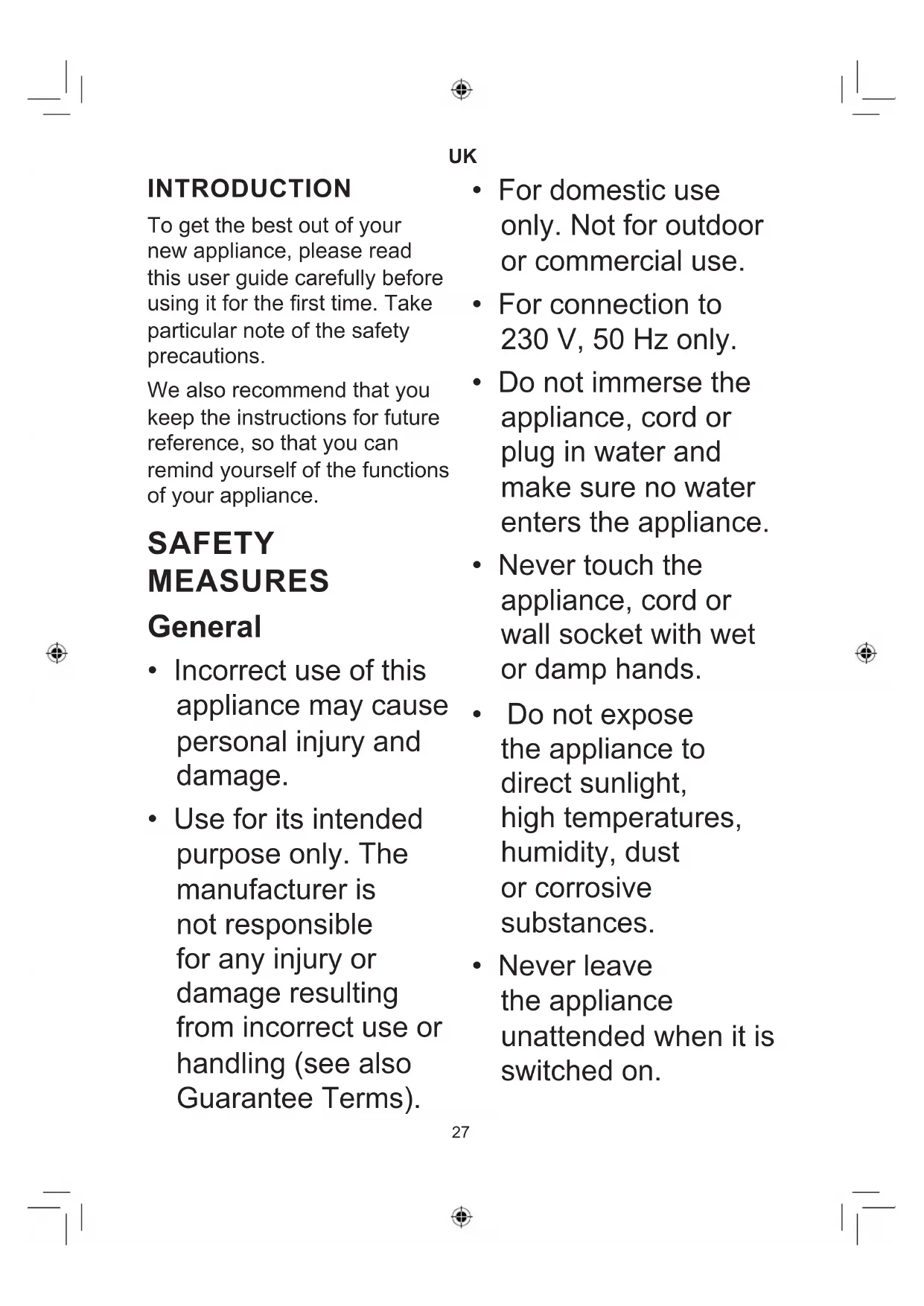

To get the best out of your new appliance, please read this user guide carefully before using it for the first time. Take particular note of the safety precautions.

We also recommend that you keep the instructions for future reference, so that you can remind yourself of the functions of your appliance.

SAFETY MEASURES

General

• Incorrect use of this appliance may cause personal injury and damage.

• Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Guarantee Terms).

• For domestic use only. Not for outdoor or commercial use.

• For connection to 230 V, 50 Hz only.
• Do not immerse the appliance, cord or plug in water and make sure no water enters the appliance.
• Never touch the appliance, cord or wall socket with wet or damp hands.
• Do not expose the appliance to direct sunlight, high temperatures, humidity, dust or corrosive substances.
• Never leave the appliance unattended when it is switched on.

UK

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The appliance contains sharp parts - keep out of the reach of children. - Use only accessories supplied with the appliance or those recommended by the manufacturer.

Use

• Always use with a bowl. • Do not switch on unless the whisks or dough hook are fitted. • Do not leave the appliance running for more than 5 minutes at a time. If the appliance has been running for more than 5 minutes, leave it to cool down before you use it again.

UK

- Putting too many ingredients in the bowl can overload the motor.

- Never touch the whisks or dough hook while in operation. Risk of serious injury. Switch off appliance and wait until the whisks or dough hook have stopped revolving before touching them.

- Never stick kitchen implements or other objects into the whisks or dough hooks while in operation. Risk of serious injury and damage to the appliance.

- Never eject the whisks or dough hooks while the appliance is in operation.

- Switch appliance off and disconnect from the mains before cleaning, changing whisks/dough hooks and when not in use.

- Remove whisks/ dough hooks from the appliance before cleaning them.

• Do not cover the ventilation holes.

- Never insert anything into the ventilation holes.

UK

Cord and plug

• Do not let the cord hang out over the edge of the work surface.
• Check that it is not possible to pull or trip over the cord or any extension cord.
• Keep the cord and appliance away from heat sources, hot objects and naked flames.

• Unplug before changing accessories, cleaning, and when not in use. Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

• Ensure that the cord is fully extended.

• The cord must not be twisted or wound around the appliance.
• Check regularly that neither cord nor plug is damaged and do not use if they are, or if the appliance has been dropped or damaged in any other way.
• If the appliance, cord or plug have been damaged, have the appliance inspected and if necessary repaired by an authorised repairer. Never try to repair the

UK

appliance yourself. Please contact the store where you bought the appliance for repairs under the guarantee.

Unauthorised repairs or modifications to the appliance will invalidate the guarantee.

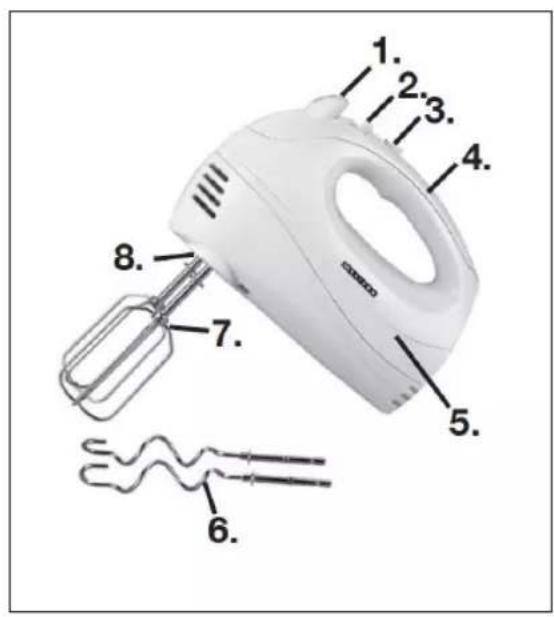

KEY TO THE MAIN COMPONENTS OF THE APPLIANCE

1. Eject button (EJECT)
2. Speed button
3. Turbo button (TURBO)
4. Handle
5. Motor section
6. Dough hooks
7. Whisks
8. Mounting holes

1. 2. 3. 4. 5. 6. 7. 8.

UK

PRIOR TO FIRST USE

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Clean all parts that come into contact with food before using the appliance for the first time (or after prolonged storage). See “Cleaning”.

USING THE APPLIANCE

1. Fit the whisks (7) or dough hooks (6) in their holes (8); press them home and turn until you hear them click.
2. Check that the speed button (2) is set to 0 (= off).
3. Connect the appliance.

4. Lower the whisks/dough hooks into the bowl with ingredients before switching on to avoid splashes.

5. Switch on by pushing the speed button to the right.

o The appliance has 5 speed settings: 1 is the lowest and 5 the highest.
o Start at low speed and gradually increase.
o Putting too many ingredients in the bowl can overload the motor.

1. Press the Turbo button (3) at any setting to boost speed. Only use the Turbo button for a short period at a time.

2. Turn off the appliance by pushing the speed button to position "0" when you have finished using it.

3. Disconnect from the mains before removing whisks or dough hooks. Press the eject button (1).

UK

STORAGE

• Ensure that the appliance is clean, dry and completely cool before storing it.
• Store the appliance in a clean and dry place, for instance in its box.
• Do not place heavy objects on top of the appliance.
• The cord must not be twisted or wound around the appliance.

CLEANING

When cleaning the appliance, you should pay attention to the following:

• Remove the plug from the mains socket, and allow the appliance to cool down completely before cleaning it.

• Never immerse the appliance in water and make sure no water enters the appliance.

• Clean the appliance by wiping it with a damp cloth. A little detergent can be added if the appliance is heavily soiled.

• Whisks and dough hooks can be washed in soapy water by hand or in a dishwasher.
• Do not use scouring pads, steel wool or any form of strong solvents or abrasive cleaning agents to clean the appliance, as they can damage the external surfaces of the appliance.
• IMPORTANT! Allow to dry completely after cleaning. Do not use the appliance if it is damp.
• Always clean the appliance before putting it away if it is not to be used for a prolonged period.

UK

FOR UNITED KINGDOM ONLY

Plug wiring:

This product is fitted with a BS 1363 5-amp plug. If you have to replace the fuse, only those that are ASTA or BSI approved to BS1362 and with a rated current of 5 amps should be used. If there is a fuse cover fitted, this cover must be refitted after changing the fuse. If the fuse cover is lost or damaged, the plug must not be used.

You must also check if the socket outlets in your home fit with the plug of the appliance. If the socket outlet in your home does not fit with the plug, the plug must be removed and disposed of safely as insertion of the plug into the socket is likely to cause electric hazard.

As this product is a class II appliance, the pin of BS plug for earth connection is false.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge. In certain member states, used appliances can be returned to the retailer where they were bought on the condition you buy new products. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

UK

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.commaxx.nl.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

MANUFACTURED IN CHINA FOR

Commaxx B.V.

Wiebachstraat 37,

NL-6466 NG Kerkrade

Netherlands

www.commaxx.nl

We cannot be held responsible for any printing errors.
