USER MANUAL SR1 Hollywood Racks

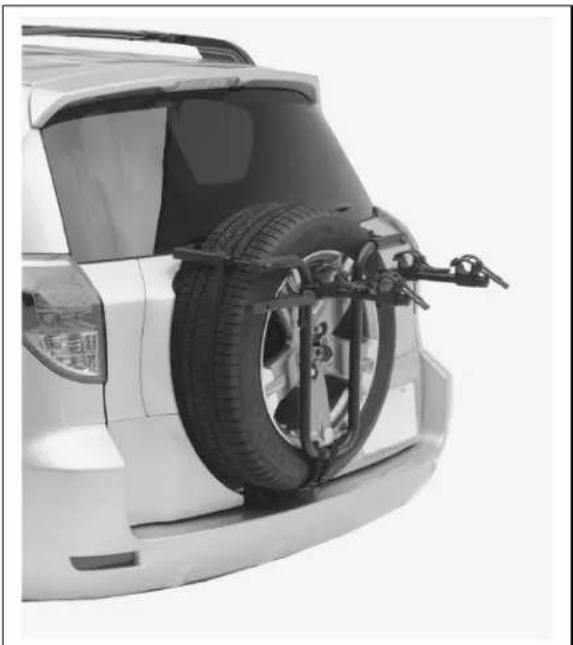

Installation Instructions for Hollywood SR1 Spare Tire Bicycle Carriers When using the Hollywood SR1 Spare Tire rack, always remember the following points:

• Max Capacity: 35 lbs per Bike. Two Bikes.

• Keep bicycle tires at least 1 ft (30cm) away from exhaust pipe

• Tighten all straps before and after mounting bikes

• Check the rack, bicycles and strap tightness/condition regularly during use

• Drive slowly when used on bumpy or dirt roads

• NOT TO BE USED ON ANY TRAILER, FIFTH WHEEL OR TOWED VEHICLE Caution: Be sure that the spare tire is properly mounted to the vehicle and that the mounting bracket/apparatus is suitable and strong enough to support the entire weight of the spare tire, bike rack and bicycle(s). Contact the vehicle manufacturer if there are any questions regarding the strength of the tire mounting apparatus. Tools Needed: 9/16” socket wrench or and adjustable wrench The Hollywood Spare Tire Rack comes fully assembles from the factory, and set up for “center mounted” spare tires. If your spare tire is side mounted, see assembly step 7. The rack easily attaches to the spare tire using an adjustable rear brace in conjunction with three nylon attachment straps.

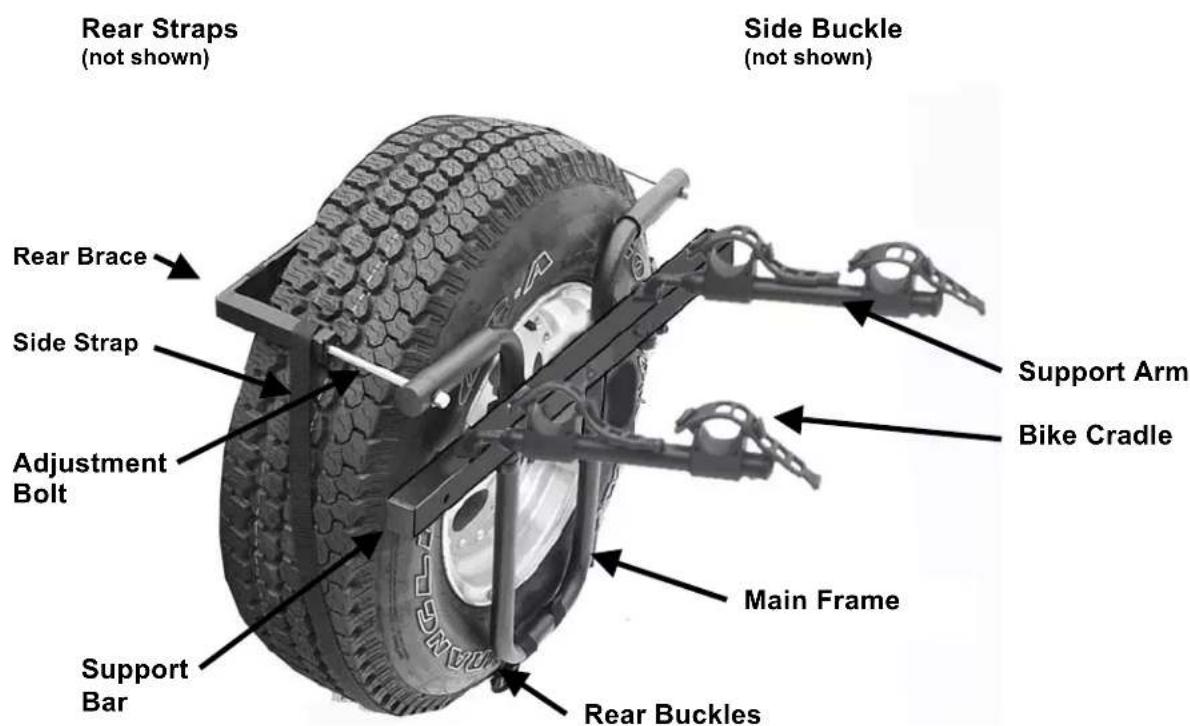

Support Arm Bike Cradle Rear Brace

Side Strap Adjustment Bolt Support Bar Rear Straps (not shown) Fig.1

The “side” attachment strap goes around the tire and prevents rotational movement. The two “rear” straps pass behind the tire and keeps the rack tight and secure against the front of the spare tire.

Side Buckle (not shown) Main Frame Rear Buckles1. If the Spare tire on your vehicle is side mounted, go to instruction step 7

2. Place the rear brace around the spare tire (loosen adjustment bolts if necessary), then snug the

adjustment bolts up using the wrench. Do not over-tighten!

3. Wrap the side strap around the bottom of the tire as shown in fig. 1 & 2 and attach to side buckle.

4. Thread the two rear straps around the back of the tire and attach to the two rear buckles located on the

bottom of the main frame.

5. Tighten all three straps and buckles securely.

6. Push up on the spring loaded bicycle support arm. Rotate the arms outward . Arms should drop into slot

in a locked position when carrying the bikes, and remain in a folded position when not in use.

7. Side Mounted Spare Tires: Locate the two bolts connecting the support bar to the main frame. Using

the attached hex key and adjustable wrench, loosen and remove the bolts from the rack. Re-position support bar either left or right depending on your vehicle. Re-insert the bolts through the main frame and support bar and tighten nuts securely. Return to step 1.

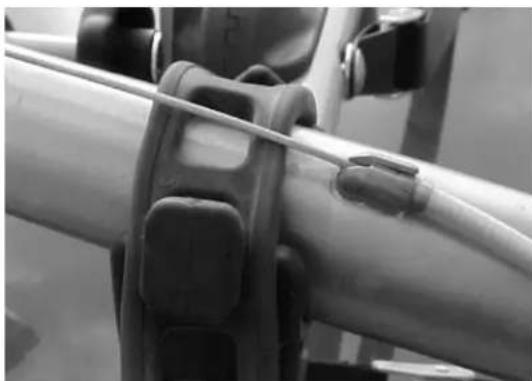

Mounting Bikes to the rack: With the support arms in the outward locked position, mount the first bicycle into the bike cradles and pull the strap snugly over the frame. The handlebars should be on the passenger’s side of the car. Rotate the bike’s pedal arm so the pedal will not be in contact with the car’s body or tire. Be sure the wheels are at least 12”/30cm from the exhaust pipe, and that the wheels can clear a steep driveway. Mount the second bike into the cradles and secure with rubber strap. Handlebars should be on the driver’s side of the car. Use the included safety/tie down strap to secure the bike(s) to the rack by wrapping the strap through the bike’s frame and through the rack.

des vélos ET du cadre principal du SR1 et serrer fermement (longue sangle de 2m avec boucle a une extrémité). Attention: Toujours vérifier les sangles après installation et après avoir installer les vélos. Important: Le fabriquant de ce produit n’est pas responsible des dommages causés par le mauvais usage de ce produit. C’est la responsabilité de l’utilisateur de s’assurrer que le porte vélo est monté proprement sur le véhicule et que les vélos soient proprement chargés sur le porte vélo comme décrit dans ces instructions d’installation. 4CAUTION! This bicycle carrier has been designed to attach securely to your vehicle’s spare tire. It is the user’s responsibility to insure the safe and proper installation of this product. Improper attachment or installation of this product may result in damages to your bicycles, vehicle, or vehicles following behind you. The manufacturer of this product will not extend the warranty to any damages not attributable to a defect in materials and workmanship. The fit guide printed in this manual is intended as a general reference only. On going changes in vehicle design, materials and finishes used on motor vehicles make it the user’s responsibility to determine the use of this product. Limited Lifetime Warranty (effective January 1, 2008): Hollywood Racks will warrant its car racks and accessories during the time that an original retail purchaser owns the product subject to the exclusions and limitations of this warranty. Hollywood Racks will remedy defects in materials and workmanship by repairing or replacing (at its option) a defective part or the complete rack without charge for labor or parts. Hollywood Racks may elect (at its option) to issue a refund equal to the purchase price paid for the product. This warranty does not cover problems caused by normal wear and tear including (but not limited to) weather, scratches, dents, rust, accidents, unlawful vehicle operation, misuse, abuse, neglect, theft, unauthorized modifications, or unauthorized repair. No warranty is given for defects resulting in incorrect assembly, incorrect installation onto the vehicle, installation on a “no fit” vehicle, incorrect attachment of bicycles onto the rack, or overloading of the rack’s weight restrictions. This warranty terminates if the original retail purchaser transfers the product to any other person. If a product is believed to be defective, the original retail purchaser should contact either the original retailer or Hollywood Racks directly at 800-747-4085 or at [e-mail] Disclaimer of Liability: Repair or replacement of a defective product or the issuance of a refund or credit (as determined by Hollywood Racks) is a purchaser’s exclusive remedy under this warranty. Damage to a purchaser’s vehicle, cargo, bicycles and or to any other person is excluded. This warranty is expressly made in lieu of any and all other express warranties, whether oral or written. Hollywood Racks shall not be liable for any direct, indirect, consequential, incidental, special, punitive or any other damages in connection with the purchase, use or handling of this product. Some states do not allow the exclusion or limitation of consequential or incidental damages and the above limitation may not apply to you. This warranty gives you specific legal rights and you have other rights, which vary from state to state.
