DEZL560LMT POIDS LOURDS/CAMPING-CARS - Truck GPS GARMIN - Free user manual and instructions

Product Type	GPS for Trucks and Motorhomes
Brand	Garmin
Model	dēzl 560 LMT Heavy Vehicles/Motorhomes
Screen Size	5 inches (12.7 cm) diagonal
Device Dimensions	Approximately 150 x 80 x 20 mm (unofficial)
Weight	Approximately 200 g (unofficial)
Power Supply	12 V cigarette lighter cable with built-in lithium-ion battery
Battery Life	Up to 2 hours (estimated)
Main Functions	Navigation with truck/motorhome profiles, heavy vehicle POIs, services near exits, FM TMC traffic, Bluetooth, rearview camera (optional), free map update (nüMaps Guarantee)
Vehicle Profiles	Truck and motorhome with entry of height, weight, length, width and other restrictions
Software Update	Via Garmin Dashboard on computer (www.garmin.com/dashboard)
Map Update	Free within 60 days after acquiring satellite signals; afterwards via subscription or purchase
Connectivity	Bluetooth (hands-free calls), micro-USB port, video input for rearview camera
Traffic Receiver	Integrated into cigarette lighter cable: FM TMC, automatic subscription with no additional fee
Voice Assistance	Not specified (probably voice instructions)
Maintenance and Cleaning	Clean with a soft, dry cloth; do not use abrasive products
Reset	Press the Power button for 8 seconds
Safety	Warning: Do not expose to extreme heat; obey traffic signs despite GPS instructions
Spare Parts and Repairability	Accessories available at http://buy.garmin.com; Garmin product support for repairs
General Information	24-page PDF user manual available online; includes quick start manual

Frequently Asked Questions - DEZL560LMT POIDS LOURDS/CAMPING-CARS GARMIN

How to mount the Garmin dēzl 560 LMT GPS in my vehicle?

To mount the device:
1. Connect the cigarette lighter cable to the cradle.
2. Attach the cradle to the mount.
3. Slide the locking lever to the unlocked position, insert the mount into the base until it clicks, then lock.
4. Place the device in the cradle and tilt it back until it snaps into place. Connect the cable to a 12 V socket.

How to set a truck or motorhome profile on the dēzl 560?

Turn on the device. On first use, truck mode is offered. Tap Accept then Yes to enter your vehicle's characteristics (height, weight, length, etc.). You can also change mode from the main menu by tapping the transport mode icon.

How to update maps for free on the dēzl 560?

Connect the device to a computer via USB and open Garmin Dashboard (www.garmin.com/dashboard). Register the device if not done. In the Map Updates section, click Update Now. The free update is only valid within 60 days of acquiring satellite signals while driving.

How to use services near exits?

When following a route on the highway, tap Where To? > Services Near Exits. The device displays gas stations, restaurants, hotels, rest areas, repair shops, truck stops, and weigh stations available at upcoming exits.

How to pair my Bluetooth phone with the dēzl 560?

From the main menu, tap Tools > Settings > Bluetooth > Bluetooth > On > Save. Turn on Bluetooth on your phone and set it to visible mode. On the GPS, tap Add Phone > OK, select your phone, then confirm pairing. Enter PIN 1234 if required.

What to do if the GPS screen freezes or becomes unresponsive?

Press and hold the Power button for 8 seconds until the device turns off. Release, wait one second, then turn it back on by briefly pressing the same button if the device is on battery power.

How to search for points of interest specific to heavy vehicles?

From the main menu, tap Where To? > Points of Interest > Truck. Select a category (road services, truck stops, weigh stations, etc.), then a destination and Go!.

Does the GPS receive real-time traffic information?

Yes, the included cigarette lighter cable has an integrated FM TMC receiver. The subscription is automatically activated with no additional cost. The device displays incidents and can recalculate the route. Note: In truck mode, recalculation may include roads not verified for trucks.

Can I install a rearview camera with this GPS?

Yes, the cradle has a video input connector (composite). Connect the camera to this connector. The camera image will automatically display on the screen when a video signal is present.

Where to find the complete user manual for the dēzl 560?

Connect the device to a computer and open Garmin Dashboard. Click on Manuals, then Download next to the desired manual. You can also visit www.garmin.com/ontheroad for additional information.

USER MANUAL DEZL560LMT POIDS LOURDS/CAMPING-CARS GARMIN

Getting Started

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Before you use your device for the first time, you should complete these tasks.

1. Mount the device (page 2).
2. Register the device (page 4).
3. Check for updates:
4. Software updates (page 4).
   • Free map update (page 5).
5. Download the full owner's manual (page 5).
6. Enter a truck or RV profile (page 6).

Mounting the Device

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, remove the device from the vehicle when exiting or store it out of direct sunlight.

Before you use your device on battery power, you should charge it.

1. Plug the vehicle power cable ① into the mini-USB connector ② on the cradle ③.

1. Snap the cradle onto the arm ④.
2. Slide the locking lever ⑤ on the base to the unlocked position.

Black mechanical component with a numbered label (5) and a small orange mark on its surface (no text or symbols on the object itself)

1. Slide the disk on the bottom of the arm into the base until it clicks.
2. Slide the locking lever to the locked position.
3. Fit the bottom of the device into the cradle.
4. Tilt the device ⑥ back until it snaps.

Close-up of a black handheld device with a curved arm and base, no visible text or symbols

1. Plug the other end of the vehicle power cable into a power outlet in your vehicle.

After you have connected the device to vehicle power, the following occurs.

• The device turns on.
- The device acquires satellite signals. When at least one of the bars is green, your device has acquired satellite signals.

NOTE: The device may need a clear view of the sky to acquire satellite signals.

- The device charges as you drive. 📁 in the status bar indicates the status of the internal battery.

About myDashboard

Use myDashboard to register your device, check for software and map updates, access product manuals and support, and more.

Setting Up myDashboard

1. Connect the USB cable to the micro-USB connector① on the device.

Front view of a black electronic device with a small display and labeled section 1 (no visible text or symbols on body)

1. Connect the USB cable to the USB port on your computer.

2. Go to www.garmin.com /dashboard.

3. Follow the on-screen instructions.

Registering the Device

1. From myDashboard, click Register Now.
2. Follow the on-screen instructions.
3. Keep the original sales receipt, or a photocopy, in a safe place.

Updating the Software

1. Open myDashboard (page 4).
2. If necessary, under Software Updates, click Update Now.
3. Follow the on-screen instructions.

nüMaps Guarantee™

Your device is eligible for one free map update within 60 days of acquiring satellites while driving with your device. You are not eligible for the free map update if you register by phone or wait longer than 60 days after the first time you acquire satellites while driving with your device. For more information, go to www.garmin.com/numaps.

Updating Maps

1. Open myDashboard (page 4).
2. Register the device (page 4).
3. If necessary, under Map Updates, click Update Now.
4. Follow the on-screen instructions.

Downloading the Owner's Manual

The owner's manual for your device is available on the Garmin Web site. The owner's manual for the dēzl includes more information about the device features for semi-trailer trucks and RVs.

1. Open myDashboard (page 4).
2. Click Manuals.
3. Click Download next to the manual you want.
4. Click 📋 to save the file to your computer.

Entering a Truck or RV Profile

WARNING

Entering your vehicle profile does not guarantee that your vehicle's characteristics will be accounted for in all route suggestions. It is your responsibility to account for your vehicle's height, length, weight, and other relevant restrictions when driving. Always defer to all posted road signs and road conditions when making driving decisions.

Before you can operate in Truck or RV mode, you must enter your truck or RV profile.

Truck transportation mode is selected the first time you turn on your device. You can select Switch Mode to enter an RV profile.

1. When the warning screen appears, touch Agree.

2. Touch Yes to enter your truck profile.

3. Follow the on-screen instructions.

Device Overview

Side view of a black mobile phone with app interface and screen (no visible text or symbols)

1	Power key
2	microSDTM card slot

Resetting the Device

You can reset the device if it stops functioning.

1. Hold the Power key for 8 seconds, and release it. The device turns off.

2. Wait 1 second.

3. If the device is using battery power, press and release the Power key.

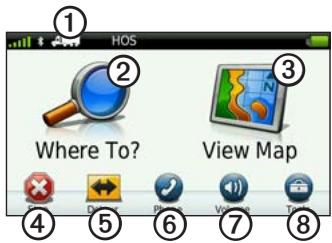

Using the Main Menu

• Touch ① to select a transportation mode.
• Touch ② to find a destination.
• Touch ③ to view the map.
• Touch④ to stop a route.
• Touch ⑤ to detour a route.
• Touch ⑥ to make a call when connected to a compatible mobile

phone.

Go to www.garmin.com/bluetooth for information.

• Touch⑦ to adjust the volume.
• Touch⑧ to open the menu of tools and settings.

Finding Trucking Points of Interest

The detailed maps loaded in your device contain trucking points of interest, such as rest areas, truck stops, and weigh stations.

1. From the main menu, touch Where To? > Points of Interest > Trucking.
2. Select a category.
3. If necessary, select a subcategory.
4. Select a destination.
5. Touch Go!.

Using Exit Services

You can find services such as fuel, food, lodging, rest areas, vehicle repair, truck stops, and weigh stations at upcoming highway exits. The device displays available services based on the usage mode. Exit service information is available only on controlled access roads, such as interstates.

NOTE: Exit services are not available for Pedestrian mode.

1. While navigating a route, from the main menu, touch Where To? > Exit Services.
2. Select an option.

Following Your Route

NOTICE

The speed limit icon feature is for information only and does not replace the driver's responsibility to abide by all posted speed limit signs and to use safe driving judgment at all times. Garmin will not be responsible for any traffic fines or citations that you may receive for failing to follow all applicable traffic laws and signs.

Your route is marked with a magenta line on the map. If you depart from the original route, your device recalculates the route. A speed limit icon could appear as you travel on major roadways.

When you are driving in Truck mode or RV mode, a tone may sound and 📋 may appear, indicating that truck suitability for this roadway is unknown. Always obey posted signs

and regulations.

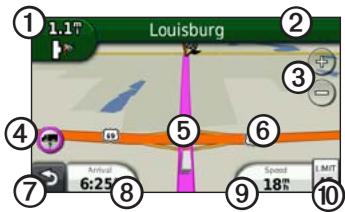

• Touch ① to view the next turn. The turn indicator also tells you which lane you should be in to prepare for your next maneuver, when available.
• Touch ② to view the turn list.
• Touch ③ to zoom in and zoom out.

• Touch ④ to view warning information, when available (page 6).

• Touch ⑤ to view information about the location.

• Touch and drag ⑥ to view a different area of the map.
• Touch⑦ to return to the main menu.
• Touch and hold ⑦ from any screen to return to the main menu.
• Touch ⑧ to display a different data field.
• Touch ⑨ to view trip information.
• Touch ⑩ to change the speed limit if the speed limit icon shown on the map is incorrect.
  This icon displays an indicator for a truck speed limit.

Using a Backup Camera

If a composite video backup camera has been installed in your vehicle, you can view the output of the camera on your device.

Connect the camera to the video-in jack ① on the cradle.

Black plastic mechanical component with a numbered label (1) pointing to a small circular feature on the side (no text or symbols on the object itself)

The camera output appears when a video signal is present.

About Traffic

CAUTION

If you choose to recalculate your route when you are navigating in Truck mode, the recalculated route might include roads that have not been verified for truck accessibility. You should use caution and good judgment and obey all posted signs and regulations.

NOTICE

Garmin is not responsible for the accuracy or timeliness of the traffic information. Traffic information is not available in all areas.

Your device can receive FM Traffic Message Channel (TMC) traffic content. The FM TMC traffic subscription is automatically enabled and does not require an additional subscription purchase to activate. The FM TMC traffic receiver is integrated

in the vehicle power cable included in the box.

For information about traffic receivers and coverage areas, go to www.garmin.com/traffic.

Pairing Your Phone

Before you can pair them, your phone and your device must be turned on and within 33 ft. (10 m) of each other.

1. From the dēzl main menu, touch Tools > Settings > Bluetooth > Bluetooth > Enabled > Save.
2. Enable the Bluetooth ^® component on your phone.
3. Enable Find Me/Discoverable/Visible mode on your phone. NOTE: This might be in a menu called Settings, Bluetooth, Connections, or Hands-free.

4. On the dēzl, touch Add Phone > OK.

5. Select your phone from the list.

6. Touch OK.

A prompt to pair the phone with your device appears on the phone.

1. On your phone, accept the pairing.
2. If necessary, enter the device Bluetooth PIN (1234) in your phone.

Getting More Information

You can find more information about this product on the Garmin Web site.

• Go to www.garmin.com /ontheroad.
• Go to http://buy.garmin.com to purchase accessories.
• Touch Tools > Help.

Contacting Garmin Product Support

Contact Garmin Product Support if you have any questions about this product:

• In the USA, go to www.garmin.com/support, or call Garmin USA at [phone].
  • In the UK, call Garmin (Europe) Ltd. at 0808 2380000.
• In Europe, go to www.garmin.com/support and click Contact Support for in-country support information, or contact Garmin (Europe) Ltd. by phone at +44 (0) 870.8501241.

Garmin ^® and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. cityXplorer ^™ , dēzl ^™ , myTrends ^™ , and nüMaps Guarantee ^™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin. The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc., and any use of such name by Garmin is under license. Mac ^® is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. microSD ^™ is a trademark of SD-3C, LLC. Windows ^® is a registered trademark of Microsoft Corporation in the United States and other countries.

© 2010-2011 Garmin Ltd. or its subsidiaries
