E5K1-6ST - Kettle ELECTROLUX - Free user manual and instructions

Product type	Electric kettle
Brand	Electrolux
Model	E5K1-6ST
Capacity	1.7 L
Power	2200 W
Supply voltage	220-240 V, 50-60 Hz
Material	Stainless steel, plastic
Functions	Digital display, temperature selection, keep warm (40 min), Turbo function (1 cup), auto shut-off
Base type	Base with power cord
Filter	Removable mesh filter
Water level indicator	Yes
Lid opening	By button
Auto shut-off	Yes
Overheat protection	Yes
Maintenance	Clean with damp cloth, regular descaling
Safety	Do not immerse, do not use without water, beware of steam
Included accessories	Base, power cord
Error code	E3 (overheat)

Frequently Asked Questions - E5K1-6ST ELECTROLUX

How to use the keep warm function?

After setting the desired temperature with the ∧ or ∨ buttons, press the KEEP WARM/TURBO button. The kettle will emit 2 beeps when the temperature is reached and will keep the water warm for 40 minutes.

What to do if the kettle displays error code E3?

Error code E3 indicates thermostat overheating. Turn off the kettle, let it cool down, then add water if necessary. If the problem persists, contact customer service.

How to clean the mesh filter?

Grasp the strainer unit and lift it to remove it. Rinse it with clean water and replace it. The filter is removable for easy cleaning.

How much water to use for the Turbo function?

The Turbo function is designed to boil 1 cup of water, about 200 ml. Fill the kettle with this amount, then press and hold the KEEP WARM/TURBO button for 3 seconds.

Can I heat something other than water?

No, the kettle is exclusively intended for heating water. Using it for other liquids or foods may damage the appliance and void the warranty.

How to descale the kettle?

Fill the kettle with water and descaler according to the product instructions. Do not boil the solution to avoid overflow. Rinse thoroughly with clean water after the treatment.

The kettle does not stop after boiling, what to do?

Check that the lid is properly closed and that the strainer is correctly inserted. If the problem persists, perform a descaling because excess limescale can prevent auto shut-off.

Can I use the kettle without the lid?

No, never use the kettle with the lid open. This could cause splashes of boiling water and burns.

How to set the desired temperature?

Use the ∨ (lower temperature) and ∧ (higher temperature) buttons on the display. The selected temperature is shown. Then press the START button to heat.

What to do if the kettle does not heat?

Make sure the kettle is properly placed on its base and the cord is plugged in. Check that the water has not exceeded the maximum level. If the appliance has been operated dry, let it cool down before trying again. If the START indicator is blinking, contact customer service.

USER MANUAL E5K1-6ST ELECTROLUX

C D E B I H J K L A F G M

Line drawing of a blood pressure monitor with a bandage and plug (no text or symbols)

Diagram showing a cable being inserted into an electrical outlet with a blue arrow indicating direction (no text or symbols present)

Diagram of a kettle with labeled parts and magnified views showing interior components

4 A 16 B

5 START B 16 A

6 100 START TURD+ 3 sec 16

7 75 START TURBO 3 sec 16

8 100 x 2

9 95 START TIME 40 min

10 65 START

11 x 2 95 START TV880 40 min

12 A 200ml 100 B 3 sec START C x 2

13 STOP

14 16 STOP

Illustration of a kettle connected to an electrical outlet with a blue arrow indicating power flow (no text or symbols)

Line drawing of a kitchen appliance with a blue arrow pointing to a component (no text or symbols)

Line drawing of a kettle with handle and lid, next to a plastic bottle (no text or symbols)

CONTENTS

HRVATSKI 5	MAGYAR 31		SRPSKI	59
ČEŠTINA 8	ITALIANO 34		SLOVENČINA	62
DANSK 11	LATVIEŠU 38		SLOVENŠČINA	65
ENGLISH 14	LIETUVIŠKAI	42	SVENSKA 68
EESTI 17	NORSK	45	TÝRKÇE	71
SUOMI 20	POLSKI	48	УКРАЇНСЬКА	75
FRANÇAIS 23	ROMÂNĂ	52	عربي	79
DEUTSCH 27	РУССКИЙ	55

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model number
• PNC number
• Serial number

The information can be found on the rating plate.

HRVATSKI

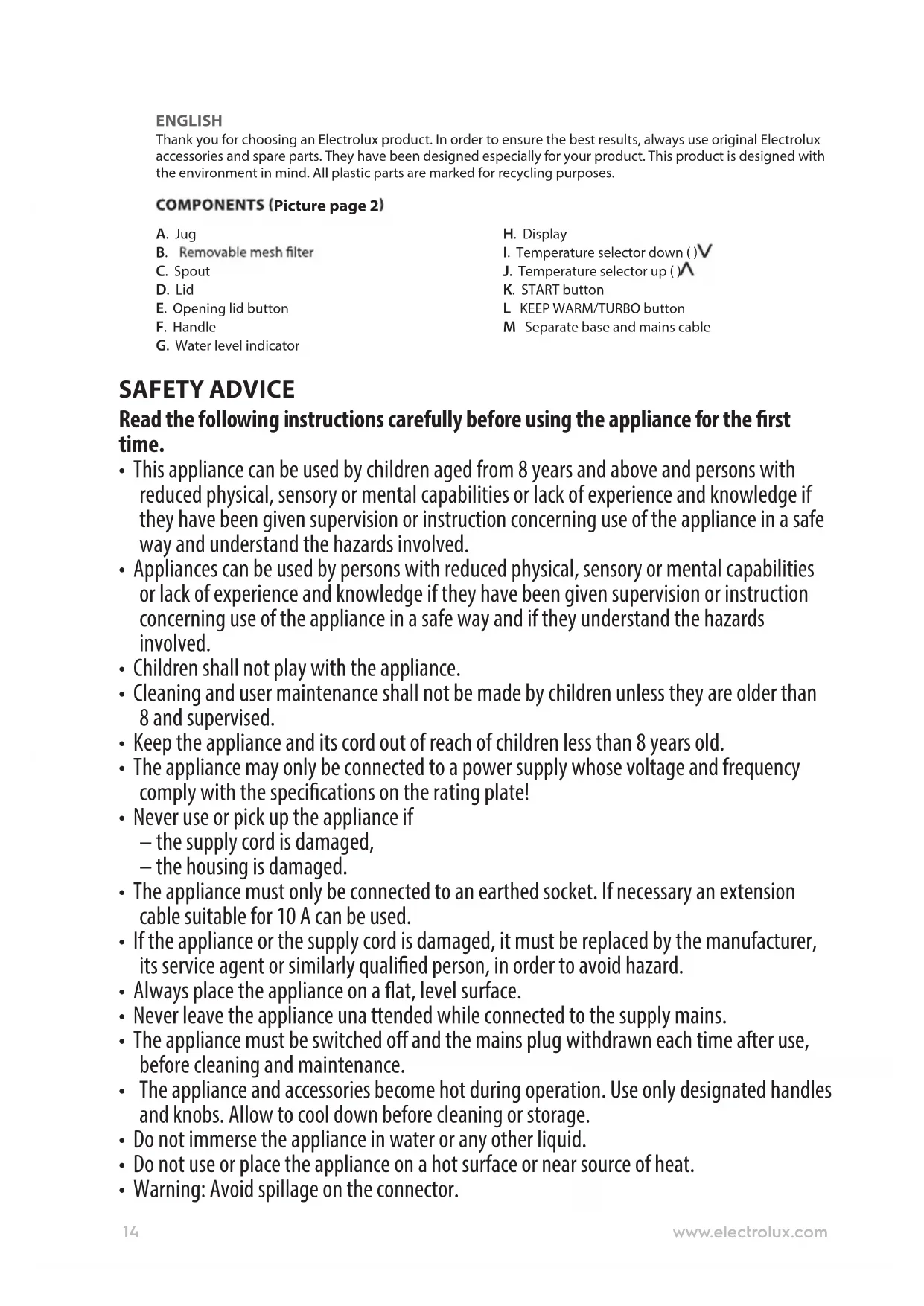

Thank you for choosing an Electrolux product. In order to ensure the best results, always use original Electrolux accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS (Picture page 2)

A. Jug

B. Removable mesh filter

C. Spout

D. Lid

E. Opening lid button

F. Handle

G. Water level indicator

H. Display

I. Temperature selector down () V

J. Temperature selector up ()

K. START button

L KEEP WARM/TURBO button

M Separate base and mains cable

SAFETY ADVICE

Read the following instructions carefully before using the appliance for the first time.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years old.

- The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!

- Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

- The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.

- If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.

- Never leave the appliance una ttended while connected to the supply mains.

- The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.

- The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.

- Do not immerse the appliance in water or any other liquid.

- Do not use or place the appliance on a hot surface or near source of heat.

- Warning: Avoid spillage on the connector.

• Attention: The heating element surface is subject to residual heat after use.
• The mains cable must not come into contact with any hot parts of the appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
• Never operate appliance with open lid.
• Only use the kettle for heating water!
• The kettle can only be used with the stand provided.
• The mains cable or anything else must do not touch the power switch. Failure to do so could result in the auto shut off function not to work correctly and therefore in a risk of overheating or fire.
• While water boiling, avoid contacting with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

The surface with symbol ⚠️: Caution, hot surface are liable to get hot during use.

GETTING STARTED (Picture page 2-3)

1 wipe the inside and outside of the kettle with a damp cloth.
2 Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Redundant cord can be wound into the bottom of base unit.

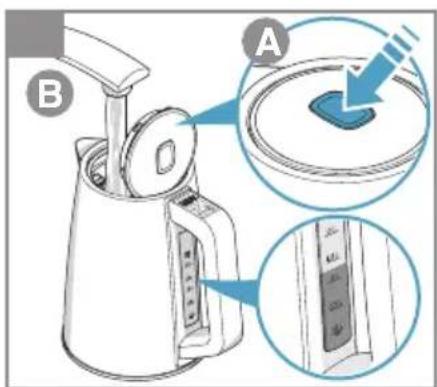

3 Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark. Fill at least 0.5 L water to ensure that the temperature shown on the display is reliable. Recommended temperatures:
40-60 °C for baby mixtures
80 °C for delicate teas (green/white)
90 °C for instant coffee or soup
100 °C for perfect black tea

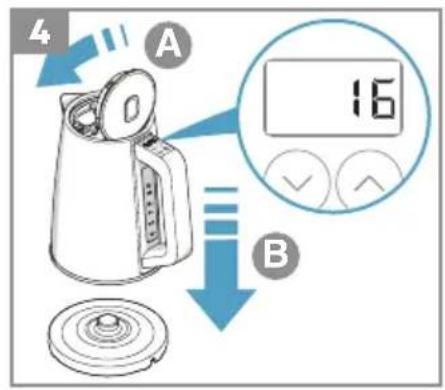

4 Close the lid and make sure it snaps in correctly. Place the kettle onto the base. The display shows the water temperature. After 5 minutes without operation, the display turns off/black.

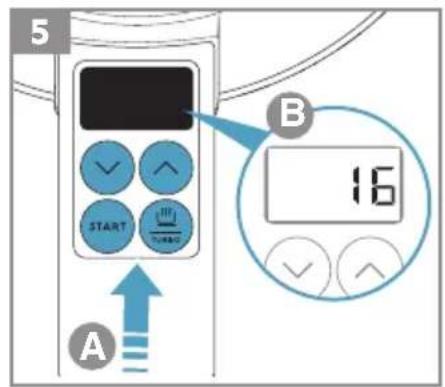

5 When the display is off/black, press any button and turn on the display, which shows the water temperature.

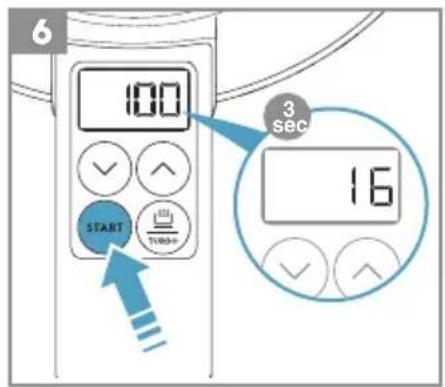

6 Press the START button and start heat the water to 100^ C. The display shows 100^ C and after 3 seconds it shows the real time water temperature.

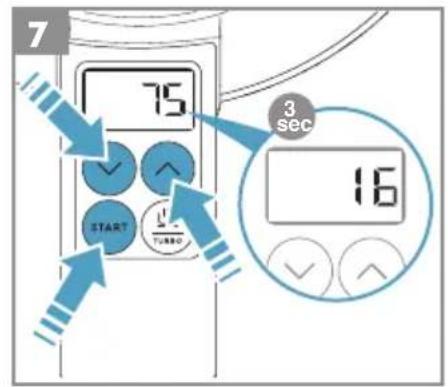

7 To heat water to selected temperature (not boiling): Press the buttons V or A to select temperature. Press the START button to start heating the water. After 3 seconds, the display will turn from selected temperature to the real time water temperature.

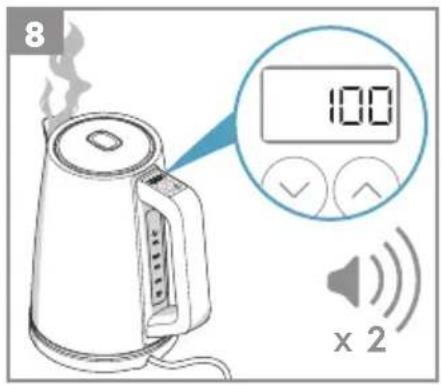

8 When the water boils or the selected temperature is reached, the kettle beeps 2 times and switches off automatically.

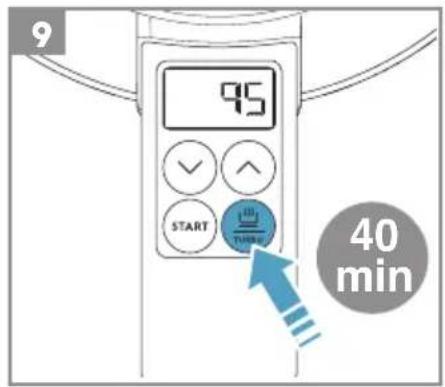

9 Press the KEEP WARM/TURBO button and start to keep it warm at 95 °C for 40 minutes.

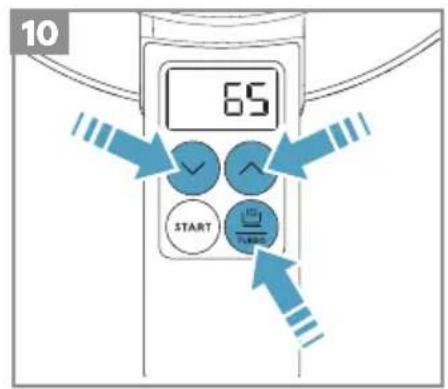

10 To heat water to selected temperature and keep it warm at the selected temperature: Press the buttons V or A to select temperature and then press the KEEP WARM/TURBO button.

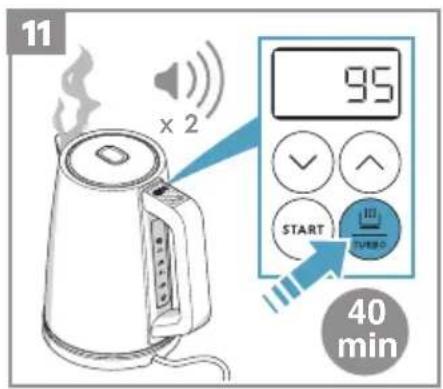

11 When the selected temperature is reached, the kettle beeps 2 times and keeps the water warm at the selected temperature for 40 minutes.

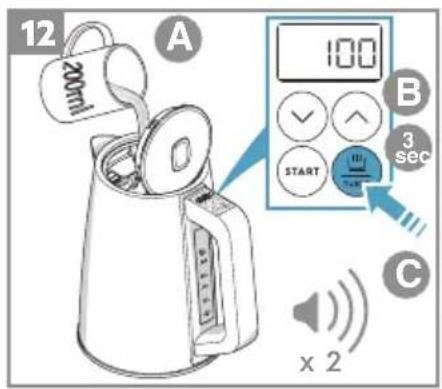

12 To boil only 1 cup of water, fill the kettle with 1 cup of water (approx. 200ml), and long press KEEP WARM/TURBO button for 3 seconds. When the water boils, the kettle beeps 2 times and switches off automatically.

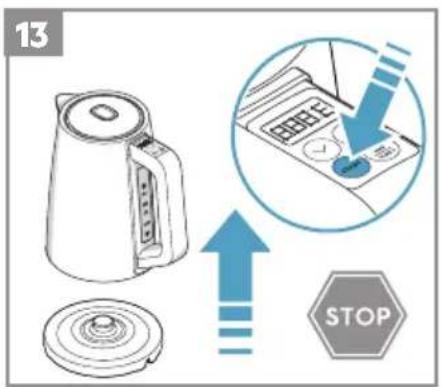

13 When a water wash should be off the kettle is moved from the base, it will switch off automatically. If you wish to stop it in the middle of the heating/keeping warm process, simply press the START or KEEP WARM/TURBO button again. The white LED light on the START or KEEP WARM/TURBO button indicates it's in working progress.

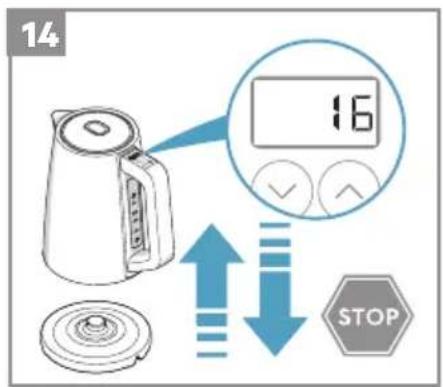

14 When the kettle is lifted up off and put back on the base, the display will show the real time water temperature and turns off/black after 5 minutes.

CLEANING AND CARE

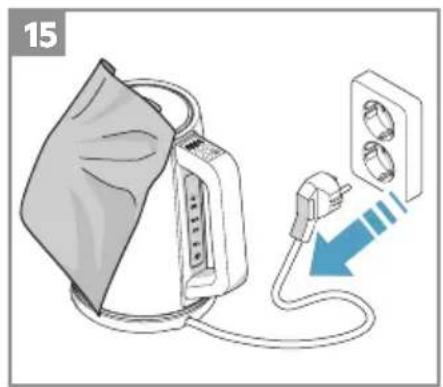

15 Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

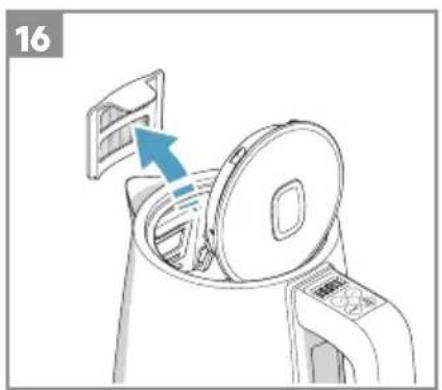

16 To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate – superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.

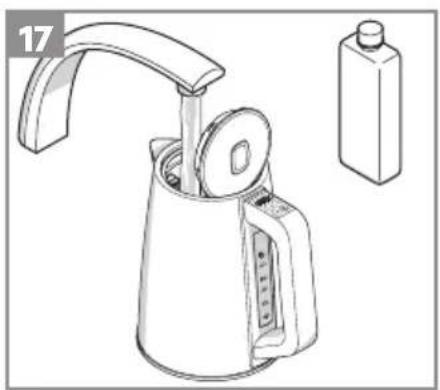

17 Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it may foam over. Afterwards, rinse kettle thoroughly with fresh water.

Enjoy your new Electrolux product!

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
The appliance switches off before boiling.	Too much lime scale at the base of the kettle.	Run the decalcifying procedure.
The appliance does not switch off. Close lid until it locks
		Insert the strainer correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.		Allow to cool a short time and try again.
The display shows "E3" error code. The thermostat is overheated. Turn off the machine to cool down or add water again.
Kettle alarm, "START" button light flashing.	The NTC is short-circuited or disconnected.	Return the machine to service center.
Water temperature is lower than the setting.	Temperature sensor is covered with dirt after the kettle being misused warming other food / beverage than water.	Clean Temperature sensor, a pin shaped part, located in the bottom of inner kettle tank..
	Under TURBO program, water volume is more than 200ml.	Under TURBO program, water volume less than 200ml.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📄. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances.

Do not dispose appliances marked with the symbol 📄 with the household waste. Return the product to your local recycling facility or contact your municipal office.

i For Switzerland:

Where should you take your old equipment?

Anywhere that sells new equipment or hand it in to official SENS collection points or official SENS recycling firms. The list of official SENS collection points can be found at www.erecycling.chseconds

Electrolux reserves the right to change products, information and specifications without notice.
