CEN-ODT-C-POE - Motion detector Crestron - Free user manual and instructions

Product Type	Motion detector (occupancy sensor)
Brand	Crestron
Model	CEN-ODT-C-POE
Power	Power over Ethernet (PoE) IEEE 802.3af
Dimensions (H x W x D)	86 x 86 x 25 mm (wall-mount type)
Weight	Approximately 100 g
Detection Technology	Passive Infrared (PIR)
Detection Angle	180° (wall mount)
Detection Range	Up to 10 meters
Mounting Type	Wall-mounted (standard recessed box)
Operating Temperature	0°C to 40°C
Main Functions	Automatic presence detection, lighting and HVAC control, PoE interface
Maintenance and Cleaning	Clean with a soft dry cloth. Do not use liquid products.
Safety	Power via Ethernet cable, built-in surge protection
Spare Parts and Repairability	Sealed device with no user-replaceable parts. Contact a qualified technician for any repairs.
General Information	Compliant with PoE standard IEEE 802.3af. Used in Crestron automation systems.

Frequently Asked Questions - CEN-ODT-C-POE Crestron

How to install the CEN-ODT-C-POE detector?

Mount the wall box at 1.2 meters from the floor. Connect the Ethernet cable to the PoE port. Mount the detector on the box. Power via a PoE switch or injector.

What detection mode is used?

The CEN-ODT-C-POE uses a passive infrared (PIR) sensor to detect motion within a 180° angle.

Does the detector work with a Cresnet system?

No, this model uses PoE for power and communication. It is compatible with Crestron controllers equipped with Ethernet ports.

What is the maximum detection range?

The range is approximately 10 meters under normal conditions. Performance may vary depending on the environment.

How to reset the CEN-ODT-C-POE?

Disconnect the Ethernet cable for 10 seconds, then reconnect. Factory defaults are restored. For a full reset, contact Crestron support.

Can the detector be ceiling-mounted?

No, this model is designed for wall mounting only. Use model CEN-ODT-C-POE-C for ceiling mounting.

What LED indicators are present?

A red LED briefly lights up when motion is detected. The LED flashes during power-up or when an error occurs.

How to clean the detector?

Use a soft dry cloth. Do not use solvents or liquid cleaners that could damage the sensor.

Is the detector compatible with third-party home automation systems?

No, it is designed to work exclusively with Crestron controllers and processors via the Ethernet protocol.

What to do if the detector does not detect motion?

Check the PoE power, Ethernet connection, and field of view. Ensure the sensor is not obstructed. If the problem persists, contact Crestron technical support.

USER MANUAL CEN-ODT-C-POE Crestron

Crestron Electronics, Inc.

QR code image containing encoded data, no visible human-readable text

The original language version of this document is U.S. English.

All other languages are a translation of the original document.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed online at www.crestron.com/legal/pat Chinese: Crestron 产品所覆盖的特定专利列表可在线查看www.crestron.com/legal/patents。

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron Elec Inc. in the United States and/or other countries. Other trademarks, registered trademarks, and names may be used in this document to refer to either the entities claiming the marks and their products. Crestron disclaims any proprietary interest in the marks and names of others. Not responsible for errors in typography or photography.

©2023 Crestron Electronics, Inc.

English

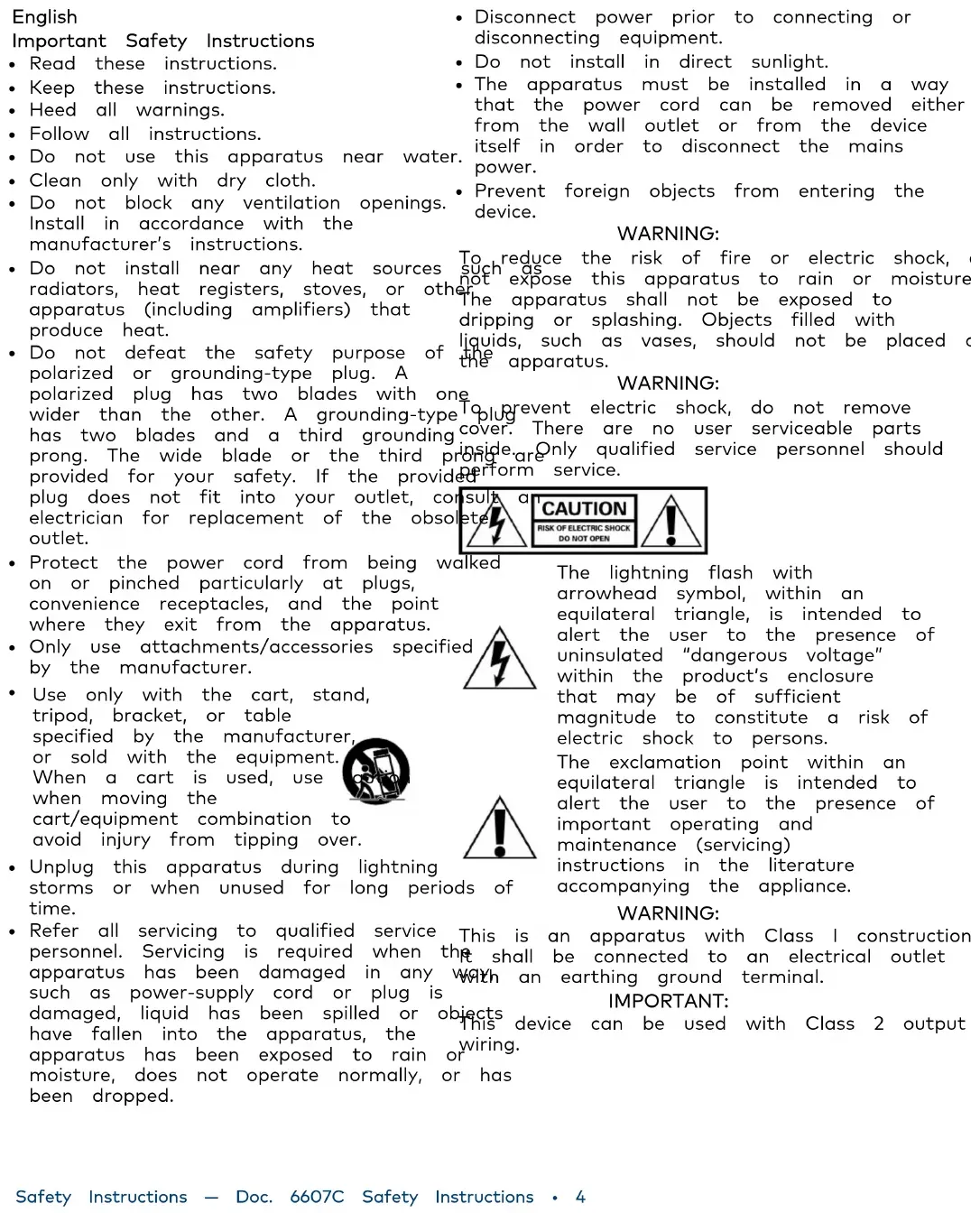

Important Safety Instructions
