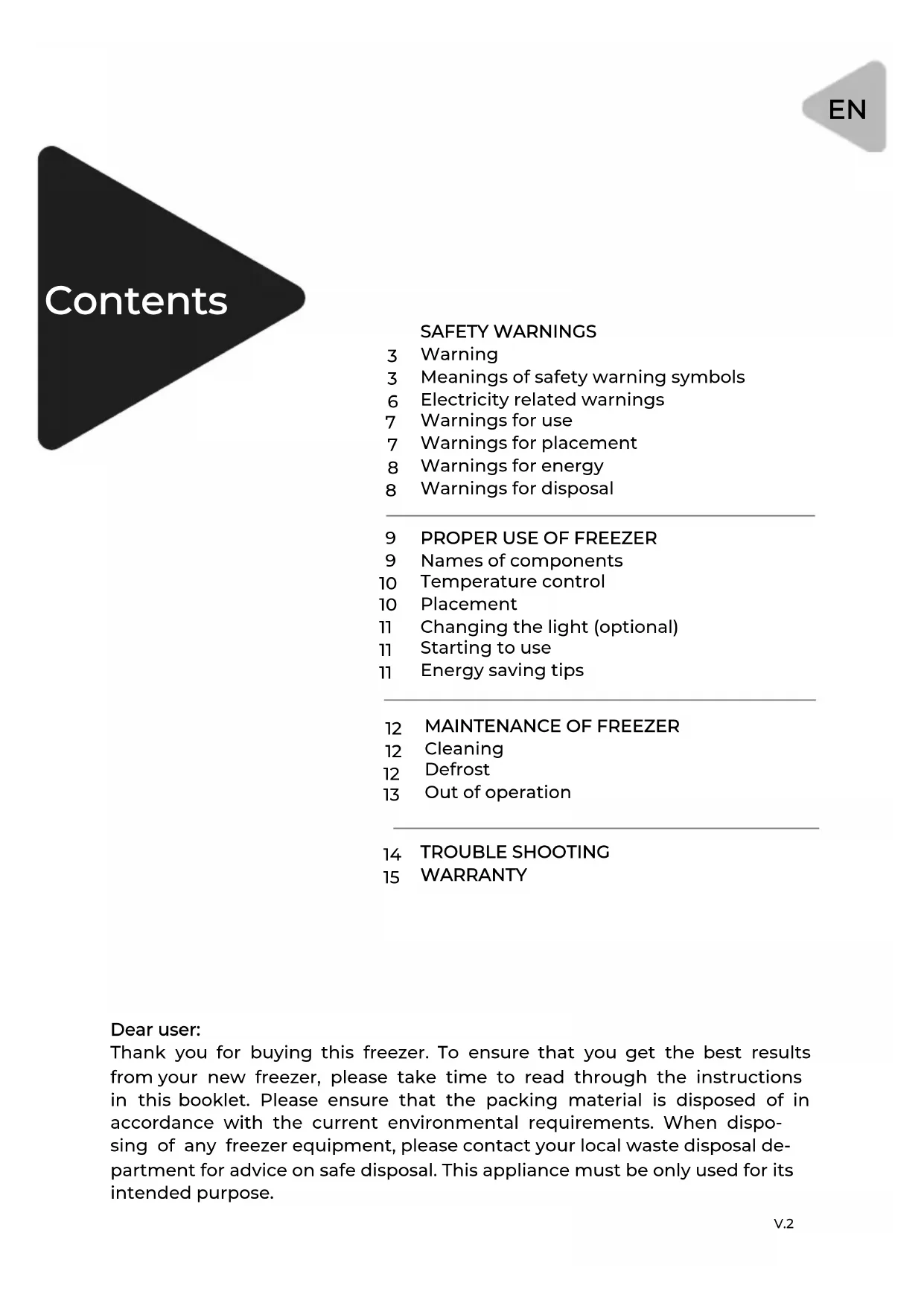

USER MANUAL EMCF203 EAS Electric

SAFETY WARNINGS Warning Meanings of safety warning symbols Electricity related warnings Warnings for use Warnings for placement Warnings for energy Warnings for disposal

MAINTENANCE OF FREEZER

Cleaning Defrost Out of operation TROUBLE SHOOTING WARRANTY

PROPER USE OF FREEZER

Names of components Temperature control Placement Changing the light (optional) Starting to use Energy saving tips

Dear user: Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When dispo- sing of any freezer equipment, please contact your local waste disposal de- partment for advice on safe disposal. This appliance must be only used for its intended purpose.

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.) Children should be supervised to ensure that they do not play with the appliance. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to

accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

V.2WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away

your old refrigerator or freezer: -Take off the doors. -Leave the shelves in place so that children may not easily climb inside. The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory. Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corres- ponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm. For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

V.2 To avoid contamination of food, please respect the following instructions: Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. Clean regularly surfaces that can come in contact with food and accessible drainage systems. Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (Note 1) Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments are suitable for sto- ring pre-frozen food, storing and making ice-cream and making ice cubes. (Note 2) One, two and three-star compartments are not suitable for the freezing of fresh food. (Note 3) Appliances without a 4-star compartment are not suitable for freezing foodstuffs (Note 4). If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

V.2 Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type. For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance. Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. See chapter 2.4 for lamp replacement.

WARNING: To avoid a hazard due to instability of the appliance,

it must be fixed in accordance with the instructions.

WARNING: Connect to potable water supply only. (Suitable for

ice making maching). To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of freezer (or refrigerator). (Suitable for products with locks).1.2 Meaning of safety warning symbols

1.3 Electricity related warnings

This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. This is a warning symbol. lt is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused. This is a cautioning symbol. lnstructions marked with this symbol require special caution. lnsufficient caution may result in slight or moderate injury, or damage to the product.

not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly. Do not damage the power cord under any condition so as to ensure safe use, and do not use when the power cord is damaged or the plug is worn. Worn or damaged power cords shall be replaced in manufacturer-authorized maintenance stations. The power plug should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line. Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the freezer and other electrical appliances considering that spark may cause a fire. To ensure safety, it is not recommended to place regulators, rice cookers, microwave ovens or other appliances on top of the freezer, except those recommended by the manufacturer. Do not use electrical appliances in the food pan. Prohibition symbol Warning symbol Note symbol This manual contains lots of important safety information which shall be observed by the users.

1.5 Warnings for placement

Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents. Do not place flammable items near the freezer to avoid fires. This product is a household freezer and shall be only suitable for the storage of foods. According to national standards, it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc. Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist. Damaged power cord must be replaced by the manufac- turer, its maintenance department or related professio- nals in order to avoid danger. The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the freezer door to avoid falling articles. Do not pick foods or containers with wet hands in the freezing chamber when the freezer is running, especially metal containers in order to avoid frostbite. Do not allow children to enter or climb the freezer to prevent that children are sealed in the freezer or children are injured by the falling freezer. Do not spray or wash the freezer, and do not put it in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer. Do not place heavy objects on the top of the freezer because they may fall when you close or open the door, and accidental injuries might be caused. Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

V.2Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

1.6 Warnings for energy

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

V.2 Freezer might not operate consistently when sited for an extended period of time below the cold end of the range of temperatures for which the freezer appliance is designed. The fact that effervescent drinks should not be stored in food freezer compart- ments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold; The need to not exceed the storage time recommended by the food manu- facturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets; The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life. The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the freezer appliance, in order to prevent children from being locked inside.

1. 7 Warnings for disposal

The freezer's refrigerant and cyclopentane foam materials are combustible materials and discarded freezers should be isolated from fire sources and can not be burned. Please transfer the freezer to qualified professional recycling companies for processing toavoid damages to the environment or other hazards. Please remove the door of the freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the freezer.(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. The freezer is suitable for storage of meat, fish, shrimp, pastries and other foods not to be consumed in short term. Do not store fluids in bottled or closed containers items such as bottled beer, beverages, etc. Please be noted food shall be consumed within the shelf time. The coldest gear can quickly freeze food in a short time, if a large amount of food is frozen at once, it is recommended that the user adjusts the gear to the coldest gear 12 hours in advance. In this way, the freezing speed of the freezer compartment is increased, so the food can be frozen quickly and the nutrition of the food can be effectively locked. Remi nder: When the gear is in the coldest gear, the power consumption may increase. After the food is quickly frozen, please adjust the gear back to the normal gear. Notice: After long term using, there may be a certain degree of wear with the hinge which can cause noise when opening or closing the door and reduce the service life of the hinge. It is recommended to put grease on the hinge for maintenance regularly, it can effectively eliminate noise and extend the service life of the hinge.

2. Proper use of the freezer

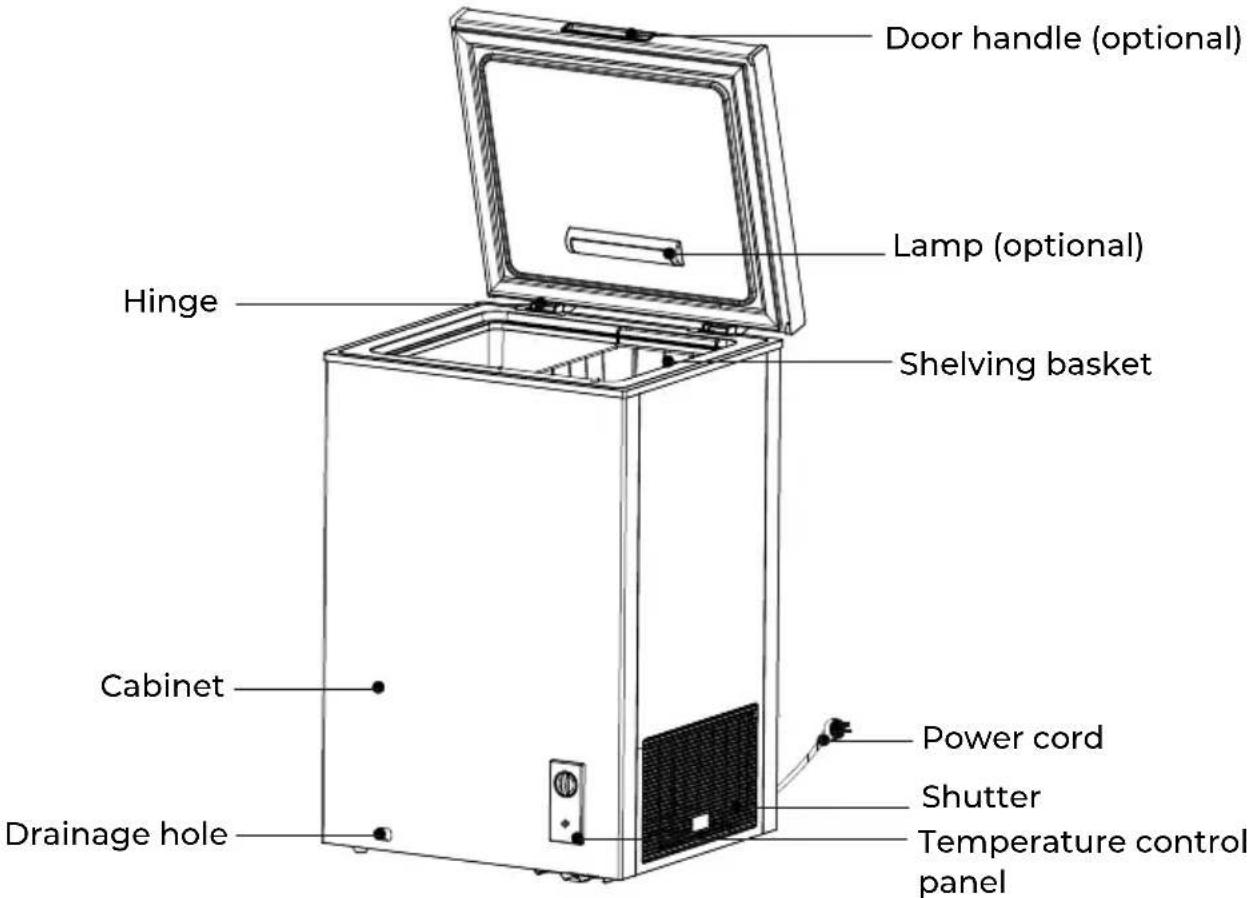

2.1 Names of components

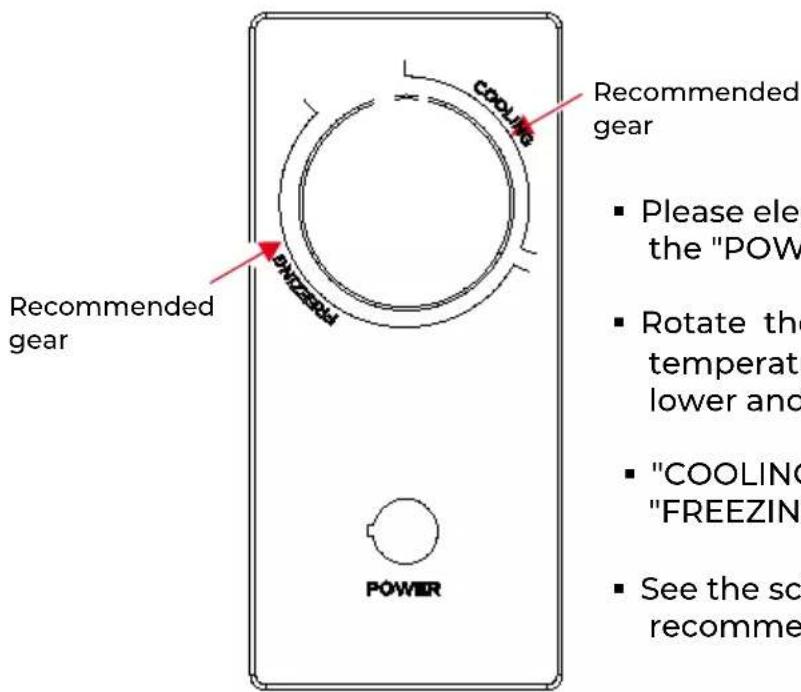

V.2 (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Recommended gear Please electrify the chest freezer to power, the "POWER" lamp will shine (green light). Rotate the thermostat knob clockwise, the temperature inside the chest freezer will be lower and lower. "COOLING" means cooling zone, "FREEZING" means the freezing zone. See the schematic marking position for the recommended gear.

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. Before using the freezer, remove all packaging materiales in- cluding bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body. The freezer should be placed in a well-ventilated indoor place. The ground shall be flat and sturdy. The top space of the freezer shall be greater than 70cm, and the distances from both sides and backside shall be more than 20cm to facilitate heat dissipation. Temperature control11 V.2

2.4 Changing the Light (optional)

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person. Replacement of incandescent lamps: Disconnect the power supply before carrying out the bulb replacement. Hold and remove the light bulb cover. Dismantle the old bulb by unscrewing it counterclockwise. Replace by a new bulb (max. 15W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly. Reassemble the light cover and reconnect your freezer to the power supply.

The freezer shall stay for half an hour before connecting power when it is firstly started. The freezer shall run 2 to 3 hours before loading fresh or frozen foods. The freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.12 V.2

3. Maintenance of the freezer

Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. The interior of the frezer should be cleaned regularly to avoid odor. Please turn off the power before cleaning, remove all foods, basket, container, etc. Use a soft cloth or sponge to clean the inside of the freezer, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power. For areas that are difficult to clean in the freezer (such as gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the freezer or contaminated food. Clean the baskets with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally. Wipe the outer surface of the freezer with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry. Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the freezer surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts. Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion. Please unplug the freezer for defrost and cleaning.)

The freezer shall be manually defrosted. Unplug the freezer and open the freezer door, remove foods and shelving basket before defrosting. Open the outflow hole and drainage hole, and place water container at the outflow hole. The indoor frost will naturally melt, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper may be used to accelerate the de-icing process. Please remove the food and put in a cool place when defrosting before removing accessories.13 V.2 Other mechanical devices or other means shall not be used to accelerate except those recommended by the manufacturer. Do not damage the refrigerant circuit.

3.3 Out of operation

Power failure: Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer. Long-time nonuse: TPlease unplug the freezer left unused for a long time for cleaning. Keep the door open to avoid the bad odor. Moving: Do not turn upside or vibrate the freezer. The carrying angle can not be greater than 45º. Do not hold the door and hinge when moving this unit. The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.14 V.2

You may try to solve the following simple problems by yourself. lf they cannot be solved, please contact the after-sales department. Failed operation Odorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned. Odor Whether the freezer is plugged and connected to power; Low voltage; Wheter temperature control knob is in the work area; Failure power or tripping circuit. It is normal that freezer operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the freezer at one time; Do not put foods until they are cooled; Frequent opening of freezer door; Thick frost layer (defrost is needed). Long-time operation of the compressor Illuminating light does not shine The freezer door can not be properly closed Loud noises Transient difficulty in door opening Freezer enclosure heat Condensation Airflow sound Buzz Clatter Whether the freezer is connected to power, whether the light is damaged. Whether the floor is flat, whether the placement of freezer is stable; Whether the freezer accesories are properly placed. The freezer door is stuck by food packages; Too much food; Unbalanced freezer. The freezer enclosure may emit heat during operation specially in summer. This is caused by the radiation of the condenser and it is a normal phenomenon. Condensation on the exterior surface and door seals of the freezer is normal when the ambient humidity is too high. Just wipe the condensate with a dry towel. Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal and does not affect the cooling effect. Buzz will be generated by running compressor, specially when starting up or shutting down. The solenoid valve or electric switch valve will clatter, which is a nomal phenomenon and does not affect the operation. After refrigeration, there will be pressure difference between the inside and outside of the freezer to result in transient difficulty in door opening. This is a normal physical phenomenon.15 V.2 WARRANTY CONDITIONS This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions. WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of

aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use

of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light

bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence

of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of

all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer. 10.Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly

of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance. 14.During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with

liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force , such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations

and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity". Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version. www.easelectric.es16 V.2 Table 1 Climate classes

Extended temperate Temperate Subtropical Tropical Class Symbol Ambient temperature range (ºC) + 16 to + 32 + 16 to + 38 + 16 to + 43 Ordered Part thermostats temperature sensors

light sources door handles trays baskets door gaskets door hinges Provided by Professional maintenance personnel Professional repairers and final users Minimum Time Required for Provision At least 7 years after the last model is launched on the market Professional maintenance personnel Professional maintenance personnel Professional maintenance personnel Professional repairers and final users Professional repairers and final users Professional repairers and final users Professional repairers and final users At least 7 years after the last model is launched on the market At least 7 years after the last model is launched on the market At least 7 years after the last model is launched on the market At least 7 years after the last model is launched on the market At least 7 years after the last model is launched on the market At least 7 years after the last model is launched on the market At least 7 years after the last model is launched on the market At least 10 years after the last model is launched on the market Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; Special for new European standard: The ordered parts in the following table can be acquired from our after sales service:Contenu
