FS127340N - Freezer BEKO - Free user manual and instructions

Brand	Beko
Model	FS127340N
Product type	Freezer with refrigerator compartment
Refrigerant	R600a (isobutane)
Defrost	Manual
Interior lighting	LED (replacement by service)
Reversible doors	Yes, with instructions
Adjustable feet	Yes
Vegetable drawer	Yes
Egg tray	Yes
Bottle rack	Yes
Door bins	Yes
Adjustable shelves	Yes
Thermostat	Manual adjustment from 1 to 5
Ambient temperature range	At least 5°C
Minimum distance from heat sources	30 cm
Interior maintenance	Warm water and baking soda
Exterior cleaning	Microfiber cloth slightly damp
Child safety	Possible door lock, key out of reach
HC warning	R600a flammable, avoid damaging the circuit
Availability of spare parts	10 years from the date of purchase

Frequently Asked Questions - FS127340N BEKO

How to set the freezer temperature?

Use the thermostat control inside. Settings range from 1 (warmest) to 5 (coldest). The ideal temperature is around +5°C. To turn off, set the knob to 'O'.

What to do if the freezer does not work?

Check that the plug is properly inserted, that the fuse has not blown, and that the socket is powered. Wait about 6 minutes after a power cut. If the problem persists, contact after-sales service.

Why is there condensation inside?

This may be due to frequent door opening, a very humid environment, or uncovered liquid foods. Avoid opening the door often and keep liquids in sealed containers.

How to defrost the appliance?

Unplug the appliance and remove food. Leave the door open. Use containers of hot water to speed up the process. Never use sharp objects or chemicals. Clean the interior after defrosting.

How to clean the inside of the freezer?

Use a damp cloth soaked in a solution of one teaspoon of baking soda per half liter of water. Do not use abrasive products or gasoline. Rinse and dry thoroughly.

Is it possible to reverse the door opening direction?

Yes, the door is reversible. Follow the illustrated instructions in the manual. You will need basic tools. Make sure the appliance is unplugged before starting.

Why does the compressor not start?

The thermal protection device may have been triggered after a power cut. Wait about 6 minutes for the pressure to stabilize. If the problem persists, contact after-sales service.

Why is my freezer noisy?

Liquid or gas noises are normal. The compressor and fans may produce sounds. If the noise is excessive, check that the appliance is level and that no objects are placed on it.

Why does the door not close properly?

Check that packages are not obstructing the closure. Make sure the appliance is level by adjusting the front feet. The floor must be flat and stable.

How long are spare parts available?

Original spare parts are available for 10 years from the date of purchase of the product, in accordance with regulations.

USER MANUAL FS127340N BEKO

Simple line drawing of a pear and a carrot (no text or symbols)

TS 190320 - TS 190340N

EN / DE / FR / IT / NL

RECYCLED & RECYCLABLE PAPER

RECYCELTES UND RECYCELBARES PAPIER

PAPIER ENTIÈREMENT RECYCLÉ ET RECYCLABLE

CARTA RICICLATA E RICICLABILE

CE

GERECYCLED & RECYCLEBAAR PAPIER

Please read this user manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

Therefore, read this entire user manual carefully before using the product and keep it as a reference. If you handover the product to someone else, give the user manual as well.

The user manual will help you use the product in a fast and safe way.

• Read the manual before installing and operating the product.
• Make sure you read the safety instructions.
• Keep the manual in an easily accessible place as you may need it later.
• Read the other documents given with the product.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

Packaging sorting information

Please scan the QR code which places on the outer packaging of the product to find all the information relating to the packaging and how to manage the packaging waste.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use 4

General safety 4

For products with a 7

water dispenser; 7

Child safety 7

Compliance with WEEE Directive and Disposing of the Waste Product: .....8

Package information 8

HC warning 8

Things to be done for energy saving 9

3 Installation 10

Points to be paid attention to when the relocation of the refrigerator .....10

Electrical connection .....10

Disposing of the packaging 11

Disposing of your old refrigerator .... 11

Placing and Installation....11

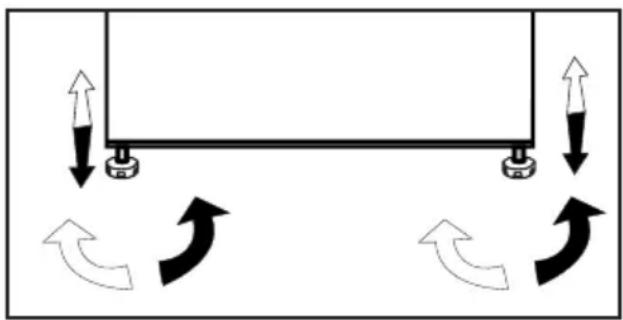

Adjusting the legs 12

Changing the illumination lamp .....12

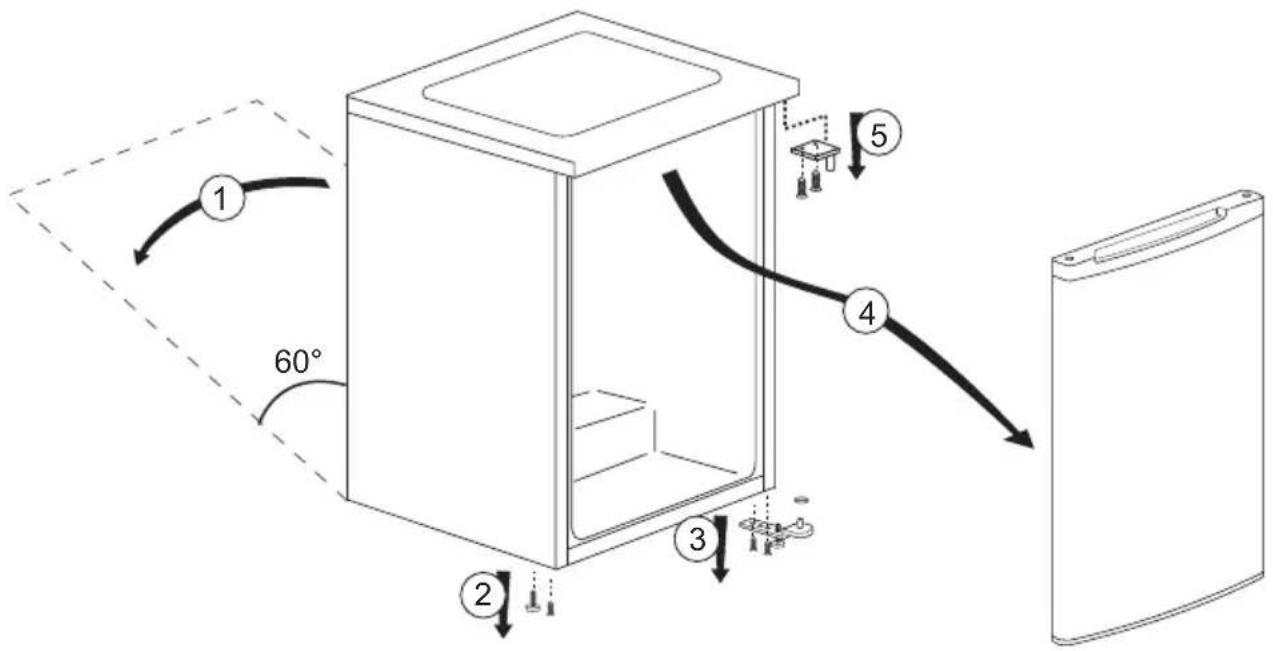

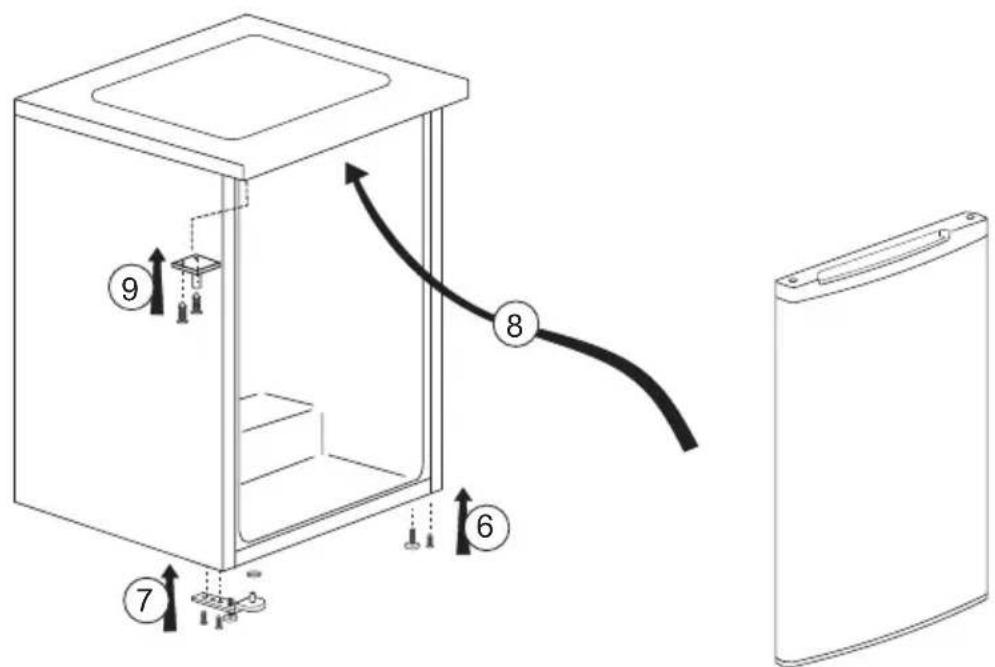

Reversing the doors ....13

4 Preparation 14

5 Using your refrigerator 15

Defrosting of the appliance ....16

Cooling 16

Food storage 16

6 Maintenance and cleaning 18

Protection of plastic surfaces .....18

7 Troubleshooting 19

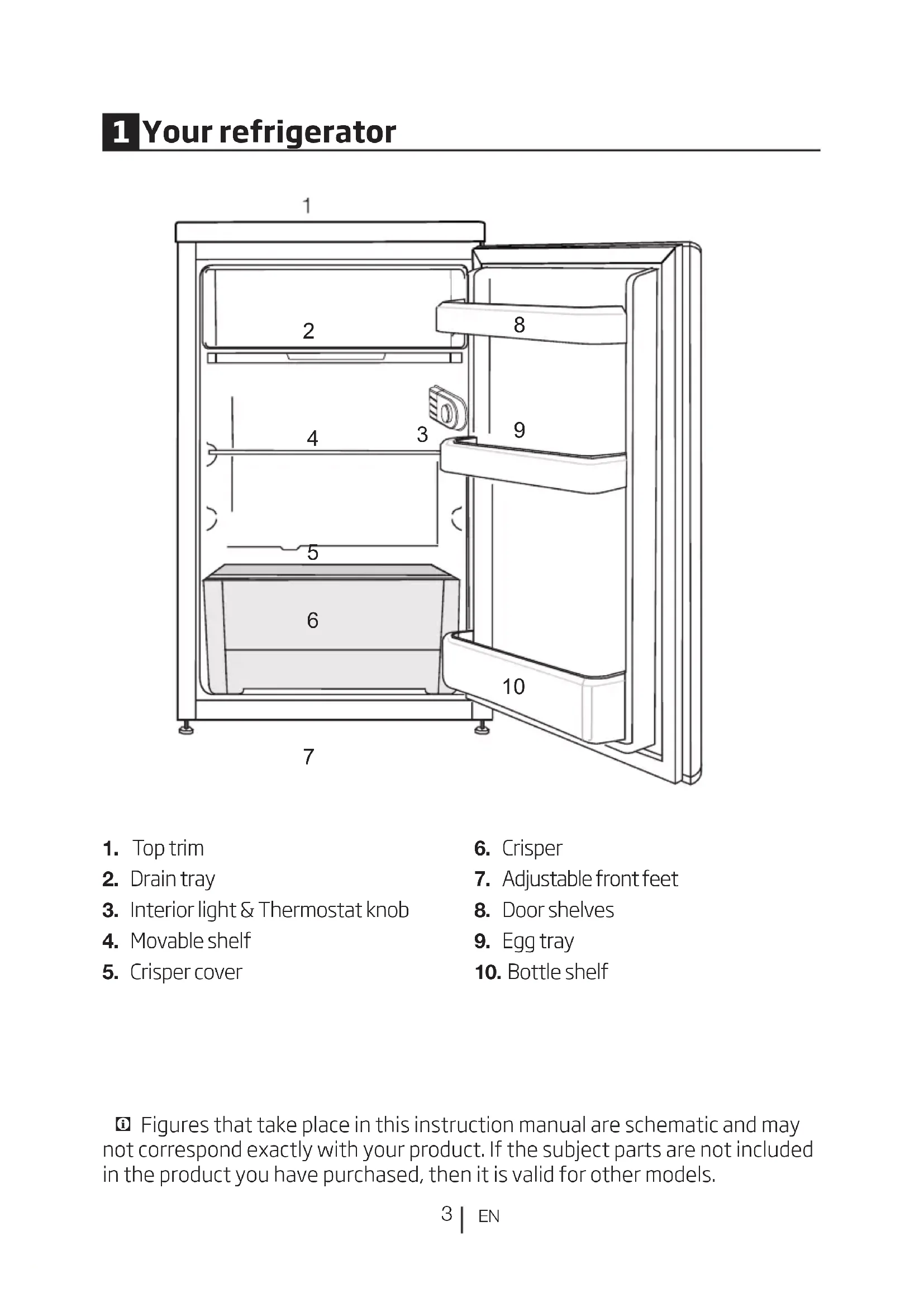

1 Your refrigerator

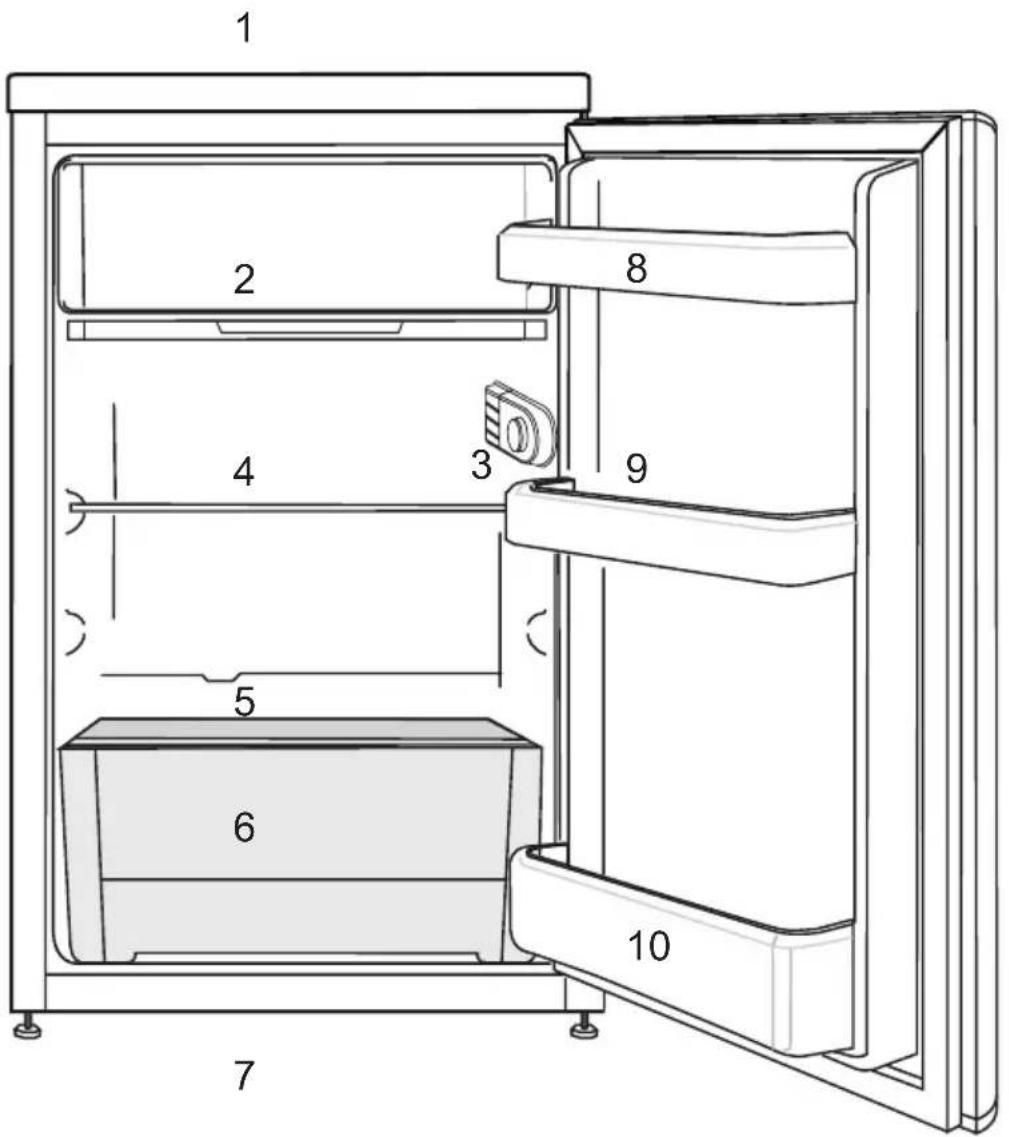

1 2 8 4 3 9 5 6 10 7

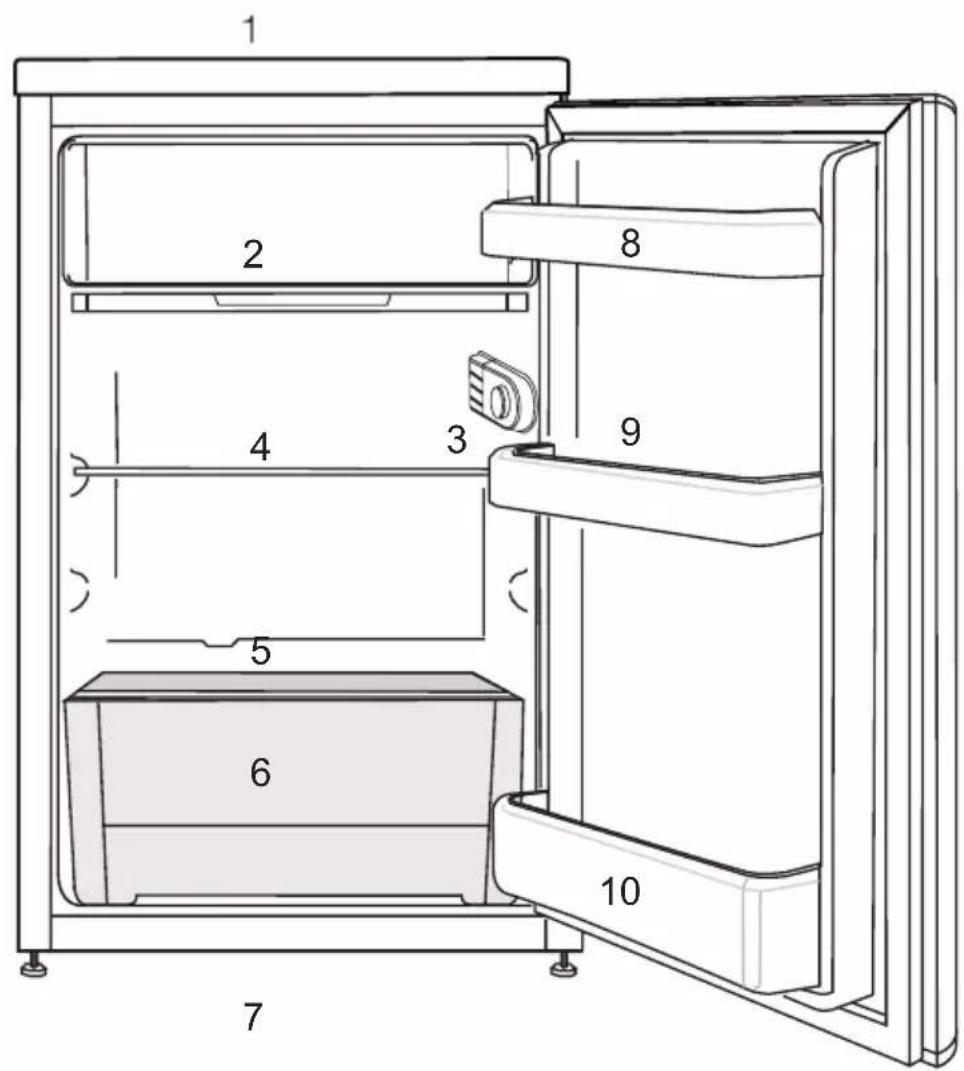

1. Top trim
2. Drain tray
3. Interior light & Thermostat knob
4. Movable shelf

5. Crisper cover

6. Crisper

7. Adjustable front feet
8. Door shelves
9. Egg tray
10. Bottle shelf

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

Original spare parts will be provided for 10 years, following the product purchasing date.

Intended use

	WARNING:Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
	WARNING:Do not use mechanical devices or other means to accelerate the def ro st i n g p r o c e s s, other than those recommended by the manufacturer.
	WARNING:Do not damage the refrigerant circuit.
	WARNING:Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING:Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.
• Unplug your refrigerator before cleaning or defrosting.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.
• Never use the parts on your refrigerator such as the door as a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.

• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

• In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.
• Ensure highly alcoholic beverages are stored securely with the lid fastened and placed upright.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product
• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for only storing food items. It must not be used for any other purpose.
• Label of technical specifications is located on the left wall inside the refrigerator.
• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.
• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.
• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product 6 |

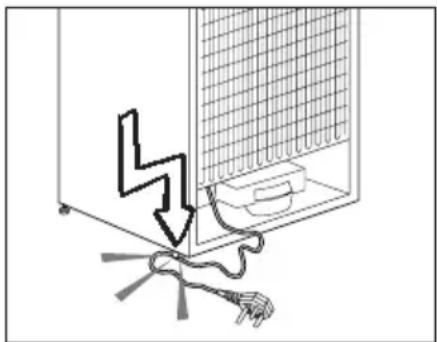

Diagram showing a device with a lightning bolt and cable, no text or symbols present

• Do not plug the refrigerator if the wall outlet is loose.
  • Water should not be sprayed on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock or fire.
• Do not overload the refrigerator with food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.
• Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.
• The product shall never be used while the compartment which is located at the top or back of your product and in which electronic boards are available (electronic board box cover) (1) is open.

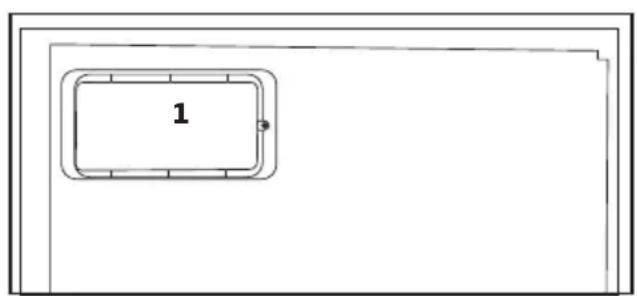

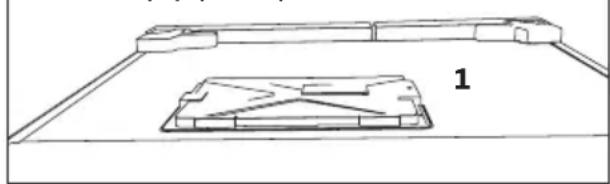

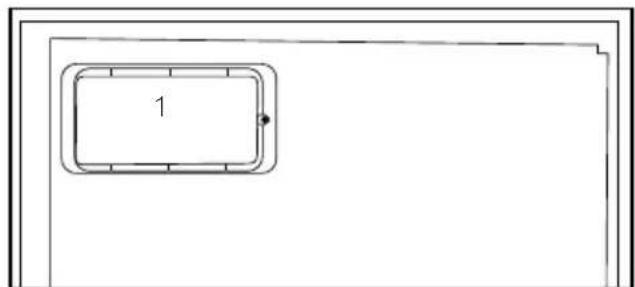

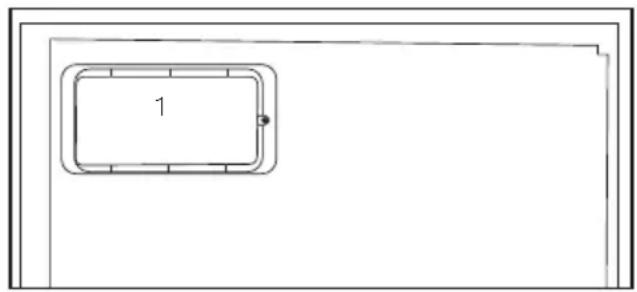

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

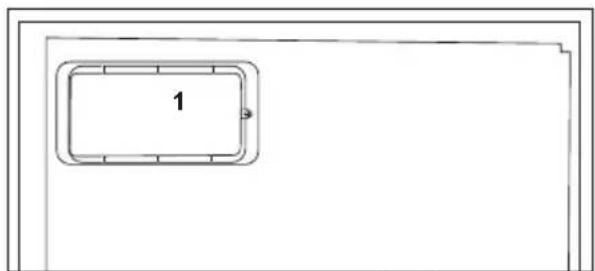

1

For products with a

water dispenser;

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33^ F ( 0.6^ C) minimum and 100^ F ( 38^ C) maximum.
• Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
  • Children must be supervised to prevent them from tampering with the product.

Compliance with WEEE Directive and Disposing of the Waste Product:

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Do not forget...

Any recycled substance is an indispensable matter for nature and our national asset wealth.

If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.

HC warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed. Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

- Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator

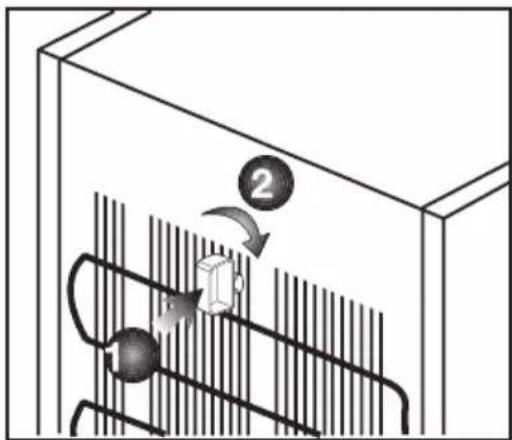

1. Your refrigerator should be unplugged. Before transportation of your refrigerator, it should be emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the refrigerator, Check the following before you start to use your refrigerator:

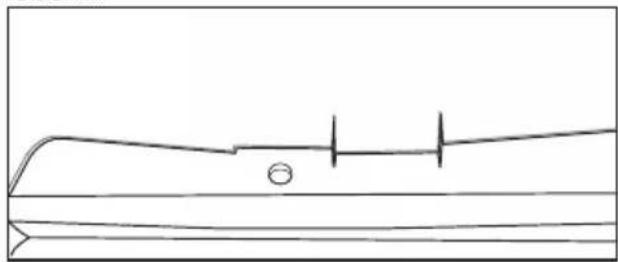

1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.)

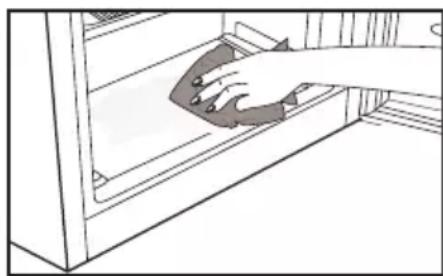

2. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
3. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

1. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
2. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

• The power plug must be easily accessible after installation.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
• Extension cables and multi plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.
⚠️ Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4. Place your refrigerator on an even floor surface to prevent jolts.

Adjusting the legs

If your refrigerator is unbalanced;

You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C.

(only chest and upright freezer)

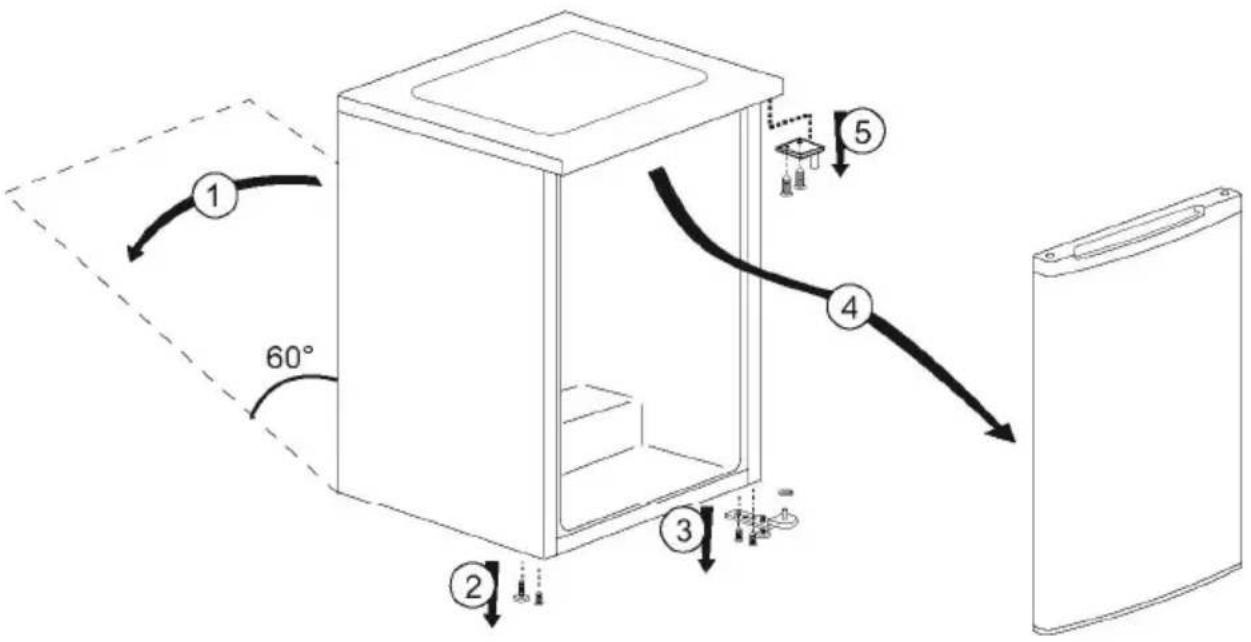

Reversing the doors

Proceed in numerical order

1 60° 2 3 4 5

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Preparation

Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 5°C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the "Recommended solutions for the problems" section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

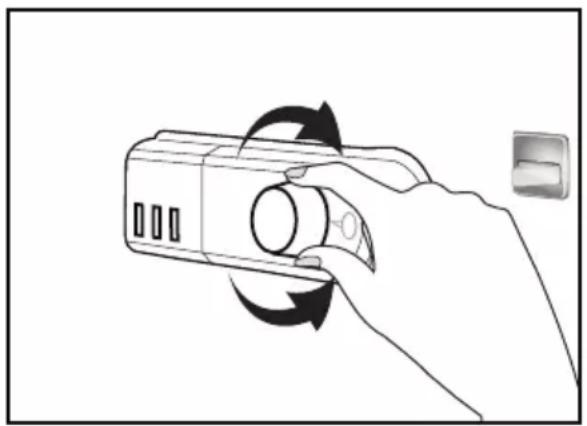

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

The operating temperature is regulated by the temperature control.

Warm Cold 1 2 3 4 5

(Or) Min. Max.

1 = Lowest cooling setting (Warmest setting)

5 = Highest cooling setting (Coldest setting)

(Or)

Min. = Lowest cooling setting (Warmest setting)

Max. = Highest cooling setting (Coldest setting)

The average temperature inside the fridge should be around +5°C.

Please choose the setting according to the desired temperature.

You can stop operation of your appliance by turning the thermostat knob to "0" position.

Please note that there will be different temperatures in the cooling area.

The coldest region is immediately above the vegetable compartment.

At ambient temperature higher than 30^ C, remove the drain tray for better cooling performance.

The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of food kept inside.

Frequently opening the door causes the interior temperature to rise.

For this reason, it is recommended to close the door again as soon as possible after use.

The coldest region is immediately below the ice making compartment.

Under high humidity, condensation may occur on your refrigerator; this is not a failure. It can be wiped with a dry cloth according to safety instructions. Icing, frosting and condensation are normal for icebox compartment and water drain container.

Defrosting of the appliance

Excessive build-up of ice will affect the cooling performance of your device.

It is therefore recommended that you defrost your appliance at least twice a year, or whenever the ice build-up exceeds 7 mm.

Defrost your device when there is only little or no food in it.

Take out the food. Wrap the food in several layers of paper, or a blanket, and keep it in a cold place.

Unplug the appliance or switch off the circuit breaker to start the defrosting process.

Take out the accessories (like shelf, drawer etc.) from the appliance and use a suitable container to collect the thawing water.

Use a sponge or a soft cloth to remove thawing water if necessary at the compartments.

Keep the door open during defrosting.

For quicker defrosting, place containers with warm water inside the appliance.

Never use electrical devices, defrosting sprays or pointed or sharp-edged objects such as knives or forks to remove the ice.

After the defrosting is done, clean the inside.

Reconnect the appliance to the mains. Place the frozen food into the drawers and slide the drawers into the freezer.

Switch off the circuit breaker and unplug the appliance for your safety to start the defrosting process.

During defrost, evaporation tray damper should be positioned as in the winter mode. After defrost, it can be positioned with respect to summer or winter mode, as needed.

Cooling

Food storage

The fridge compartment is for the short-term storage of fresh food and drinks.

Store milk products in the intended compartment in the refrigerator.

Bottles can be stored in the bottle holder or in the bottle shelf of the door.

Raw meat is best kept in a polyethylene bag in the compartment at the very bottom of the refrigerator.

Allow hot food and beverages to cool to room temperature prior to placing them in the refrigerator.

- Attention

Store concentrated alcohol in a container only standing upright and tightly closed.

- Attention

Do not store explosive substances or containers with flammable propellant gases (canned cream, spray cans etc.) in the appliance.

There is a danger of explosion.

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

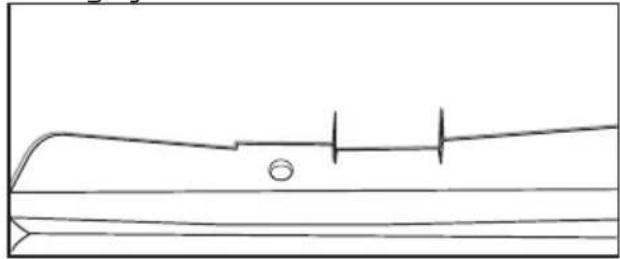

The shown close-tipped offset is part of design, it has no effect on cooling system.

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols


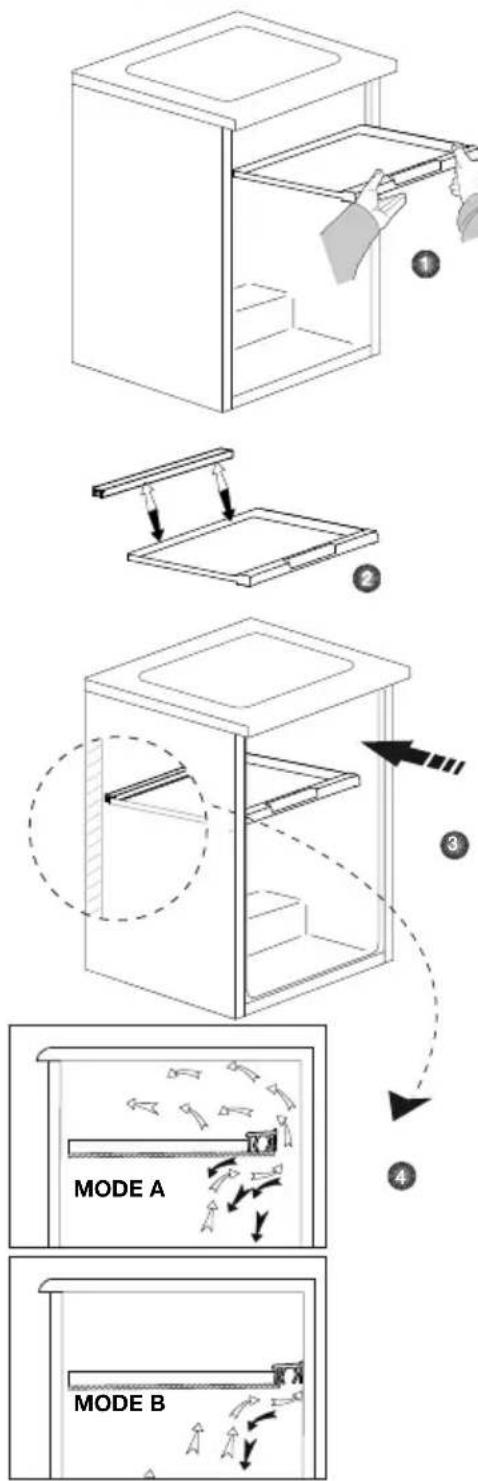

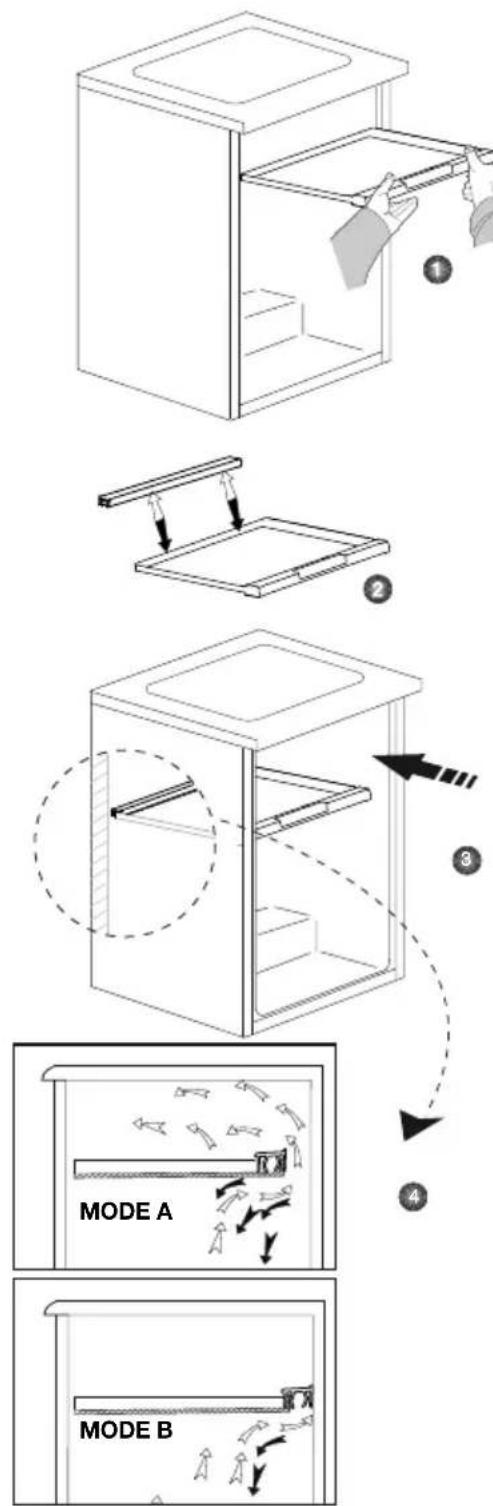

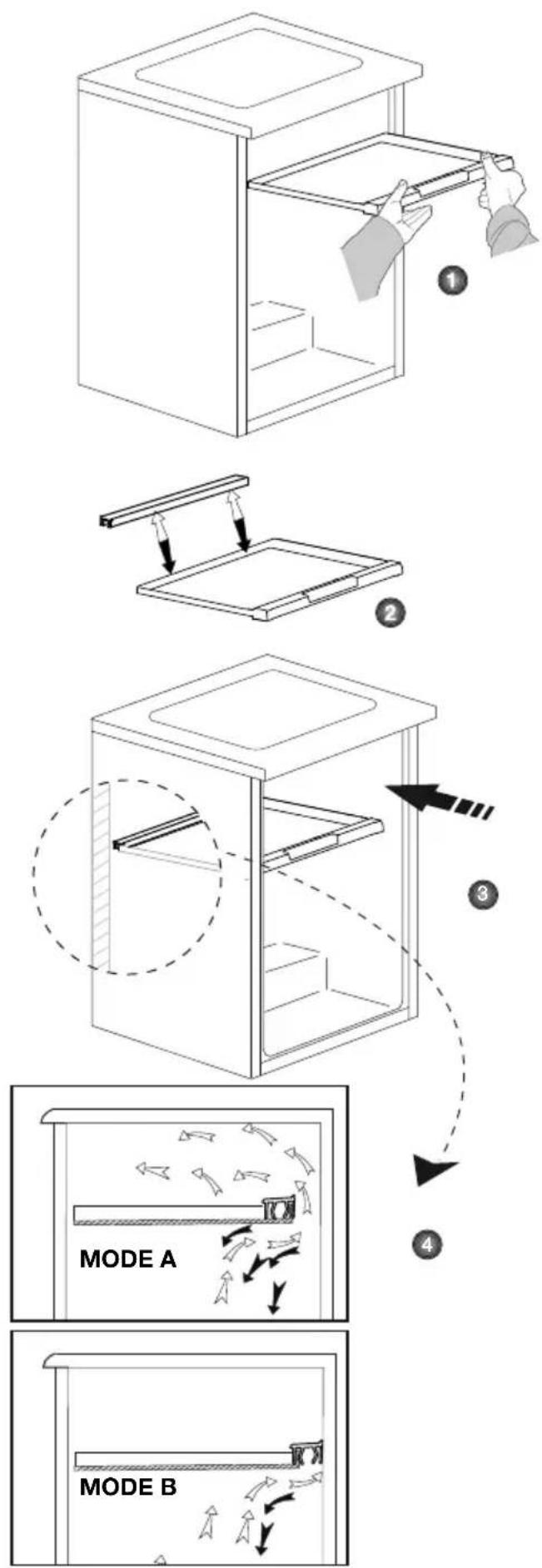

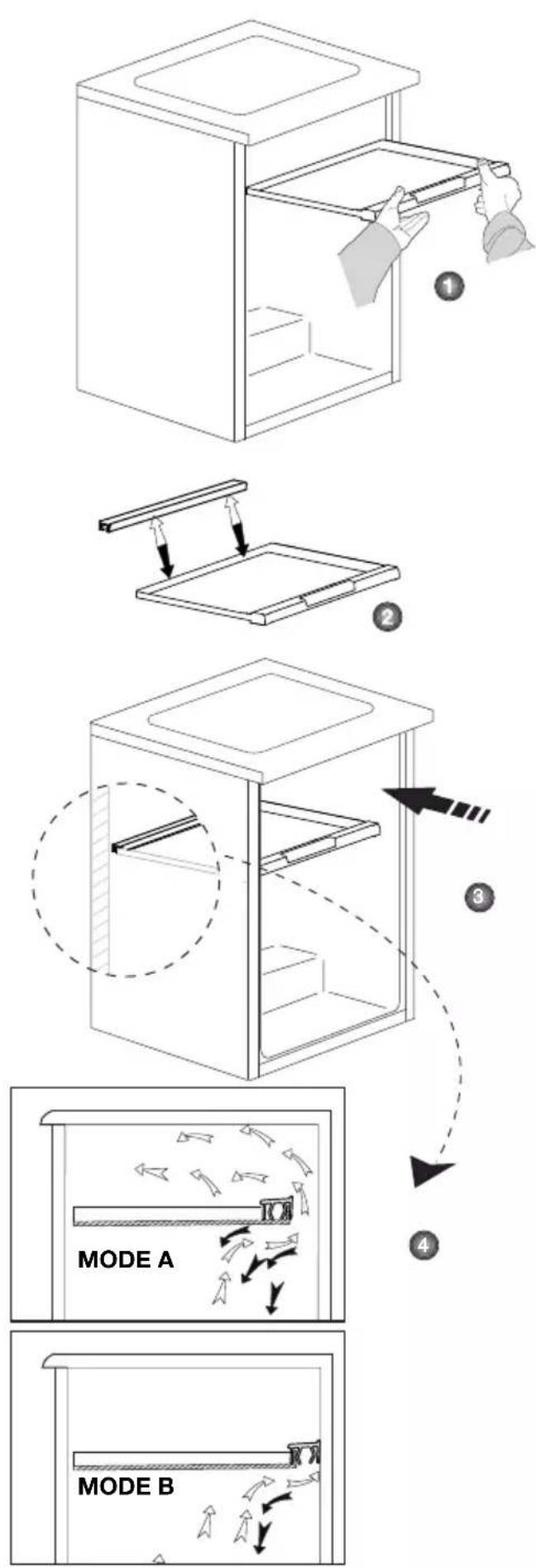

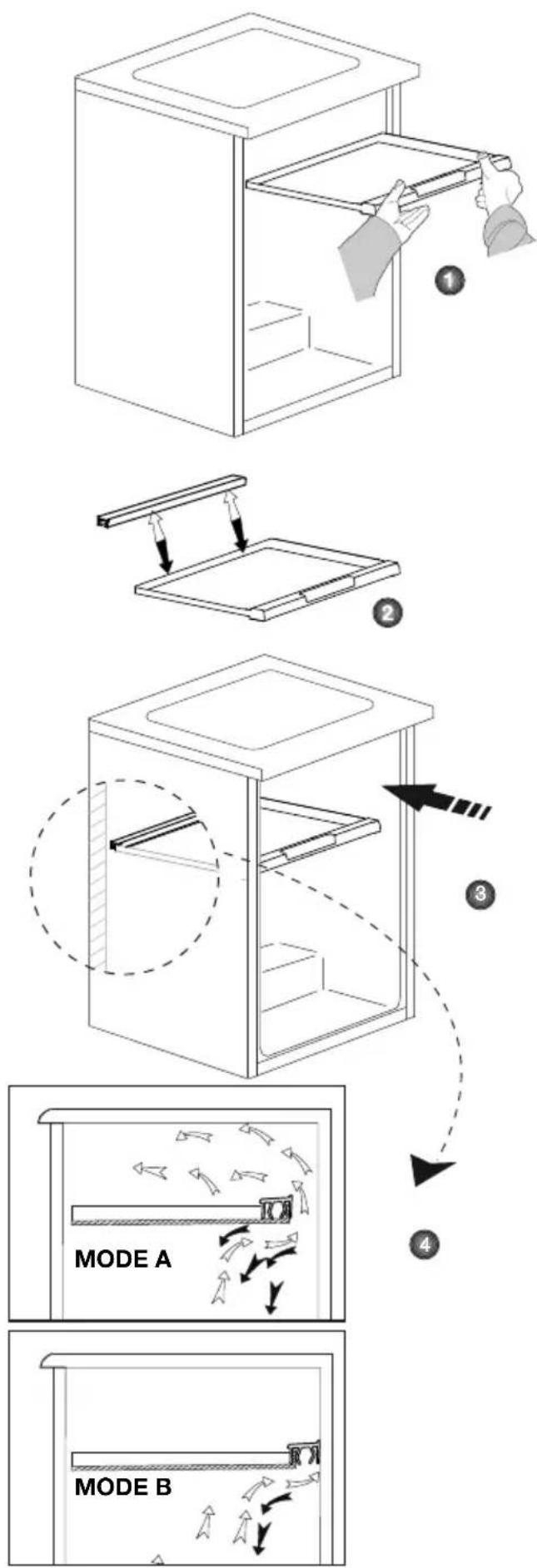

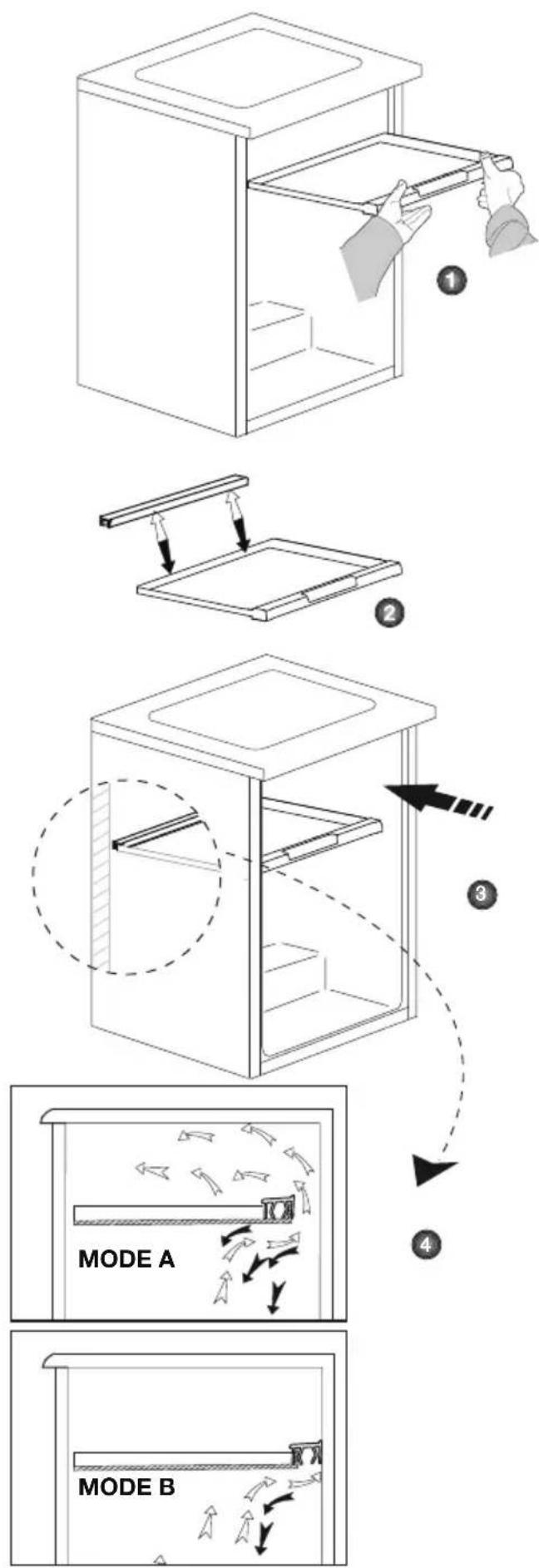

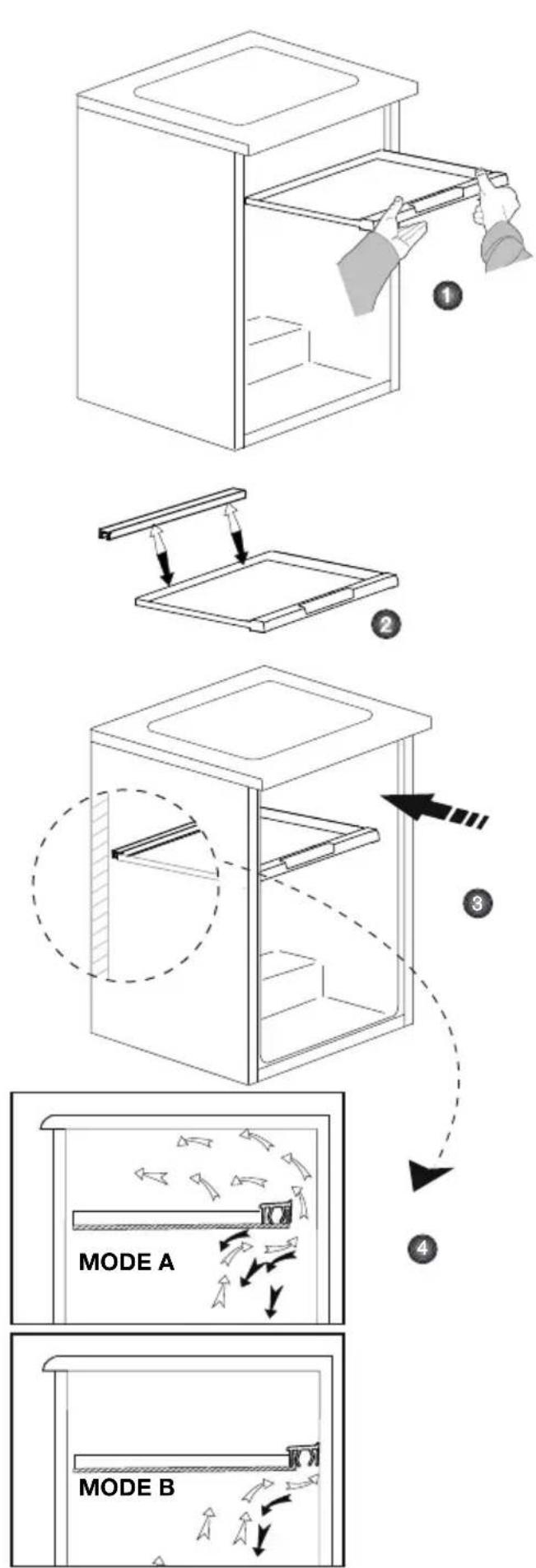

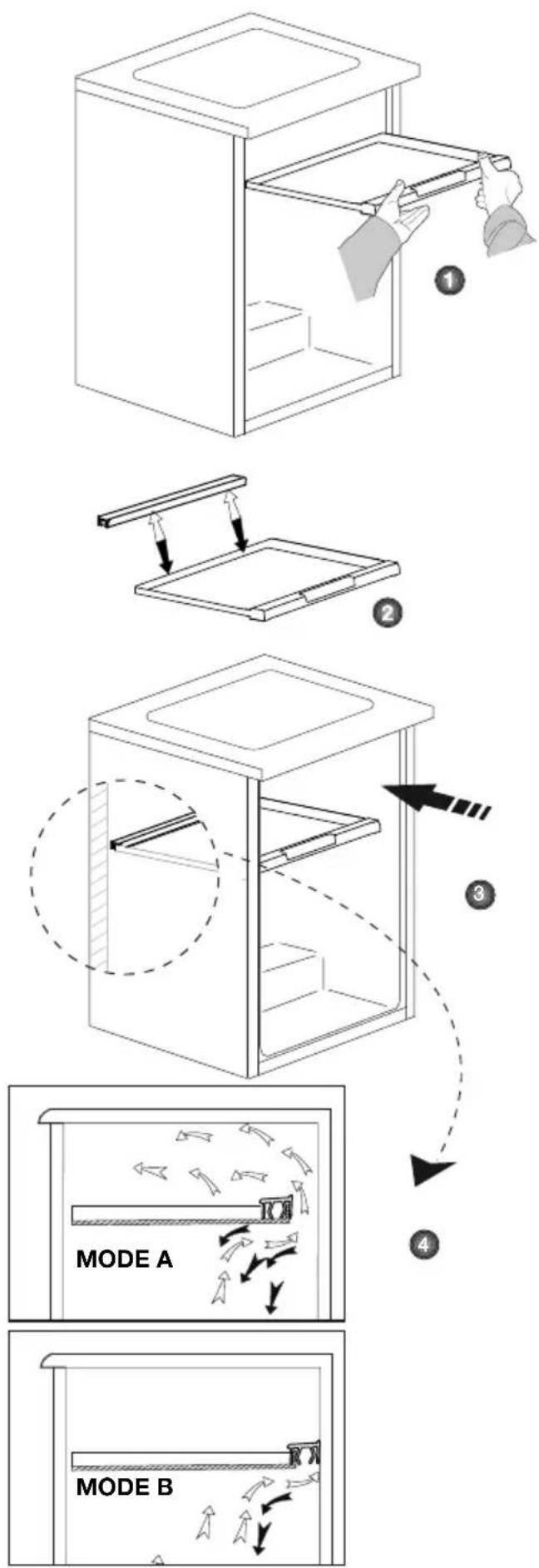

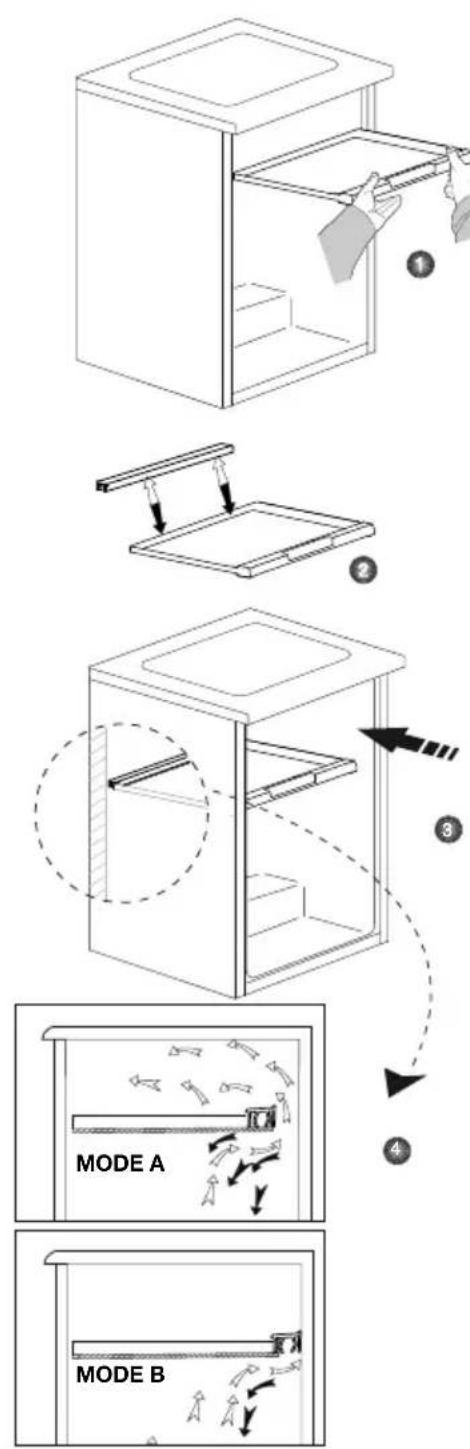

Evaporation tray damper should be used as described below to maintain desired compartment temperature depending on the ambient temperature, such as winter mode for cold ambient temperature and summer mode for hot ambient temperature.

SUMMER MODE (MODE A)

When cooler compartment temperature is required...

WINTER MODE (MODE B)

(When warmer compartment temperature is required and defrosting.)

6 Maintenance and cleaning

⚠️Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
△Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
In producten die geen No Frost hebben ontstaan er op de achterwand van het koelvak waterdruppels en een vingerdikke ijslaag. Maak het niet schoon; doe er nooit olie op soortgelijke middelen op.
Gebruik uitsluitend licht vochtige microvezeldoeken om de buitenkant van het product schoon te maken. Sponzen en andere soorten schoonmaakdoeken kunnen het oppervlak krassen.
For non-No Frost products, water drops and frosting up to a fingerbreadth occur on the rear wall of the Fridge compartment. Do not clean it; never apply oil or similar agents on it.
Only use slightly damp microfiber cloths to clean the outer surface of the product. Sponges and other types of cleaning cloths may scratch the surface.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.

⚠️Make sure that no water enters the lamp housing and other electrical items.
△If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️To remove door racks, remove all the contents and then simply push the door rack upwards from the base.
⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
⚠️Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled.

  Plug it in to settle completely into the socket.

• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

- In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. 19

The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.
• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.

• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.
• The doors were opened frequently or kept open for long periods.

  Do not open the doors too frequently.

• The door may be ajar. >>> Fully close the door.
• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

- The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

- Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods.

  Do not open the doors too frequently; if open, close the door.

• The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.

- The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.
• The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Simple diagram with a rectangular outline and number 1 inside, enclosed in a larger rounded rectangle (no text or symbols beyond the number)

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a process or system.

Diagram showing directional arrows around a rectangular structure with base and supports (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Vorbereitung

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structure without any text, numbers, or symbols

Technical line drawing of a mechanical component with a base and top view (no text or symbols)

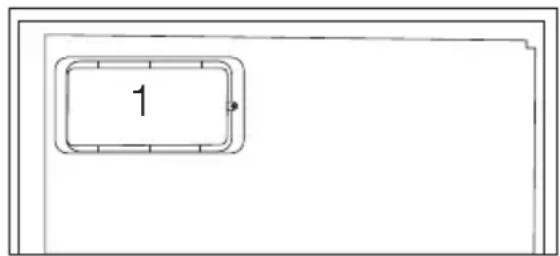

1

Simple line drawing of a mechanical device with no text or symbols

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including numbered callouts.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Préparation

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Simple line drawing of a rectangular object with a triangular cutout and labeled point 1 (no text or symbols)

Simple line drawing of a rectangular frame with a small internal square and arrow, no text or symbols present.

Sicurezza bambini

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Preparazione

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structure without any text, numbers, or symbols

Diagram showing a device with wires and a plug inserted into a container, no text or symbols present

Technical line drawing of a mechanical component with a base and housing (no text or symbols)

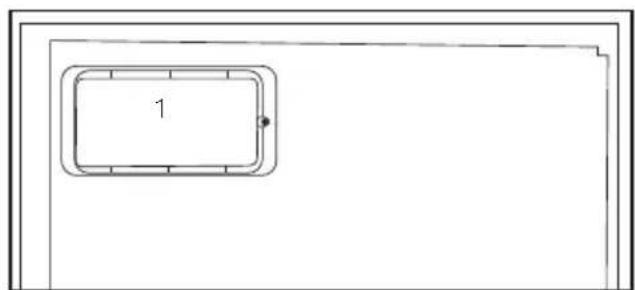

Simple line drawing of a rectangular frame with a numbered label '1' in the center (no text or symbols beyond the label)

Pure electrical circuit lines without any symbols

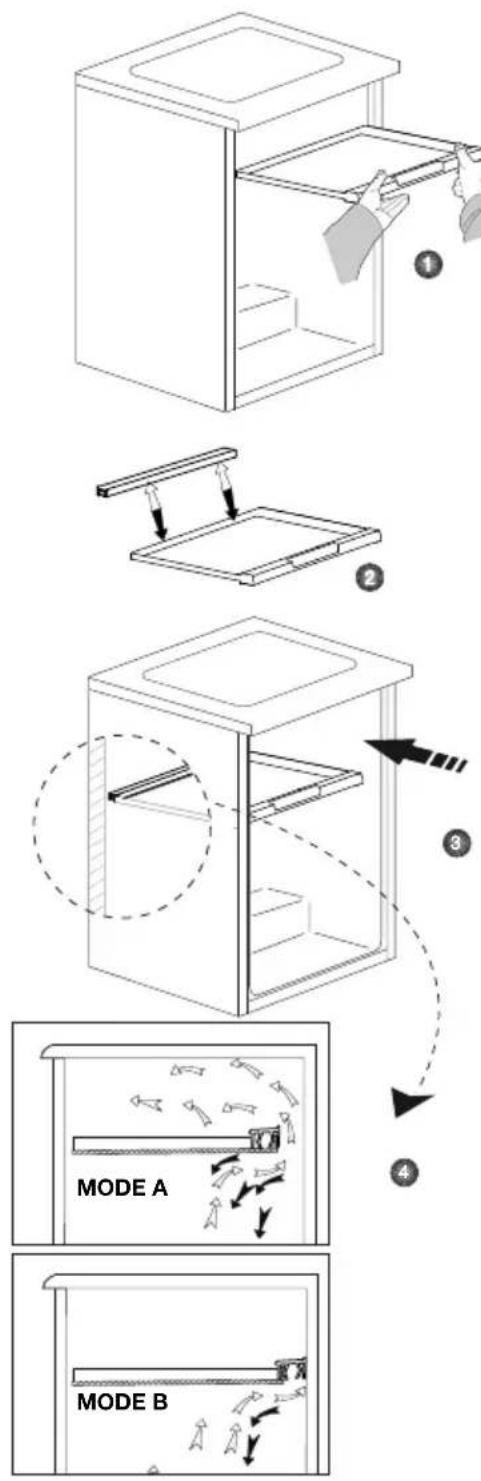

Diagram showing a mechanical or thermal system with labeled components and directional arrows, likely illustrating a process or system.

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Voorbereiding

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols

Simple line drawing of a pear and a carrot (no text or symbols)

TS 190320 - TS 190340N

PL / PT / ES / BG / UK

PAPER Z RECYKLINGU I NADAJĄCY SIĘ DO PONOWNEGO PRZETWORZENIA

PAPEL RECICLADO E RECICLÁVEL

PAPEL RECICLADO Y RECIBLABLE

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Dla modeli z wodotryskiem

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a process or system.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Przygotowanie

Hand holding a camera with circular motion arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning or removing a shelf from a cabinet (no text or symbols)

Pure technical line drawing of a mechanical component or structural detail (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Inverter as portas ....14

4 Preparação 15

5 Utilizar o seu frigorífico 16

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base and internal structure (no text or symbols)

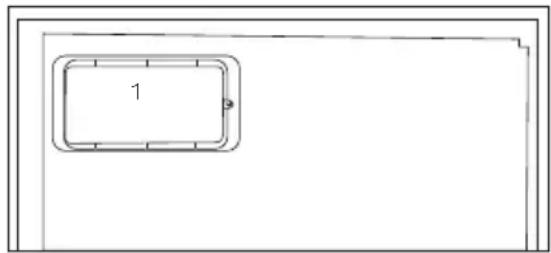

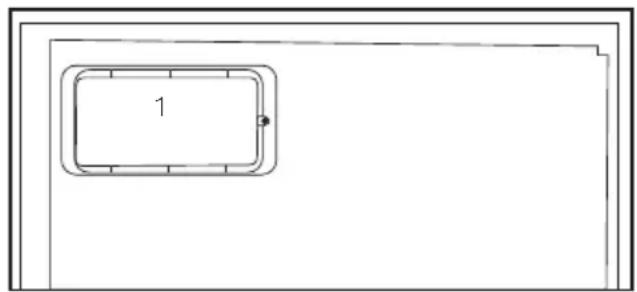

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including numbered callouts.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Preparação

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural detail without any text, numbers, or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

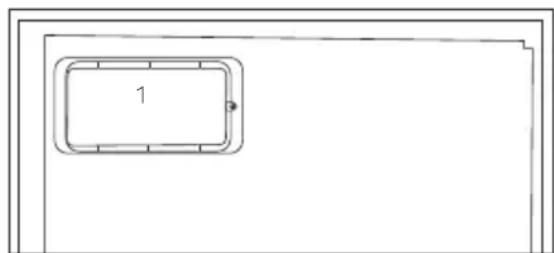

Simple line drawing of a rectangular frame with a numbered label '1' on the left side (no other text or symbols)

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Preparación

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Pure technical line drawing of a mechanical or structural component without any text, numbers, or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

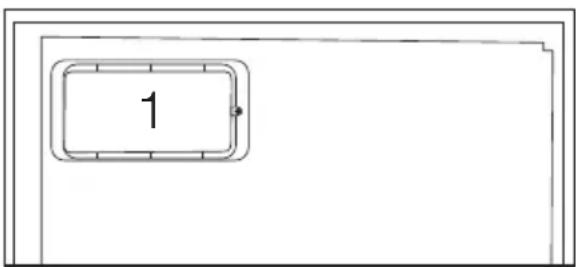

Simple line drawing of a rectangular frame with a numbered label '1' in the center (no other text or symbols)

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Diagram showing a rectangular structure with two vertical supports and curved arrows indicating rotational or directional motion (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Подготовка

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Technical line drawing of a mechanical component with a labeled part (1), no text or symbols present

1

Diagram of a refrigerator with cooling pipes and a valve, showing airflow direction (no text or symbols)

чищення".

Pure diagram of a mechanical or electrical component with directional arrows and curved arrows, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Підготовка

Line drawing of a hand holding a device with circular button and rotation arrows (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols

Simple line drawing of a pear and a carrot (no text or symbols)

TS 190320 -TS 190340N

RUS / SB / SK / SL

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a rectangular frame with a small labeled box (no text or symbols)

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Замена лампочки

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Подготовка

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical or structural component without any text, numbers, or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

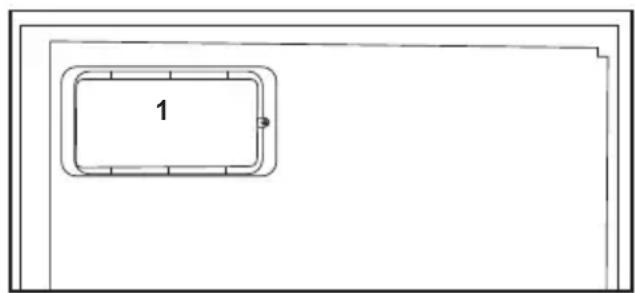

- Ne spajajte ga sa utičnicama koje su labave.

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

a b c ① ② ③ d

Podešavanje nožica

Ako je Vaš frižider nestabilan;

Pure diagram of a rectangular structure with directional arrows indicating motion or force, no text or symbols present.

Promena strane otvaranja vrata

Pratite brojeve redom.

1 60° 2 3 4 5

Technical diagram of a refrigerator with numbered parts and directional arrows indicating assembly or movement.

4 Pripreme

Line drawing of a hand holding a device with a circular button and curved arrows indicating rotation (no text or symbols)

Radna temperatura se reguliše kontrolom temperature.

Toplo Hladno 1 2 3 4 5 (ili) Min. Max.

1 = Najniže podešenje hlađenja (Najtoplije podešenje)
5 = Najniže podešenje hlađenja (Najhladnije podešenje)
ili
Min. = Najniže podešenje hlađenja (Najtoplije podešenje) Max. = Najniže podešenje hlađenja (Najhladnije podešenje)
Prosečna temperatura unutar frižidera bi trebalo da bude +5°C. Molimo vas da izaberete podešenje u skladu sa željenom temperaturom. Rad Vašeg frižidera ćete zaustaviti stavljanjem kružnog dugmeta termostata na "0" poziciju.

Illustration of a hand holding a tool over a surface with an upward arrow and a dot, no text or symbols present.

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base and mounting bracket (no text or symbols)

Simple line drawing of a rectangular frame with a small circular element inside, no text or symbols present.

Pure electrical circuit lines without any symbols

Diagram showing airflow or heat transfer in a refrigerant unit with labeled component '2' and directional arrows

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Príprava

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical or structural component without any text, numbers, or symbols

Diagram showing a lightning bolt striking a wall-mounted device with wiring and plug (no text or symbols)

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

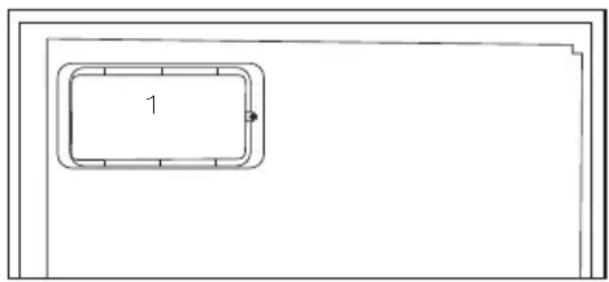

Simple line drawing of a rectangular frame with a numbered label '1' on the left side (no other text or symbols)

Za naprave z dispenzerjem za vodo;

Pure electrical circuit lines without any symbols

Diagram showing a mechanical or fluid system with labeled component '2' and directional arrows indicating flow or movement.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Zamenjava žarnice

Technical diagram of a refrigerator with numbered components and directional arrows indicating assembly or movement.

4 Priprava

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Delovno temperaturo uravnavate z nadzorom za temperaturo.

(Or) Min. Max.

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Prikazani odmik z zaprtim vrhom ga je del oblike in ne vpliva na hladilni sistem.

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols

Simple line drawing of a pear and a carrot (no text or symbols)

TS 190320 - TS 190340N

HU/LT/LV/ET

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including a numbered circle '2' pointing to a component.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

A lámpa cseréje

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Előkészületek

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Pure technical line drawing of a mechanical component or structural detail without any text, numbers, or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a rectangular frame with a small rectangular cutout labeled '1' (no text or symbols beyond the number)

Gaminiams su vandens dalytuvu;

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a numbered circle '2' pointing to a component.

gaminj.)

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Sagatavošana

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning or removing a surface from a window (no text or symbols)

Pure technical line drawing of a curved structural component with two vertical supports and a circular hole, no text or symbols present.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a labeled section (1), no text or symbols present.

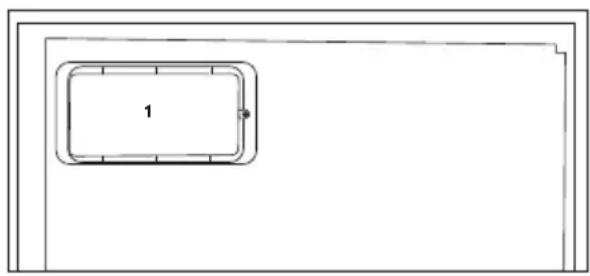

Simple line drawing of a rectangular frame with a small circular component labeled '1' (no text or symbols beyond the number)

Diagram showing airflow or heat transfer in a container with labeled component '2' and directional arrows indicating flow direction.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Sagatavošana

Line drawing of a hand holding a device with circular button and rotation arrows (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or assembly without any text, numbers, or symbols

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Line drawing of a rectangular device with a central component labeled '1' (no text or symbols beyond the label)

Simple line drawing of a rectangular frame with a numbered label '1' on the inner frame (no text or symbols beyond the label)

Veedosaatoriga toodete puhul:

Diagram of a mechanical device inside a housing, showing internal components and motion indicators (no text or labels)

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement, no text or symbols present.

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols

Simple line drawing of a pear and a carrot (no text or symbols)

TS 190320 - TS 190340N

HR / EL / AR / SQ

Diagram showing a device with a lightning bolt and cable, no text or symbols present

- Ne uključujte hladnjak ako je električna utičnica labava.

Technical line drawing of a mechanical component with a base and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' at the center (no other text or symbols)

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a numbered component '2' pointing to a rectangular block.

Diagram showing a rectangular structure with upward and downward arrows indicating motion or force directions, surrounded by curved arrows (no text or symbols)

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

4 Priprema

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Temperatura rada se regulira tipkom za kontrolu temperature.

Warm Cold 1 2 3 4 5

(Or) Min. Max.

1 = Najniža postavka hlađenja (najtoplija postavka)

5 = Najviša postavka hlađenja (najhladnija postavka)

(ⅱi)

Min. = Najniža postavka hlađenja (Najtoplija postavka)

Max. = Najviša postavka hlađenja (Najhladnija postavka)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols

LJETNI REŽIM RADA (REŽIM A)

Kad je potrebna niža temperatura odjeljka...

ZIMSKI NAČIN RADA (NAČIN B)

(Kad su potrebni viša temperatura odjeljka i odmrzavanje.)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a process or system.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

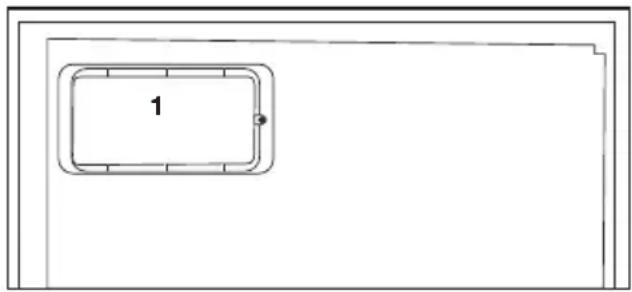

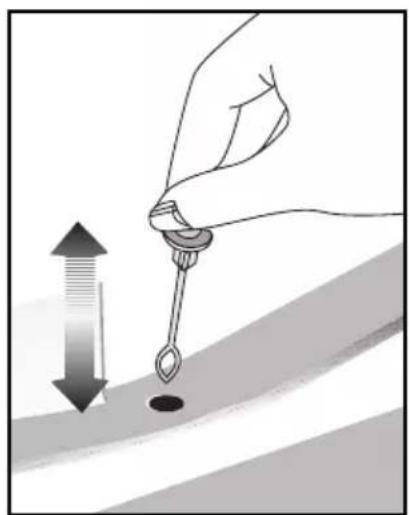

4 Προετοιμασία

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

ال Clubs من Buildings Democracy 8

9 alوضع والتركيب

تغير م생활 الإضاءة 9

9 ضبط القدم

1 2 8 4 3 9 5 6 10 7

-6هش قدم جبهاة

7- Renewable energy

8 الباب الرفوف

-9البيض صينية

-10زجاجة الرف

1 - تقليم الأعلى

2 - تصفی صينية

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base and top view, labeled '1' (no text or symbols beyond label)

1

تأمين سلامة الأطفال

Pure electrical circuit lines without any symbols

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a numbered component '2' pointing to a rectangular block.

تغير مصباح الإضاءة

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

الوضع والتركيب

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Line drawing of a hand holding a device with circular arrows indicating rotation (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Illustration of a hand using a spoon to measure a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Për produktet me dispenser uji;

Diagram showing a mechanical or electrical component with labeled parts and directional arrows, likely illustrating a process or system.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion, no text or symbols present.

Technical diagram of a refrigerator interior with numbered components and directional arrows indicating flow or movement.

Line drawing of a hand holding a camera with a circular button, showing rotational motion (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Pure technical line drawing of a mechanical component or structural assembly without any text, numbers, or symbols
