USER MANUAL B3RCNE564HXB BEKO

ELEN / 2 Please read this manual first! Dear Customer Thank you for choosing this product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art techno- logy. To do this, carefully read this manual and any other documentation provided before using the product. Heed all information and warnings in the user manual. This way, you will protect yourself and your product against the dangers that may occur. Keep the user manual. Include this manual with the product if you hand it over to someone else. If you have any questions or concerns, please call our Customer Service Team or find help and information online at The following symbols are used in the user manual: Hazard that may result in death or injury. Important information or useful tips on operation. NOTICE A hazard that may cause material damage to the product or its surroundings The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label. https://eprel.ec.europa.eu/EN / 3 1 Safety Instructions......................... 4

1.1 Intention of Use ............................. 4

1.2 Safety of Children, Vulnerable

1.8 Maintenance and Cleaning Safety 12

2.1 Compliance with the WEEE Dir-

4.5 Removing the Styrofoam on the

5.1 What To Do For Energy Saving..... 17

5.2 First Use......................................... 18

5.3 Climate Class and Definitions ...... 18

6 Operating the Product.................... 18 7 Control Panel of the Product .......... 19 8 Use of Your Appliance.................... 20

8.1 Storing Food in the Cooler Com-

8.3 Dairy Products Cold Storage Area 25

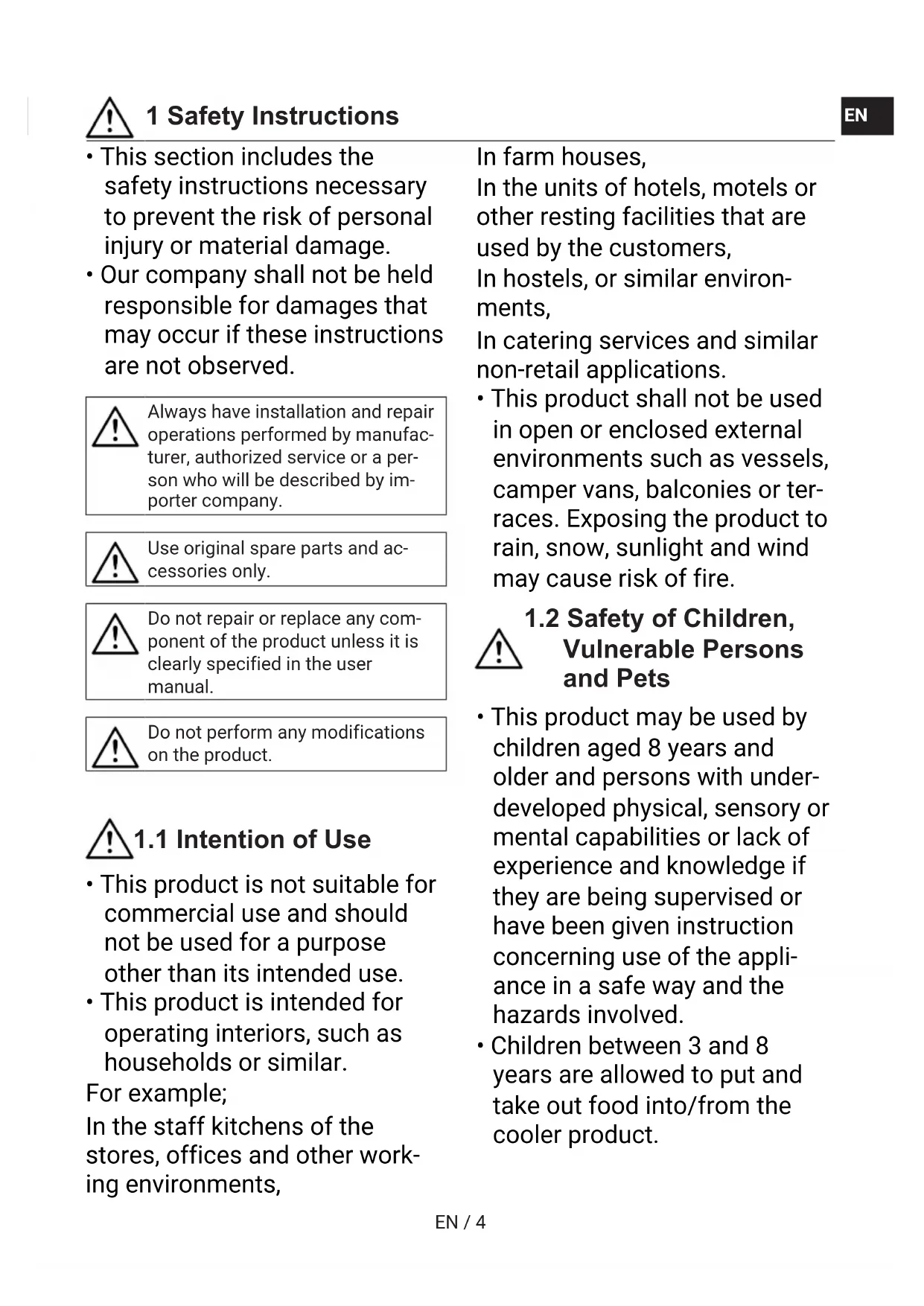

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.

• Our company shall not be held responsible for damages that may occur if these instructions are not observed. Always have installation and repair operations performed by manufac- turer, authorized service or a per- son who will be described by im- porter company. Use original spare parts and ac- cessories only. Do not repair or replace any com- ponent of the product unless it is clearly specified in the user manual. Do not perform any modifications on the product.

1.1 Intention of Use

• This product is not suitable for commercial use and should not be used for a purpose other than its intended use.

• This product is intended for operating interiors, such as households or similar. For example; In the staff kitchens of the stores, offices and other work- ing environments, In farm houses, In the units of hotels, motels or other resting facilities that are used by the customers, In hostels, or similar environ- ments, In catering services and similar non-retail applications.

• This product shall not be used in open or enclosed external environments such as vessels, camper vans, balconies or ter- races. Exposing the product to rain, snow, sunlight and wind may cause risk of fire.

1.2 Safety of Children,

Vulnerable Persons and Pets

• This product may be used by children aged 8 years and older and persons with under- developed physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning use of the appli- ance in a safe way and the hazards involved.

• Children between 3 and 8 years are allowed to put and take out food into/from the cooler product.

• Children and pets must not play with, climb on, or get in- side the product.

• Children and pets must be kept away from the cabin area (compressor) where electrical parts are located.

• Cleaning and user mainten- ance must not be performed by children unless there is someone overseeing them.

• Keep the packaging materials away from children. Risk of in- jury and suffocation.

• If there is a lock available on the product’s door, keep the key out of children's reach.

1.3 Electrical Safety

• The product shall not be plugged into the outlet during installation, maintenance, cleaning, repair, and transport- ation operations.

• If the power cable is damaged, it must be replaced by the per- son sent by the manufacturer, authorized service provider or the importer to prevent any po- tential danger.

• Do not tuck the power cable under the product or to the rear of the product. Do not put heavy items on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.

• Use an original cable only. Do not use cut or damaged cables.

• Do not use an extension cord, multi-plug or adaptor to oper- ate your product.

• Portable multi-plugs or port- able power supplies may over- heat and cause fire. Thus, do not have a multi-plug, portable power sources behind or in the vicinity of the product.

• Before plugging the product into the power source, please remove the power cable from the condenser hook (if avail- able) during the installation.

• The user should not be able to reach the electrical parts after installation.

• Do not plug the product’s power cord in a loose or dam- aged power outlet. These types of connections may overheat and cause fire.

• The plug shall be easily ac- cessible. If this is not possible, a mechanism that meets the electrical legislation and that disconnects all terminals from the mains (fuse, switch, main switch, etc.) shall be available on the electrical installation.

• The product must not be oper- ated with an external switching device such as a timer, or a re- mote controlled system.

• Do not use the product when your feet are bare or your body is wet.

• Do not touch the plug with wet hands.

• When unplugging the appli- ance, don’t hold the power cable, but the plug.

• Make sure that the plug is not wet, dirty or dusty.

• Do not ever connect your product to power saving devices. These systems are harmful for the product.

• Make sure to unplug the appli- ance before carrying the product.

• This product is heavy, do not handle it by yourself. Injuries may occur if the product falls on you. Do not bump into places or drop the product while transporting it.

• Always close the doors and do not hold the product by its doors while transporting it.

• Be careful not to damage the cooling system and the pipes while handling the product. Do not operate the product if the pipes are damaged, and con- tact an authorized service.

1.5 Installation Safety

• To prepare the product for use, see the information in the user and installation manual and make sure the electric and wa- ter utilities are as required. If not, call a qualified electrician and plumber to arrange the utilities as necessary.

• Failure to do so may result in electric shock, fire, problems with the product, or injury.

• Before starting the installation, switch off the fuse to de-ener- gise the power line to which the product is connected.

• The product should be in- stalled by two or more people. Use protective gloves while re- moving the product from the packaging and installation.

• This product is designed for use at a maximum altitude of 2000 metres above sea level.

• Keep children away from in- stallation area.

• Check for any damage on the product before installing it. Do not have the product installed if it is damaged.

• Always use personal protective equipment (gloves, etc.) during product installation, mainten- ance and repair. Risk of injury.

• Do not install or leave the product in places where it may be exposed to external ambi- ent temperatures.

• Place the product on a clean, level and hard surface and bal- ance it with the adjustable legs (by rotating the front feet to the right or left). Otherwise, the refrigerator may tip over and cause injuries.

• Proceed with care to prevent causing any damage to the floors (tiling etc.) while moving the product. Install the product on a floor, or provide sufficient support depending on the size, weight and the use-case of the product. Ensure that the product is not near a heat source, and all four feet are stable and leaning against the floor. Install the product as ne- cessary, and ensure that it is horizontal, using a bubble level. To ensure the complete efficiency of the refrigerant cir- cuit, wait for at least two hours before operating the product.

• The product shall be installed in a dry and ventilated environ- ment. Do not keep carpets, rugs or similar covers under the product. This may cause risk of fire as a result of inad- equate ventilation!

• Do not block or cover ventila- tion holes. Otherwise, power consumption increases and your product may be damaged.

• Leave sufficient space by the sides and above to ensure ad- equate ventilation. The gap between the back panel and the wall behind the product must be a minimum of 50mm in order to prevent hot sur- faces. Reducing this distance may increase the energy con- sumption of product.

• When placing the product, make sure that the supply cable is not damaged or pinched.

• The product must not be con- nected to supply systems and power sources which may cause sudden voltage changes (i.e. a portable solar-energy power source). Otherwise, damage to your product may occur as a result of the abrupt voltage fluctuations!

• The more refrigerant a refriger- ator contains, the bigger its in- stallation room shall be. In very small rooms, a flammable gas- air mixture may occur in case of a gas leak in the cooling system. At least 1 m³ of

ELEN / 8 volume is required for each 8 grams of refrigerant. The amount of the refrigerant avail- able in your product is spe- cified in the Type Label.

• The product must never be placed in such a way that power cables, the metal hose of the gas stove, metal gas or water pipes come into contact with the product's rear wall (or the condenser).

• The installation place of the product must not be exposed to direct sunlight and it shall not be in the vicinity of a heat source such as stoves, radiat- ors, etc. If you cannot prevent installation of the product in the vicinity of a heat source, use a suitable insulation plate and make sure the minimum distance to the heat source is as specified below: – At least 30 cm away from heat sources such as stoves, ovens, heating units and heaters, etc., – And at least 5 cm away from electrical ovens.

• Your product has the protec- tion class of I.

• Plug the product in a grounded socket that conforms with the Voltage, Current and Fre- quency values specified in the type label. The socket must have a 10A – 16A fuse. Our firm will not assume respons- ibility for any damages due to usage without earthing and without power connection in compliance with local and na- tional regulations.

• The product’s power cable must be unplugged during in- stallation. Otherwise, risk of electric shock and injury may occur!

• Do not plug the product to loose, broken, dirty, greasy sockets or sockets that have come out of their seats or sockets with a risk of water contact. These types of con- nections may overheat and cause fire..

• Place the power cable and hoses (if any) of the product so that they shall not cause a risk of tripping over.

• Penetration of humidity and li- quid to live parts or to the power cord may cause short circuit. Thus, do not use the product in humid environ- ments or in areas where water may splash (e.g. garage, laun- dry room, etc.) If the refriger- ator is wet by water, unplug it and contact an authorized ser- vice.

• Do not ever connect your refri- gerator to power saving devices. These systems are harmful for the product.

• There is a risk of contact with electrical parts when removing the electronic board cover and the compressor rear cover (if fitted). Do not remove the elec- tronic board cover and the compressor rear cover (if fit- ted). There is a risk of electro- cution!

1.6 Operational Safety

• Do not ever use chemical solvents on the product. These materials contain an explosion risk.

• In case of a failure of the product, unplug it (or de-ener- gise the fuse to which it is con- nected), and do not operate until it is repaired by the au- thorized service. There is a risk of electric shock!

• Do not place flames (lighted candle, cigarette, etc.) or heat sources (iron, hob, oven, etc.) on or near the product. Do not place flammable/explosive materials near the product...

• Do not get on the product. Risk of falling and injury!

• Do not cause damage to the pipes of the cooling system us- ing sharp and piercing tools. The refrigerant that sprays out in case of puncturing the gas pipes, pipe extensions or upper surface coatings may cause ir- ritation of skin and injury to the eyes.

• Do not intervene in or damage the coolant circuit Risk of ex- plosion.

• Do not place and operate elec- trical appliances inside the re- frigerator/freezer unless it is advised by the manufacturer.

• Do not use any procedures other than those recommen- ded by the manufacturer to speed up defrosting.

• Take due care not to jam any parts of your hands or your body to the moving parts in- side the product. Be careful to prevent jamming of your fin- gers between the refrigerator and its door. Be careful while opening or closing the door if there are children around.

• Do not put ice cream, ice cubes or frozen food to your mouth as soon as you take them out of the freezer. Risk of frostbite!

• Do not touch the inner walls, metal parts of the freezer or food kept inside the freezer with wet hands. Risk of frost- bite!

• Do not place soda cans or cans and bottles that contain fluids that may be frozen to the freezer compartment. Cans or bottles may explode. Risk of injury and material damage!

• Do not use or place materials sensitive against temperature such as flammable sprays, flammable objects, dry ice or other chemical agents in the vicinity of the refrigerator. Risk of fire and explosion!

• Do not store explosive materi- als such as aerosol cans with flammable materials inside the product.

• Do not place cans containing fluids over the product an open state. Splashing of water on an electrical part may cause an electric shock or a fire.

• Due to risk of breaking, do not store glass containers with li- quid inside in the freezer com- partment.

• This product is not intended for storage and cooling of medicines, blood plasma, laboratory preparations or sim- ilar materials and products that are subject to the Medical Products Directive.

• If the product is used against its intended purpose, it may cause damage to or deteriora- tion of the products stored in- side.

• If your refrigerator is equipped with blue light, do not look at this light with optical devices. Do not stare directly at UV LED light for a long time. Ultraviolet rays may cause eye strain.

• Do not fill the product with more contents than its capa- city. Do not use any proced- ures other than those recom- mended by the manufacturer to speed up defrosting. Injuries or damages may occur if the contents of the refrigerator fall when the door is opened. Sim- ilar problems may also occur when an object is placed over the product.

• Ensure that you have removed any ice or water that may have fallen to the floor to prevent in- juries.

• Change the locations of the racks/bottle racks on the door of your refrigerator only when the racks are empty. Danger of injury!

• Do not place objects that may fall/tip over on the product. These objects may fall while

ELEN / 11 opening or closing the door and cause injuries and/or ma- terial damages.

• Do not hit or exert excessive pressure on glass surfaces. Broken glass may cause injur- ies and/or material damages.

• For products designed to use an air filter inside an access- ible fan cover, the filter must always be in position when the refrigerator is in function.

• Do not block out the fan (if available) with food.

• Damaged gaskets should be replaced as soon as possible.

• Your product may have special compartments (Fresh Food Compartment, Zero Degrees Compartment etc.) Unless oth- erwise stated in the relevant manual of the product, these compartments can be re- moved, and the product can be used with the same perform- ance.

• The cooling system in your product contains R600a refri- gerant. The refrigerant type used in the product is spe- cified in the type label. This gas is flammable. Therefore, be careful not to damage the cooling system and the pipes while operating the product. In case of damage to the pipes;

1. Do not touch the product or

2. Keep the product away from

potential sources of fire that may cause the product to catch fire.

3. Ventilate the area where the

product is placed. Do not use a fan.

4. Contact Authorized Service.

Before disposing of old products that shall not be used any more:

1. Unplug the power cord from

2. Cut the power cable and re-

move it from the appliance together with the plug.

3. Do not remove the racks and

drawers from the product to prevent children from getting inside the appliance.

4. Remove the doors.

5. Store the product so that it

shall not be tipped over.

6. Do not allow children to play

with the scrapped product.

7. If the product is damaged

and you observe gas leak, please stay away from the gas. Gas may cause frostbite if it contacts your skin.

• Do not dispose of the product by throwing it into fire. Risk of explosion.

• If there is a lock available on the product’s door, keep the key out of children's reach.

Safety Please pay attention to the fol- lowing warnings to avoid food spoilage:

• Leaving the doors open for a long time may cause the tem- perature inside the product to rise.

• Regularly clean the accessible drainage systems in contact with food.

• Clean the water tanks that have not been used for 48 hours and mains-fed water systems that have not been used for more than 5 days.

• Store raw meat and fish products in appropriate com- partments within the product. Thus, it does not drip on or come into contact with other foods.

• Two-star freezer compart- ments are used for storing pre- filled foods, making and stor- ing ice and ice cream.

• One, two and three-star com- partments are not appropriate for freezing fresh food.

• If the cooling product has been left empty for a long time, turn off the product, defrost, clean, and dry the product in order to protect the housing of the product.

• After the foods are placed, check if the compartment hatches, and especially the freezer door, are properly closed.

• Use the refrigerator compart- ment for storing fresh foods, and the freezer compartment for storing frozen goods, freez- ing fresh foods and preparing ice cubes.

• Do not store foods without properly sealing them in the re- frigerator and the freezer com- partments, to prevent direct contact with the inner sur- faces.

• Unplug the refrigerator or de- energise the fuse before clean- ing it or starting to perform maintenance.

• Do not pull by the door or door handle if you are going to move the product for cleaning purposes. The door may cause injuries if the handle is pulled too hard.

• Do not place hands, feet or metal objects under or behind your product. Jamming may occur or any sharp edge may cause personal injuries.

• Do not wash the inside or out- side of the product with a pres- sure washer, steam, spray wa- ter or pouring water. Risk of electric shock and fire.

• When cleaning the product, do not use sharp and abrasive tools or household cleaning agents, detergent, gas, gasol- ine, thinner, alcohol, varnish, and similar substances. Use only cleaning and maintenance agents that are not harmful for food inside the product.

• Do not use paper towels, kit- chen sponges or other hard cleaning materials.

• Do not ever use steam or steamed cleaning materials for cleaning the product and thaw- ing the ice inside it. Steam con- tacts the live areas in your re- frigerator and causes short cir- cuit or electric shock.

• Do not use any mechanical tools or any other tools than the recommendations of the manufacturer to speed up the thawing operation.

• Take care to keep water away from the ventilation holes, electronic circuits or lighting of the product. Otherwise, risk of fire or electric shock may oc- cur.

• Use a clean, dry cloth to wipe the dust or foreign material on the tips of the plugs. Do not use a wet or damp piece of cloth to clean the plug. Other- wise, risk of fire or electric shock may occur.

Contact an authorized service when you shall replace the LED / bulb using for lighting.

1.10 Disposal of the Old

Product When disposing of your old product follow the instructions below:

• To prevent children from acci- dentally locking themselves into the product, if there is door lock, disable it.

• Splash of coolant is harmful to the eyes. Do not damage any part of the cooling system while disposing of the product.

• It may be fatal if the com- pressor oil is swallowed or if it penetrates the respiratory tract.

• Cooling system of your product includes R600a gas as specified in the type label. This gas is flammable. Do not dis- pose of the product by throw- ing it into fire. Risk of explo- sion!

• C -Pentane is used as a blow- ing agent in insulation foam and it is a flammable sub- stance. Do not dispose of the product by throwing it into fire. 2 Environmental Instructions

2.1 Compliance with the WEEE Dir-

ective and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collec- tion point for recycling of electrical and electronic devices. To find these collection systems please contact to your local au- thorities or retailer where the product was puchased. Each household performs im- portant role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and hu- man health. Compliance with RoHS Directive The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the do- mestic or other wastes. Take them to the packaging material collection points designated by the local au- thorities. Conformity with standards and test information / Declaration of EC conformity Development, manufacture and sales stages of this product con- form to the safety rules in all relev- ant guidelines of the European Community. 2014/35/EU, 2014/30/

1 Egg holder 2 Adjustable Door Shelf 3 * Small Door Shelf 4 Bottle Shelf 5 Adjustable Stands 6 Freezer Compartment 7 Icebox container 8 Cold Storage Drawer 9 Crisper 10 * Foldable shelf 11 Adjustable Shelf 12 Fan 13 Lighting *Optional: Figures in this user manual are schematic and may not exactly match your product. If your product does not comprise the relevant parts, the information pertains to other models. 4 Installation Read the “Safety Instructions” sec- tion first!

Contact the Authorized Service for the product's installation. To prepare the product for installation, see the information in the user manual and make sure the elec- tric and water utilities are as required. If not, call an electrician and plumber to ar- range the utilities as necessary.

The manufacturer assumes no re- sponsibility for any damages caused by the work carried out by unauthorized persons.

The product’s power cable must be unplugged during installation. Fail- ure to do so may result in death or serious injuries!

If the door span is too narrow for the product to pass, remove the door and turn the product side- ways; if this does not work, contact the authorized service.

• Place the product on a flat surface to avoid vibration.

• Place the product at least 30 cm away from the heater, stove and similar sources of heat and at least 5 cm away from electric ovens.

• Do not expose the product to direct sun- light or keep it in damp environments.

• Do not install the product in environ- ments with temperatures below -5 °C.

• Your product requires adequate air circu- lation to function efficiently. If the product will be placed in an alcove, re- member to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls.

• Check if the rear wall clearance protec- tion component is present at its location (if provided with the product).

• If the component is not available, or if it is lost or fallen, position the product so that at least 5 cm clearance shall be left between the rear surface of the product and the wall of the room. The clearance at the rear is important for efficient oper- ation of the product.

4.2 Electrical Connection

Do not use extension cables or multi sockets in power connection. Damaged power cable must be re- placed by Authorized Service. When placing two coolers in adja- cent position, leave at least 4 cm distance between the two units. Before transport or use, never open the control board cover on the product. Risk of electric shock and fire!

• Our firm will not assume responsibility for any damages due to usage without earthing and without power connection in compliance with national regulations.

• The power cable plug must be easily ac- cessible after installation.

• Do not use multi-group plug with or without extension cable between the wall socket and the refrigerator.

4.3 Adjusting the Legs

If the product is not in balanced position, adjust the front adjustable legs by rotating them to right or left. When doing so, pay attention not to jam your hand between the product and the ground or between the product and the ad- justed leg. Danger of injury!

The side walls of your product are equipped with cooler pipes to enhance the cooling system. High pressure fluid may flow through these surfaces, and cause hot sur- faces on the side walls. This is normal and it does not require servicing. Be careful when you contact these areas.

4.5 Removing the Styrofoam on the

Compressor Styrofoam is placed on the compressor in production in order to increase the trans- port strength of the product. This styro- foam must be removed during the installa- tion of the product. 5 Preparation Read the “Safety Instructions” sec- tion first!

5.1 What To Do For Energy Saving

Connecting the product to elec- tronic energy-saving systems is harmful, as it may damage the product.

• This refrigerating appliance is not inten- ded to be used as a built in appliance.

• Do not keep the refrigerator doors open for long periods.

• Do not place hot food or beverages into the refrigerator.

• Do not overfill the refrigerator; blocking the internal air flow will reduce cooling capacity.

• Since hot and humid air will not directly penetrate into your product when the doors are not opened, your product will optimize itself in conditions sufficient to protect your food. Under these circum- stances, functions and components such as compressor, fan, heater, defrost, light- ing, display and so on will operate ac- cording to the needs by consuming min- imum energy.

• In case that multiple options are present, glass shelves must be placed so that the air outlets at the rear wall are not blocked and preferably, in a way that air outlets remain below the glass shelf. This com- bination may help improving air distribu- tion and energy efficiency.

• Using the below drawer when storing is strongly recommended.

• For optimum performance, Quick Freez- ing can be used (if available), 24 hours prior to placing fresh foods in the freezer.

• In most cases, 24 hours is enough for the Quick Freezing function after fresh foods are placed in the freezer. After some time, Quick Freezing function will deactiv- ate automatically.

• Caution: When freezing a small amount of food, Quick Freezing function can be deactivated after some time to ensure energy saving.

• Depending on the product’s features; de- frosting frozen foods in the cooler com- partment will ensure energy saving and preserve food quality.

• In order to load the maximum quantity of food into the freezer compartment of your refrigerator, the upper drawers should be taken out and the food should be placed onto the wire/glass shelves.

• Food shall be stored using the drawers in the cooler compartment in order to en- sure energy saving and protect food in better conditions.

• Food packages shall not be in direct con- tact with the temperature sensor located in the freezer compartment.

Before using your refrigerator, make sure the necessary preparations are made in line with the instructions in "Safety and Environ- mental Instructions" and "Installation" sec- tions.

• Wait for at least 2 hours before operating the product, to ensure the complete effi- ciency of refrigeration.

• Keep the product running without placing any food inside for 6 hours and do not open the door, unless absolutely neces- sary.

• The temperature change caused by open- ing and closing of the door while using the product may normally lead to con- densation on door/body shelves and glassware placed in the product. A sound will be heard when the compressor is engaged. It is nor- mal for the product to make noise even if the compressor is not run- ning, as fluid and gas may be com- pressed in the cooling system. It is normal for the front edges of the refrigerator to be warm. These areas are designed to warm up in order to prevent condensation. For some models, indicator panel turns off automatically 1 minute after the door closes. It will be re- activated when the door is opened or any button is pressed.

5.3 Climate Class and Definitions

Please refer to the Climate Class on the rat- ing plate of your device. One of the follow- ing information is applicable to your device according to the Climate Class.

• SN: Long Term Temperate Climate: This cooling device is designed for use at am- bient temperatures between 10 °C and 32 °C.

• N: Temperate Climate: This cooling device is designed for use at ambient temperatures between 16°C and 32 °C.

• ST: Subtropical Climate: This cooling device is designed for use at ambient temperatures between 16°C and 38°C.

• T: Tropical Climate: This cooling device is designed for use at ambient temperat- ures between 16°C and 43°C. 6 Operating the Product Read the “Safety Instructions” sec- tion first!

• Do not use any mechanical tools or any other tools than the recommendations of the manufacturer to speed up the defrost operation.

• Do not use parts of your refrigerator such as the door or drawers as a support or a step. This may cause the product to trip over or its components to be damaged.

• The product shall be used for storing food only.

• Turn off the water valve if you will be away from home (e.g. at vacation) and you will not be using the Icematic or the water dispenser for a long period of time. Otherwise, water leaks may occur. Unplugging the Product

• If you are not going to use the product for a long time, unplug the product from the socket.

• Remove the food to prevent odours,

• Wait for the ice to melt, clean the interior and let it dry, leave the doors open to avoid damaging the inner body plastics. 7 Control Panel of the Product

1 Quick Freezing Key 2 Cooler Compartment Temperature Setting Key 3 Error Status Indicator 4 Freezer Compartment Temperature Setting Key 5 Product Switch Off Button 6 Cooler Compartment Off (Vacation) Function Key Read the “Safety Instructions” sec- tion first. Auditory and visual functions on the indic- ator panel will assist you in using the refri- gerator. *Optional: Shown functions are optional, there may be differences of shape and loc- ation in functions found on your appliance’s indicator panel. 1.Quick Freezing Key When the quick freezing key is pressed the quick freezing symbol shall be illuminated and the quick freezing function shall be ac- tivated. The freezer compartment temper- ature is set to -27 °C. Press the key again to cancel the function. The quick freezing function shall be automatically cancelled after a while. To freeze a large amount of fresh food, press the quick freezing key be- fore placing the food in the freezer com- partment.

2. Cooler Compartment Temperature

Setting Key Allows setting of temperature for cooler compartment. Pressing the key will enable the cooler compartment temperature to be set at 8,6,4,2 °C.

3. Error Condition Indicator

This indicator is enabled when the refriger- ator is not cooling sufficiently or when a sensor error occurs. The temperature indic- ators of the freezer and the refrigerator flash in certain combinations. This notifies the service about the error that has oc- curred. If you put hot food in the freezer compartment or leave the door open for a long time, the exclamation mark may light up for a while. This is not a fault, this warn- ing will be removed when the food is cooled down or when any key is pressed.

4. Freezer Compartment Temperature

Setting Key Temperature setting is made for freezer compartment. The freezer compartment temperature can be set to -18,-20,-22,-24 °C by pressing the button. 5.Product Switch Off Button When this button is pressed for 3 seconds, the device switches to the off state. In this state, the refrigerator does not perform cooling; when the button is pressed again for 3 seconds, the refrigerator starts its nor- mal operation.

6. Cooler Compartment Off (Vacation)

Function Key To activate the holiday function, press the button for 3 sec. The holiday mode is activ- ated and the holiday icon ( ) lights up. All icons on the cooler compartment temperat- ure indicator turn off and the cooler com- partment does not perform active cooling. When this function is activated, you are ad- vised against storing food in the refrigerat- ing compartment. The other compartments continue to cool according to their set tem- perature. Press the key for 3 seconds again to cancel this function. WARNING The temperature can be set between 1-8°C for the chiller com- partment and between -24 and -15°C for the freezer compartment. Adjustable temperature values may vary provided that they are within these ranges according to product specifications. 8 Use of Your Appliance

8.1 Storing Food in the Cooler Compartment

Storing Food in the Cooler Compart- ment

• Compartment temperatures rise promin- ently if compartment door is opened and closed frequently and kept open for a long time, this can reduce the life span of the food and cause the food to spoil.

• In order not to cause odour and taste changes, the food should be stored in the closed containers.

• Do not store too much food in your refri- gerator. To achieve a better and homo- geneous cooling, place the food separ- ately in a way that cold air can wander through them.

• Provide air flow by leaving a space between the food and internal wall. If you lean the food against the rear wall, the food may freeze.

• Bring cooked hot meals to the room tem- perature before placing them in the refri- gerator. Then, you can place the tepid meal in the lower shelves of your refriger- ator. Do not place the tepid meals close to the foods which may easily spoil.

• Especially pay attention not to mix the foods sold as frozen with the fresh foods.

• Defrost your frozen food in the fresh food compartment. Thereby, you can cool fresh food compartment by using frozen food and save energy.

• Storing unripe tropical fruits (mango, melon varieties, papaya, banana, pine- apple) in the refrigerator may speed up the ripening process. This is not recom- mended because it will cause shorter storage time.

• You should store onions, garlics, gingers and other root vegetables in dark and cold room conditions, not in the refriger- ator.

• If you notice that a food has spoiled in the refrigerator, throw away that food and clean the accessories which have come into contact with it.

• In order to cool the meals like soups and stews, which are cooked in the large pots, quickly, you can put them in the re- frigerator by separating them into their own shallow containers.

• Do not place unpackaged food close to eggs.

• Keep the fruits and vegetables separately and store each variety together (for ex- ample; apples with apples, carrots with carrots).

• Take green vegetables out of the plastic bag and place them in the refrigerator after wrapping them in a paper towel or drying cloth. If you wash this type of food before placing them in the refrigerator, re- member to dry them.

• You can both create a damp environment and provide an air flow by keeping fruits and vegetables, which are prone to dry- ing, in the perforated or unsealed plastic bags.

• Except the cases where extreme circum- stances are available in the environment, if your product (on the recommended set values table) is set to the specified set values, the food keep their freshness for a longer time both in the fresh product compartment and freezer compartment. Store Foods In The Different Places According To Their Properties: Food Location Egg Door Shelf Dairy products (butter, cheese) If available, zero degree (for breakfast food) compart- ment Fruits, vegetables and greenery Fruit-vegetable compartment, crisper or EverFresh+ compartment (if available) Fresh meat, poultry, fish, sausage etc. Cooked foods If available, zero degree (for breakfast food) compart- ment Ready to serve foods, packaged products, canned foods and pickles Top shelves or door shelf Beverages, bottles, spices and snacks Door Shelf Storing Food In The Freezer Compartment

• You can activate Quick Freezing function 4-6 hours before freezing function and perform a faster cooling.

• Bring hot meals to the room temperature before placing them in the freezer com- partment.

• Foods to be frozen must be divided into portions according to a size to be con- sumed, and frozen in separate packages.

• It is recommended to pack the foods be- fore placing them in the freezer.

• In order to prevent expiration of storage time, write the freezing date, time and name of the product on the package ac- cording to the storage times of different foods.

• Consume the foods you have defrosted quickly. Defrosted foods cannot be frozen again unless they are cooked. It is not safe to consume the refrozen fresh foods without cooking after they are de- frosted.

• As you freeze fresh foods, do not bring them in contact with already frozen foods. Otherwise, frozen foods will be de- frosted. Storing The Foods, Which Are Sold Frozen

• Always follow the instructions of the pro- ducer in relation to the time during which you are required to store your foods. Do not excess the time specified in these in- structions!

• In order to protect the quality of the food, keep the time interval between purchas- ing transaction and storing as short as possible.

• Buy frozen food which are stored at –18 °C or lower temperatures.

• Avoid buying foods whose packages are covered with ice etc. This means that the product could be partially defrosted and refrozen. Temperature impacts the qual- ity of the food.

• Do not excess the storing time recom- mended by the food producer. Remove only the food as much as you need from the freezer.

• Except the cases where extreme circum- stances are available in the environment, if your product (on the recommended set values table) is set to the specified set values, the food keep their freshness for a longer time both in the fresh product compartment and freezer compartment.

• If fresh food compartment is set to a lower temperature, fresh fruits and veget- ables may be partially frozen.

• The two-star compartments are suitable for pre-frozen food. Ice cream and ice cubes can be stored.

• Do not freeze food in compartments with one, two and three-stars. Meat and Fish Preparation Longest stor- age time (month) Meat Products Veal Steak By cutting them 2 cm thick and placing foil between them or wrapping tightly with stretch 6-8 Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch 6-8 Cubes In small pieces 6-8 Schnitzel, chops By placing foil between cut slices or wrapping individu- ally with stretch 6-8 Mutton Chops By placing foil between meat pieces or wrapping indi- vidually with stretch 4-8 Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch 4-8 Cubes By packing the shredded meats in a refrigerator bag or wrapping them tightly with stretch 4-8 Beef Roast By packing the pieces of meat in a refrigerator bag or wrapping them tightly with stretch 8-12 Steak By cutting them 2 cm thick and placing foil between them or wrapping tightly with stretch 8-12 Cubes In small pieces 8-12 Boiled meat By packaging in small pieces in a refrigerator bag 8-12 Mince Without seasoning, in flat bags 1-3 Offal (piece) In pieces 1-3 Fermented sausage - Salami It should be packaged even if it has casing. 1-3 Ham By placing foil between cut slices 2-3 Poultry and hunting an- imals Chicken and Turkey By wrapping in foil 4-6 Goose By wrapping in foil (portions should not exceed 2.5 kg) 4-6 Duck By wrapping in foil (portions should not exceed 2.5 kg) 4-6 Deer, Rabbit, Roe Deer By wrapping in foil (portions should not exceed 2.5 kg, and their bones should be separated) 6-8

ELEN / 23 Meat and Fish Preparation Longest stor- age time (month) Fish and sea- food Freshwater fish (Trout, Carp, Crane, Catfish) After thoroughly cleaning the inside and scales, it should be washed and dried, and the tail and head parts should be cut when necessary.

Lean fish (Sea bass, Tur- bot, Sole) 4-6 Fatty fish (Bonito, Mack- erel, Bluefish, Red Mullet, Anchovy) 2-4 Shellfish Cleaned and in bags 4-6 Caviar In its packaging, in an aluminium or plastic container 2-3 "The storage times specified in the table are based on the storage temperature of -18°C. " Fruits and Vegetables Preparation Longest storage time (month) String bean and Pole bean By shock boiling for 3 minutes after washing and cutting into small pieces 10-13 Green pea By shock boiling for 2 minutes after shelling and washing 10-12 Cabbage By shock boiling for 1-2 minute(s) after cleaning 6-8 Carrot By shock boiling for 3-4 minutes after cleaning and cutting into slices

Pepper By boiling for 2-3 minutes after cutting the stem, dividing into two and separating the seeds 8-10 Spinach By shock boiling for 2 minutes after washing and cleaning 6-9 Leek By shock boiling for 5 minutes after chopping 6-8 Cauliflower By shock boiling in a little lemon water for 3-5 minutes after separ- ating the leaves, cutting the core into pieces 10-12 Eggplant By shock boiling for 4 minutes after washing and cutting into 2cm pieces 10-12 Squash By shock boiling for 2-3 minutes after washing and cutting into 2cm pieces 8-10 Mushroom By lightly sauteing in oil and squeezing lemon on it 2-3 Corn By cleaning and packing in cob or granular 12 Apple and Pear By shock boiling for 2-3 minutes after peeling and slicing 8-10 Apricot and Peach Divide in half and extract the seeds 4-6 Strawberry and Raspberry By washing and shelling 8-12 Baked fruit By adding 10% sugar in the container 12 Plum, Cherry, Sour Cherry By washing and shelling the stalks 8-12 "The storage times specified in the table are based on the storage temperature of -18°C. "

ELEN / 24 Dairy Products Preparation Longest Storage Time (Month) Storage Conditions Cheese (except feta cheese) By placing foil thereb- etween, in slices 6-8 It can be left in its original pack- aging for short term storage. For long-term storage it should also be wrapped in aluminium or plastic foil. Butter, margarine In its own packaging 6 In its own packaging or in plastic containers "The storage times specified in the table are based on the storage temperature of -18°C. " "The amount of fresh food that can be frozen for a certain period of time is spe- cified on the type label.” Freezer Compartment Setting Cooler Compartment Setting Remarks -22°C 2°C This is the default, recommended set- ting. This setting is recommended if ambient temperature is below 30°C. -22 or -24 °C 4°C These settings are recommended for ambient temperatures exceeding 30°C. Quick Freeze 4°C Use when you want to freeze your food in a short time. When the pro- cess ends, the product’s settings will return to previous position. -18°C or colder 2°C Use these settings if you believe the cooler compartment is not cold enough due to ambient temperature or frequently opening the door. Quick Freezing

1. Activate the quick freezing function 24

hours before placing your fresh foods.

2. After 24 hours after pressing the but-

ton, place your food that you want to freeze on the second shelf with higher freezing capacity.

3. Once the quick freezing function is ac-

tivated, it is automatically cancelled after a period of time. Freezer Details As per the IEC 62552 standards, the freezer must have the capacity to freeze 4,5 kg of food items at -18°C or lower temperatures at 25°C room temperature in 24 hours for each 100 litres of freezer compartment volume. Food products can only be preserved for extended periods at or below temperature of -18 °C. You can keep the foods fresh for months (in freezer at or below temperatures of -18 °C). The food products to be frozen must not contact the already-frozen food inside to avoid partial defrosting. Boil the vegetables and filter the water to extend the frozen storage time. Place the food in air-tight packages after filtering and place in the freezer. Bananas, tomatoes, lettuce, celery, boiled eggs, potatoes and similar food items should not be frozen. In case these foods are frozen, only nutri- tional values and eating qualities will be negatively affected. A rotting that would threaten human health is not in question. Placing The Food Freezer compartment shelves:Different frozen foods like meat, fish, ice cream, ve- getables etc. Cooler compartment shelves:Food items inside pots, capped plate and capped cases, eggs (in closed case)

ELEN / 25 Cooler compartment door shelves:Small and packaged food or beverages Crisper:Vegetables and fruits Fresh food compartment:Delicatessen (breakfast food, meat products to be con- sumed in short time)

The refrigerator's crisper is designed to keep vegetables fresh by preserving their humidity. For this purpose, the overall cold air circulation is intensified in the crisper. Keep fruits and vegetables in this compart- ment. Keep the green-leaved vegetables and fruits separately to prolong their life.

8.3 Dairy Products Cold Storage

Area Cold Storage Drawer The Cold Storage Drawer can reach lower temperatures in the cooler compartment. Use this drawer for delicatessen products (salami, sausage, etc.) and dairy products that require colder storage conditions, or for meat, chicken or fish to be consumed quickly. It is not suitable to store fruits and vegetables in this drawer.

8.4 The ice storage area

Ice Container Ice bucket allows you take ice easily from the refrigerator. Using the ice bucket

1. Take the ice bucket out of the freezer

2. Fill the ice bucket with water.

3. Place the ice bucket into the freezer

compartment. The ice will be ready after approximately two hours.

4. Take the ice bucket from the freezer

compartment and bend in slightly over the holder that you are going to serve. Ice will easily pour into the serving holder.

8.5 Reversing the Door Opening

Side The door opening side of your refrigerator can be reversed according to the place you put it. For the products that include elec- tronical display when you need this, you should definitely call the nearest Author- ized Service.

The door open alert system of your refriger- ator may differ depending on the model. Version 1; If the door of the product remains open for a certain time (between 60 s and 120 s), an audio warning signal sounds; depending on the product model, a visual warning signal (light flash) can also be displayed. If you close the door of the device or press a but- ton on the screen of the device, if any, the warning sound will stop. Version 2; If the door of the device remains open for a certain period of time (between 60 s and 120 s), the door open alert is sounded. The door open alert is sounded gradually. First, an audible warning starts to sound. After 4 minutes, if the door is still not closed, a visual warning (lighting flash) is activated. The door open alert will be delayed for a certain period of time (between 60 s and 120 s) when any key on the product screen, if any, is pressed. Then the process will start again. When the device door is closed, the door open alert will be cancelled.

Call the Authorized Service when the Bulb/ LED used for lighting in your refrigerator will be replaced. Lamp(s) used in this appliance cannot be used for house lighting. Intended use of this lamp is to help the user place food into the refrigerator / freezer safely and com- fortably.

It is an air distribution system that provides homogeneous temperature distribution. With the air circulation, the homogeneous temperature distribution is ensured in the fresh food storage compartment, and the temperature fluctuations are kept at low levels. No direct air blowing over the food is realized and this helps to reduce moisture loss. It preserves the freshness of the food stored in the fresh food compartment of the refrigerator. In this way, your food is stored at more stable temperatures and the contact with air is reduced. The drying and shrinking of foods by losing moisture is prevented and freshness is provided for a longer time.

You can place the egg holder on the door or body shelf you wish. If the egg holder is to be placed on the body shelf, we recommend you to choose colder lower shelves. Never place the egg holder on the freezer compartment 9 Maintenance and Cleaning

Before cleaning your refrigerator, unplug it or de-energize the fuse to which it is connected. Do not place your hands, feet or metal ob- jects under the refrigerator or between the refrigerator and the floor for whatsoever reason. Jamming may occur or any sharp edge may cause personal injuries.

• Do not use sharp or abrasive tools to clean the product. Do not use materials such as household cleaning agents, soap, detergents, gas, gasoline, thinner, alcohol, wax, etc.

• The dust shall be removed from the vent- ilation grill on the rear of the product at least once a year (without opening the cover). Clean the product with a dry cloth.

• Take care to keep water away from the lamp's cover and other electrical parts.

• Clean the door with a damp cloth. Re- move all contents to remove the door and body racks. Remove the door racks by lifting them upwards. Clean and dry the shelves, then attach back in place by sliding from above.

• Do not use chlorinated water or cleaning products on the exterior surface and chrome coated parts of the product. Chlorine will cause rust on such metallic surfaces.

• Do not use sharp and abrasive tools, soap, house cleaning materials, deter- gents, gas, gasoline, varnish and similar substances to prevent deformation of and removal of prints on the plastic part. Use warm water and a soft cloth for cleaning, and then dry it.

• On the products without a No-Frost fea- ture, water droplets and icing up to a thickness of a finger may occur on the rear wall of the cooler compartment. Do not clean, and never apply oils or similar materials.

• Use only a mildly dampened micro-fibre cloth to clean the external surface of the product. Sponges and other types of cleaning clothes may cause scratches.

• To clean all removable components dur- ing the cleaning of the interior surface of the product, wash these components with a mild solution consisting of soap, water and carbonate. Wash and dry thor- oughly. Prevent contact of water with illu- mination components and the control panel. ATTENTION: Do not use vinegar, rubbing alcohol or other alcohol based cleaning agents on any interior surface. Stainless Steel External Surfaces Use a non-abrasive stainless steel cleaning agent and apply it with a soft lint-free cloth. To polish, gently wipe the surface with a mi- cro-fibre cloth dampened with water and use dry polishing chamois. Always follow the veins of the stainless steel. Preventing Odours The product is manufactured free of any odorous materials. However, inappropri- ately storing food and improper cleaning of internal surfaces may lead to odours.

• To avoid this, clean the inside with car- bonated water every 15 days.

• Keep the foods in sealed holders, as mi- cro-organisms arising from foods kept in unsealed containers will cause bad odour.

• Do not keep expired and spoilt foods in the refrigerator. Protecting Plastic Surfaces Oil spilled on plastic surfaces may damage the surface and must be cleaned immedi- ately with warm water. 10 Troubleshooting Read the “Safety Instructions” sec- tion first! Check this list before contacting the ser- vice. Doing so will save you time and money. This list includes frequent com- plaints that are not related to faulty work- manship or materials. Certain features mentioned herein may not apply to your product. ATTENTION: If the problem persists after following the instructions in this section, contact your vendor or an Authorized Ser- vice. Do not try to repair the product. The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.

• The fuse connected to the socket power- ing the product or the main fuse is blown. >>> Check the fuse. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL CONTROL and FLEXI ZONE).

• The door is opened too frequently. >>> Take care not to open the product's door too frequently.

• The environment is too humid. >>> Do not install the product in humid environ- ments.

• Foods containing liquids are kept in un- sealed holders. >>> Keep the foods con- taining liquids in sealed holders.

• The product's door is left open. >>> Do not keep the product's door open for long periods.

• The thermostat is set to a very cool tem- perature. >>> Set the thermostat to an ap- propriate temperature. Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The

ELEN / 28 product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.

• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.

• The product is not plugged in. >>> Make sure the power cord is plugged in.

• The temperature setting is incorrect. >>> Select the appropriate temperature set- ting.

• The power is out. >>> The product will continue to operate normally once the power is restored. The refrigerator's operating noise is in- creasing while in use.

• The product's operating performance may vary depending on the ambient tem- perature variations. This is normal and not a malfunction. The refrigerator runs too often or for too long.

• The new product may be larger than the previous one. Larger products will run for longer periods.

• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.

• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

• The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.

• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.

• The product may be set to a temperature that is too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperat- ure.

• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the gasket. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate.

• The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The cooler temperature is very low, but the freezer temperature is adequate.

• The cooler compartment temperature is set to a very low degree. >>> Set the cooler compartment temperature to a higher degree and check again. The food items kept in cooler compart- ment drawers are frozen.

• The cooler compartment temperature is set to a very low degree. >>> Set the cooler compartment temperature to a higher degree and check again. The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperat- ure setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the tem- perature of relevant parts reach the suffi- cient level by changing the temperature of cooler or freezer compartments.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.

• The door may be ajar. >>> Fully close the door.

• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product

ELEN / 29 will take longer to reach the set temperat- ure when recently plugged in or a new food item is placed inside.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. Shaking or noise.

• The surface is not flat or durable >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.

• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

• The product is making noise of liquid flowing, spraying etc.

• The product's operating principles in- volve liquid and gas flows. >>> This is normal and not a malfunction. There is sound of wind blowing coming from the product.

• The product uses a fan for the cooling process. This is normal and not a mal- function. There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.

• The door may be ajar. >>> Fully close the door. There is condensation on the product's exterior or between the doors.

• The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced. The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.

• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.

• The foods were placed in unsealed hold- ers. >>> Keep the foods in sealed hold- ers. Micro-organisms may spread out of unsealed food items and cause bad odour.

• Remove any expired or spoilt foods from the product. The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.

• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.

• The surface is not flat or durable >>> Make sure the surface is flat and suffi- ciently durable to bear the product. The crisper is jammed.

• The food items may be in contact with the upper section of the drawer. >>> Re- organize the food items in the drawer. Temperature on the product surface.

• High temperature may be observed between two doors, on the side panels and on the rear grill area while your product is operated. This is normal and it does not require servicing. Fan continues to operate when the door is opened.

• Fan may continue to operate when the freezer door is open.

WARNING: If the problem persists

after following the instructions in this section, contact your vendor or an Authorized Service. Do not try to repair the product. This is normal.

ELEN / 31 Packaging sorting information Please scan the QR code which places on the outer packaging of the product to find all the information relating to the packaging and how to manage the packaging waste.

Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section). Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered profes- sional repairers in order to avoid safety is- sues. A registered Professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer ac- cording to the methods described in legis- lative acts pursuant to Directive 2009/125/ EC. However, only the service agent (i.e.au- thorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not au- thorized by) shall void the guarantee. Self-Repair Self-repair can be done by the end-user with regard exclusively to the following spare parts:door handles,door hinges, trays, baskets and door gaskets (an updated list is also available as of 1st March 2021). Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the in- structions in the user manual for selfrepair or which are available in . For your safety, unplug the product before attempting any self-repair. Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manu- als for self-repair or which are available in , might give raise to safety issues not attrib- utable to , and will void the warranty of the product. Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or re- gistered professional repairers. On the con- trary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur. By way of example, but not limited to,the following repairs must be addressed to au- thorized professional repairers or re- gistered professional repairers:compressor, cooling circuit, main board,inverter board, display board, etc. The manufacturer/seller cannot be held li- able in any case where end-users do not comply with the above. The spare part availability of the refriger- ator that you purchased is 10 years.During this period, original spare parts will be avail- able to operate the refrigerator properly The minimum duration of guarantee of the refrigerator that you purchased is 24 months. This product is equipped with a lighting source of the "G" energy class. The lighting source in this product shall only be replaced by Professional repairer. See also
