Product Type	Carpet Washer (Carpet Cleaner)
Brand	Tineco
Model	Moda One (CARPET ONE Series)
Rated Voltage	120 V ~ 60 Hz
Rated Current	11 A
Clean Water Tank Capacity (REP)	2 L
Dirty Water Tank Capacity (RES)	1.5 L
Cleaning Modes	AUTO, MAX, DRY, Accessory
Dirt Sensor	iLoop (automatic dirt detection)
Digital Display	Yes (with cleanliness, dryness, Wi-Fi indicators, etc.)
Connectivity	Wi-Fi (Tineco app)
Voice Prompt	Yes (multilingual)
Hose Length	2.5 m
Included Accessories	Cleaning solution, cleaning tool, sponge filter, brush cover scraper, 2-in-1 nozzle
Recommended Maintenance	Clean and dry the RES, filters, brush roll, and cover after each use
Warranty	2 years (limited)
Usage	Household use only
Recommended Water Temperature	Below 60 °C (cold tap water)
Safety Devices	Grounding, automatic shut-off in upright position, float in RES

Frequently Asked Questions - Moda One TINECO

How to start the Moda One device?

Plug in the power cord, tilt the device by pressing the tilt pedal, then press the Power button. The device starts in AUTO mode by default.

What cleaning modes are available?

The modes are: AUTO (automatically adjusts water volume), MAX (maximum volume), DRY (drying) and Accessory (for the hose and 2-in-1 nozzle).

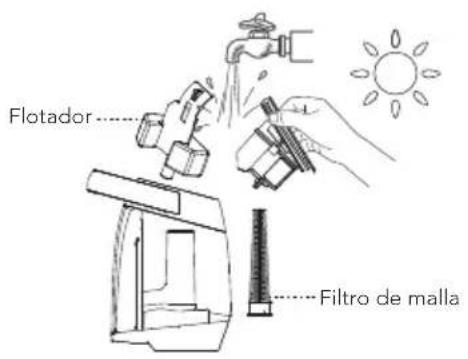

How to clean the dirty water tank?

Press the tilt pedal, remove the dirty water tank by pressing its handle. Remove the cover and mesh filter, empty the dirty water, rinse with clean water and use the cleaning tool to remove debris.

Why is the dirty water tank indicator blinking?

It means the tank is full or incorrectly installed. Empty it or check that it is properly clicked into place.

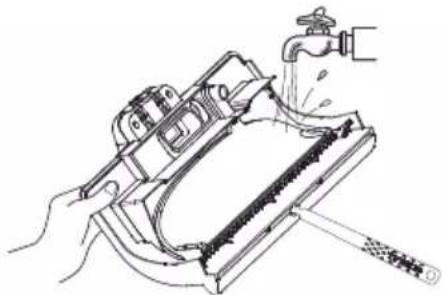

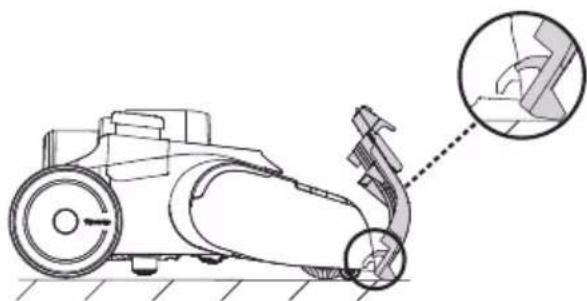

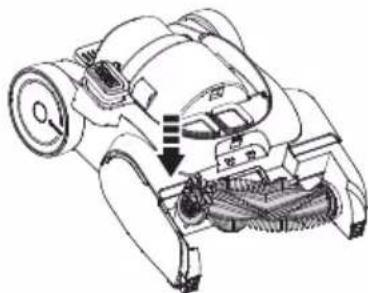

How to maintain the brush roll?

Press the brush roll cover release button, remove the cover, then pull out the roll by squeezing its tab. Remove hair and debris using the cleaning tool, rinse with water and let it dry completely before reinstalling.

Can I use cleaning solutions other than Tineco's?

No, only use the recommended Tineco carpet cleaning and deodorizing solution to avoid damaging the device and ensure safety.

What to do if the device does not turn on?

Check that the power cord is properly plugged in and the outlet is powered. If the problem persists, contact customer service.

How to connect the device to the Tineco app?

Download the Tineco app from the App Store or Google Play, follow the app instructions to connect the device via Wi-Fi. The Wi-Fi indicator lights up solid blue once connected.

What is the warranty for the Moda One device?

A limited 2-year warranty against defects in materials and workmanship, provided household use according to the manual. Motorized accessories purchased separately have a 1-year warranty.

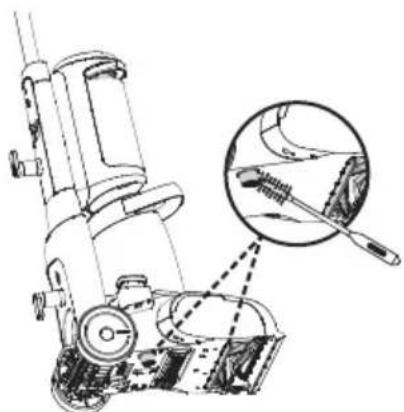

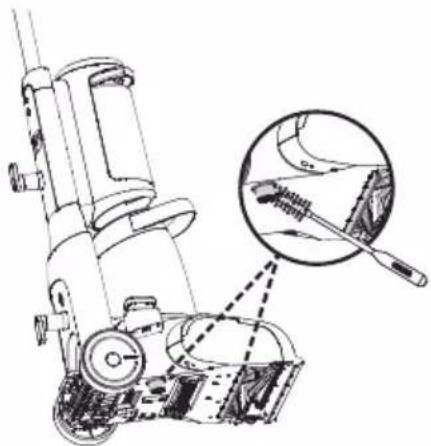

How to clean the dirt sensor (iLoop)?

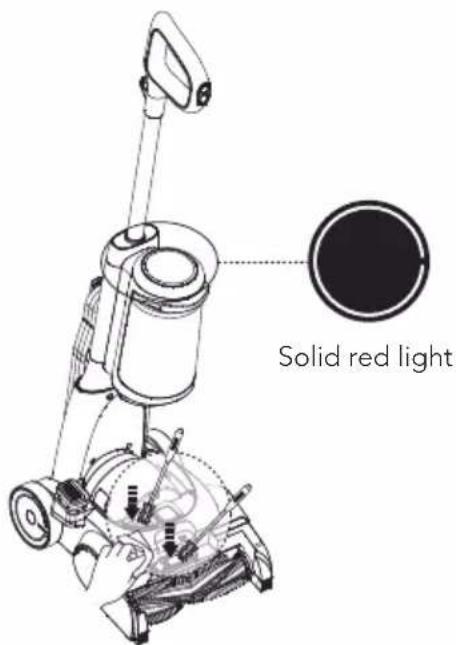

When the LED loop is red, remove the dirty water tank and clean the dirt sensor using a damp cloth or the provided cleaning tool.

USER MANUAL Moda One TINECO

Smart Carpet Cleaner

Instruction Manual

Manual De Uso

Mode D'emploi

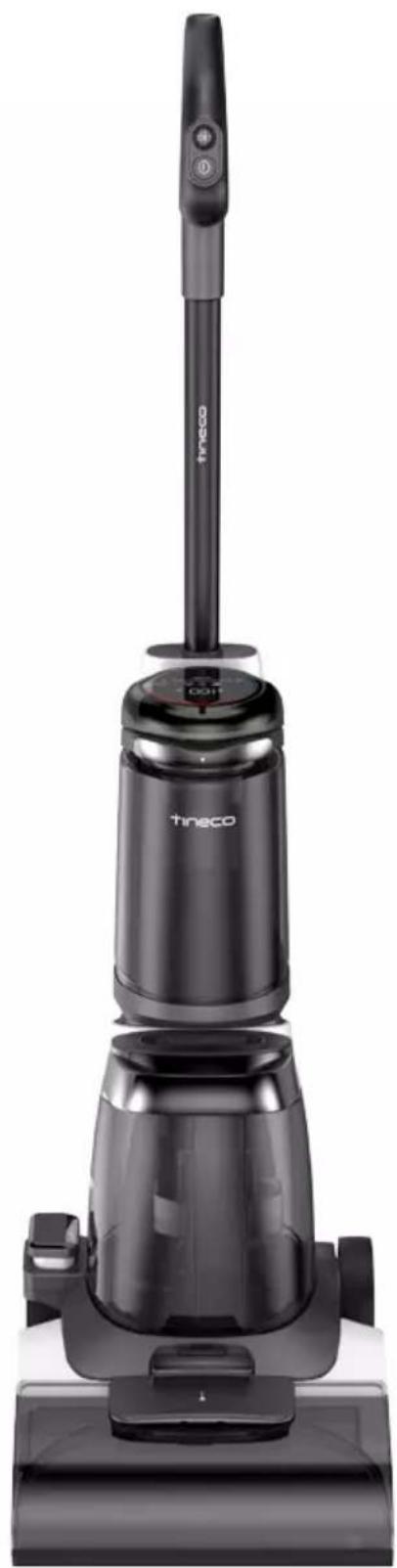

Black Tineco vacuum cleaner with attached circuit breaker (no visible text or symbols on body)

*Actual product may differ from illustration.

CONTENTS

Important Safety Instructions....2

Specifications....7

Overview......8

Accessories....10

Assembly 11

Operation....14

Maintenance 22

Troubleshooting....26

Warranty 27

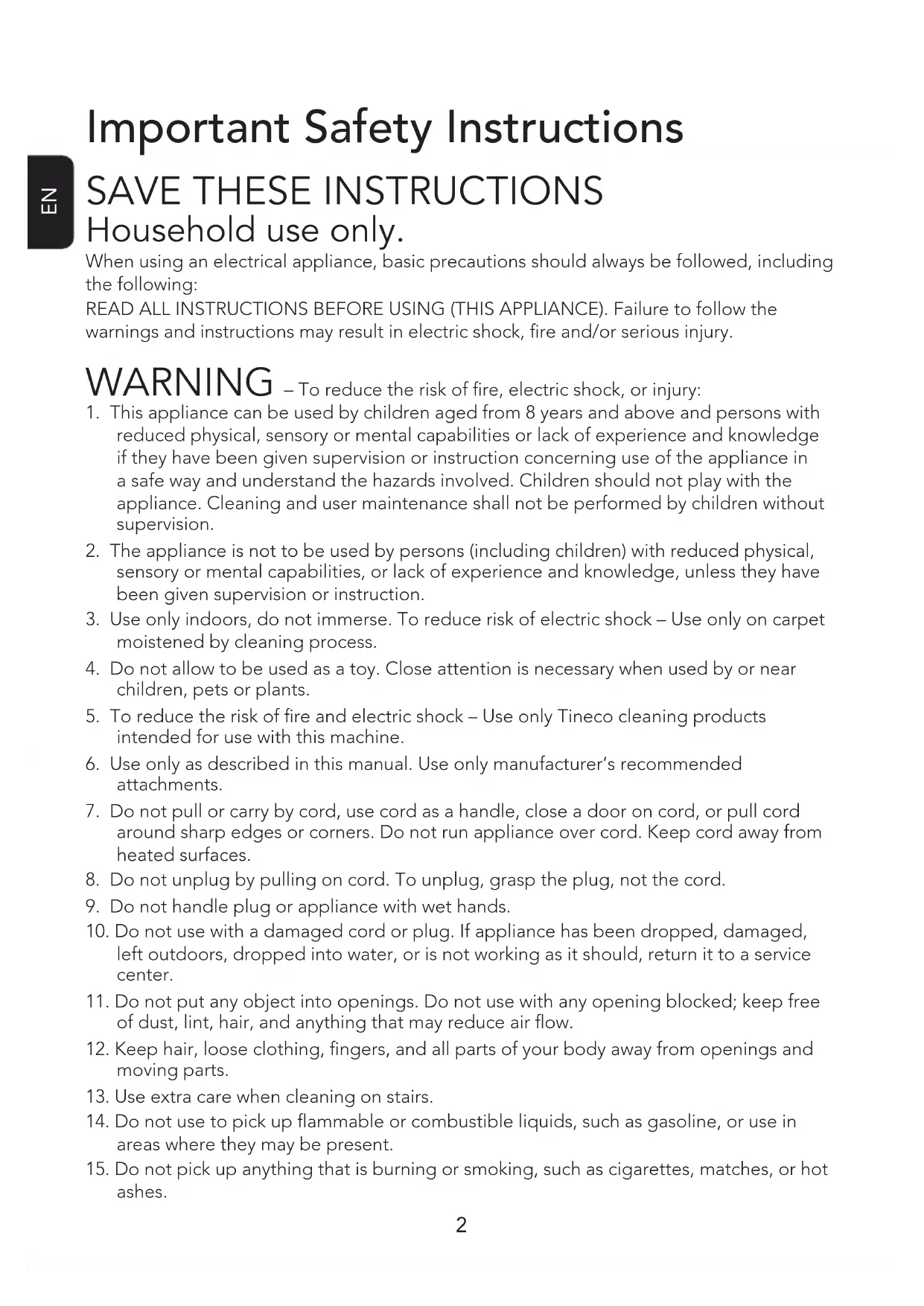

Important Safety Instructions

SAVE THESE INSTRUCTIONS

Household use only.

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING – To reduce the risk of fire, electric shock, or injury:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the

appliance. Cleaning and user maintenance shall not be performed by children without supervision.

1. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

2. Use only indoors, do not immerse. To reduce risk of electric shock – Use only on carpet moistened by cleaning process.

3. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants.

4. To reduce the risk of fire and electric shock – Use only Tineco cleaning products intended for use with this machine.

5. Use only as described in this manual. Use only manufacturer's recommended attachments.

6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center.

10. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

11. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts.

12. Use extra care when cleaning on stairs.

13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

15. Do not use without filter.

16. To reduce the risk of electric shock, always install float before any wet pick-up operation.

17. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

18. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

19. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR SERVICING. UNPLUG BEFORE CONNECTING HOSE.

20. Always turn off this appliance before connecting or disconnecting the motorized nozzle.

21. Turn off all controls before unplugging.

22. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

23. Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powder, or ashes.

24. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper clips, or pins.

25. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner, strong acids, or strong alkali.

26. Stop using immediately if the appliance is overheating, making unusual noises, producing unusual odors, performing low suction, or leaking electricity.

27. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.

28. Always clean the Dirty Water Tank after each use to avoid potential blockage, which may lead to low suction power, motor overheating, or reduce the service life of the appliance.

29. Do not expose to rain.

30. Store appropriately indoors in a dry place after use.

31. Do not place or submerge appliance in standing water or try to clean flooded areas.

32. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

33. A hazard may occur if the appliance runs over the supply cord.

34. Connect to a properly grounded outlet only. See Grounding Instructions.

35. To reduce the risk of fire and electric shock due to internal component damage, use only Tineco cleaning fluid/solution: Carpet Deodorizing & Cleaning Solution intended for use with this appliance. See the Cleaning Fluid/Solution section of this manual.

36. Do not turn over nozzle, or touch the bottom surface of the nozzle when using the dry function.

37. Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.

38. Do not store cleaner with solution in Clean Water Solution Tank or dirty water in Dirty Water Tank. Mineral deposits and mildew can form which will affect the performance of your carpet cleaner.

Range of Usage

1. The Carpet washer is to be used on carpets, such as level loop, etc.
2. Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, first test a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.
3. Important: Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.
4. Important! Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. We do not recommend deep cleaning delicate, silk, wool, antique or area rugs without a manufacturer's tag.
5. When cleaning area rugs, place the rug on a sealed surface to test for colorfastness in an inconspicuous area. Your cleaner should not be used on unsealed surfaces.
6. Do not use on rugs or carpet when dry cleaning is recommended.
7. For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance
8. Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.
9. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation.
10. Do not use to pick up flammable or combustible liquids, ultrafine particles, sharp objects, hazardous material, chemicals or anything that is burning or smoking, as described above.

About Cleaning Fluid/Solution

1. A large amount of cleaning solution entering into the motor may cause damage to the appliance. Don't shake the machine violently.
2. Add solution as instructed in the Operation section. We recommend using the provided cleaning solution.
3. Keep out of the reach of children. Avoid contact with eyes and skin, otherwise, rinse thoroughly with water. If irritation persist, seek medical advice. If product is swallowed seek medical advice.
4. Dirty water and solution disposal should comply with local environmental regulations.
5. WARNING: To Reduce the Risk of Fire and Electric Shock due to internal component damage, use only TINECO CARPET DEODORIZING & CLEANING SOLUTION intended for use with the appliance.

About the Appliance

1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position and unplug before picking up or carrying the appliance. Do not lay flat or lean the appliance so as to prevent dirty water from entering into the motor.
4. Always install the Dirty Water Tank and Clean Water Tank properly before use.
5. Do not allow the appliance to get wet to avoid risk of fire or injury caused by a short circuit.

Grounding Instructions

1. This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
2. WARNING – Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
3. This appliance is for use on a nominal 120-V circuit and has a grounding attachment plug that looks like the plug illustrated in sketch A in Figure 20. Make sure that the appliance is connected to an outlet having the same configuration as the plug. No adaptor should be used with this appliance.

FCC Supplier's Declaration of Conformity

TINECO / CARPET ONE SERIES

This appliance complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This appliance may not cause harmful interference, and (2) this appliance must accept any interference received, including interference that may cause undesired operation.

TINECO INTELLIGENT, INC.

1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA

WWW.TINECO.COM

1-855-292-8864

Changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Note: This equipment has been tested and find it to comply with the limits for a Class B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Note

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment, such modifications could void the user's authority to operate this equipment.

IC Note

This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s).

Operation is subject to the following two conditions:

(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause undesired operation of the appliance.
- This Class B digital apparatus complies with Canadian ICES-003.
- This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Symbols:

1	Power On/Off
	AUTO/MAX/DRY Mode

Specifications

Product CARPET ONE SERIES
Voltage 120V, 60Hz
Current 11A
CWT Capacity 2L
DWT Capacity 1.5L

- All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

Disposal

Accessories and packaging should be sorted for environmental friendly recycling. Do not put them into fire, water or soil.

Overview

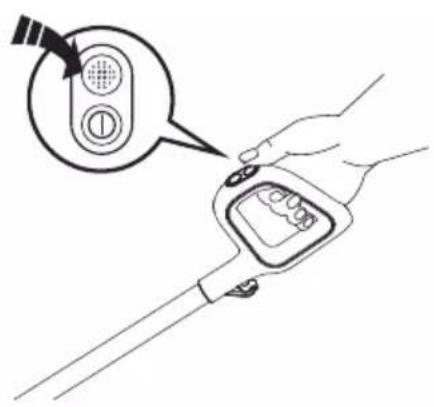

A. WiFi/Mute/Language Switch Button
B. Back Carry Handle
C. Cord Wrap
D. Dirty Water Tank Release Pedal
E. Recline Pedal
F. AUTO/MAX/DRY Mode
G. Power On/Off
H. Tube

I. Digital Display

J. Clean Water Tank Handle

K. Clean Water Tank (CWT)

L. Dirty Water Tank Handle

M. Dirty Water Tank (DWT)
N. Brush Roller Cover Release Button
O. Hose Connection Port Cover
P. Brush Roller Cover
Q. Humidity Sensor
R. Carpet Deodorizing & Cleaning Solution
S. Cleaning Tool
T. 2 in 1 Nozzle
U. Sponge Filter
V. Brush Cover Scraper
W. Accessory Hose

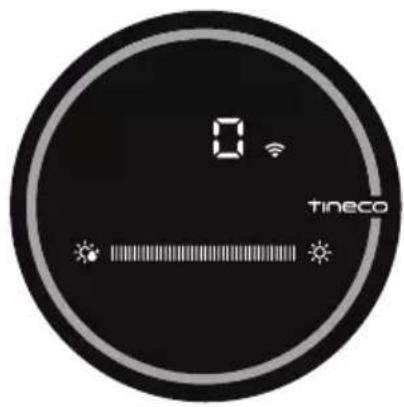

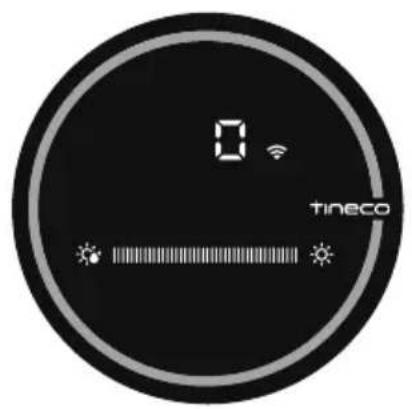

Digital Display

Z

A. Accessory Hose Icon
B. DWT Full or Blocked
C. Dirt Monitoring Loop
(Blue to red according to the dirt amount)
D. AUTO Mode
E. CWT Empty

F. Brush Roller Tangled Indicator

G. Dry Degree Indicator

H. Tineco Logo

I. WiFi Indicator

J. Water Spray Volume Indicator

Accessories

Z

Note:

Accessories may vary between markets. If you require more accessories, please go to www.tineco.com or store.tineco.com.

Carpet Deodorizing & Cleaning Solution

Removes dirt, grime, grease and tough stains from most types of carpets.

Always use Tineco solution in your appliance.

Add two bottle caps of solution to each full tank of clean water.

Cleaning Tool

A full brush to clean the DWT, brush chamber and opening.

The tool also has a bristled end to remove dirt and mud on the roller and DWT.

2 in 1 Nozzel

Remove tough stains on the carpet.

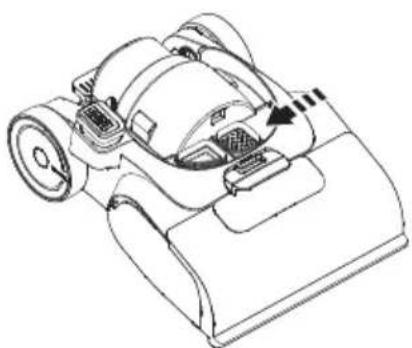

Sponge Filter

Sponge filter can block large particles and debris, ensure the appliance's durability.

* Please install the Sponge filter before use, or it may lead to weak suction.

Brush Cover Scraper

A scraper to clean the brush cover gap.

Pure diagram of a coiled cable with two connectors (no text or symbols)

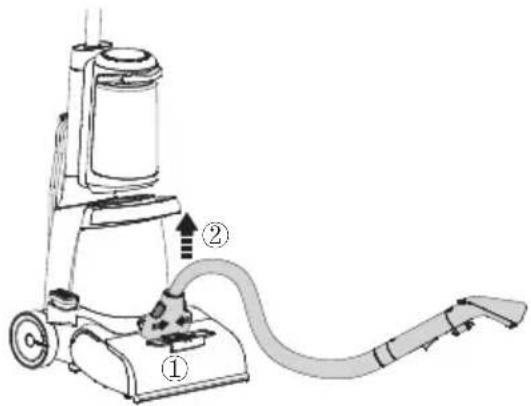

Accessory Hose

A 2.5-meter hose to connect the appliance and accessory brushes.

Assembly

How to Assemble/Disassemble

To assemble the handle, insert it into the appliance until you hear a click.

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

In the event that the handle need to be disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.

Line drawing of a vacuum cleaner with attached mechanical components (no text or symbols)

Wrap the power cord around the cord hooks for convenient storage.

Clean Water Tank

Diagram of a mechanical device with a cylindrical component and a curved handle, showing an arrow indicating direction (no text or symbols present)

Press the CWT handle to remove it. Open the tank cap, add two bottle caps of

solution to the CWT then fill with tap water to the Max line and tightly close the cap.

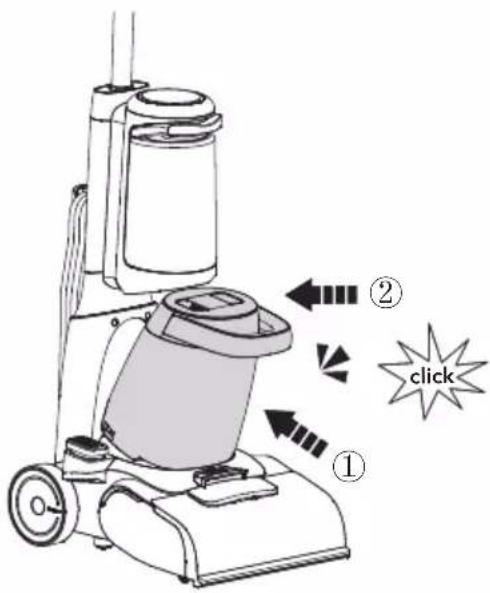

Install the Clean Water Tank into the appliance. You should hear a "Click" if done correctly.

Note:

Only use water under 140°F/60°C. DO NOT USE HOT WATER.

Dirty Water Tank

Install the Dirty Water Tank into the appliance. You should hear a "Click" if done correctly.

Accessory Hose & 2 in 1 Nozzle

Diagram showing a funnel-shaped object with internal patterns and a separate view of a grid-like structure (no text or symbols)

Choose suitable brush head according to the usage scenario.

Line drawing of a vacuum cleaner with a hose and valve, showing mechanical components without any text or symbols.

Insert the hose end into the port. You should hear two "Clicks" if done correctly.

Diagram of a mechanical device with a lever and handle, showing no text or symbols

Pull it up to uncover the accessory connection port.

Operation

Preparing for Use (Appliance)

Line drawing of a vacuum cleaner with a mounted sensor and power outlet (no text or symbols)

Unwrap the power cord and plug into an electrical outlet.

Step on the recline pedal to recline the unit for cleaning position.

Tips:

• Press the button to turn on/off the voice prompt.
• Press the button twice to switch languages. (More voice languages will be added, please refer to the actual product for now.)

Press the button and the appliance will start in AUTO mode by default. Press it again to turn off the appliance. Switch between AUTO, MAX and DRY mode by pressing the button.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Stop Working

In AUTO/MAX/DRY mode, the appliance will stop working when put uprightly and start running again when you recline.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Do not grip DWT handle to lift or move the appliance.

Grip the back carry handle to lift or move appliance. Empty CWT and DWT after each use.

Note:

• Pretreat spots and heavy traffic areas with Tineco Pretreat Cleaning Solutions to achieve better cleaning effect. Follow Directions on bottle.
  • The carpet cleaner differs from the traditional vacuum cleaner.
  • In all modes, it blows hot air, whose temperature is 158-176°F (70-80°C).

* Appropriate temperature is conducive to dissolve the dirt and helps surfactant in the solution to decompose the dirt.

• In AUTO/MAX mode, it sprays water when moving forward and stops spraying when moving backward.
• Take a spot test on a small and marginal area of the carpet for colorfastness. Gently rub surface with a damp white cloth. Then wait ten minutes and check for color removal or bleed with a white paper towel.
- During use, don't keep the appliance at a resting position for a long time.
- Important: Keep the foot of the deep cleaner perpendicular to the rug's edge with each cleaning pass to prevent damage.
- Important! Please check manufacturer's tag before cleaning area rugs for any specialized cleaning instructions. We do not recommend deep cleaning delicate, silk, wool, antique or area rugs without a manufacturer's tag.
- Some Loop Berber carpets, Natural Fiber (including silk and wool), and Soft Fiber carpets can fuzz with wear. Some vacuums & carpet cleaners can worsen this carpet wear. If cleaning on Berber, Natural Fiber, or Soft Fiber carpeting, first test a small hidden area of carpet by running the carpet washer over it. If no fuzzing or overwetting occurs, continue cleaning. Avoid overwetting Berber carpets. If you have any questions or concerns, consult with your carpet manufacturer on deep cleaning recommendations.
- Do not use on rugs or carpet when dry cleaning is recommended.
- For upholstery, check cleaning code - Use your Tineco Carpet Washer only if the upholstery fabric is marked with a "W" (for "wet" clean) or "S/W" (for "solvent/dry" or "wet" clean). Do not clean fabric marked "S" ("solvent/dry" clean only). If your upholstery does not have a code, seek professional assistance
- Test for colorfastness - Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with white paper towel or cloth. If surface has more than one color, check all colors.

Preparing for Use (Accessory Hose & 2 in 1 Nozzle)

Line drawing of a vacuum cleaner with a circular indicator light and handle, no text or symbols present

Attach the accessory hose, stand the appliance upright and ensure that it is power on (if not, press the 📁 button), the appliance will enter in ACCESSORY Mode, the appliance will stop working when you recline.

Simple line drawing of a coiled tube with two connectors (no text or symbols)

Please Rinse and let dry after use. then store the accessory in the bag afterwards.

Note:

Do not vacuum foamed liquid. If additional cleaning is necessary, wait until the upholstery is completely dry before using the tool again to achieve better cleaning effect.

Cleaning Mode Selection

AUTO Mode

• In AUTO mode, the iLoop sensor automatically detects how dirty the carpet is and applies the appropriate volume of water spray.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.

MAX Mode

• In AUTO mode, press the 🎨 button to enter MAX mode. The AUTO indicator on the display will turn off.
• The iLoop only displays the dirty amount, and the spray volume keeps at the maximum of "100".
• In MAX mode, the appliance will apply max spray volume.

DRY Mode

Wet

Changes with the degree of humidity

Dry

• In MAX mode, press the 🎨 button to enter DRY mode. In DRY mode, the dry degree indicator will change with the humidity detected by the humidity sensor.
• Press the 🎨 button to switch to AUTO mode.

ACCESSORY Mode

• Ensure the appliance is power on (if not, press the Ⓐ button), the appliance will enter into ACCESSORY mode. Press and hold the button on the 2 in 1 Nozzle to spray water, and release the button to stop.
• In ACCESSORY mode, the accessory icon is illuminated and the spray volume keeps at the maximum of "100".
• Stand the appliance upright, remove the accessory hose, the appliance will enter in AUTO mode.

Note:

Keep sharp objects away from the digital display screen to avoid scratches and scrapes.

Indicator

When in Use

MAX mode

Spray volume indicator: solid "100".

Appliance enters standby mode when stand upright in Max mode.

AUTO mode

Spray volume indicator: changes.

Appliance enters standby mode when stand upright in Auto mode.

DRY mode

Spray volume indicator: Solid "0", Dry Degree Indicator illuminated.

ACCESSORY mode

Spray volume indicator: solid "100".

Accessory icon: illuminated.

Appliance enters standby mode when recline in Accessory mode.

Accessory icon: blinks.

Spray volume indicator: solid "0".

See Troubleshotting.

AUTO icon: blinks.

Spray volume indicator: solid "0".

See Troubleshotting.

Solid red light: dirt sensor malfunction or blocked.

Indicator blinking: CWT is empty.

Indicator blinking: DWT is full or not installed, or the channel has a blockage.

Indicator blinking: brush roller cover is not installed or brush roller has a blockage.

Illuminated: WiFi has successfully connected.

Blinking: WiFi is connecting.

Off: WiFi is not connected, please connect to the network.

Dry degree indicator blinks, humidity sensor malfunction.

App

All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site.

Note:

The default setting for voice prompt is English, you can set other languages via App.

Voice Prompt (Contents may vary, please in kind prevail.)

Status Reminder
WiFi network connected Network connected
Voice prompts on Voice prompts on
Voice prompts disabled Voice prompts disabled
AUTO mode by default AUTO mode
Switch to MAX mode MAX mode
Switch to DRY mode DRY mode
Switch to Accessory mode Accessory mode
Unable to use Accessory mode	Stand the appliance upright to operate Accessory mode
Accessory installed, start cleaning Accessory installed, start cleaning
Accessory removed, start AUTO mode Accessory removed, now in AUTO mode
Clean Water Tank is empty	Pleasde add clean water or solution to clean water tank
Dirt sensor malfunction or blocked Clean the channel under the dirty water tank
Dirty Water Tank is full Dirty water tank full, please empty
Dirty Water Tank not installed correctly Please check the dirty water tank
Brush roller is tangled Please clean the brush roller
Brush roller cover not installed	Please install the brush roller cover
In Accessory mode, switch to other modes	Remove Accessory before using other modes
Operate Accessory mode	Stand the appliance upright to operate Accessory mode
Stand the device upright	Stand the device upright
Shutting down	Shutting down
Power is off	Power off, please clean the dirty water tank
Restore factory settings	Factory settings restored

Maintenance

Z

Note:

• For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover, 2 in 1 nozzle completely after each use.
• Please make sure each part is installed correctly or the appliance may not work properly.
• After maintenance, place the appliance vertically. Do not expose the appliance to direct sunlight, and store it indoors in a dry place.

Main Body

To reduce the risk of injury, switch off before performing maintenance.

Line drawing of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Use a cloth to clean the surface with a neutral detergent. The cloth should be dry to prevent water from entering the appliance.

When LED loop illuminates red, remove Dirty Water Tank, clean the dirt sensor with a damp cloth or the cleaning tool.

Dirty Water Tank

• When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt.
• Step on the recline pedal and press the DWT handle to remove it.
• Pull up the tank lid and mesh filter to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT & tank lid & floater & mesh filter and place back into the appliance.

Note:

Check if the floater is in good condition and press it to the bottom.

Sponge Filter

Line drawing of a vacuum cleaner with a button and sensor array (no text or symbols)

Remove the DWT, take the filter out and wash it after each use.

Line drawing of a robotic vacuum cleaner with mechanical components and motion arrows (no text or symbols)

Reinstall.

Brush Roller Cover

Illustration of a hand pressing down on a small wheeled robot component (no text or symbols)

Press brush roller cover release button on the cover and pull upward to remove.

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Rinse with water. Use the provided cover scraper to clean the gap in the front side to avoid blockages.

Technical line drawing of a mechanical device with a magnified inset showing a detail (no text or symbols)

When replacing, always latch the brush cover into place to avoid leakage.

Brush Roller

Technical line drawing of a robotic device with no visible text or symbols

Remove the brush roller by squeeze the brush roller tab and pulling out.

Illustration of two hands operating a water tap under sunlight (no text or symbols)

Using the cleaning tool, remove the hair and debris wrapped around the roller and rinse with water. Allow it to dry completely before reinstalling.

Line drawing of a hand operating a mechanical device with no visible text or symbols

Remove hair and debris from the brush roller chamber and the opening with a tissue or a damp cloth.

Replace the brush roller by inserting the brush roller end into the right side of the holder, then attach the roller tab to the left side to lock into place.

Accessory Hose & 2 in 1 Nozzle

Press the buttons on both sides to remove the hose.

Press the release button to remove the accessory brush.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of a faucet spraying water onto a boat, with a sun symbolizing sunlight (no text or symbols)

Remove the top cover and brush head. Rinse with water. Allow it to dry completely before reinstalling.

Technical illustration of a mechanical device with a lever and handle, showing a downward rotation arrow (no text or symbols)

Reinstall.

Humidity Sensor

Technical line drawing of a vacuum cleaner with an inset close-up showing internal components (no text or symbols)

Clean the humidity sensor after each use, rotate the sensor several times or use the cleaning tool. Also clean the bristle after each use.

Troubleshooting

Problem Possible cause	Use Solution
The appliance does not turn on	The power cord is not plugged in, or the socket is not energized	Ensure that the socket is energized and the power cord is plugged in
Accessory icon: blinksSpray volume indicator: solid "0" Voice prompt: Stand the device upright	The appliance is tilted while installing accessory brushes	Stand the appliance upright, then enter the ACCESSORY mode
AUTO icon: blinksSpray volume indicator: solid "0" Voice prompt: Stand the device upright	The appliance is tilted while removing accessory brushes	Stand the appliance upright to end the accessory hose removal. Then tilt the appliance again to enter AUTO mode
LED loop illuminates redVoice prompt: Clean the channel under the dirty water tank	1. Dirt sensor malfunction or blocked2. Channel has a blockage3. Sponge filter is dirty	1. Remove blockages2. Clean the debris channel3. Clean the sponge filter
CWT empty indicator blinkingVoice prompt: Please add clean water or solution to clean water tank	CWT is empty Refill CWT
DWT full indicator blinkingVoice prompt:1. Dirty water tank full, please empty 2. Please check the dirty water tank	1. The dirty water in DWT has reached the MAX line2. The floater is not installed correctly3. Channel has a blockage	1. Empty the dirty water and then reinstall the DWT2. Check if the floater is in good condition and press it to the bottom3. Remove blockages
Brush roller tangled indicator blinkingVoice prompt:1. Please clean the brush roller 2. Please install the brush roller cover	1. The brush roller is blocked2. The brush roller cover is not installed	1. Remove blockages2. Install brush roller cover correctly
WiFi indicator is off WiFi is not c rated	Follow the in-app guide to connect to WiFi
No spray volume display Pump	Contact Customer Service
Dry degree indicator blinksVoice prompt: Humidity Display malfunction, please contact customer service	Humidity sensor malfunction	Contact Customer Service

Note:

If the above troubleshooting guide fails to provide a solution, please visit our website

www.tineco.com for further support.

Warranty

2-YEAR LIMITED WARRANTY

• Only applies to purchases made from authorized retailers of Tineco.
• Is subject to the adherence of the requirements outlined in this instruction manual, and is subject to further conditions outlined below.
• This warranty is governed by and construed under the laws of the country in which the purchase took place. We provide 2-year warranty or a warranty period as stipulated by applicable local law, whichever is longer.

WHAT IS COVERED?

• Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories bought separately come with a 1-year warranty.
• This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your appliance is in proper operating condition during the warranty period.
• This warranty will only be valid if the appliance is used in the country in which it was sold.

WHAT IS NOT COVERED?

Tineco shall not be liable for costs, damages or repairs incurred as a result of:

• Appliances purchased from an unauthorized dealer.
• Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in accordance with the Tineco Instruction Manual.
• Use of the appliance other than for normal domestic purposes, e.g. for commercial or rental purposes.
• Use of parts not in accordance with the Tineco Instruction Manual.
• Use of parts and accessories other than those produced or recommended by Tineco.

- External factors unrelated to product quality and use, such as weather, modifications, accidents, electrical outages, power surges or acts of God.

- Repairs or alterations carried out by unauthorized parties or agents.

- Failing to clear blockage and other hazardous material from the appliance.

- Normal wear and tear, including normal wearing parts, such as clear bin, belt, filter, HEPA, brush bar, and power cord (or where external damage or abuse is diagnosed), carpet or floor damage due to use not in accordance with manufacturer's instructions or failure to turn the brush bar off when necessary.

WARRANTY LIMITATIONS

• Any implied warranties relating to your appliance including but not limited to warranty of merchantability or warranty of fitness for a particular purpose, are limited to the duration of this warranty.
• Warranty coverage applies to the original owner and to the original battery only and is not transferable.
• This limited warranty gives you specific legal rights. You may also have other rights which vary by region.
• Manufacturer's warranties may not apply in all cases, depending on factors such as use of the product, where the product was purchased, or who you purchased the product from.
  Please review the warranty carefully, and contact the manufacturer if you have any questions.

WARRANTY SERVICE

Register: We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the whole serial number (find it on the back of the appliance).

Failure to register your product won't diminish your warranty rights.

How to Claim: Please retain your proof of purchase. To make a claim under our Limited Warranty, you need to provide your serial number and the original purchase receipt with the purchase date and order number on it.

All work will be carried out by Tineco or its authorized agency.

Any replaced defective parts will become the property of Tineco.

Service under this warranty will not extend the period of this warranty.

Contact our Customer Service

Hotline: [phone]

or Visit Tineco website

www.tineco.com

for expert customer service.

CONTENIDO

Diagram of a funnel-shaped container with internal components and an adjacent empty tray (no text or symbols)

Boquilla 2 en 1

Pure diagram of a coiled cable or hose with two connectors (no text or symbols)

Manguera accesorio

Technical line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Line drawing of a vacuum cleaner with attached mechanical components (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a side panel, showing an arrow indicating direction (no text or symbols present)

Diagram of a funnel-shaped device with internal components and a separate circular component (no text or symbols)

Diagram of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a vacuum cleaner with a hose and handle, showing mechanical components without any text or symbols.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Deja de funcionar

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Line drawing of a vacuum cleaner with a circular indicator symbol (no text or labels)

Simple line drawing of a coiled tube with two connectors (no text or symbols)

Line drawing of a hand cleaning a bottle with a cloth (no text or symbols)

Diagram of a hand using a tool to press or install a mechanical component, showing force application and assembly (no text or symbols)

Simple line drawing of a container with liquid, no text or symbols present

Line drawing of a cleaver with a handle and spout (no text or symbols)

Line drawing of a vacuum cleaner with a button and sensor array (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols

Vuelva a instalarlo.

Illustration of a hand pressing down on a device component (no text or symbols visible)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Technical line drawing of a mechanical device with a magnified inset showing a detail (no text or symbols)

Technical line drawing of a robotic arm with no visible text or symbols

Line drawing of a mechanical device with a hand adjusting its base (no text or symbols)

Illustration of a hand washing clothes with a faucet and sun symbol (no text or labels)

Technical line drawing of a robotic vacuum cleaner with internal components and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a handle and arrow indicating rotation, bottom shows a lever mechanism (no text or symbols)

Technical illustration of a mechanical device with two views: top shows a meshed component, bottom shows a lever mechanism (no text or symbols)

Vuelva a instalarlo.

Sensor de humedad

Technical line drawing of a vacuum cleaner with an inset close-up showing internal components (no text or symbols)

Illustration of three household items: a faucet spraying water onto a tray, a hand washing the plate, and a sun rising nearby (no text or symbols)

Enjuáguela con agua. Deje que se seque completamente antes de volver a instalarlo.

Diagram of a funnel-shaped container with internal components and a separate abacus-like structure (no text or symbols)

Embout 2 en 1

Pure diagram of a coiled cable or hose with two connectors (no text or symbols)

Tuyau

Technical line drawing of a vacuum cleaner with directional arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with attached mechanical components (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a side panel, showing an arrow indicating direction (no text or symbols present)

Diagram of a funnel-shaped device with internal components and a separate view of its top component (no text or symbols)

Diagram of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a vacuum cleaner with a hose and suction tube, no text or symbols present

Line drawing of a vacuum cleaner with a mounted sensor and power outlet (no text or symbols)

Line drawing of a vacuum cleaner with wheels and handle (no text or symbols)

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Line drawing of a vacuum cleaner with a circular dial indicator (no text or symbols)

Simple line drawing of a coiled device with two connectors (no text or symbols)

III

Humide

[Non-Text]

Line drawing of a hand cleaning a cylindrical object with a cloth (no text or symbols)

Diagram showing a hand holding a small object with arrows indicating movement or force (no text or symbols present)

Simple line drawing of a container with liquid, no text or symbols present

Line drawing of a cleaver with a handle and spout (no text or symbols)

Line drawing of a robotic vacuum cleaner with a button and sensor array (no text or symbols)

Line drawing of a vacuum cleaner with internal components and motion arrows (no text or symbols)

Réinstallez.

Illustration of a hand pressing down on a small electronic device (no text or symbols visible)

Technical line drawing of a mechanical device with a hand holding a tool, no visible text or symbols

Technical line drawing of a mechanical device with a magnified inset showing a close-up detail (no text or symbols)

Sur tapis Sur plancher

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Illustration of a hand washing a rubber hose with a water tap, and sunlight streaming from the pipe (no text or symbols)

Line drawing of a robotic device with a hand adjusting the base panel (no text or symbols)

Technical illustration of a mechanical device with a handle and internal structure, showing motion indicators (no text or symbols)

Technical illustration of a mechanical device with a spring-loaded component and a lever mechanism (no text or symbols)

Réinstallez.

Capteur d'humidité

Technical line drawing of a vacuum cleaner with an inset close-up showing internal components (no text or symbols)

Illustration of three different water sources: a faucet pouring water into a tray, a triangular container with a handle, and a spray can emitting water under a sun (no text or symbols)
