| Product type | Induction cooking hob |
| Brand | Glem Gas |
| Model | GTI322 |
| Number of cooking zones | 2 |
| Front cooking zone diameter | 170 mm |
| Rear cooking zone diameter | 220 mm |
| Total power | 3400 W |
| Nominal power per cooking zone | 1400 W |
| Rear cooking zone booster power | 2000 W |
| Energy consumption of the hob | 174.6 Wh/kg |
| Cutout dimensions (W x D) | 270 x 490 mm |
| Glass dimensions (W x D x Th.) | 290 x 510 x 4 mm |
| Electrical supply | 230 V ~ 50/60 Hz |
| Electrical connection | 1 phase + neutral, cable 3 x 1.5 mm², protection 16 A |
| Functions | Induction, booster, timer, pan detection, residual heat indicator, key lock |
| Display | Digital with codes (0-9, U, E, H, P, L) |
| Safety | Automatic shut-off, pan detection, overheating, child lock |
| Care and cleaning | Clean with soapy water or ceramic glass cleaner, do not use steam or abrasives |
| Repairability | Repairs exclusively by qualified personnel, do not open yourself |
| Protection class | Y |
Frequently Asked Questions - GTI322 Glem Gas
User questions about GTI322 Glem Gas
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Cooker in PDF format for free! Find your manual GTI322 - Glem Gas and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. GTI322 by Glem Gas.
USER MANUAL GTI322 Glem Gas
Symbol of a trash bin crossed out by two diagonal lines, representing no waste or elimination (no text or labels)Thank you for having chosen our induction ceramic hob.
In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for a later consulting.
SUMMARY
SAFETY 20
PRECAUTIONS BEFORE USING 20
USING THE APPLIANCE 20
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 21
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 22
OTHER PROTECTIONS 22
DESCRIPTION OF THE APPLIANCE....23
TECHNICAL CHARACTERISTICS 23
CONTROL PANEL 23
USE OF THE APPLIANCE....24
DISPLAY 24
VENTILATION....24
STARTING-UP AND APPLIANCE MANAGEMENT 24
BEFORE THE FIRST USE 24
INDUCTION PRINCIPLE 24
SENSITIVE TOUCH....24
STARTING-UP 25
PAN DETECTION 25
RESIDUAL HEAT INDICATION 25
BOOSTER FUNCTION 25
TIMER 26
CONTROL PANEL LOCKING 27
COOKING ADVICES....28
PAN QUALITY 28
PAN DIMENSION....28
EXAMPLES OF COOKING POWER SETTING 29
MAINTENANCE AND CLEANING 29
WHAT TO DO IN CASE OF A PROBLEM....30
ENVIRONMENT PRESERVATION .... 31
INSTALLATION INSTRUCTIONS....32
ELECTRICAL CONNECTION 33
Precautions before using
- Unpack all the materials.
- The installation and connecting of the appliance have to be done by approved specialists. The manufacturer can not be responsible for damage caused by building-in or connecting errors.
- To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
- This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
- Remove all labels and self-adhesives from the ceramic glass.
- Do not change or alter the appliance.
- The cooking plate can not be used as freestanding or as working surface.
- The appliance must be grounded and connected conforming to local standards.
- Do not use any extension cable to connect it.
- The appliance can not be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.
- The appliance is not intended to be operated by means of external timer or separate remote control system.
Using the appliance
- Switch the heating zones off after using.
- Keep an eye on the cooking using grease or oils: that may quickly ignite.
- Be careful not to burn yourself while or after using the appliance.
- Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
- Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
- In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
- Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. - Cleaning and user maintenance shall not be made by children without supervision.
Precautions not to damage the appliance
- Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
- Sand or other abrasive materials may damage ceramic glass.
- Avoid dropping objects, even little ones, on the vitroceramic.
- Do not hit the edges of the glass with saucepans.
- Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
- Do not put or leave empty saucepans on the vitroceramic hobs.
- Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
- WARNING: Danger of fire: do not store items on the cooking surface.
- Never place any hot container over the control panel.
- If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.
- Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.
Precautions in case of appliance failure
- If a defect is noticed, switch off the appliance and turn off the electrical supplying.
- If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
- Repairing has to be done by specialists. Do not open the appliance by yourself.
- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
Other protections
- Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
- For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
- Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
THE USE OF EITHER POOR QUALITY POT OR ANY INDUCTION ADAPTOR PLATE FOR NON-MAGNETIC COOKWARE RESULTS IN A WARRANTY BREACH. IN THIS CASE, THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE CAUSED TO THE HOB AND/OR ITS ENVIRONMENT.
Technical characteristics
| Type | GTI322 |
| Total power | 3400 W |
| Energy consumption for the hob EC_hob^** | 174.6 Wh/kg |
| Front heating zone | ∅ 170 mm |
| Minimum detection | ∅ 90 mm |
| Nominal power* | 1400 W |
| Booster power* | - |
| Standardised cookware category** | B |
| Energy consumption EC_cw^** | 177.3 Wh/kg |
| Rear heating zone | ∅ 220 mm |
| Minimum detection | ∅ 90 mm |
| Nominal power* | 1400 W |
| Booster power* | 2000 W |
| Standardised cookware category** | C |
| Energy consumption EC_cw^** | 171.9 Wh/kg |
* The given power may change according to the dimensions and material of the pan. ** calculated according to the method of measuring performance (EN 60350-2).

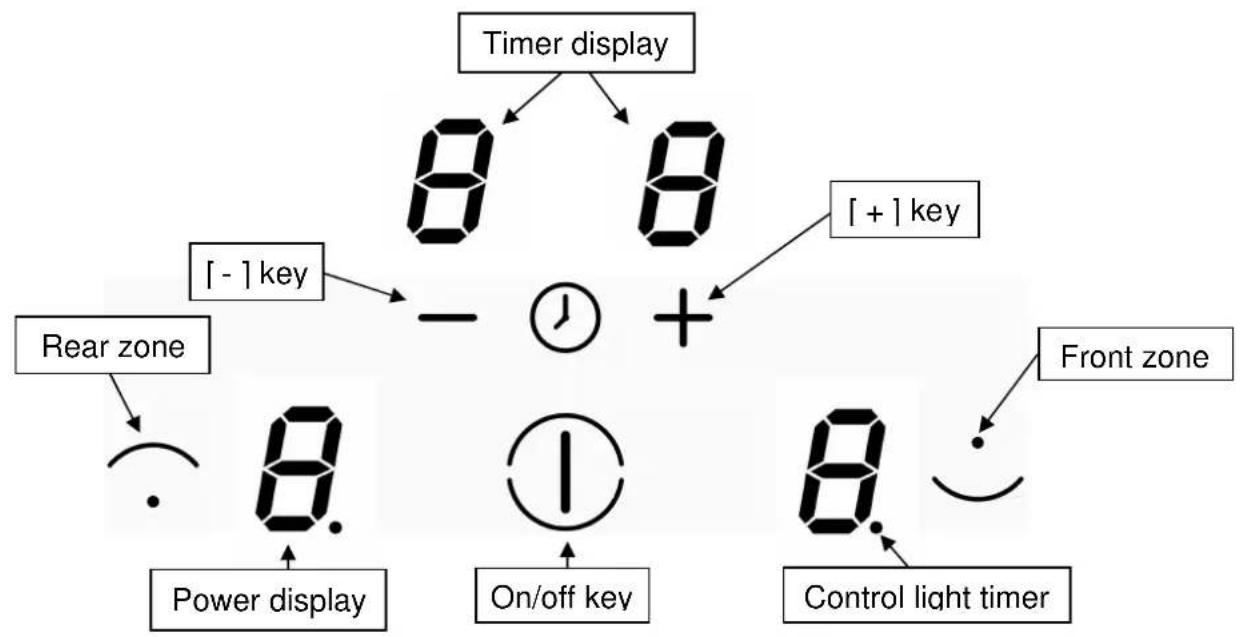

Control panel
Display
Display Designation Function
0 Zero The heating zone is activated.
1...9 Power level Selection of the cooking level.
U Pan detection No pan or inadequate pan.
E Error message Electronic failure.
H Residual heat The heating zone is hot.
P Booster The boosted power is activated.
L Locking Control panel locking.
Ventilation
The cooling system is fully automatic. The cooling fan starts with a low speed when the calories brought out by the electronic system reach a certain level. The ventilation starts his high speed when the hob is intensively used. The cooling fan reduces his speed and stops automatically when the electronic circuit is cooled enough.
STARTING-UP AND APPLIANCE MANAGEMENT
Before the first use
Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.
Induction principle
An induction coil is located under each heating zone. When it is engaged, it produces a variable electromagnetic field which produces inductive currents in the ferromagnetic bottom plate of the pan. The result is a heating-up of the pan located on the heating zone.
Of course the pan has to be adapted:
- All ferromagnetic pans are recommended (please verify it thanks a little magnet): cast iron and steel pans, enamelled pans, stainless-steel pans with ferromagnetic bottoms...
- Are excluded: copper, pure stainless-steel, aluminium, glass, wood, ceramic, stoneware,...
The induction heating zone adapts automatically the size of the pan. With a too small diameter the pan doesn't work. This diameter is varying in function of the heating zone diameter.
If the pan is not adapted to the induction hob the display will show [U].
Sensitive touch
Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger presses the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.
In the case of a general use press only one key at the same time.
Starting-up
You must first switching on the hob, then the heating zone:
- Start-up/ switch off the hob :
| ActionTo start | Control panelPress key [ ] | Display2 x [0] 1 | |
Touch the key Press key [ ] Nothing dr [ H ]
- Start-up/ switch off a heating zone :
| Action | Control panel | Display |
| Zone selection | Press selection key from the zone [0] | |
| Increase power | Press key [+] | [1] to [9] |
| Decrease power | Press key [-] | [9] to [1] |
| Stop | Press key [-] | [0] or [H] |
If no action is made within 20 second the electronics returns in waiting position.
Pan detection
The pan detection ensures a perfect safety.
The induction doesn't work:
- If there is no pan on the heating zone or if this pan is not adapted to the induction. In this case it is impossible to increase the power and the display shows [U]. This symbol disappears when a pan is put on the heating zone.
- If the pan is removed from the heating zone the operation is stopped. The display shows [U]. The symbol [U] disappears when the pan is put back to the heating zone. The cooking continues with the power level setted before.
After use, switch the heat element off: don't let the pan detection [U] active
Residual heat indication
After the switch off of a heating zone or the complete stop of the hob, the heating zones are still hot and indicates [H] on the display.
The symbol [ H ] disappears when the heating zones may be touched without danger.
As far as the residual heat indicators are on light, don't touch the heating zones and don't put any heat sensitive object on them. There are risks of burn and fire.
Booster function
The booster function [P] grants a boost of power to the selected heating zone.
If this function is activated the heating zones works during 5 minutes with an ultra high power.
The booster is foreseen for example to heat up rapidly big quantities of water, like nuddles cooking.
- Start up / Stop the booster function :
| Action | Control panel | Display |
Zone selection Press selection key from the zone [0]
Increase power Press key [ + ] [ 1 ] to [ 9 ]
Start up the booster Press key [ + ] [ P ] during 5 min
Stop the booster Press key [-] [9]
Timer
The timer is able to be used simultaneous with all 2 heating zones and this with different time settings (from 0 to 99 minutes) for each heating zone.
- Setting and modification of the cooking time :
| Action | Control panel | Display |
| Zone selection | Press selection key from the zone [0] | |
| Increase power | Press key [+] | [1] ... [9] [P] |
| To select « Timer » | Press simultaneously [-] and [+] [00] | |
| Decrease the time | Press key [-] | [00] wents to 30,29.... |
| Increase the time | Press key [+] | time increase |
| After a few seconds the control light stops with blinking. | ||
| The time is confirmed and the cooking starts until the time reaches [00]. | ||
• To stop the cooking time :
| Action | Control panel | Display |
| Zone selection | Press selection key from the zone [0] | |
| To select « Timer » | Press simultaneously [- ] and [ + ] The remaining time | |
| To stop the « Timer » | Press key [- ] [00] then stops | |
| If several timers are activated repeat the process. | ||
• Automatic stop at the end of the cooking time :
As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.
To stop the sound and the blinking it is enough to press any key.
- Egg timer function :
| Action | Control panel | Display | |
| Activate the hob | Press key [1] | [0] or [H] | |
| Select« Timer » | Press simultaneously [-] and [+] [00] | ||
| Decrease the time | Press key [-] [00] wents to 30,29.... | ||
| Increase the time | Press key [+] time increase | ||
After a few seconds the control light stops with blinking.
As soon as the selected cooking time is finished the timer displays blinking [00] and a sound rings.
To stop the sound and the blinking it is enough to press any key.
Control panel locking
To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [①]).
- Locking :
Action
Control panel
Display
Start
Press key [ ]
[0] or [H]
①
Hob locking
Press simultaneously [ - ] and
[0] or [H]
selection key from the front zone
Repress selection key from the 2 x [L]
front zone
- Unlocking :
Action
Control panel
Display
Start
Press key [ ]
2 × [L]
①
In the 5 seconds after start :
Unlocking the hob
Press simultaneously [-] and
2 x [L]
selection key from the front zone
Repress key [-]
No light on the
displays

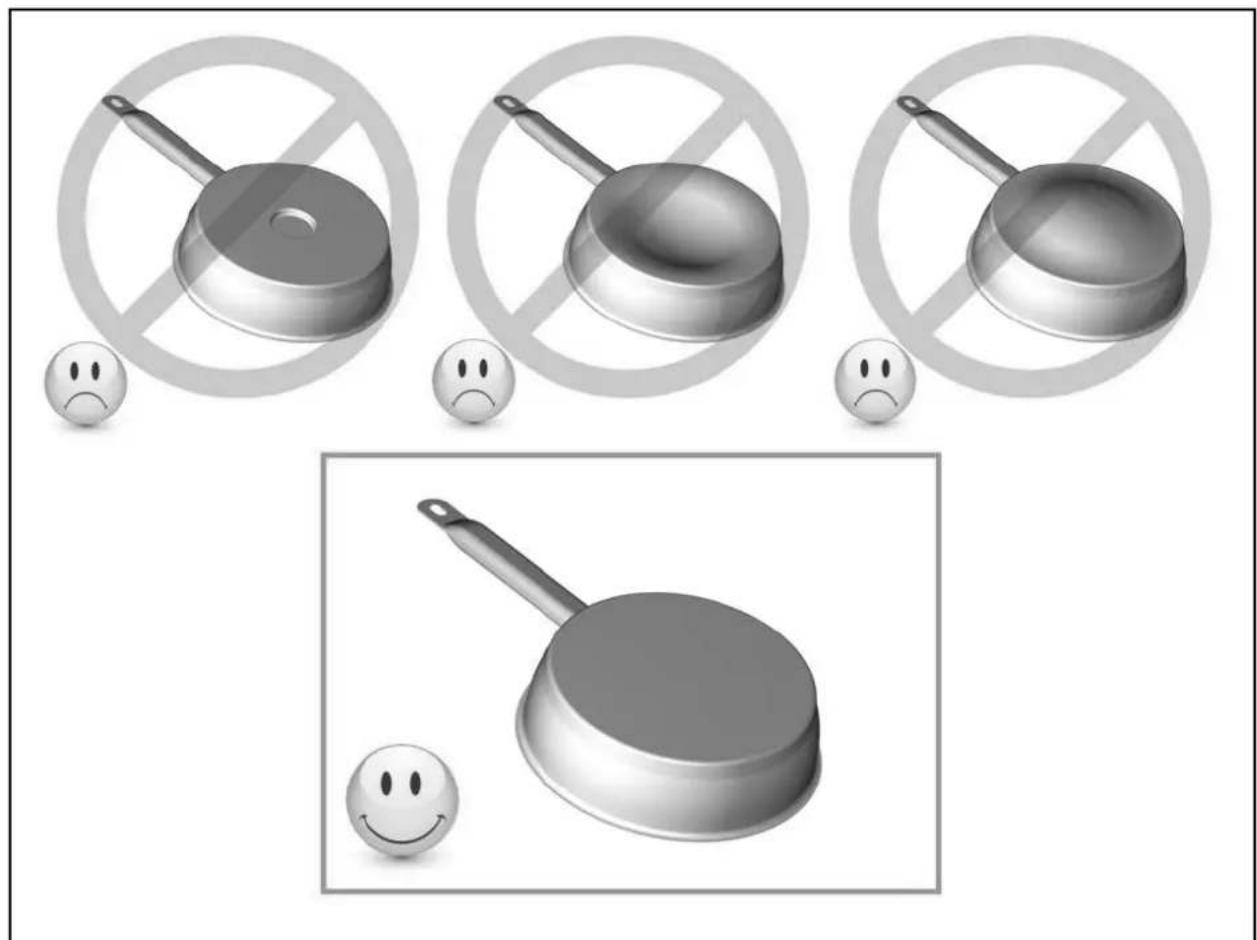

Pan quality
Adapted materials : steel, enamelled steel, cast iron, ferromagnetic stainless-steel, aluminium with ferromagnetic bottom.
Not adapted materials : aluminium and stainless-steel without ferromagnetic bottom, cupper, brass, glass, ceramic, porcelain.
The manufacturers specify if their products are compatible induction.
To check if pans are compatibles :
- Put a little water in a pan placed on an induction heating zone set at level [9]. This water must heat in a few seconds.
• A magnet stucks on the bottom of the pan.
Certain pans can make noise when they are placed on an induction cooking zone. This noise doesn't mean any failure on the appliance and doesn't influence the cooking operating.
The cooking zones are, until a certain limit, automatically adapted to the diameter of the pan. However the bottom of this pan must have a minimum of diameter according to the corresponding cooking zone.
To obtain the best efficiency of your hob, please place the pan well in the centre of the cooking zone.
Examples of cooking power setting
(the values below are indicative)
| 1 to 2 | MeltingReheating | Sauces, butter, chocolate, gelatineDishes prepared beforehand |
| 2 to 3 | SimmeringDefrosting | Rice, pudding, sugar syrupDried vegetables, fish, frozen products |
| 3 to 4 | Steam | Vegetables, fish, meat |
| 4 to 5 Water | Steamed potatoes, soups, pasta,fresh vegetables | |
| 6 to 7 | Medium cookingSimmering | Meat, lever, eggs, sausagesGoulash, roulade, tripe |
| 7 to 8 | Cooking | Potatoes, fritters, wafers |
| 9 | Frying, roosting, boiling water | Steaks, omelettes, fried dishes, water |
| P | Frying, roostingBoiling water | scallops, steaksBoiling significant quantities of water |
MAINTENANCE AND CLEANING
Switch-off the appliance before cleaning.
Do not clean the hob if the glass is too hot because they are risk of burn.
- Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
- Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
- Do not ever use any steam-cleaner or pressure washer.
- Do not use any object that may scratch the ceramic glass.
- Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
- Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.
When the symbol [ E 4 ] appears :
I) The table must be reconfigured. Please implement the following steps:
- Important: before you start:
• make sure there is no more pot on the hob
• take a pot with a ferromagnetic bottom and a minimum diameter of 16 cm - disconnect the appliance from the grid by removing the fuse or turning the circuit breaker off
- start the procedure within 2 minutes after reconnecting the hob to the grid
- reconnect the table to the grid
- don't use the [ ]touch
II) First step : cancel the existing configuration
1) Press [-] and hold down
2) With your other hand, press successively and quickly (less than 2s) on each [O] key.
Press 2 times each key in the following order (a -> a -> b -> b). [- ] appears on displays.
A double "beep" means an error occurred. If so, start again from item 1).
![Glem Gas GTI322 - When the symbol [ E 4 ] appears : - 1](/content/2026/04/654801/images/3033eba85ef0064670f39fa03f02d209de059b863949ea4aaa29cb674ba0e0cd.jpg)
![Glem Gas GTI322 - When the symbol [ E 4 ] appears : - 2](/content/2026/04/654801/images/c1c0d799186276df87ebcfe71252142571145e42f130cf9316a3478a1a590d5c.jpg)
3) Remove your fingers from the touch control, press simultaneously [ + ] and [ - ] during few seconds, until blinking [ E ] symbols appear.
4) Wait until [ E ] symbols stop blinking.
5) After few seconds, [E] are automatically transformed in [C]. The existing setup has been cancelled.
III) Second step: new setup
1) Take a ferromagnetical pot with a minimum diameter of 16 cm
2) Select a cooking zone by pushing on the corresponding [O] key
3) Place the pot on the area to be set
4) Wait until the [ C ] display becomes a [- ]. The selected zone is now configured.
5) Follow the same procedure for each cooking zone with a [ C ] display.
6) All the cooking zones are configured once all the displays are turned off. Please use the same pot for the whole procedure.
Never put several pots together on the zones during the setup-process.
- If [ E 4 ] displaying remains, please call the customer care
The hob or the cooking zone doesn't start-up :
- The hob is badly connected on the electrical network.
• The protection fuse cut-off. - The locking function is activated.
- The sensitive keys are covered with grease or water.
- An object is put on a key.
The control panel displays [U]:
• There is no pan on the cooking zone.
- The pan is not compatible with induction.
- The bottom diameter of the pan is too small.
The control panel displays or [E]:
- Disconnect and replug the hob.
- Call the After-sales Service.
One or all cooking zone cut-off :
• The safety system functioned.
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and its bottom overheated.
- The hob also has an automatic reduction of power level and breaking Automatic overheating
Continuous ventilation after cutting off the hob :
- This is not a failure, the fan continuous to protect the electronic device.
- The fan cooling stops automatically.
The control panel displays [L]:
• Refer to the chapter control panel locking page.
The control panel displays [ ] or [ Er03 ] :
- An object or liquid covers the control keys. The symbol disappear as soon as the key is released or cleaned.
The control panel displays [E2] or [EH]:
- The hob is overheated, let it cool and then turn it onagain.
The control panel displays [ E3 ] :
- The pan is not adapted, change the pan.
The control panel displays [ E6 ] :
- Defective network. Control the frequency and voltage of the electrical network.
The control panel displays [ E8 ] :
- The air inlet of the ventilator is obstructed, release it.
The control panel displays [ E C ] :
- Configuration error. Set the table again, referring to the chapter "The [E 4] appears."
If one of the symbols above persists, call the SAV.
ENVIRONMENT PRESERVATION
- The materials of packing are ecological and recyclable.
-
The electronic appliances are composed of recyclable, and sometimes harmful materials for the environment, but necessary to the good running and the safety of the appliance.
-
Don't throw your appliance with the household refuses
- Get in touch with the waste collection centre of your commune that is adapted to the recycling of the household appliances.
The installer is held to respect the legislation and the standards enforce in his home country.
How to stick the gasket:
The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.
His installation has to be done carefully, in conformity of the following drawing.

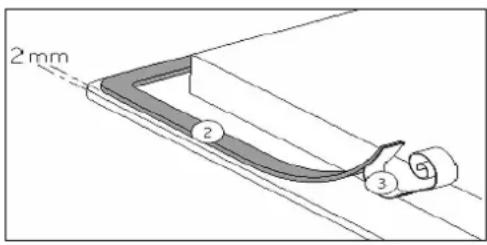

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).
Fitting - installing:
• The cut out sizes are:
| Type Cut size Flush mounting Glass size (mm) | ||||||||
| Width | Depth Width | Depth Radius | Width | Depth Thick | ||||
| GTI322 | 270 490 | 296 516 8 | 290 510 | 4 | ||||
- Ensure that there is a distance of 50 mm between the hob and the wall or sides.
- The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
- The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100 °C.
- The mural rods of edge must be heat-resisting.
- Not to install the hob to the top of a not ventilated oven or a dishwasher.
- To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air circulation of the electronic device.
- If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
- Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guarantees a correct seal when used in conjunction with smooth work top surfaces.
- The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.
- The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.
-
WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
-
The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
- Protection against the parts under tension must be ensured after the building-in.
- The data of connection necessary are on the stickers place on the hob casing near the connection box.
- The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
- The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
- If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
- The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or even.
Caution!
This appliance has only to be connected to a network 230 V\~ 50/60 Hz Connect always the earth wire.
| Mains Connection Cable diameter Cable | — | Protection calibre |
Respect the connection diagram.
Use the connecting cable that is attached to the device.
| Mains | Connection | Cable diameter | Cable | Protection calibre |
| 230V~ 50/60Hz | 1 Phase + N | 3 x 1,5 mm ^2 | H 05 VV - FH 05 RR - F | 16 A * |
The green / yellow wire correspond to the earth wire, the blue wire correspond neutral wire and the brown wire correspond to the phase.
* calculated with the simultaneous factor following the standard EN 60 335-2-6
Caution! Ensure that you correctly attach the wires and the bridges and tighten the screws properly.
We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.
