Product Type	Smartphone
Brand	Motorola
Model	Moto G54 5G
Dimensions (approx.)	162.8 x 73.8 x 8.9 mm
Weight (approx.)	200 g
Power Supply	Integrated lithium-ion battery, charging via USB-C port
Main Functions	5G smartphone, dual SIM (eSIM possible), main camera + macro/ultra-wide*, fingerprint reader, NFC, Wi-Fi, Bluetooth, GPS
Connectivity	5G, LTE, UMTS, GSM, Wi-Fi 2.4/5 GHz, Bluetooth, NFC, GPS/GNSS, 3.5mm headphone jack, USB-C
SIM Cards	Nano SIM (one or two depending on model), eSIM (single SIM model)
Expandable Storage	Yes, via microSD card (sold separately)
Front Camera	Yes, with flash
Fingerprint Sensor	Integrated into Power button
Waterproof	Not waterproof
Care and Cleaning	Wipe with a soft, dry cloth. Avoid contact with water and abrasive products.
Safety	Battery: removal only by an approved center. Operating temperatures: -20°C to 45°C. Be aware of high sound volume.
Spare Parts and Repairability	Contact Motorola after-sales service for spare parts. Repair by an approved center recommended.
General Information	Manual available online. Updates via Settings > Help. Recycling: www.motorola.com/recycling
Specific Absorption Rate (SAR)	Check Settings > Regulatory Labels or dial *#07#
Warranty	See conditions provided with the product or at www.motorola.com

Frequently Asked Questions - Moto G54 5G MOTOROLA

How to insert the SIM card and microSD card on the Moto G54 5G?

Use the provided tool to open the tray on the side. Insert the Nano SIM card with the gold contacts facing down. For the microSD card, place it in the designated slot. Gently close the tray.

How to activate the eSIM?

The Moto G54 5G (single physical SIM model) supports eSIM. Contact your operator to get a QR code or activation. Go to Settings > Network & Internet > SIM cards to add the eSIM.

What to do if my phone becomes unresponsive?

Press and hold the Power button until the screen turns off and the phone restarts. If the problem persists, contact Motorola support.

How to check SAR information on the Moto G54 5G?

Swipe up on the home screen, then go to Settings, type 'Regulatory Labels' or dial *#07# on the phone keypad.

Can I use a non-Motorola charger?

It is recommended to use a compatible Motorola charger. Non-compliant chargers can be dangerous, damage the battery, or slow charging. Preferably use a certified USB-C charger.

How to adjust headset volume and avoid hearing damage?

When you increase the volume to a high level, a warning appears. Press OK to close or wait 1 to 5 seconds, then press the volume up button to confirm. Avoid prolonged listening at high volume.

How to recycle my Moto G54 5G?

Motorola encourages responsible recycling. Visit www.motorola.com/recycling to find collection points or return instructions.

Is the Moto G54 5G waterproof?

No, the phone is not waterproof. Avoid exposure to water and humidity. Check Settings > Help for maintenance tips.

How to add a microSD card?

Insert the tool into the tray hole to open it. Place the microSD card in the dedicated slot, then close. The card is optional and sold separately. It allows you to increase storage.

What temperature ranges are recommended for the Moto G54 5G?

Use the phone between -20°C and 45°C. Do not charge it outside this range. Storage/transport allowed between -20°C and 60°C.

USER MANUAL Moto G54 5G MOTOROLA

[e-mail]

moto g54 5G

English....3

العربية 7

Français....11

српски....15

Русский 19

Українська 24

Қазақша 29

Македонски....33

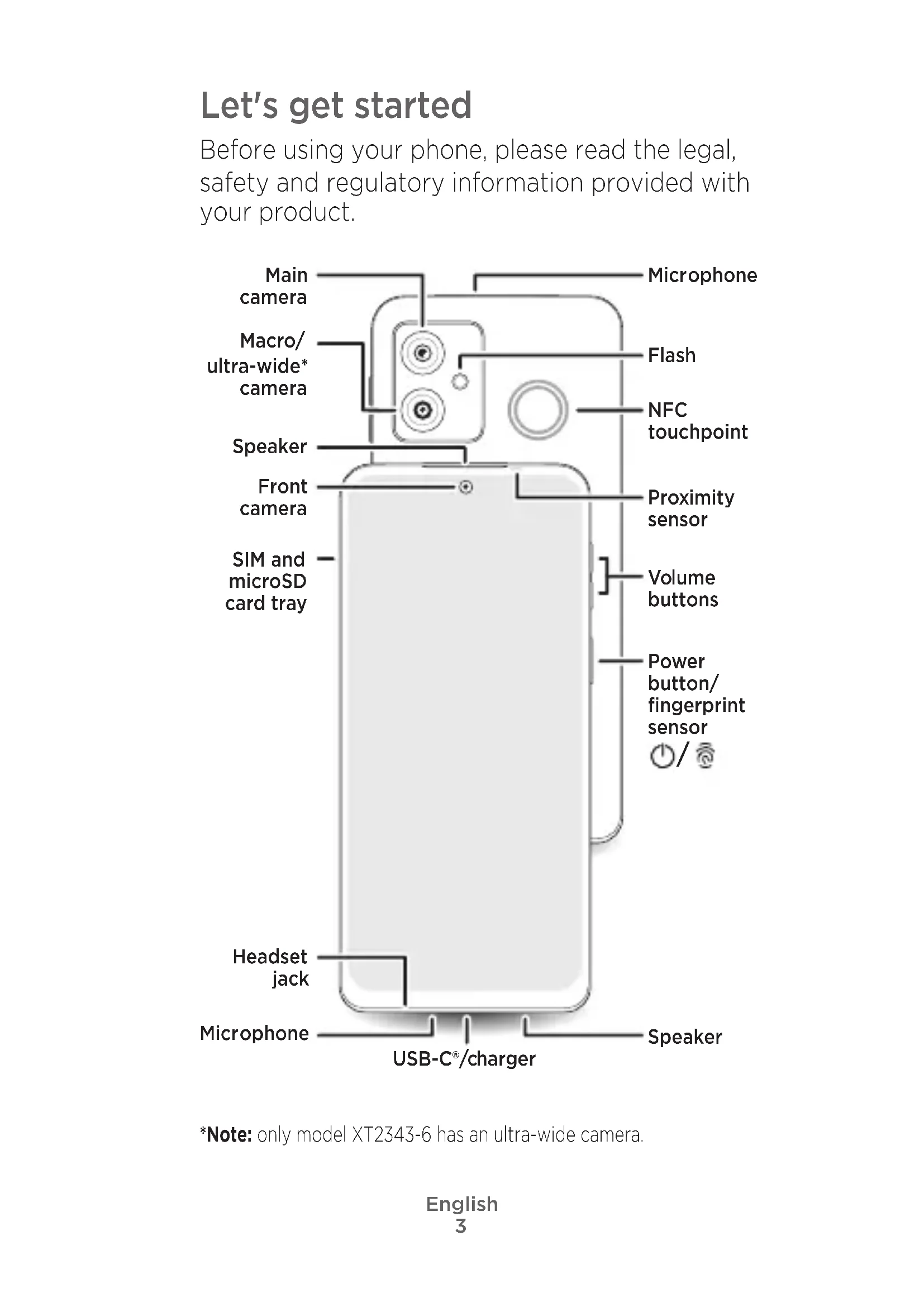

Before using your phone, please read the legal, safety and regulatory information provided with your product.

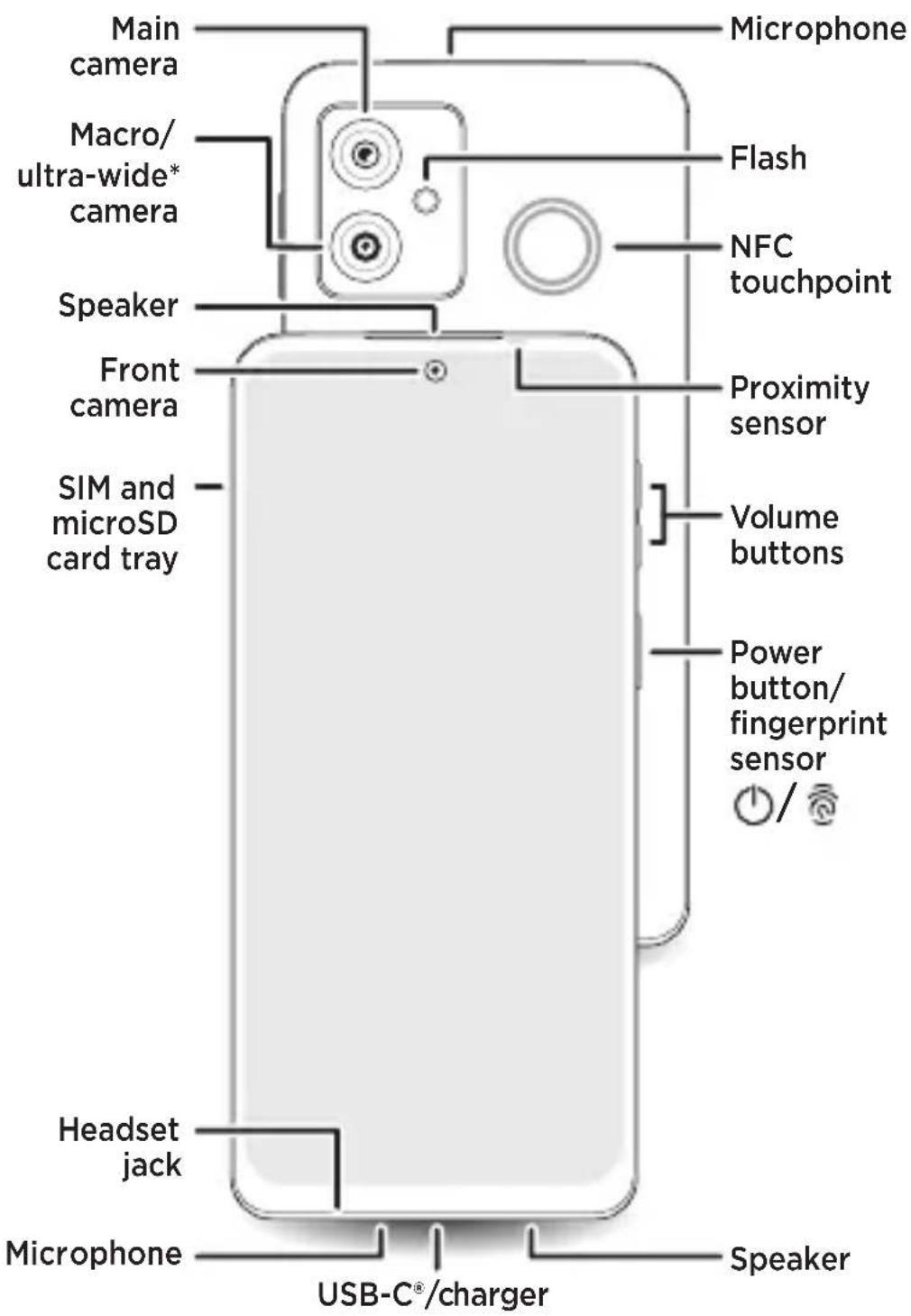

*Note: only model XT2343-6 has an ultra-wide camera.

Put the cards in and power on

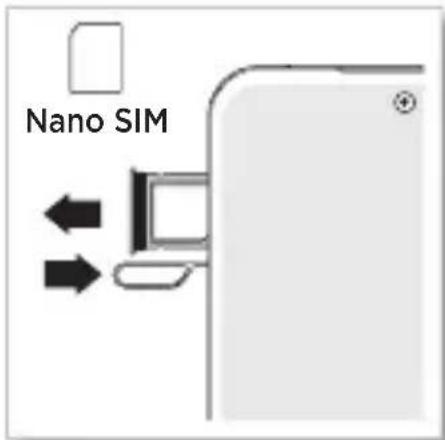

1 Insert the SIM tool into the hole next to the tray to pop out the tray.

Note: make sure that you use the correct size of SIM card and don't cut the SIM card.

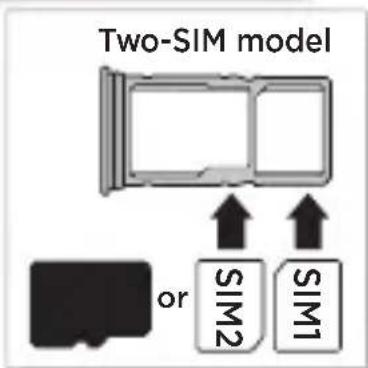

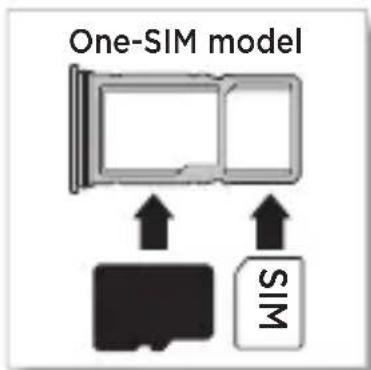

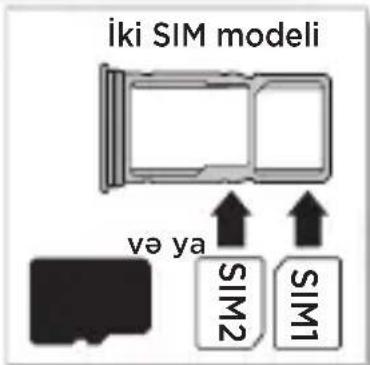

2 Insert the SIM card(s) with the gold contacts down, then gently push the tray into the slot.

Add a microSD card micro (optional, sold separately) for additional storage.

eSIM option (only for models with one physical SIM): your phone may have an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it.

Side view of a smartphone with a power button icon pointing to the right side (no text or symbols on the device itself)

3 Press and hold the power button to turn on your phone, then follow the prompts to get started.

Note: to turn off your phone, press the power and volume up buttons at the same time.

Help and more

Get answers, updates and info:

• Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
• Get more: get software, user guides and more at www.motorola.com/mvmotoq.
  • Get apps: tap Play Store to browse and download apps.
• Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

Legal information. This guide provides important legal, safety and regulatory information that you should read before using your product. For the complete legal information, from the Home screen swipe up and tap Settings > 🔒, then type Legal information, or visit www.motorola.com/device-legal.

Water repellent. Your phone is not waterproof. For more about your phone's water-repellent design and care, swipe up and tap Settings > Help.

Charging and battery safety. To prevent possible burning and injury, the battery in your phone should only be removed by a Motorola-approved service centre or similar skilled personnel. If your phone becomes unresponsive, press and hold the power button until the screen goes dark and your phone restarts. Charge your phone using a compatible Motorola charger (may be sold separately). Use of other chargers is not recommended and may impair the charging performance. Don't charge your phone in temperatures below -20°C or above 45°C. Chargers that do not comply with applicable national standards may be unsafe, with risk of death or injury, and may cause slow charging or product damage. To view applicable standards and to learn more, see the "Legal information" section of this guide or visit www.motorola.com/device-legal.

Warning about high volume usage. To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or w to five seconds, then press the volume up button to dismiss t and enable the volume to continue to be adjusted.

Disposal and recycling. For help recycling products and packaging responsibly, visit www.motorola.com/recycling.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Legal disclaimers. Features, services and applications are network dependent and may not be available in all areas; additional terms/charges may apply. Product specifications and other information contained in this guide are believed to be accurate at the time

of printing. Motorola reserves the right to correct or change any information without notice.

Arbitration. Your purchase is governed by a binding arbitration clause. For more information and how to opt out, see the legal guide that came with your phone.

SAR information (on e-label). To view specific absorption rate (SAR) values for this phone, from the Home screen swipe up and tap Settings > , then type Regulatory labels, from your phone's dial pad type *#07#, or visit www.motorola.com/sar.

Supported frequencies and power (Model XT2343-2, XT2343-6). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/band	Maximum nominal transmit power dBm
Bluetooth 2400 -	2483.5 20 dBm EIRP
Wi-Fi 2400 - 248	3.5 20 dBm EIRP
Wi-Fi 5150 - 5250	23 dBm EIRP
Wi-Fi 5250 - 5350	20 dBm EIRP
Wi-Fi 5470 - 5725	20 dBm EIRP
Wi-Fi 5725 - 5850	14 dBm EIRP
GNSS 1559 - 1610	/1164 - 1300 N/A
NFC 13.56 -21.09	dBuA/m @ 10m
FM receive 87.5 -	108 N/A
GSM	2/3/5/8	33/30
UMTS	1/2/5/8	24
LTE B1/2/3/5/7/8	/20/26/28/32/38/40/41*/42	23/(26*)
5G	n1/3/5/7/8/20/26/28/38/40/41/77*/78*	23(26*)

Copyright and trademarks. MOTOROLA, the stylised M logo, MOTO and the MOTO family of marks are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, Android, Google Play and other related marks and logos are trademarks of Google LLC. microSD Logo is a trademark of SD-3C, LLC. USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum. All other product or service names are the property of their respective owners.

© 2023 Motorola Mobility LLC. All rights reserved. Product ID: moto g54 5G (Model XT2343-2, XT2343-6) Manual number: 711608077441-A
