ARITU122 - Fridge Glem Gas - Free user manual and instructions

Brand	Glem Gas
Model	ARITU122
Product type	Refrigerator
Power supply	220-240 V, 50 Hz
Grounding	Required (earthed socket)
Refrigerant gas	R600a (flammable)
Climate class	T (16-43°C), ST (16-38°C), N (16-32°C), SN (10-32°C) – see rating plate
Thermostat	Adjustable from 1 (least cold) to 5 (coldest), • position for off
Defrosting	Automatic
Interior lighting	Incandescent bulb max 15 W, user replaceable
Included accessories	Shelf, vegetable drawer, bottle door shelf, intermediate door shelf, egg holder
Cleaning	Baking soda solution and warm water; brush condenser once a year
Safety	Do not use electrical appliances inside; do not damage the refrigeration circuit; keep out of reach of children
Repairability	Bulb replaceable by user; LED indicator requires authorized technician intervention
Warning	Fire risk / flammable materials (gas R600a)
Use	Domestic and similar (staff kitchens, farms, hotels, etc.)
Installation	Do not expose to sunlight; min. distance 50 cm from heaters, 2 cm from electric stoves; free space of 15 cm above
Before first use	Wait 3 hours before plugging in; 24 hours of continuous operation recommended
Storage temperature	4-6 °C (whole useful refrigerator)

Frequently Asked Questions - ARITU122 Glem Gas

How to set the thermostat?

Turn the thermostat knob from position 1 (least cold) to position 5 (coldest). For medium storage, set between 1 and 3; for long storage, between 3 and 4. The '•' position stops cooling.

How to clean the interior of the refrigerator?

Unplug the appliance. Clean the interior with a solution of baking soda dissolved in warm water. Rinse with clean water and dry thoroughly. Never pour water directly into the refrigerator.

How to defrost the appliance?

Defrosting is automatic. Defrost water evaporates in the evaporation tray. Regularly clean the evaporation tray and drain hole with the provided rod to prevent water buildup.

How to replace the bulb?

Unplug the appliance. Press on both sides of the lamp cover and remove it. Replace the bulb with a new one of a maximum power of 15 W. Replace the cover and wait 5 minutes before plugging back in.

What to do if water accumulates at the bottom of the refrigerator?

The defrost water drain hole is probably clogged. Clean it with the defrost drain cleaning rod. Also check that the evaporation tray is not obstructed.

How to save energy with this refrigerator?

Install the appliance in a temperate room, away from sunlight and heat sources. Allow hot food to cool before storing. Open the door as rarely as possible. Clean the condenser once a year with a brush.

The appliance makes noise, is this normal?

Yes, a slight noise from refrigerant gas circulation is normal, even when the compressor is off. If the noise is unusual, check that the appliance is level (adjustable feet) and that no objects are touching the back.

Can I use electrical appliances inside the refrigerator?

No, do not use electrical appliances inside the storage compartment unless expressly recommended by the manufacturer. This could damage the appliance or create a fire hazard.

What to do if I go on a long vacation?

Set the thermostat to '•' to stop cooling. Clean the refrigerator and leave the door open to prevent mold and odors. Unplug if you leave the door open.

What distance to keep from heat sources?

Install the refrigerator at least 50 cm from radiators, gas or coal stoves, and at least 2 cm from electric stoves. Leave a free space of 15 cm above the appliance for proper ventilation.

USER MANUAL ARITU122 Glem Gas

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon character holding a book, no text or symbols present

Cartoon illustration of a distressed refrigerator with arms and legs, no text or symbols present

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Simple line drawing of a fish reacting to a box, no text or symbols present

Cartoon illustration of a smiling refrigerator with hands pointing at it, next to a teapot and a mug (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a smiling rectangular character and two smaller bottles (no text or symbols)

Decongelamento

Technical line drawing of a mechanical component with an inset showing a hand interacting with a circular component (no text or symbols)

Line drawing of a mechanical device with internal components and no visible text or symbols

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Old and out-of-order fridges 15

Safety warnings....15

Installing and operating your fridge 16

USAGE INFORMATION 17

Thermostat Setting 17

Warnings for Temperature Settings 18

ARRANGING FOOD IN THE APPLIANCE 18

CLEANING AND MAINTENANCE 19

Defrosting the Refrigerator Compartment 20

Replacing The Bulb 20

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ......21

BEFORE CALLING SERVICE 21

Tips for saving energy 22

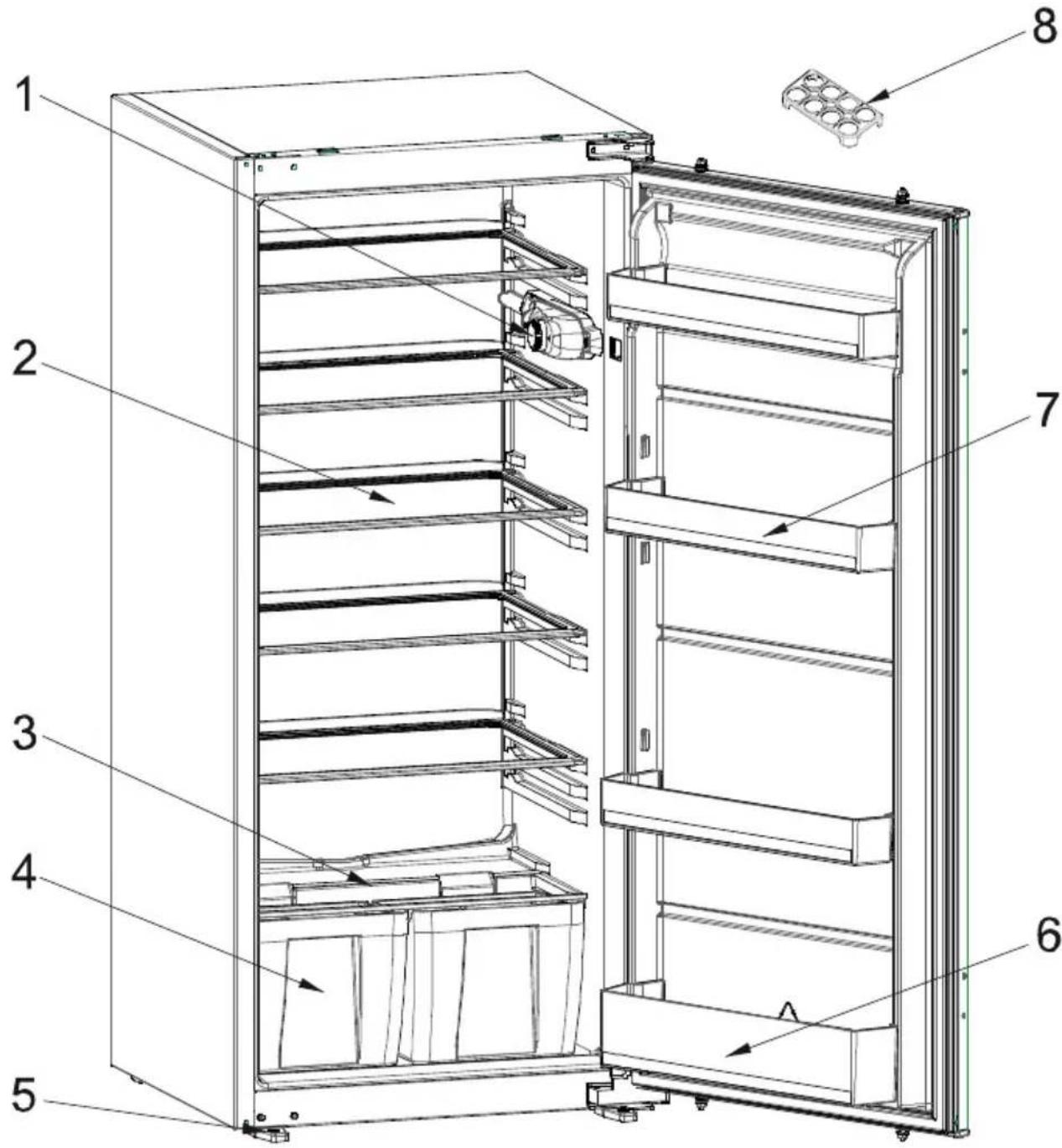

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 23

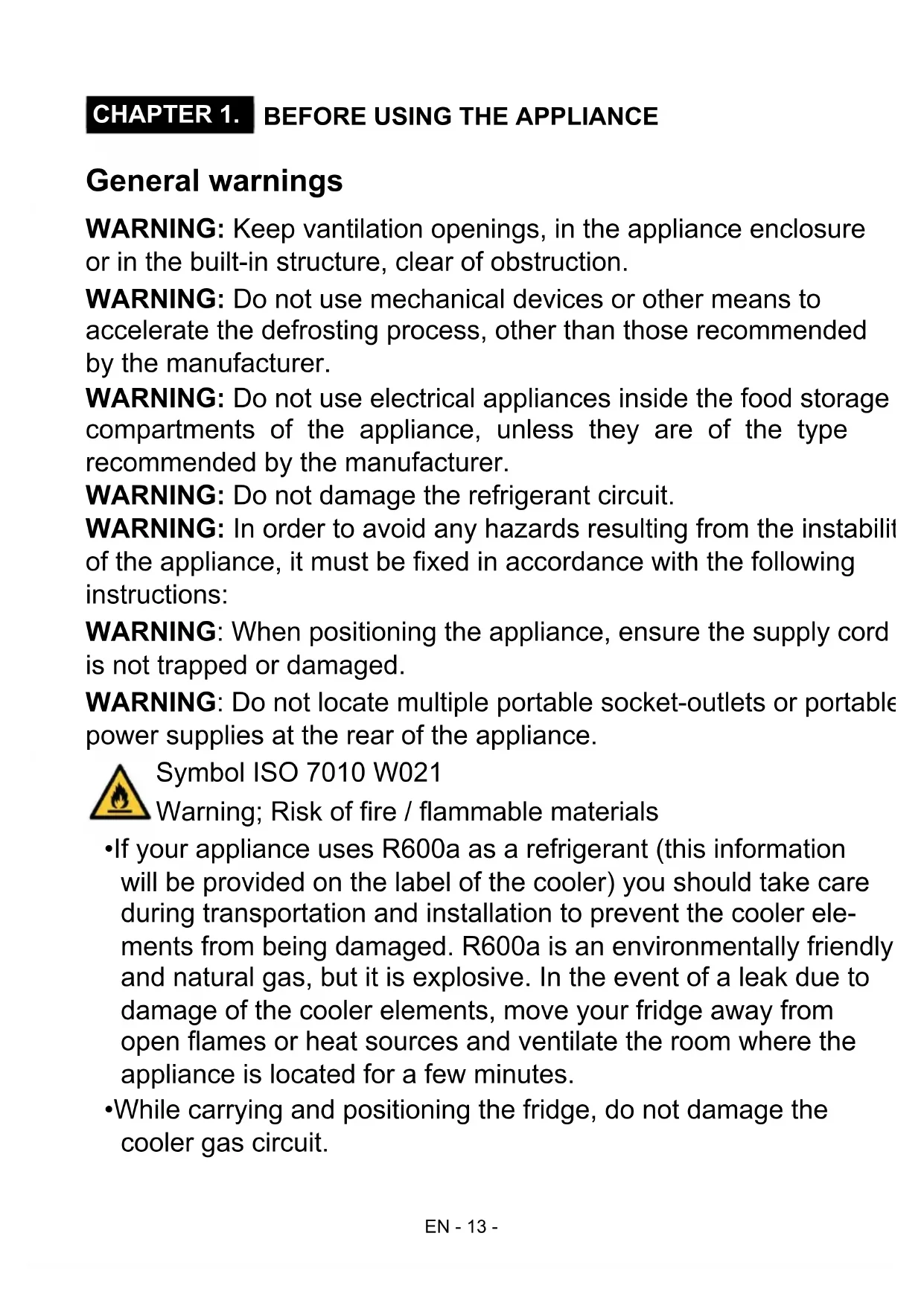

CHAPTER 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Symbol ISO 7010 W021

Warning; Risk of fire / flammable materials

• If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as:

-staff kitchen areas in shops, offices and other working environments.

-farm houses and by clients in hotels, motels and other residential type environments.

-bed and breakfast type environments;

-catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it.
• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your local authority about the disposal of the WEEE for reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

• Do not connect your Fridge Freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.

• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Secure any accessories in the fridge during transportation to prevent damage to the accessories.

- Do not use plug adapter

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.
• Before connecting your Fridge Freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

- We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge where it will not be exposed to direct sunlight.

- Your fridge should never be used outdoors or exposed to rain.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

- The installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.

- Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.

Before Using your Fridge

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

Simple line drawing of a hand holding a smiling square character (no text or symbols)

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

CHAPTER 2. USAGE INFORMATION

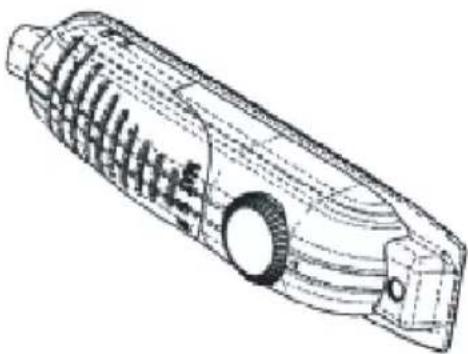

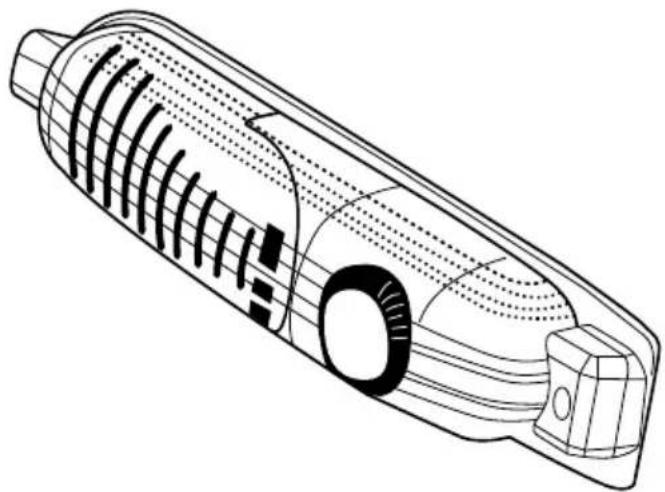

Thermostat Setting

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Larders (coolers) do not have a freezer compartment but can cool below 5°C.

- The thermostat automatically regulates the inside temperature of the refrigerator compartment. By rotating the knob from position « 1 » to « 5 », colder temperatures can be obtained.

- The « • » position shows thermostat is closed and no cooling will take place.

- For short-term storage of food in the refrigerator compartment, you can set the knob between minimum and medium positions (1-3).

- For long-term storage of food in the refrigerator compartment, you can set knob to the medium position (3-4).

Note that: the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

- Larders (coolers) do not have a freezer compartment but can cool below 5^ .

When you first switch on the appliance, it may take 24 hours of continuous operation to reach operating temperature.

- During this time, do not open the door frequently or place a large quantity of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or plugging the unit in, so as to not damage the compressor.

Warnings for Temperature Settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• The thermostat setting should be done by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the stated temperature intervals in terms of cooling efficiency.
• This appliance is designed for use at an ambient temperature within the 16°C - 32°C range.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

CHAPTER 3. ARRANGING FOOD IN THE APPLIANCE

• The fridge is used for storing fresh food for few days.
  Do not place food in direct contact with the rear wall of the refrigerator. Leave some space around food to allow the circulation of air.
• Do not place hot food or evaporating liquid in the refrigerator.
  • Always make sure food is wrapped or stored in closed containers.
• To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.
• We recommend that you loosely wrap meat and store it on the glass shelf just above the vegetable bin, where the air is cooler.
• Store fruit and vegetable items loose in the crisper containers.
• To prevent the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

CHAPTER 4. CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
  • Make sure that no water enters the lamp housing and other electrical components.
• The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

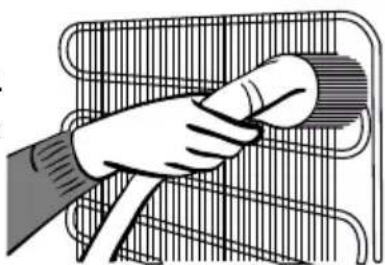

• Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Cartoon illustration of a smiling refrigerator with a hand holding the door, accompanied by a teapot and cup (no text or symbols)

Simple line drawing of an open refrigerator with a red X symbol crossed out (no text or symbols present)

Cartoon illustration of a smiling book character waving, with two baby减肥 silhouettes nearby (no text or symbols)

Illustration of a hand cleaning a wire mesh (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

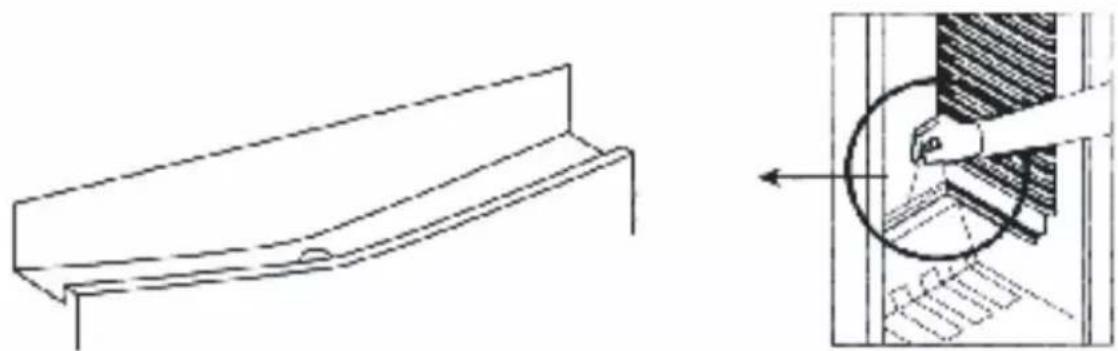

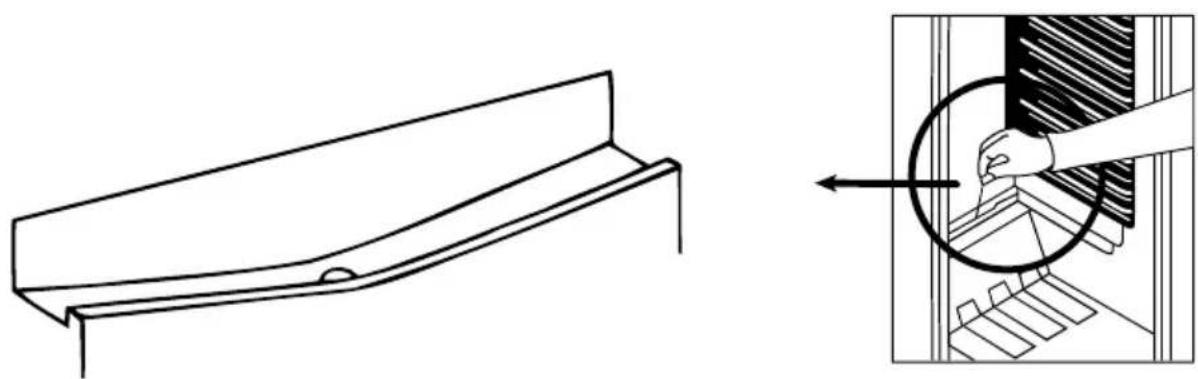

Defrosting the Refrigerator Compartment

Technical line drawing of a mechanical component and its magnified cross-section showing internal components (no text or symbols)

- Defrosting occurs automatically in the refrigerator compartment during operation; the water is collected by the evaporation tray and evaporates automatically.

- The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.

- You can also clean the drain hole by pouring 12 glass of water down it.

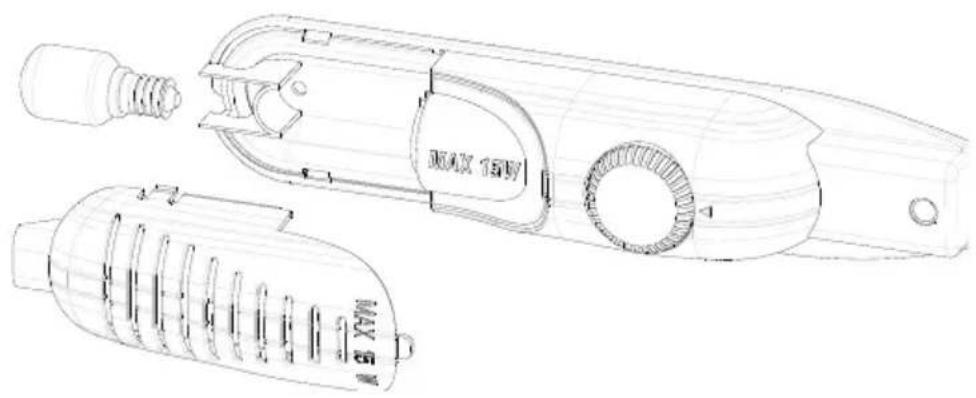

Replacing The Bulb

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.

2- Remove the cover of the box from the claws using a screwdriver.

3- Replace with a bulb of maximum 15 Watts.

4- Install the cover.

5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

CHAPTER 5.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Simple line drawing of two children playing a large block together (no text or symbols)

CHAPTER 6. BEFORE CALLING SERVICE

If your refrigerator is not working properly it may be a minor problem, therefore in order to save time and money, check the following, before calling an electrician.

What to do if your refrigerator does not operate:

Check that:

There is no power,

The general switch in your home is not disconnected,

The thermostat setting is on the « • » position,

The socket is not faulty. To check this, plug in another appliance that you know is working into the same socket.

What to do if your refrigerator performs poorly

Check that:

• You have not overloaded the appliance,
  • The doors are closed properly,
• There is no dust on the condenser,
• There is enough space at the rear and side walls.

If there is noise:

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If you hear any different noises, check that;

• The appliance is level,
• Nothing is touching the rear of the appliance,
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator

Check that:

The drain hole for the water is not clogged (use the defrost drain plug to clean the drain

hole).

If your fridge is not cooling sufficiently enough:

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits. This will reduce the cooling efficiency of the fridge.

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerator is located inside the back wall of the refrigerator compartment. If this wall is covered with frost or water drops when the compressor is running, do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick ice layer forms on the back wall.
• If the appliance will not be used for a long period of time (for example during the summer holidays), set the thermostat knob to the « • » position. Defrost and clean the refrigerator leaving the door open to prevent the formation of mildew and smells.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. Cover drinks or other liquids when placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
4. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
5. Keep the covers of the different temperature compartments (crisper, chiller ...etc) closed
6. Door gasket must be clean and pliable. Replace gaskets if worn.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Thermostat box
5) Left & Right feet
2) Refrigerator shelves
6) Bottle shelf
3) Crisper cover (Safety glass)
7) Door shelf
4) Crisper
8) Egg holder

Sommaire

AVANT D'UTILISER CET APPAREIL 25

TRANSPORT ET DEPLACEMENT 33

AVANT D'APPELER LE SERVICE APRES-VENTE 33

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration of three hands performing a manual tool manipulation technique (no text or symbols present)

Cartoon illustration of a character peeking out of a door, with arms and legs visible (no text or symbols)

Simple line drawing of a hand holding a crossed-out hand, a smiling face with a square, and a raised fist (no text or symbols)

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Simple line drawing of a hand holding a smiling face inside a rounded square (no text or symbols)

SECTION 2. FONCTIONS DIVERSES

Technical line drawing of a cylindrical device with internal components and mounting feet (no text or symbols)

Cartoon illustration of a hand brushing a face near a wall-mounted device (no text or symbols)

Simple line drawing of a hand holding a smiling square character (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand cleaning it, accompanied by a small bottle and a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

Simple line drawing of a refrigerator with a red X symbol crossed out, no text or symbols present.

Illustration of a hand cleaning a metal rack with a circular object on top (no text or symbols)

LA PRISE DOIT ETRE DEBRANCHEE.

Technical line drawing of a mechanical component with an inset showing a hand holding a circular object (no text or symbols present)

Line drawing of a mechanical device with internal components and a circular component (no text or symbols)

SECTION 4. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children playing a game with a board (no text or symbols)

Symbol of a waste bin with crossed lines indicating no waste or restriction (no text or labels)

Illustration of three hands performing a manual labor technique with a tool, no text or symbols present

Cartoon character peeking over a door, no text or symbols present

rolhas.

Cartoon illustration of a distressed container with arms and legs, no text or symbols present

PARTE 2. COMO FUNCIONAR COM O ELECTRODOMÉSTICO

Ajuste do termóstato

Technical line drawing of a mechanical component with threaded ends and a central circular feature (no text or symbols)

Simple line drawing of a fish reacting to a box, no text or symbols present

Cartoon illustration of a smiling refrigerator with hands, accompanied by a teacup and a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and facial features, accompanied by two smaller bottles (no text or symbols)

Descongelação

Technical line drawing of a mechanical component with an inset showing a hand interacting with a circular component (no text or symbols)

Line drawing of a mechanical device with no visible text or symbols
