USER MANUAL CR 5039 Orbegozo

Black and white photo of a digital heat exchanger with visible flame inside (no text or symbols)

CR 5039

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Circular diagram with radial lines and dots, no text or symbols present

LIMPIEZA

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.
12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.
13. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

- The meaning of figure Ⓞ in marking is "DO NOT COVER". WARNING: In order to avoid overheating, do not cover the heater.

• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

- Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.

- Do not use this heater in the immediate vicinity of a bath, shower or pool.

- Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!

• Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top.
  • Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.
• WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.

These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner!

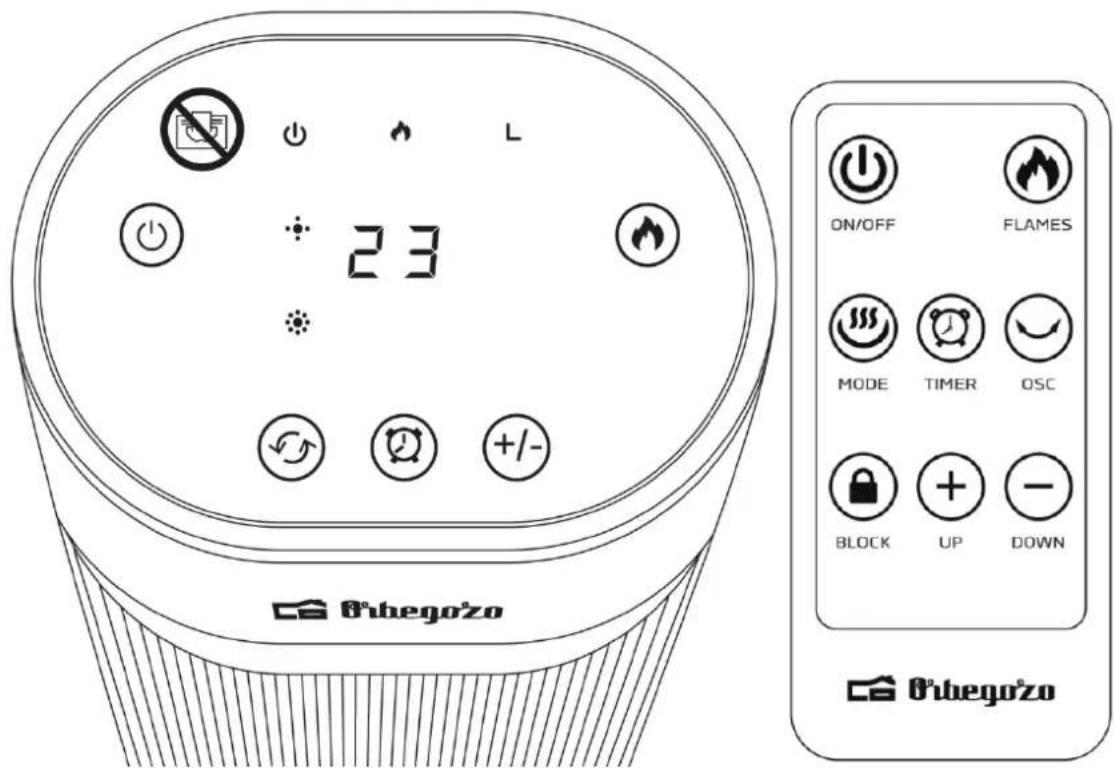

ELEMENTS OF THE TOWER

ON/OFF FLAMES MODE TIMER OSC BLOCK UP DOWN Ombegožo

INSTRUCTIONS FOR USE

• When the appliance is plugged into the power outlet, turn on the power switch on the back of the appliance. After hearing the "beep", the digital display will show the icon, and the product will be in standby status at that time.
• ⏻. Press the power button to select fan mode, low heat, high heat mode, or off:

o ress once and the display will turn on indicating the room temperature and the fan will start blowing air at room temperature (Fan Mode).
o Press a second time and the blue indicator will light ⚙ (Low Heat Mode).
o Press a third time and the blue indicator will light ⚙ (High Heat Mode).
- By pressing a fourth time, the device will start its shutdown and will show a 30-second countdown on the screen, after which the product will turn off until it is in standby mode again.

- Press the ⏻ button to start swing mode.

• With the Ⓞ button you can start a sleep timer between 1 and 24 hours, the icon L will appear on the panel.
• Select the desired temperature using the ① , 一 and ② -buttons (on the appliance): set the temperature between 10 and 49 degrees. On the appliance, press the ③ -button repeatedly until the desired temperature is reached.
• Press the ⏻ button on the remote to turn off the lights and lock the keyboard of the device. Press this button again to turn them on again and unlock the device.
• Press the ⏻ button to turn on the fire effect lighting. Press the button again to turn it off.

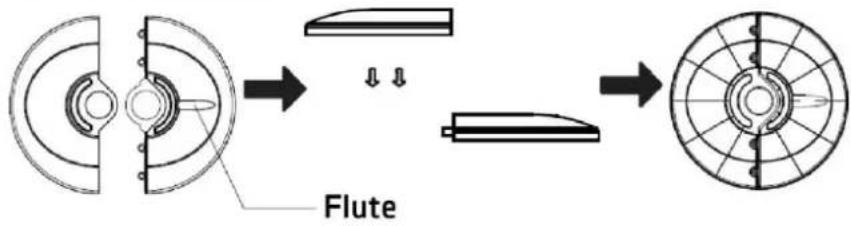

BASE INSTALLATION

1. Take out the fan body and the rest of the parts from the box. Join the back and front parts of the base. Pass the power cable through the hole indicated for it

Flute

1. Fix the base to the body with the help of the included screws

Circular diagram with radial segments and central axis, no text or symbols present

CLEANING

We recommend that you clean the heater at least twice a year to remove accumulated dust and dirt.

• Save the original box the heater was packed in for storage during the warm months when it is not in use.
• Clean the heater following the instructions in the Pack the heater in its original box and store in a cool, dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin"

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

Item CR 5039	Symbol	Value	Unit		Item CR 5039	Unit
Heat output					Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.0	kW		manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	1.3	kW		manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	1.9	kW		electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption					fan assisted heat output	[no]
At nominal heat output	el_max	0	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0	KW		single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0.000	kW		Two or more manual stages, no room temperature control	[no]
					with mechanic thermostat room temperature control	[no]
					with electronic room temperature control	[no]
					electronic room temperature control plus day timer	[no]
					electronic room temperature control plus week timer	[yes]
					Other control options (multiple selections possible)
					room temperature control, with presence detection	[no]
					room temperature control, with open window detection	[no]
					with distance control option	[no]
					with adaptive start control	[no]
					with working time limitation	[no]
					with black bulb sensor	[no]
Contact details info		SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
