AHB 5000 - Foot bath Orbegozo - Free user manual and instructions

USER MANUAL AHB 5000 Orbegozo

Close-up of a gray medical or fitness device with textured surface and white bandage, no visible text or symbols

AHB 5000

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

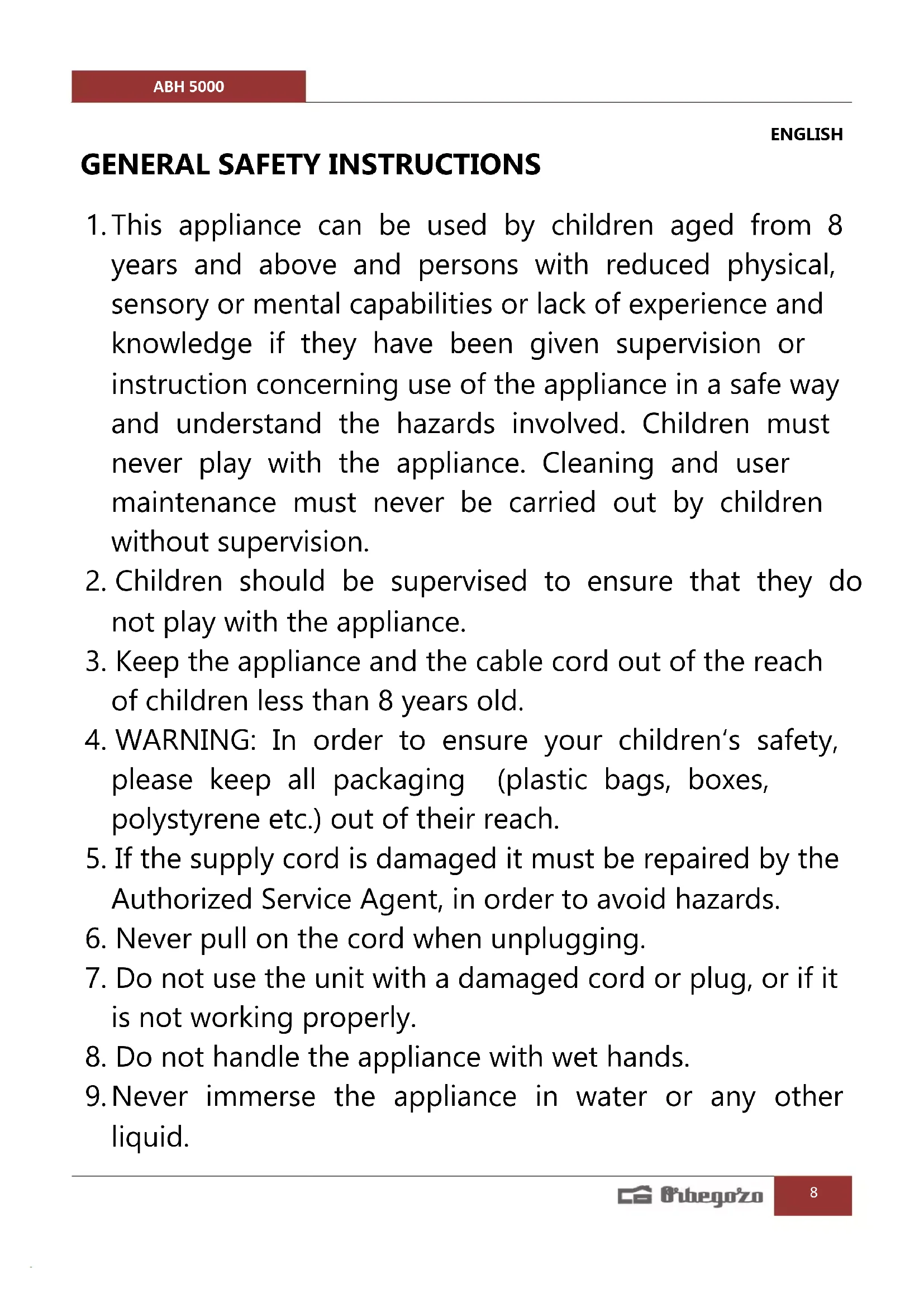

GENERAL SAFETY INSTRUCTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent, in order to avoid hazards.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

- If you are going to use the appliance during continuous or prolonged operation, the power switch must be placed in position 1 (minimum heat).

- Do not fall asleep during the operation of the appliance.

- When you are not using the appliance, store it as follows: unplug it, wait for it to cool down. Do not place objects on top when the appliance is stored. Store it in a dry place.

- Examine the appliance frequently for signs of wear or damage. If such signs exist or if the appliance has been misused or does not work, return it to the dealer before reconnecting it.

• This device is not intended for medical use in hospitals.

- Do not use if wet.

- This appliance should not be used by persons insensitive to heat or other highly vulnerable persons who are incapable of reacting to overheating.

• Children under three years of age should not use this appliance due to their inability to react to overheating.

- The appliance is not to be used by children unless the controls have been preset by a parent or guardian, or unless the child has been adequately instructed in how to use the controls safely.

- The device must only be used with its control unit supplied with the reference AHB 5000.

- Do not use the product to heat animals.

- Use the product without folding and avoid ironing folds.

- The boot can be washed, provided you have unplugged the remote.

- Do not use the product in a humid state or in rooms with a high degree of humidity, such as bathrooms.

- To put it into operation, place the regulator in the maximum position for 20 minutes to obtain a quick heating, and then go to the low position. The maximum heat position will only be used for rapid heating and never more than 20 minutes.

- Do not bend the power cord or use your pad when the power cord is bent, coiled, or folded.

- Use on top of clothing.

- Do not cut or pierce the heated pad. Do not poke holes in it with pins or other blunt objects, do not disassemble it.

FUNCTIONING

The electric boot may smell plastic during the first use but it will disappear after a short period of time.

ON OFF

To use the appliance, plug the remote into a power outlet.

- On:

Select the highest temperature level (level 3) a short time before use, so the pad will heat up faster. Select a temperature level from 1 to 3 on the control. If you are going to use the pad for a long time, select a medium temperature (level 2).

- Off:

Select level 0 on the remote to turn off the heating pad and unplug it from the power outlet.

TEMPERATURE LEVELS

Level 0: off.

Level 1: minimal heat.

Level 2: medium heat.

Level 3: maximum heat.

AUTO POWER OFF

The heating pad automatically turns off after 90 minutes.

To use the pad again, first select position 0 on the knob and after approximately 5 seconds choose the desired level to turn the pad back on.

If you do not want to continue using the pad after the automatic shutdown, select level 0 on the remote and unplug it from the power outlet.

CLEANING AND CARE

Always use the electric boot with the inner cover to avoid getting dirty or damaging the appliance.

Cleaning: the inner lining of the boot is washable. The washing method is specific, consult the label that it incorporates.

Check your boot from time to time to check that the flexible lacing does not show signs of wear and that the control is not damaged. If you find any damage, do not use the boot anymore and take it to the technical service.

STORAGE

Wait for the electric boot to cool down before storing it, otherwise damage to the appliance may occur.

To prevent the boot from getting damaged, do not leave other objects on top of it when you store it.

If you are not going to use the electric boot for a long time, store it in its original packaging, in a dry place with no heavy objects on it.

MEANING OF SYMBOLS APPEARING ON HEATING PAD

Please, read de instructions.

Do not use if folded is creased.

Do not insert pins or needles.

Do not use bleach.

Wash up 30°C

The cover can be ironed

Do not dry clean

Do not dry the cover or blanket in the dryer.

Do not use on babies.

The blanket cannot be ironed.

Blanket cannot be washed.

Collection of symbolic icons representing education, transportation, and compliance symbols with numbers 30 and 0-3.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be

separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
