USER MANUAL FH 5008 A Orbegozo

White portable electric heater with blue control knobs and ventilation grilles (no visible text or symbols)

FH 5008 A

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

We congratulate you for having chosen our product.

Please read the following information carefully before using the appliance for the first time for your own safety and to ensure correct use.

Read the Safety information's and safe positioning also carefully before using of the heater about to avoid any risk of fire or lives.

SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

GENERAL SAFETY INSTRUCTIONS:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children

must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
3. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
4. Never pull on the cord when unplugging.
5. Do not use the unit with a damaged cord or plug, or if it is not working properly.
6. Do not handle the appliance with wet hands.
7. Never immerse the appliance in water or any other liquid.
8. Make sure the appliance has been unplugged before cleaning.
9. This appliance must be installed following the national regulations for electrical installations.
10. This appliance is for household use only.

11. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

12. WARNING: In case of misuse, there is a risk of possible injury.

IMPORTANT SAFETY INSTRUCTIONS:

• The meaning of figure 📋 in marking is “DO NOT COVER”. WARNING: In order to avoid overheating, do not cover the heater.
• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- The device should not be placed immediately below a socket base.

• Do not place a heater in use near curtains, furniture, wood panelling or combustible material which can deteriorate with heat.
• Do not use this heater in the immediate vicinity of a bath, shower or pool.
• Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
• Do not use the appliance in flammable atmospheres (e.g. in the vicinity of combustible gases or sprays cans)! Explosion and fire hazard!
• Allow ample space around the heater. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top.
  • Always unplugged the heater after use.
• Important! Do not insert any foreign objects into the appliance openings! Risk of injury (electric shock) and damage to the appliance!
• Keep the mains cord at a safe distance from the air inlet and outlet grilles.

These instructions for use belong to the appliance and must be kept in a safe place. When changing owners, these instructions must be surrendered to the new owner!

Do not use this heater if it has been dropped.

Do not use if there are visible signs of damage to the heater.

Use this heating appliance on a horizontal and stable surface, or if possible fix it to a wall.

WARNING: Do not use this heater in rooms that are occupied by persons who cannot leave the room by themselves, unless permanent surveillance is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or other flammable material at least 1m away from the air outlet.

SAFE POSITIONING

• The heater must not be located immediately below a socket outlet.
• Only use the fan heater when it is standing in a horizontal position. Do not place the heater on instable surfaces, such as bed, carpets etc. and do not use the heater on uneven position, where the heater can tip over – otherwise there is a risk of fire.
• The heater should be placed with a minimum distance from flammable objects, walls, structure etc. A safe area to be left free is 100 cm at the front and at the sides and 100 cm at the top. The appliance opening must not be obstructed in any way.
• For your own safety and that of others: water and electricity are a dangerous combination! Do not use this heater in a bathroom or near a swimming pool. Ensure that the appliance cannot fall into water (bath wash basin, shower cubicle, etc.)
• Please read also the safety information before using.
• Do not use the heater on extremely deep-pile carpets!

INSTALLATION

The appliance requires no installation, it should be used solely as a portable appliance. Portable appliances are not suitable for use in a bathroom.

OPERATION

Turn the thermostat (right) in a clockwise direction until it reaches the maximum setting.

• Only ventilation: turn the knob to setting
• Heating at reduced power: turn the knob to setting (1000 W)
• Heating at full power: turn the knob to setting (2000 W)
• Switch off: turn the knob (left) to setting modo ○.

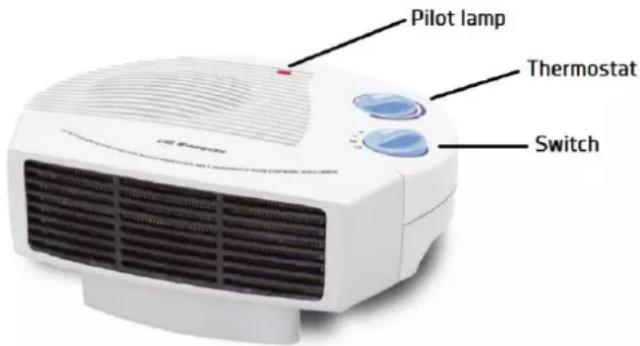

Pilot lamp Thermostat Switch

Overheating safety device

To prevent damage and risks due to overheating, the built-in overheating safety device cuts off the power as soon as the heating elements become too hot. If this should happen:

First ensure that it was not the thermostat which has switched off the heater. Set the thermostat to maximum position. If the heater does not switch on, the safety device has been activated.

• Remove the mains plug from the wall socket.
• Let the heater cool down for 30 minutes.
• Check if the heater had been placed correctly.
• Check if anything is obstructing the air flow.
• If necessary, clean the grilles with a vacuum cleaner.
• Replace the plug into the wall socket and switch the heater on again.
  If the safety device again switches off the heater:
• Remove the mains plug from the wall socket.
• Have the heater inspected by a Service Centre or by your dealer.

CLEANING

We recommend that you clean your heater at least twice a year to remove accumulated dust and dirt.

• Set the selector switch to position Ⓞ to switch off. Remove the mains plug from the wall socket. Wait for the heater to cool down sufficiently.
• You may clean the outside of the heater with a damp cloth or brush. Do not use water or allow water to come into the appliance. Do not use any abrasive and caustic cleaning agents!
• Never touch the heater in water! Danger to life!
• Clean the air inlet and outlet grilles regularly with a vacuum cleaner, using the brush attachment.

STORAGE

Keep the original box in which the heater was packed to store it during the warmer months when it is not in use. Clean the heater according to the instructions under Cleaning.

Pack the heater in the original box and store it in a cool, dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.

This product is only suitable for well insulated spaces or occasional use

Item FH 5008 A	Symbol		Value	Unit		Item FH 5008 A	Unit
Heat output						Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom		2.0	KW		manual heat charge control, with integrated thermostat	N/A
Minimum heat output (indicative)	P_min		1.0	KW		manual heat charge control with room and/or outdoor temperature feedback	N/A
Maximum continuous heat output	P_maxc		2.0	KW		electronic heat charge control with room and/or outdoor temperature feedback	N/A
Auxiliary electricity consumption						fan assisted heat output	N/A
At nominal heat output	el_max		0.023	KW		Type of heat output/room temperature control (select one)
At minimum heat output	el_min		0.023	KW		single stage heat output and no room temperature control	NO
In standby mode	el_SB		0	W		Two or more manual stages, no room temperature control	NO
						with mechanic thermostat room temperature control	YES
						with electronic room temperature control	NO
						electronic room temperature control plus day timer	NO
						electronic room temperature control plus week timer	NO
						Other control options (multiple selections possible)
						room temperature control, with presence detection	NO
						room temperature control, with open window detection	NO
						with distance control option	NO
						with adaptive start control	NO
						with working time limitation	NO
						with black bulb sensor	NO
Contact details info		SONIFER SA. Avenida de Santiago 86, 30007, Murcia. Spain.
